  1. Thank you for this opportunity. Empowering the Mobile WorkForce with .NET Technology Demo Center — Rendezvous Point: Atlantic Tuesday, February 23, 2010 10:30 AM – 12:00 PM Your Presenters today are: Mark Stewart & Michelle Leale Phone: 616-554-9060 e-Mail: QAD@radley.com

  2. Empowering the Mobile Workforce Increasing WorkForce Productivity By Design

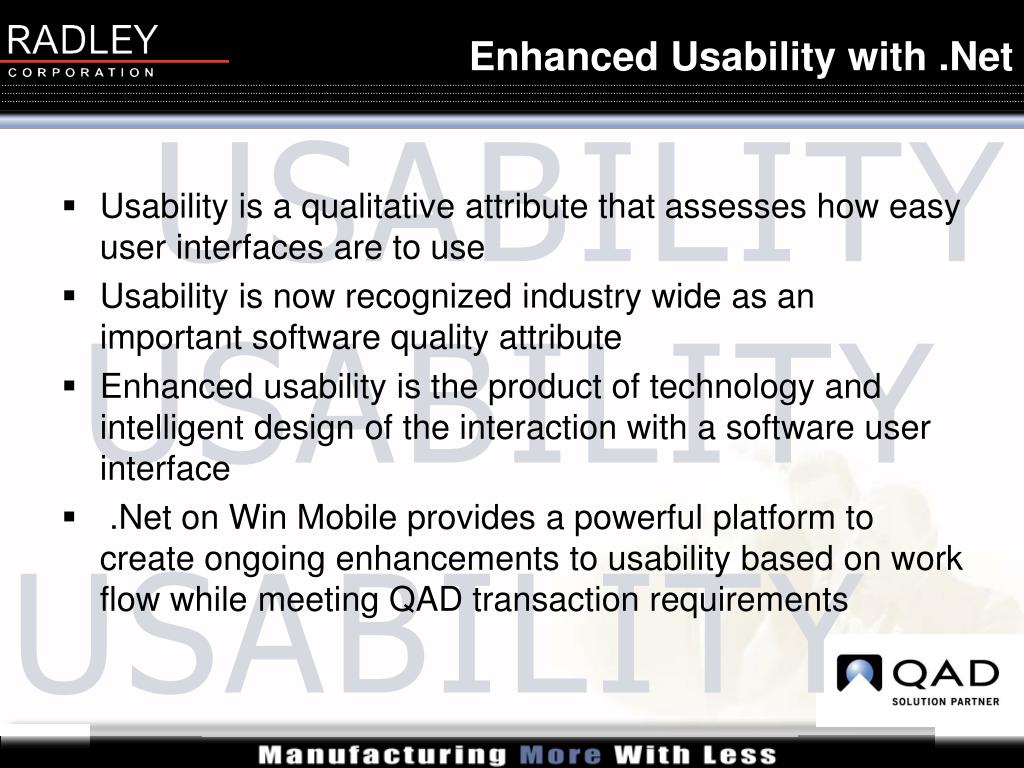

  3. Enhanced Usability with .Net Usability is a qualitative attribute that assesses how easy user interfaces are to use Usability is now recognized industry wide as an important software quality attribute Enhanced usability is the product of technology and intelligent design of the interaction with a software user interface .Net on Win Mobile provides a powerful platform to create ongoing enhancements to usability based on work flow while meeting QAD transaction requirements USABILITY USABILITY USABILITY

  4. Attributes of Usability Familiarity: Do users associate the look and feel with other designs they have seen? Learnability: How easy is it for users to accomplish basic tasks the first time they encounter the design? Efficiency: Once users have learned the design, how quickly can they perform tasks? Memorability: When users return to the design after a period of not using it, how easily can they re establish proficiency?

  5. Increased Efficiency Intelligent Prompting e.g.: Lot, serial, data defaults No manual entry on mobile device Data access responsiveness No clicking “Ok” to close windows Information return only if not “Ok” Minimize total click count Navigation + scan count

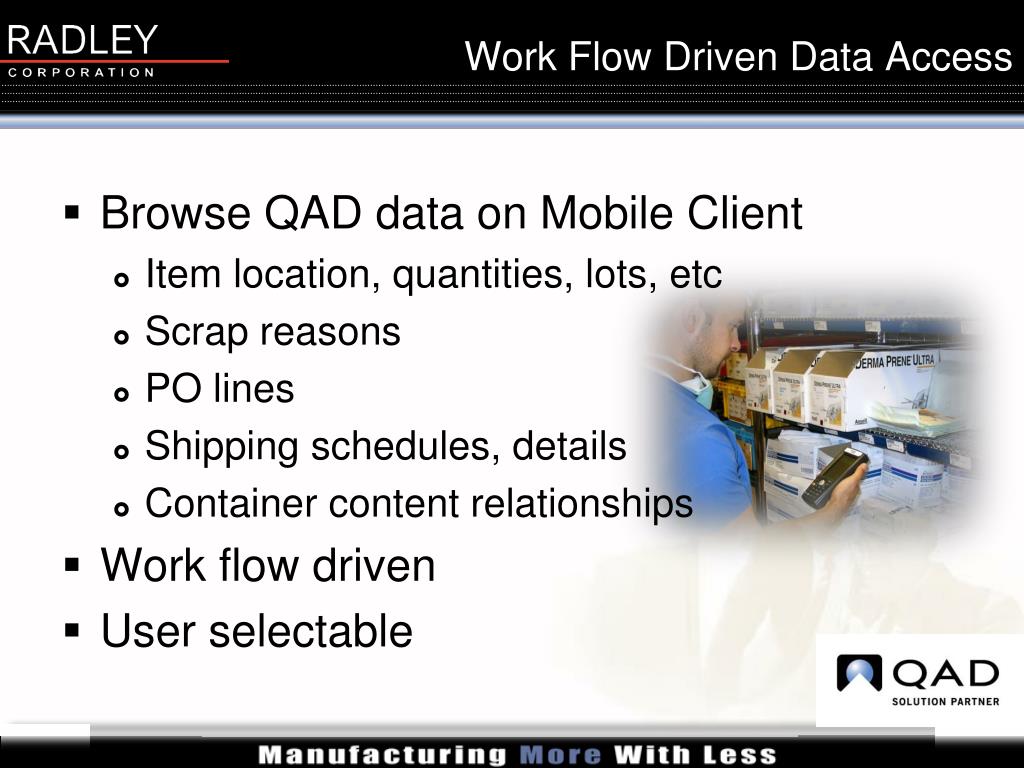

  6. Work Flow Driven Data Access Browse QAD data on Mobile Client Item location, quantities, lots, etc Scrap reasons PO lines Shipping schedules, details Container content relationships Work flow driven User selectable

  7. Empowering the Mobile Workforce Usability and Efficiency In Action! - Item Transfer - Manual vs. Automated [Play Video]

  8. Empowering the Mobile Workforce Leveraging .Net Beyond the User Interface

  9. Manual Data Entry Manual Time Keeping Manual Data Collection from Machinery Manual Shop Floor Execution QAD Enterprise Applications Shop Floor Execution QAD Transactions Receiving QAD Inventory Manufacturing Labeling Payroll/ Other Shipping 10

  10. Automatic Data Collection Automatic Time Keeping PLC/Machine Integration QAD Data Collection (DC) QAD Enterprise Applications Shop Floor Execution QAD Transactions Receiving QAD Inventory QAD Data Collection Manufacturing Labeling Payroll/ Other Shipping 11

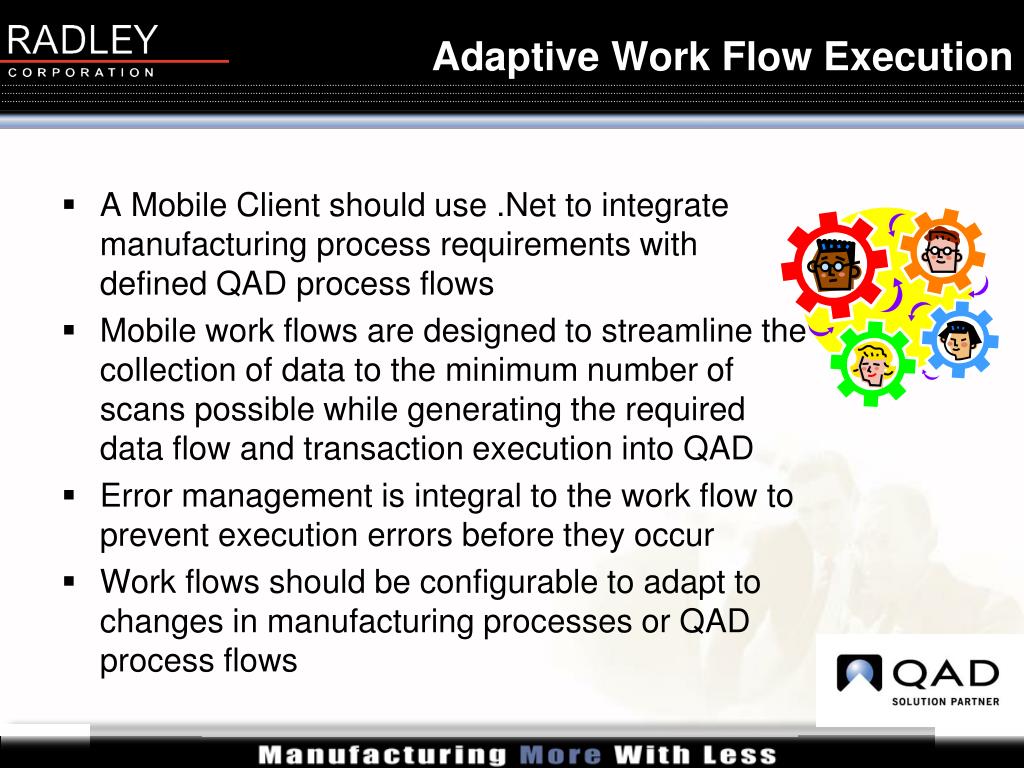

  11. Adaptive Work Flow Execution A Mobile Client should use .Net to integrate manufacturing process requirements with defined QAD process flows Mobile work flows are designed to streamline the collection of data to the minimum number of scans possible while generating the required data flow and transaction execution into QAD Error management is integral to the work flow to prevent execution errors before they occur Work flows should be configurable to adapt to changes in manufacturing processes or QAD process flows

  12. or Enhanced Mobile Client capabilities using .Net on Win Mobile On the WAN Connected Mobile Client Data Model Single HW server, distributed HW, Or Virtual Servers WiFi Mobile Client QAD Server Q*ADC Server • Less reliant on database for validation and defaults • Takes advantage of mobile technology

  13. or Enhanced Mobile Client capabilities using .Net on Win Mobile Or off the WAN Offline (batch) Mobile Client Data Model Single HW server, distributed HW, Or Virtual Servers Replicated data from database server for offline mode Mobile Client Q*ADC Server QAD Server • Full power of mobile technology leveraged • Windows Mobile • SQL Compact Server on device • Local storage

  14. Configure Screens/Menus to Match Business Processes

  15. Localized for the Mobile WorkForce Device-Level Multiple Language Support

  16. Empowering the Mobile Workforce Adapting the Work Flow! - Consolidated transactions - Multi language

  17. 2D Labeling 2D Labeling More Than Just a Mandate

  18. What is 2D? • 2D can contain up to 1,000 characters, depending on format vs. 20 characters in a 1 dimensional barcode • Linear barcodes (or 1D) get longer as more data is encoded • 2D barcode encode data in both the horizontal and vertical dimensions • 1D barcodes typically depend on links to a larger database • 2D contains a sort of mini-database itself, which includes information on the product and its attributes which can be encrypted

  19. Some 2D Symbologies PDF417 Data Matrix Aztec Code MaxiCode HCCB Supporting 2D means more than just hardware scanning support. Your DC software must support the migration

  20. Empowering the Mobile Workforce Leveraging 2D Demonstrated! PO Receipt 1D vs. 2D

  21. PO # PO200253 *PO200253* Item # 49288 *49288* Qty 17 *17* Lot 98231112 *98231112*

  22. Intelligent Labeling From Automated Labeling To Intelligent Labeling

  23. Intelligent Labeling Print predefined labels Mobile label printing Document printing Internet label printing Printer Management Define printers, label format & printer hierarchy Link devices to users, users to printers and transaction type to label format Accurate labels, in the right place, at the right time, in the right quantity!

  24. Nested Container/Inventory Management License Plate System “Master, mixed, detail labels on steroids” Associate multiple data elements with a single serial/license plate # scan: Warehouse / Location Employee ID Part / Lot / Serial Quantity / Unit of Measure Container Serial # PO / Vendor Other IntelliLabelTM • A great tool for selective serial numbering, kitting / bagging, etc.

  25. IntelliLabelTM Update QAD with the status of: - 1 Box of - 12 Items …via a single label scan in your Q*ADC transaction! 1 box of: - 12 lot & serial controlled items

  26. IntelliLabelTM Update IFS with the status of: • 1 Master Carton of • 12 boxes of • 144 items • . . . via a single label scan in your Q*ADC transaction! 1 Master Carton of: • 12 boxes of • 12 lot & serial controlled items

  27. IntelliLabelTM Update QAD with the status of: - 1 Pallet of - 27 Master Cartons of - 324 Boxes of - 3,888 Items . . . via a single label scan in your Q*ADC transaction! 1 pallet of: • 27 Master Cartons of • 12 boxes of • 12 lot & serial items

  28. IntelliLabel — Track & Trace History • Tracks pallet/container from receipt through manufacturing to shipment • Tracks associated PO/Job/Shop Order/Shipper history/parent-child relationships Control and/or verify pallet/container status • Active/Inactive • Assigned to job/work order • QA Hold or Accepted • WIP • Shipment status • Assignments Ideal for tracing customer defect alerts!

  29. Empowering the Mobile Workforce Here’s WorkForce Efficiency Amped! - Manual BF - Automated BF w/ IntelliLabel

  30. Empowering the Mobile Workforce More .Net WorkForce Productivity Apps

  31. Configure devices from your desktop Change device settings Push application and OS upgrades to devices Instant message devices Remote control devices Connect to devices to control or monitor users Automated version control Client devices automatically check for and pull new versions and restart Device Management

  32. Integration PLC’s Automated retrieval systems Scales Automated handling equipment MES Apply MES data to QAD x-actions Sensors Temperature Ovens, trucks, storage, etc.

  33. Time & Attendance Labor Tracking A Radley Workforce Productivity Solution

  34. Decrease Errors - Eliminate paper timesheets and other error-prone processes. Improve Accuracy – Manage overtime and apply pay and work policies consistently and accurately. Increase Productivity - Employees experience ease of use, allowing them to focus on higher value activities. Biometric capabilities are available. Increase Visibility - Make use of reliable data and increase visibility into critical workplace activities. Control Costs and Increase Productivitywith Time & Attendance

  35. Reduce labor costs by streamlining your operations, eliminating manual processes. Improve Productivity – real time transactions provide managers key information for decision making opportunities. Increase Visibility – our Productivity Monitor integration into Labor Tracking makes it easier for supervisors and managers to make decisions and focus on continuous improvement. This insight provides more control over productivity and labor costs. Control Costs and Increase Productivitywith Labor Tracking

  36. Workers clock-in and clock-out using badges or biometrics Manage worker shift schedules, breaks and lunch Track vacation accrual, scheduled vacation and absences Manage standard and contract specific pay rules Calculate hours worked by day, by week, by pay period Send employee pay period hours to payroll for check processing Time and Attendance Basics

  37. Labor Tracking Basics Workers clock-in to jobs they are assigned to throughout the day Collect job specific data i.e.; setup/run, job number, quantity, lot, serial, scrap, etc. Ability to calculate by one worker to one job, one worker to multiple jobs, multiple workers to one job Manage shift schedules Manage crew scheduling and processing Calculate actual labor by worker, by job Update work orders, job, project, schedule, etc. with actual labor

  38. User Profiles • Hourly Workers are the core users of the system • They simply clock-in and out or onto jobs • System handles all back end processing and exceptions • Supervisors review their assigned employees pay hours and/or labor data • Approve hours worked • Edit employee exceptions (tardy, overtime, etc.) • Human Resources roll up pay period hours and export to payroll, internal or third party

  39. Empowering the Mobile Workforce Coming Soon!

  40. What are we working on? • Document capture for traceability • Image capture for traceability • iPhone apps for access and control of manufacturing execution events and exceptions • Mobile inventory management • Visibility and control of inventory outside of QAD

  41. Empowering the Mobile Workforce Prototype demo: Document Capture for Traceability

  42. Questions?

  43. Workforce Productivity Solutions for An Integrated Mobile Automated Data Collection Development Platform Brought to you by: Radley Corporation Data Collection Division 4595 Broadmoor SE, Suite 115 Grand Rapids, MI 49512 www.radley.com
