ADVANCED TRAFFIC CONTROL TECHNIQUES FOR FREEWAY SYSTEMS (AND URBAN NETWORKS) by Prof. Markos Papageorgiou Dynamic Systems and Simulation Laboratory, Technical University of Crete, Chania, Greece

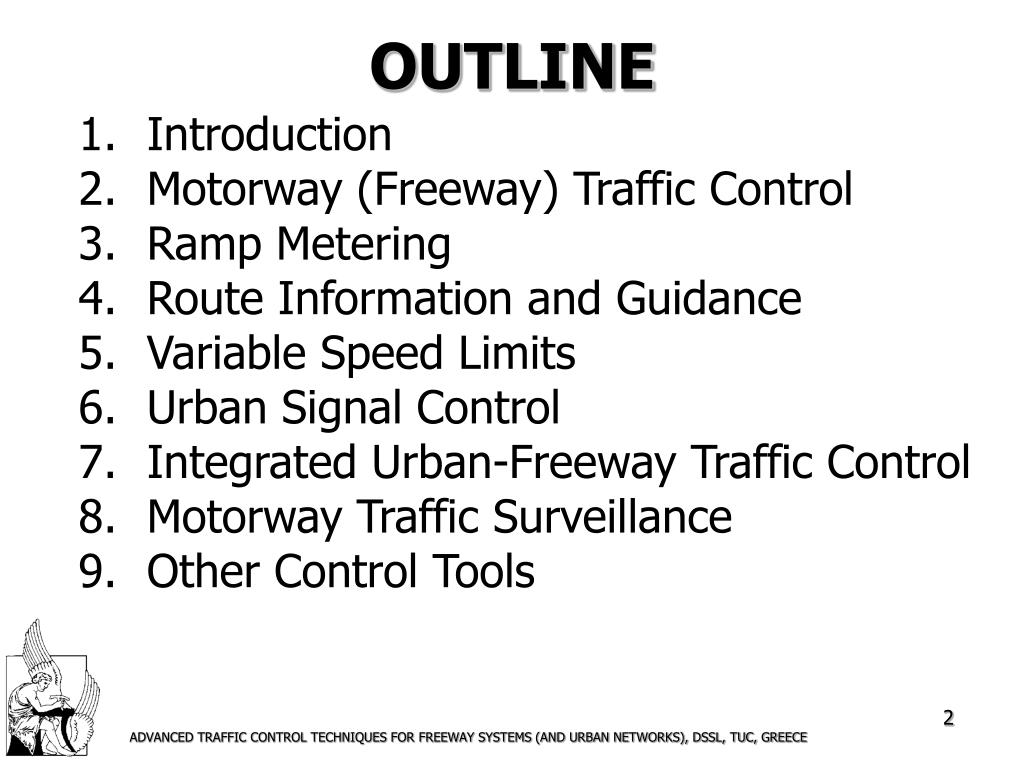

OUTLINE • Introduction • Motorway (Freeway) Traffic Control • Ramp Metering • Route Information and Guidance • Variable Speed Limits • Urban Signal Control • Integrated Urban-Freeway Traffic Control • Motorway Traffic Surveillance • Other Control Tools
1. INTRODUCTION Who are we? Dynamic Systems and Simulation Laboratory (DSSL) (~ 15 Professors, Researchers, PhD/MSc Students) at the Technical University of Crete also acting occasionally as professional engineers. What is our Background? • Automatic Control • Electrical Engineering • Industrial Engineering • Civil Engineering

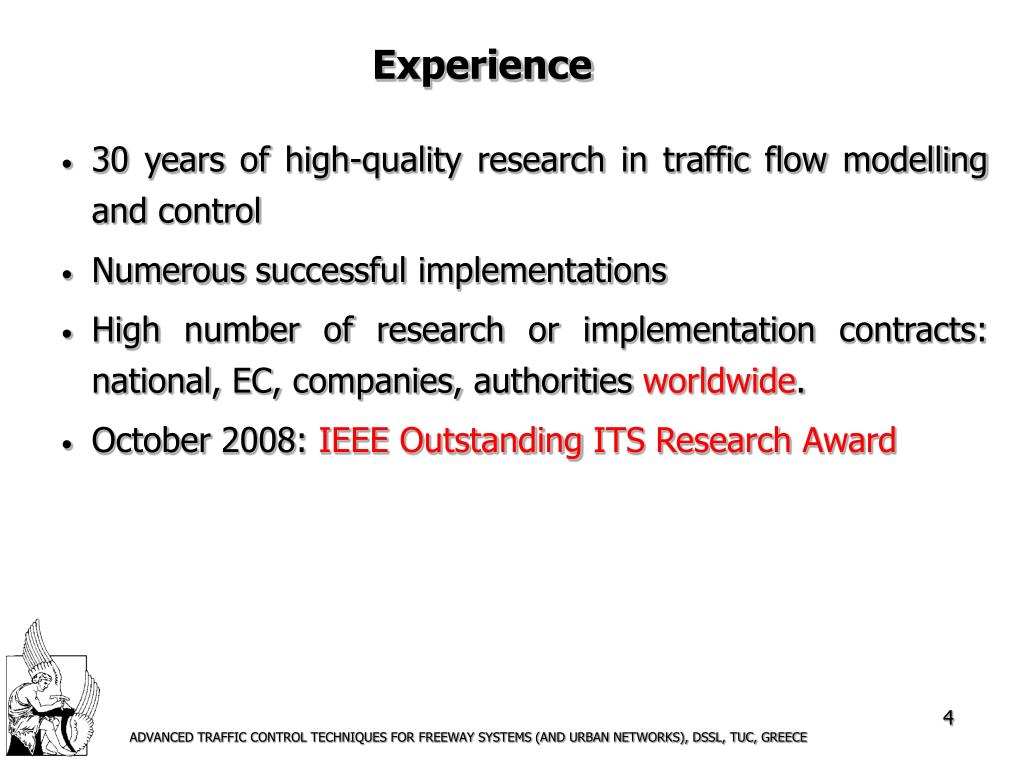

Experience • 30 years of high-quality research in traffic flow modelling and control • Numerous successful implementations • High number of research or implementation contracts: national, EC, companies, authorities worldwide. • October 2008: IEEE Outstanding ITS Research Award
What We Do Concepts Algorithms Software for traffic flow modelling, surveillance, route guidance, traffic control (freeway + urban) What we Don’t Do Implementation hardware, System integration Our Usual Partners • Road authorities • Local Consultants/University groups • Local System Integrators
Our Principles • Theoretical soundness: There is nothing more practical than a good theory • Practical Usefulness. • General Applicability, Interoperability • Highest Efficiency: deep understanding • Practicability: As simple as possible, as complex as necessary.

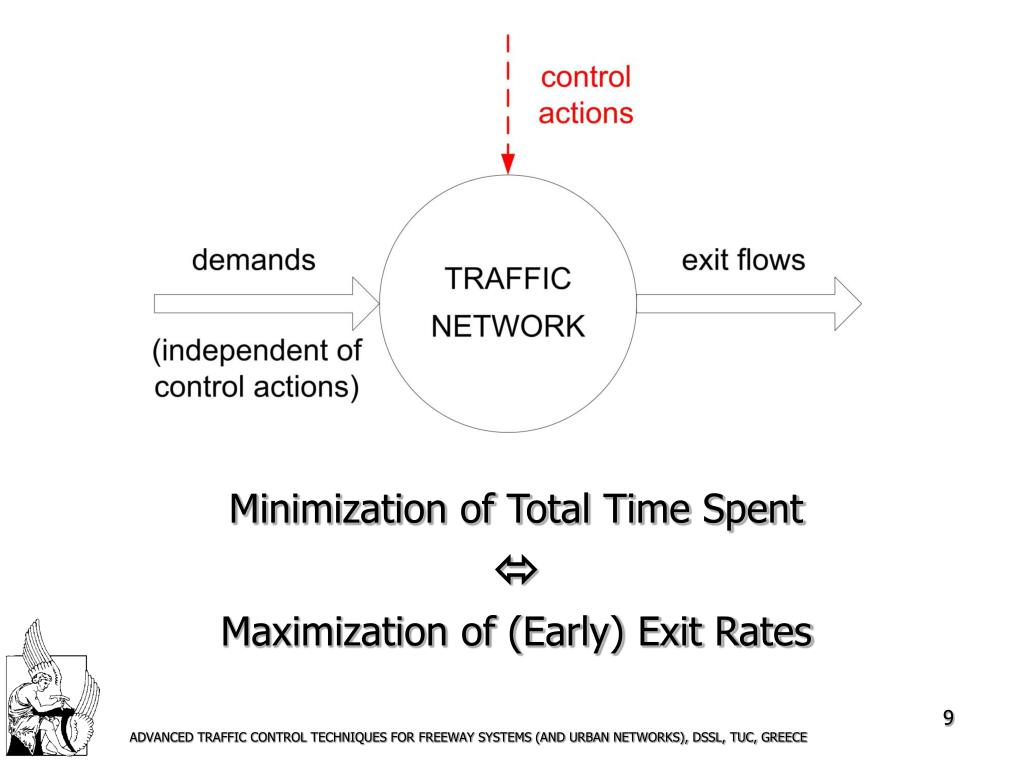

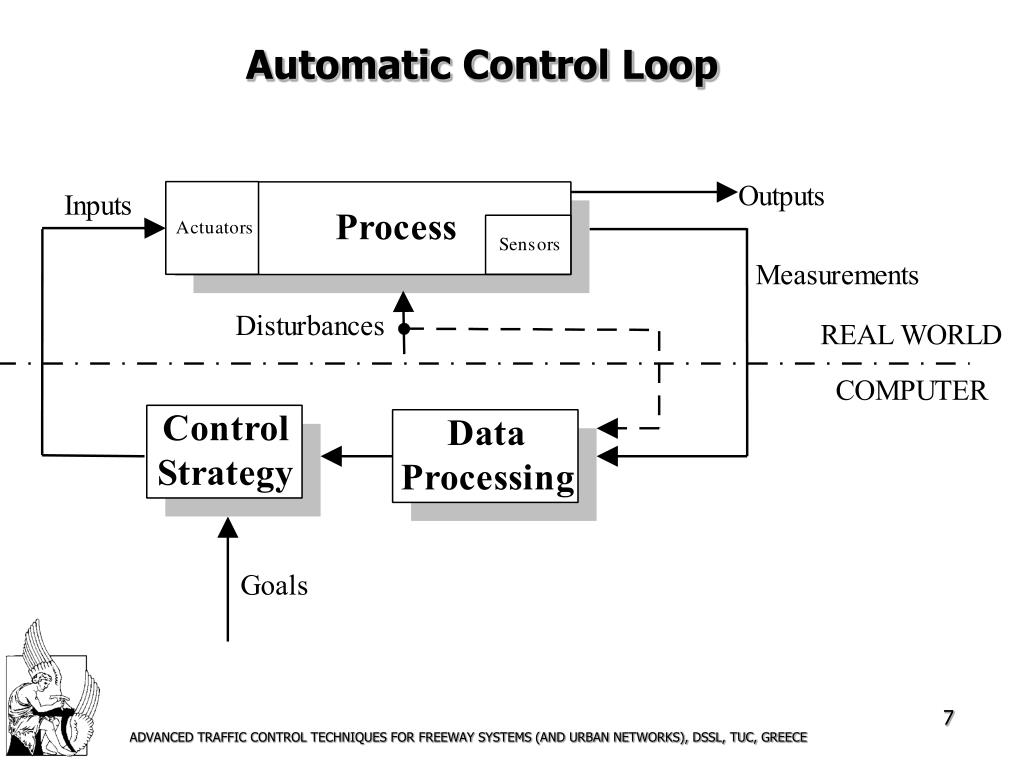

Minimization of Total Time Spent Maximization of (Early) Exit Rates

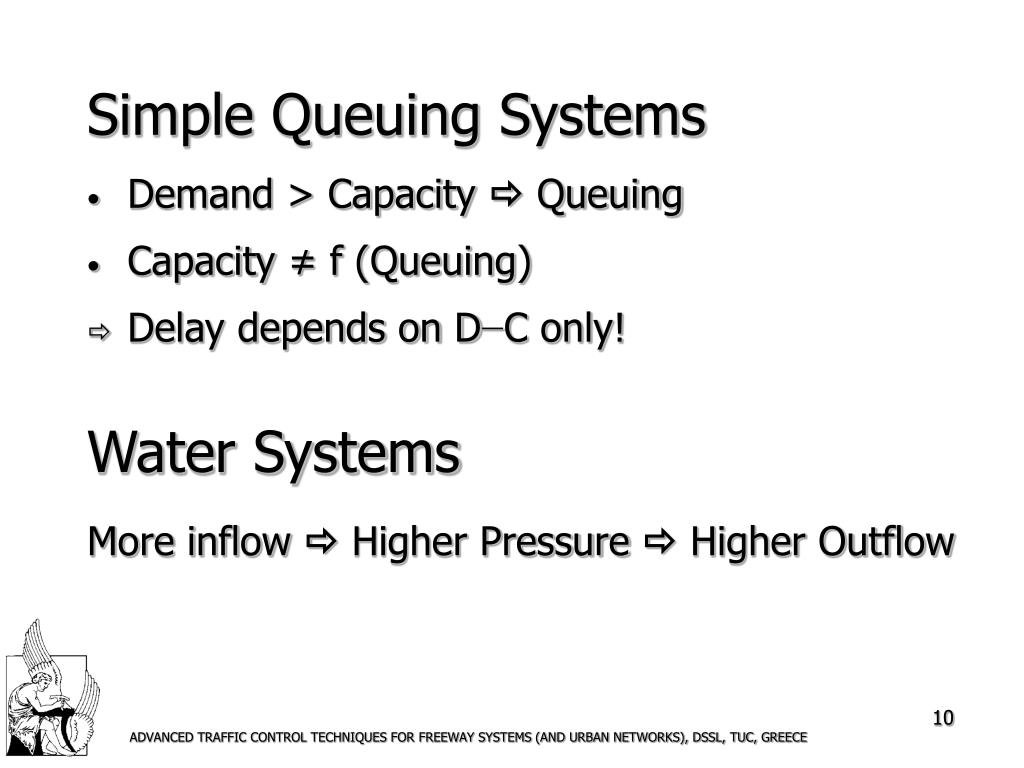

Simple Queuing Systems • Demand > Capacity Queuing • Capacity ≠ f (Queuing) • Delay depends on D−C only! Water Systems More inflow Higher Pressure Higher Outflow
Traffic Networks • Congestion degrades the infrastructure (capacity) Local link demand exceeds local capacity Local congestion degrades local capacity Accelerated increase of congestion Further capacity degradation ... until generalized network congestion although Demand << Nominal network capacity
Conclusion: Generalized traffic congestion is not only due to high demand. Congested Motorway Networks: Expensive infrastructure capacity not fully available at the only time it is actually needed, i.e. the peak periods! Goal: Operate motorway and urban networks optimally (as controllable systems)
2. MOTORWAY (FREEWAY) TRAFFIC CONTROL Motorways were originally conceived to provide virtually unlimited mobility to road users, but …
Man has reached to the moon but … … even ants were taught by evolution to address their transportation problems more efficiently, see I.D. Couzin and N.R. Franks: “Self-organized lane formation and optimized traffic flow in army ants”, Proc. R. Soc. Lond. B (2003) 270, 139–146
Available Motorway Control Measures • Ramp metering (RM): valuable; limited storage space • Variable speed limits (VSL): improved safety; no system improved efficiency • Route guidance (RG): best under incident-caused congestion • Vehicle-infrastructure integration (VII): promising; emerging
Prerequisite for efficient traffic control: Understanding the reasons for infrastructure degradation! • (Latent) Motorway bottleneck location: Capacity upstream > Capacity downstream • Bottlenecks are candidates for congestion appearance: • on-ramp merge • geometry (lane drop, grade, curvature, tunnel, …) • weaving • speed limits • over-spilling off-ramps
Two Main Reasons for Motorway Infrastructure Degradation 1. Capacity Drop (CD) CD not well-understood but is deemed to occur due to vehicle acceleration
2. Blocking of Off-Ramps (BOR) off-ramp flow reduced: vehicles bound for the off-ramp contribute to accelerated congestion increase!

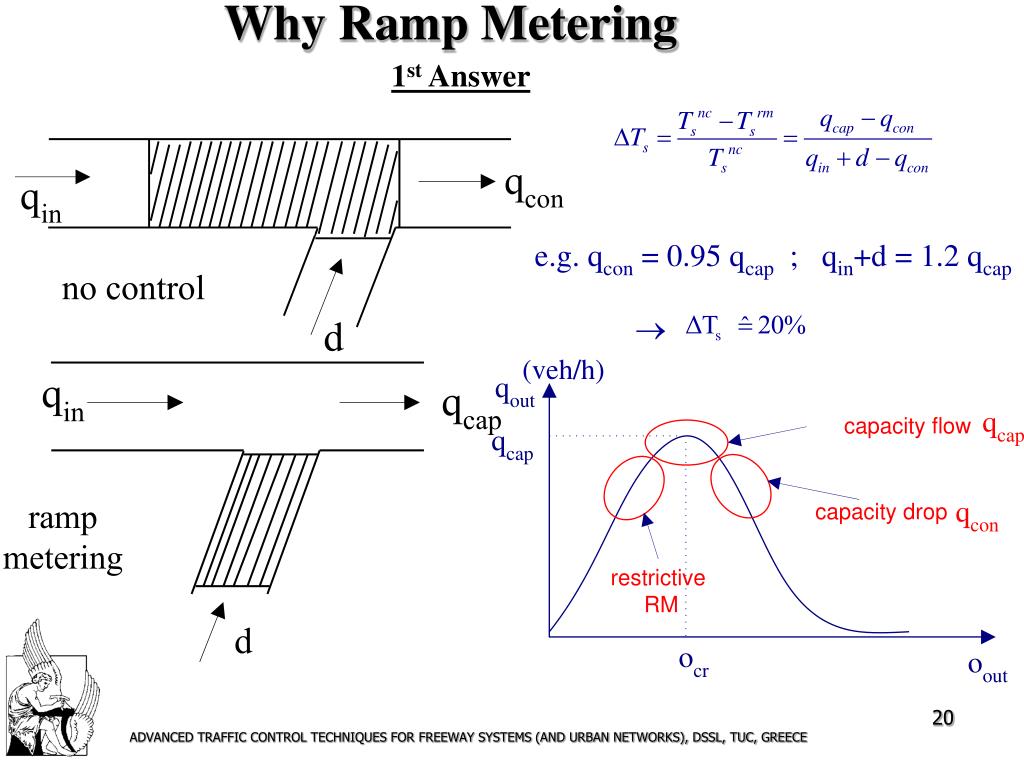

Why Ramp Metering 1st Answer e.g. qcon = 0.95 qcap ; qin+d = 1.2 qcap (veh/h)

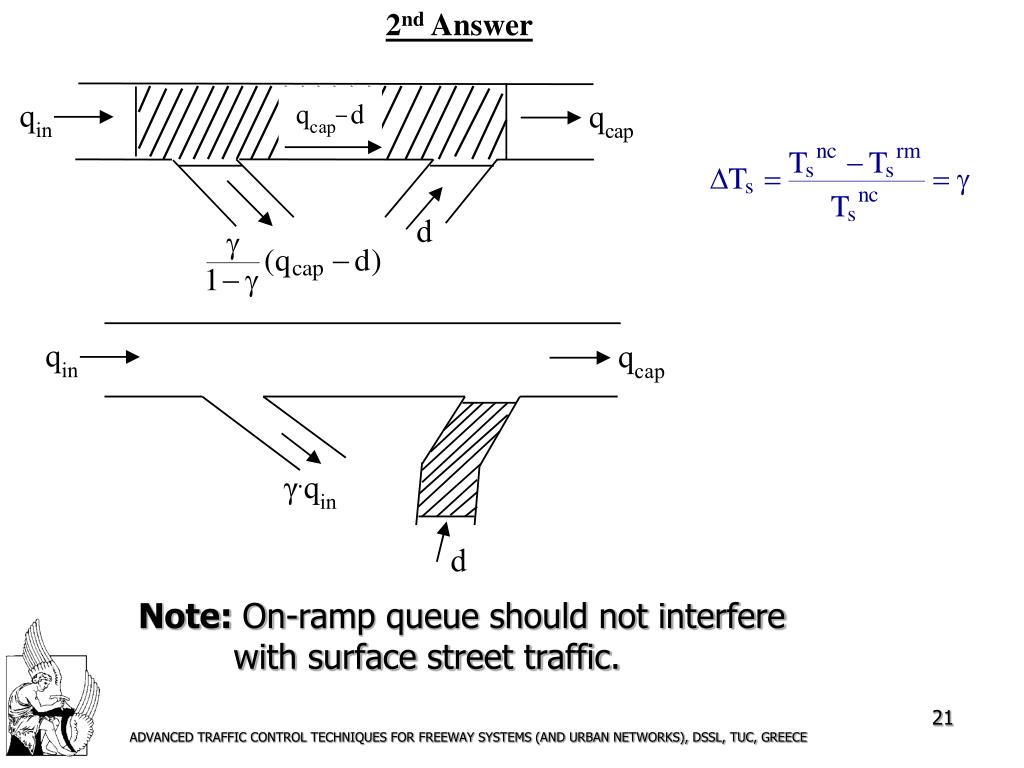

2nd Answer Note: On-ramp queue should not interfere with surface street traffic.

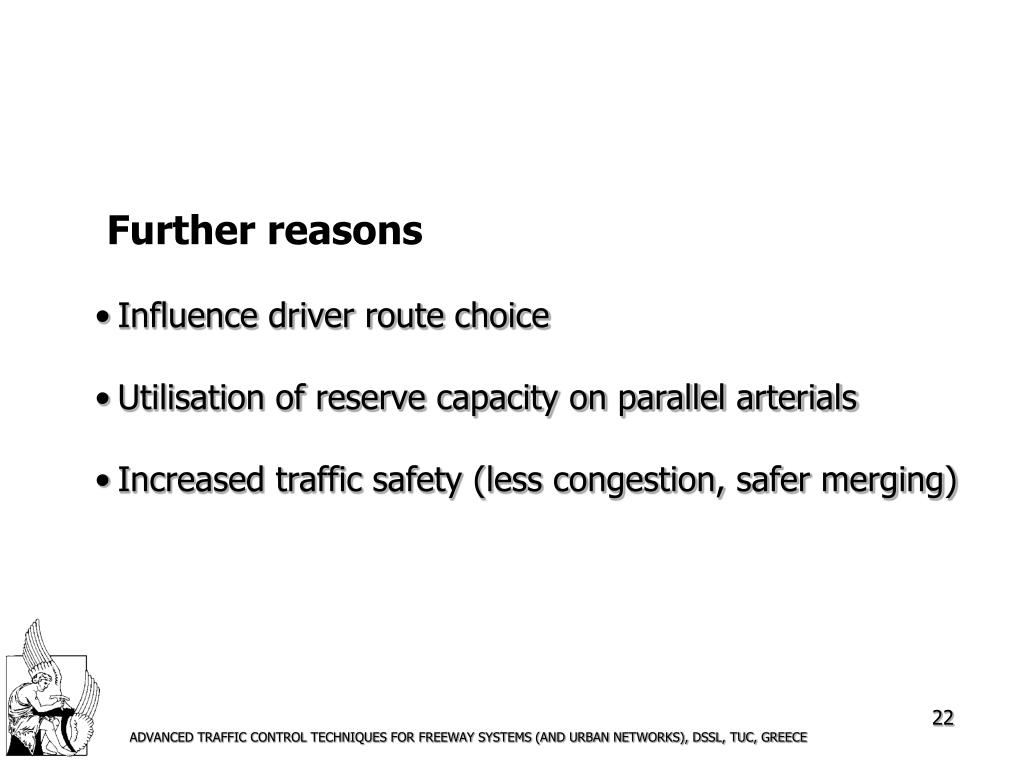

Further reasons • Influence driver route choice • Utilisation of reserve capacity on parallel arterials • Increased traffic safety (less congestion, safer merging)
When is ramp metering less helpful? Exit flow problems
Local Control Issues Note: ocr less sensitive than qcap (e.g. under adverse weather conditions)

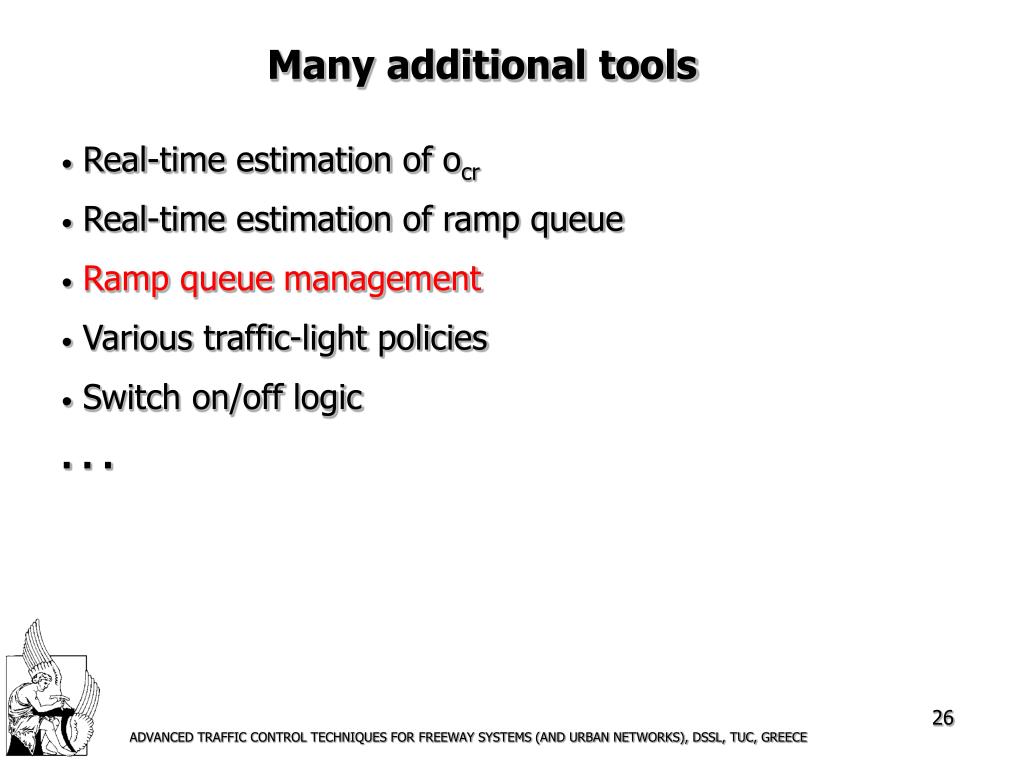

Many additional tools • Real-time estimation of ocr • Real-time estimation of ramp queue • Ramp queue management • Various traffic-light policies • Switch on/off logic . . .

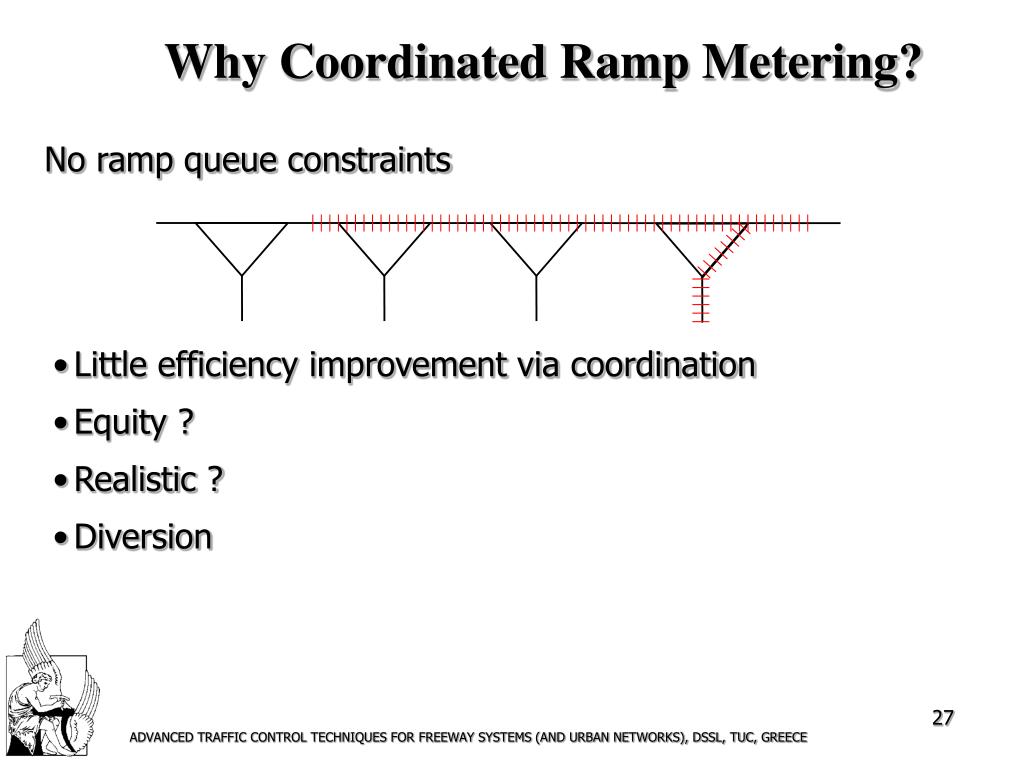

Why Coordinated Ramp Metering? No ramp queue constraints • Little efficiency improvement via coordination • Equity ? • Realistic ? • Diversion
Limited ramp storage capacity: • Full ramp Congestion “merely” retarded • Equity: bad significant improvement of both efficiency and equity via appropriate coordination
HERO: Ramp Metering coordination algorithm • Rule-based central control • employs (modified) ALINEA at each on-ramp • Master/Slave ramps for increased storage space • High efficiency (depending on available ramp storage space)

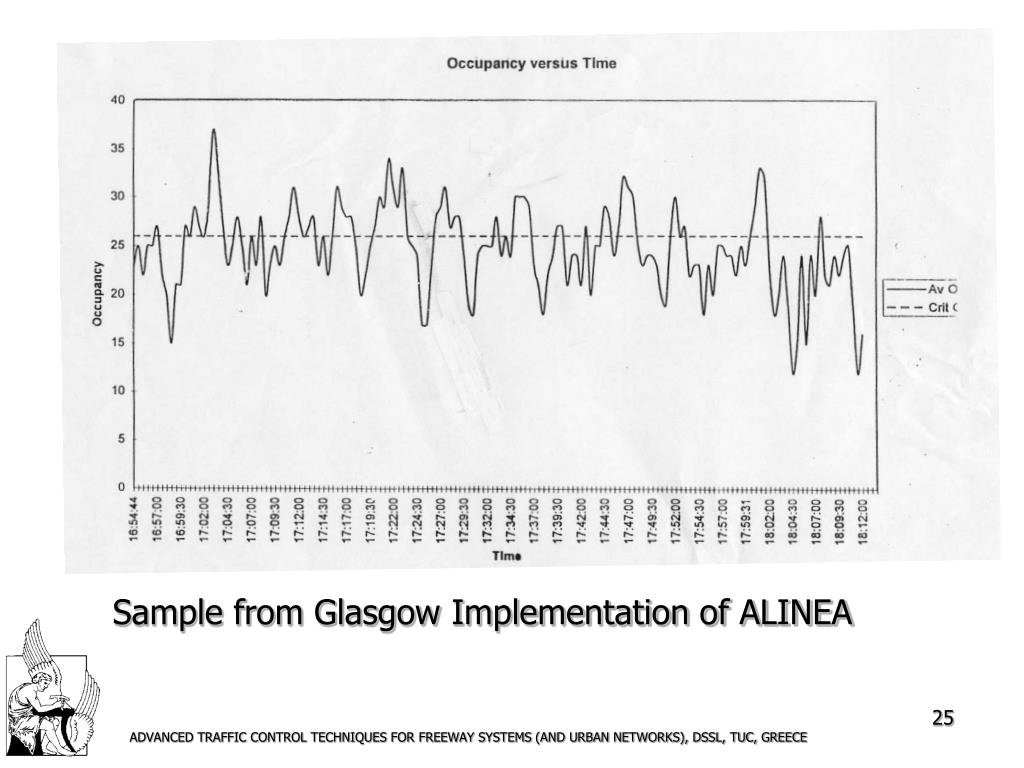

ALINEA Field Implementations >100 ramps in Europe (even w/o our involvement) • Boulevard Périphérique, Paris, France • A6, Ile-de-France • A10, Amsterdam, Netherlands • Glasgow, Scotland • A94, Munich, Germany • UK Highways Agency ramp metering roll-out • Tel Aviv, Israel . . . Status: Mature tool, ready for immediate implementation
HERO/ALINEA Field Implementations • A6, Ile-de-France (simplified) • Ile-de-France network (~ 80 ramps) • A10, Amsterdam, Netherlands (~ 40 ramps) • Monash Freeway, Melbourne, Australia (665 ramps) Status: Mature tool, ready for immediate implementation
4. ROUTE INFORMATION AND GUIDANCE • Multi-origin, multi-destination, multi-route per O-D pair. • Fixed direction signs: shortest path in absence of congestion • Rush hours • Changing demands, weather conditions, exceptional events, incidents underutilisation of infrastructure congestion, delays, reduced safety, increased fuel consumption, environmental pollution
VMS (Variable Message Signs) or two-way communication with equiped vehicles • Real-time information: – Drivers’ knowledge – Message length – Decision efficiency – System controllability – Travel time or queue length: drivers’ stress (e.g. BP in Paris) but also basis for route choice – Instantaneous (estimation) or predicted information • Route guidance – Control strategy
Automatic Control of VMS in Aalborg, Denmark • Main goal: efficient crossing (northbound or southbound) of Limfjorden via BRIDGE (urban) or TUNNEL (motorway) • Particularly in presence of incidents, road works etc. • 116 loop detectors; 14 VMS in front of important bifurcations • Sample time: 1min

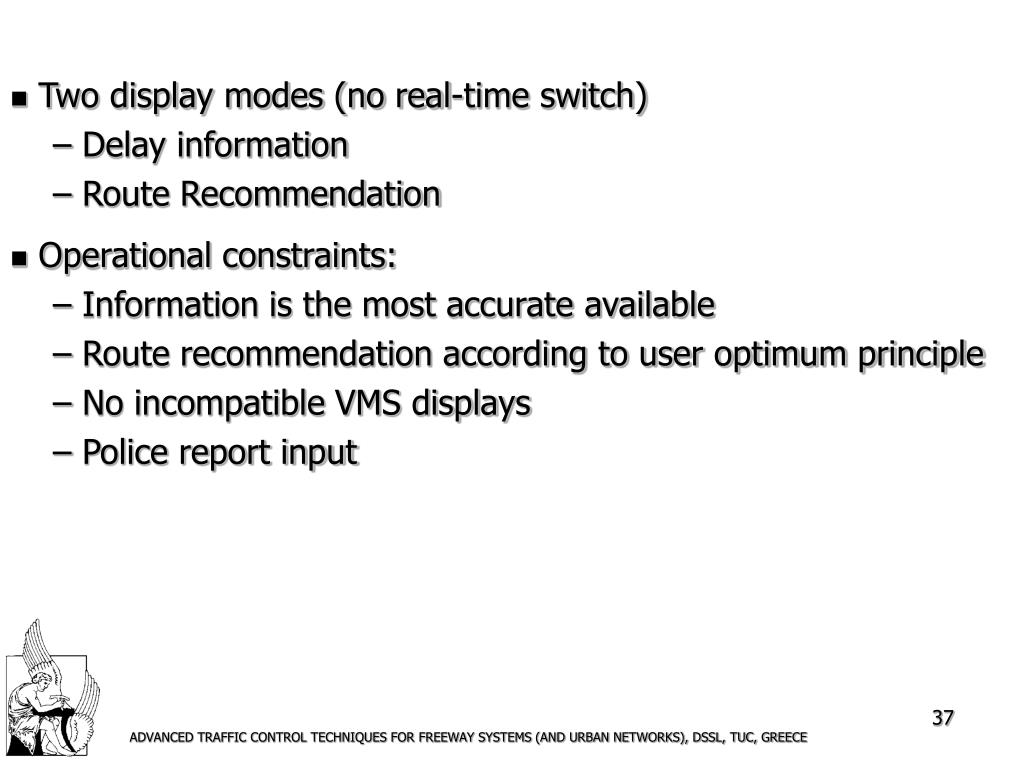

Two display modes (no real-time switch) – Delay information – Route Recommendation • Operational constraints: – Information is the most accurate available – Route recommendation according to user optimum principle – No incompatible VMS displays – Police report input
Aalborg network with VMS positions indicated. Bold black lines represent detector equipped segments.

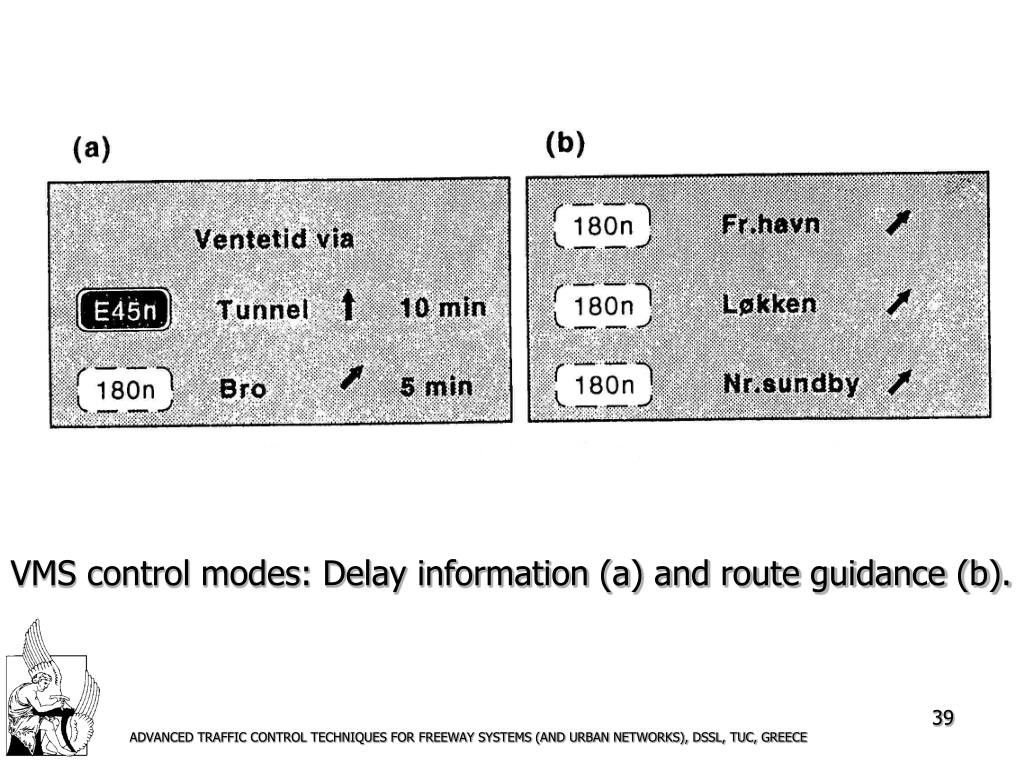

VMS control modes: Delay information (a) and route guidance (b).
Automatic Control of VMS in the Interurban Scottish Highway Network • Motorway/Expressway Network • Geographically extended ( predictions necessary) but less complex in topology. • VMS: Combination of Information and Route Recommendation
VMS Plans pre-approved (some 200) • Predictive/Feedback Strategy (Smith-Predictor type) • Off-line simulations • Implementation • Dummy Control • Evaluation/Comparison
Glasgow integrated traffic control • Also involved: Boulevard Périphérique travel time information system Status: Mature for implementation

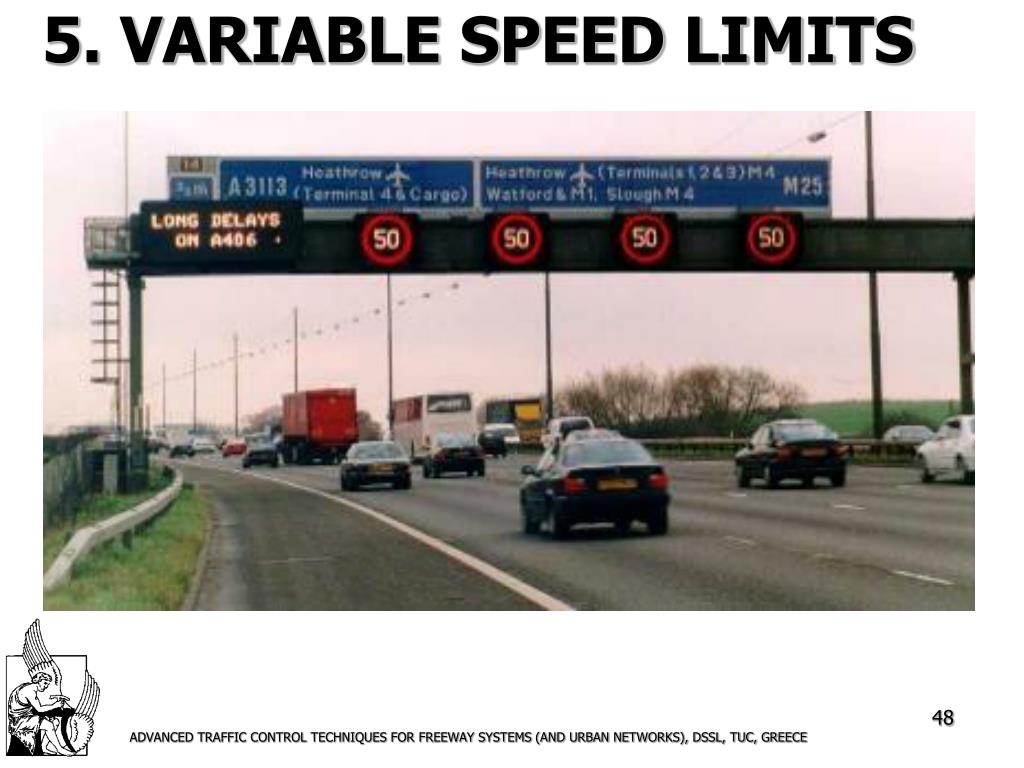

5. VARIABLE SPEED LIMITS • Increasingly popular control measure with many applications worldwide. • Several evaluations indicate substantial safety improvements (– 30 % accidents)… • … but no efficiency improvements (e.g. no reduction of travel times) • Why?
1) Very simple threshold-based control strategies An example of VSL switching logic.
