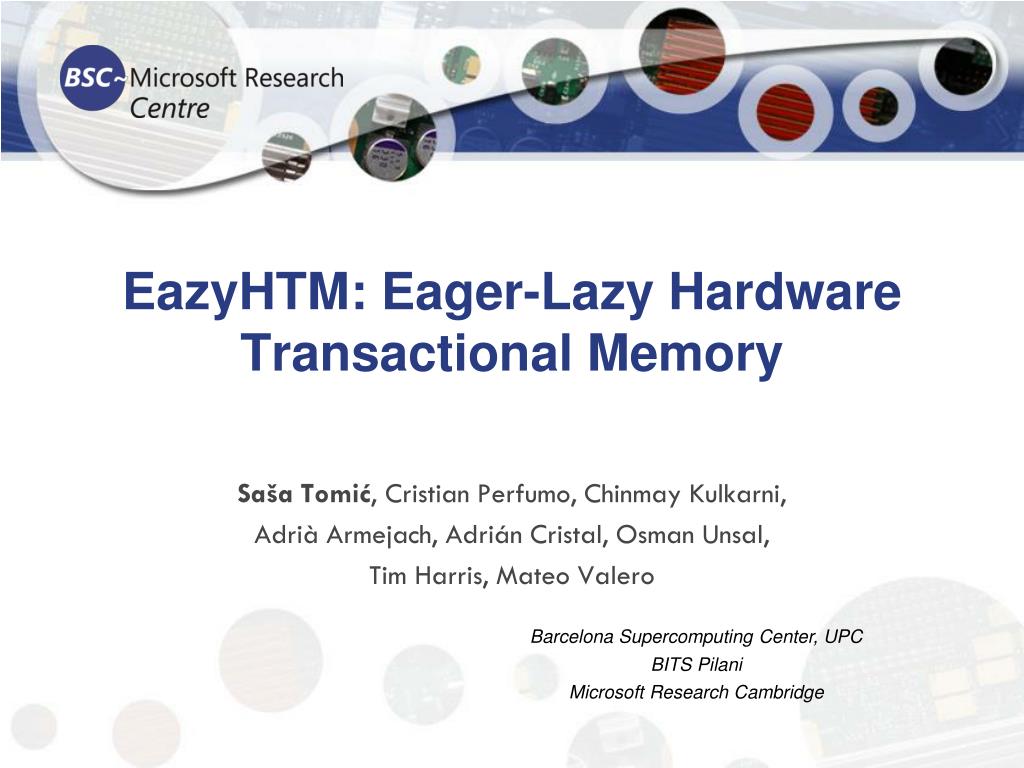

  1. EazyHTM: Eager-Lazy Hardware Transactional Memory SašaTomić, CristianPerfumo, ChinmayKulkarni, AdriàArmejach, Adrián Cristal, OsmanUnsal, Tim Harris, Mateo Valero Barcelona Supercomputing Center, UPC BITS Pilani Microsoft Research Cambridge

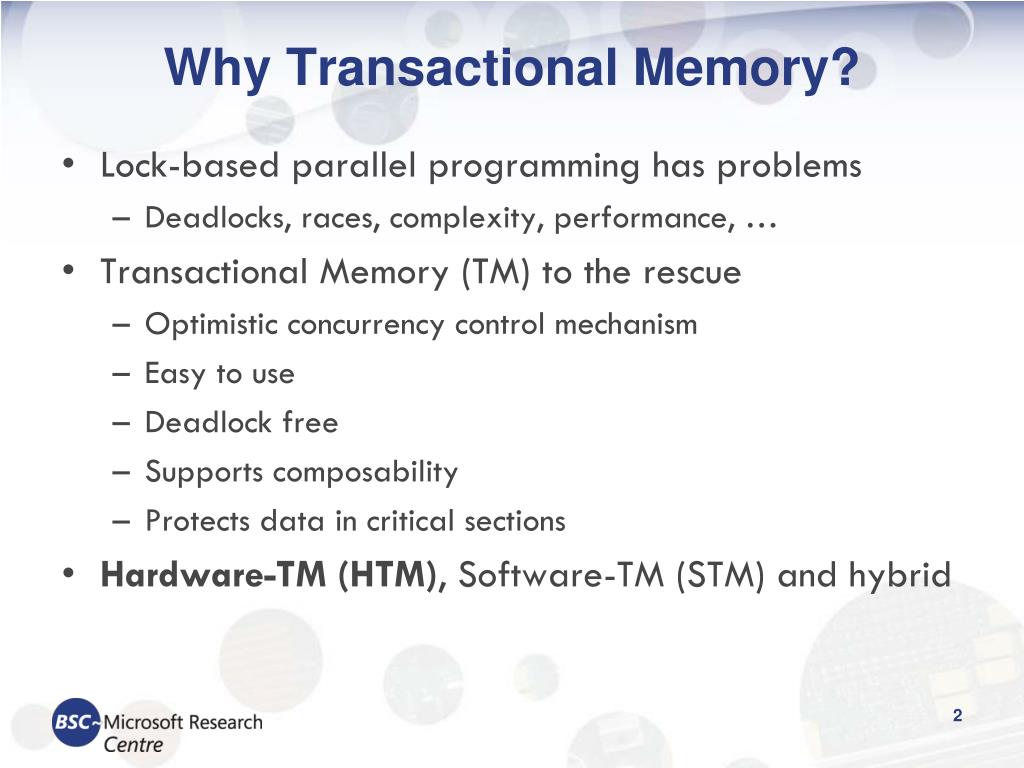

  2. Why Transactional Memory? • Lock-based parallel programming has problems • Deadlocks, races, complexity, performance, … • Transactional Memory (TM) to the rescue • Optimistic concurrency control mechanism • Easy to use • Deadlock free • Supports composability • Protects data in critical sections • Hardware-TM (HTM), Software-TM (STM) and hybrid

  3. HTM terminology • Atomic section/transaction: group of instructions that appear to take effect instantaneously • Where are speculative values stored (version management): • in-place, and log the original value, or • buffered in private storage, publish on commit • Conflict: TX writes where others TX reads • Detection: an action in which we check for conflicts • Resolution: an action performed to resolve the conflict • Can be abort, stalling the execution, …

  4. Eager HTM • A.k.a. pessimistic • Writes in-place, detects&resolves conflicts on every access • LogTM [Moore, HPCA06], LogTM-SE [Yen, HPCA07] TX 3 TX 1 Fast commit TX 2 W Slow abort R Stall Limited concurrency R fast commit

  5. Lazy HTM • A.k.a. optimistic • Writes buffered, detect&resolve conflicts on commit • TCC [Hammond, ISCA04], Scalable-TCC [Chafi, HPCA07] TX 3 TX 1 Fast abort TX 2 W Good concurrency R R Complex commit complex commit: validate + write

  6. The MotivationSplitting conflict management • Eager-Lazy hardware-software TM exists (FlexTM [Shriraman, ISCA08]): • Software begin, commit and abort • Probabilistic (signature based) conflict detection • EazyHTM is the first pure-hardware TM Conflict resolution Good concurrency Eager Lazy Fast commit EazyHTM Eager LogTM Conflict detection Lazy Impossible TCC, S-TCC

  7. Outline • Motivation • Contributions • Hardware changes • The Protocol • Evaluation • Conclusions

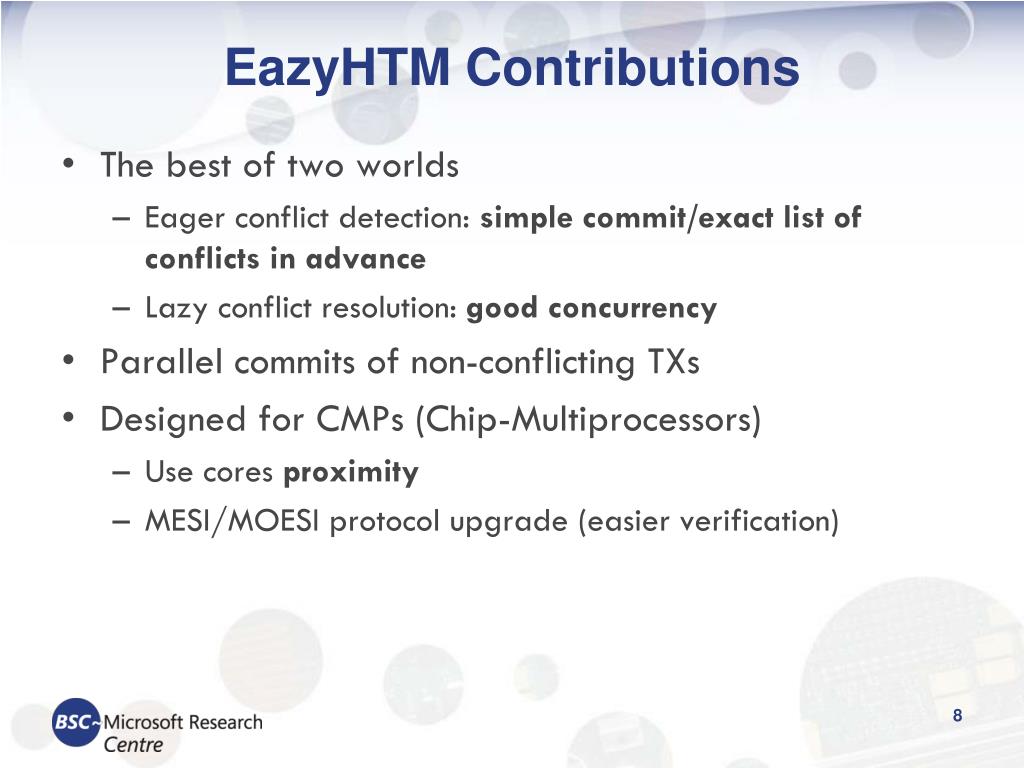

  8. EazyHTM Contributions • The best of two worlds • Eager conflict detection: simple commit/exact list of conflicts in advance • Lazy conflict resolution: good concurrency • Parallel commits of non-conflicting TXs • Designed for CMPs (Chip-Multiprocessors) • Use cores proximity • MESI/MOESI protocol upgrade (easier verification)

  9. Hardware changes read-only optimization bit (details in the paper) TD Existing directory logic Directory TD – 1 bit per line core ... core ... core ... holds read/write set SR SM Existing cache logic Private Cache(s) SR – 1 bit per line SM – 1 bit per line • tracks conflicts • bit-vector • 32 bits for 32 cores Register file checkpoint Racers list CPU Racers list – 1 bit per core Killers list – 1 bit per core Killers list

  10. Racers and killers list • If line is shared between two TXs: • Read-Read • No conflict • Write-Read, Read-Write, Write-Write • Writer adds reader TX into “racers” list • “TXs that I have to abort” list, if I commit first • Reader adds writer TX into “killers” list • “TXs that can abort me” list, if they commit first • We illustrate only the Write-after-Read (WAR) conflict

  11. EazyHTM Protocol Conflict Detection (1/2) TX 0 TX 2 BTX BTX RD A WR A CTX CTX no othersharers sharers @A Replaces GETS/GETX Directory ACK @A, 0 2 txMark @A 1 racers racers ... ... killers killers TX 0 TX 2

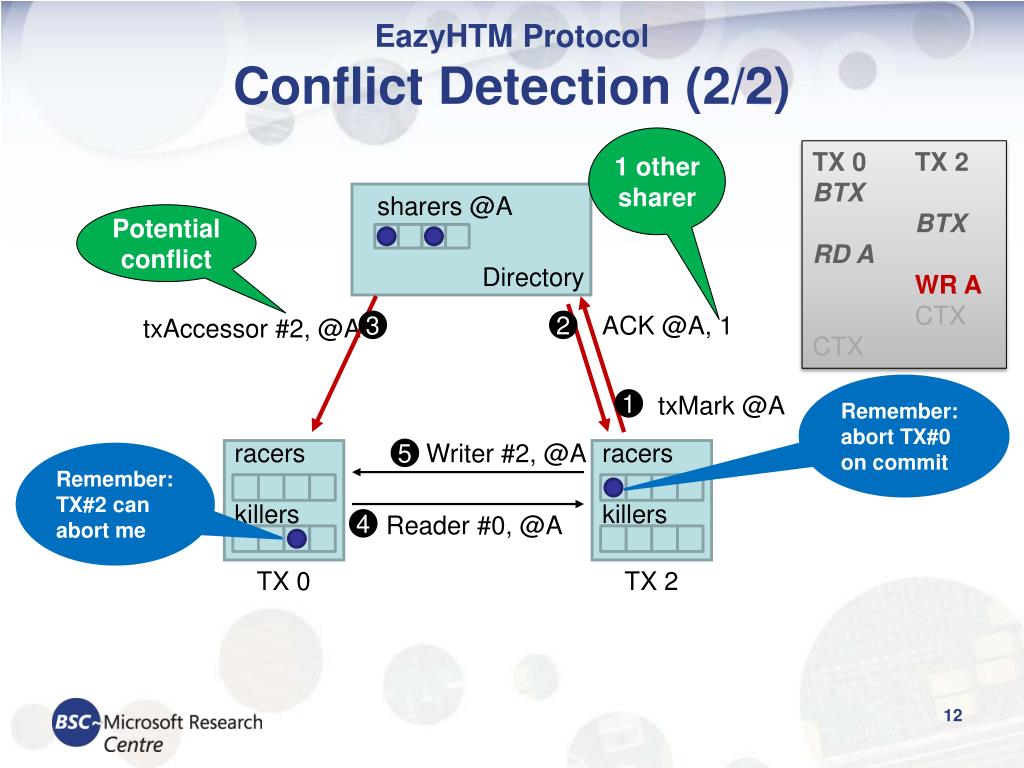

  12. EazyHTM Protocol Conflict Detection (2/2) 1 other sharer TX 0 TX 2 BTX BTX RD A WR A CTX CTX sharers @A Potential conflict Directory ACK @A, 1 txAccessor#2, @A 3 2 Remember: abort TX#0 on commit txMark@A 1 racers Writer #2, @A racers 5 Remember: TX#2 can abort me killers killers Reader #0, @A 4 TX 0 TX 2

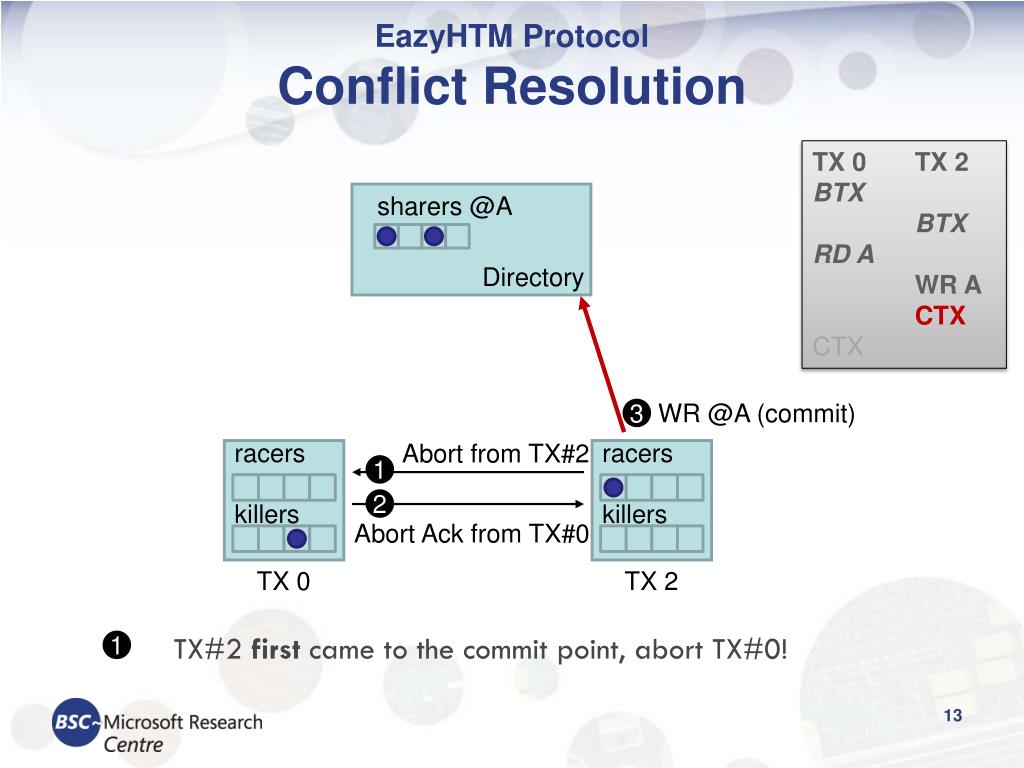

  13. EazyHTM Protocol Conflict Resolution TX 0 TX 2 BTX BTX RD A WR A CTX CTX sharers @A Directory WR @A (commit) 3 racers Abort from TX#2 racers 1 2 killers killers Abort Ack from TX#0 TX 0 TX 2 1 TX#2 first came to the commit point, abort TX#0!

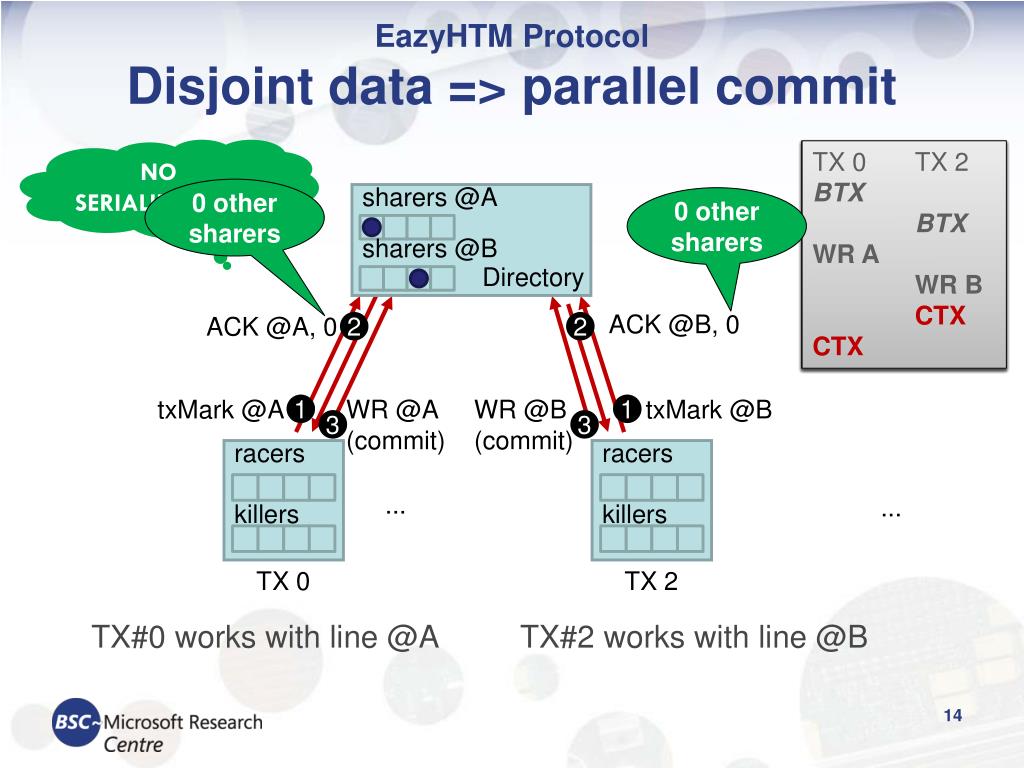

  14. EazyHTM Protocol Disjoint data => parallel commit NO SERIALIZATION TX 0 TX 2 BTX BTX WR A WR B CTX CTX TX 0 TX 2 BTX BTX WR A WR B CTX CTX TX 0 TX 2 BTX BTX WR A WR B CTX CTX sharers @A 0 othersharers 0 othersharers sharers @B Directory ACK @B, 0 ACK @A, 0 2 2 txMark@A WR @A (commit) WR @B (commit) txMark @B 1 1 3 3 racers racers ... ... killers killers TX 0 TX 2 TX#0 works with line @A TX#2 works with line @B

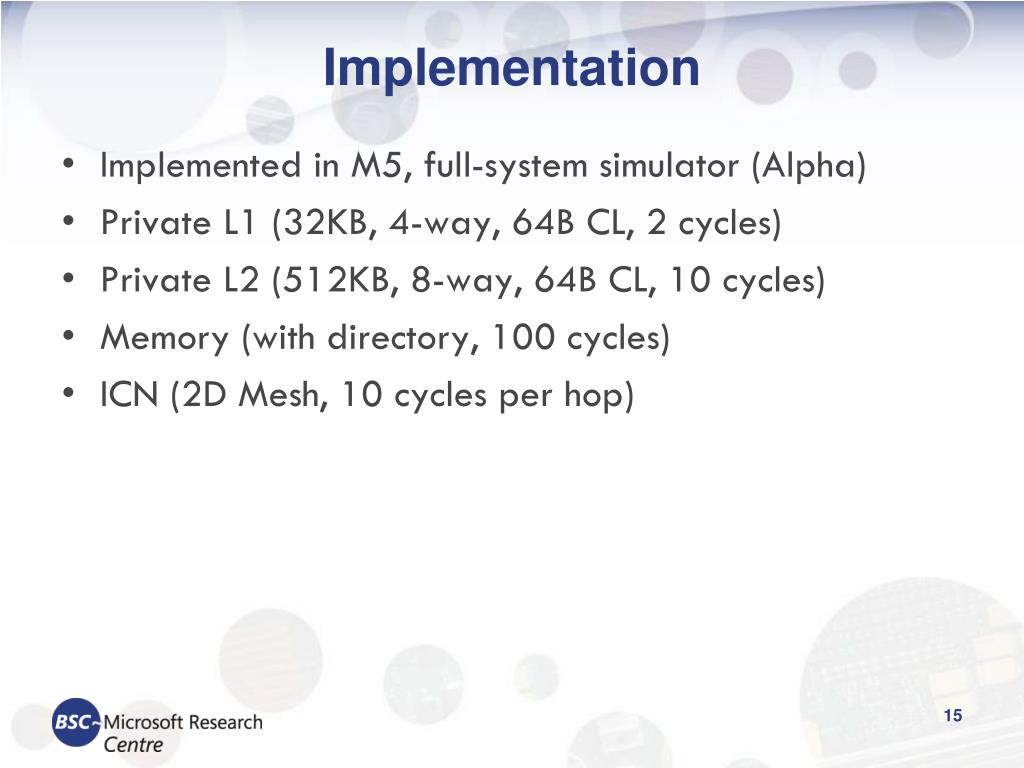

  15. Implementation • Implemented in M5, full-system simulator (Alpha) • Private L1 (32KB, 4-way, 64B CL, 2 cycles) • Private L2 (512KB, 8-way, 64B CL, 10 cycles) • Memory (with directory, 100 cycles) • ICN (2D Mesh, 10 cycles per hop)

  16. Evaluation • Evaluated STAMP benchmarks • Compared with Scalable-TCC-like HTM • Same base simulator • Implemented specialized directory protocol • Compared with ideal lazy HTM (MESI based) • magical conflict detection • instant conflict resolution • parallel write-back commit

  17. Kmeans Low Small TXs (RS 15 CL; WS 5 CL) Low contention(10% aborts) Similar profile to “replacing locks with atomic” Near ideal performance K-means: groups N-dimensional space into K clusters Most of the SPLASH-2 suite has similar profile

  18. SSCA2 Small TXs (RS 50 CL, WS 10 CL) Low contention(1.2% aborts) Near ideal performance Scalability affected by barriers, not by contention SSCA2: large directed graph operations

  19. Yada Large TXs (260 CL RS, 140 CL WS) Moderate contention (35% aborts) We can see good performance also for large TXs! Yada: delaunay mesh refinement

  20. Intruder Medium TXs (53 CL RS, 20 CL WS) High contention (85% aborts) Very bad scalability for all HTMs Every transaction detects conflicts over and over again – lot of conflict detection messages slow down the execution Intruder: signature based network intrusion detection system

  21. Only high-conflict STAMP >50% abort rate only High contention high-core-count should be optimized Averages: Labyrinth Intruder Kmeans-Hi Results highly affected by Intruder

  22. Only low-conflict STAMP <50% abort rate only Low abort rate necessary for scaling Excludes: Labyrinth 8-32 Intruder 16-32 Kmeans-Hi 32

  23. Conclusions • Introduced EazyHTM, a new HTM implementation • Eager conflict detection, lazy conflict resolution • Fast: performs well for low conflict parallel applications • Minimal changes to directory protocols (easier verification) • As scalable as standard directory protocol • EazyHTM mechanism could allow (future work): • Simpler transaction prioritization • Less wasted work • Better performance optimization • Power efficient TM mechanisms

  24. Thank you! Questions? sasa.tomic@bsc.es
