How FTIR works

FTIR spectrometer. continuous infrared spectrum . moduled infrared spectrum . sample cell. transmitted infrared light. external computer data storage. external eductor. meas. signal. Electronics / µC. results. absorption spectrum. measuring value displays.

elana
Download Presentation

How FTIR works

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

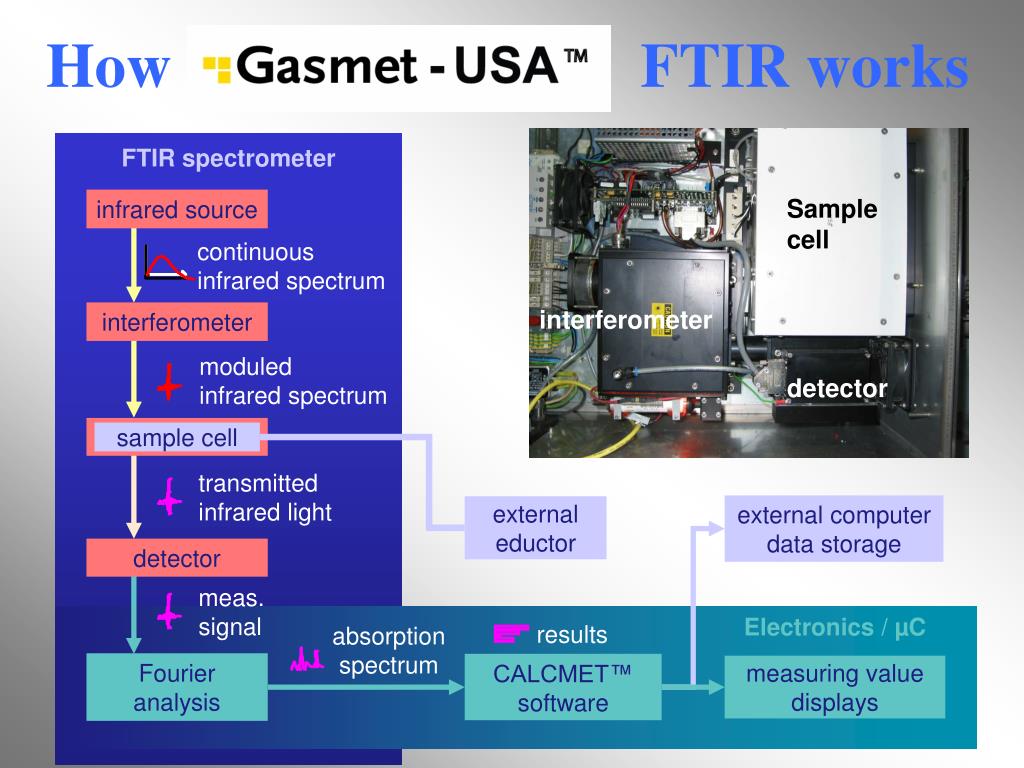

  1. FTIR spectrometer continuous infrared spectrum moduled infrared spectrum sample cell transmitted infrared light external computer data storage externaleductor meas. signal Electronics / µC results absorption spectrum measuring value displays How FTIR works Sample cell infrared source interferometer interferometer detector cuvette detector Fourier analysis CALCMET™ software

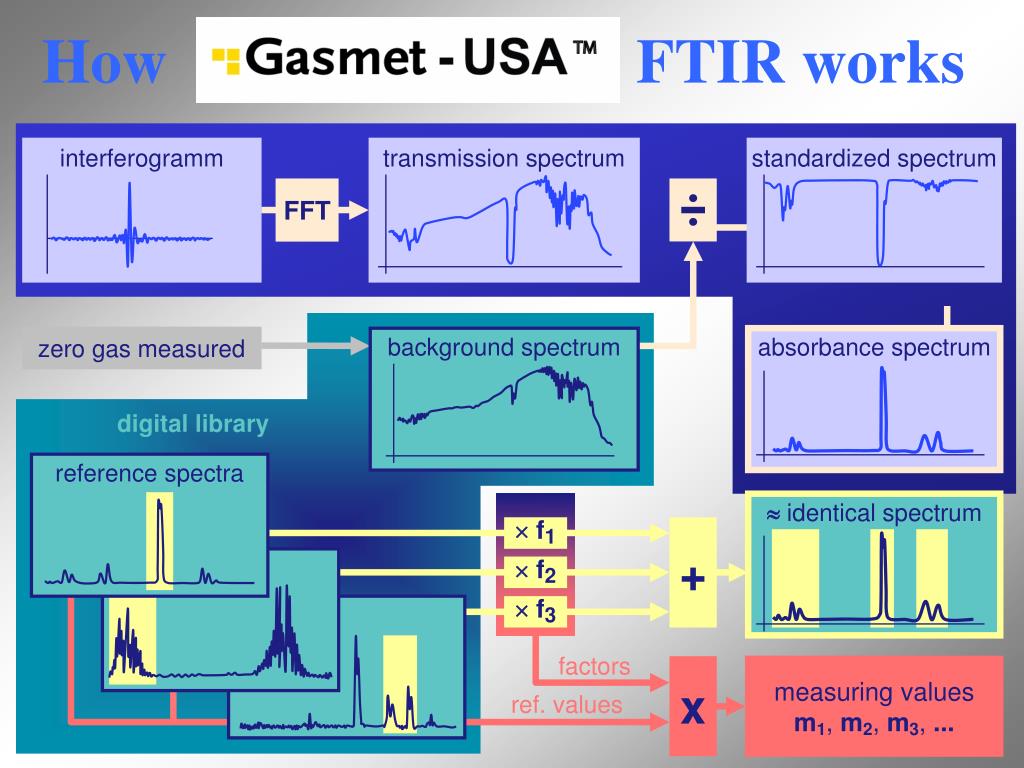

  2. measuring ... interferogramm transmission spectrum standardized spectrum FFT background spectrum absorbance spectrum digital library reference spectra » identical spectrum ´ f1 + ´ f2 ´ f3 factors x ref. values How FTIR works zero gas measured measuring values m1, m2, m3, ...

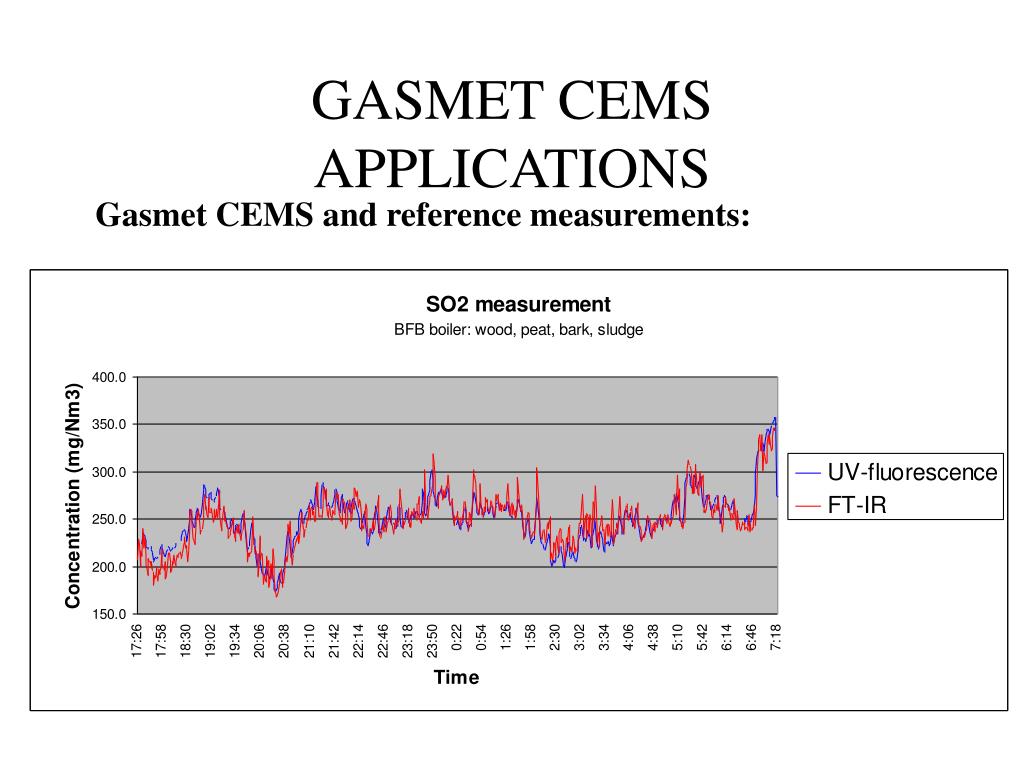

  3. GASMET CEMS APPLICATIONS Gasmet CEMS and reference measurements:

  4. GASMET CEMS APPLICATIONS

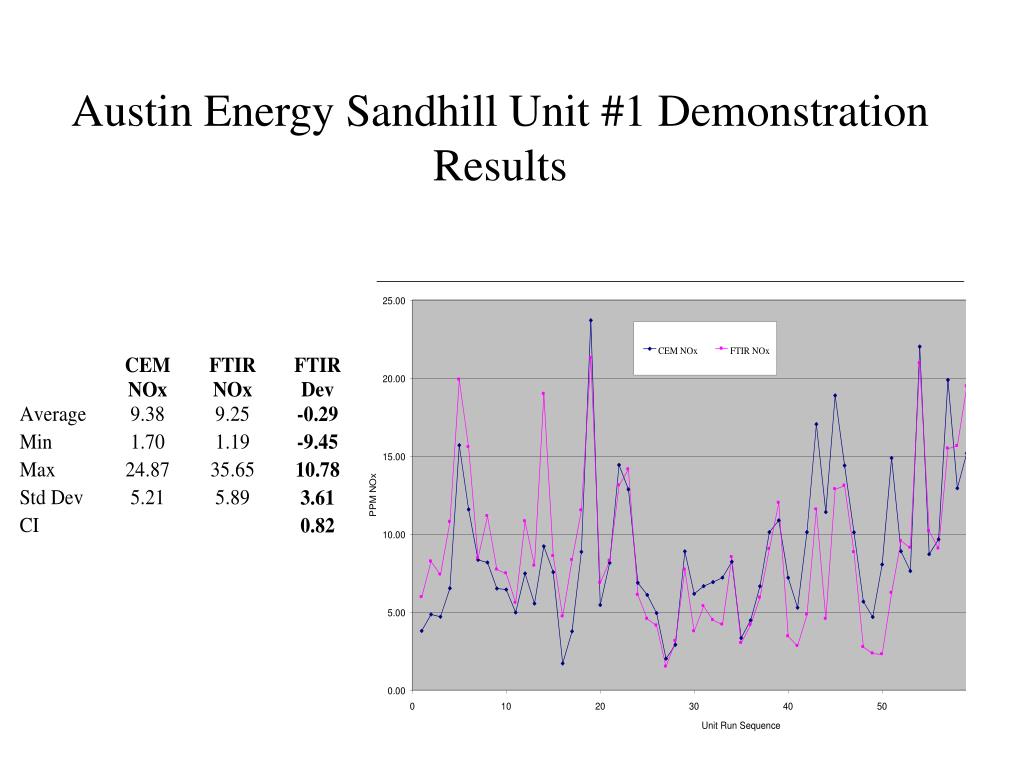

  5. Austin Energy Sandhill Unit #1 Demonstration Results

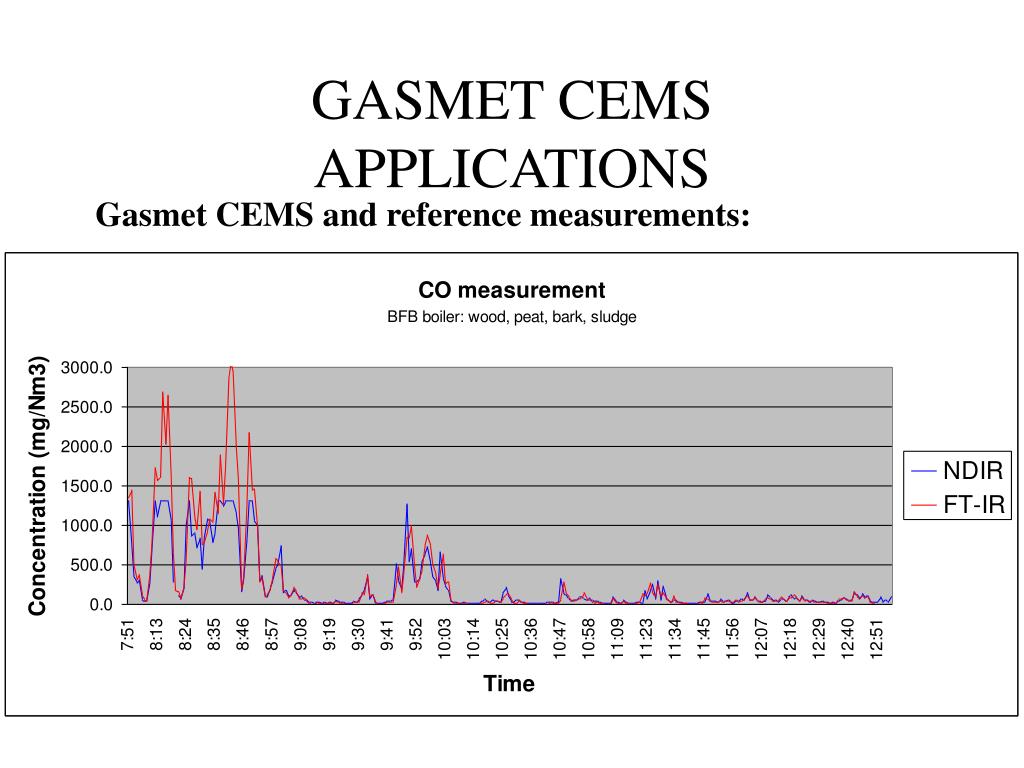

  6. GASMET CEMS APPLICATIONS Gasmet CEMS and reference measurements:
