  1. Graphics on the Web How much do you want to know?? Terry Griffin

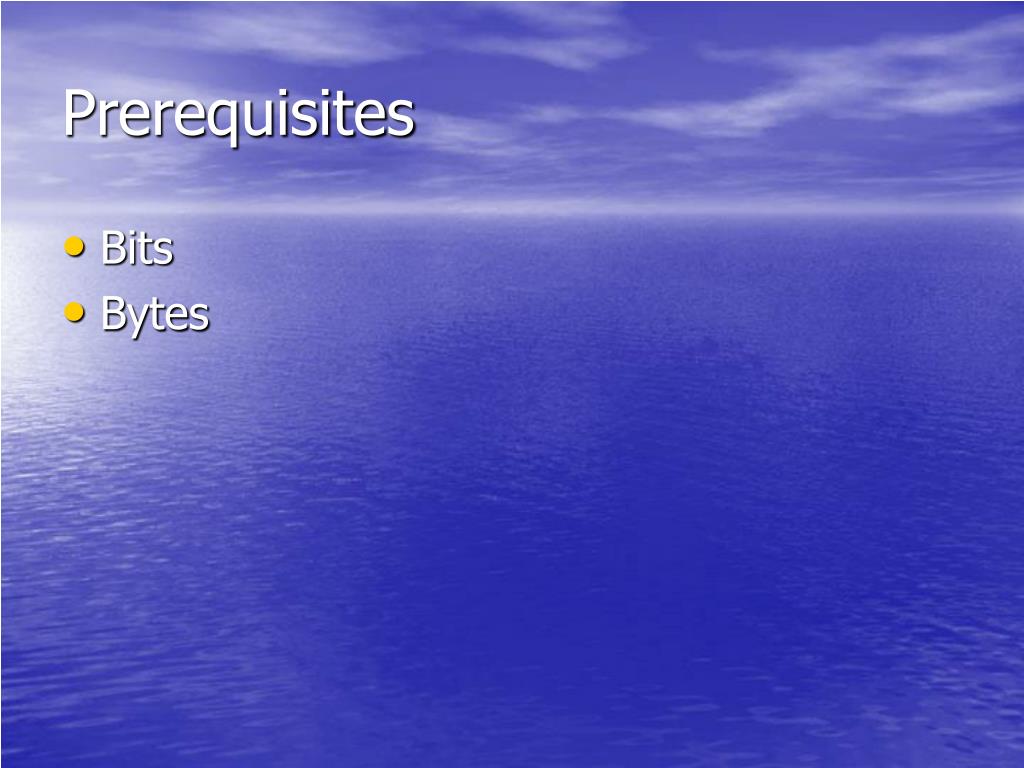

  2. Prerequisites • Bits • Bytes

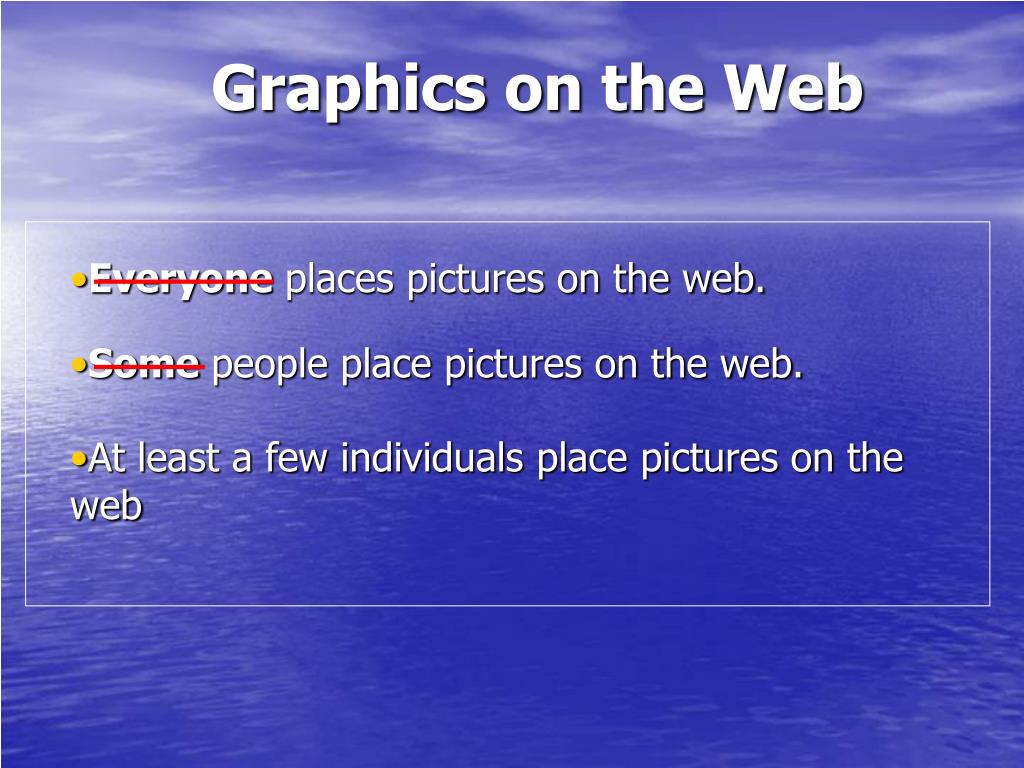

  3. Graphics on the Web • Everyone places pictures on the web. • Somepeople place pictures on the web. • At least a few individuals place pictures on the web

  4. Graphics on the Web • Why should you care? • Adds a dimension to your web site • If you are going to make a web page, then you should do it right 

  5. What are graphics?? • Images • Logos • Backgrounds • Any colorful enhancement of a web page Overview

  6. Overview

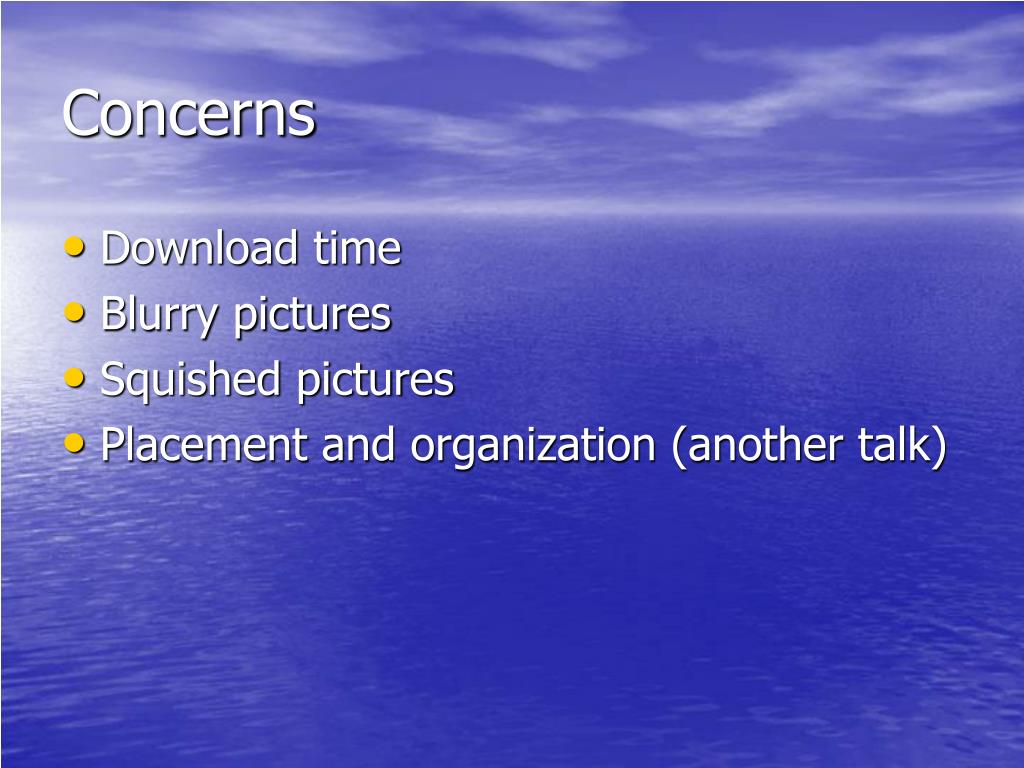

  7. Concerns • Download time • Blurry pictures • Squished pictures • Placement and organization (another talk)

  8. Picture Size (which picture – file is bigger??) Terminology

  9. Bit Depth Terminology

  10. Bit Depth Terminology

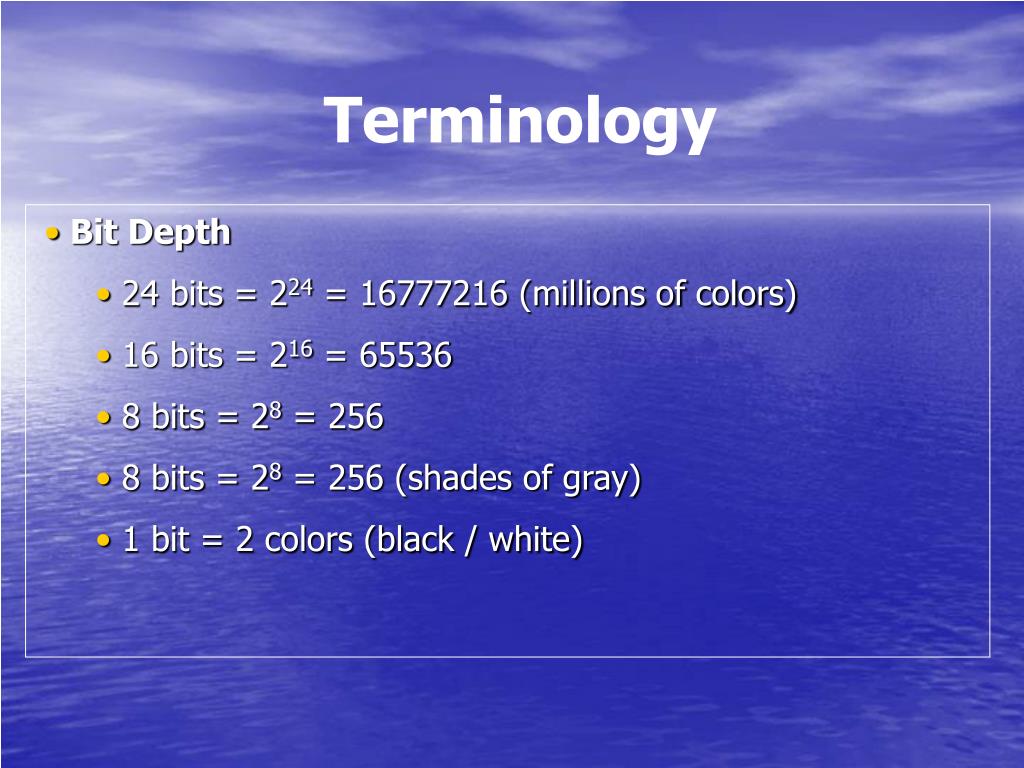

  11. Bit Depth • 24 bits = 224 = 16777216 (millions of colors) • 16 bits = 216 = 65536 • 8 bits = 28 = 256 • 8 bits = 28 = 256 (shades of gray) • 1 bit = 2 colors (black / white) Terminology

  12. Pictures are made of Pixels • What’s aPixel? • Smallest piece of a picture. • Represents a single color • More pixels = better clarity Terminology

  13. Pixels

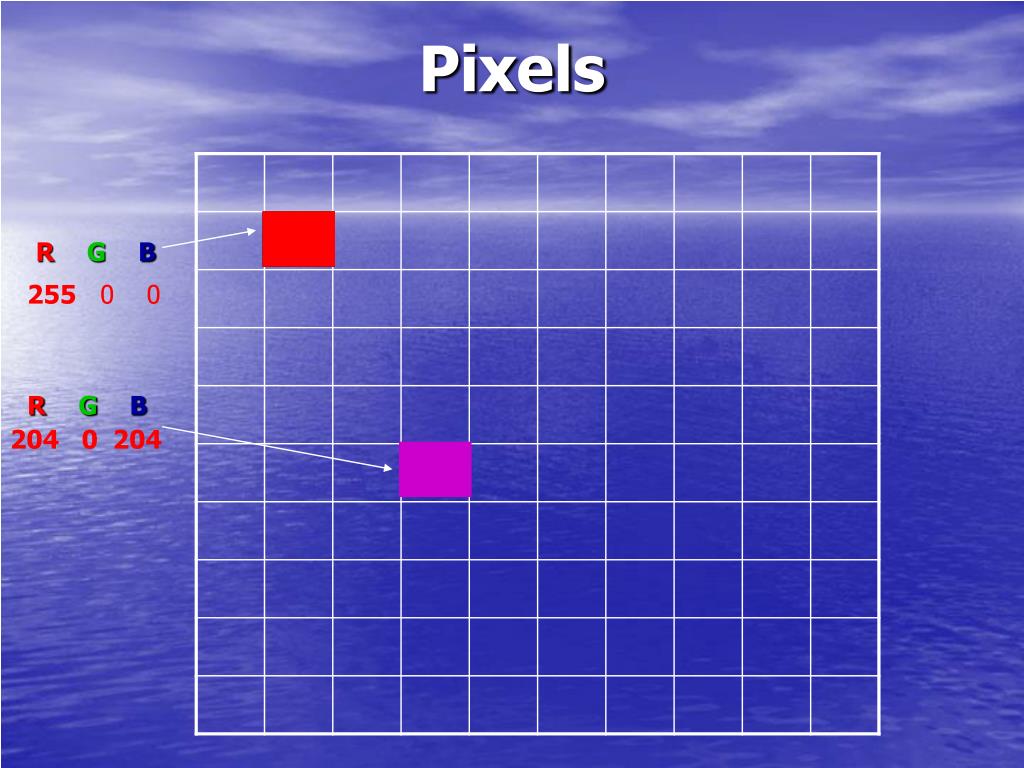

  14. Pixels R G B 255 0 0 R G B 204 0 204

  15. Compression • Reduces the size (disk space) of an image. • Typically by reducing bit depth. • Usually not noticeable Terminology 198 kilobytes 68 kilobytes

  16. Compression • Lossy Compression • Reduces file size by “removing” pieces of the picture • Actually just condenses the picture, not reversible • Usually not noticeable by the human eye • Lossless Compression • Reduces file size, but retains the original image information • Relies on the repetitive nature of particular images • Reversible Terminology

  17. Picture Formats Bmp Gif Jpg Png And many more….

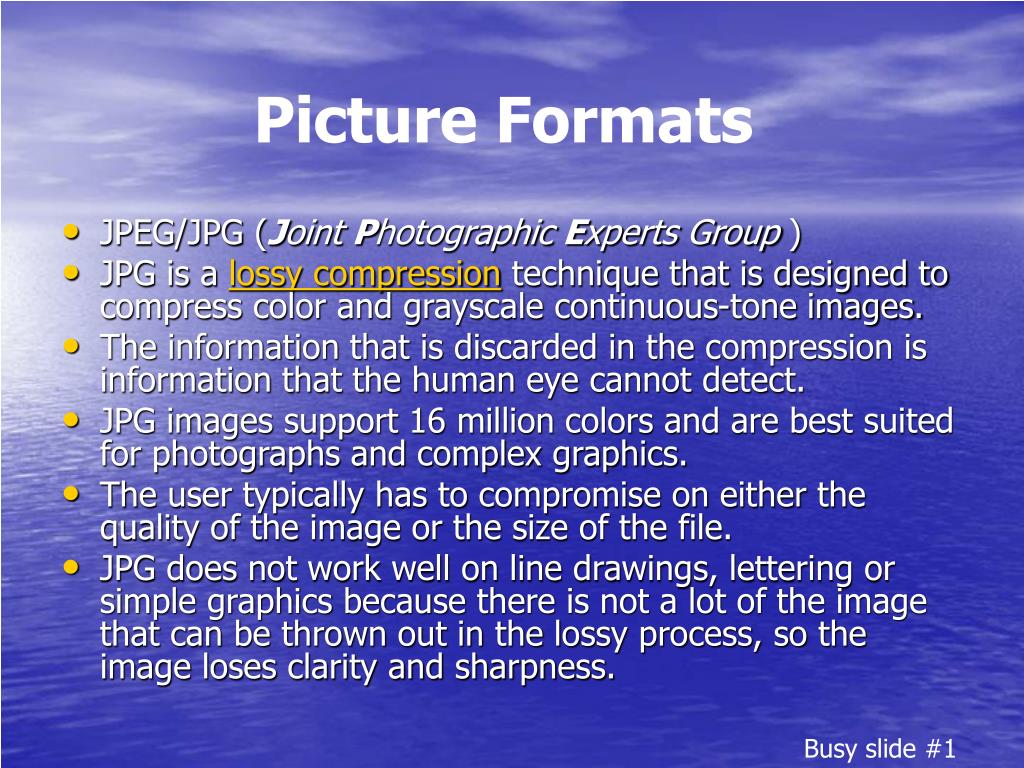

  18. Picture Formats • JPEG/JPG (Joint Photographic Experts Group ) • JPG is a lossy compression technique that is designed to compress color and grayscale continuous-tone images. • The information that is discarded in the compression is information that the human eye cannot detect. • JPG images support 16 million colors and are best suited for photographs and complex graphics. • The user typically has to compromise on either the quality of the image or the size of the file. • JPG does not work well on line drawings, lettering or simple graphics because there is not a lot of the image that can be thrown out in the lossy process, so the image loses clarity and sharpness. Busy slide #1

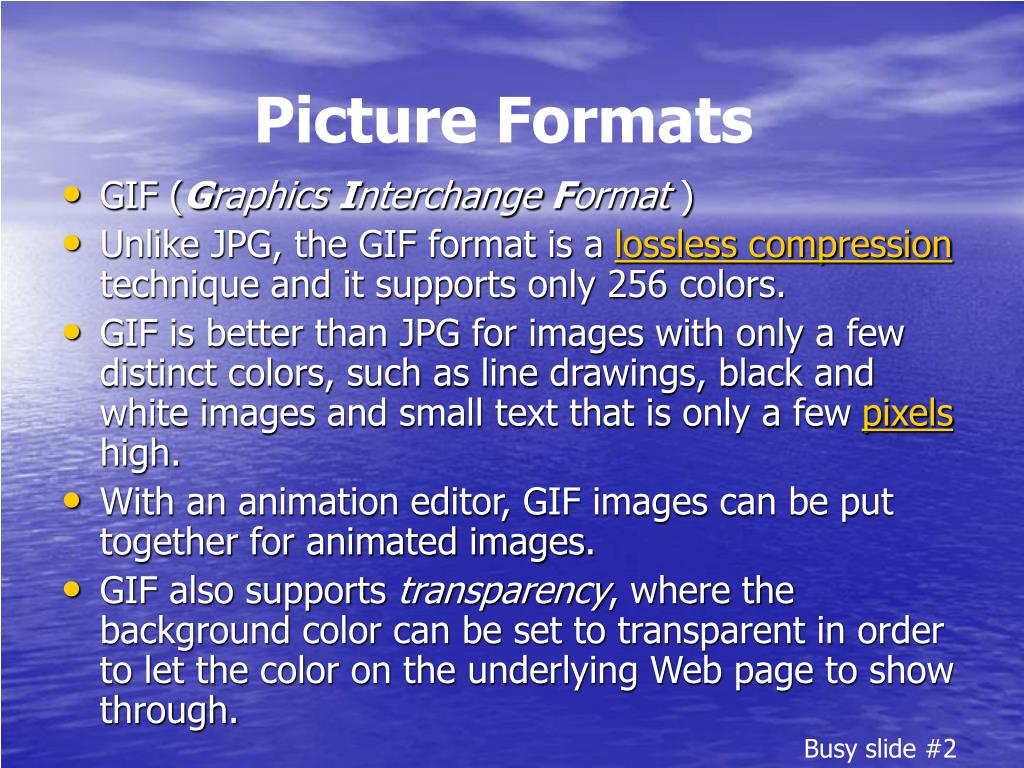

  19. Picture Formats • GIF (Graphics Interchange Format ) • Unlike JPG, the GIF format is a lossless compression technique and it supports only 256 colors. • GIF is better than JPG for images with only a few distinct colors, such as line drawings, black and white images and small text that is only a few pixels high. • With an animation editor, GIF images can be put together for animated images. • GIF also supports transparency, where the background color can be set to transparent in order to let the color on the underlying Web page to show through. Busy slide #2

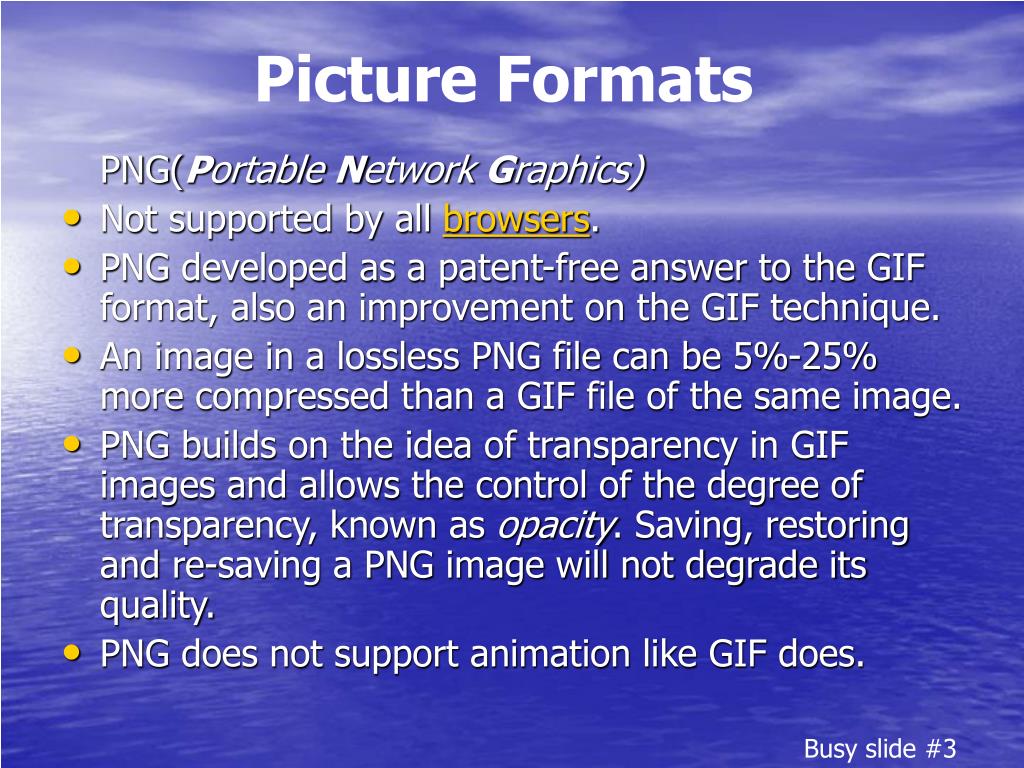

  20. Picture Formats PNG(Portable Network Graphics) • Not supported by all browsers. • PNG developed as a patent-free answer to the GIF format, also an improvement on the GIF technique. • An image in a lossless PNG file can be 5%-25% more compressed than a GIF file of the same image. • PNG builds on the idea of transparency in GIF images and allows the control of the degree of transparency, known as opacity. Saving, restoring and re-saving a PNG image will not degrade its quality. • PNG does not support animation like GIF does. Busy slide #3

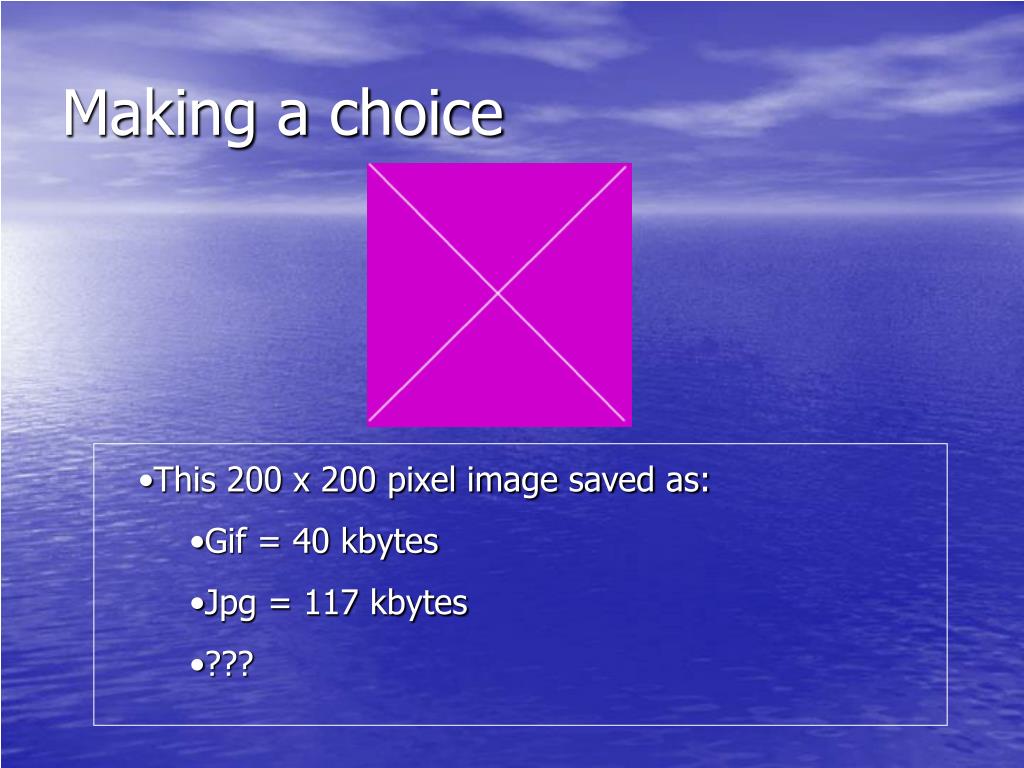

  21. Making a choice • This 200 x 200 pixel image saved as: • Gif = 40 kbytes • Jpg = 117 kbytes • ???

  22. Choice • This 1024 x 768 pixel image saved as: • Gif = 258 kbytes • Jpg = 60 kbytes • ???

  23. More Terms... • Crop

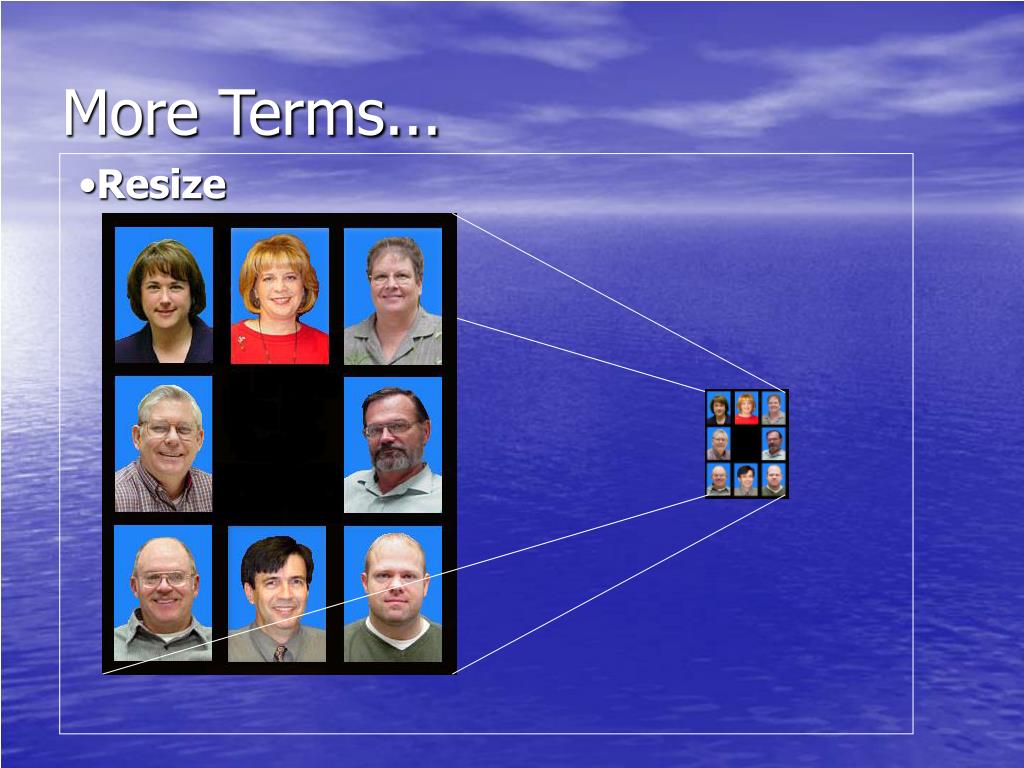

  24. More Terms... • Resize

  25. More Terms... • Skew

  26. More Terms... • Dither

  27. Why does all this matter?? • Over-compressed or skewed images have a poor look. • Under-compressed images download slow.

  28. What’s the bottom line?? • Save photographs as jpg. • Save images (graphs, charts, formulas, etc.) as gif. • Edit in gif, not jpeg. • Don’t force an image to be something it’s not!!

  29. Web Examples • Example 1 • Example 2 • Example 3
