  1. SIMATIC ET 200M / MPSystemredundancy

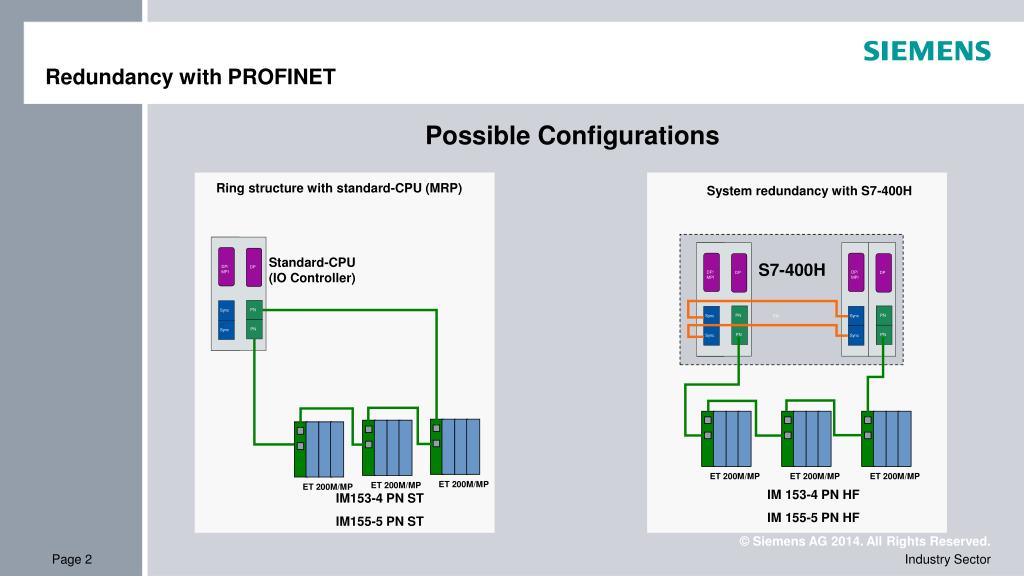

  2. Redundancy with PROFINET Ring structure with standard-CPU (MRP) Standard-CPU (IO Controller) DP/MPI DP PN Sync PN PN Sync ET 200M/MP ET 200M/MP ET 200M/MP ET 200M/MP ET 200M/MP ET 200M/MP IM153-4 PN ST IM155-5 PN ST Possible Configurations System redundancy with S7-400H S7-400H DP/MPI DP/MPI DP DP PN PN Sync Sync PN PN PN Sync Sync IM 153-4 PN HF IM 155-5 PN HF

  3. Redundancy with PROFINET Control of possible errors 3 1 1 2 2 Wire break of the ring Power off / failure of a single station Switch over time appr. 200ms Wire break of the ring Power off / failure of a single station CPU failure Switch over time appr. 30ms  autom. synchronisation at CPU change

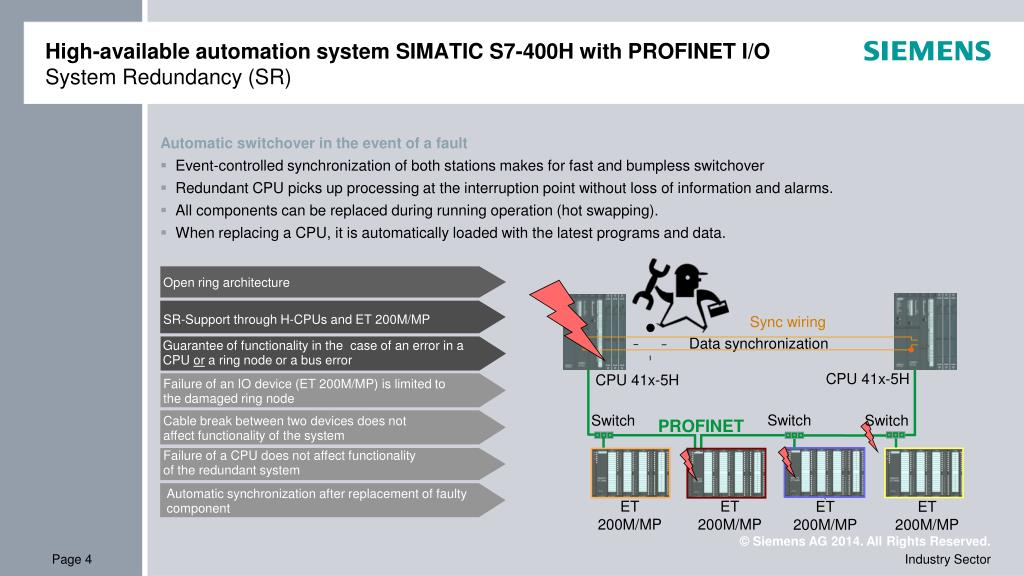

  4. High-available automation system SIMATIC S7-400H with PROFINET I/O System Redundancy (SR) Automatic switchover in the event of a fault • Event-controlled synchronization of both stations makes for fast and bumpless switchover • Redundant CPU picks up processing at the interruption point without loss of information and alarms. • All components can be replaced during running operation (hot swapping). • When replacing a CPU, it is automatically loaded with the latest programs and data. Open ring architecture SR-Support through H-CPUs and ET 200M/MP Sync wiring Data synchronization Guarantee of functionality in the case of an error in a CPU or a ring node or a bus error CPU 41x-5H CPU 41x-5H Failure of an IO device (ET 200M/MP) is limited to the damaged ring node Switch Switch Switch PROFINET Cable break between two devices does not affect functionality of the system Failure of a CPU does not affect functionalityof the redundant system Automatic synchronization after replacement of faulty component ET 200M/MP ET 200M/MP ET 200M/MP ET 200M/MP

  5. SIMATIC ET 200M
