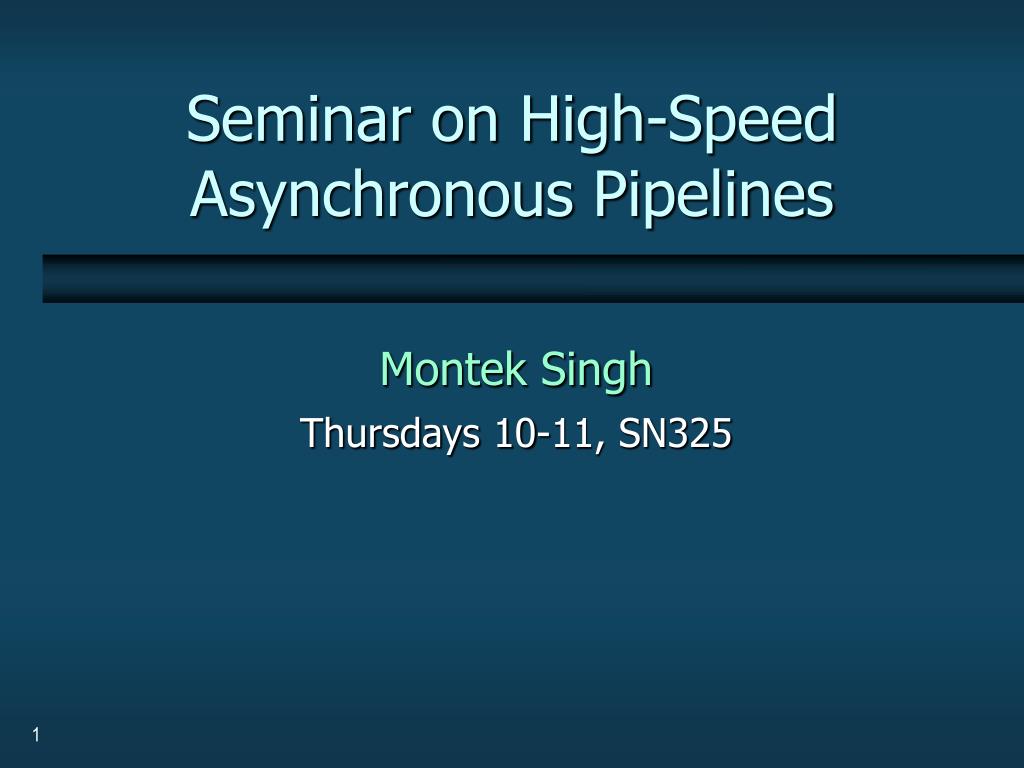

  1. Seminar on High-Speed Asynchronous Pipelines Montek Singh Thursdays 10-11, SN325

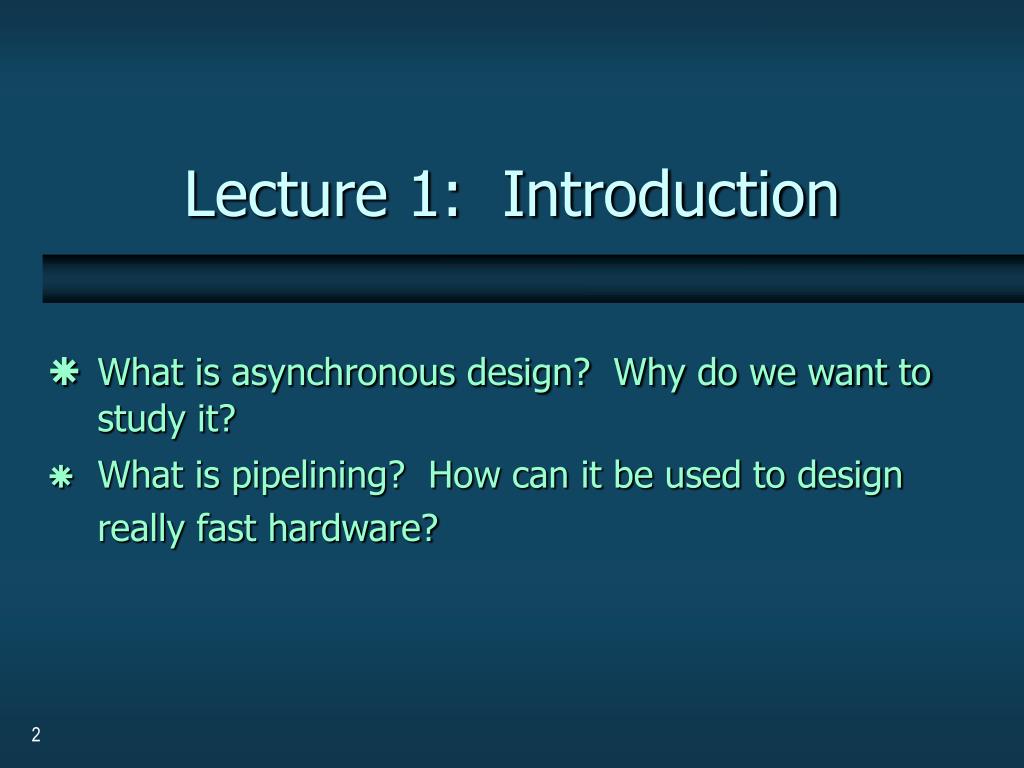

  2. Lecture 1: Introduction What is asynchronous design? Why do we want to study it? What is pipelining? How can it be used to design really fast hardware?

  3. Introduction: Clocked Digital Design clock Most current digital systems are synchronous: • Clock:a global signal that paces operation of all components Benefit of clocking: enables discrete-time representation • all components operate exactly once per clock tick • component outputs need to be ready by next clock tick • allows “glitchy” or incorrect outputs between clock ticks

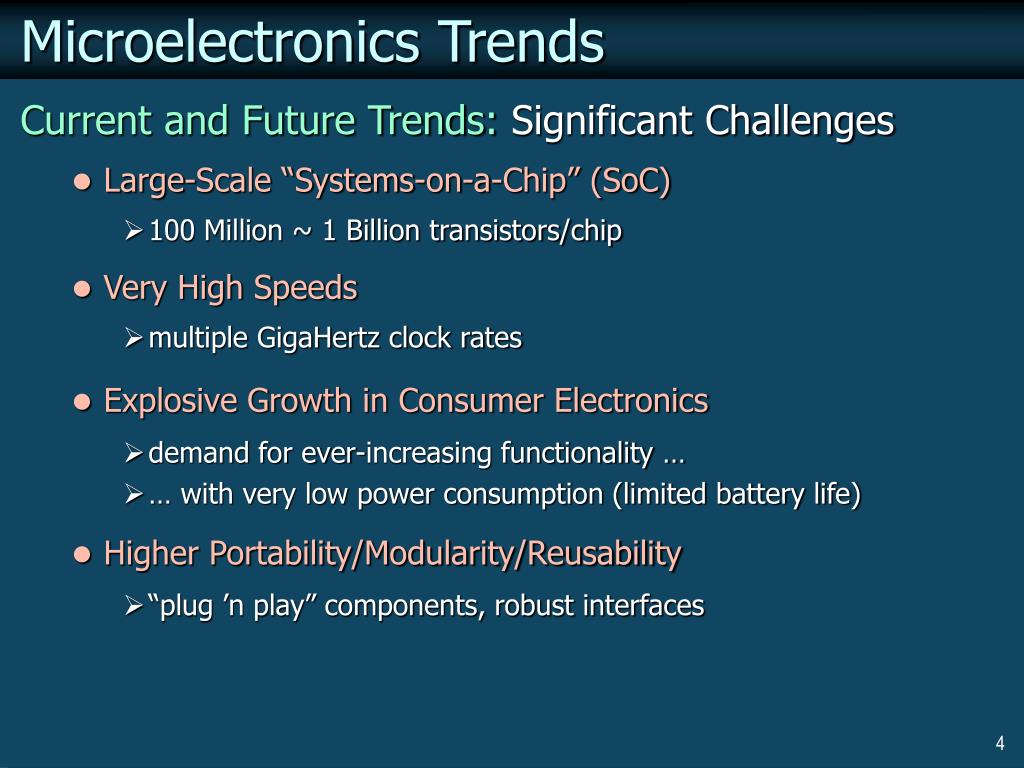

  4. Microelectronics Trends Current and Future Trends: Significant Challenges • Large-Scale “Systems-on-a-Chip” (SoC) • 100 Million ~ 1 Billion transistors/chip • Very High Speeds • multiple GigaHertz clock rates • Explosive Growth in Consumer Electronics • demand for ever-increasing functionality … • … with very low power consumption (limited battery life) • Higher Portability/Modularity/Reusability • “plug ’n play” components, robust interfaces

  5. Challenges to Clocked Design Breakdown of Single-Clock Paradigm: • Chip will be partitioned intomultiple timing domains Increasing Difficulties with Clocked Design: • Clock distribution: will require significant designer effort • Performance bottleneck: a single slow component • Clock burns large fraction of chip power • Fixed clock rate: poor match for • designing reusable components • interfacing with mixed-timing environments

  6. What is Asynchronous Design? handshaking interface clock Synchronous System (Centralized Control) Asynchronous System (Distributed Control) • Digital design with no centralized clock • Synchronization using local “handshaking”

  7. Why Asynchronous Design? • Higher Performance • May obtain “average-case” operation (not “worst-case”) • Avoids overheads of multi-GHz clock distribution • Lower Power • No clock power expended • Inactive components consume negligible power • Better Electromagnetic Compatibility • Smooth radiation spectra: no clock spikes • Much less interference with sensitive receivers [e.g., Philips pagers] • Greater Flexibility/Modularity • Naturally adapt to varied environments • Supports reusable components

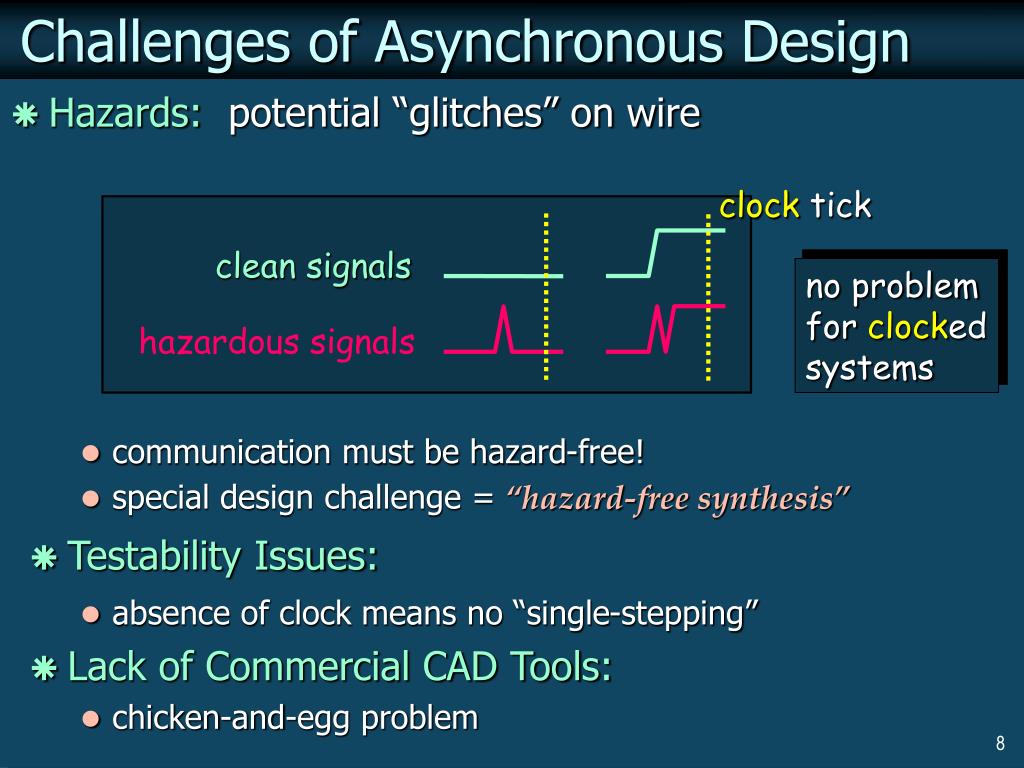

  8. Challenges of Asynchronous Design communication must be hazard-free! special design challenge =“hazard-free synthesis” Testability Issues: absence of clock means no “single-stepping” Lack of Commercial CAD Tools: chicken-and-egg problem clock tick no problemfor clockedsystems clean signals hazardous signals • Hazards: potential “glitches” on wire

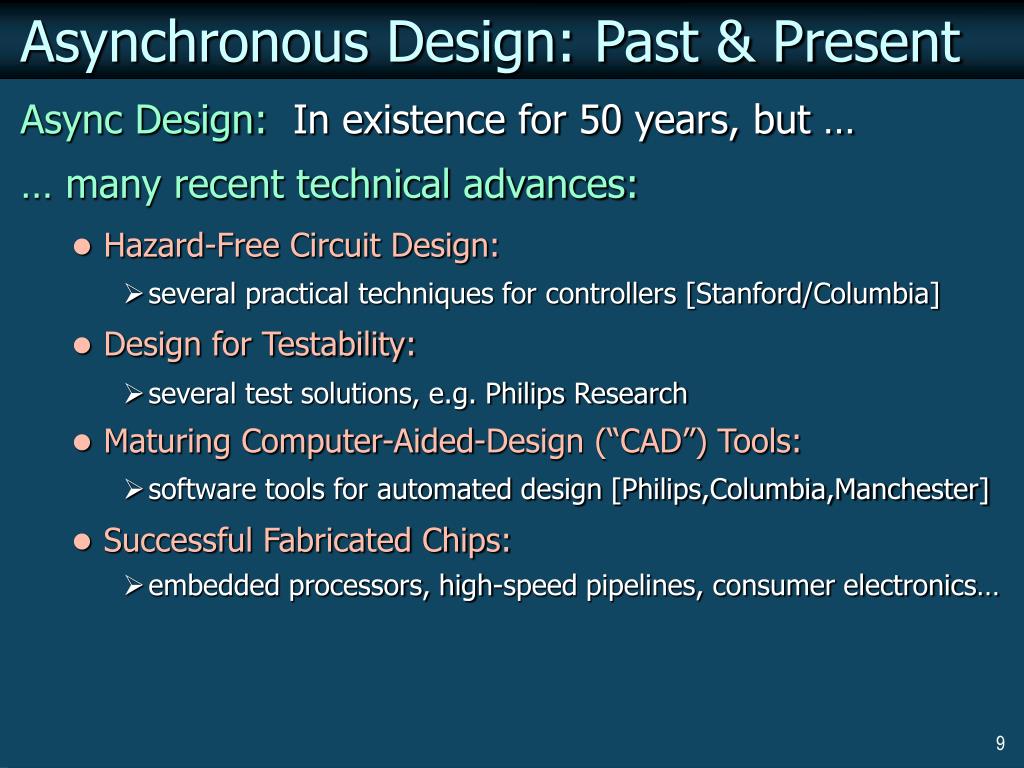

  9. Asynchronous Design: Past & Present Async Design: In existence for 50 years, but … … many recent technical advances: • Hazard-Free Circuit Design: • several practical techniques for controllers [Stanford/Columbia] • Design for Testability: • several test solutions, e.g. Philips Research • Maturing Computer-Aided-Design (“CAD”) Tools: • software tools for automated design [Philips,Columbia,Manchester] • Successful Fabricated Chips: • embedded processors, high-speed pipelines, consumer electronics…

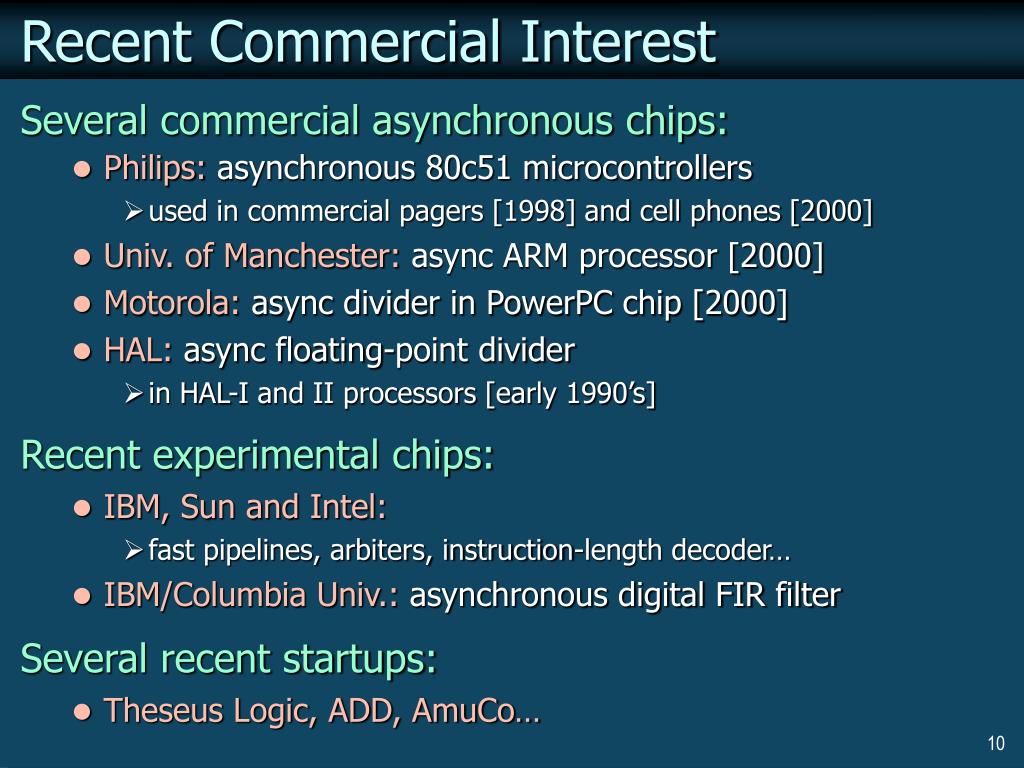

  10. Recent Commercial Interest Several commercial asynchronous chips: • Philips: asynchronous 80c51 microcontrollers • used in commercial pagers [1998] and cell phones [2000] • Univ. of Manchester: async ARM processor [2000] • Motorola: async divider in PowerPC chip [2000] • HAL: async floating-point divider • in HAL-I and II processors [early 1990’s] Recent experimental chips: • IBM, Sun and Intel: • fast pipelines, arbiters, instruction-length decoder… • IBM/Columbia Univ.: asynchronous digital FIR filter Several recent startups: • Theseus Logic, ADD, AmuCo…

  11. Seminar Focus Overall Goal: Asynchronous Design for Very High-Speed Systems Focus:High-Throughput Pipelines Motivation:Pipelining is at the heart of nearly all high-performance digital systems Additional Benefits: • Low power • Interfacing with mixed systems • Modular and scalable design

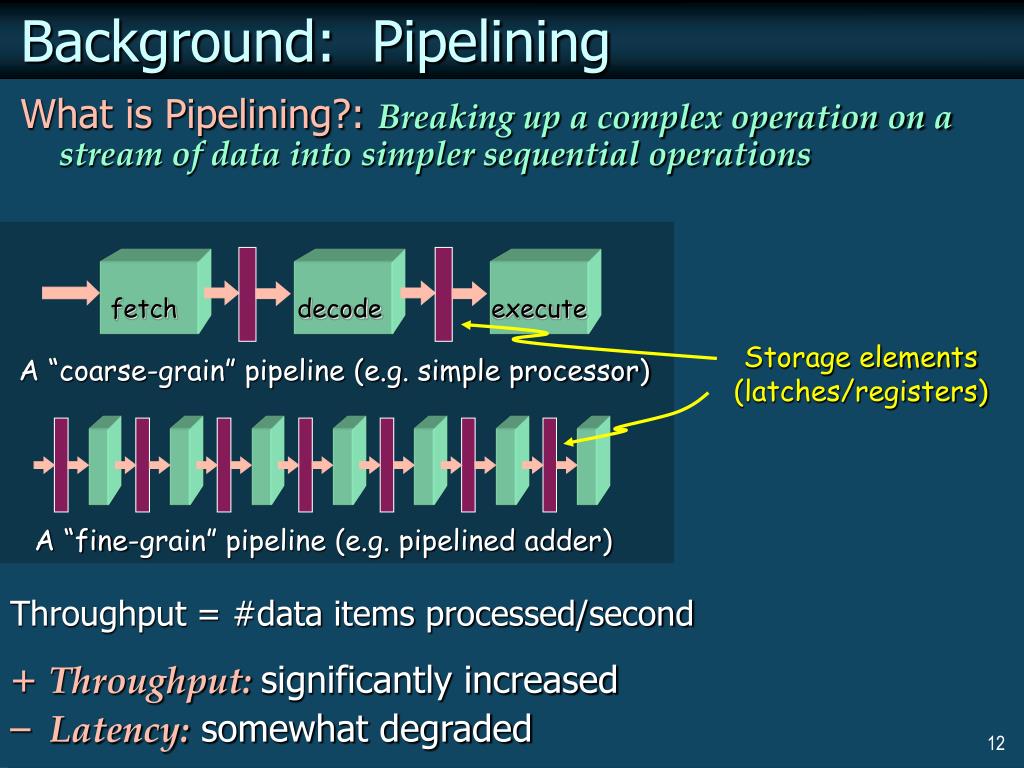

  12. Background: Pipelining fetch decode execute A “coarse-grain” pipeline (e.g. simple processor) A “fine-grain” pipeline (e.g. pipelined adder) What is Pipelining?: Breaking up a complex operation on a stream of data into simpler sequential operations Storage elements(latches/registers) Throughput = #data items processed/second + Throughput: significantly increased – Latency:somewhat degraded

  13. Seminar Focus (contd.) Particular Focus: Extremely fine-grain pipelines • “gate-level” pipelining = use narrowest possible stages • each stage consists of only a single level of logic gates • some of the fastest existing digital pipelines to date Application areas: • multimedia hardware (graphics accelerators, video DSP’s, …) • naturally pipelined systems, throughput is critical • input is often “bursty” • optical networking • serializing/deserializing FIFO’s • genomic string matching? • KMP style string matching: variable skip lengths

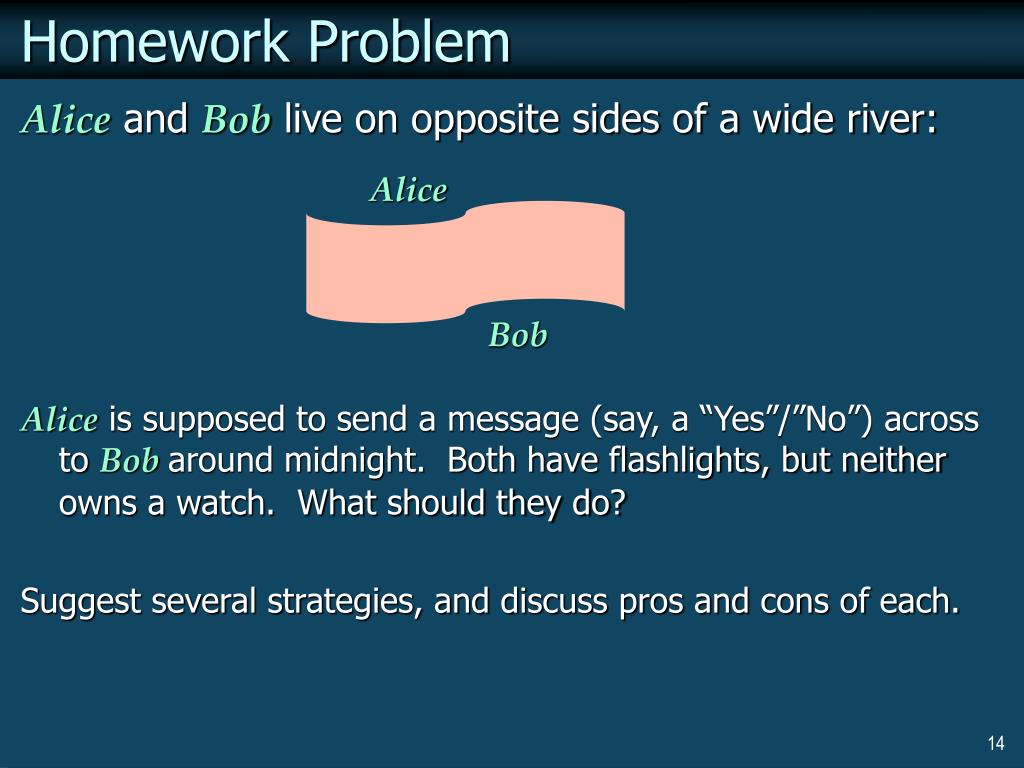

  14. Homework Problem Alice Bob Alice and Bob live on opposite sides of a wide river: Aliceis supposed to send a message (say, a “Yes”/”No”) across to Bob around midnight. Both have flashlights, but neither owns a watch. What should they do? Suggest several strategies, and discuss pros and cons of each.
