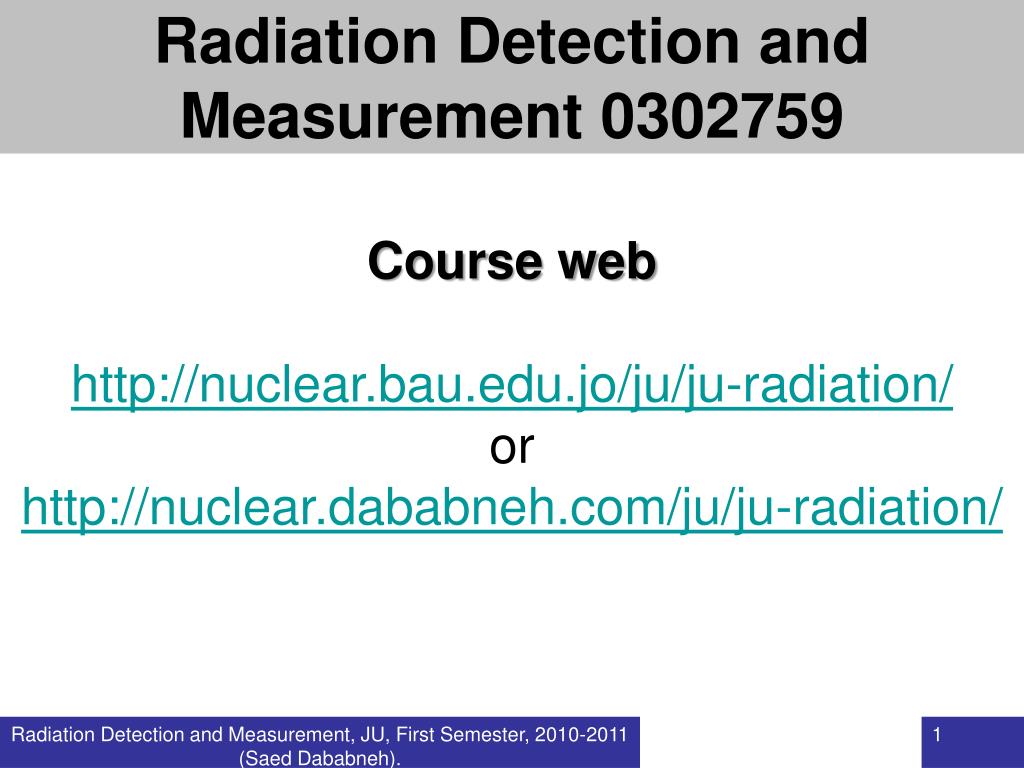

  1. Radiation Detection and Measurement 0302759 Course web http://nuclear.bau.edu.jo/ju/ju-radiation/ or http://nuclear.dababneh.com/ju/ju-radiation/ Radiation Detection and Measurement, JU, First Semester, 2010-2011 (Saed Dababneh).

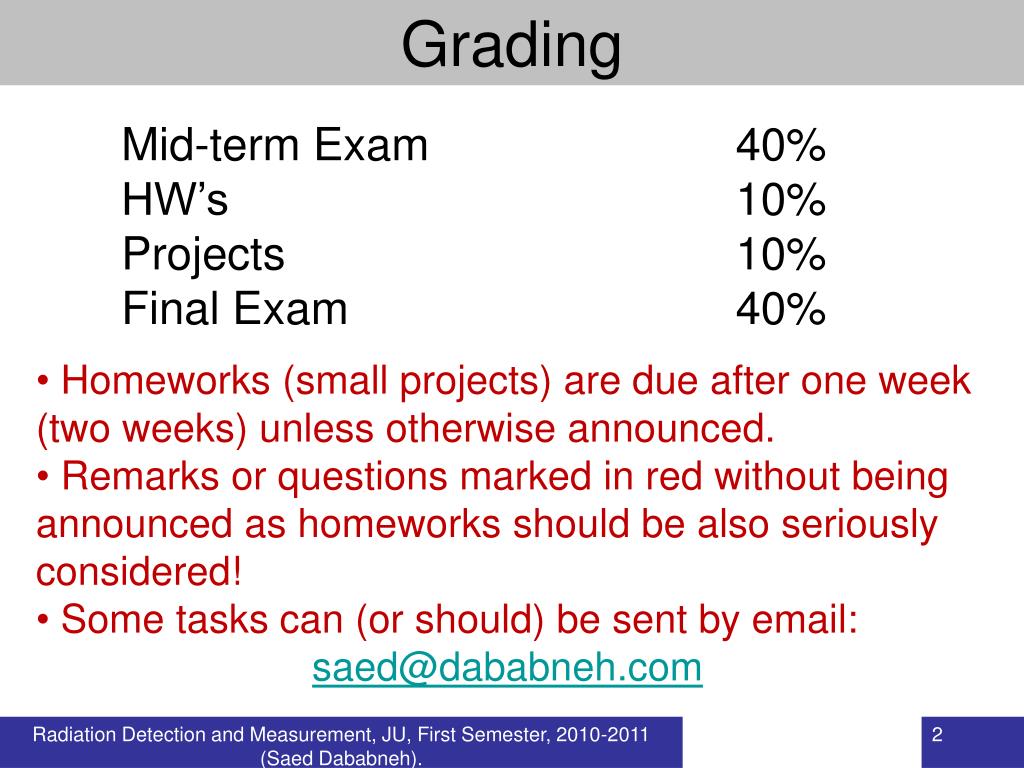

  2. Grading Mid-term Exam 40% HW’s 10% Projects 10% Final Exam 40% • Homeworks (small projects) are due after one week (two weeks) unless otherwise announced. • Remarks or questions marked in red without being announced as homeworks should be also seriously considered! • Some tasks can (or should) be sent by email: • saed@dababneh.com Radiation Detection and Measurement, JU, First Semester, 2010-2011 (Saed Dababneh).

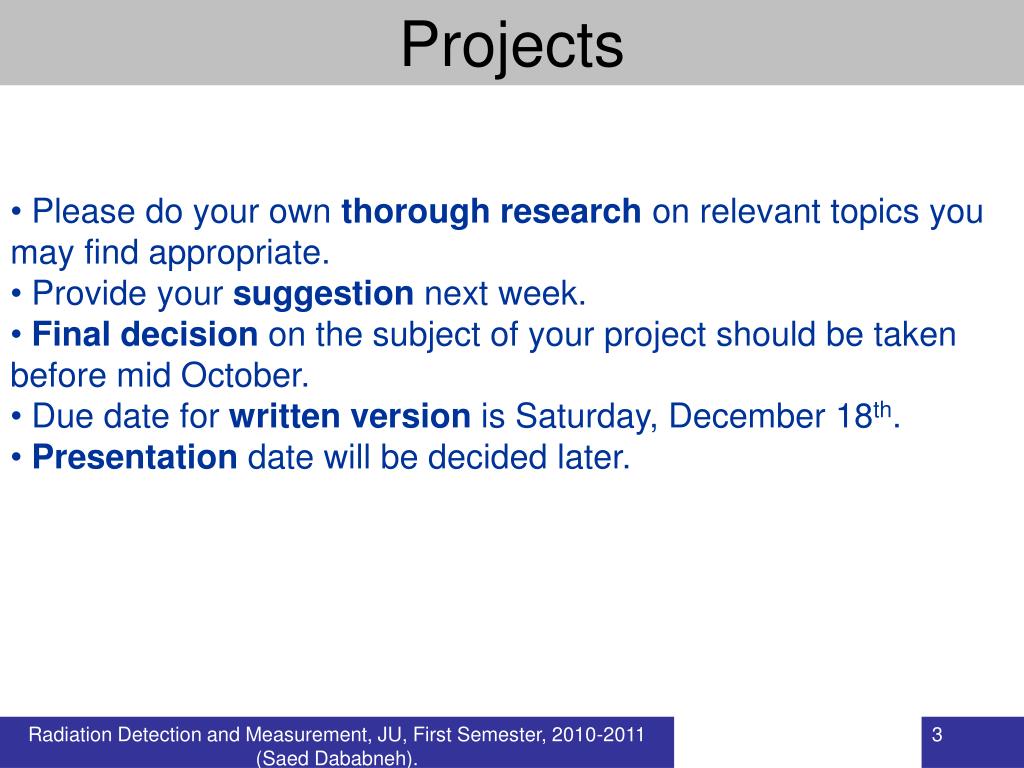

  3. Projects • Please do your own thorough research on relevant topics you may find appropriate. • Provide your suggestion next week. • Finaldecision on the subject of your project should be taken before mid October. • Due date for writtenversion is Saturday, December 18th. • Presentation date will be decided later. Radiation Detection and Measurement, JU, First Semester, 2010-2011 (Saed Dababneh).

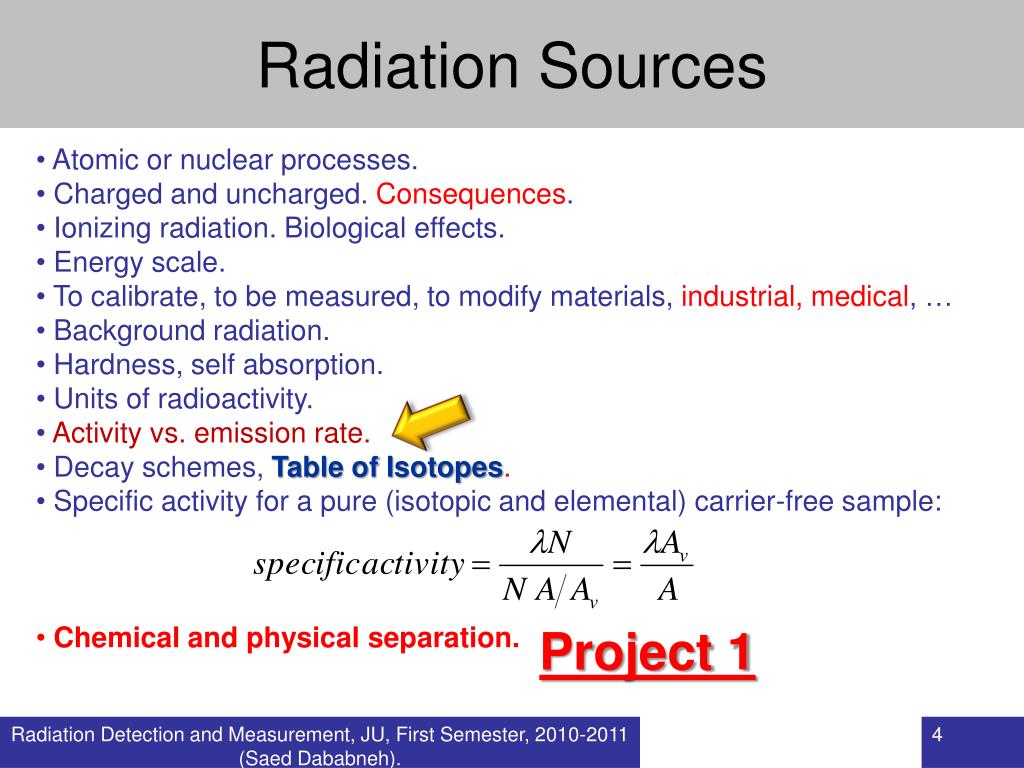

  4. Radiation Sources • Atomic or nuclear processes. • Charged and uncharged. Consequences. • Ionizing radiation. Biological effects. • Energy scale. • To calibrate, to be measured, to modify materials, industrial, medical, … • Background radiation. • Hardness, self absorption. • Units of radioactivity. • Activity vs. emission rate. • Decay schemes, Table of Isotopes. • Specific activity for a pure (isotopic and elemental) carrier-free sample: • Chemical and physical separation. Project 1 Radiation Detection and Measurement, JU, First Semester, 2010-2011 (Saed Dababneh).

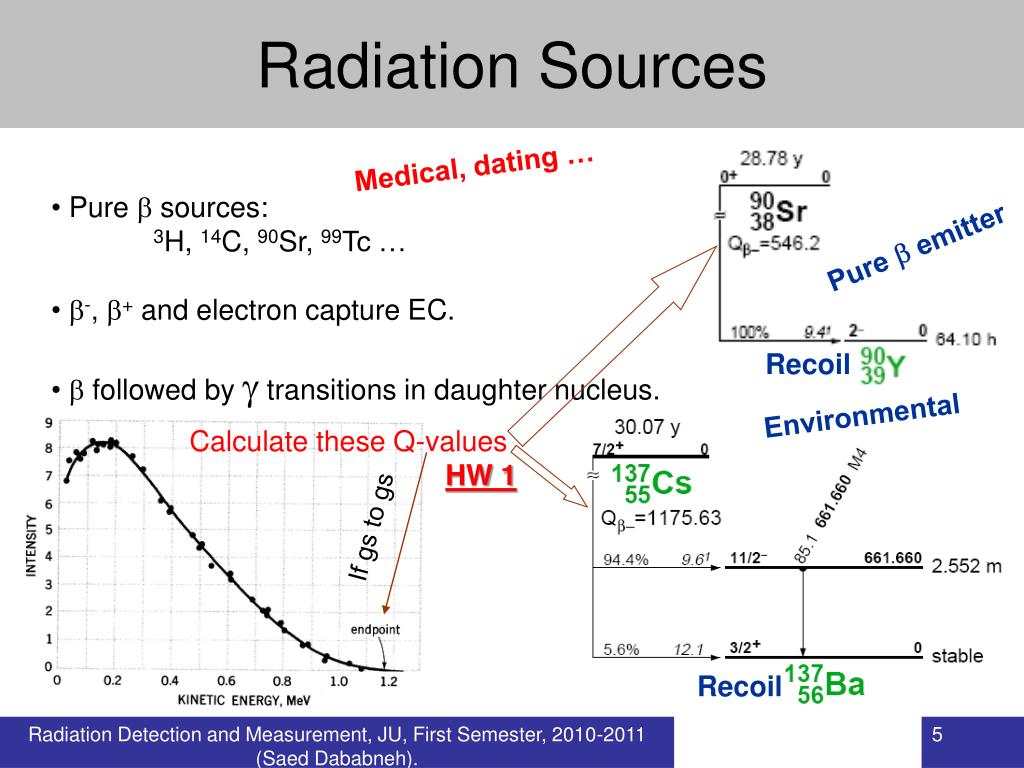

  5. Radiation Sources • Pure  sources: • 3H, 14C, 90Sr, 99Tc … • -, + and electron capture EC. •  followed by  transitions in daughter nucleus. Medical, dating … Pure  emitter Recoil Environmental • Calculate these Q-values HW 1 If gs to gs Recoil Radiation Detection and Measurement, JU, First Semester, 2010-2011 (Saed Dababneh).

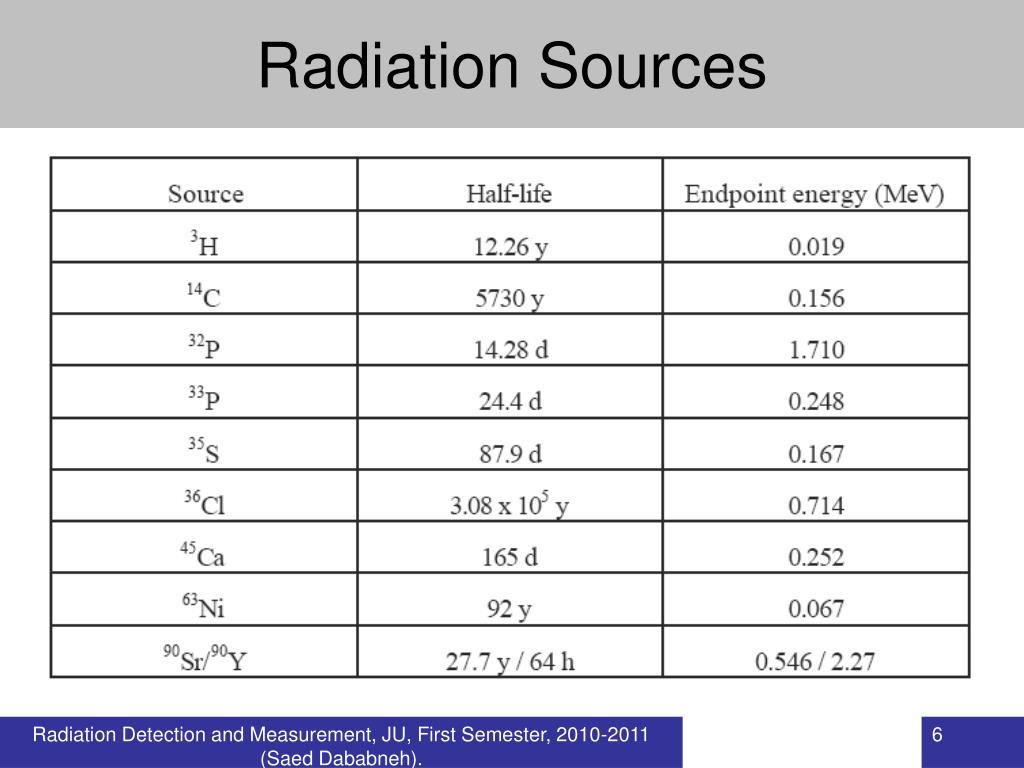

  6. Radiation Sources Radiation Detection and Measurement, JU, First Semester, 2010-2011 (Saed Dababneh).

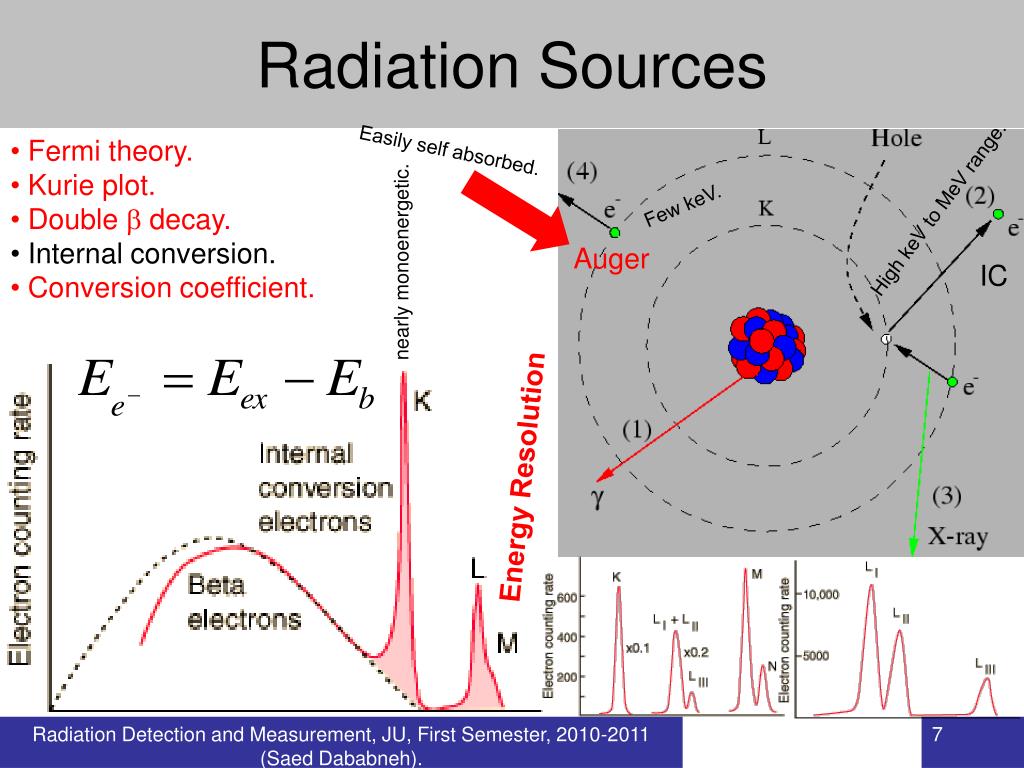

  7. Radiation Sources • Fermi theory. • Kurie plot. • Double  decay. • Internal conversion. • Conversion coefficient. Easily self absorbed. Few keV. High keV to MeV range. Auger nearly monoenergetic. IC Energy Resolution Radiation Detection and Measurement, JU, First Semester, 2010-2011 (Saed Dababneh).

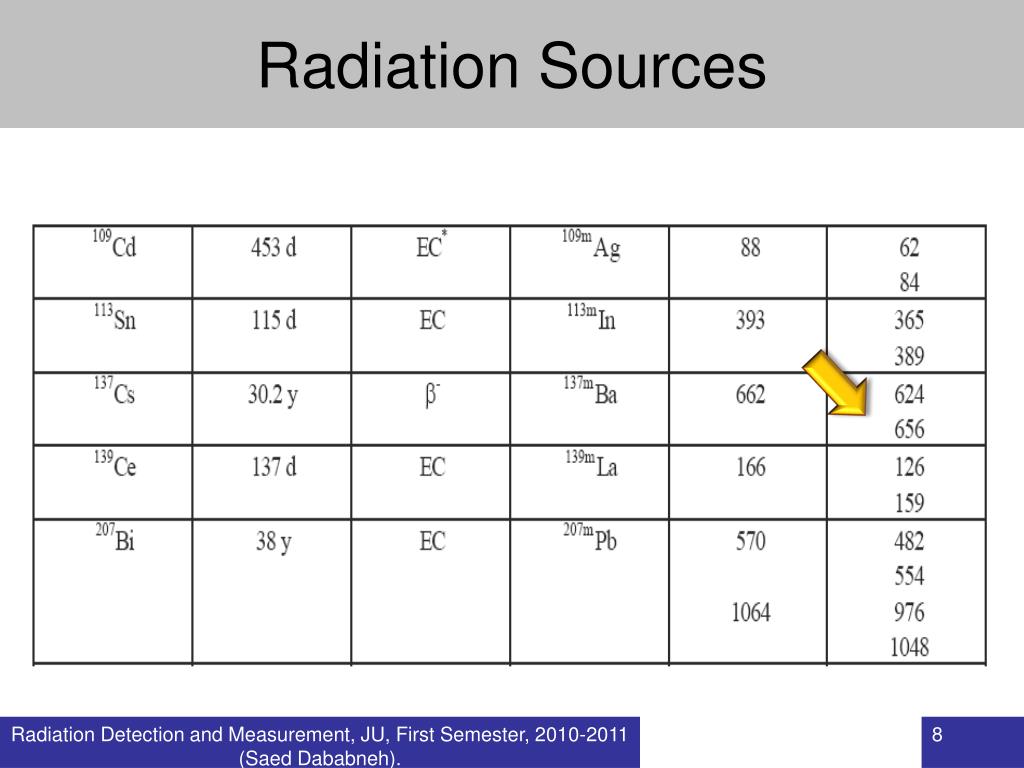

  8. Radiation Sources Radiation Detection and Measurement, JU, First Semester, 2010-2011 (Saed Dababneh).

  9. Radiation Sources CRC or http://www.webelements.com/webelements/elements/text/Ba/bind.html Radiation Detection and Measurement, JU, First Semester, 2010-2011 (Saed Dababneh).
