  1. Chapter 29.7 A Closer Look At Wood and Bark AP Biology Spring 2011

  2. Formation of Bark • As tree ages inner core of xylem continues its outward expansion • Resulting pressure is directed toward the stem or root surface • Will rupture the cortex and outer part of secondary phloem • When that occurs, parenchyma cells in this region start dividing • Give rise to cork cambium

  3. Formation of Bark • The rupturing causes the cortex and epidermis to split away • Ongoing cell division at cork cambium gives rise to periderm

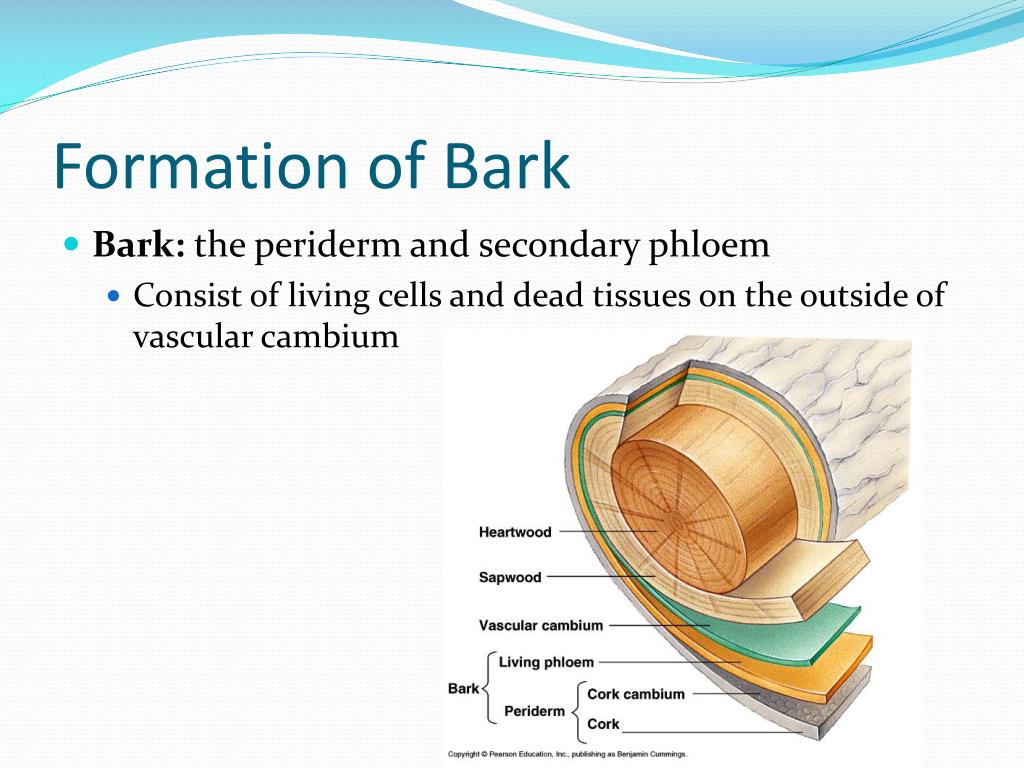

  4. Formation of Bark • Bark: the periderm and secondary phloem • Consist of living cells and dead tissues on the outside of vascular cambium

  5. Formation of Bark • Cork: densley packed rows of cells • Each with a wall thickened by a fatty substance called suberin • Innermost cells are alive- have access to nourishment from xylem and phloem • Can protect, insulate, and waterproof the stem or root surface, forms over wounded tissues • When leaves are about to drop, cork forms at the place where petioles attach to stems

  6. Formation of Bark • Lenticels: localized areas where the packing of cork cells is loosened up a bit • Allow passage of gases through bark

  7. Heartwood and Sapwood • Heartwood: lies at the center of older stems and roots • It is a depositary for resins, oils, gums, and tannins • It is clogged and no longer functions in transport • Helps tree defy gravity

  8. Heartwood and Sapwood • Sapwood: secondary growth located between heartwood and vascular cambium • It is wet, pale in colour, and not as strong • It is rich in a sugar-rich fluid transported from the roots • Used in the production of maple syrup

  9. Early Wood, Late Wood, and Tree Rings • In regions with cool winters or dry spells, the vascular cambium is inactive during part of the year

  10. Early Wood, Late Wood, and Tree Rings • Early Wood: contains xylem with large diameters and thin walls • Start of growing season

  11. Early Wood, Late Wood, and Tree Rings • Late Wood: contains xylem with small diameters and thick walls

  12. Early Wood, Late Wood, and Tree Rings • Growth Rings: appear as alternating light bands of early wood and dark bands of late wood

  13. Early Wood, Late Wood, and Tree Rings • Hardwoods: • Oak, hickory, other eudicot trees • Evolved in temperate and tropical zones • Has vessels, tracheids, and fibers in its xylem

  14. Early Wood, Late Wood, and Tree Rings • Softwoods: • Pines, redwoods, other conifer species • No vessels or fibers • Their xylem has tracheids and rays of parenchyma • Weaker and less dense than hardwoods
