Sequential Soft Decision Decoding of Reed Solomon Codes Hari Palaiyanur Cornell University Prof. John Komo Clemson University 2003 SURE Program
Outline • Background • System Model • Stack and Bucket Algorithms • Results • Conclusions
Background • Error Control Coding – adding redundancy to improve reliability over noisy channel • Reed Solomon Codes – (n,k) cyclic block codes over GF(qm), n = qm – 1 • (n+1)k possible code words • Erasure – if symbol is unreliable, denote it as an erasure
Background • Soft Decision Decoding – takes advantage of “side information”, i.e. quality of received signal • Sequential decoding searches through “tree” of possible code words
Motivation and History • Soft decision decoding more reliable • Soft decision decoding more decoding time • Good, efficient errors only and errors and erasures decoders available • Still need good, efficient soft decision decoders • Stack/Bucket Algorithm - 1969
System Model • MFSK over AWGN channel • For each symbol, detector outputs mi = As + ni (i sent) mi = ni (i not sent) ni – indep. G. R. V. Data RS Encoder MFSK Modulator AWGN Channel Sequential RS Decoder Coherent MFSK Detector
Stack Algorithm Start and Load stack with 2m initial nodes P is Head of Stack No Len P = k-1? Yes Remove P Search 2m forward nodes Update Metrics Push onto Stack Remove P Search 2m forward nodes and encode Update Metrics Push onto Stack No Len P = n? Yes Done. Decoded code word is P
Metrics and RS (7,3) Example • Metrics provide information about quality of symbol • Forward metric is sum of previous metric and metric for added symbol • Good metric: mi – max({mj}) Symbol 0 1 2 3 4 5 6 7 Mi 3.3 0.2 –1.5 –0.1 1.1 0.7 –2.0 0.8 Node: 0 0.0 Node: 1 -3.1 Node: 2 -4.8 Node: 3 -3.4 Start Node: 4 -2.2 Node: 5 -2.6 Node: 6 -5.3 Node: 7 -2.5
Stack Algorithm • Algorithm goes through many unnecessary code words • Perform quick erasure decoding • Let threshold be this code word’s metric • Only push nodes onto stack if their metric is at least threshold
Bucket Algorithm • Instead of one sorted stack, use many “buckets” • Buckets have certain metric gradations • No need to keep code words sorted, if gradations are fine enough • Sacrifice memory for speed Metrics 0.0 to -5.0 Metrics -5.0 to -10.0 Metrics -10.0 to -15.0 Metrics Below -15.0

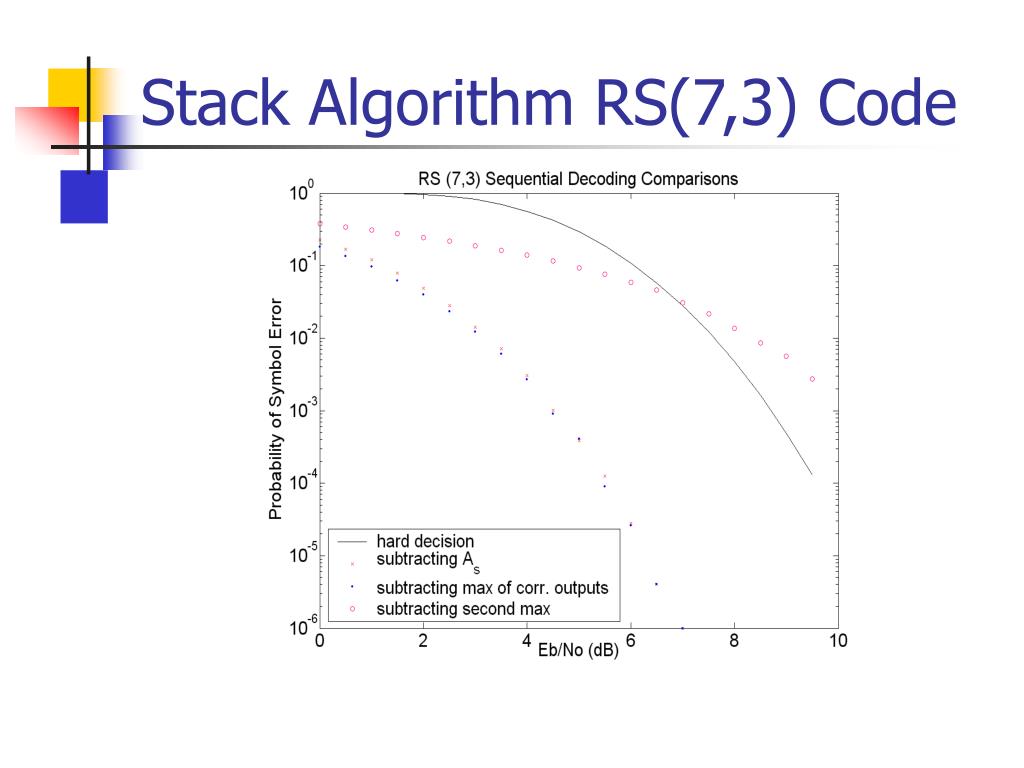

Conclusions • Soft decision decoding gives better reliability over hard decision decoding • Stack algorithm adapted to RS codes for sequential soft decision decoding
Future Work • Other transmissions schemes including non-coherent MFSK • Other channel models • Quantize metrics to a limited number of bits
Acknowledgements • Prof. Komo for the project ideas and guidance • Prof. Russell and Fred Block • Profs. Noneaker and Xu for the program overall
References [1] S.B. Wicker, Error Control Systems for Digital Communication and Storage, Englewood Cliffs, NJ: Prentice Hall, 1995. [2] Komo, J.J. and L.L. Joiner, "Fast Error Magnitude Evaluations for Reed-Solomon Codes," Proc. 1995 IEEE International Symposium on Information Theory, p. 416, Sep. 1995. [3] F. Jelinek, “A Fast Sequential Decoding Algorithm Using a Stack,” IBM Journal of Research and Development, Vol. 13, pp. 675-685, Nov. 1969
