  1. Ultima® X3 Gas Monitor

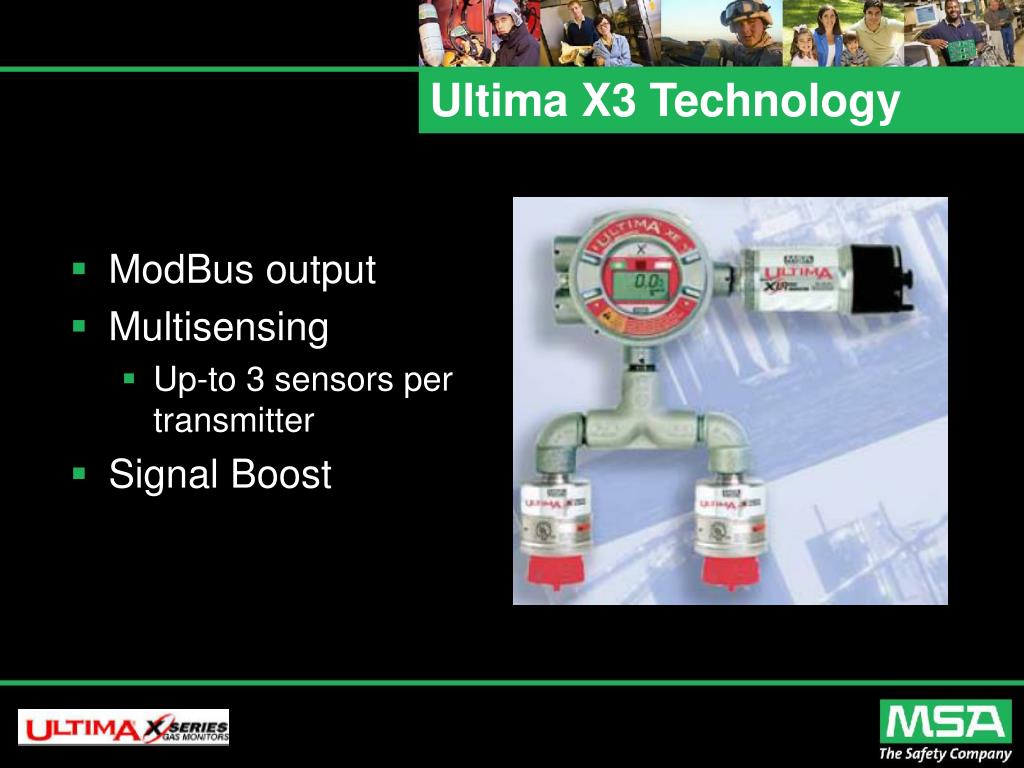

  2. Ultima X3 Technology • ModBus output • Multisensing • Up-to 3 sensors per transmitter • Signal Boost

  3. Ultima X3 ModBus Output • ModBus RTU • Industry standard • More available data than any sensor / transmitter on the market • Over 200 datum • Prosoft Tested • Certified • Compatible with Allen-Bradley PLC

  4. Ultima X3 Multi-Sensing • Up-to 31 monitors on one network • Up-to 3 sensors per monitor • Total of 93 sensors on one bus network • Half duplex • Multi-drop

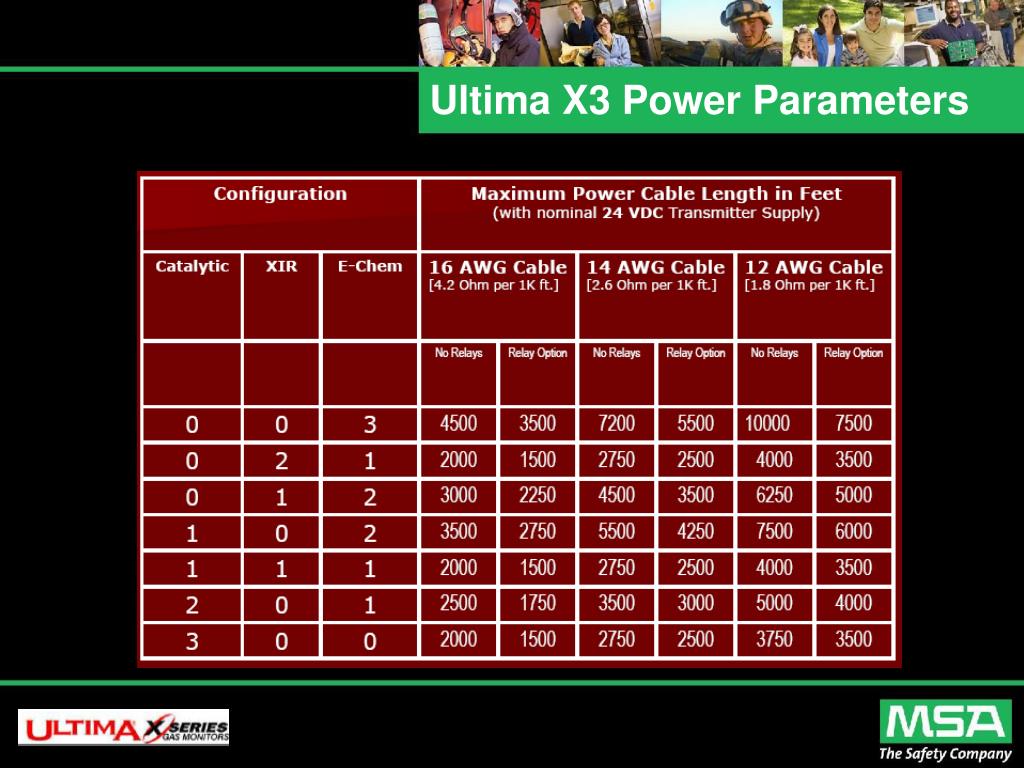

  5. Ultima X3 Power Parameters

  6. Ultima X3 Network Topography

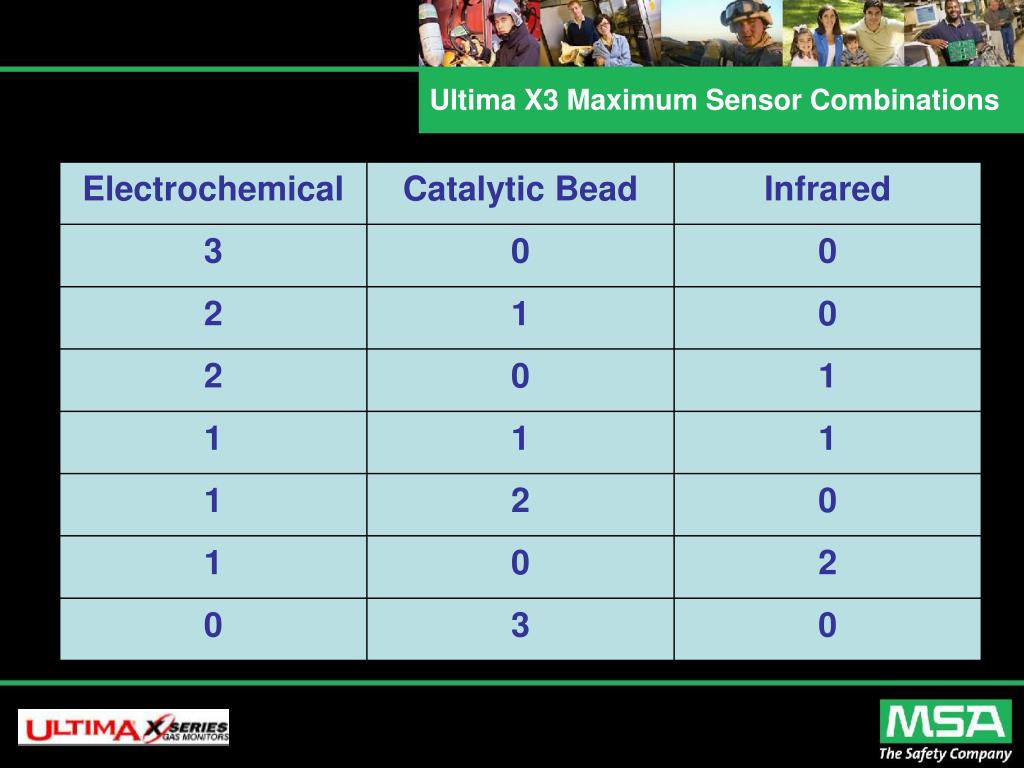

  7. Ultima X3 Maximum Sensor Combinations

  8. Ultima X3 Without Remote Power Only One Catalytic Bead sensor allowed with Infrared sensor

  9. Ultima X3 Examples

  10. Ultima X3 Main PCB • Same sensor to main PCB wiring scheme • Total of three sensor connectors • 100 ft - 4 wire • 2 power • 2 comms • 3000 ft – 5 wire • 2 power • 3 comms

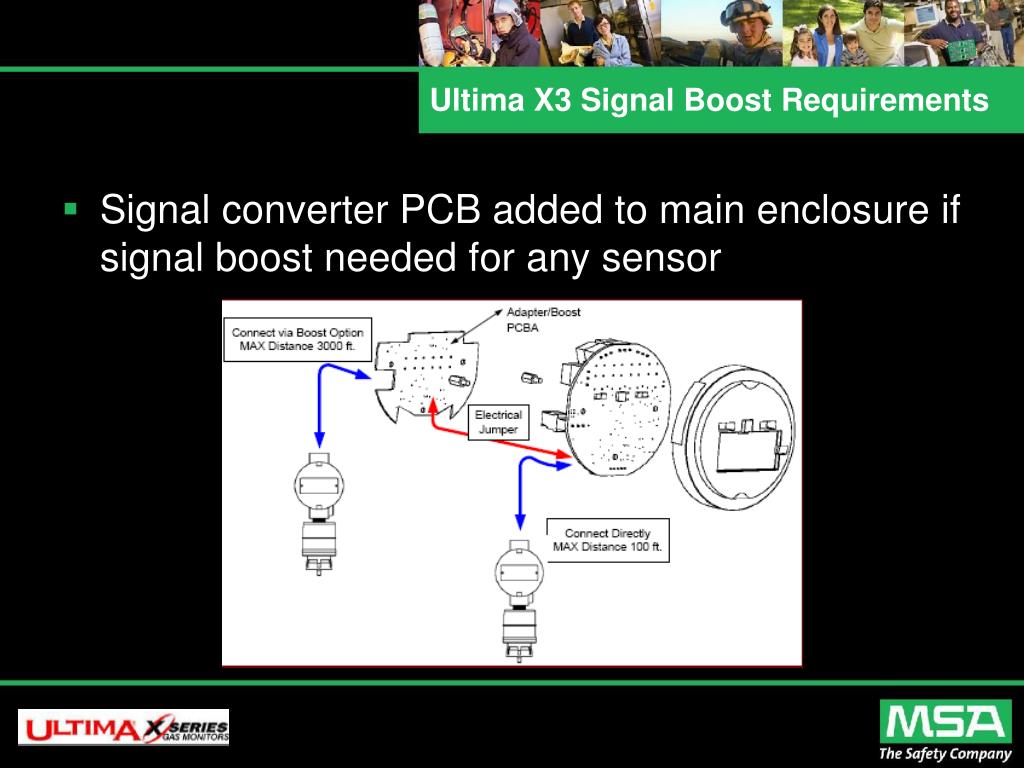

  11. Ultima X3 Signal Boost Requirements • Signal converter PCB added to main enclosure if signal boost needed for any sensor

  12. Ultima X3 Signal Boost Requirements • Signal converter PCB required at each remote sensor • External power supply required for remote sensors

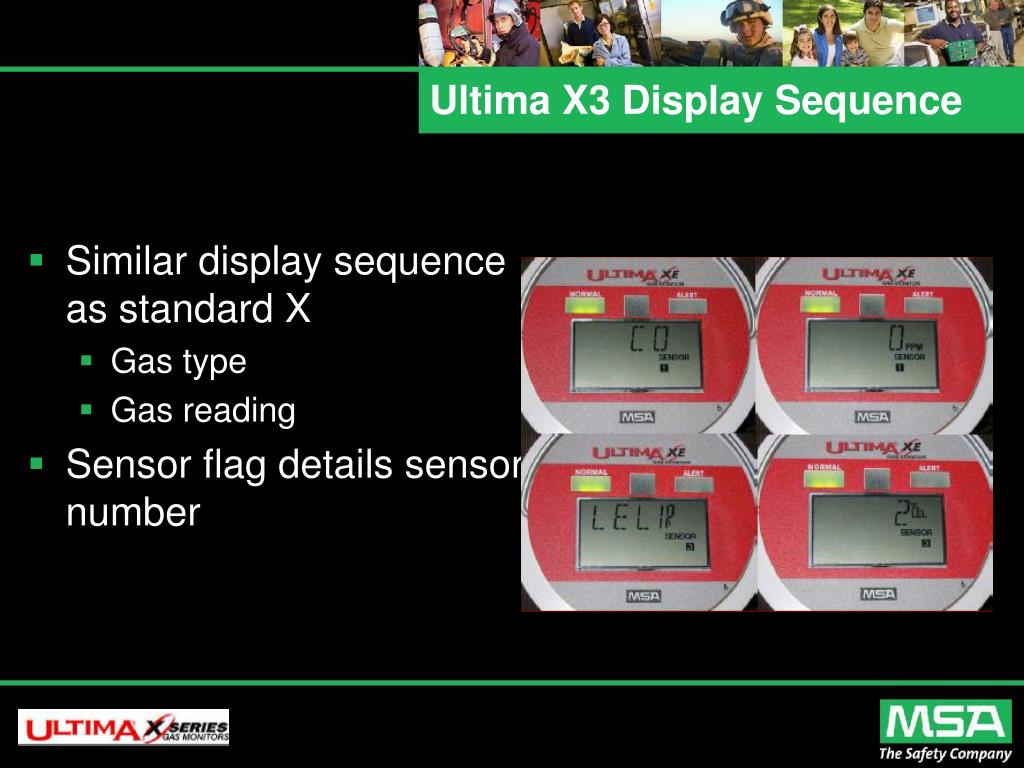

  13. Ultima X3 Display Sequence • Similar display sequence as standard X • Gas type • Gas reading • Sensor flag details sensor number

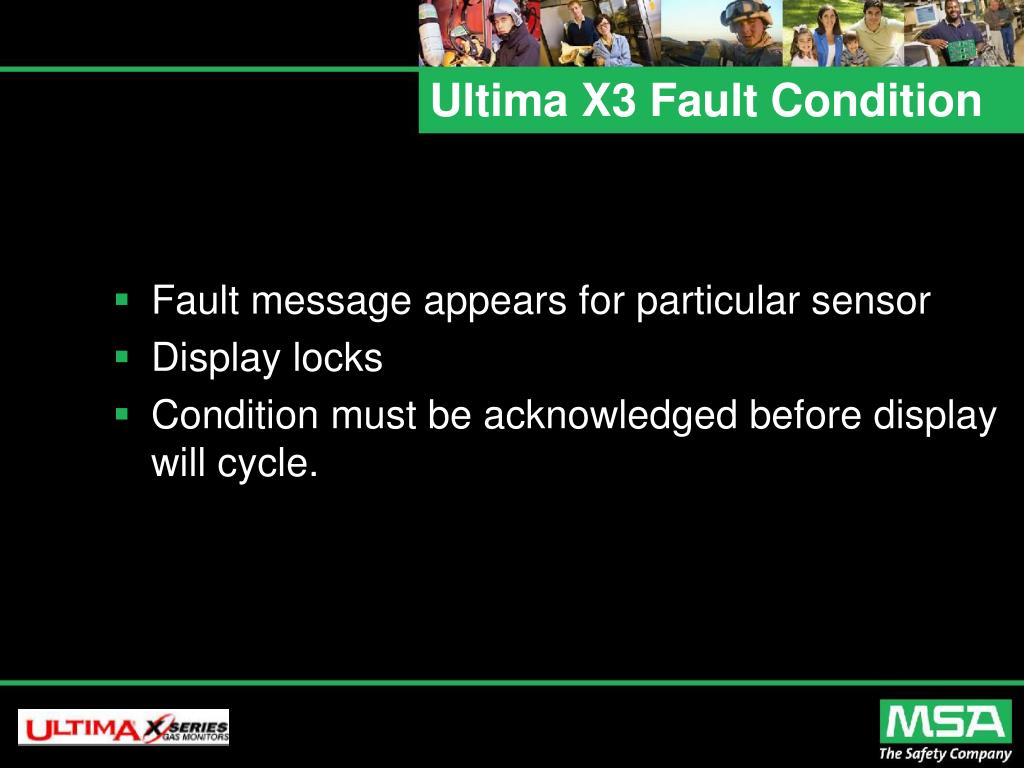

  14. Ultima X3 Fault Condition • Fault message appears for particular sensor • Display locks • Condition must be acknowledged before display will cycle.

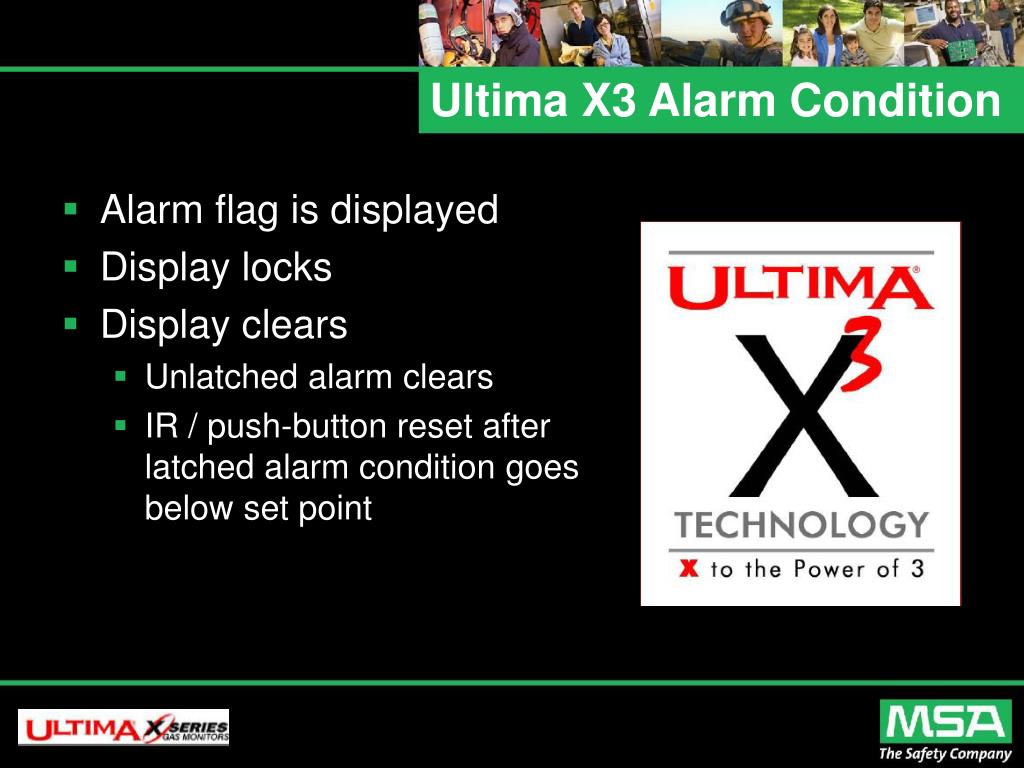

  15. Ultima X3 Alarm Condition • Alarm flag is displayed • Display locks • Display clears • Unlatched alarm clears • IR / push-button reset after latched alarm condition goes below set point

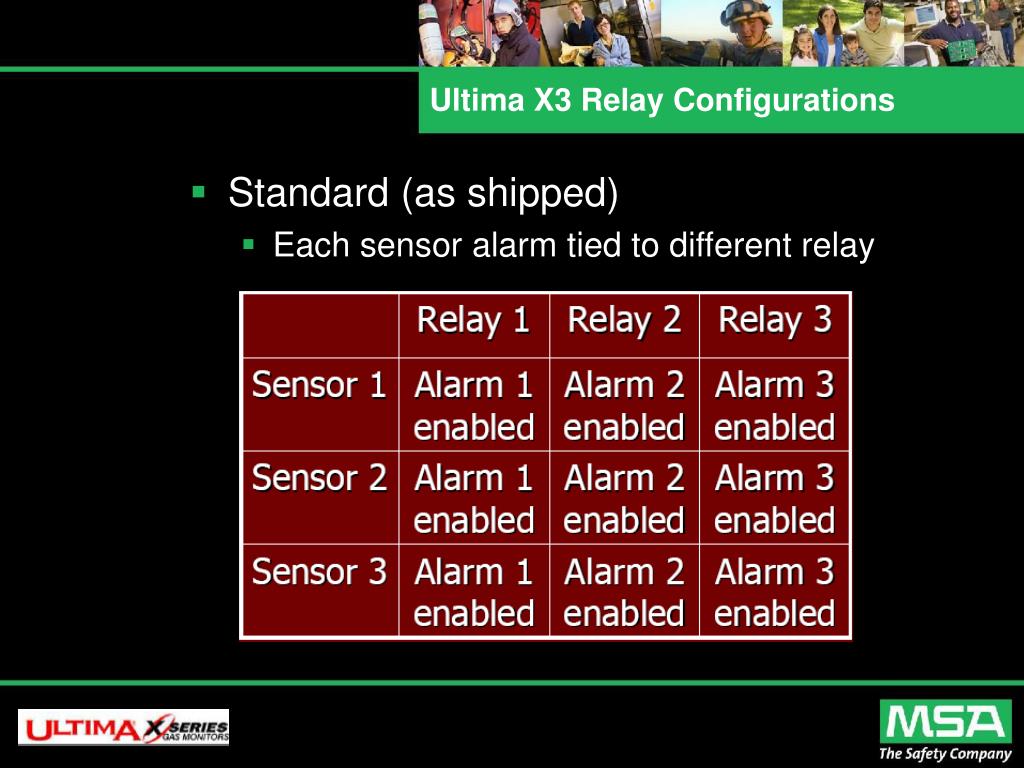

  16. Ultima X3 Relay Configurations • Standard (as shipped) • Each sensor alarm tied to different relay

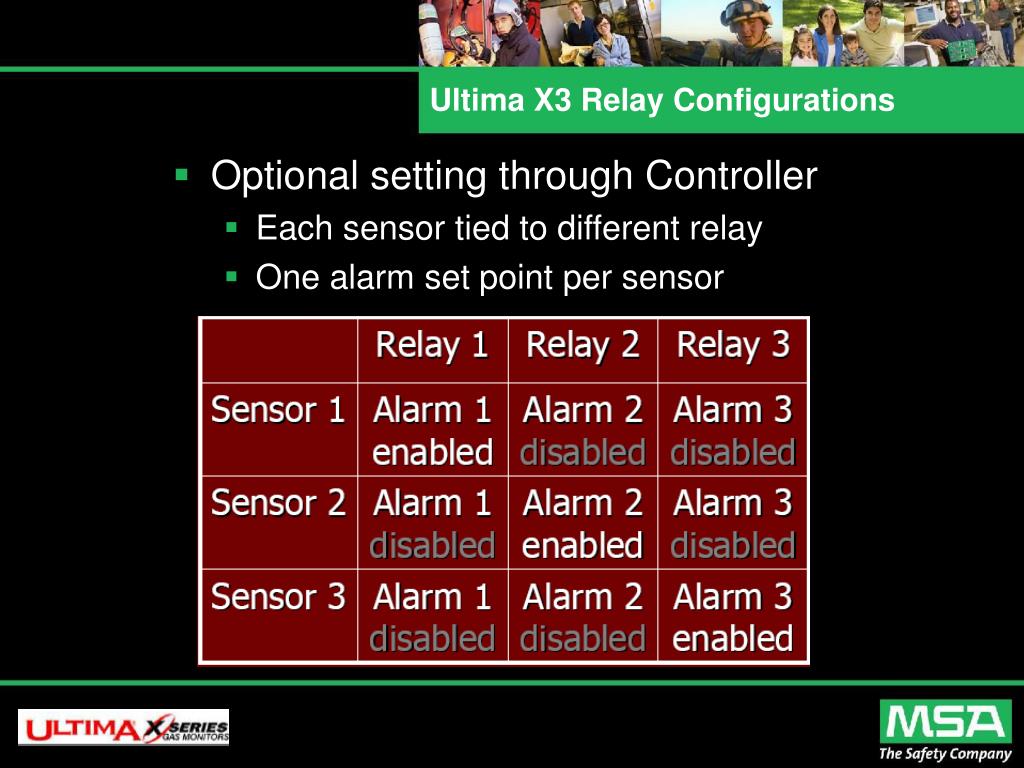

  17. Ultima X3 Relay Configurations • Optional setting through Controller • Each sensor tied to different relay • One alarm set point per sensor

  18. Ultima X3 Calibration • Will require a two man calibration with increased remote sensing distances • Sensor exchange program available • How the program works • Replacement modules are shipped at pre-determined intervals of 1, 2, 3, 6, and 12 months. • Sign a program agreement for your choice of 1, 2, or 3 years. • Receive a pre-calibrated sensor module plus complete calibration documentation in a returnable, pre-labeled container • The shipping container, which identifies the sensor type, is used for return of the old sensor module.

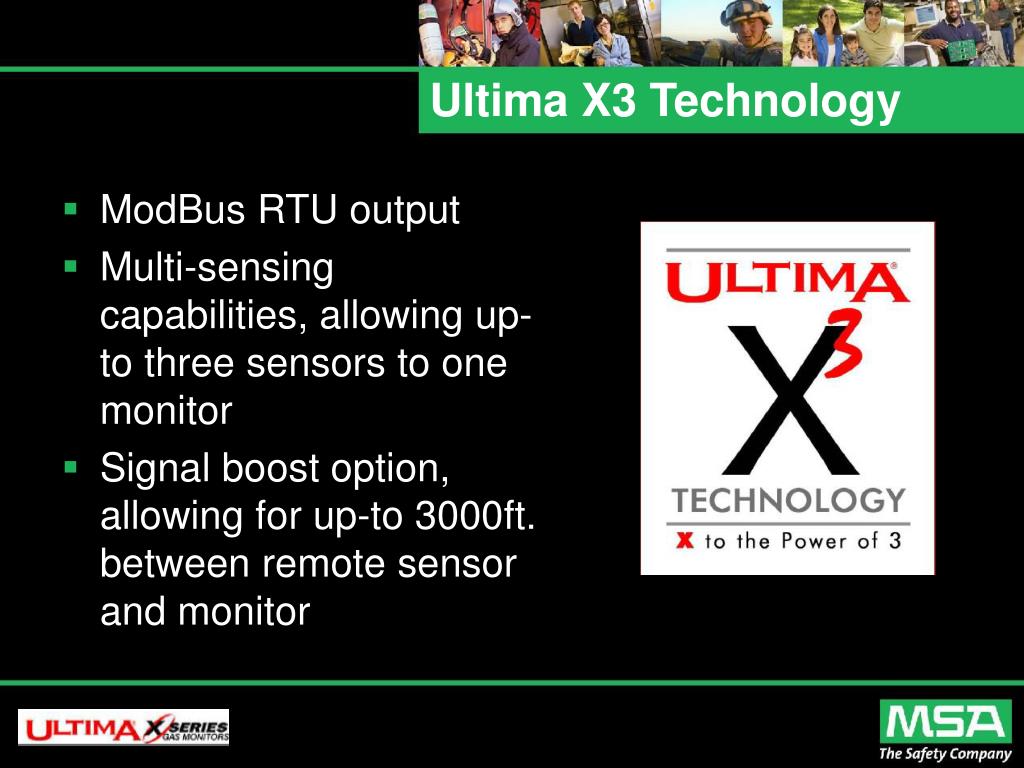

  19. Ultima X3 Technology • ModBus RTU output • Multi-sensing capabilities, allowing up-to three sensors to one monitor • Signal boost option, allowing for up-to 3000ft. between remote sensor and monitor
