  1. Chapter 5Arithmetic and Logic Instructions Instructor:Dr. Yu Youling

  2. Content • Addition, Subtraction and Comparison • Multiplication and Division • BCD and ASCII Arithmetic • Basic Logic Instructions • Shift and Rotate • String Comparisons

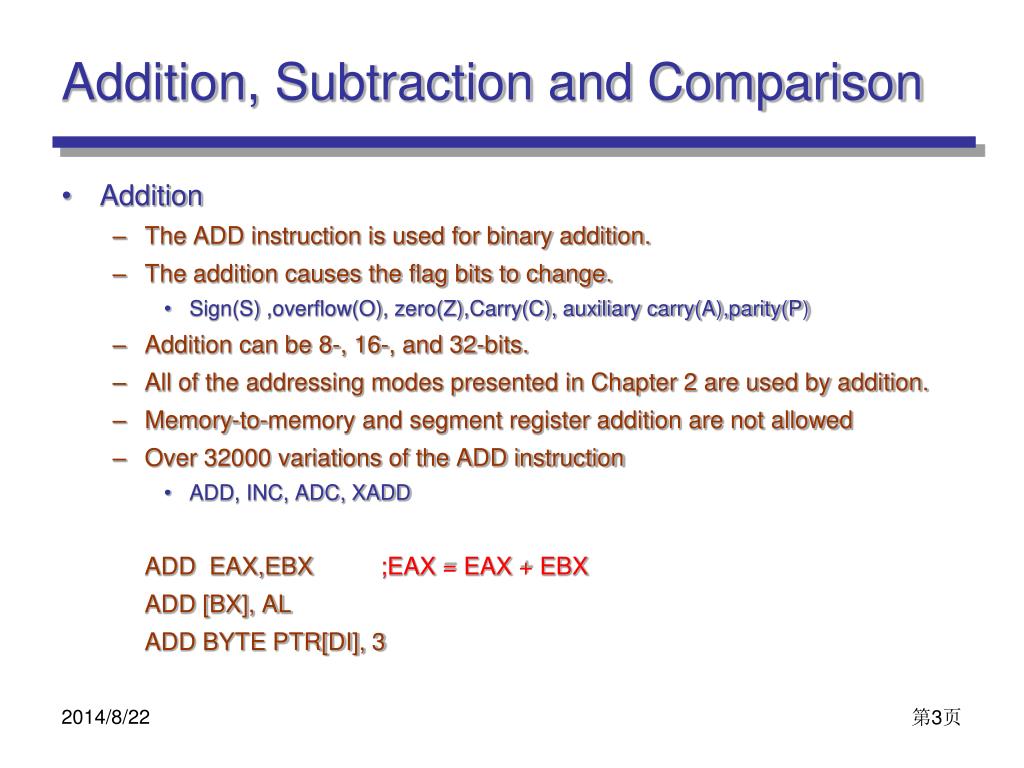

  3. Addition, Subtraction and Comparison • Addition • The ADD instruction is used for binary addition. • The addition causes the flag bits to change. • Sign(S) ,overflow(O), zero(Z),Carry(C), auxiliary carry(A),parity(P) • Addition can be 8-, 16-, and 32-bits. • All of the addressing modes presented in Chapter 2 are used by addition. • Memory-to-memory and segment register addition are not allowed • Over 32000 variations of the ADD instruction • ADD, INC, ADC, XADD ADD EAX,EBX ;EAX = EAX + EBX ADD [BX], AL ADD BYTE PTR[DI], 3

  4. Addition, Subtraction and Comparison • Increment • The INC instruction adds a one to a register or the contents of a memory location. • Important • INC does not affect the CARRY(C) flag bit • In some cases, it is different from the ADD instruction, i.e. ADD BX,1 INC BX ;BX = BX + 1 INC BYTE PTR [EBX]

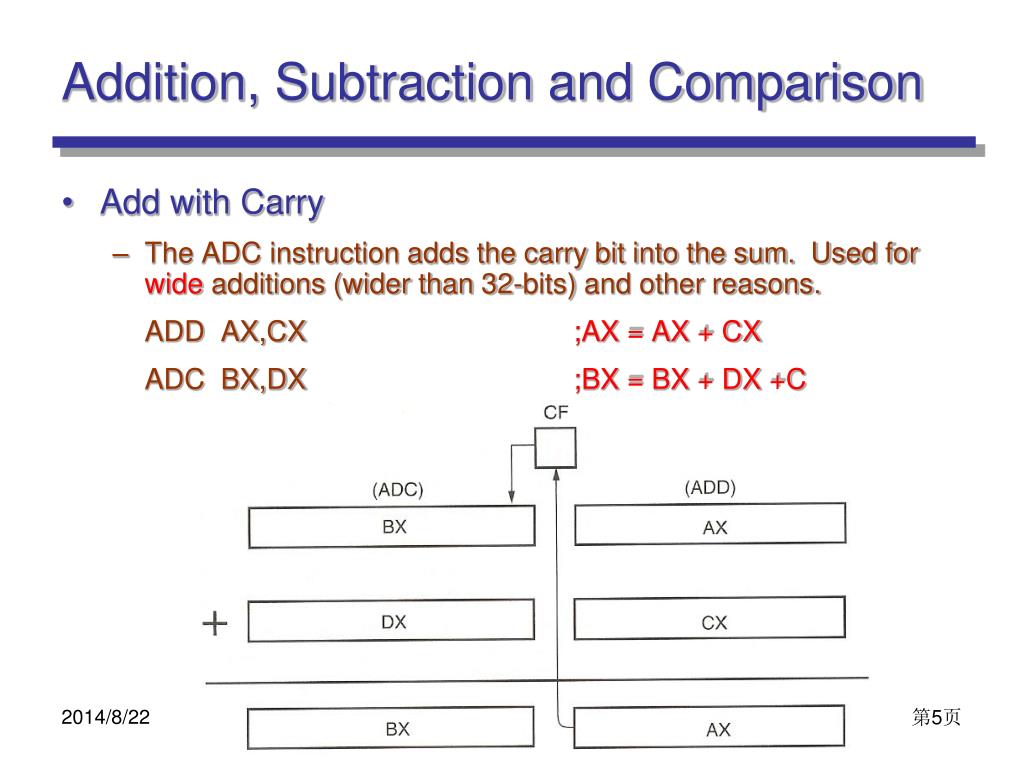

  5. Addition, Subtraction and Comparison • Add with Carry • The ADC instruction adds the carry bit into the sum. Used for wide additions (wider than 32-bits) and other reasons. ADD AX,CX ;AX = AX + CX ADC BX,DX ;BX = BX + DX +C

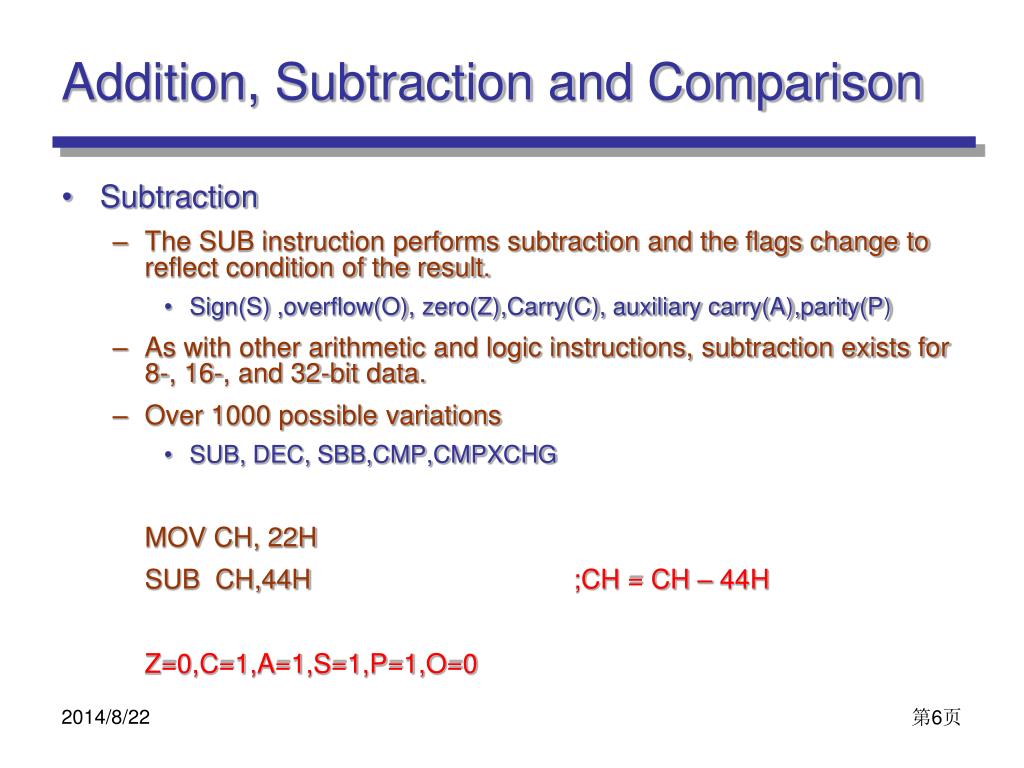

  6. Addition, Subtraction and Comparison • Subtraction • The SUB instruction performs subtraction and the flags change to reflect condition of the result. • Sign(S) ,overflow(O), zero(Z),Carry(C), auxiliary carry(A),parity(P) • As with other arithmetic and logic instructions, subtraction exists for 8-, 16-, and 32-bit data. • Over 1000 possible variations • SUB, DEC, SBB,CMP,CMPXCHG MOV CH, 22H SUB CH,44H ;CH = CH – 44H Z=0,C=1,A=1,S=1,P=1,O=0

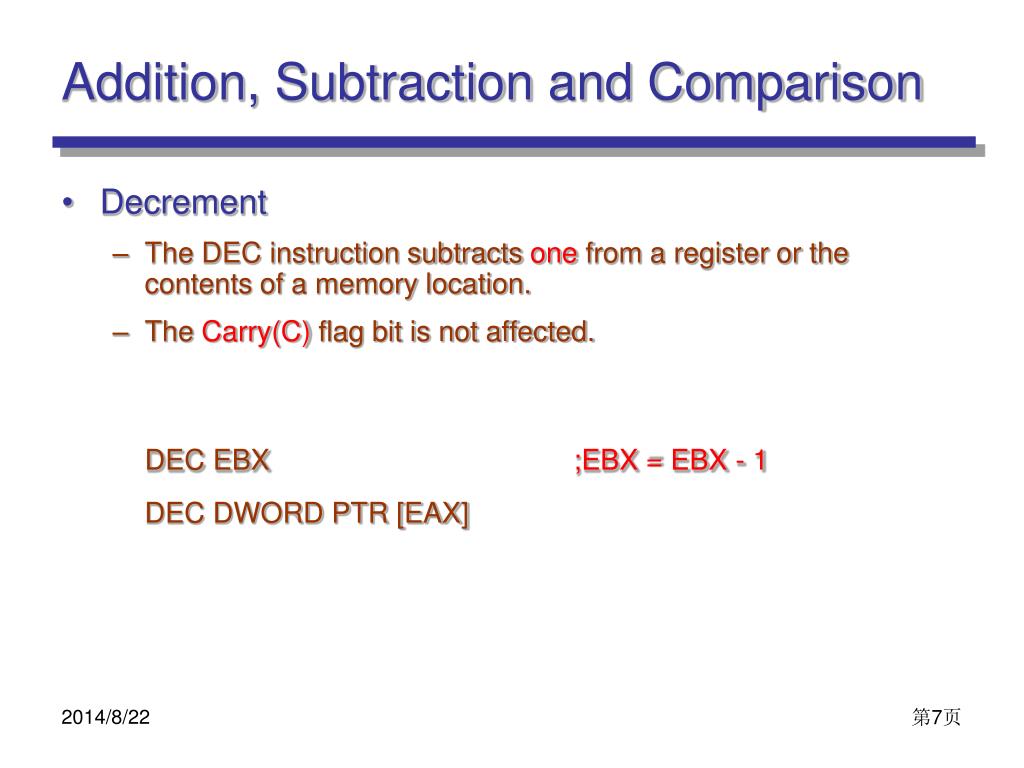

  7. Addition, Subtraction and Comparison • Decrement • The DEC instruction subtracts one from a register or the contents of a memory location. • The Carry(C) flag bit is not affected. DEC EBX ;EBX = EBX - 1 DEC DWORD PTR [EAX]

  8. Addition, Subtraction and Comparison • Subtract with Borrow • The SBB instruction subtracts with borrow (where the borrow is held in the carry flag). SUB AX,DI ;AX = AX – DI SBB BX,SI ;BX = BX – SI -C

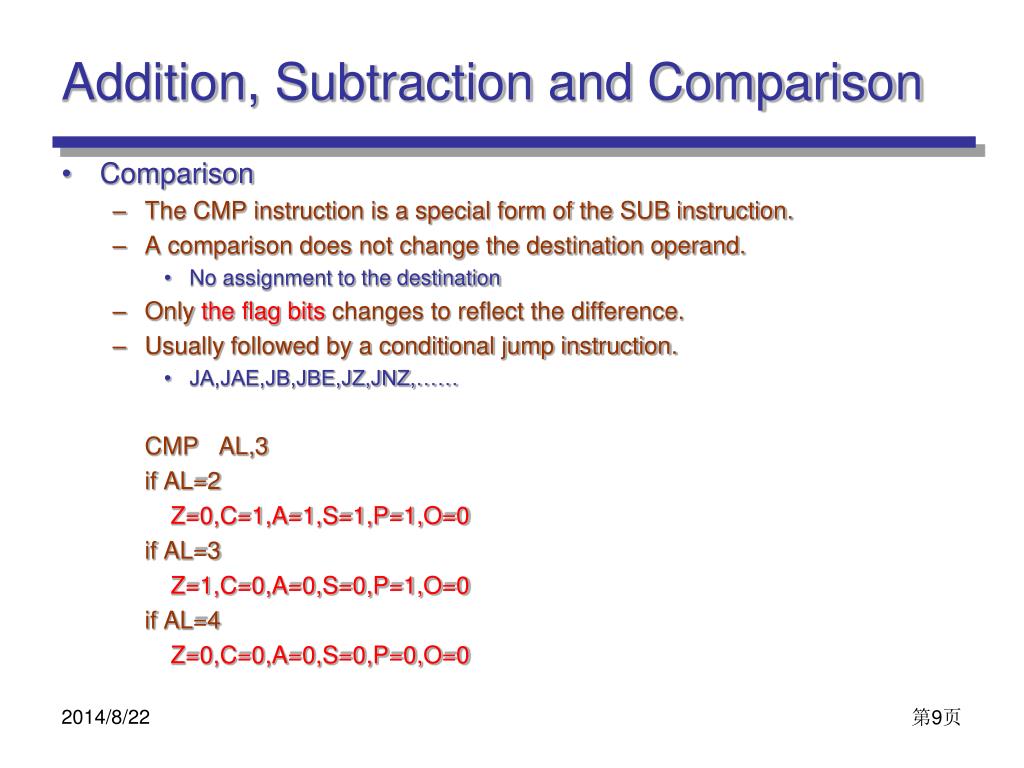

  9. Addition, Subtraction and Comparison • Comparison • The CMP instruction is a special form of the SUB instruction. • A comparison does not change the destination operand. • No assignment to the destination • Only the flag bits changes to reflect the difference. • Usually followed by a conditional jump instruction. • JA,JAE,JB,JBE,JZ,JNZ,…… CMP AL,3 if AL=2 Z=0,C=1,A=1,S=1,P=1,O=0 if AL=3 Z=1,C=0,A=0,S=0,P=1,O=0 if AL=4 Z=0,C=0,A=0,S=0,P=0,O=0

  10. Multiplication and Division • Multiplication • The MUL (unsigned) and IMUL (signed) instructions exist to perform 8-, 16-, or 32-bit multiplication. • The result is always a double-width result. • 2n*2n=22n • The carry and overflow bits indicate conditions about the multiplication. • For 8-bit multiplication, if most-significant 8-bits of the result are zero, then C=0 and O=0 • So does the 16/32-bit multiplication MOV AL, 03H MUL BL MUL 0F0H is illegal. But you can place the immediate in register to accomplish the multiplication.

  11. Multiplication and Division • 8-bit multiplication • The Multiplicand is AL, so only one operand exists. • The Multiplier can be 8-bit register or memory location • Normally, the immediate multiplication is not allowed. • The result is placed in AX • 16-bit • The result is placed in DX-AX • 32-bit • The result is placed in EDX-EAX

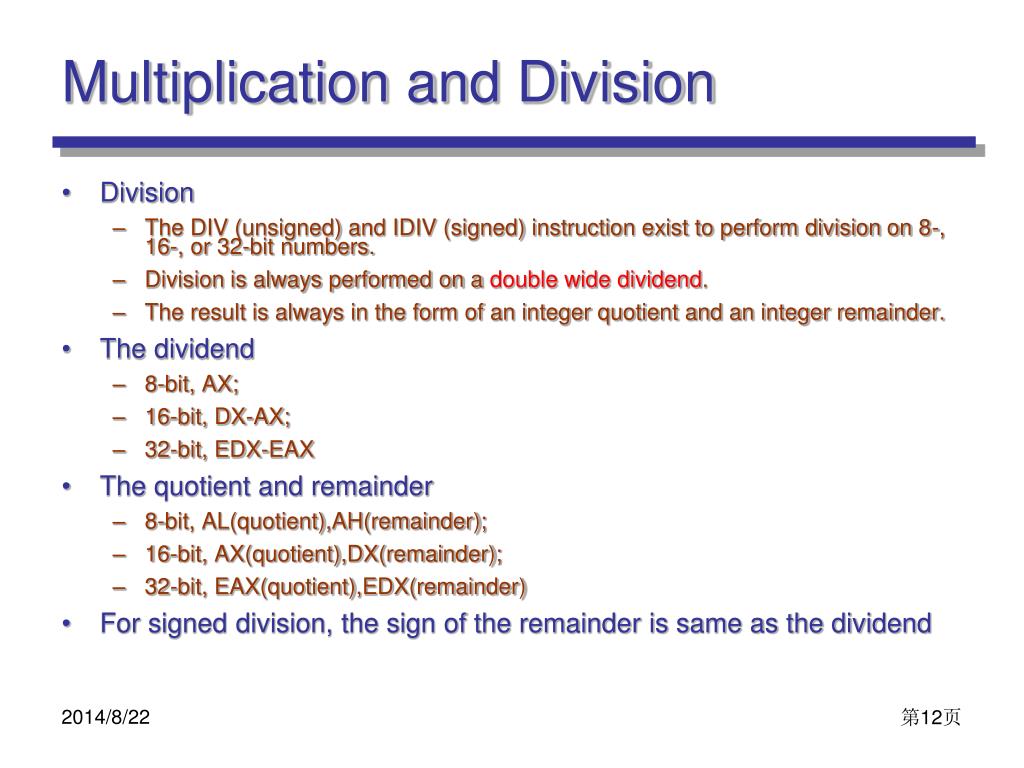

  12. Multiplication and Division • Division • The DIV (unsigned) and IDIV (signed) instruction exist to perform division on 8-, 16-, or 32-bit numbers. • Division is always performed on a double wide dividend. • The result is always in the form of an integer quotient and an integer remainder. • The dividend • 8-bit, AX; • 16-bit, DX-AX; • 32-bit, EDX-EAX • The quotient and remainder • 8-bit, AL(quotient),AH(remainder); • 16-bit, AX(quotient),DX(remainder); • 32-bit, EAX(quotient),EDX(remainder) • For signed division, the sign of the remainder is same as the dividend

  13. Multiplication and Division • The errors in division • An attempt to divide by zero • A divide overflow • A small number divides into a large number • Extended function • Unsigned number, zero-extended • MOVZX • assign AH, DX, EDA to zero • Signed number, sign-extended • CBW, CWD • MOVSX

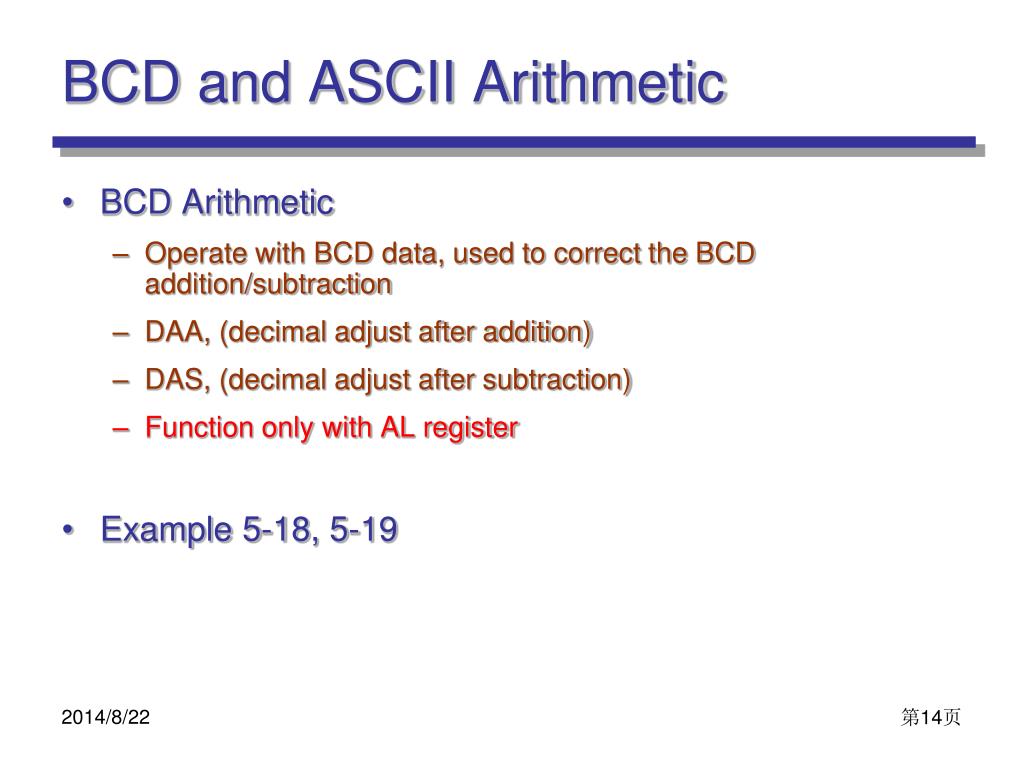

  14. BCD and ASCII Arithmetic • BCD Arithmetic • Operate with BCD data, used to correct the BCD addition/subtraction • DAA, (decimal adjust after addition) • DAS, (decimal adjust after subtraction) • Function only with AL register • Example 5-18, 5-19

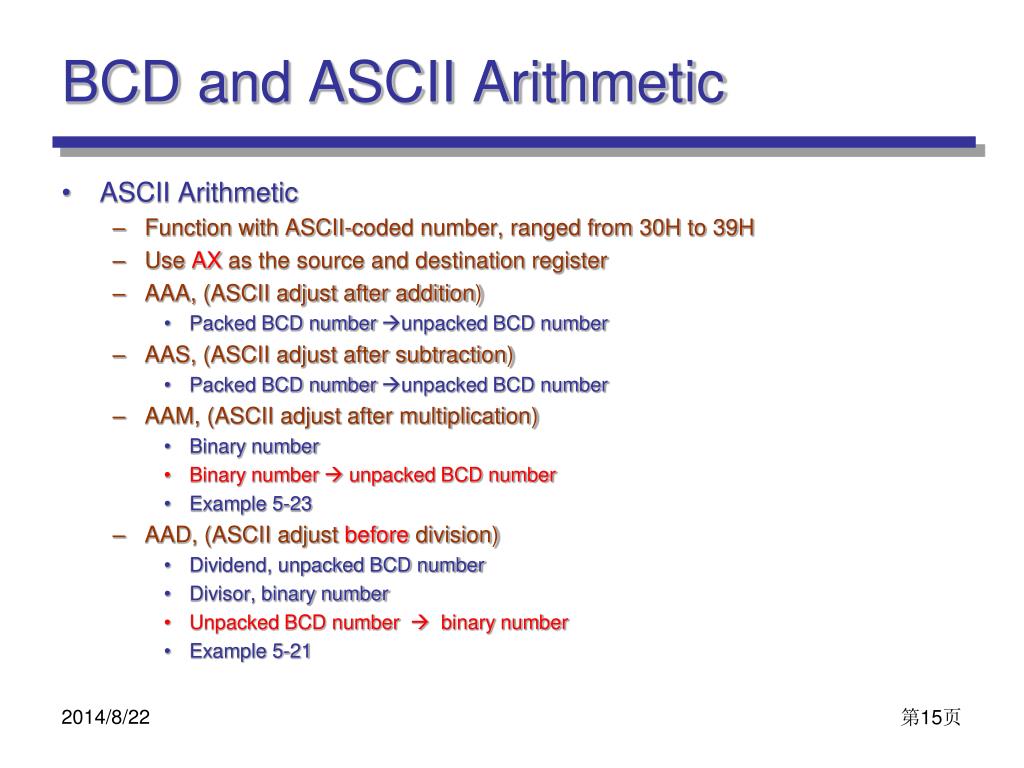

  15. BCD and ASCII Arithmetic • ASCII Arithmetic • Function with ASCII-coded number, ranged from 30H to 39H • Use AX as the source and destination register • AAA, (ASCII adjust after addition) • Packed BCD number unpacked BCD number • AAS, (ASCII adjust after subtraction) • Packed BCD number unpacked BCD number • AAM, (ASCII adjust after multiplication) • Binary number • Binary number  unpacked BCD number • Example 5-23 • AAD, (ASCII adjust before division) • Dividend, unpacked BCD number • Divisor, binary number • Unpacked BCD number  binary number • Example 5-21

  16. Basic Logic Instructions • Logic operations always clear the carry and overflow flags • AND • The AND instruction performs logical multiplication (the AND operation). • Use MASK to clear some bits

  17. Basic Logic Instructions • OR • The OR instruction generates the logical sum (OR operation). • Use MASK to set some bits

  18. Basic Logic Instructions • Exclusive OR • The XOR instruction performs the Exclusive OR operation. • Use MASK to invert some bits

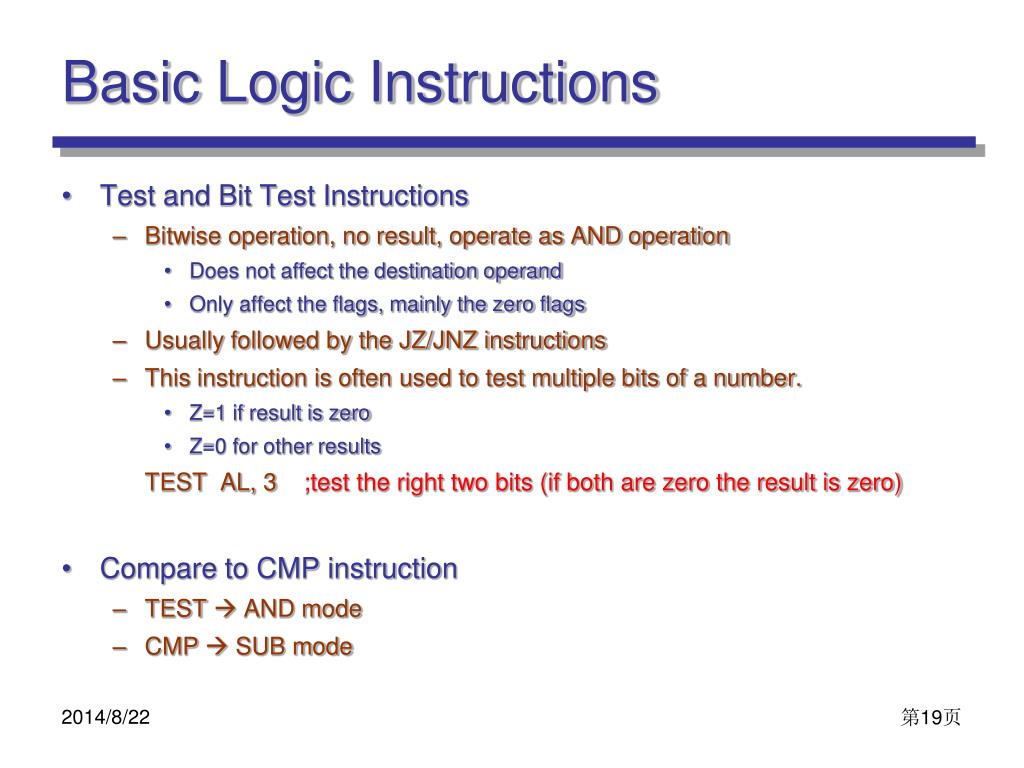

  19. Basic Logic Instructions • Test and Bit Test Instructions • Bitwise operation, no result, operate as AND operation • Does not affect the destination operand • Only affect the flags, mainly the zero flags • Usually followed by the JZ/JNZ instructions • This instruction is often used to test multiple bits of a number. • Z=1 if result is zero • Z=0 for other results TEST AL, 3 ;test the right two bits (if both are zero the result is zero) • Compare to CMP instruction • TEST  AND mode • CMP  SUB mode

  20. Basic Logic Instructions • Bit Test Instructions • There are four bit test instructions BT (bit test), BTR (bit test and reset), BTS (bit test and set), and BTC (bit test and complement). • Each tests the prescribed bit by moving it into carry. Then the bit is modified (except for BT) BT AL,3 ;bit 3 is moved to carry BTS AL,3 ;bit 3 is moved to carry then set BTR AL,3 ;bit 3 is moved to carry then reset BTC AL,3 ;bit 3 is moved to carry then inverted.

  21. Basic Logic Instructions • NEG and NOT • The NEG (negate) instruction 2’s complements a number, • The NOT instruction 1’s complements a number. NOT EAX NEG DWORD PTR [EBX]

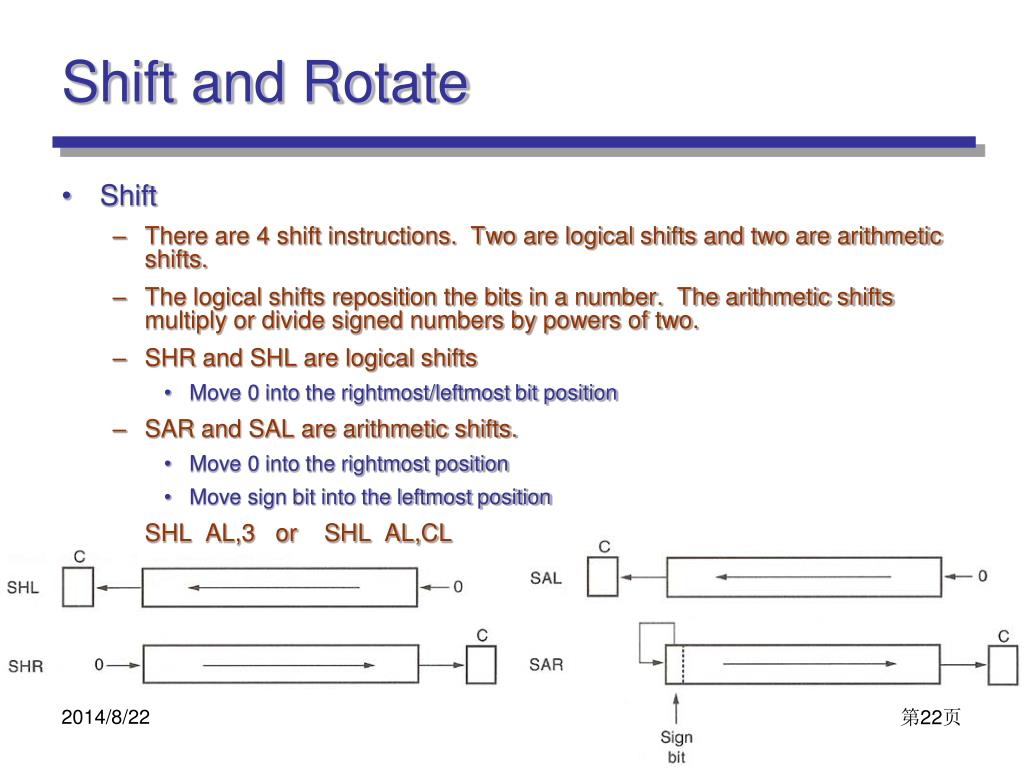

  22. Shift and Rotate • Shift • There are 4 shift instructions. Two are logical shifts and two are arithmetic shifts. • The logical shifts reposition the bits in a number. The arithmetic shifts multiply or divide signed numbers by powers of two. • SHR and SHL are logical shifts • Move 0 into the rightmost/leftmost bit position • SAR and SAL are arithmetic shifts. • Move 0 into the rightmost position • Move sign bit into the leftmost position SHL AL,3 or SHL AL,CL

  23. Shift and Rotate • Rotate • Rotates are shifts that re-circulate the bit that moves out of an end of the register or memory location. • Four rotates exist where two just rotate the target and two rotate the target through the carry flag. ROL AL,3 or RCL AL,3 • Example 5-32

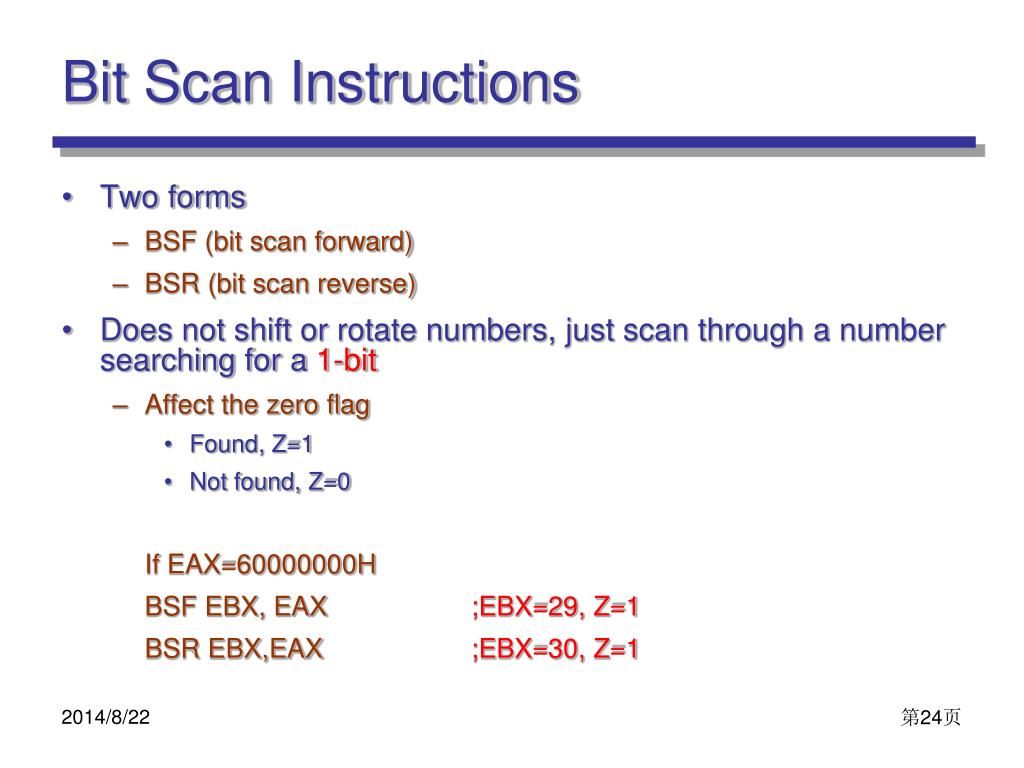

  24. Bit Scan Instructions • Two forms • BSF (bit scan forward) • BSR (bit scan reverse) • Does not shift or rotate numbers, just scan through a number searching for a 1-bit • Affect the zero flag • Found, Z=1 • Not found, Z=0 If EAX=60000000H BSF EBX, EAX ;EBX=29, Z=1 BSR EBX,EAX ;EBX=30, Z=1

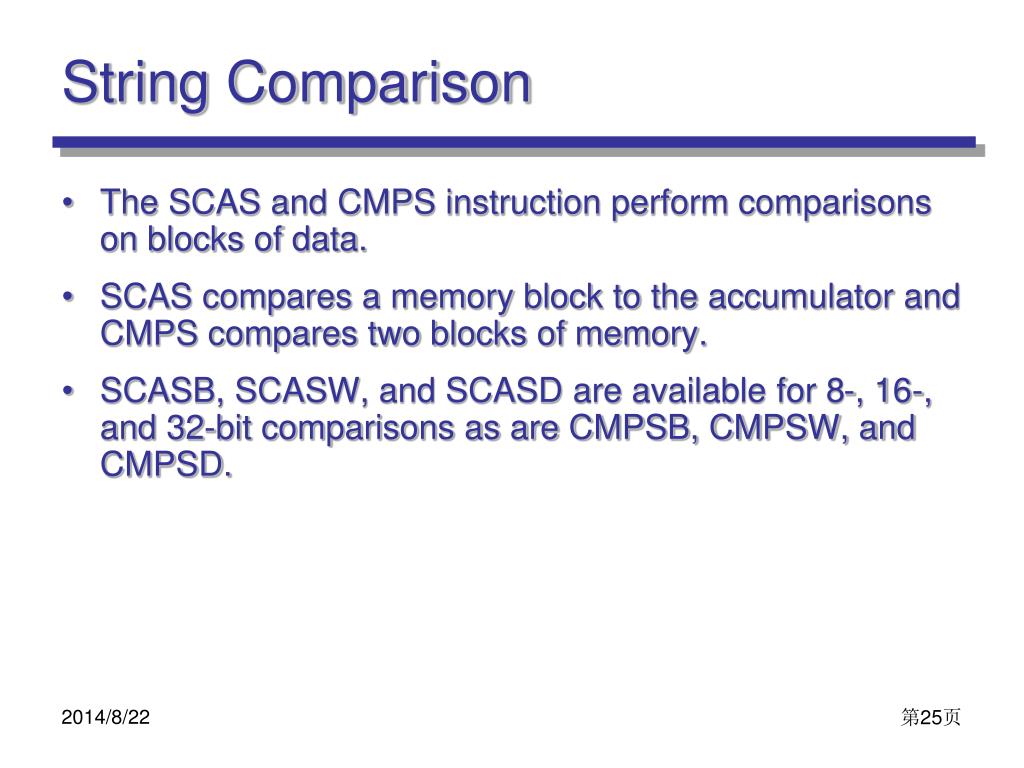

  25. String Comparison • The SCAS and CMPS instruction perform comparisons on blocks of data. • SCAS compares a memory block to the accumulator and CMPS compares two blocks of memory. • SCASB, SCASW, and SCASD are available for 8-, 16-, and 32-bit comparisons as are CMPSB, CMPSW, and CMPSD.

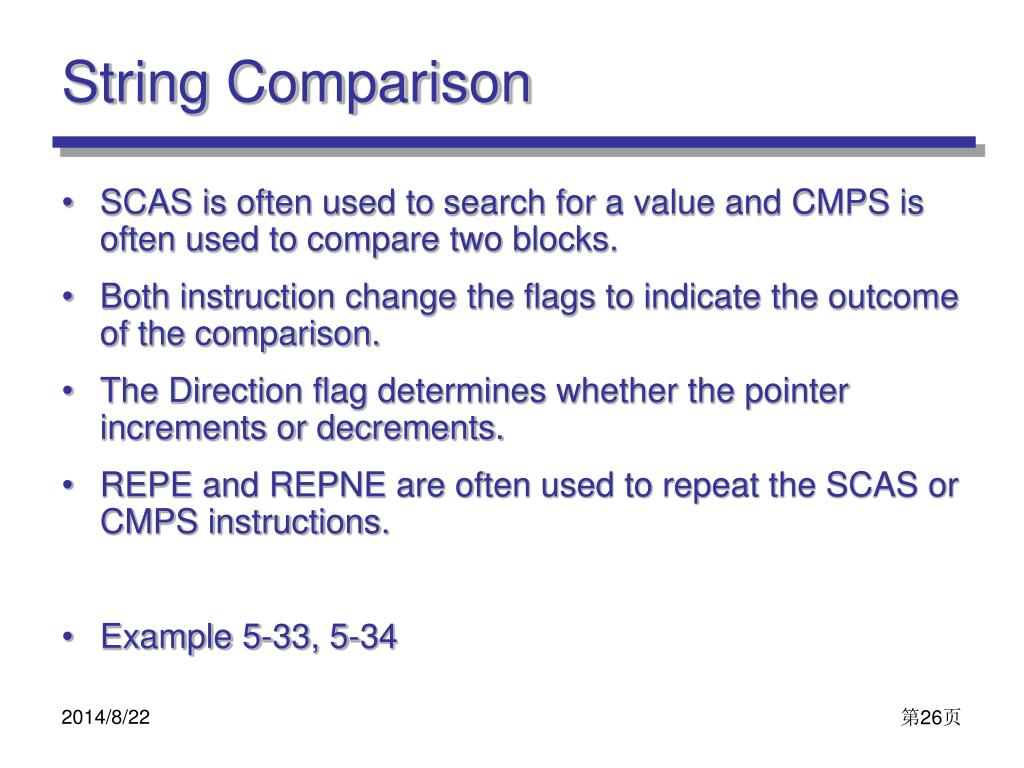

  26. String Comparison • SCAS is often used to search for a value and CMPS is often used to compare two blocks. • Both instruction change the flags to indicate the outcome of the comparison. • The Direction flag determines whether the pointer increments or decrements. • REPE and REPNE are often used to repeat the SCAS or CMPS instructions. • Example 5-33, 5-34

  27. LODS,STOS • Example • Initializing a block of memory with a store string instruction

  28. REP string

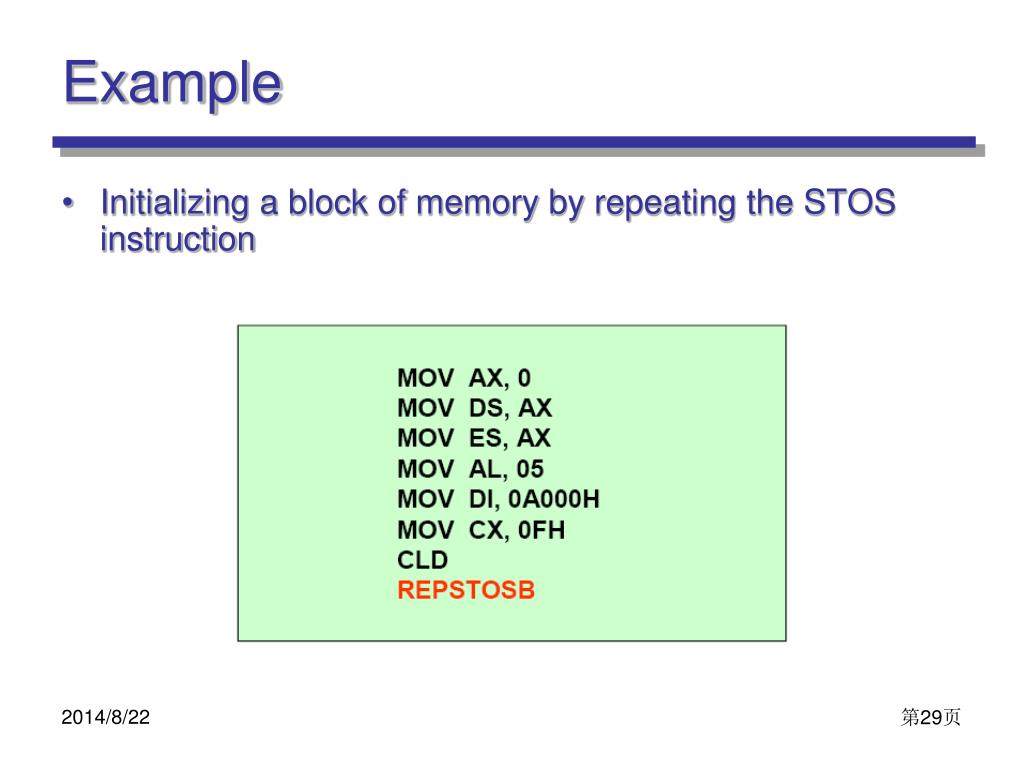

  29. Example • Initializing a block of memory by repeating the STOS instruction

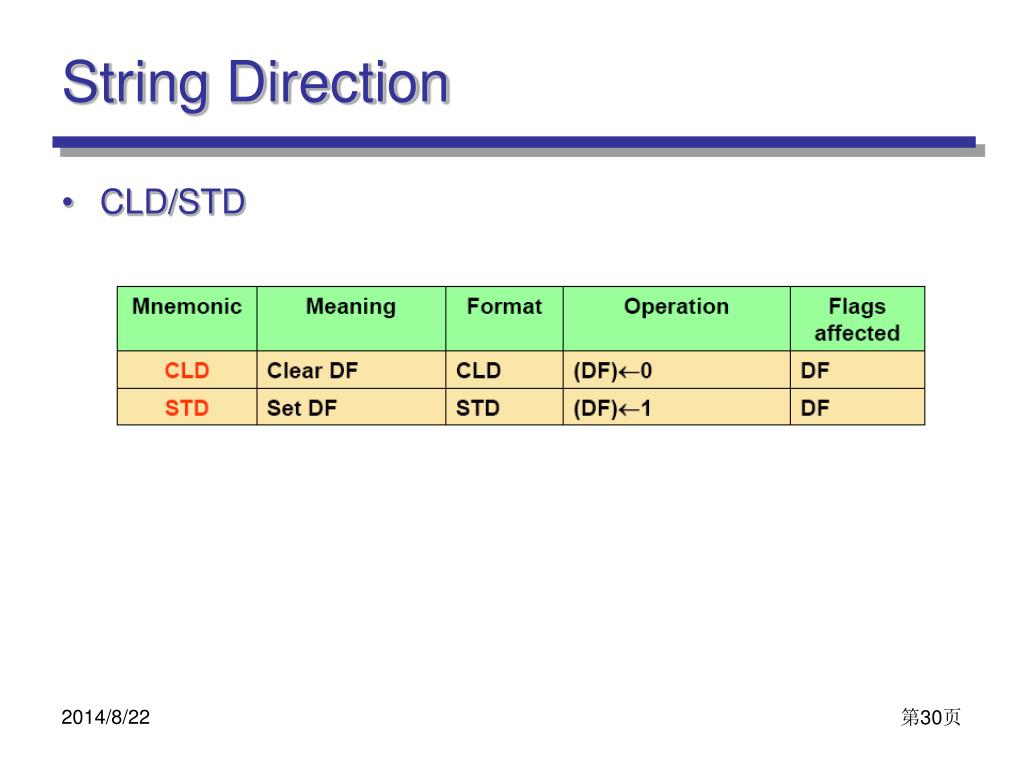

  30. String Direction • CLD/STD

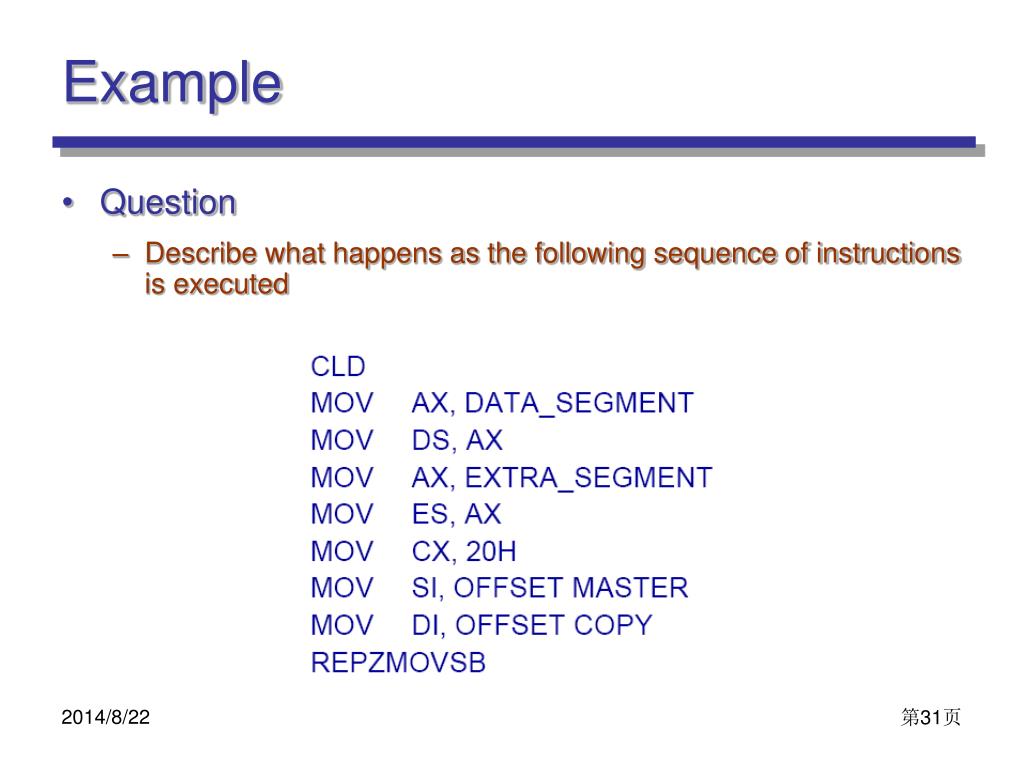

  31. Example • Question • Describe what happens as the following sequence of instructions is executed

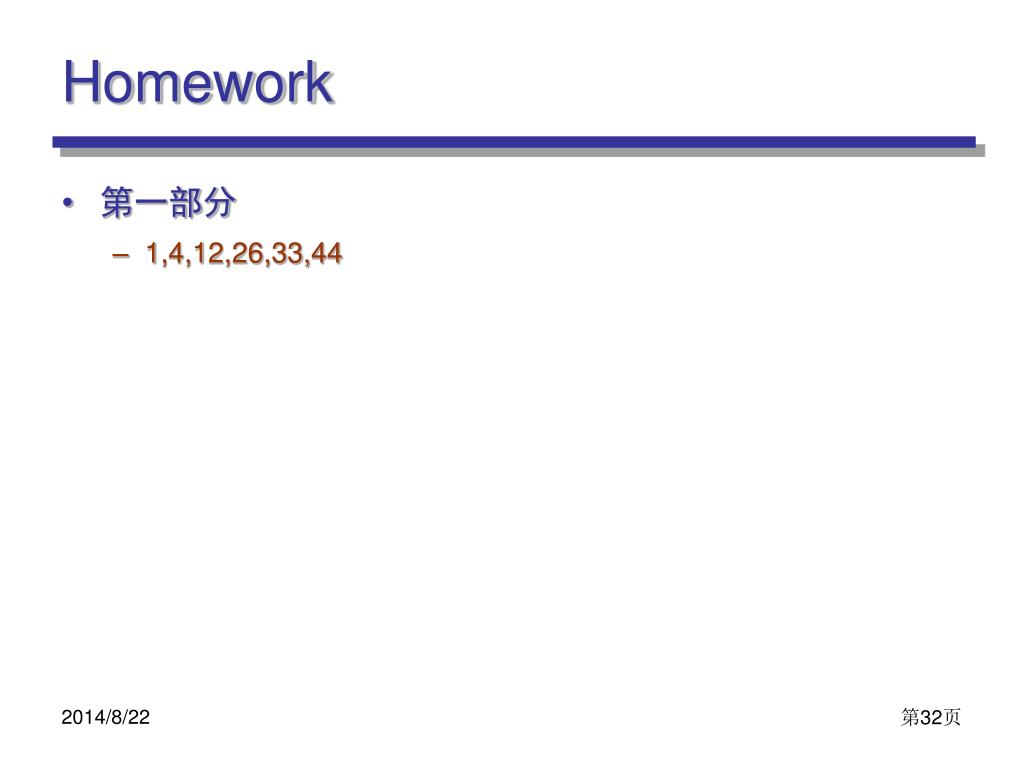

  32. Homework • 第一部分 • 1,4,12,26,33,44
