  1. Membuat Router MurahdenganSmoothwall By : Albert Riyandi

  2. Dijualgakadaharga, tapibuatapaitu PC Jadul..??? Bisajadi Router , Proxy gak yah..?? PC Jadul

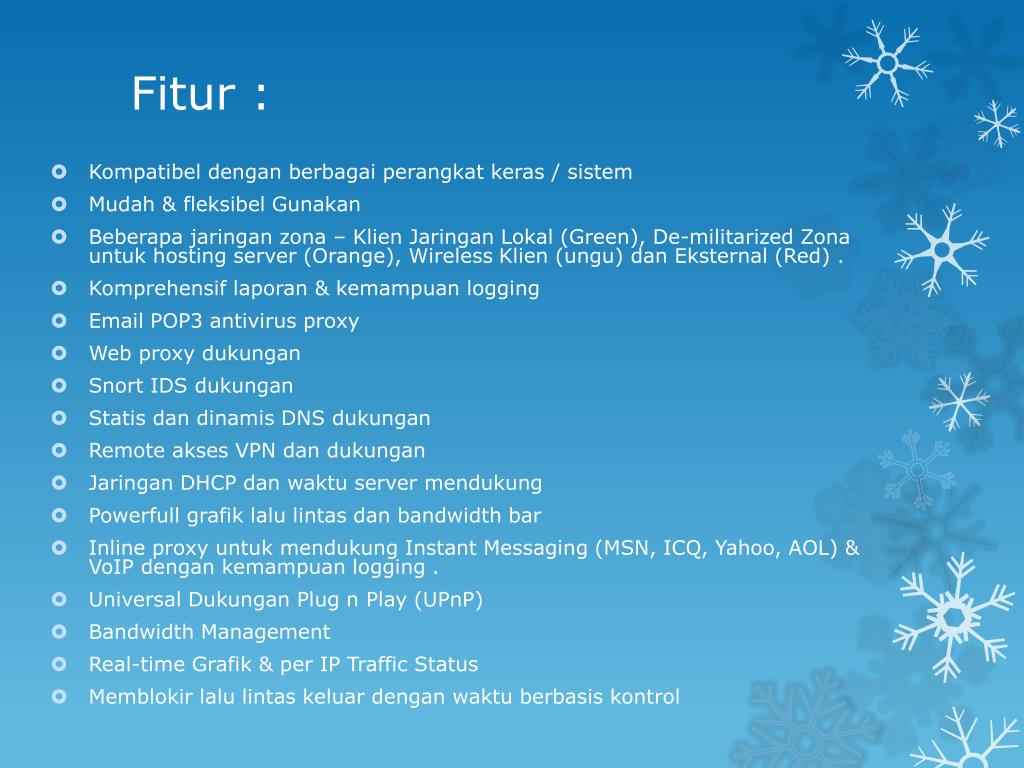

  3. Fitur : • Kompatibeldenganberbagaiperangkatkeras / sistem • Mudah & fleksibelGunakan • Beberapajaringanzona – KlienJaringanLokal (Green), De-militarized Zonauntuk hosting server (Orange), Wireless Klien (ungu) danEksternal (Red) . • Komprehensiflaporan & kemampuan logging • Email POP3 antivirus proxy • Web proxy dukungan • Snort IDS dukungan • Statisdandinamis DNS dukungan • Remote akses VPN dandukungan • Jaringan DHCP danwaktu server mendukung • Powerfullgrafiklalulintasdan bandwidth bar • Inline proxy untukmendukung Instant Messaging (MSN, ICQ, Yahoo, AOL) & VoIP dengankemampuan logging . • Universal Dukungan Plug n Play (UPnP) • Bandwidth Management • Real-time Grafik & per IP Traffic Status • Memblokirlalulintaskeluardenganwaktuberbasiskontrol

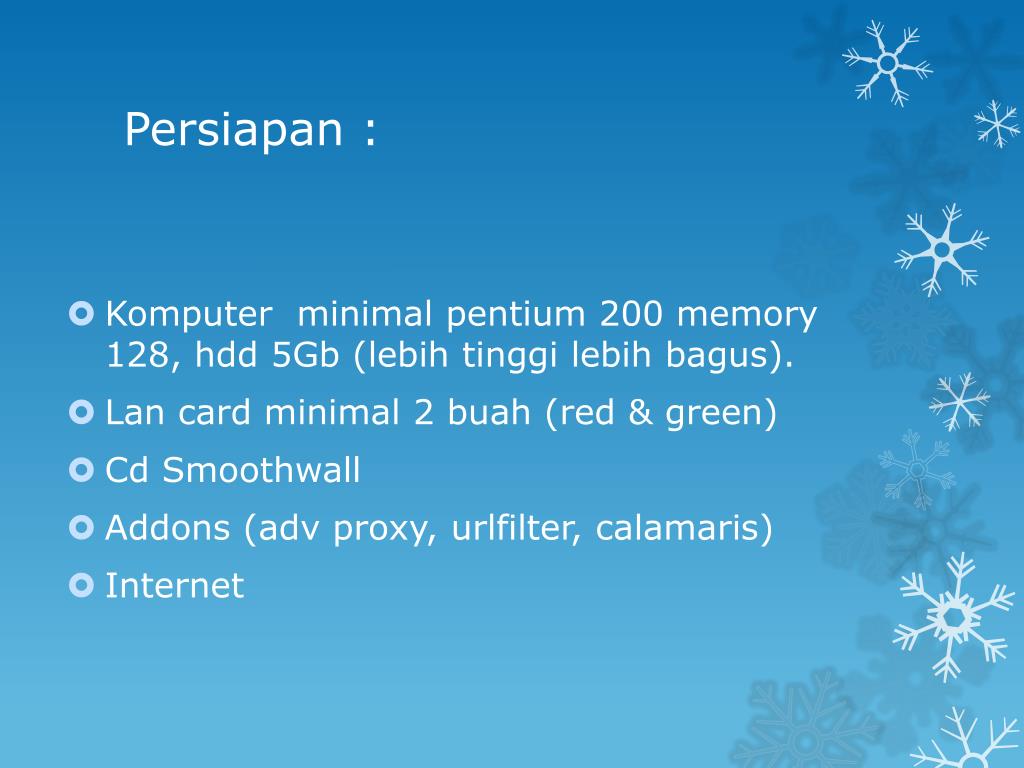

  4. Persiapan : • Komputer minimal pentium 200 memory 128, hdd 5Gb (lebihtinggilebihbagus). • Lan card minimal 2 buah (red & green) • CdSmoothwall • Addons (adv proxy, urlfilter, calamaris) • Internet

  5. SkemaJaringan yang bisaditerapkan :

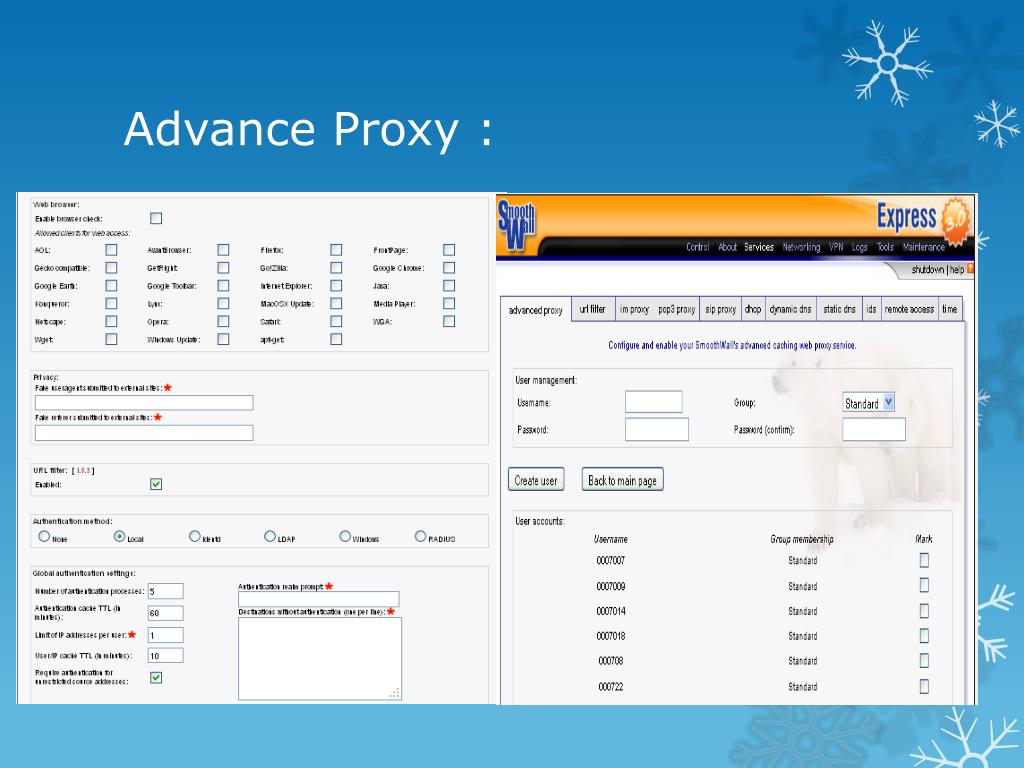

  6. Advance Proxy :

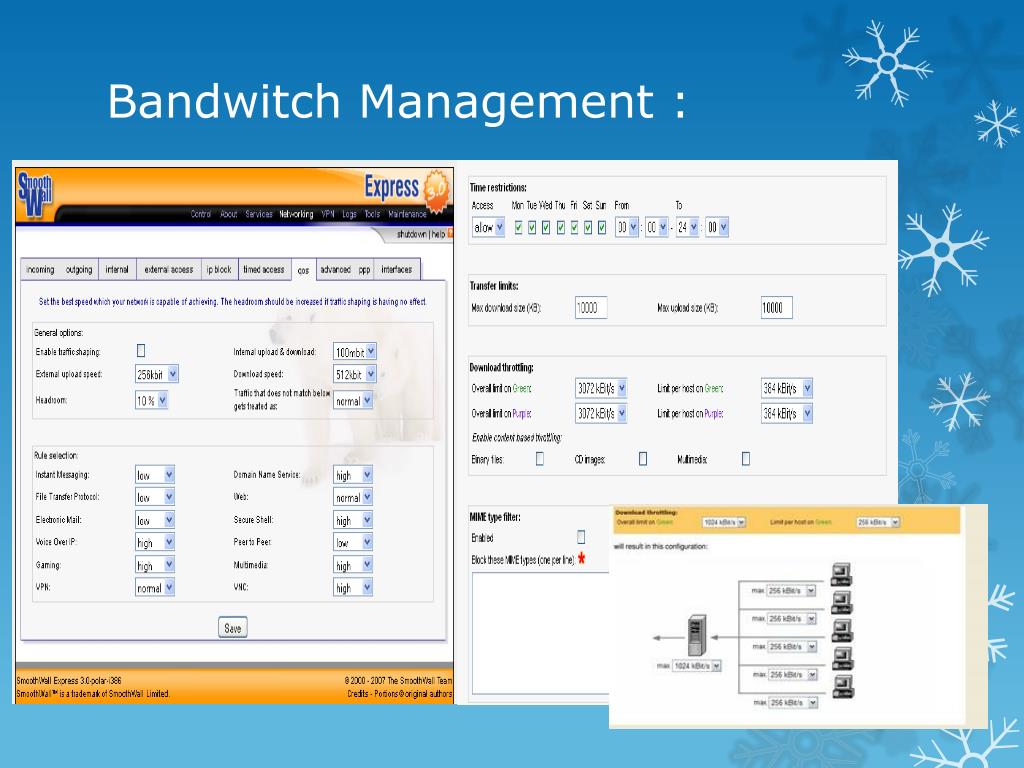

  7. Bandwitch Management :

  8. Filtering

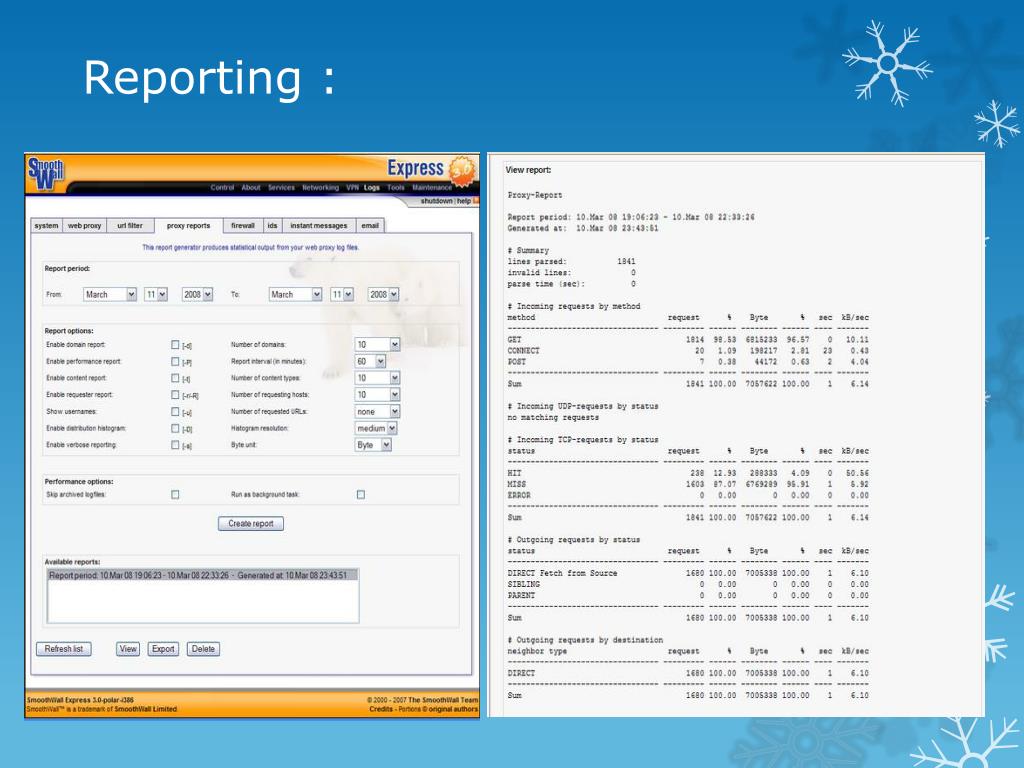

  9. Reporting :

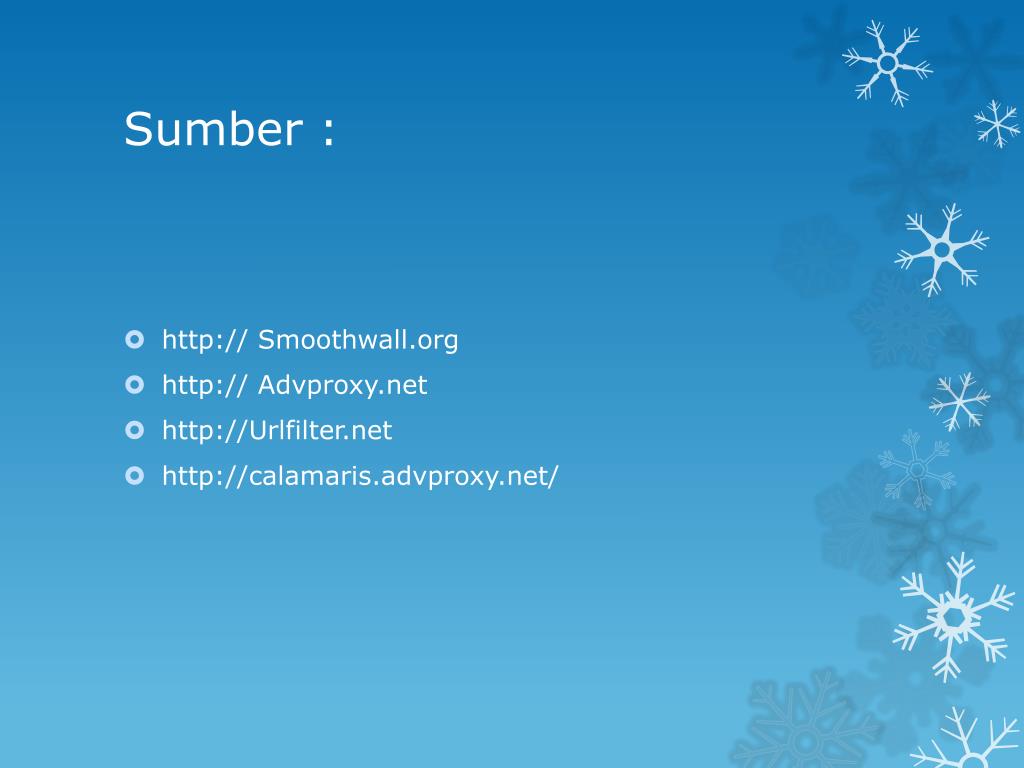

  10. Sumber : • http:// Smoothwall.org • http:// Advproxy.net • http://Urlfilter.net • http://calamaris.advproxy.net/
