  1. MDC Training Rosenbauer Engines

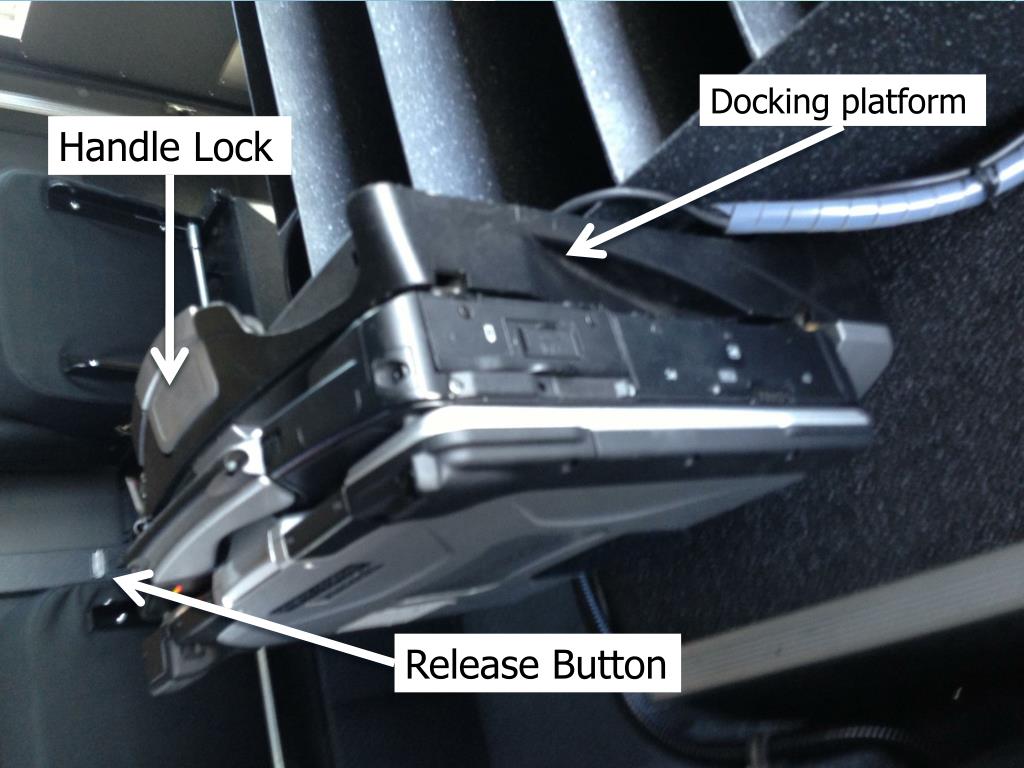

  2. Docking platform Handle Lock Release Button

  3. Docking To Secure MDC in the docking platform: • When securing MDC in the docking platform, place top edge under the hook then rotate bottom edge flat onto docking platform. • Pull handle lock up to lock MDC in the docking platform. To remove MDC from docking platform: • To release, press release button and handle lock will retract. • Pull bottom edge away from docking platform first, then the MDC will drop down and away from docking platform. • If the MDC must be replaced, only an MDC configured for the Rosenbauers can be installed. MDCs so configured will be marked with a label.

  4. Handle Lock

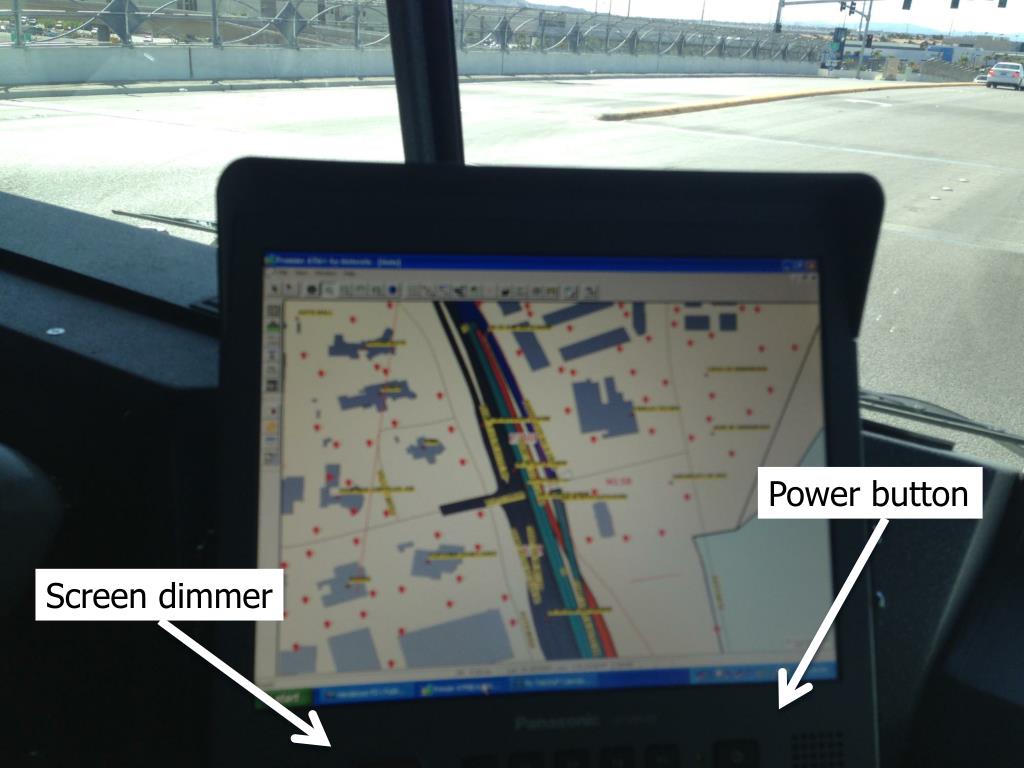

  5. Power button Screen dimmer

  6. Touch Screen • Power button on the touch screen will shut down the MDC. • Touch screen navigation works the same as on the MDC screen itself. • Better resolution on remote screen • Better touch sensitivity

  7. Keyboard release tab

  8. Flexible keyboard release tab Push the keyboard back and lift out

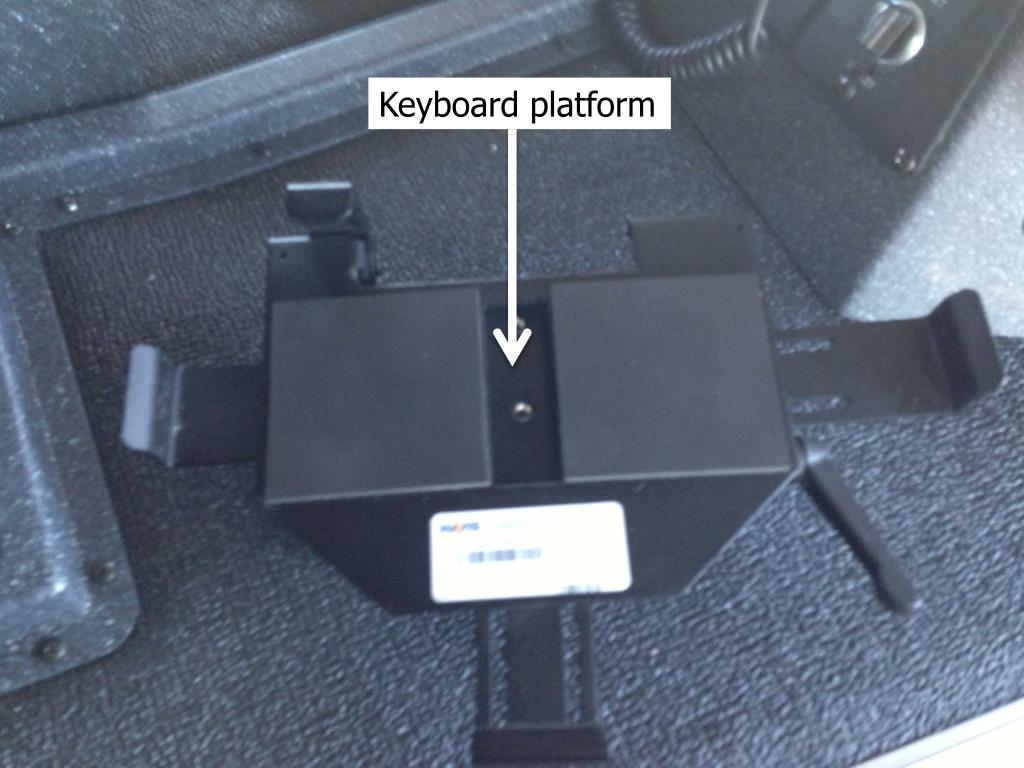

  9. Keyboard platform

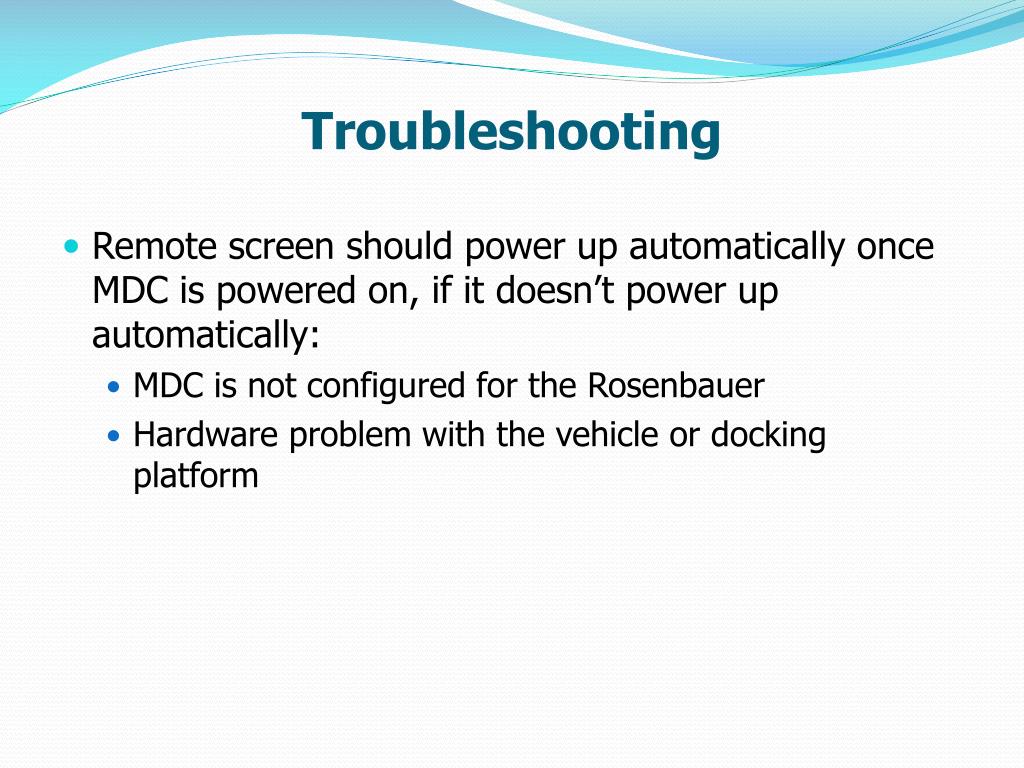

  10. Troubleshooting • Remote screen should power up automatically once MDC is powered on, if it doesn’t power up automatically: • MDC is not configured for the Rosenbauer • Hardware problem with the vehicle or docking platform
