  1. Steady State Drainage Department of Agricultural and Biological Engineering University of Illinois at Urbana-Champaign

  2. Darcy’s Law h1 L h2 q: [L/T] K: [L/T] L, h: [L]

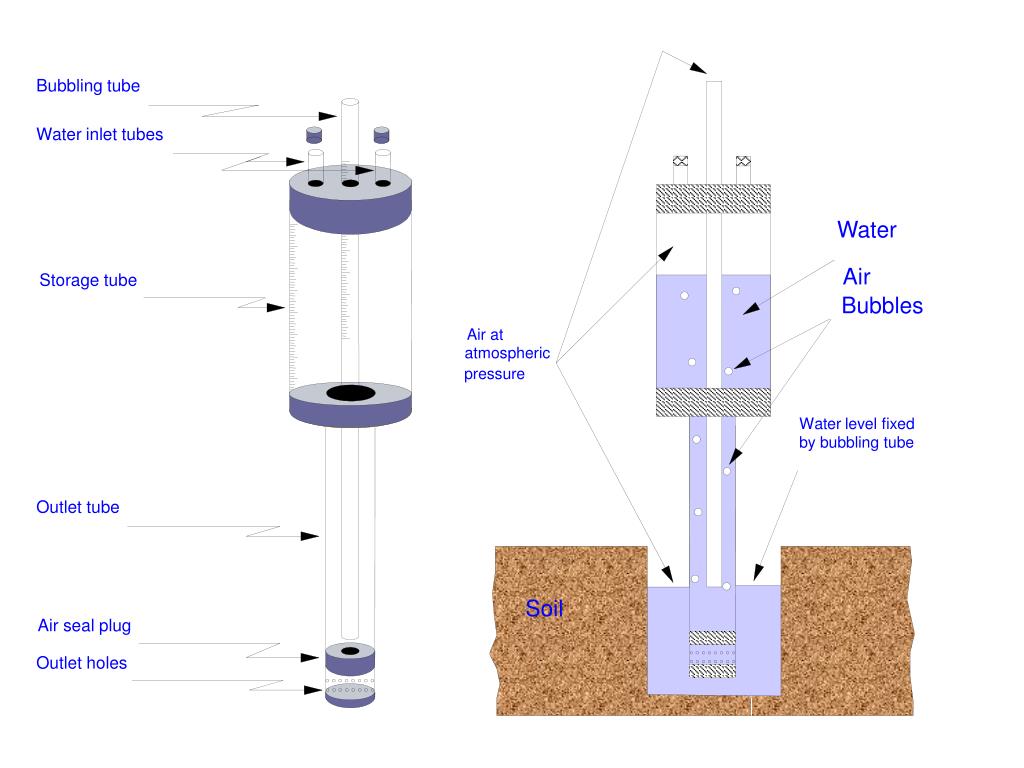

  3. Bubbling tube Water inlet tubes Water Air Storage tube Bubbles Air at atmospheric pressure Water level fixed by bubbling tube Outlet tube Soil Air seal plug Outlet holes

  4. Bubbling Tube Mariotte Bottle Soil Inner Cylinder Outer Cylinder

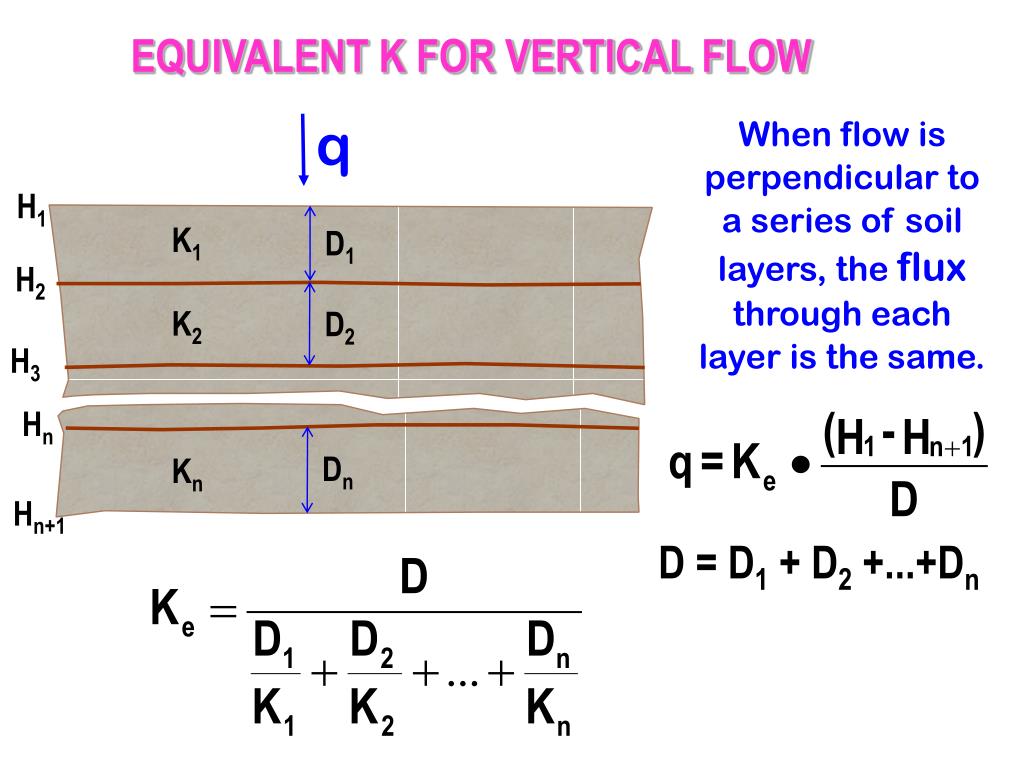

  5. q H1 K1 D1 H2 K2 D2 H3 Hn Dn Kn Hn+1 EQUIVALENT K FOR VERTICAL FLOW When flow is perpendicular to a series of soil layers, the flux through each layer is the same. D = D1 + D2 +...+Dn

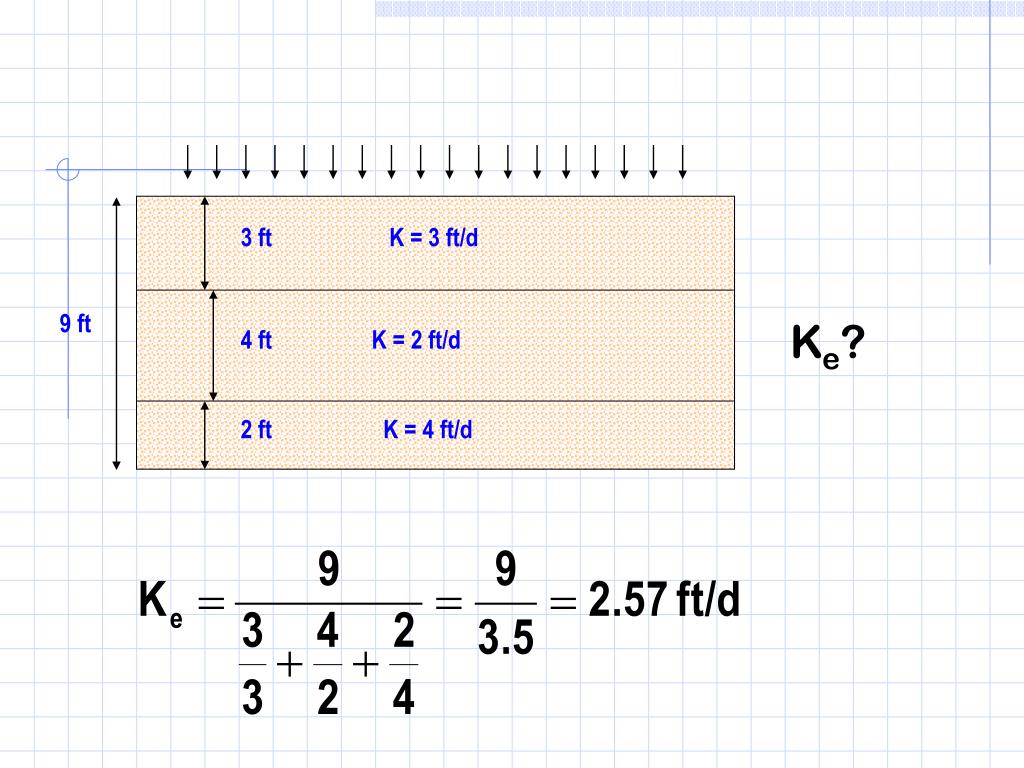

  6. 3 ft K = 3 ft/d 9 ft Ke? 4 ft K = 2 ft/d 2 ft K = 4 ft/d

  7. EQUIVALENT K FOR HORIZONTAL FLOW L Ha Hb When flow is parallel to a series of soil layers, the discharge through unit thickness of the system is the sum of the discharges through the layers.. K1 Q1 D1 Q2 K2 D2 Qn Dn Kn

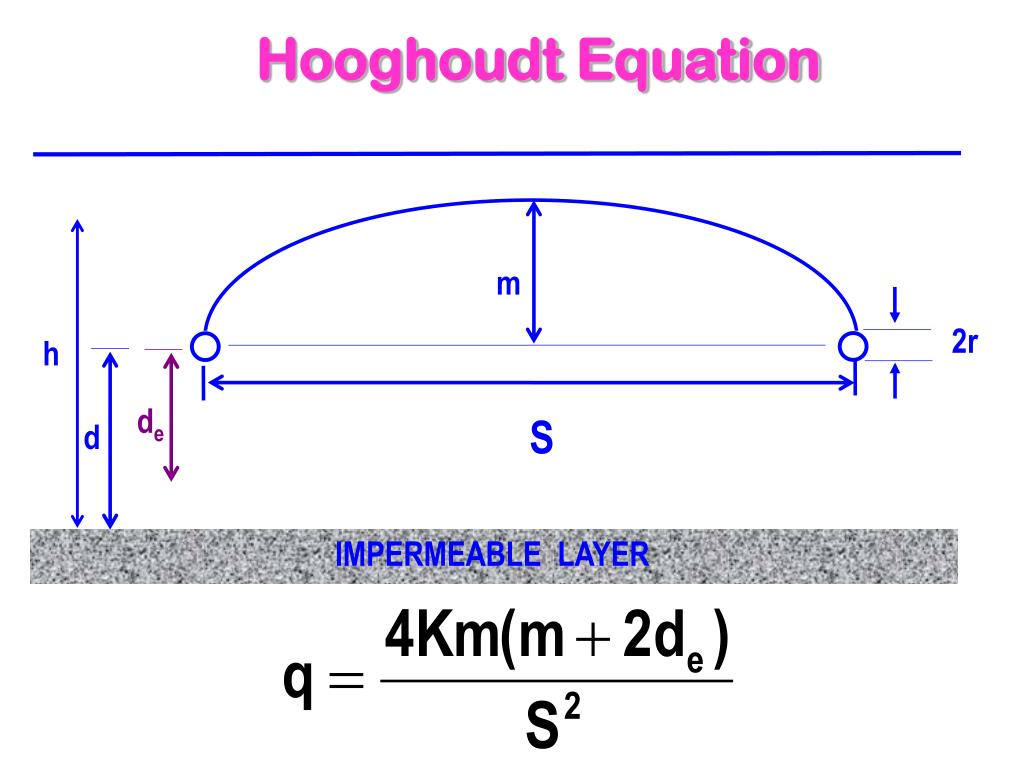

  8. de Hooghoudt Equation m 2r h S d IMPERMEABLE LAYER

  9. Hooghoudt Equation

  10. Estimating Spacing using The Hooghoudt Equation i = Drainage Coefficient

  11. For drainage design the following information is available: depth of tile = 1.2 m; depth to water table = 0.8 m; depth to impermeable layer = 7.2 m; drainage coefficient = 0.007 m; hydraulic conductivity = 0.8 m/day. Estimate the required drain spacing

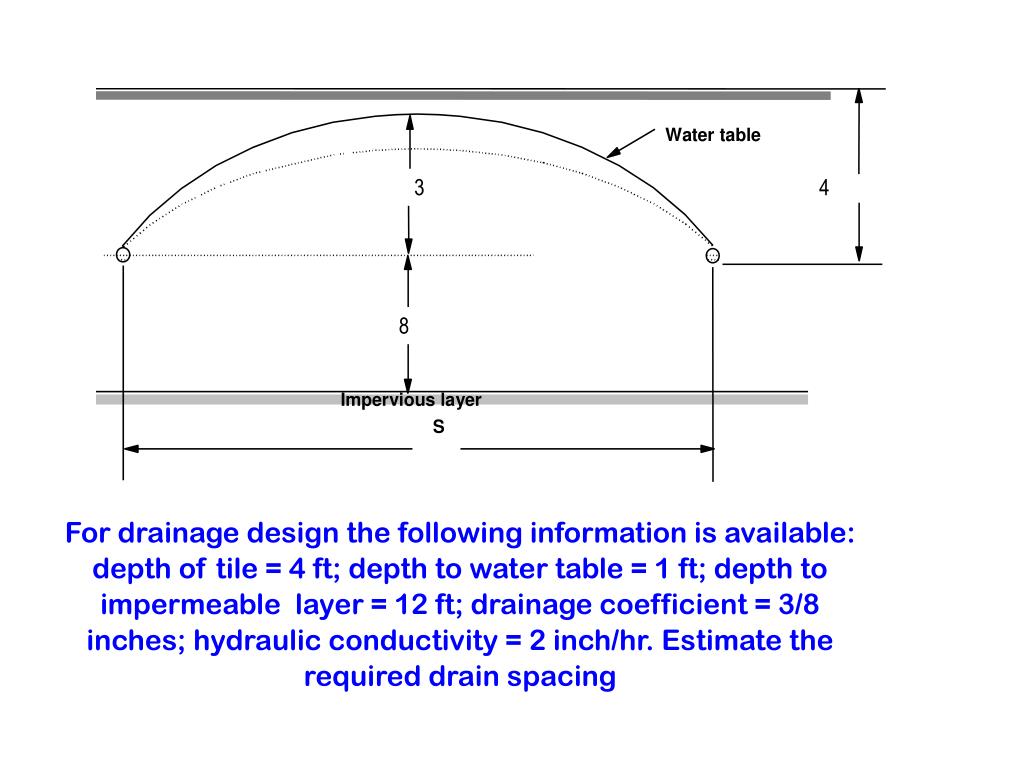

  12. 3 4 8 For drainage design the following information is available: depth of tile = 4 ft; depth to water table = 1 ft; depth to impermeable layer = 12 ft; drainage coefficient = 3/8 inches; hydraulic conductivity = 2 inch/hr. Estimate the required drain spacing

  13. t b 2r h S d IMPERMEABLE LAYER Kirkham Equation

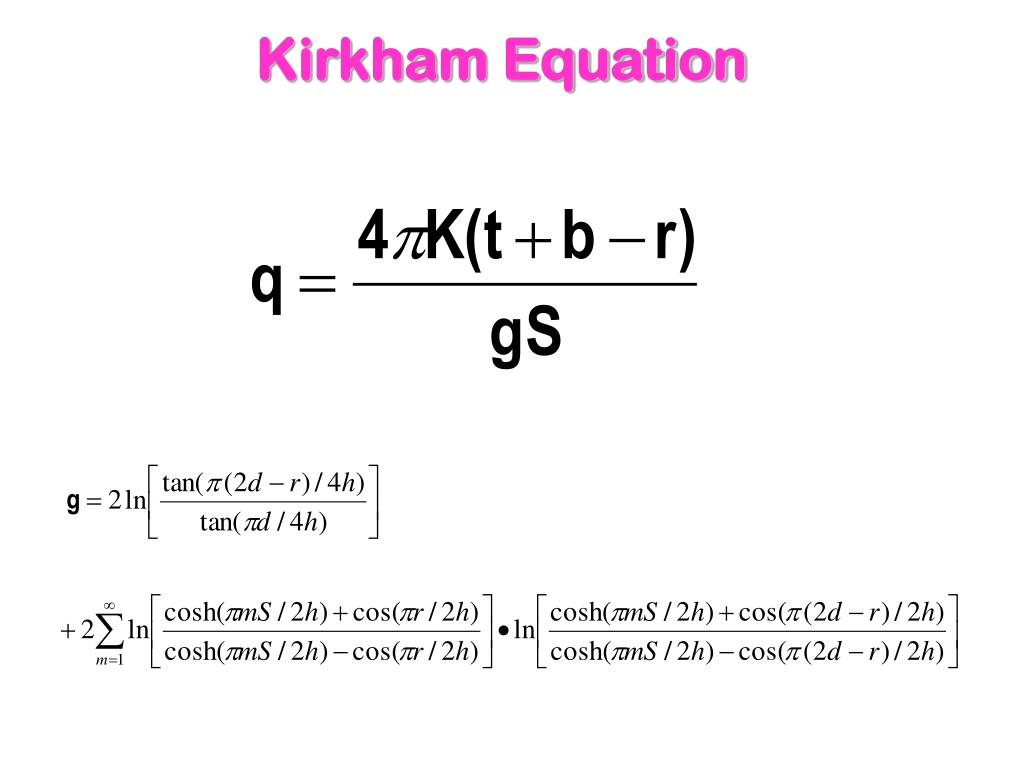

  14. Kirkham Equation
