Summary: 6.1.2-2bR-C16

Summary: 6.1.2-2bR-C16. Nice Square RvsH Loops. 29. 9. 1. 19. 11. Devices. S.P. Dead. Promising. Healthy. Or at best extremely narrow. RvsH loop not altered by current (no change in R with switching attempts). 0.26pJ / 0.57pJ. Best AP→P and P→AP energies. Notes:

emiko
Download Presentation

Summary: 6.1.2-2bR-C16

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

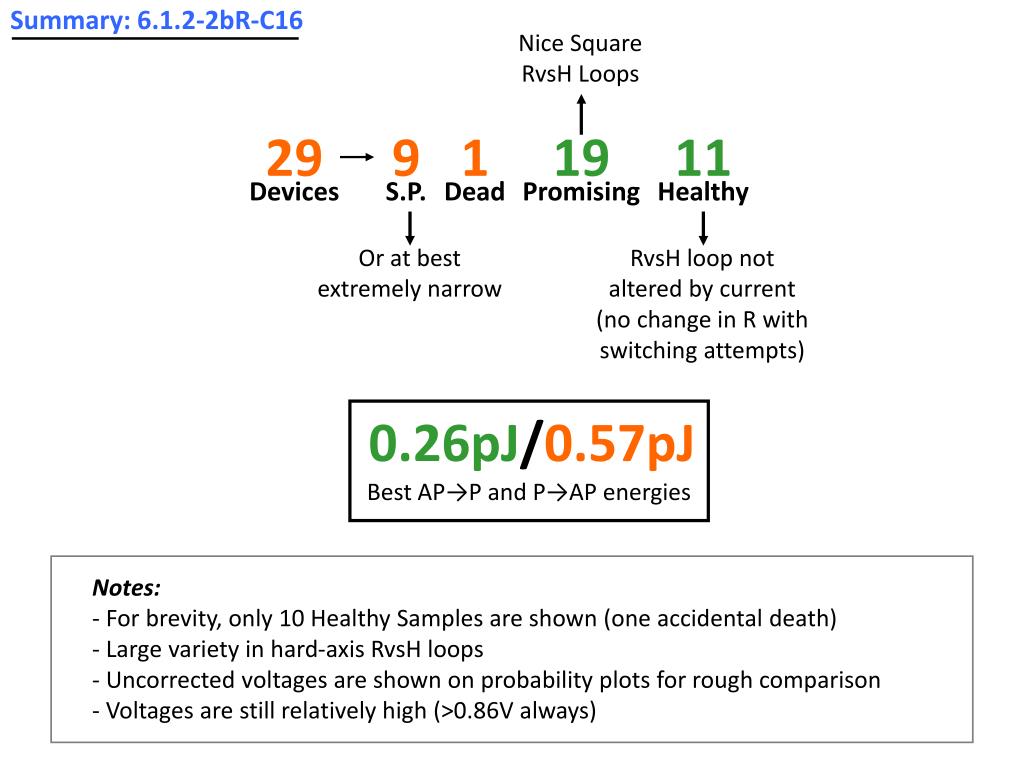

  1. Summary: 6.1.2-2bR-C16 Nice Square RvsH Loops 29 9 1 19 11 Devices S.P. Dead Promising Healthy Or at best extremely narrow RvsH loop not altered by current (no change in R with switching attempts) 0.26pJ/0.57pJ Best AP→P and P→AP energies • Notes: • For brevity, only 10 Healthy Samples are shown (one accidental death) • Large variety in hard-axis RvsH loops • Uncorrected voltages are shown on probability plots for rough comparison • Voltages are still relatively high (>0.86V always)

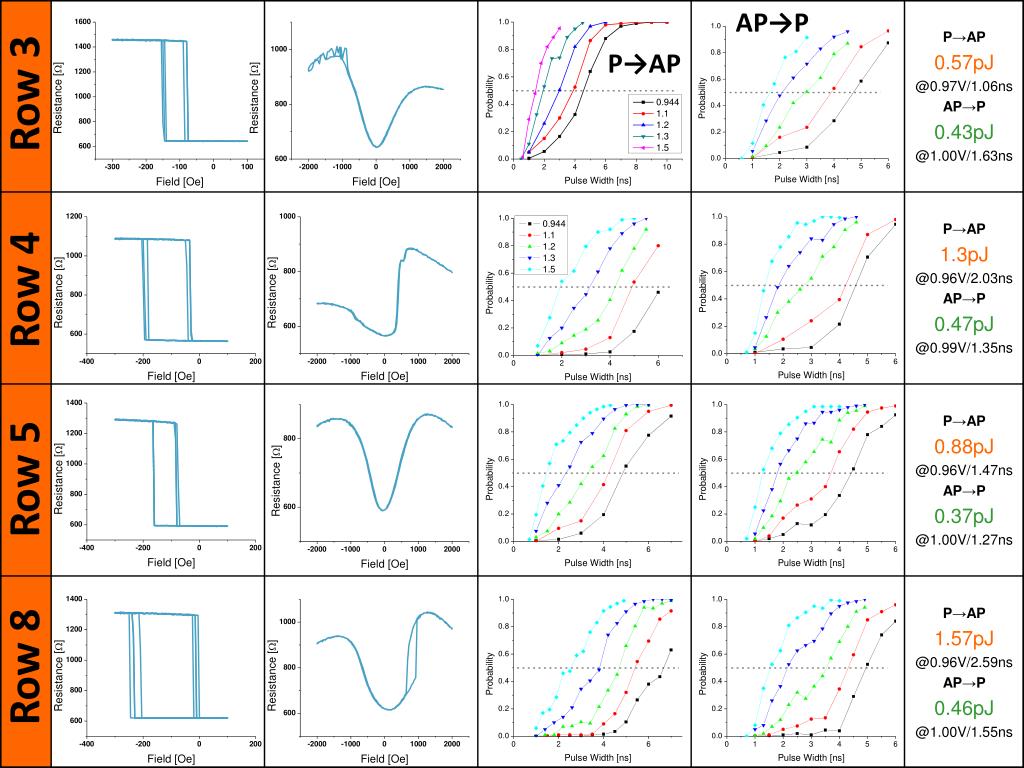

  2. AP→P P→AP Row 3 Row 4 Row 5 Row 8

  3. P→AP AP→P Row 11 Row 14 Row 18 Row 19

  4. Row 21 Row 25
