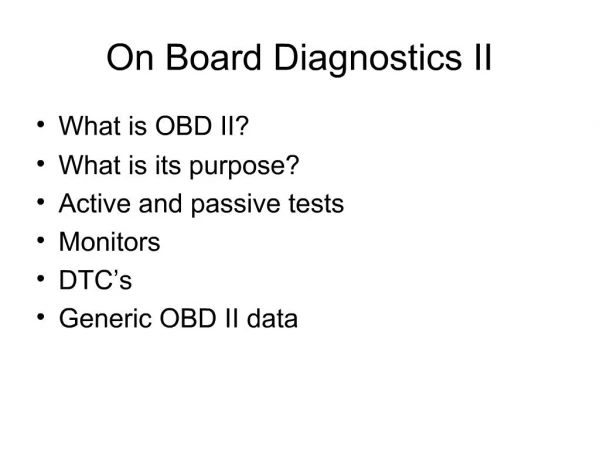

1. On Board Diagnostics II What is OBD II?
What is its purpose?
Active and passive tests
Monitors
DTC’s
Generic OBD II data
2. OBD II On board diagnostics originated in 1980’s
OBD I mandated for vehicles sold in Calif. in 1988
MIL to alert driver of malfunction
Ability to record and transmit DTC’s
Monitored sensors for opens and shorts
OBD I did not monitor:
Catalyst efficiency
EVAP system leaks
Catalyst damaging events such as misfires
OBD I did not protect catalyst from damage by incorrect fueling or misfire
3. What is OBD II Federal regulations for automobiles produced for sale in 1996
Some manufacturers began to phase in OBD II as early as 1994
Established federal test procedure for exhaust emissions and required on-board monitoring of emission control systems for correct operation and efficiency
4. Purpose Designed to detect vehicle problems that can cause increased emissions
Alerts driver of emission related problems
Standardization:
DTC’s
Scan tool interface
MIL operation
DLC shape and location
DLC now provides power and ground for scan tool
Performs active and passive tests on emission systems
5. Tests Active tests
PCM changes something and measures response
Passive tests
Watches components during normal operation, but does not take active role in test process
6. Monitors Tests performed by diagnostic system to check performance of various components and subsystems
If a component or system failure is detected that can increase emissions, MIL is illuminated and DTC will set
Continuous: any component or subsystem that has catalyst damaging potential
Non-continuous: performs once per trip; once monitor runs to completion it does not run again until next drive cycle
Trip: a key cycle (Key-On, start-to-run, Key-Off) where driving conditions enable a monitor to run
7. Continuous Monitors Comprehensive Component Monitor (CCM): tests inputs and outputs
Functionality: tests for opens, shorts and grounds
Rationality: tests for inaccurate signals
Some components are tested when key is turned on
Some components are tested when engine meets necessary operating conditions
8. Throttle Position Sensor
9. Continuous Monitors Misfire Monitor
Constantly monitors engine for misfire
Determines classification of misfire
Misfire type A: within 200 rpms
Catalyst damaging
Logs DTC and flashes MIL
Misfire type B: within 1000 rpms
Increases emissions
Logs DTC and illuminates MIL
10. Continuous Monitors Fuel Monitor
Monitors long and short term fuel correction
LTFT
STFT
Illuminates MIL and stores DTC when corrections exceed preprogrammed limits for extended periods
11. Noncontinuous Monitors Oxygen Sensor Monitor: checks O2S voltage ranges and response times
Catalyst Monitor: usually uses downstream O2S to check catalyst efficiency
Looks for low activity on downstream O2S compared to upstream O2S’s
EGR Monitor: checks for EGR flow
12. Noncontinuous Monitors EVAP Monitor:
Non-enhanced: monitors effects of purge vapor on engine fuel control
Enhanced: monitors effects of purge; also checks system for leaks
AIR Monitor: checks components and operation of secondary air injection system
Thermostat Monitor: (2000) monitors time to warm-up
PCV Monitor: (2002) monitors integrity of closed crankcase ventilation system
13. DTC’s OBD I codes:
Lack of information; vague definitions
Code retrieval process varied by manufacturer
Code identification set by manufacturer
No consistency- too many variables
Made vehicles difficult to diagnose and repair
14. DTC’s OBD II codes:
A codes: sets DTC and illuminates MIL on first trip failure (misfire)
B codes: sets DTC and illuminates MIL on second consecutive trip failure
C and D codes: non-emission related; normally will not illuminate MIL, but may illuminate a warning lamp
15. DTC’s OBD II codes:
Codes are retrieved and erased with scan tool only
Code set parameters are clearly defined
Standardized alphanumeric DTC identification
Freeze frame data:
Data stored with DTC about operating conditions when DTC is set
RPM; VSS; CTS; Engine Load; MAP or MAF; Fuel Status; LTFT/STFT
16. DTC’s Pending codes:
One-trip failure for a two-trip DTC
Sets in memory and stores freeze frame data but will not illuminate MIL
Second consecutive failure- matures into DTC and illuminates MIL
DTC and MIL erasure :
Requires 3 consecutive good trips to turn off MIL
Requires 40 warm-up cycles to erase DTC
17. DTC’s The OBD-II System DTC Priority is listed below.
Priority 0—Non-emission-related codes
Priority 1—One-trip failure of two-trip fault for non-fuel, non-misfire codes
Priority 2—One-trip failure of two-trip fault for fuel or misfire codes
Priority 3—Two-trip failure or matured fault of non-fuel, non-misfire codes
Priority 4—Two-trip failure or matured fault for fuel or misfire codes
18. DTC Numbering First digit:
P: powertrain
B: body system
C: chassis system
U: network communication
Second digit:
0: SAE defined (standardized list that applies to every vehicle regardless of manufacturer)
1: manufacturer specific
2: to be used once manufacturer has filled all “1” code designations
19. DTC Numbering Third digit:
Assigned to subsystem affected
1: air/fuel control
2: fuel system (injectors)
3: ignition system/ misfire
4: auxiliary emission controls (EGR/EVAP/AIR/Cat)
5: auxiliary inputs: vehicle speed/ idle speed control
6: computer system (PCM or communications)
7: transaxle/transmission
8: transaxle/transmission
20. DTC Numbering Fourth and fifth digits:
Paired numbers
Indicate exact nature of fault that stored DTC
Correspond to old OBD I codes
Example: P0300
Example: P0304
Example: P0440
21. Generic OBD II Displayed data available on all OBD II vehicles using a generic scan tool
Mode 1: powertrain data (PID)
Mode 2: freeze frame data
Mode 3: DTC’s
Mode 4: clear DTC’s; readiness status for noncontinuous monitors
Mode 5: O2S test results
Mode 6: test results for noncontinuous monitors
Mode 7: test results for continuous monitors
Mode 8: bidirectional control of onboard systems
Mode 9: module identification
22. Freeze-frame items include: Calculated load value
Engine speed (RPM)
Short-term and long-term fuel trim percent
Fuel system pressure (on some vehicles)
Vehicle speed (MPH)
Engine coolant temperature
Intake manifold pressure
Closed/open-loop status
Fault code that triggered the freeze-frame
If a misfire code is set, identify which cylinder is misfiring
23. Terms to know Monitors: test performed by diagnostic system
Enabling criteria: exact conditions needed before a test can run (provided by a “trip”)
Active test: test strategy used by PCM that changes some aspect of system operation and monitors effects of that change
Passive test: test that watches components during normal operation but does not take any role in testing process
KOEO: Key-On-Engine-Off
KOER: Key-On-Engine-Running
PID: parameter identification- individual items in scan tool data display
Rationality: compares sensor inputs to see if they make sense
Readiness Status: list of monitors displayed on scan tool telling whether various monitors have run to completion- does not tell of pass or failure only completion
Warm-up cycle: start-to-run where coolant temp starts below and rises above 160 degrees F, and increases by at least 40 degrees F
