Reconstructing the Phanerozoic Geodynamo

Reconstructing the Phanerozoic Geodynamo. Whole-Earth approach (mantle + core + time) to geodynamo history CMB heat flux from two models of the Phanerozoic mantle: M antle convection with mobile plates and continents (model HF1 by Zhang & Zhong , 2011)

emmett
Download Presentation

Reconstructing the Phanerozoic Geodynamo

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

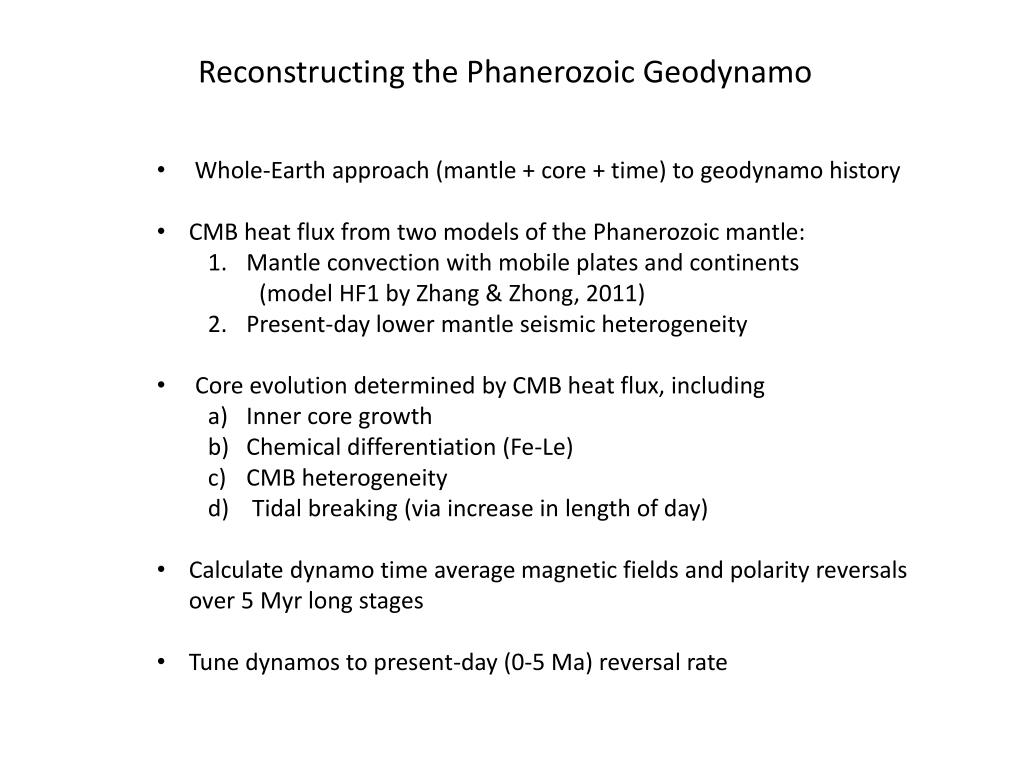

  1. Reconstructing the Phanerozoic Geodynamo • Whole-Earth approach (mantle + core + time) to geodynamo history • CMB heat flux from two models of the Phanerozoic mantle: • Mantle convection with mobile plates and continents • (model HF1 by Zhang & Zhong, 2011) • Present-day lower mantle seismic heterogeneity • Core evolution determined by CMB heat flux, including • Inner core growth • Chemical differentiation (Fe-Le) • CMB heterogeneity • Tidal breaking (via increase in length of day) • Calculate dynamo time average magnetic fields and polarity reversals over 5 Myr long stages • Tune dynamos to present-day (0-5 Ma) reversal rate

  2. Box Model: Core Evolution ~ 700 Myr Thermodynamic Parameters CMB Heat Flow Q(t) T(r,0), C(r,0), rICB(0) T(r,t,) C(r,t) rICB(t) 3D Model: Numerical Dynamo ~ 5 Myr stages CMB Heat Flux q(x) W(t) Transport Parameters T(x,t,) C(x,t) B(x,t) GPTS Reversals

  3. Phanerozoic Core Evolution (thanks to Renaud!) HF1 Variable evolution Driver: mantle reconstruction HF1 (Zhang & Zhong, 2011) Regular assembly Pangea breakup Regular evolution Driver: constant CMB heat flow total ICB Compositional CMB heat flow

  4. Parametric Core Evolution Ma E/E(0) HF1 Ma Regular Ra/Ra(0)

  5. Present-day (0-5 Ma) Reversal Records

  6. Polarity Reversal Record Comparison

  7. GPTS (5.4 Myr)
