  1. NX Variable Frequency Drives Perfect match for HVAC Field Devices All you need in HVAC Control

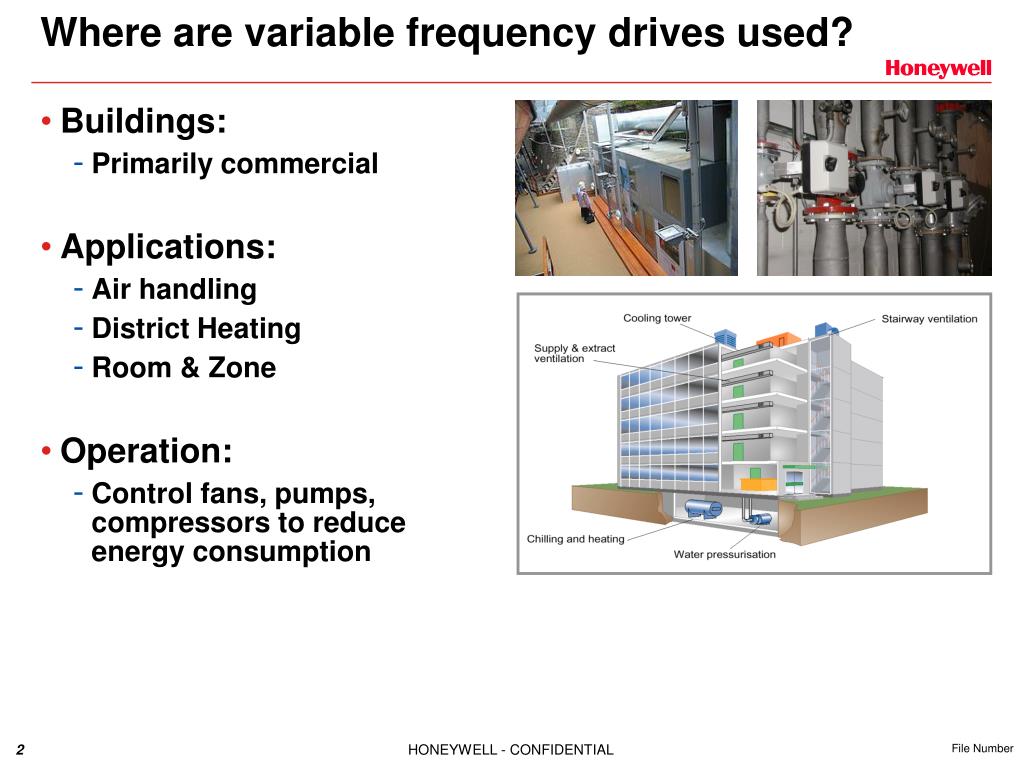

  2. Where are variable frequency drives used? • Buildings: • Primarily commercial • Applications: • Air handling • District Heating • Room & Zone • Operation: • Control fans, pumps, compressors to reduce energy consumption

  3. Chiller Cooling tower Ventilation fan Boiler/heating pump Cooling coil Need for AC Drive! Heating coil Where are variable frequency drives used? • Heating, Ventilation and Air Conditioning (HVAC) system

  4. What is a variable frequency drive? • Also known as: Frequency Converter (FC), Variable Speed Drive (VSD), AC Drive, Inverter etc. A squirrel cage motor is the typically used electrical motor in industry and public engineering sector Stepless control for the speed of a squirrel cage motor Cost reductions through Energy savings and improved quality Improved control over the system Smooth and Accurate control

  5. Why use variable frequency drives? • Saves energy through fan and pump speed control • up to 70% energy savings in pump and fan applications • e.g. 32% average savings in a ventilation system → Payback period of 1 year • Decreases mechanical stress due to pressure spikes with direct on-line start & stop • VFDs creates a smooth start which reduces the pressure spikes that reduce system lifetime • Reduces the starting current of the motor • VFDs minimize the starting current of the motor, which means electrical installation investments can be lower Save energy, increase system lifetime, save on investments

  6. Power P % 100 Valve 80 60 40 20 Speed Control 0 20 40 60 80 100 0 Flow Q % Why use variable frequency drives? Saves energy through fan & pump speed control

  7. Savings 81% Payback time: 1.5 90 % Source: ZVEI (Zentralverband Elektrotechnik- und Eletronikindustrie e.V.) years 80 % 70 % 44% 60 % Payback time: 35% 32% 50 % 2 years Payback time: 0.5 Payback time: 40 % year 1 year 30 % 20 % 10 % 0 % Lift Waste water pump Bottling station Ventilation system Why use variable frequency drives? • Energy savings & payback period on investment in VFDs average 32% energy savings & 1 year payback

  8. Pressure spikes in long pipes with direct on-line start & stop Pressure in pipe Direct on-line Start Switch-Off Time Repeated pressure spikes reduces the lifetime of a system Why use variable frequency drives? Reduced mech. Stress increased system lifetime

  9. Why use variable frequency drives? • Reduced starting current Lower electrical installation investments

  10. Honeywell NXLCompact drives 0.25 - 1.5 kW 208 – 240 V0.37 – 3 kW 380 – 500 V Honeywell NXLHVAC drives 0.75 - 30 kW 380 – 500 V 0.55 - 90 kW 208 – 240 V0.75 - 400 kW 380 – 500 V2.2 - 560 kW 525 – 690 V Honeywell NXSMultipurpose drives What does Honeywell offer in VFDs? NX -product family

  11. What’s special about Honeywell VFDs? • Honeywell VFD Highlights (all platforms) • Compact and robust design • Easy commissioning and use • Low audible noise from the motor • High class functionality • High flexibility to fulfill any need • High starting torque & dynamics

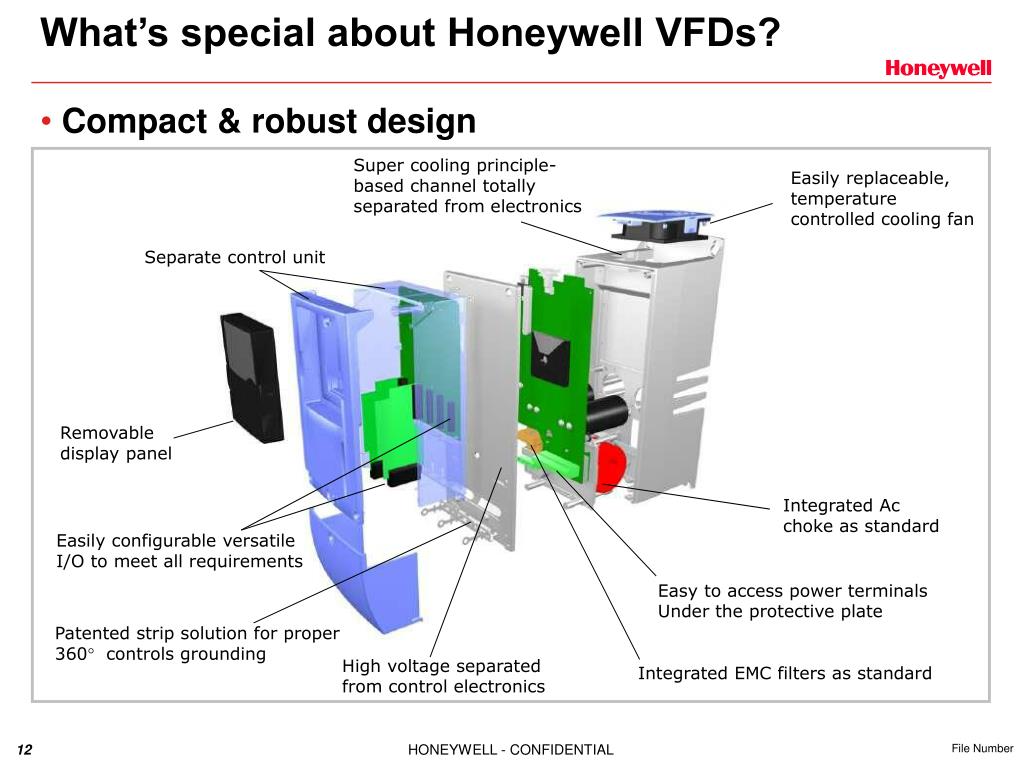

  12. Super cooling principle- based channel totally separated from electronics Easily replaceable, temperature controlled cooling fan Separate control unit Removable display panel Integrated Ac choke as standard Easily configurable versatile I/O to meet all requirements Easy to access power terminals Under the protective plate Patented strip solution for proper 360 controls grounding High voltage separated from control electronics Integrated EMC filters as standard What’s special about Honeywell VFDs? • Compact & robust design

  13. DANFOSS 195,3 L 542 % ABB IP54 45/55 kW 124 KG I-level 93,9 L 260 % IP54 45/55 kW 50 KG I-level 35.9 L 100 % Bookcase design 937 591 715 IP54 45/55 kW 35 KG H-level ACS 601 VLT 5060 257 429 421 237 306 495 What’s special about Honeywell VFDs? Honeywell is the Most Compact in the Market!

  14. What’s special about Honeywell VFDs? • Features • Start Up Wizard • The complete product range can be programmed with the help of start-up wizard • Panel – Remove operation • The complete product range have easy change of the control place function • Usefull function when commissioning HVAC applications. • All product behave in similar way • Benefits: • Easy commissioning • Simple to use NEW Press LEFT ARROW for 3 s to change control place Honeywell - the easiest to use and commission

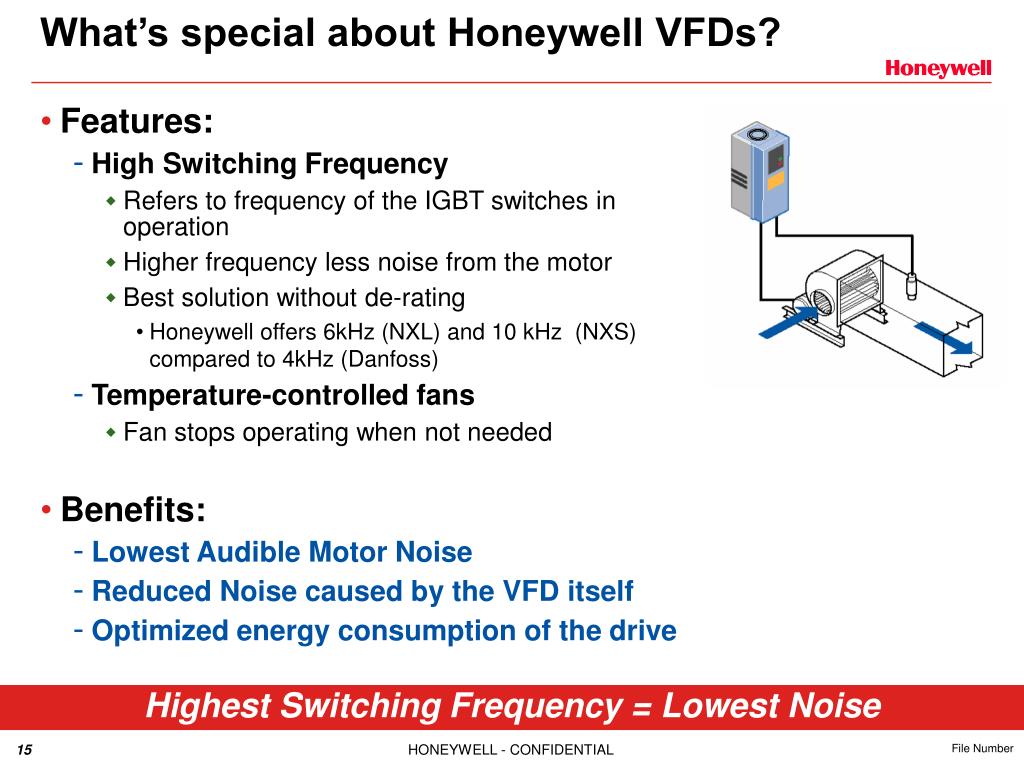

  15. What’s special about Honeywell VFDs? • Features: • High Switching Frequency • Refers to frequency of the IGBT switches in operation • Higher frequency less noise from the motor • Best solution without de-rating • Honeywell offers 6kHz (NXL) and 10 kHz (NXS) compared to 4kHz (Danfoss) • Temperature-controlled fans • Fan stops operating when not needed • Benefits: • Lowest Audible Motor Noise • Reduced Noise caused by the VFD itself • Optimized energy consumption of the drive Highest Switching Frequency = Lowest Noise

  16. Ethernet TCPIP • Profibus DP • CANopen • BACnet • Modbus RTU • Metasys N2 • LonWorks • DeviceNet What’s special about Honeywell VFDs? • Features: • Easy- installable credit-card size option boards • Wide selection of control inputs and outputs • Analog I/Os, relays, digital inputs, thermistor inputs • Wide selection of field buses • Benefits: • Flexible & upgradeable in the field Honeywell VFDs – flexibility to meet any need

  17. What’s special about Honeywell VFDs? • Features: • High starting torque & dynamics • Sophisticated open loop vector control • Automatic torque boost function • Motor auto identification function in entire product family • Benefits: • Excellent performance • Highly accurate motor control • Increased reliability • Smooth start even for high inertia fans • Best flying start in market • Best solution for clean room air handling High performance through excellent motor control

  18. What’s special about Honeywell VFDs? • Honeywell VFD PC Tools • NCload: for easy software downloading • Uses standard RS232 communication port for downloading • Items that can be downloaded: • System software • Application software • Software for option cards • Language package • Activates required application Application loading view Language pack view

  19. What’s special about Honeywell VFDs? • NCdrive- for easy commissioning • Parameter handling for all NX products • Online or Offline Parameter editing • Parameter set comparison • Save or print parameters, graphs, drive information, fault history • Commissioning & maintenance • Graphical window for online drive signal monitoring • Control the drive from the tool: • Start, stop, change direction, reference, fault reset, coast stop • Read active faults & fault history • Service Info Function • Saves all drive information including hardware & software configuration Parameter window Control window Monitoring window

  20. Tell me the technical aspects of NXL compact… • NXL Compact Series • 0,37 – 1,5KW (208 – 240V 1~/3~) • 0,55 – 2,2KW (380 – 500V 3~) • IP20 enclosure class • EMC • N – Level: no emission class • H – Level: comm. standard (external filters available) • Accessories • 1 plug-in for I/0 expanders or field busses • RS232 adapter (for PC connection) • Display panel door installation set • PC tools NXL Compact is a high featured Micro Drive

  21. What’s special about NXL compact series? • Easy Installation: • Flexible installation options (back or side, screw or DIN rail) • Start-up Wizard • Best Features: • Fully programmable I/O, auto-identification, PID controller, flying start) → very high functionality and flexibility against any micro range product • Options: • I/Os, field busses, display panels • RFI filters • AC chokes • Low Audible Noise NXL Compact is a high featured Micro Drive

  22. Tell me the technical aspects of NXL HVAC… • NXL HVAC Series • 0,75 – 30 KW (380 – 500V 3~) • IP21, IP54 enclosure classes • EMC • H – Level: comm. standard • C – Level: comm. special (hospitals, airports) • Accessories • 2 plug-ins for I/O expanders or field busses • RS232 adapter (for PC connection) • Display panel door installation set • PC tools NXL HVAC is a dedicated solution for HVAC

  23. What’s special about NXL HVAC series? • Easy Installation & Set-up: • Quick Installation Guide • 30 second start-up wizard • Extremely low motor noise • High switching frequency • High starting torque & dynamics • Sophisticated open loop vector control & effective design • Suitable for all HVAC applications • Fans, Pumps, Compressors NXL: Perfect for HVAC Applications up to 30kW

  24. What’s special about NXL HVAC series? • Feature: • Quick Installation Guide • Includes 1-page instructions for installation & set-up • Attached to product • Benefits: • Quick & Easy Installation • Most important info available at a glance • Instructions aren’t thrown out with product packaging NXL HVAC: Easiest to Install

  25. What’s special about NXL HVAC series? • Feature: • 30 second start-up wizard • Benefits: • Quick & Easy Installation • VFD programming in just 4 easy steps: • Activate the Start-up Wizard • Select the mode (fan or pump) • Tune the motor nominal speed • Tune the motor nominal current NXL HVAC: Fastest to Set-Up

  26. Tell me the technical aspects of NXS multipurpose… • NXS Multipurpose Series • For open loop applications such as conveyors, mixers, pumps, and fans • 0,37- 90 kW (208-240V ), 0,75 - 400 kW (380-500V), 2,2 - 560 kW (525-690V) • IP21, IP54 (up to 250 kW) enclosure classes • EMC • C – Level: comm. special (optional up to 30KW units) • H – Level: comm. standard (standard up to 160KW units) • L – Level: industrial (standard from 200KW +) • Accessories • 5 plug-ins for I/0 expanders and field busses • Display panel door installation set, through-hole mounting kits • Keypad for Chinese & Cyrillic letters • PC tools NXS is flexible & configurable to meet any need

  27. What’s special about NXS multipurpose series? • Easy Installation: • Start-up wizard • Alpha-numeric display panel, memory and back-up functions • Flexibility • Variety of option boards & slots • Wide Power and Voltage range • Alpha-numeric display panel, memory and back-up functions • 7 predefined application software to ensure suitability to any application • Several special application software available NXS is flexible & configurable to meet any need

  28. What’s special about NXS multipurpose series? • Features: • Hardware-coded option boards & slots • 5 option board slots with 20 different boards to select • Isolated thermistor input as standard • Benefits: • Real flexibility to fulfill any need from the application NXS is flexible & configurable to meet any need

  29. When to choose NXS over NSL? • Why choose NXS multipurpose over NXL HVAC? • applications over 30kW (up to 400kW) • alphanumeric display with memory • More comprehensive start-up wizard • PID with real units (bar, psi, etc.) • Parameter copy & back-up • Special panel for Cyrillic & Chinese letters • Multi-monitor view (3 values simultaneously) • 10 kHz switching frequency without de-rating (up to 30kW) • wider selection of special application software • Water Solutions Package: Multi-master Pump Cascade Controller, Sewage Tank Level Controller • Extra PID Controller i.e. NXS controlling an actuator • More I/O options: 5 option board slots instead of just 1 or 2

  30. How do Honeywell NXL VFDs compare?

  31. How do Honeywell NXS VFDs compare?
