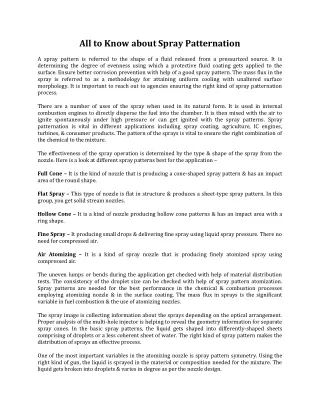

All to Know about Spray Patternation

1. All to Know about Spray Patternation A spray pattern is referred to the shape of a fluid released from a pressurized source. It is determining the degree of evenness using which a protective fluid coating gets applied to the surface. Ensure better corrosion prevention with help of a good spray pattern. The mass flux in the spray is referred to as a methodology for attaining uniform cooling with unaltered surface morphology. It is important to reach out to agencies ensuring the right kind of spray patternation process. There are a number of uses of the spray when used in its natural form. It is used in internal combustion engines to directly disperse the fuel into the chamber. It is then mixed with the air to ignite spontaneously under high pressure or can get ignited with the spray patterns. Spray patternation is vital in different applications including spray coating, agriculture, IC engines, turbines, & consumer products. The pattern of the sprays is vital to ensure the right combination of the chemical to the mixture. The effectiveness of the spray operation is determined by the type & shape of the spray from the nozzle. Here is a look at different spray patterns best for the application – Full Cone – It is the kind of nozzle that is producing a cone-shaped spray pattern & has an impact area of the round shape. Flat Spray – This type of nozzle is flat in structure & produces a sheet-type spray pattern. In this group, you get solid stream nozzles. Hollow Cone –It is a kind of nozzle producing hollow cone patterns & has an impact area with a ring shape. Fine Spray – It producing small drops & delivering fine spray using liquid spray pressure. There no need for compressed air. Air Atomizing – It is a kind of spray nozzle that is producing finely atomized spray using compressed air. The uneven lumps or bends during the application get checked with help of material distribution tests. The consistency of the droplet size can be checked with help of spray pattern atomization. Spray patterns are needed for the best performance in the chemical & combustion processes employing atomizing nozzle & in the surface coating. The mass flux in sprays is the significant variable in fuel combustion & the use of atomizing nozzles. The spray image is collecting information about the sprays depending on the optical arrangement. Proper analysis of the multi-hole injector is helping to reveal the geometry information for separate spray cones. In the basic spray patterns, the liquid gets shaped into differently-shaped sheets comprising of droplets or a less coherent sheet of water. The right kind of spray pattern makes the distribution of sprays an effective process. One of the most important variables in the atomizing nozzle is spray pattern symmetry. Using the right kind of gun, the liquid is sprayed in the material or composition needed for the mixture. The liquid gets broken into droplets & varies in degree as per the nozzle design.
