AMBER. Areal Mean Basin Estimated Rainfall COMET Hydromet 00-3 Robert S. Davis, Pittsburgh WFO. AMBER Overview. All watersheds in county warning area are defined to a Minimum Basin Area (MBA) of 2 mi 2 to show spatial rainfall distribution.

Download Presentation

AMBER

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. AMBER Areal Mean Basin Estimated Rainfall COMET Hydromet 00-3 Robert S. Davis, Pittsburgh WFO

  2. AMBER Overview • All watersheds in county warning area are defined to a Minimum Basin Area (MBA) of 2 mi2 to show spatial rainfall distribution. • The WSR-88D polar grid (1o by 1km) is mapped to the defined watersheds. • Average Basin Rainfall (ABR) is computed for each watershed every volume scan. • An hourly ABR rate is determined from the single volume scan (5-6 min.) of ABR.

  3. National Basin Delineation • 30Sep1999 – NWS agrees to fund the AMBER National Basin Delineation project by NSSL for all of the United States. • ArcInfo used to define the watershed boundaries. • USGS 1 arc second (30 m) DEM data supplied by EROS Data Center. • www.nssl.noaa.gov/teams/western/basins

  4. Pfastatter System Proposed and Applied on a Global Basis (GTOPO30) Kristine and John Verdin Senior Scientists EROS Data Center Journal of Hydrology 218 (1999) 1-12

  5. Coding - Basins • First requires identification of the four largest tributaries, according to the criterion of area drained. • These are assigned the numbers 2, 4, 6, and 8, in the order in which they are encountered as one goes upstream along the main stem.

  6. Basin Boundary 8 6 4 2 Basin Boundary Interbasin Boundary Streamline

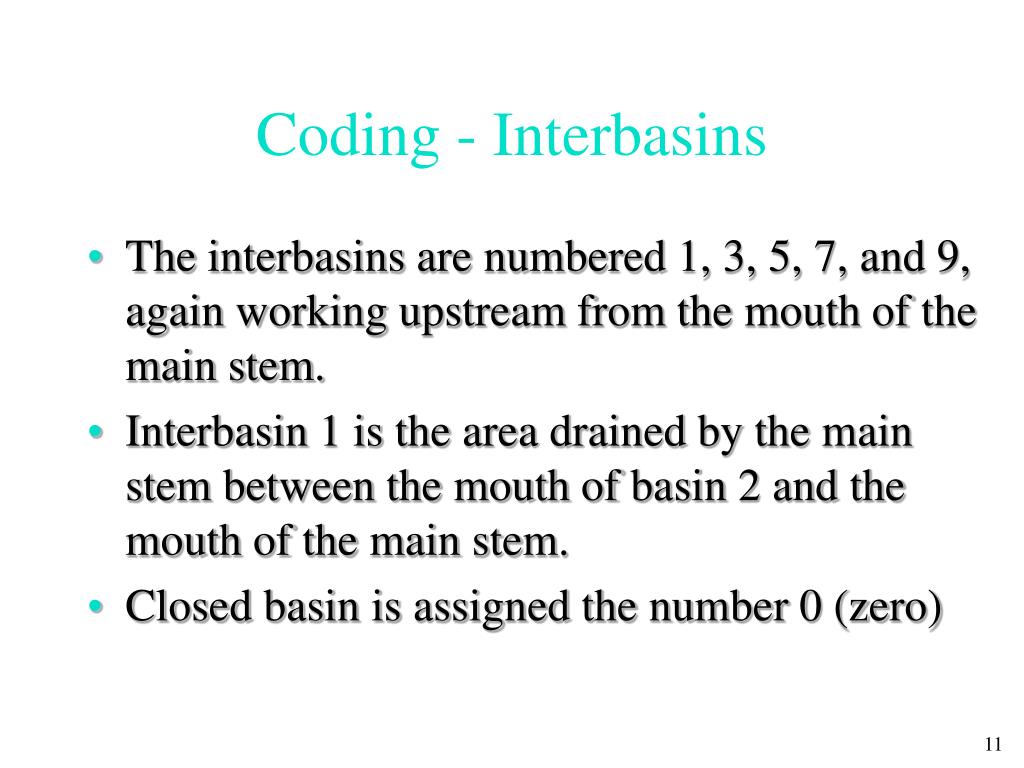

  7. Coding - Interbasins • The interbasins are numbered 1, 3, 5, 7, and 9, again working upstream from the mouth of the main stem. • Interbasin 1 is the area drained by the main stem between the mouth of basin 2 and the mouth of the main stem. • Closed basin is assigned the number 0 (zero)

  8. Basin Boundary 8 9 7 6 5 4 3 2 Basin Boundary 1 Interbasin Boundary Streamline

  9. Level 1 Pfafstetter subdivision of the North America

  10. AMBER Watershed Division • All watersheds in the county warning area are divided into hydrologic segments no larger than 10 mi2. • A Minimum Basin Area of 2 mi2 is used in the initial NSSL stream creation procedure. • Each forecast office may modify the NSSL stream database (subdivide or aggregate).

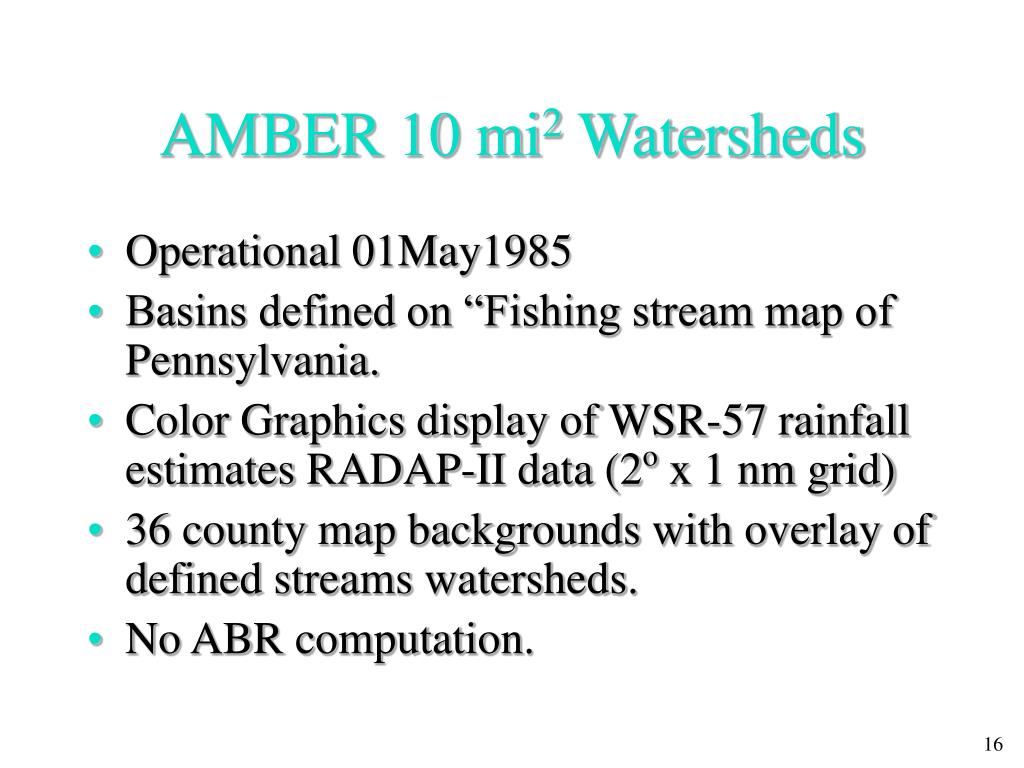

  11. AMBER 10 mi2 Watersheds • Operational 01May1985 • Basins defined on “Fishing stream map of Pennsylvania. • Color Graphics display of WSR-57 rainfall estimates RADAP-II data (2o x 1 nm grid) • 36 county map backgrounds with overlay of defined streams watersheds. • No ABR computation.

  12. Pine Creek Flash Flood May 30, 1986 Pine Creek #1061 2 Area 68mi 2" PBZ WSR-88D 4" Min/Max AZRAN 6" 044° at 11km Allison 101° at 27km Park Allegheny Etna River

  13. Pine Creek Pine Creek #1061 Flash Flood 2 Area 68mi May 30, 1986 5172 5173 5171 2 5.5mi 2 10.1mi 2 4.3mi 5174 5170 2” 13.9mi 2 2 3.7mi 4” 5169 5167 Little Pine Creek 8” 2 4.1mi 5168 Little Pine Creek 5167 6” 5169 Gourdhead Run 5168 2 8.3mi 5170 Crouse Run 2 6.2mi 5171 Willow Run 5172 Montour Run 5173 North Fork Pine Creek 5174 Headwaters Pine Creek Allegheny 0 4km River

  14. Little Pine Creek Stage (ft)30May1986 (UTC)

  15. DHR WSR-88D Bin AssignmentPolar grid 1o by 1km • DHR grid is mapped to all defined watershed segments. This allows ABR computation in 5-6 minute time steps. • DHR grid is mapped to all defined Urban Areas to compute ABR urban rainfall. • Single 1km DHR bins are assigned to location of all rain gages, allowing gage comparison with radar estimated rainfall.

  16. Little Pine Creek #5168 78o 80o 82o 6380 2.4mi 2 84o 6379 86o 1.6mi 2 88o 6378 90o 2.1mi 2 92o 94o 22.5km 96o 24.5km 26.5km RADAP-II 30May1986 ABR 1930 - 2100 UTC 6380: 7.09 in 6379: 6.35 in 6378: 3.55 in 5168: 5.70 in

  17. watershed boundary 2 0.35mi 2 0.34mi 2 0.35mi * Average * 50dBZ * * 42dBZ 52dBZ Reflectivity 2 Scans 1.4 Z = 300R AVERAGE BASIN RAINFALL (ABR) .08 x + .35 ) x .35 ( .34 + .25 .35 x ABR = = 0.228" (.34 + .35 + .35) Rate = 0.228 X 10 = 2.28 in/hr 53km 52km 51km 50km 91° 0.93km 0.87km 90° 1km 1km 1km 6min RAIN: 0.08" 0.25" 0.35"

  18. Pine Creek Aftermath • RADAP-II provided excellent rainfall estimates for bucket survey gages and for ABR in watersheds down to 3mi2 . • Disaster survey team recommended that a 1-hour flash flood guidance (FFG) be initiated. • Analysis of flash flood watersheds needed to be reduced from 10 mi2 to at least 3mi2.

  19. AMBER 3 mi2 Watersheds • Operational 01May1990 (RADAP-II data) • MBR and ABR computations. • 01June1993 WSR-88D Installed. • Operational 01May1996 (WSR-88D data) • Watershed analysis accomplished on 7.5 minute topographic maps and MBA reduced to 3 mi2. • ABR computations only.

  20. Flash Flood Threat and ABR • Severity of flash flooding is directly related to the observed ABR in a watershed. • The time period of the ABR determines the ABR rate. The higher the ABR rate, the greater the risk of serious flash flooding. • ABR varies as function of watershed area. As watershed area increases, ABR and ABR rate tend to decrease.

  21. FF Scale for Flash FloodingABR in inches • FF0 ABR = FFG to < FFG + 0.5 • FF1 ABR = FFG + 0.5 to < FFG + 1.5 • FF2 ABR = FFG + 1.5 to < FFG + 2.5 • FF3 ABR = FFG + 2.5 to < FFG + 3.5 • FF4 ABR = FFG + 3.5 to < FFG + 4.5 • FF5 ABR = FFG + 4.5 to < FFG + 5.5 • FF6 ABR = FFG + 5.5 or higher.

  22. ABR Rate • Based on 5-6 minute observed ABR. • Hourly ABR Rate = ABR x 3600/vsec, where vsec= the number of seconds in the volume scan. • ABR Rate is used to identify watersheds currently receiving the heaviest rainfall, before the flash flood producing accumulation occurs.

  23. AMBER Z/R Gage Comparison • The single 1km DHR bin that contains the rain gage is used to compute the radar rainfall estimate. • Tropical vs. Standard Z/R usage can be estimated using 15 minute gage data. • Gage comparisons should be done to verify validity of the WSR-88D rainfall estimates.

  24. Pitcairn, PA Flash Flood 01-02July1997

  25. 2 147mi ALLEGHENY COUNTY WESTMORELAND COUNTY WASHINGTON COUNTY 2 446mi BRADDOCK M.A.P. WATERSHED BOUNDARY 0.05 TURTLE CREEK 0.35 3.76 1.71 1.38 PITCAIRN 0.29 0.92 N 0.32 M.A.P. RAIN GAGES (in) 24-HOUR RAINFALL ENDING 1200 UTC 02JULY1997 CITY OF PITCAIRN 0.23 0.07 0 10km

  26. 2 147mi 2 24.0mi 2 26.9mi 2 28.2mi 2 10.2mi MONONGAHELA RIVER ALLEGHENY COUNTY 2 22.4mi 2 34.8mi WESTMORELAND COUNTY TURTLE CREEK WATERSHED AVERAGE BASIN RAINFALL (ABR) 0.76 01-02JUL1997 01/2200- N 02/0015 UTC 1108 2306 2303 1.21 0.74 1.73 2307 X.XX = ABR (in) 0.12 PITCAIRN 2304 2305 0.41 0.16 1108 = TURTLE CREEK(1) 2303 = TURTLE CREEK(2) 5km 0 2304 = BRUSH CREEK(1) 2305 = BRUSH CREEK(2) 2306 = TURTLE CREEK(3) 2307 = TURTLE CREEK(4)

  27. WATERSHED BOUNDARY TURTLE CREEK 2 5323 = DIRTY CAMP RUN 3.3mi 2 5328 = ABER'S CREEK 10.4mi AVERAGE BASIN RAINFALL (ABR) 01-02JUL1997 01/2200 - 02/0015 UTC 4149 = GATEWAY MIDDLE SCHOOL 4229 = HOLIDAY PARK IFLOWS I-76 N 4229 ROADS 5328 (1.49) (x.xx) = ABR (in) MURRYSVILLE PA-22 5323 4149 PA-22 (2.64) PITCAIRN I-76 3km 0

  28. 10.4mi 2 6308 = HEADWATERS OF ABER'S CREEK 4.7mi 2 1.9mi 2 2.4mi 2 TURTLE CREEK 39-44km FROM KPBZ WSR-88D (ABR) AVERAGE BASIN RAINFALL 01-02JUL1997 01/2200 - 02/0000 UTC ABER'S CREEK #5328 (1.49) ABER'S CREEK SUBDIVISIONS 6306 = THOMPSON RUN N 6307 = PIERSON'S RUN (0.39) #6308 I-76 (1.68) HOLIDAY PARK IFLOWS #6307 #4229 1.26 in. (3.21) #6306 PA-22 MURRYSVILLE PA-22 GATEWAY MIDDLE SCHOOL #4149 3.30 in. I-76 (x.xx) = ABR (in) 0 3km

  29. Aber’s Creek #532801July1997 10.8mi2

  30. Thompson Run #630601July1997 2.4mi2

  31. Thompson Run Flooding • Three feet of water was reported on Route 22 near the outflow of Thompson Run into Aber’s Creek at 2320UTC. • Route 22 is the main parkway through the eastern suburbs of Pittsburgh. • The road was closed for almost an hour due to the high water.

  32. 3.3 mi 2 1.5 mi 2 DIRTY CAMP RUN(1) 1.8 mi 2 01-02July1996 01/2200 - 02/0015 UTC ELEMENTARY SCHOOL 38-41km FROM PBZ WSR-88D TURTLE CREEK DIRTY CAMP RUN #5323 (2.64) DIRTY CAMP RUN(2) N #6305 (3.16) #6304 (1.97) (x.xx) = ABR (in) PITCAIRN 2km 0

  33. Dirty Camp Run #532301July1997 3.3mi2

  34. Dirty Camp Run(2) #630501July1997 1.5mi2

  35. Dirty Camp Run(1) #630401July1997 1.8mi2

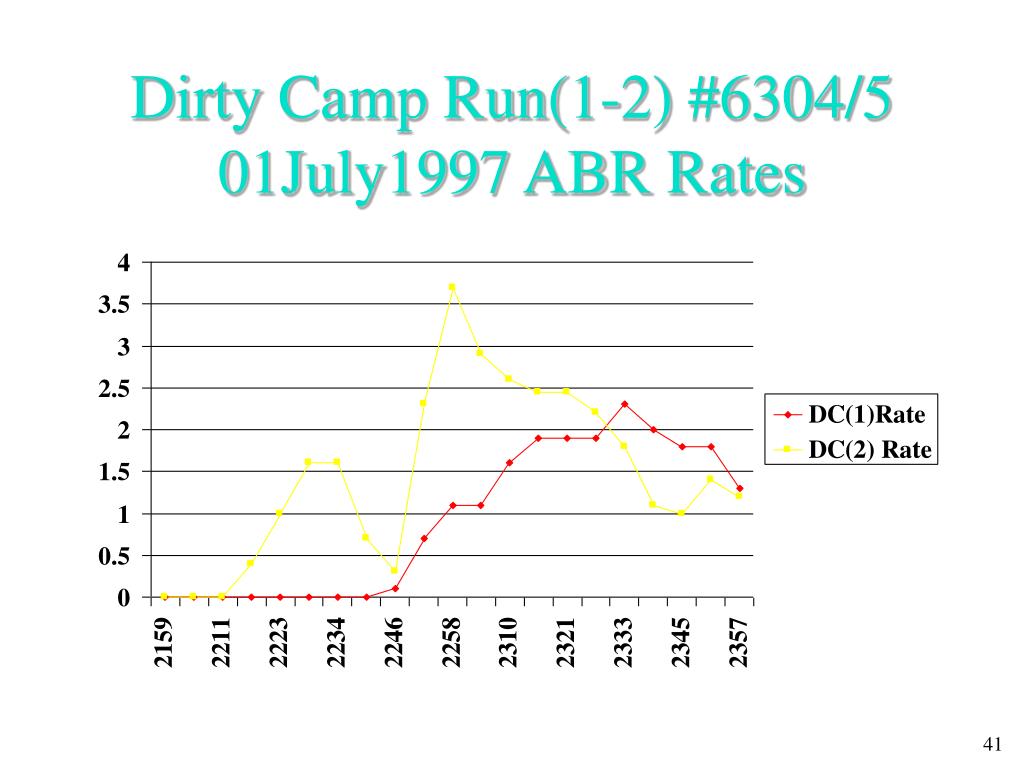

  36. Dirty Camp Run(1-2) #6304/501July1997 ABR Rates

  37. Pitcairn Flash Flooding • About 10 million dollars of flood damage occurred in the city of Pitcairn. • Residents in Pitcairn reported that Dirty Camp Run was up near bankfull before the heavy rain began in town. • The peak of the flooding in Pitcairn occurred from 01July/2330 UTC to 02July/0030 UTC.

  38. Tropical Z/R Cases • Standard Z/R: Z = 300R1.4 • Tropical Z/R: Z = 250R1.2 • Maximum Rate Cap 5.0 in/hr? • Tropical Storm not required!!!

  39. Standard and Tropical Z/R 8 7 6 5 Z=300R1.4 4 Z=250R1.2 3 2 1 0 38 41 44 47 50 53 56 35

  40. AMBER Case Study Fort Collins, CO 28-29July1997

  41. SPRING CREEK FLASH FLOOD 28-29JUL1997 LARIMER COUNTY, CO 1022 4001 13.2 mi 2 CACH LA POUDRE RIVER 4000 5062 5063 2 2.0 mi 2 6.6 mi 1022 = SPRING CREEK 5064 5062 = SPRING CREEK(1) 2 4.6 mi 5063 = SPRING CREEK(2) BURLINGTON 5064 = SPRING CREEK(3) NORTHERN 4000 = FORT COLLINS (EAST) 4001 = FORT COLLINS(WEST)

  42. SPRING CREEK RADAR RAINFALL DENVER WSR-88D 5 TROPICAL Z/R 28JUL97 2327Z TO 5 29JUL97 0500Z 4 (inches) 1022 3 5.96 Max Rain 7 in/hr 4001 7.63 6.03 RAIN 6 2 GAGES(in) 6.62 8.74 4000 RANGE IN 5.29 8.95 KILOMETERS 7 8.50 1.00 10.15 8.65 5063 3.89 5062 7.37 11.24 9.97 100 7.20 2.38 9 10.00 11.75 o 334 7.89 10 99 o 332 o 333 9.26 13.07 2 98 5064 1022 = SPRING CREEK o 331 11.15 5062 = SPRING CREEK(1) 10.74 97 5063 = SPRING CREEK(2) 8 o 330 96 5064 = SPRING CREEK(3) 10.62 4 5 3 4000 = FORT COLLINS (EAST) 5 o 329 6 6 4001 = FORT COLLINS(WEST)

  43. SPRING CREEK RADAR RAINFALL DENVER WSR-88D 5 TROPICAL Z/R 28JUL97 2327Z TO 5 29JUL97 0500Z 4 (inches) 1022 3 4.67 Max Rain 4 in/hr 4001 6.05 4.70 RAIN 6 2 GAGES(in) 5.21 6.57 4000 RANGE IN 3.70 6.79 KILOMETERS 7 6.47 0.88 7.33 6.11 5063 2.78 5062 6.38 7.56 7.57 100 4.98 1.90 9 7.13 8.36 o 334 6.42 10 99 o 332 o 333 7.69 8.95 2 98 5064 1022 = SPRING CREEK o 331 8.26 5062 = SPRING CREEK(1) 7.82 97 5063 = SPRING CREEK(2) 8 o 330 96 7.88 5064 = SPRING CREEK(3) 4 5 3 4000 = FORT COLLINS (EAST) 5 o 329 6 6 4001 = FORT COLLINS(WEST)

  44. AMBER Case Study Dallas, Tx Flash Flood 05May1995

  45. Dallas, TX 1000 Turtle Creek (3.95in) 2 8.6mi Flash Flood I-635 06May1995 TOLLWAY 7775 1001 Knights Branch (3.66in) 2 5.3mi ABR 1002 0100- 1002 Bachman Br. 7755 NORTH 0300UTC (3.82in) 2 2.1mi LOOP 12 7735 1003 Cedar Branch 1001 1000 (3.55in) 2 2.1mi DALLAS 6895 16 17-18 1-6 1004 Local 7 1535 12 (3.26in) 2 1.3mi 6855 1003 155 1005 6775 1005 Urban SMU- 8? 1004 1955 Cotton Bowl 2 8.2mi (4.07in) 6715 1855 TRINITY RIVER I-30 10 Rain Gage 0 2km 13-15 9 Location of fatality 11
