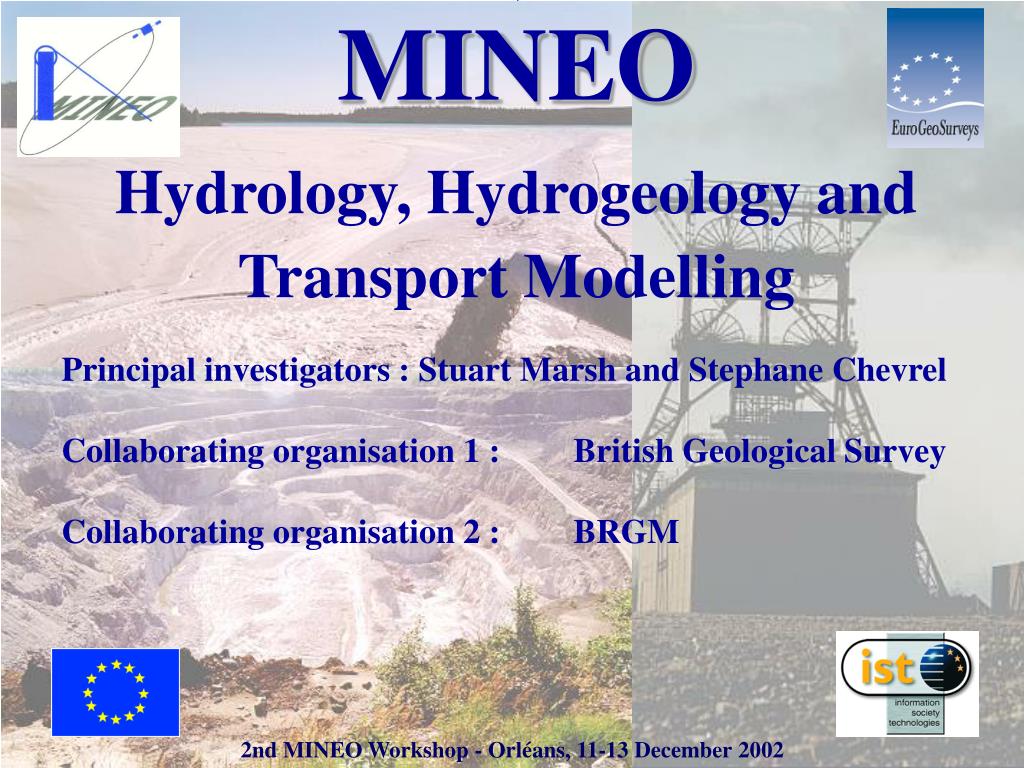

MINEO Principal investigators : Stuart Marsh and Stephane Chevrel Collaborating organisation 1 : British Geological Survey Collaborating organisation 2 : BRGM Hydrology, Hydrogeology and Transport Modelling

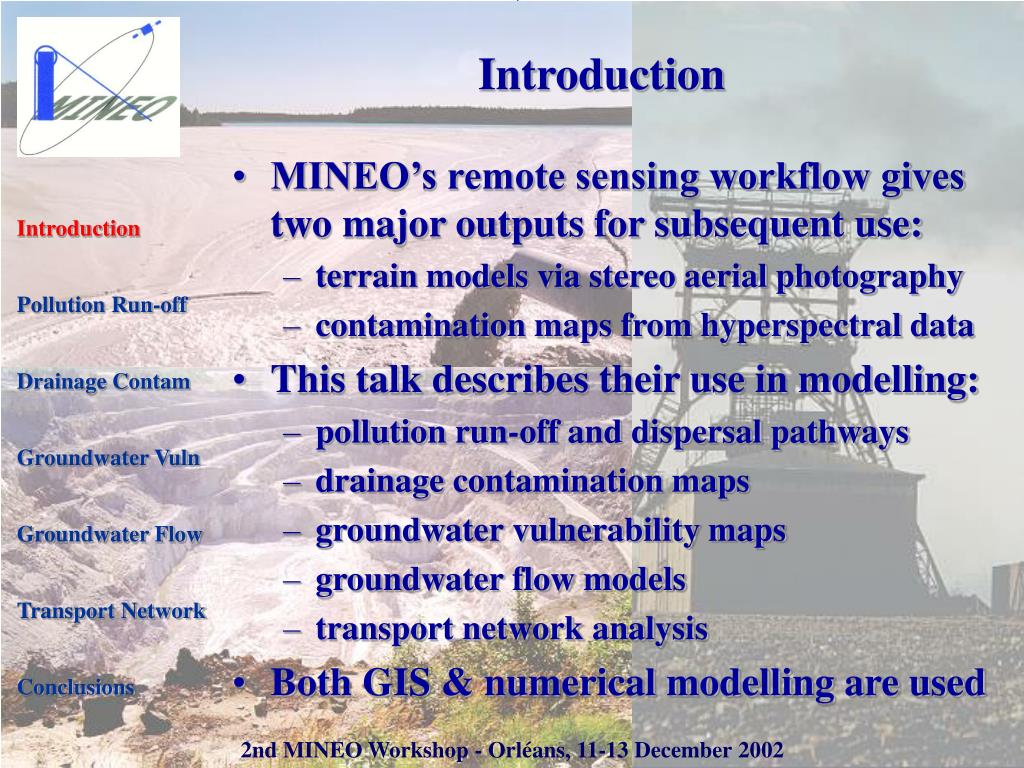

Introduction • MINEO’s remote sensing workflow gives two major outputs for subsequent use: • terrain models via stereo aerial photography • contamination maps from hyperspectral data • This talk describes their use in modelling: • pollution run-off and dispersal pathways • drainage contamination maps • groundwater vulnerability maps • groundwater flow models • transport network analysis • Both GIS & numerical modelling are used Introduction Pollution Run-off Drainage Contam Groundwater Vuln Groundwater Flow Transport Network Conclusions

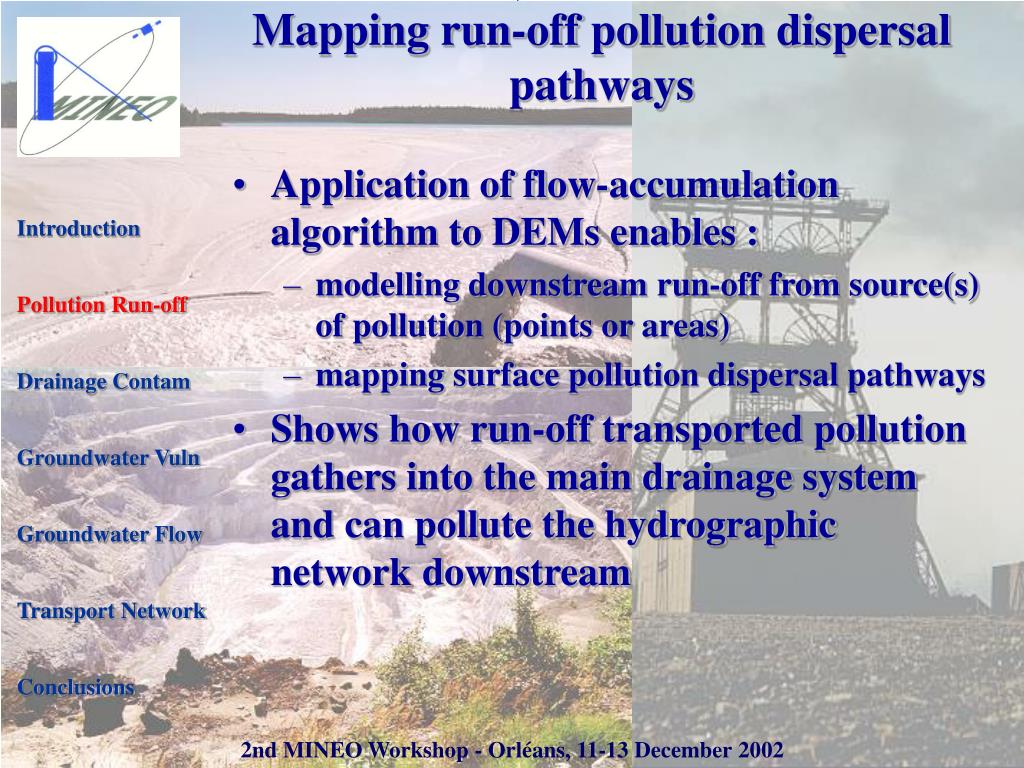

Mapping run-off pollution dispersal pathways • Application of flow-accumulation algorithm to DEMs enables : • modelling downstream run-off from source(s) of pollution (points or areas) • mapping surface pollution dispersal pathways • Shows how run-off transported pollution gathers into the main drainage system and can pollute the hydrographic network downstream Introduction Pollution Run-off Drainage Contam Groundwater Vuln Groundwater Flow Transport Network Conclusions

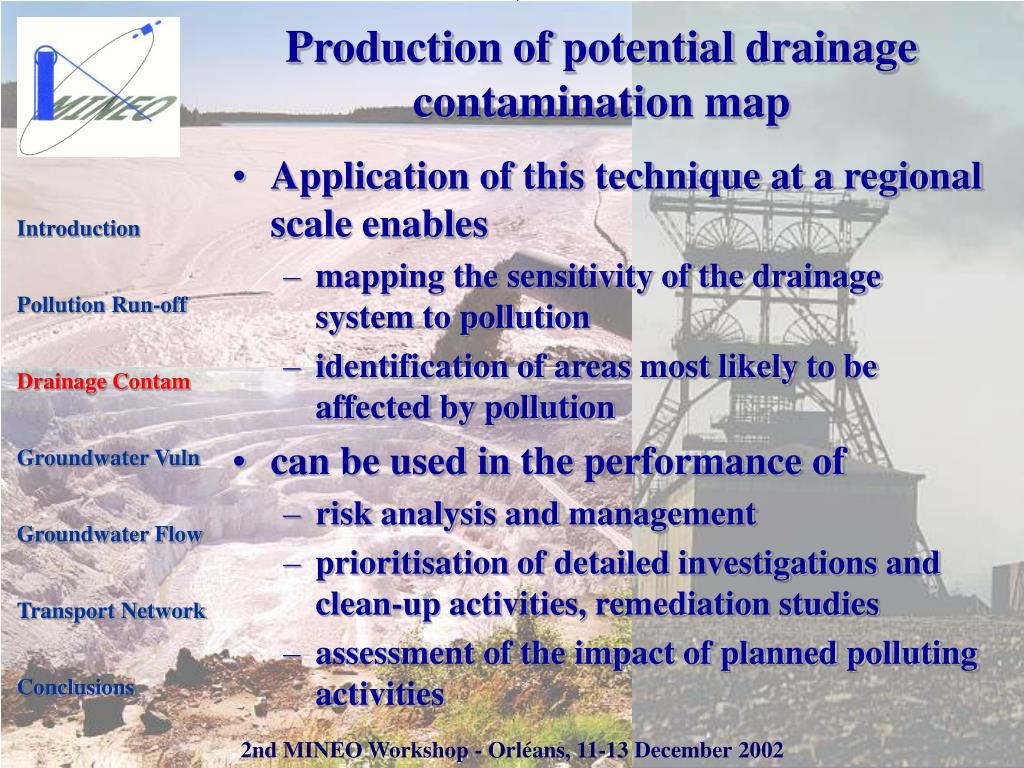

Production of potential drainage contamination map • Application of this technique at a regional scale enables • mapping the sensitivity of the drainage system to pollution • identification of areas most likely to be affected by pollution • can be used in the performance of • risk analysis and management • prioritisation of detailed investigations and clean-up activities, remediation studies • assessment of the impact of planned polluting activities Introduction Pollution Run-off Drainage Contam Groundwater Vuln Groundwater Flow Transport Network Conclusions

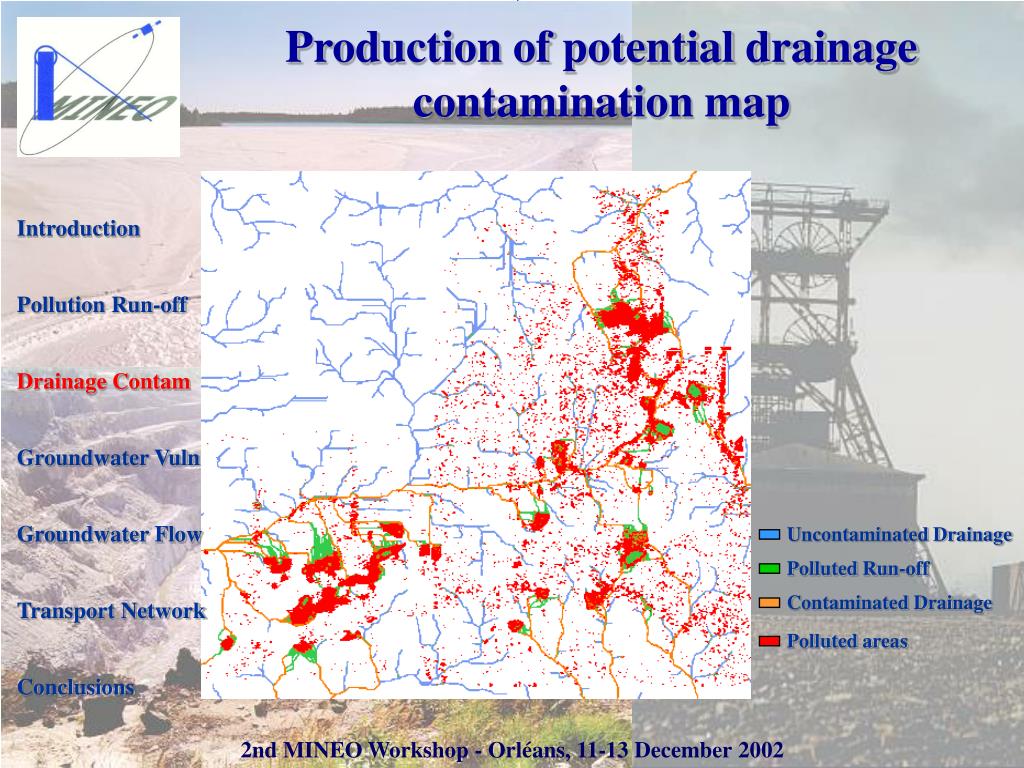

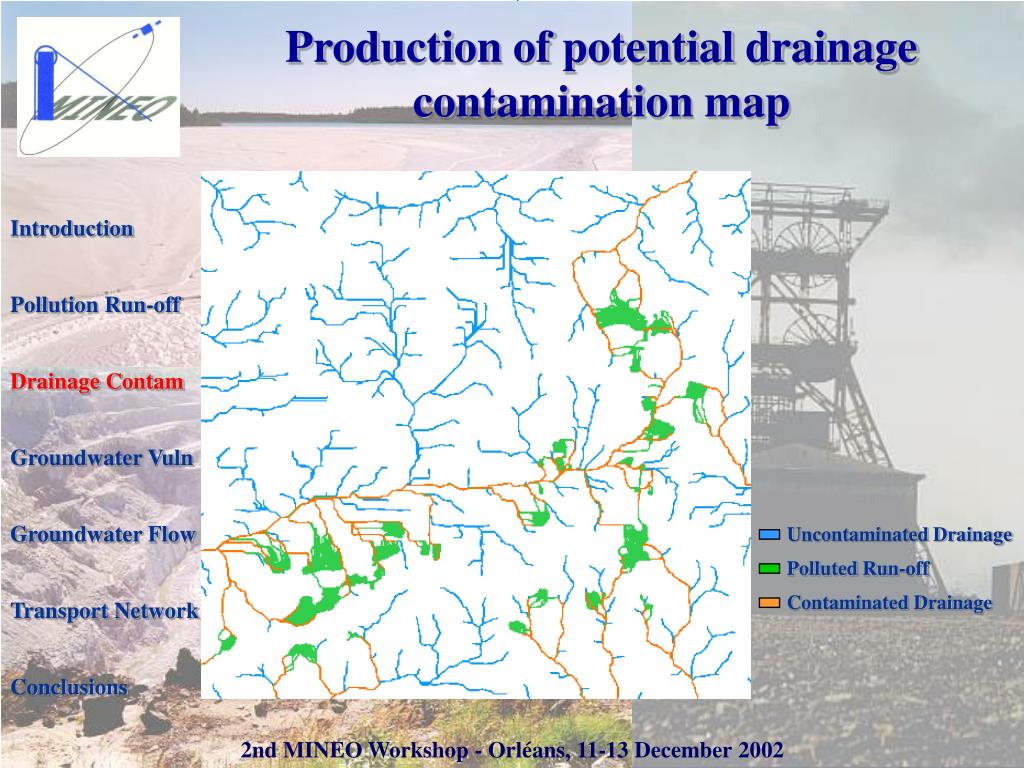

Production of potential drainage contamination map Introduction Pollution Run-off Drainage Contam Groundwater Vuln Groundwater Flow Transport Network Conclusions Uncontaminated Drainage Polluted Run-off Contaminated Drainage
Production of potential drainage contamination map Introduction Pollution Run-off Drainage Contam Groundwater Vuln Groundwater Flow Transport Network Conclusions Uncontaminated Drainage Polluted Run-off Contaminated Drainage Polluted areas

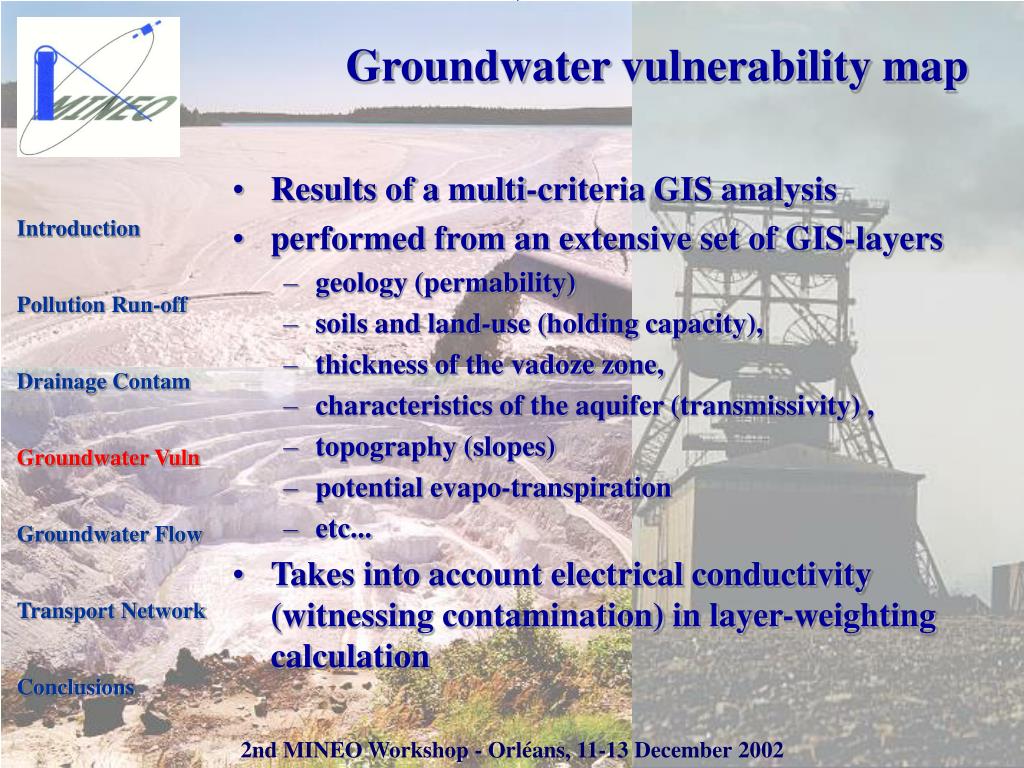

Groundwater vulnerability map • Results of a multi-criteria GIS analysis • performed from an extensive set of GIS-layers • geology (permability) • soils and land-use (holding capacity), • thickness of the vadoze zone, • characteristics of the aquifer (transmissivity) , • topography (slopes) • potential evapo-transpiration • etc... • Takes into account electrical conductivity (witnessing contamination) in layer-weighting calculation Introduction Pollution Run-off Drainage Contam Groundwater Vuln Groundwater Flow Transport Network Conclusions
Groundwater vulnerability map Introduction Pollution Run-off Drainage Contam Groundwater Vuln Groundwater Flow Transport Network Conclusions High vulnerability Low vulnerability
Groundwater flow modelling • Numerical Modelling used to assess where groundwater will flow away from mine site • Inputs are the: • identified contaminated site • digital terrain model • This example: • Cornwall, UK • Dave Noy’s work Introduction Pollution Run-off Drainage Contam Groundwater Vuln Groundwater Flow Transport Network Conclusions Mine waste location at the United Downs mine Outer boundary of finite element mesh Zone of mesh refinement

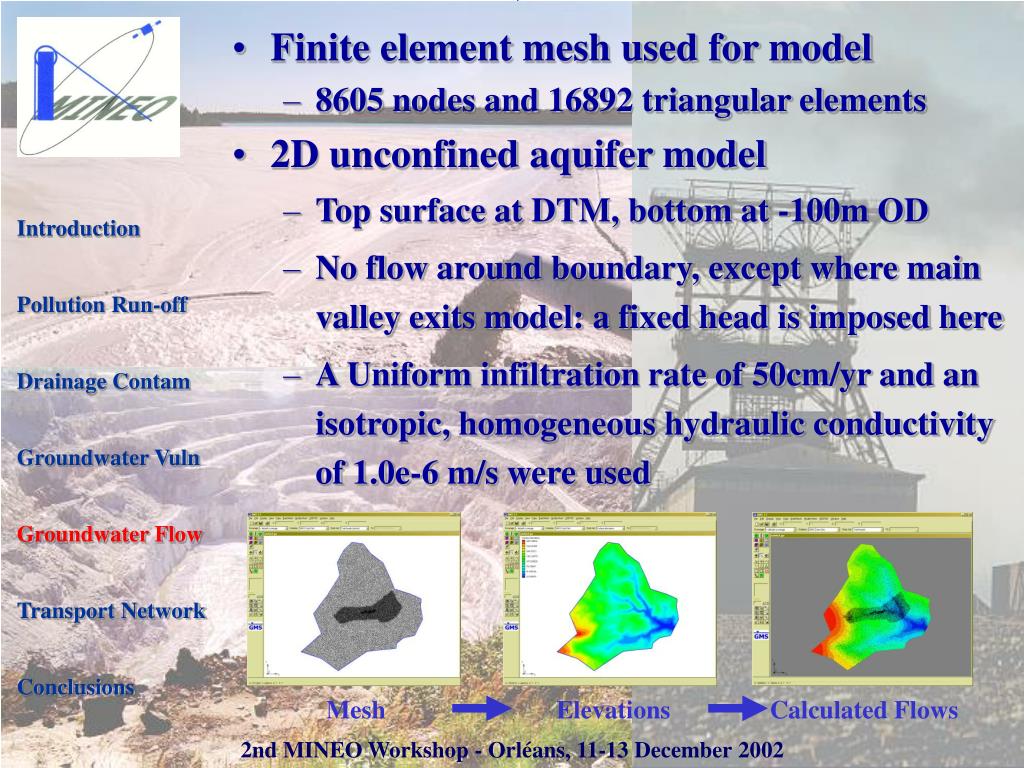

Finite element mesh used for model • 8605 nodes and 16892 triangular elements • 2D unconfined aquifer model • Top surface at DTM, bottom at -100m OD • No flow around boundary, except where main valley exits model: a fixed head is imposed here • A Uniform infiltration rate of 50cm/yr and an isotropic, homogeneous hydraulic conductivity of 1.0e-6 m/s were used Introduction Pollution Run-off Drainage Contam Groundwater Vuln Groundwater Flow Transport Network Conclusions Mesh Elevations Calculated Flows

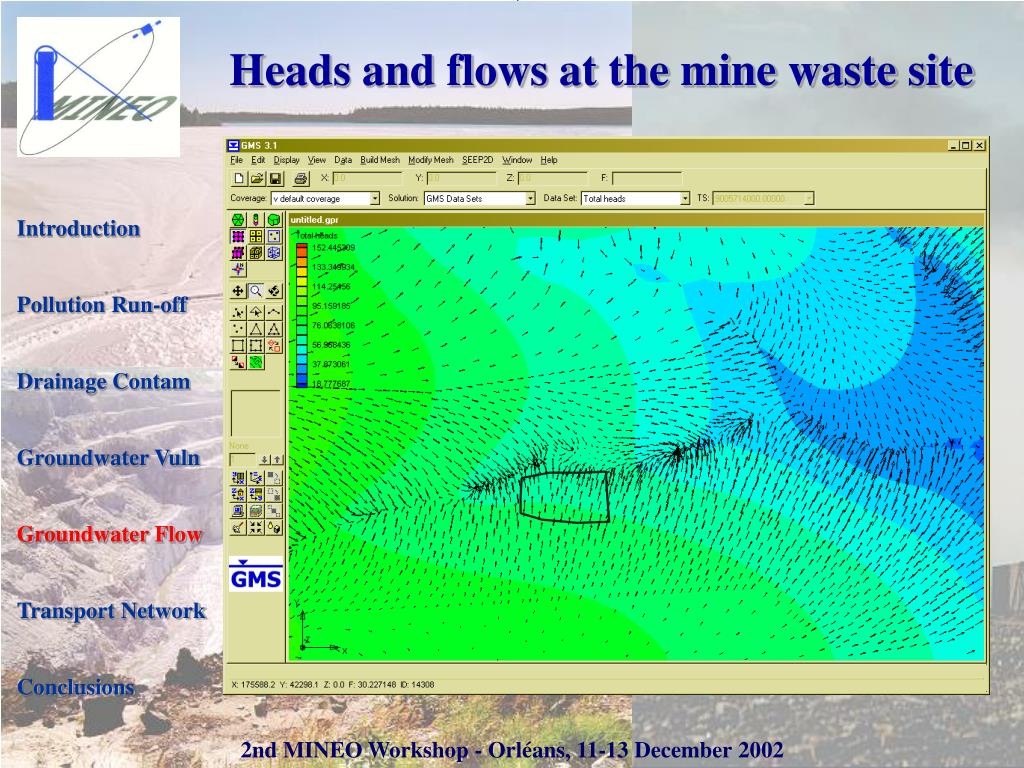

Heads and flows at the mine waste site Introduction Pollution Run-off Drainage Contam Groundwater Vuln Groundwater Flow Transport Network Conclusions

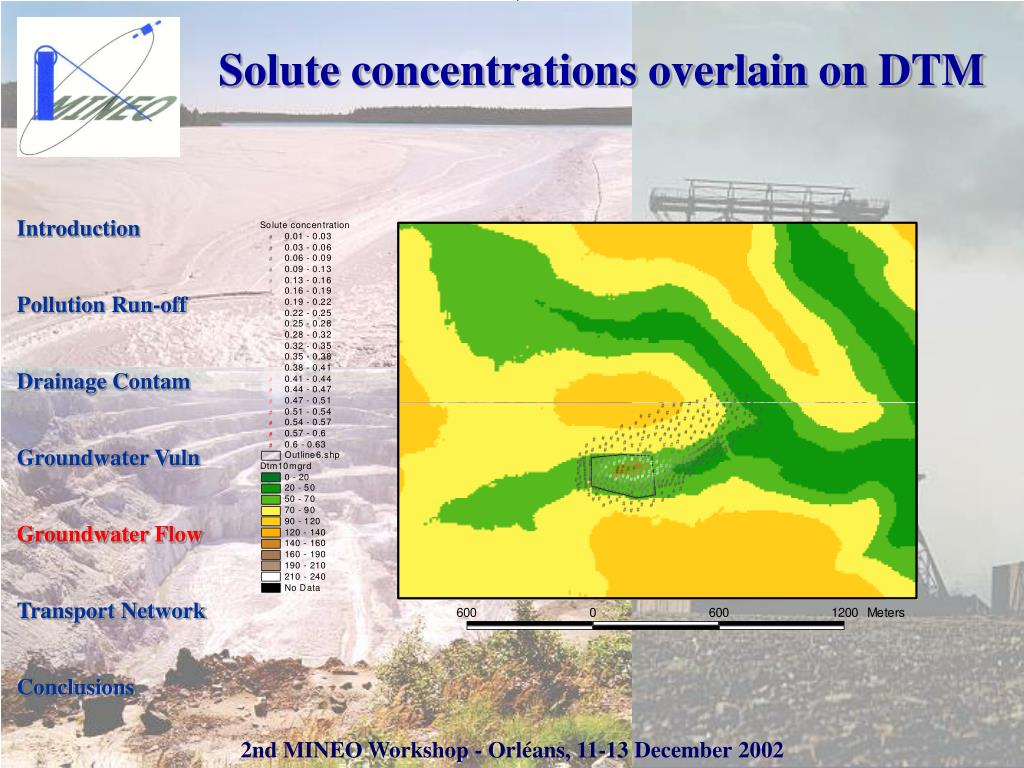

Solute concentrations overlain on DTM Introduction Pollution Run-off Drainage Contam Groundwater Vuln Groundwater Flow Transport Network Conclusions

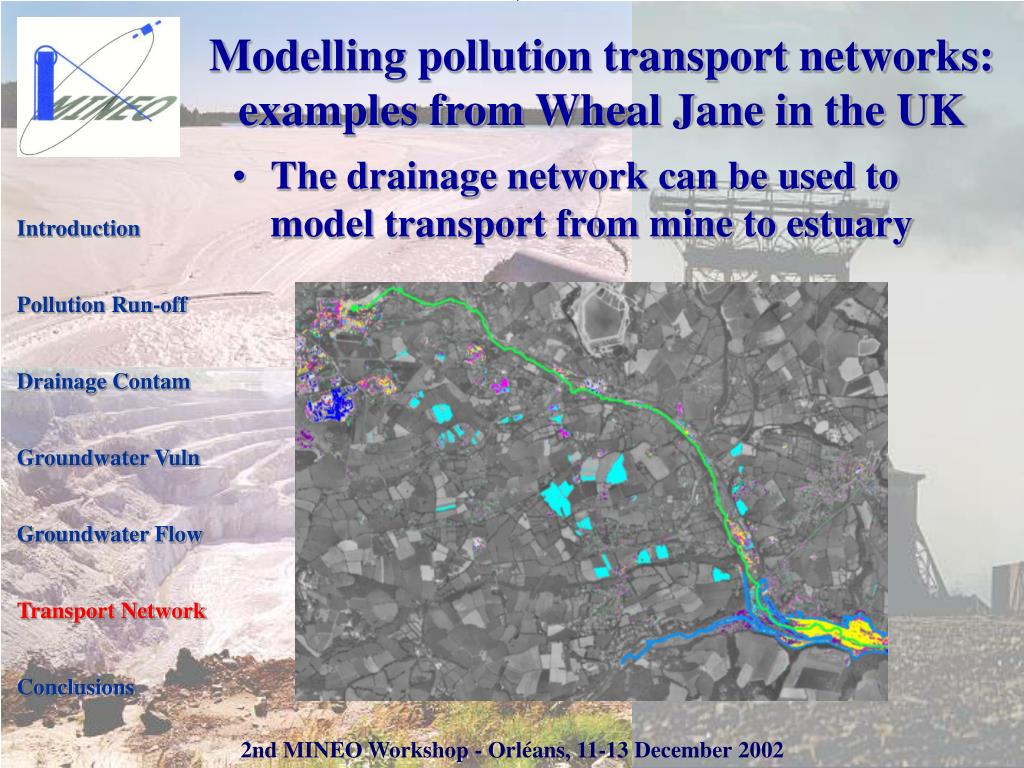

Modelling pollution transport networks: examples from Wheal Jane in the UK • The drainage network can be used to model transport from mine to estuary Introduction Pollution Run-off Drainage Contam Groundwater Vuln Groundwater Flow Transport Network Conclusions
Modelling other transport networks • HyMap identifies contamination along the roads around the Wheal Jane mine site Introduction Pollution Run-off Drainage Contam Groundwater Vuln Groundwater Flow Transport Network Conclusions

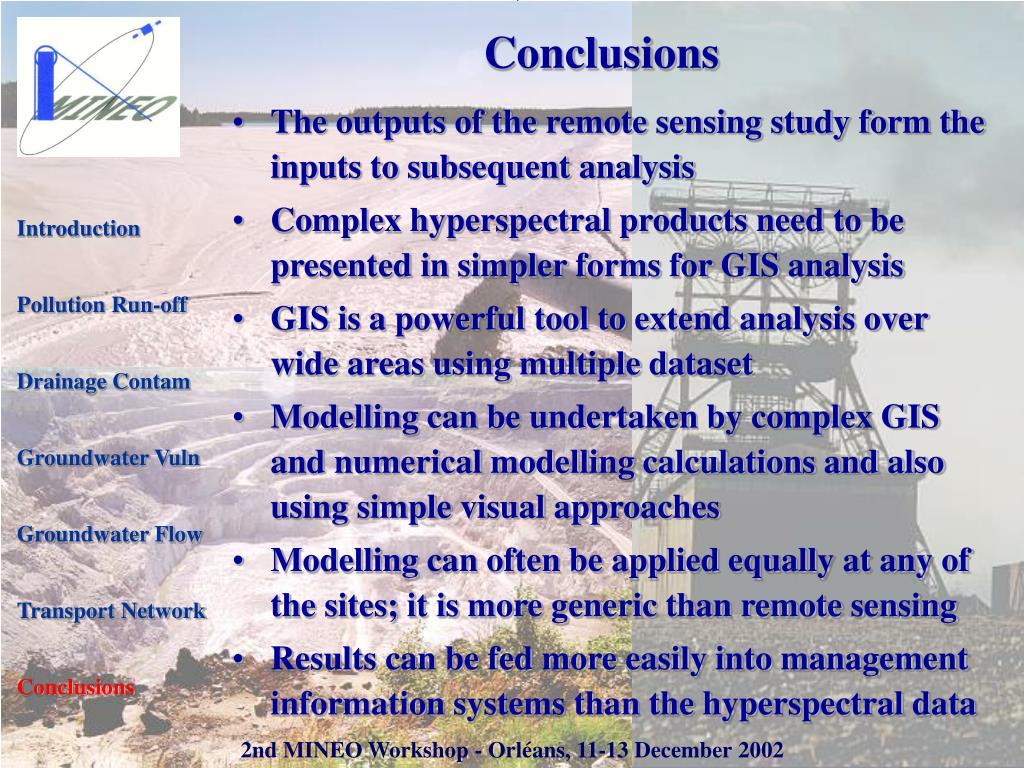

Conclusions • The outputs of the remote sensing study form the inputs to subsequent analysis • Complex hyperspectral products need to be presented in simpler forms for GIS analysis • GIS is a powerful tool to extend analysis over wide areas using multiple dataset • Modelling can be undertaken by complex GIS and numerical modelling calculations and also using simple visual approaches • Modelling can often be applied equally at any of the sites; it is more generic than remote sensing • Results can be fed more easily into management information systems than the hyperspectral data Introduction Pollution Run-off Drainage Contam Groundwater Vuln Groundwater Flow Transport Network Conclusions
