  1. Mayer Line A Line of Best Fit

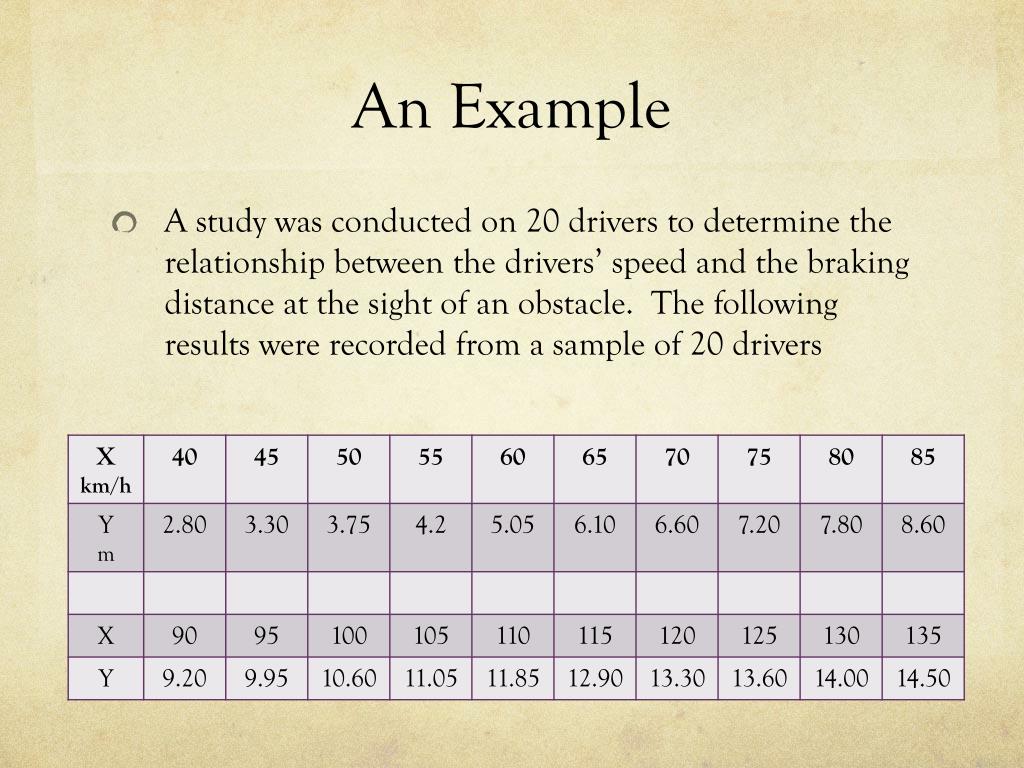

  2. An Example • A study was conducted on 20 drivers to determine the relationship between the drivers’ speed and the braking distance at the sight of an obstacle. The following results were recorded from a sample of 20 drivers

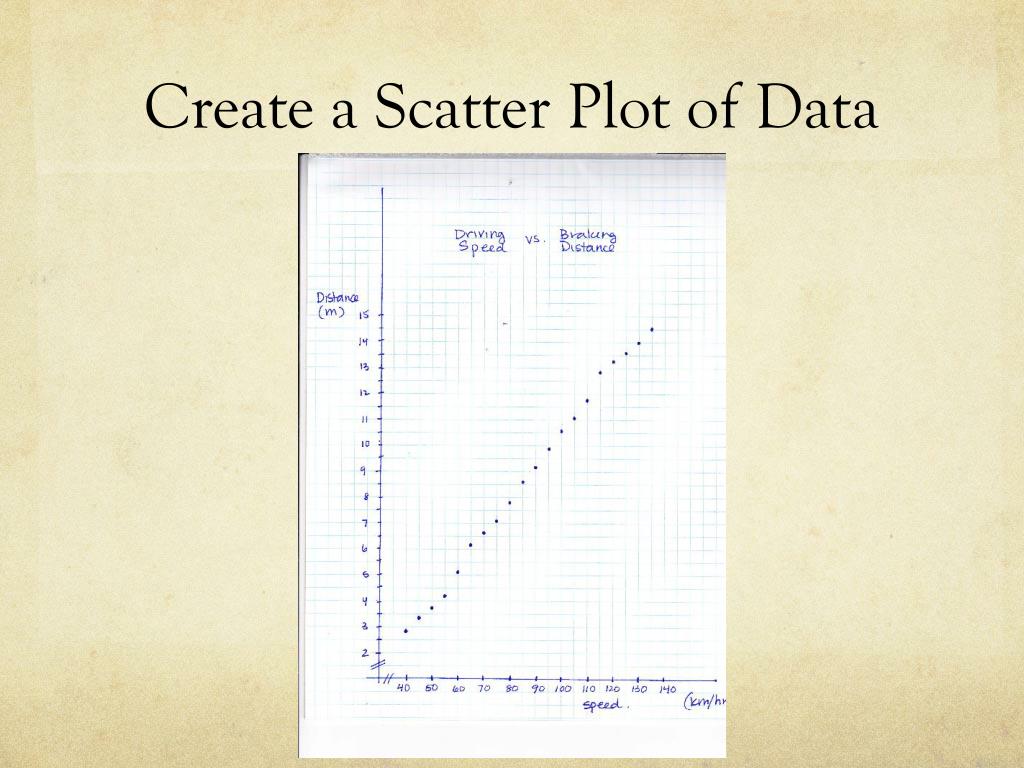

  3. Create a Scatter Plot of Data

  4. What do you notice? • There appears to be some kind of correlation between the speed and the braking distance. • What is the purpose of establishing a correlation in this particular example?

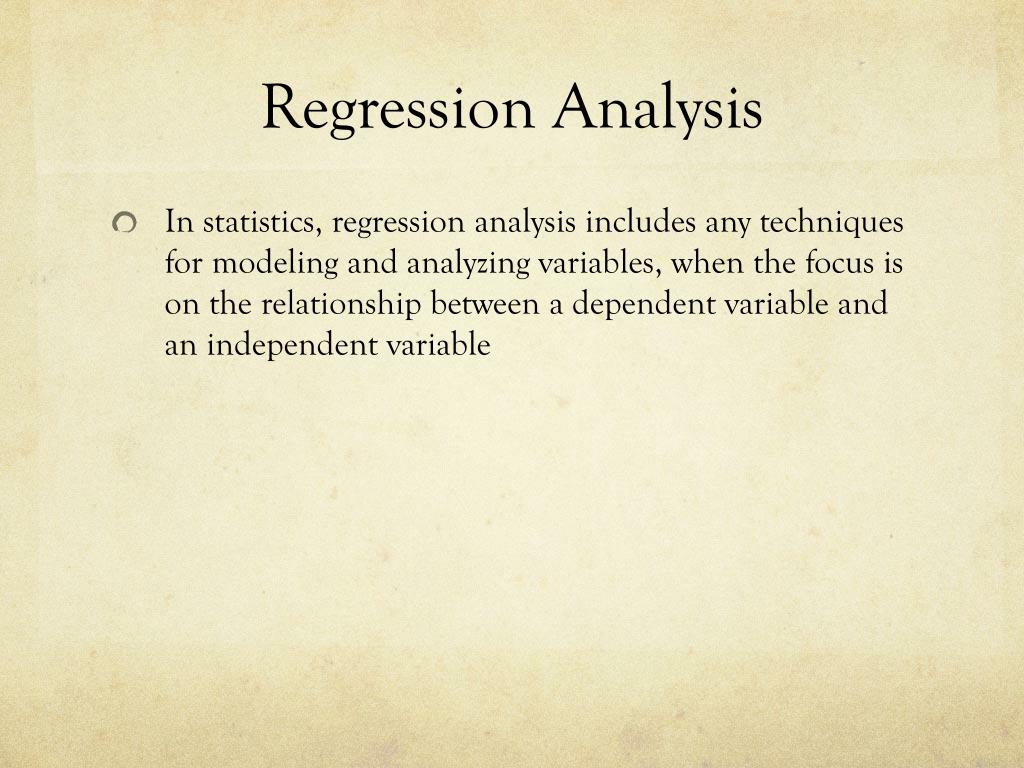

  5. Regression Analysis • In statistics, regression analysis includes any techniques for modeling and analyzing variables, when the focus is on the relationship between a dependent variable and an independent variable

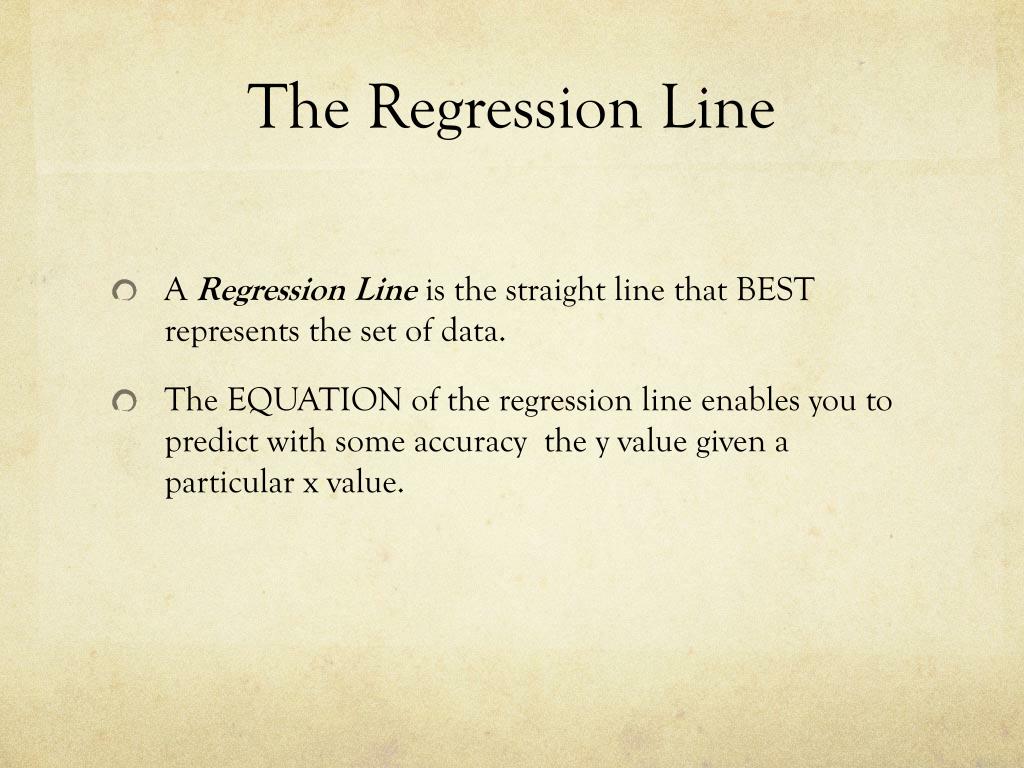

  6. The Regression Line • A Regression Line is the straight line that BEST represents the set of data. • The EQUATION of the regression line enables you to predict with some accuracy the y value given a particular x value.

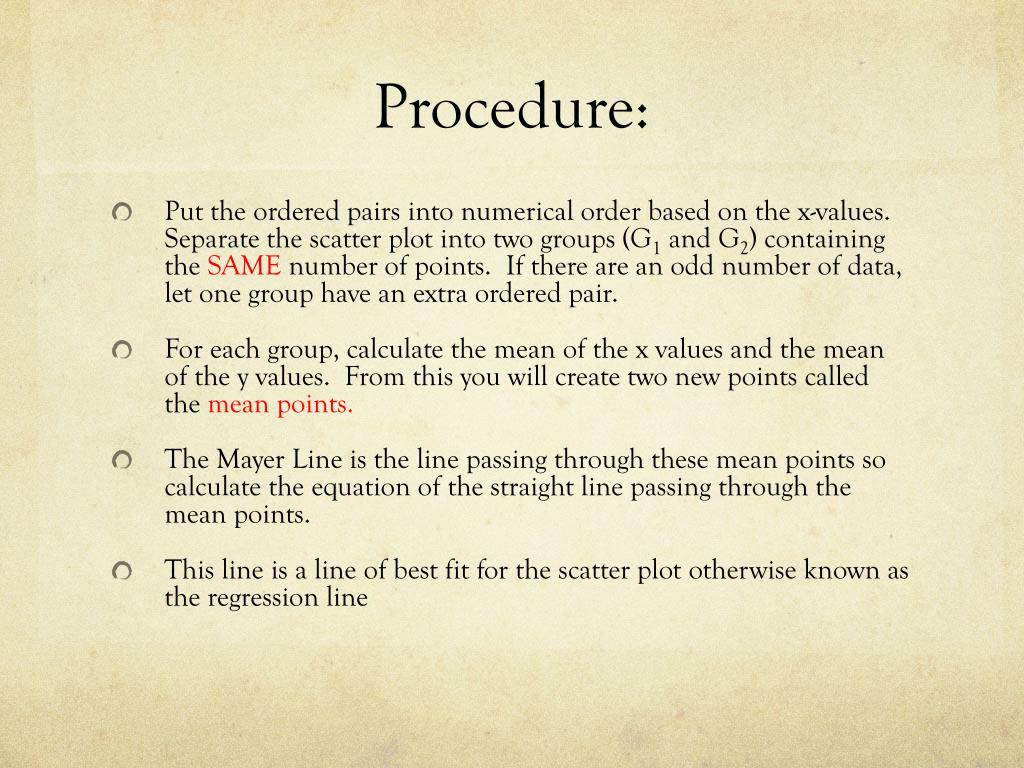

  7. Procedure: • Put the ordered pairs into numerical order based on the x-values. Separate the scatter plot into two groups (G1 and G2) containing the SAME number of points. If there are an odd number of data, let one group have an extra ordered pair. • For each group, calculate the mean of the x values and the mean of the y values. From this you will create two new points called the mean points. • The Mayer Line is the line passing through these mean points so calculate the equation of the straight line passing through the mean points. • This line is a line of best fit for the scatter plot otherwise known as the regression line

  8. Divide the Data

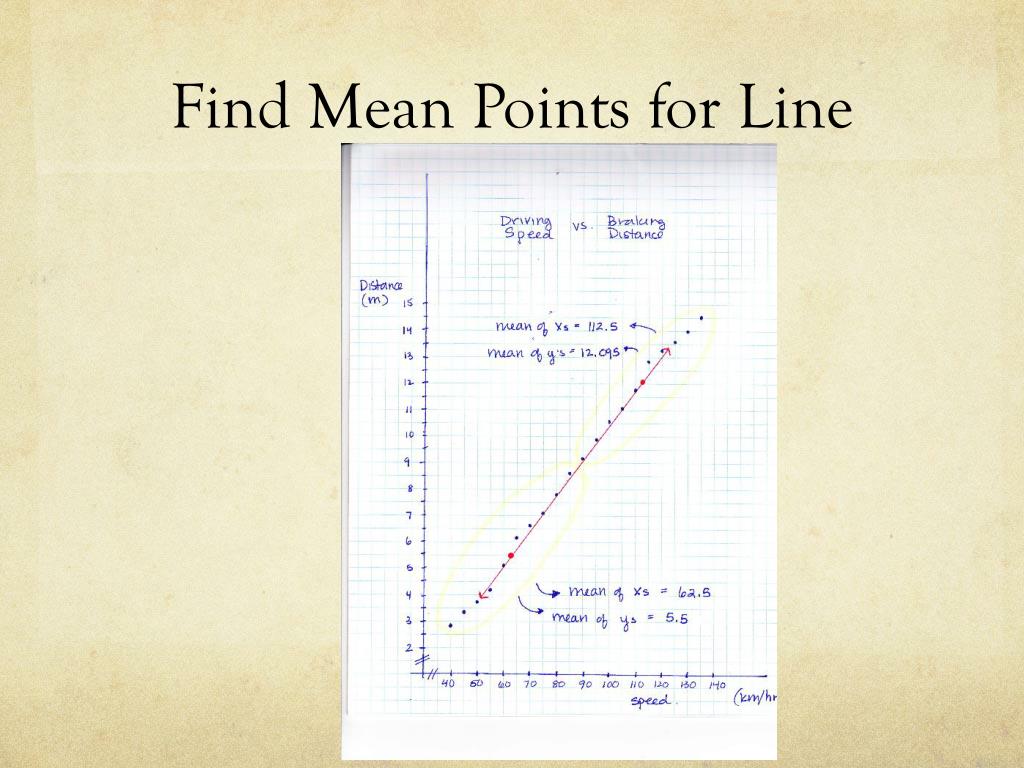

  9. Find Mean Points for Line

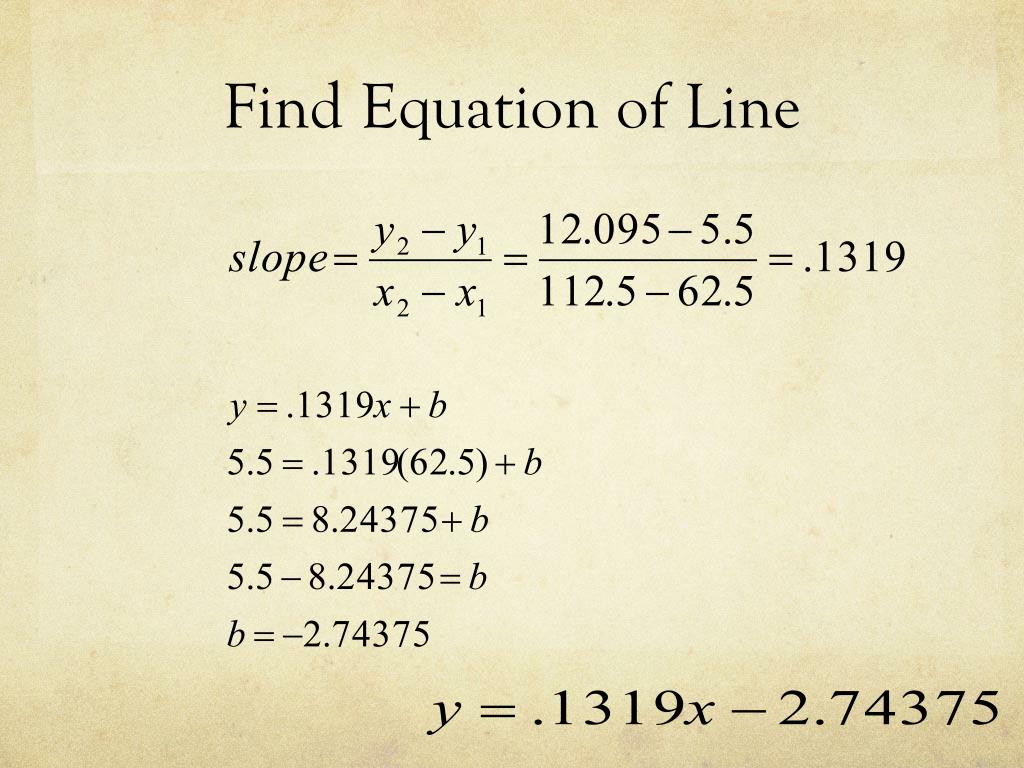

  10. Find Equation of Line

  11. Once you have the equation… • …make a prediction • A person driving 121 km/ hr, would have a braking distance of how much? • A person with a baking distance of 9 meters was driving how fast?

  12. Caution • Using the regression line to predict a y value is only valid when the x value being used is located in the variation interval of the variable x. • For this example, it means that a prediction can only really be made for a y value, if the x value lies between 40 and 135. You can predict the braking distance for a car traveling 89 km/h , but not for one traveling 19 km/h. • You may be asked to make predictions beyond the variation. You CAN do this but you should note that it will certainly decrease the validity of the analysis if you do so. Always use your common sense.

  13. Homework • Page 296 # 1 a) b) c) • Page 296 #3 b) c) d) e) • Page 297 #4 a) b) d) e)
