  1. To Live and Die in CA AN InvestigatiON INTO the nature of growth in elementary cellular automata Committee: YashaKarant, advisor Ernesto Gomez Keith Schubert by Jane Curnutt

  2. To Live and Die in CA Introduction to CA (Cellular Automata)

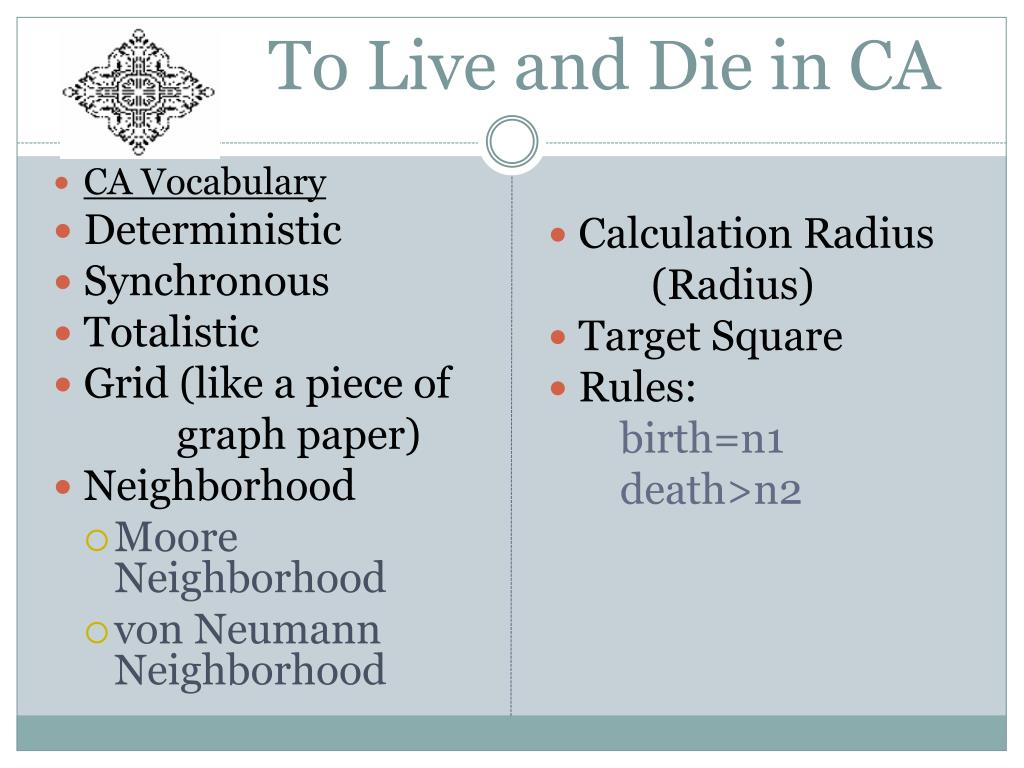

  3. To Live and Die in CA • CA Vocabulary • Deterministic • Synchronous • Totalistic • Grid (like a piece of graph paper) • Neighborhood • Moore Neighborhood • von Neumann Neighborhood • Calculation Radius (Radius) • Target Square • Rules: birth=n1 death>n2

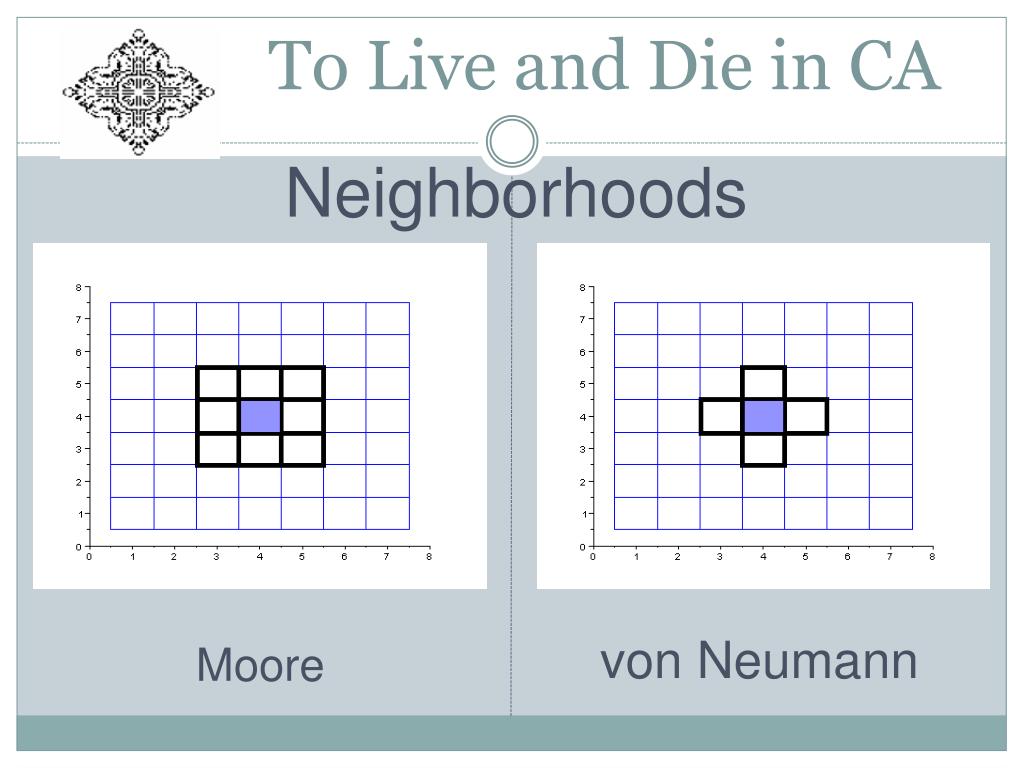

  4. To Live and Die in CA Neighborhoods von Neumann Moore

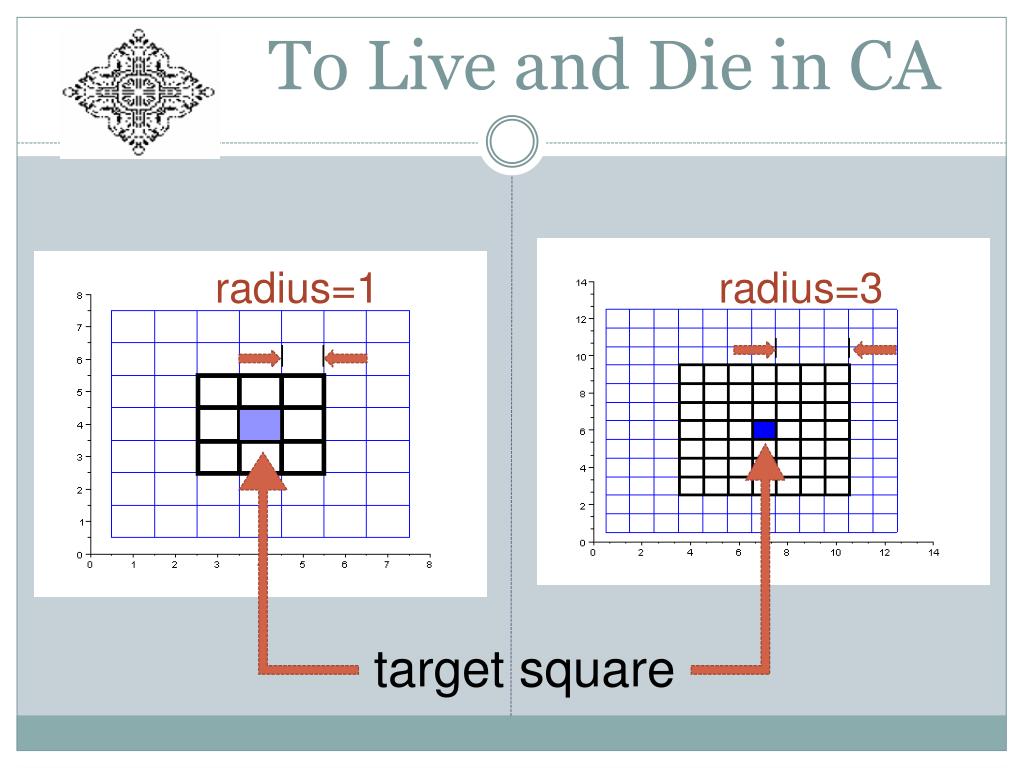

  5. To Live and Die in CA radius=1 radius=3 target square

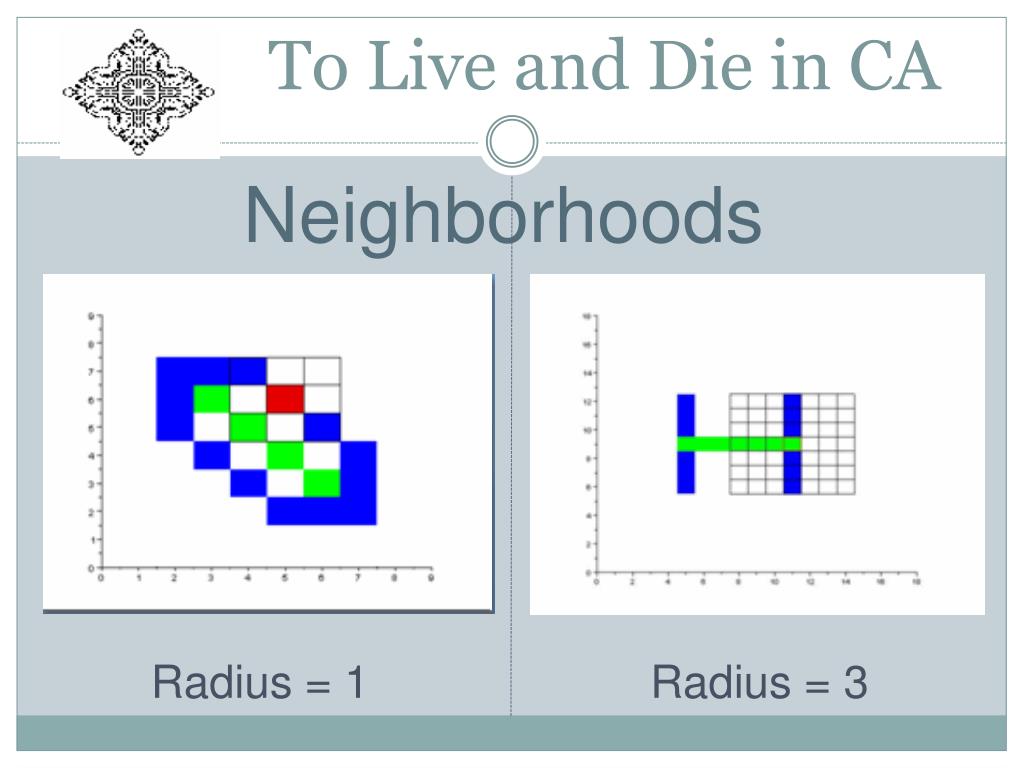

  6. To Live and Die in CA Neighborhoods Radius = 1 Radius = 3

  7. To Live and Die in CA Biological Ca models

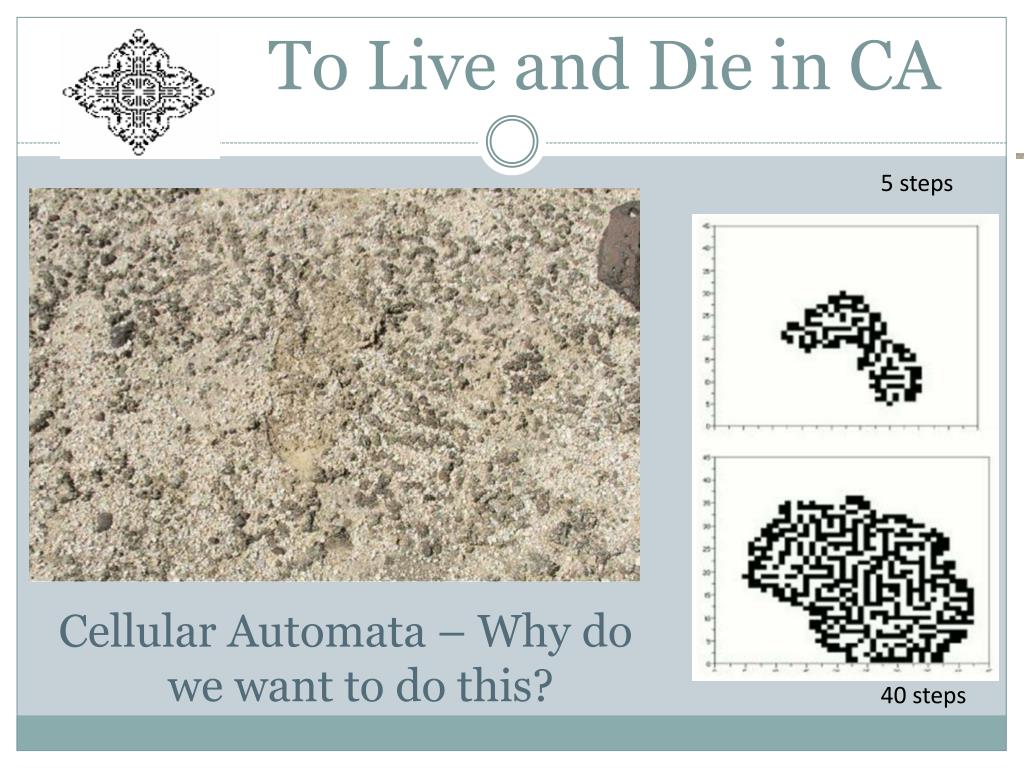

  8. To Live and Die in CA 5 steps Cellular Automata – Why do we want to do this? 40 steps

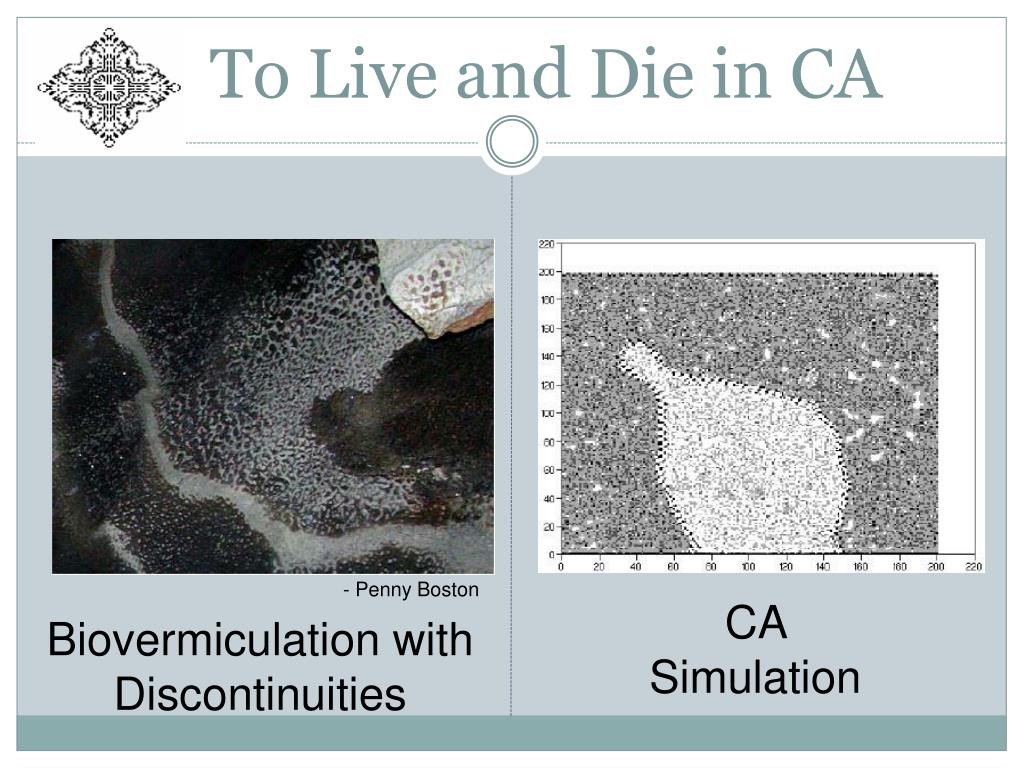

  9. To Live and Die in CA - Penny Boston CA Simulation Biovermiculation with Discontinuities

  10. To Live and Die in CA CA Model of Bioverm Cave Bioverm photo courtesy of Penny Boston

  11. To Live and Die in CA The Nature of Growth In Cellular automata

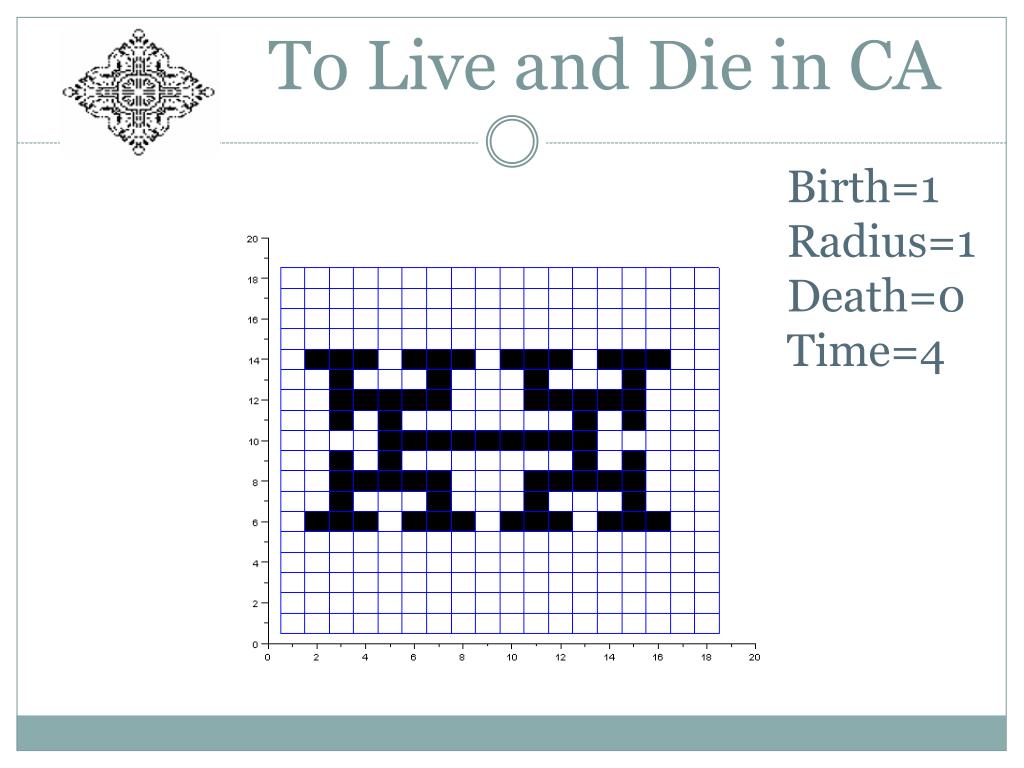

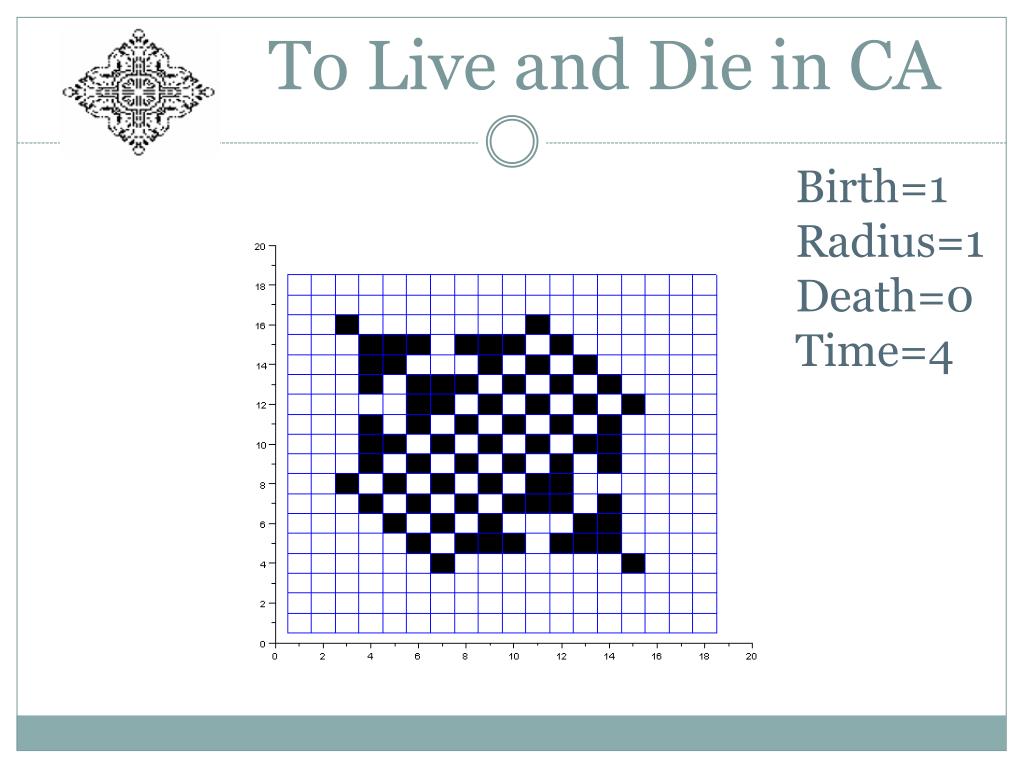

  12. To Live and Die in CA Birth=1 Radius=1 Death=0 Time=4

  13. To Live and Die in CA

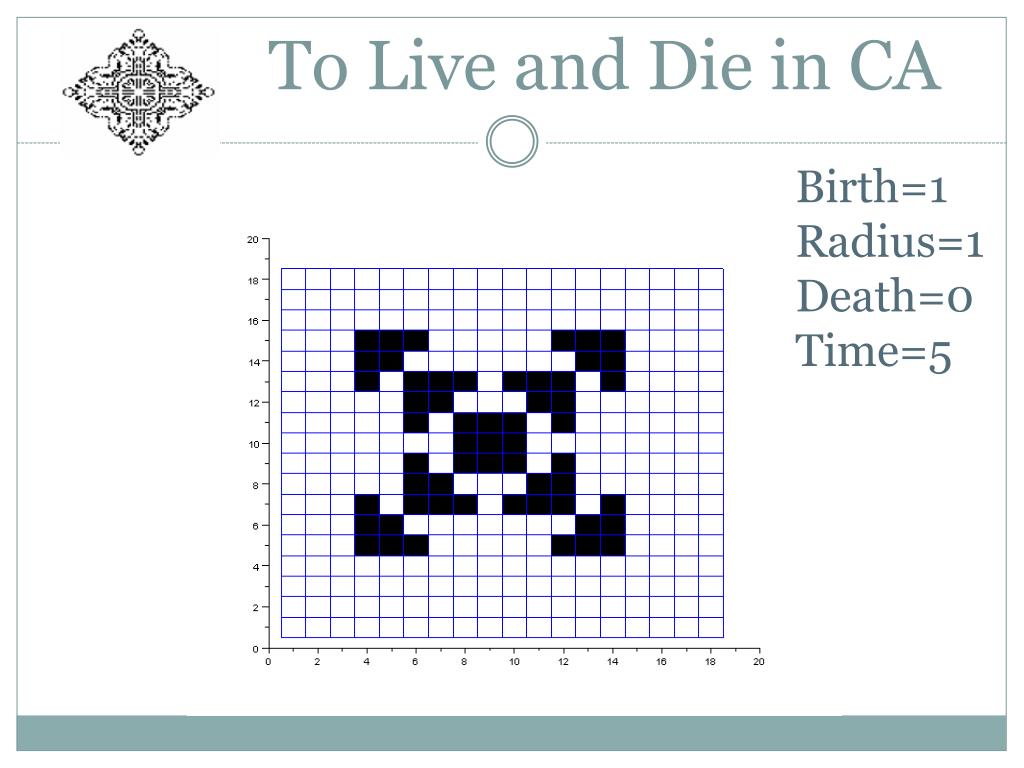

  14. To Live and Die in CA Birth=1 Radius=1 Death=0 Time=5

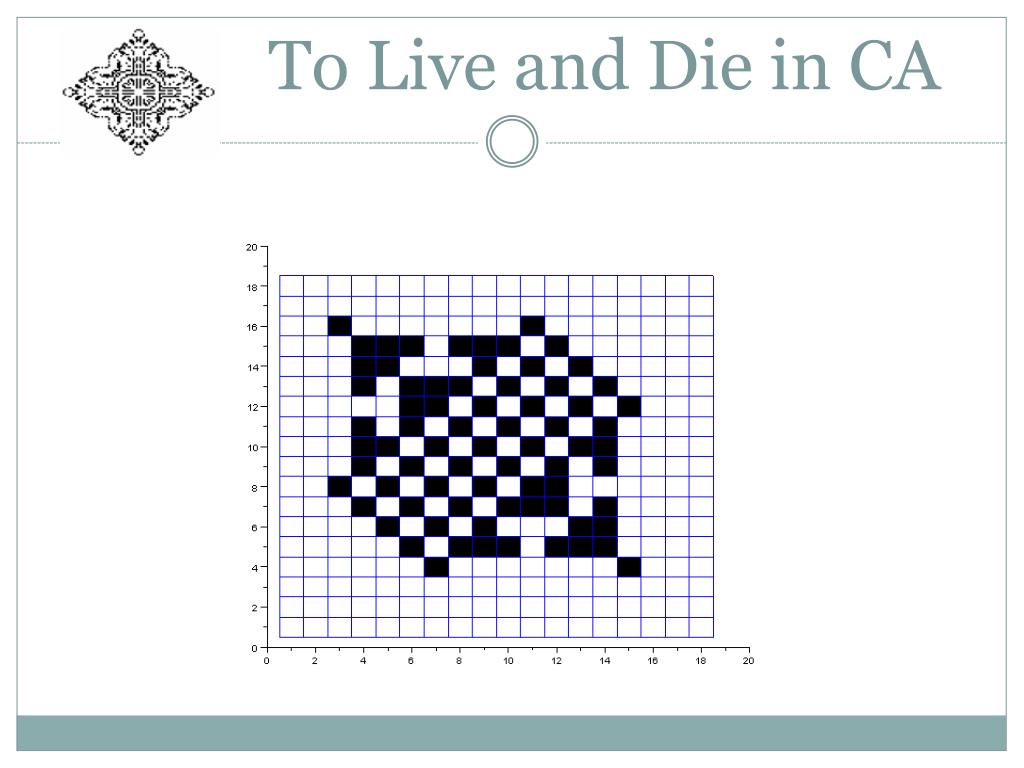

  15. To Live and Die in CA

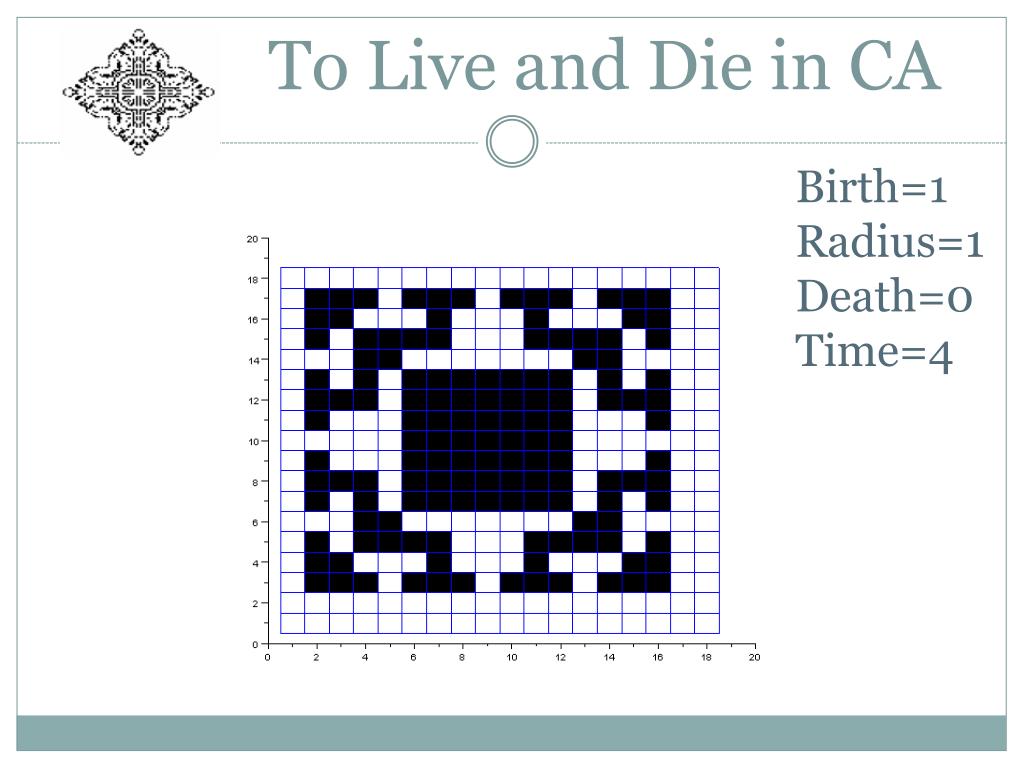

  16. To Live and Die in CA Birth=1 Radius=1 Death=0 Time=4

  17. To Live and Die in CA

  18. To Live and Die in CA Birth=1 Radius=1 Death=0 Time=4

  19. To Live and Die in CA

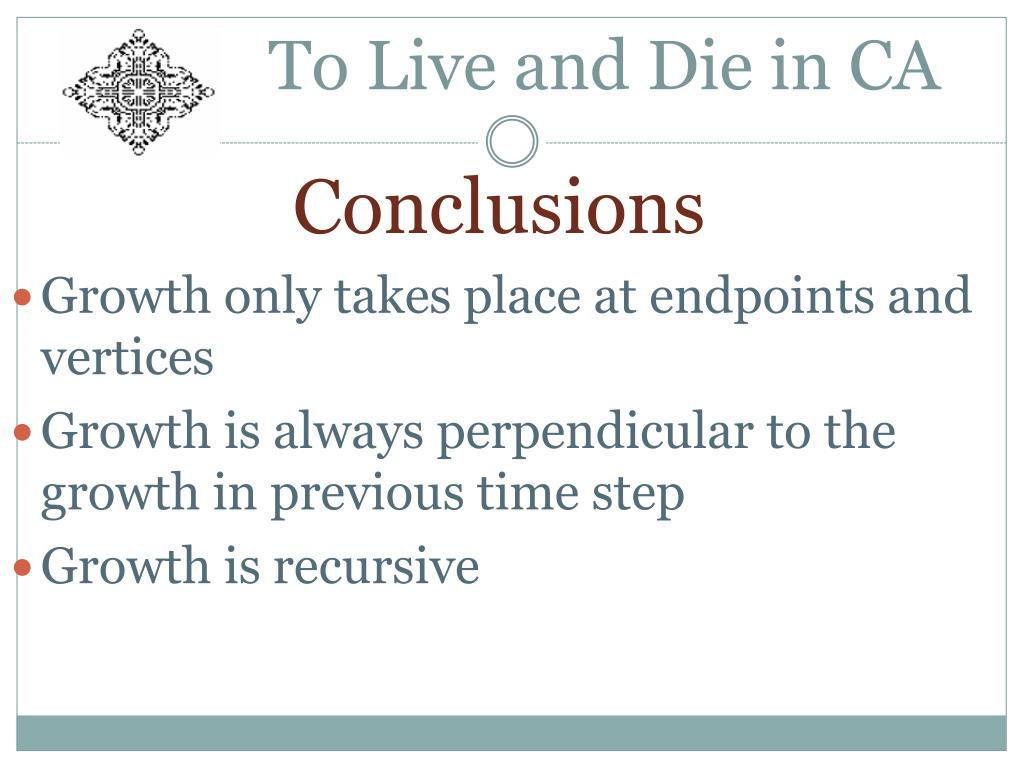

  20. To Live and Die in CA Conclusions Growth only takes place at endpoints and vertices Growth is always perpendicular to the growth in previous time step Growth is recursive

  21. To Live and Die in CA Fractal CA

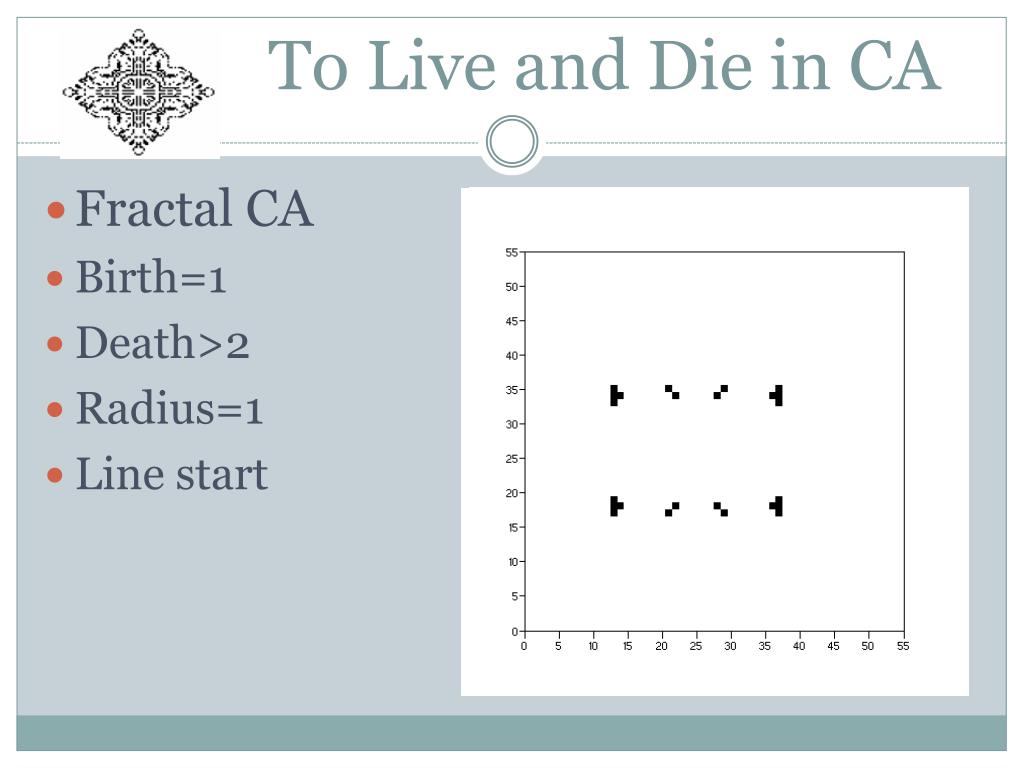

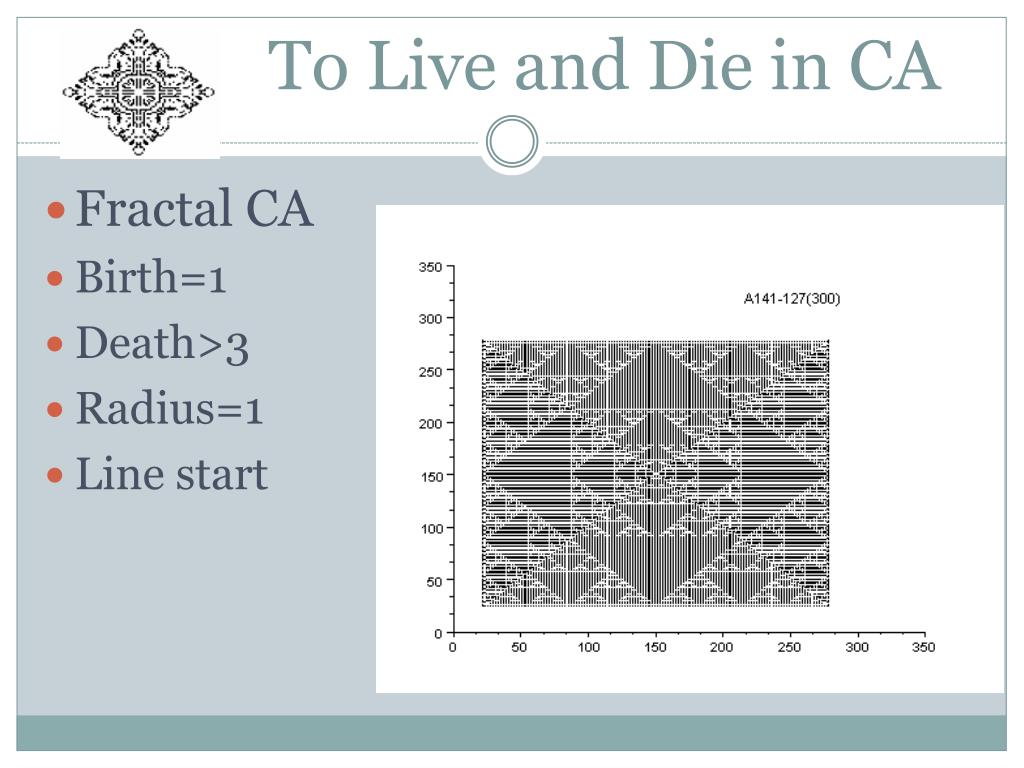

  22. To Live and Die in CA • Fractal CA • Birth=1 • Death>2 • Radius=1 • Line start

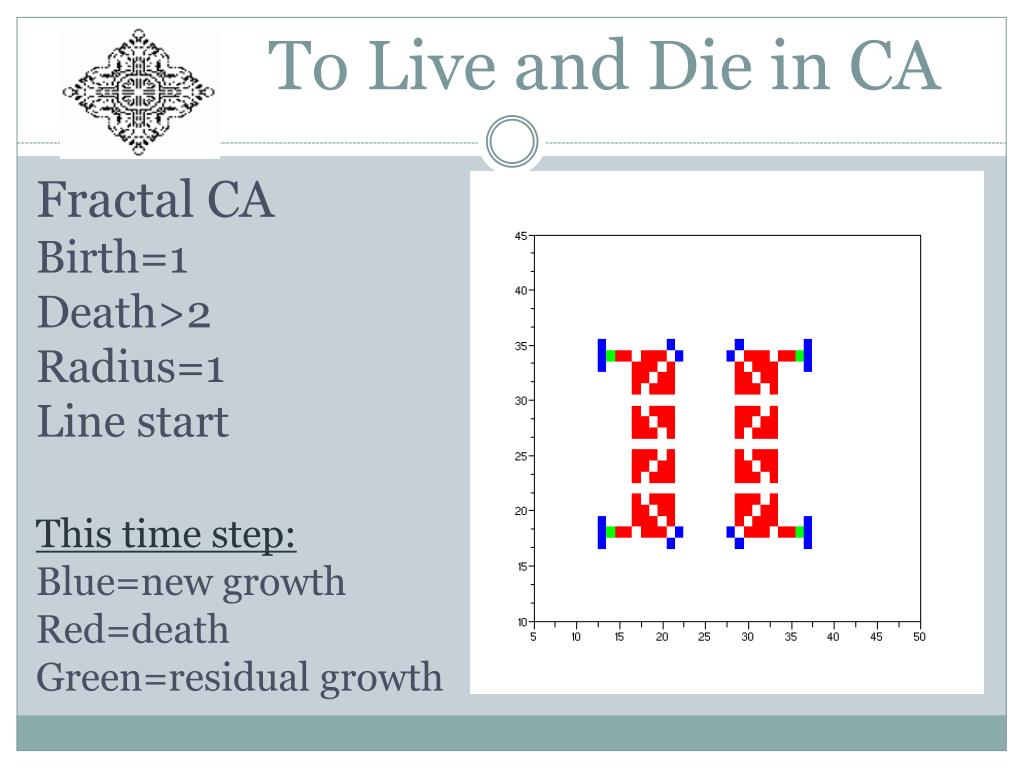

  23. To Live and Die in CA Fractal CA Birth=1 Death>2 Radius=1 Line start This time step: Blue=new growth Red=death Green=residual growth

  24. To Live and Die in CA • Fractal CA • Birth=1 • Death>3 • Radius=1 • Line start

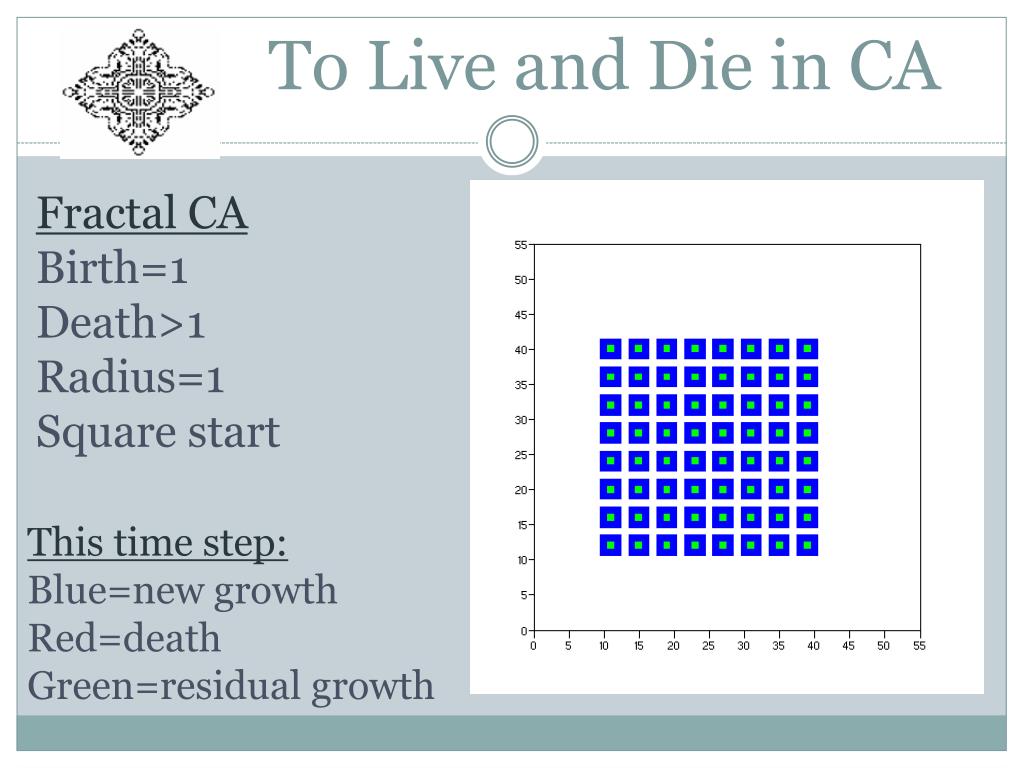

  25. To Live and Die in CA Fractal CA Birth=1 Death>1 Radius=1 Square start This time step: Blue=new growth Red=death Green=residual growth

  26. To Live and Die in CA CA L-System Grammar

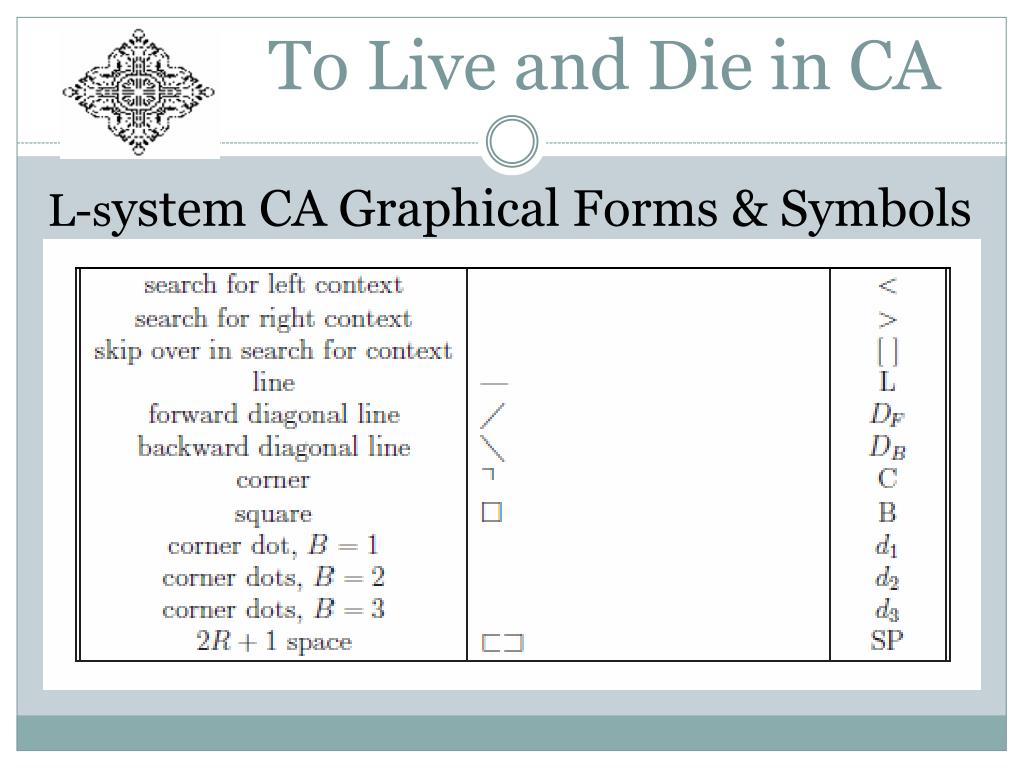

  27. To Live and Die in CA L-system CA Graphical Forms & Symbols

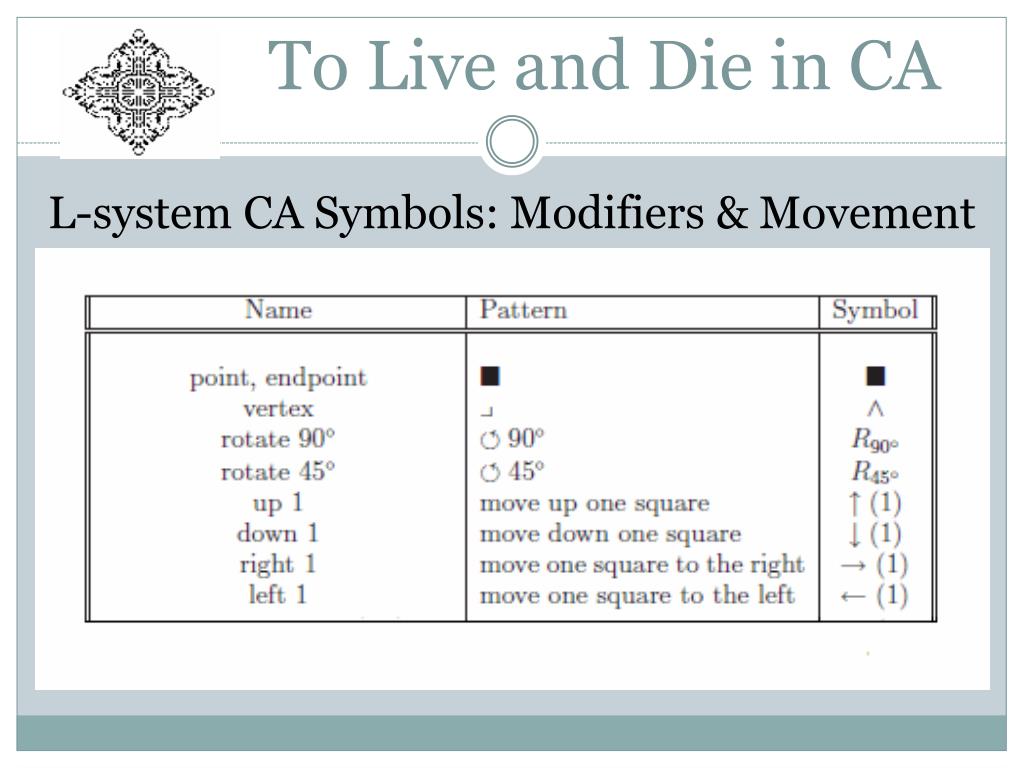

  28. To Live and Die in CA L-system CA Symbols: Modifiers & Movement

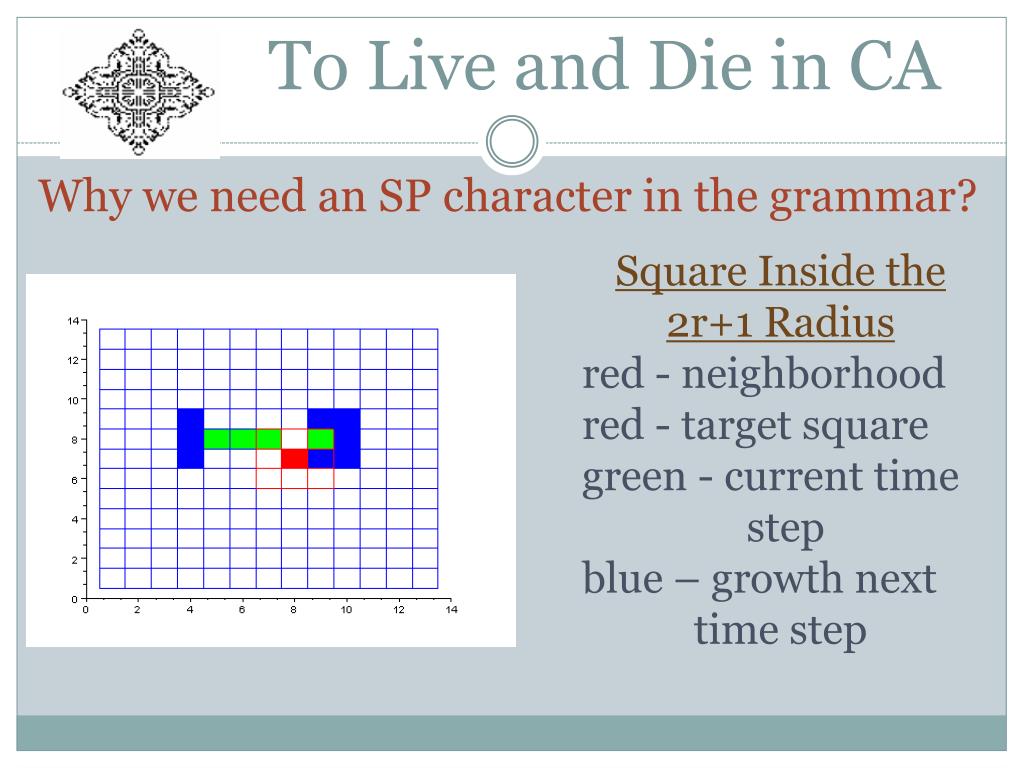

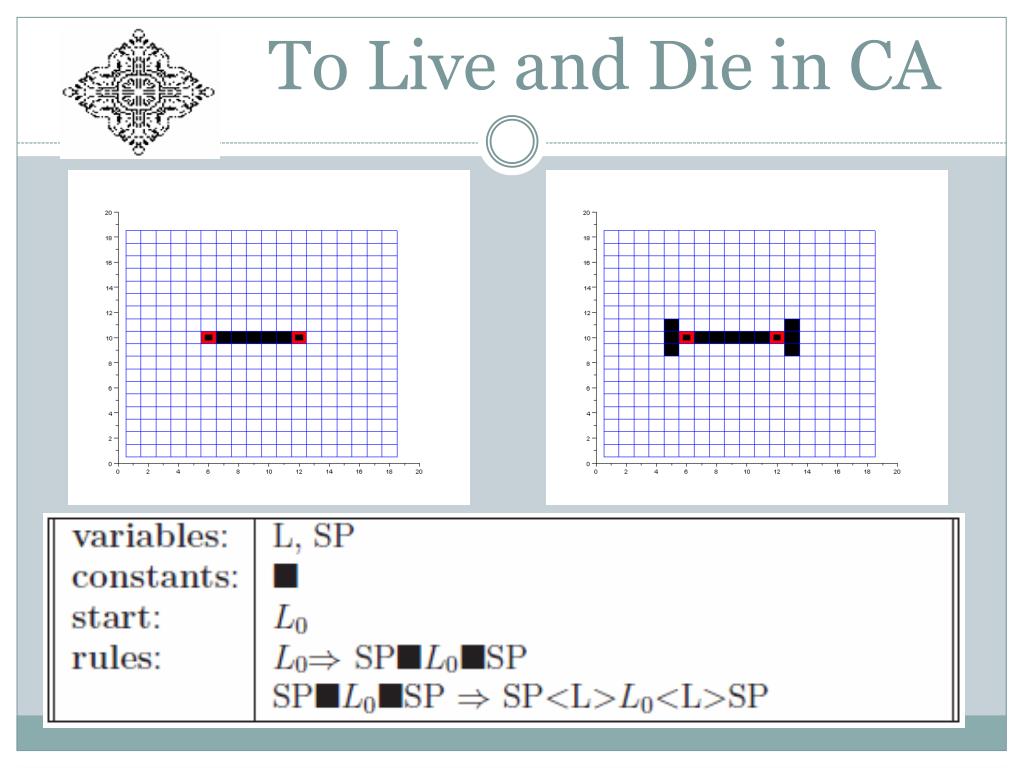

  29. To Live and Die in CA Why we need an SP character in the grammar? Square Inside the 2r+1 Radius red - neighborhood red - target square green - current time step blue – growth next time step

  30. To Live and Die in CA red - neighborhood red - target square green - current time step blue – growth next time step Square Outside the 2r+1 Radius

  31. To Live and Die in CA CA L-System Productions

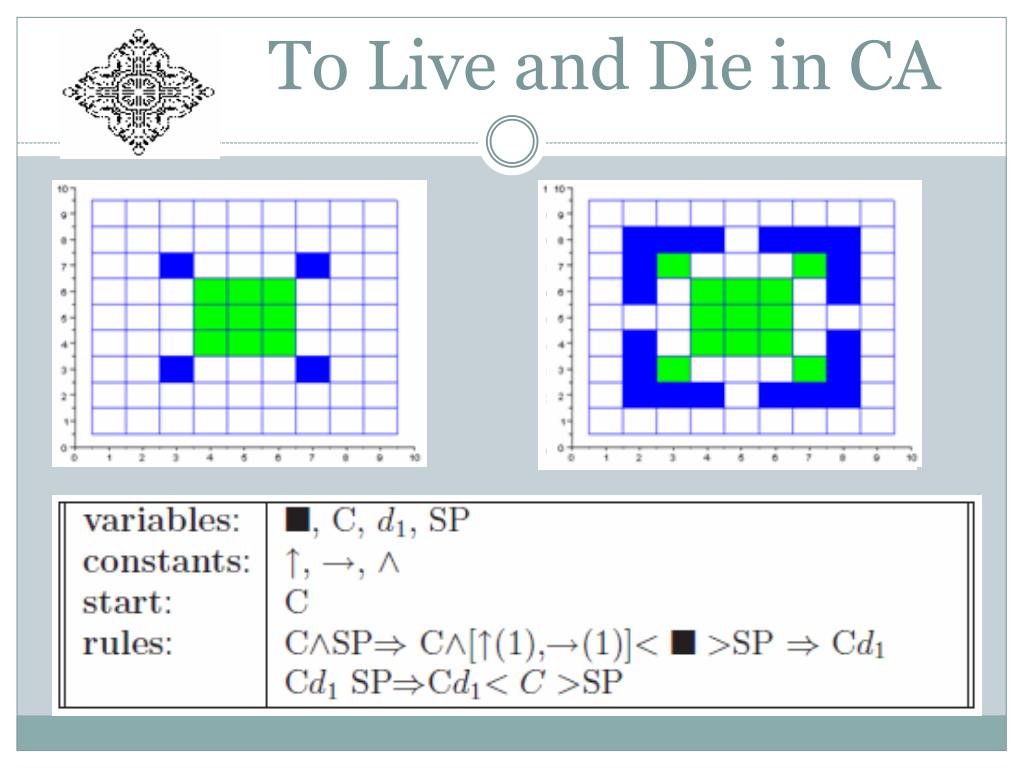

  32. To Live and Die in CA

  33. To Live and Die in CA

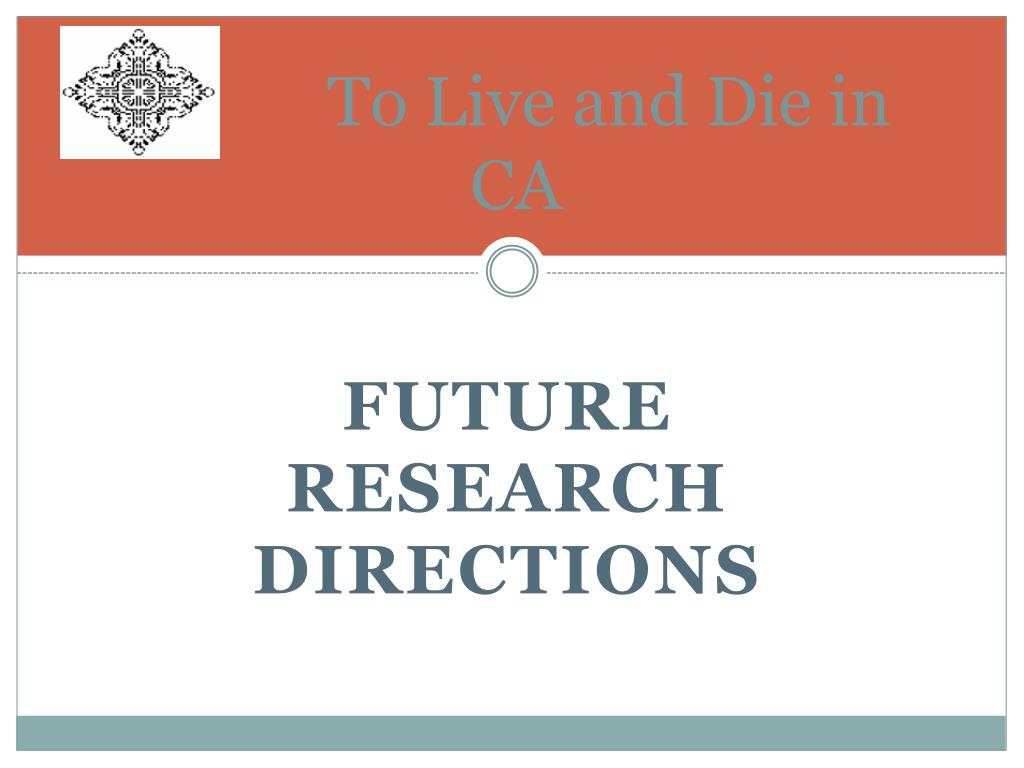

  34. To Live and Die in CA Future Research Directions

  35. To Live and Die in CA • Extend CA grammar to include death rules. • Investigate the relationship between CA grammar and display grid, with different grids. • Investigate collisions between patterns, and whether CA grammar can describe them.

  36. To Live and Die in CA Special thanks to Chris McKay, Principle Investigator for Extreme Environments, NASA, Ames and Penny Boston, NMIT Associate Director, National Cave and Karst Research Institute, for their support and encouragement.

  37. To Live and Die in CA Thank you For Attending

  38. To Live and Die in CA
