  1. Tutorial 5

  2. carry flag C 1 0 1 1 1 1 1 1 + 1 0 0 1 1 0 1 0 1 1 1 1 1 1 0 1 0 1 1 0 0 1 1 carry C

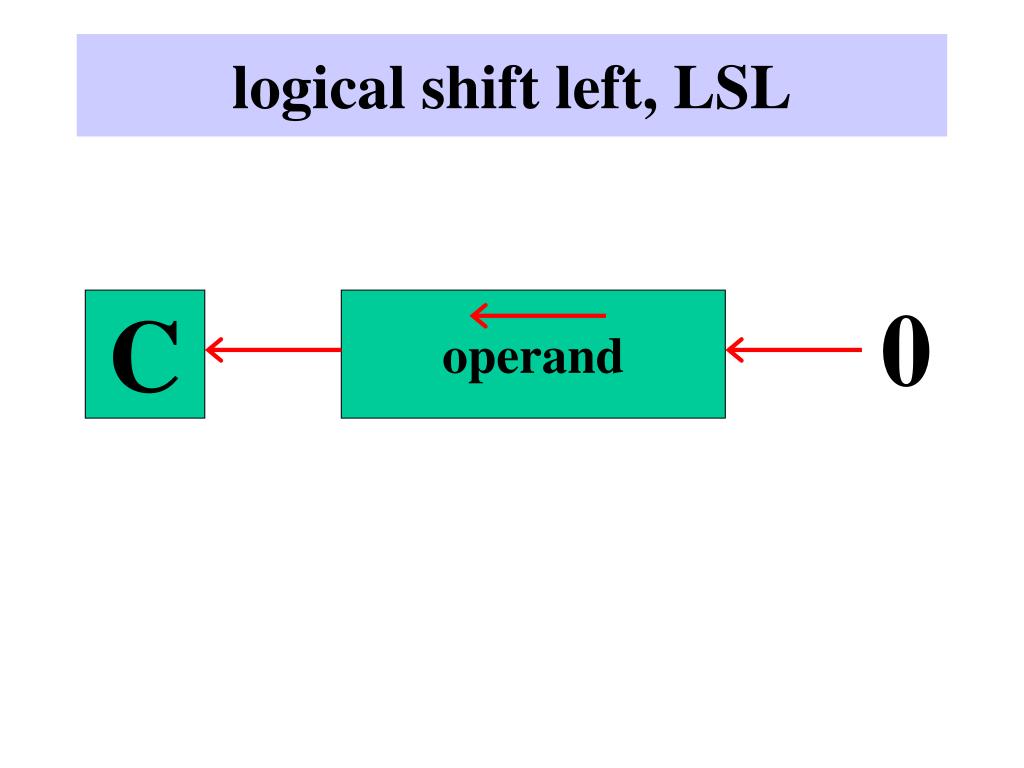

  3. logical shift left, LSL 0 C operand

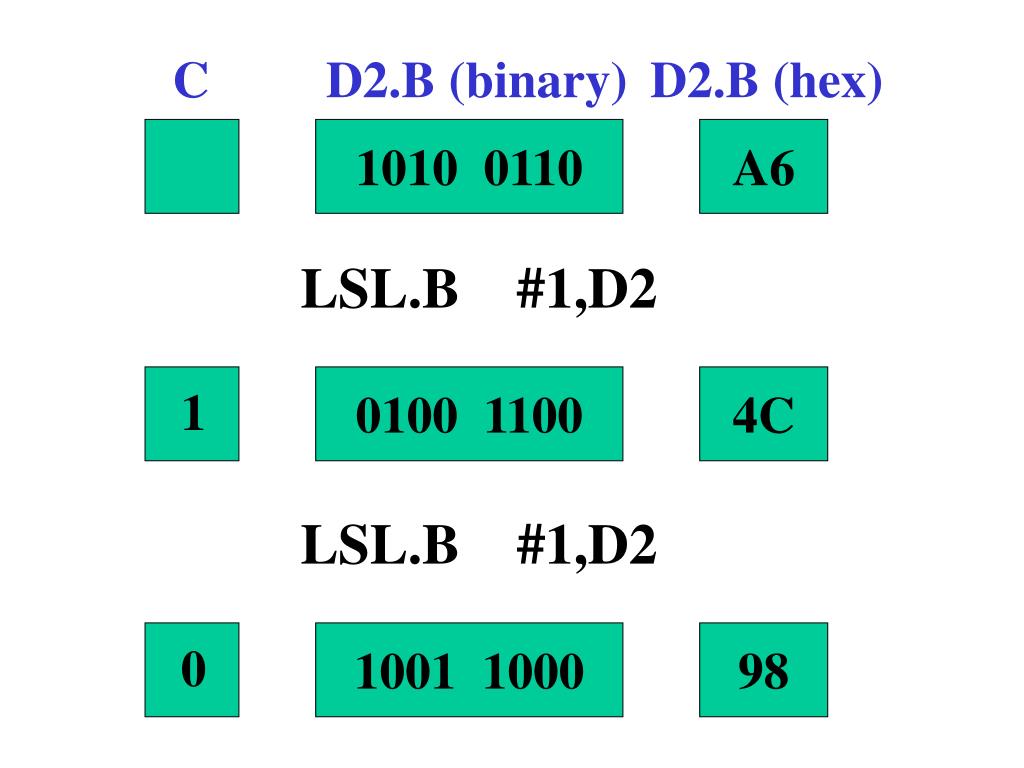

  4. C D2.B (binary) D2.B (hex) 1010 0110 A6 LSL.B #1,D2 0100 1100 4C 1 LSL.B #1,D2 1001 1000 98 0

  5. branch if carry clear, BCC BCC alpha • looks at value of carry flag C • branches to alpha if C is 0 • often used with LSL LSL.B #1,D2 BCC alpha

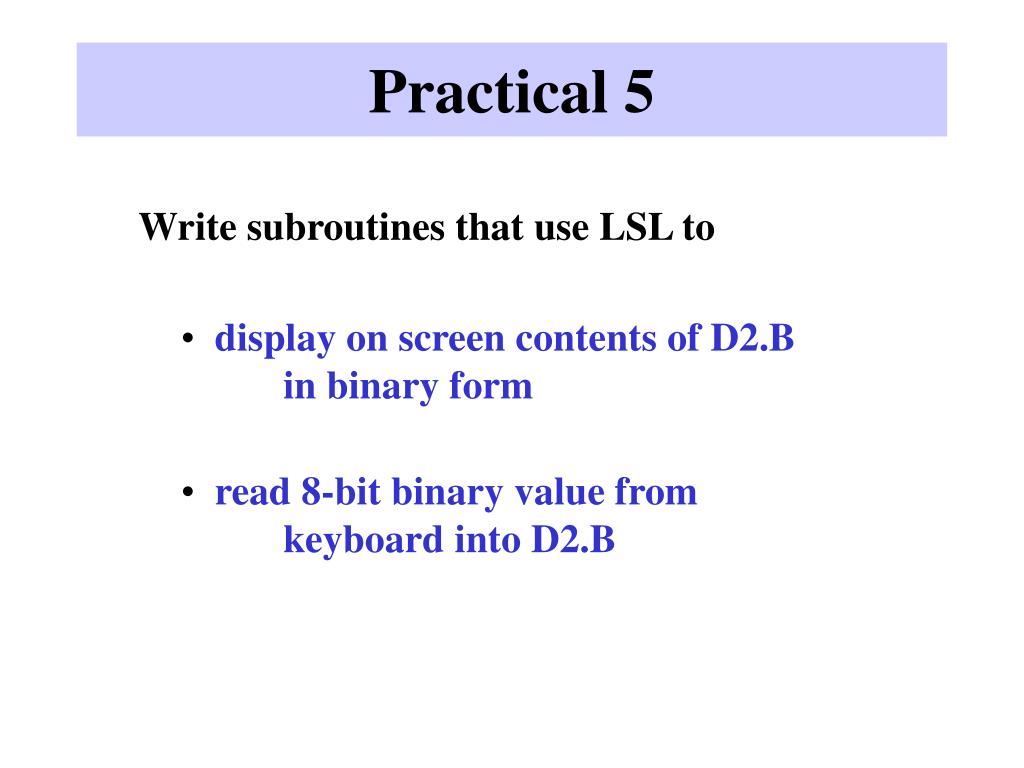

  6. Practical 5 Write subroutines that use LSL to • display on screen contents of D2.B in binary form • read 8-bit binary value from keyboard into D2.B

  7. org $400 program MOVE.B #$23,D2 BSR binaryout MOVE.B #9,D0 TRAP #15 binaryout subroutine binaryout (use RTS to exit subroutine) end program

  8. org $400 program BSR binaryin BSR binaryout MOVE.B #9,D0 TRAP #15 binaryout subroutine binaryout (use RTS to exit subroutine) binaryin subroutine binaryin (use RTS to exit subroutine) end program
