  1. Nuclear Reactors Health Physics Society - Power Reactor Section Radiation Science Education

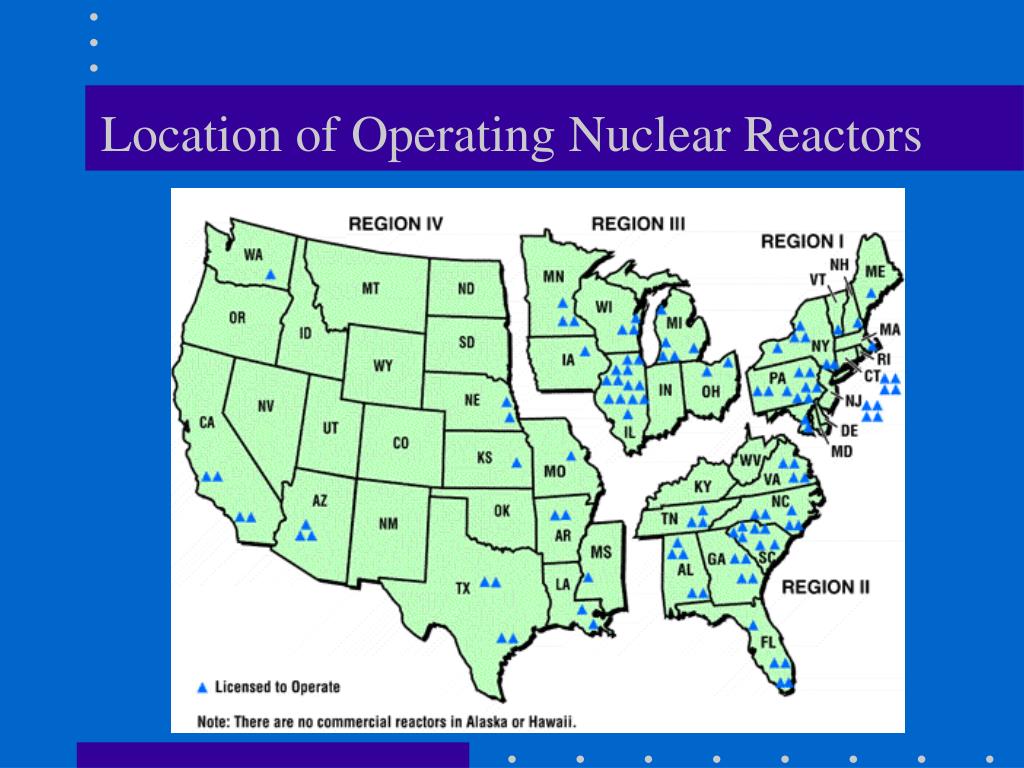

  2. Location of Operating Nuclear Reactors

  3. Think of a Tea KettleThe fission process creates heat that produces steam in a secondary water system. The steam turns a turbine-generator which produces electricity.

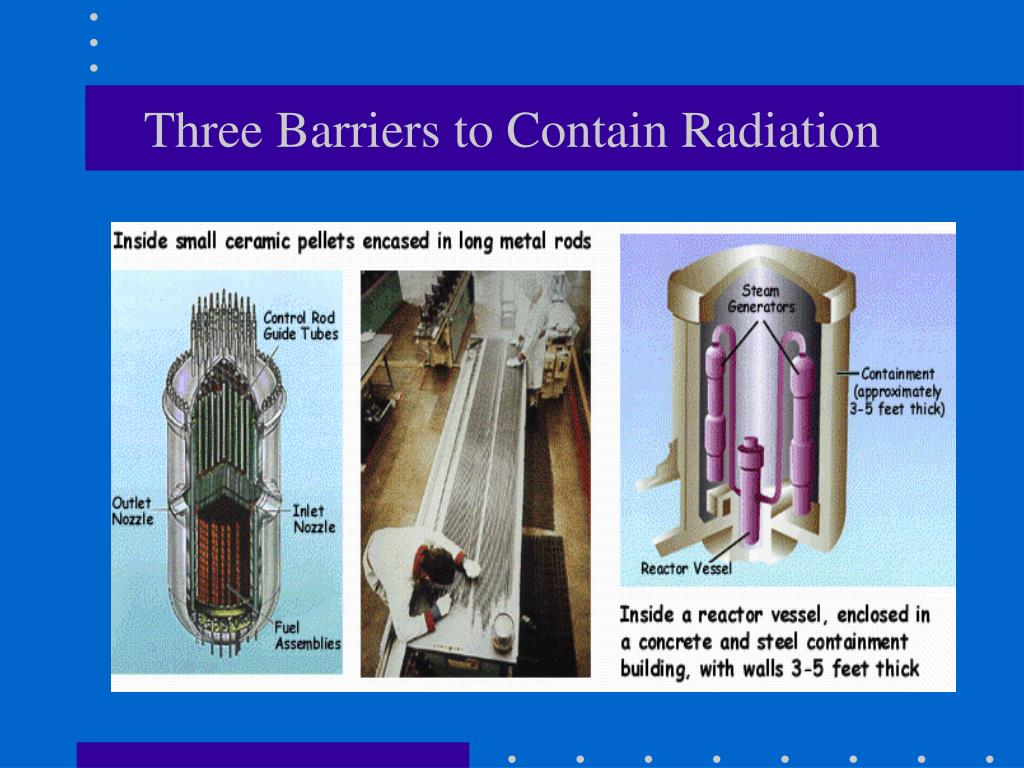

  4. Three Barriers to Contain Radiation

  5. Defense In Depth • 48” concrete containment building • 35” concrete shield • 8” steel reactor vessel • solid nuclear fuel inside steel tubes

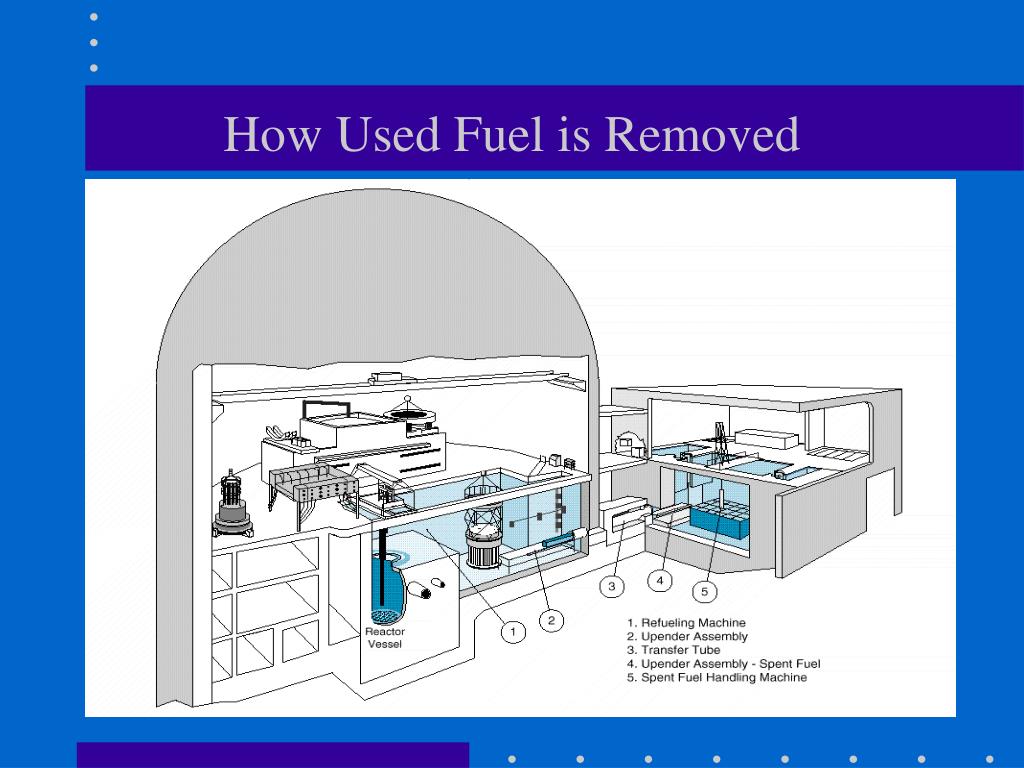

  6. How Used Fuel is Removed

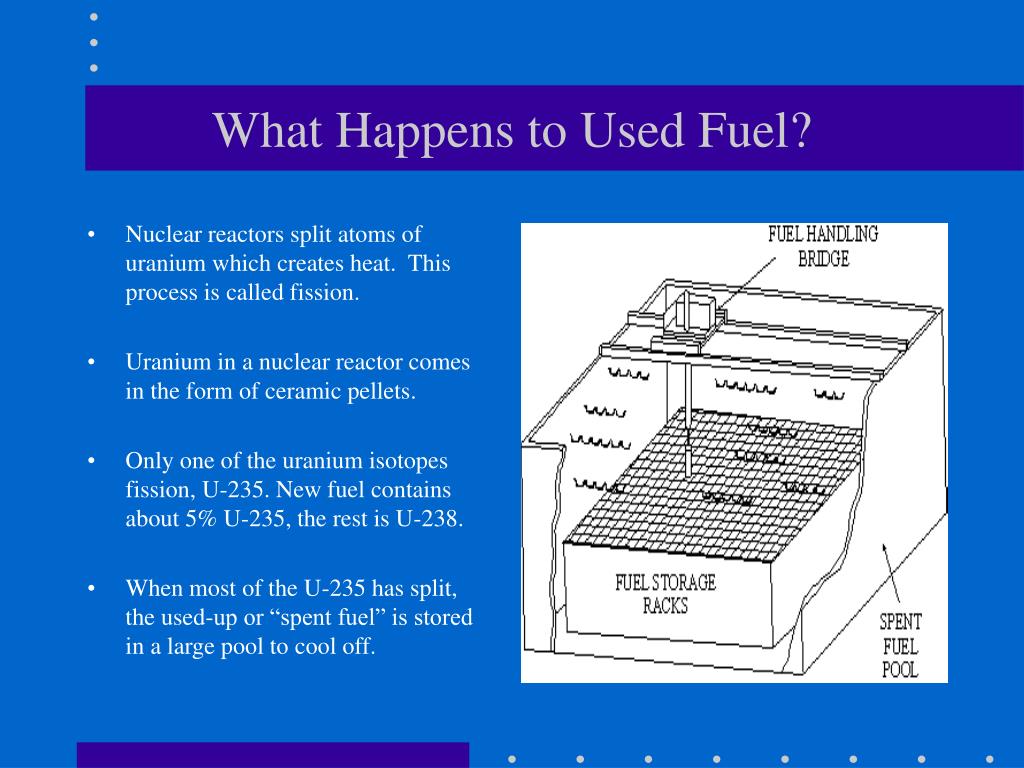

  7. What Happens to Used Fuel? • Nuclear reactors split atoms of uranium which creates heat. This process is called fission. • Uranium in a nuclear reactor comes in the form of ceramic pellets. • Only one of the uranium isotopes fission, U-235. New fuel contains about 5% U-235, the rest is U-238. • When most of the U-235 has split, the used-up or “spent fuel” is stored in a large pool to cool off.

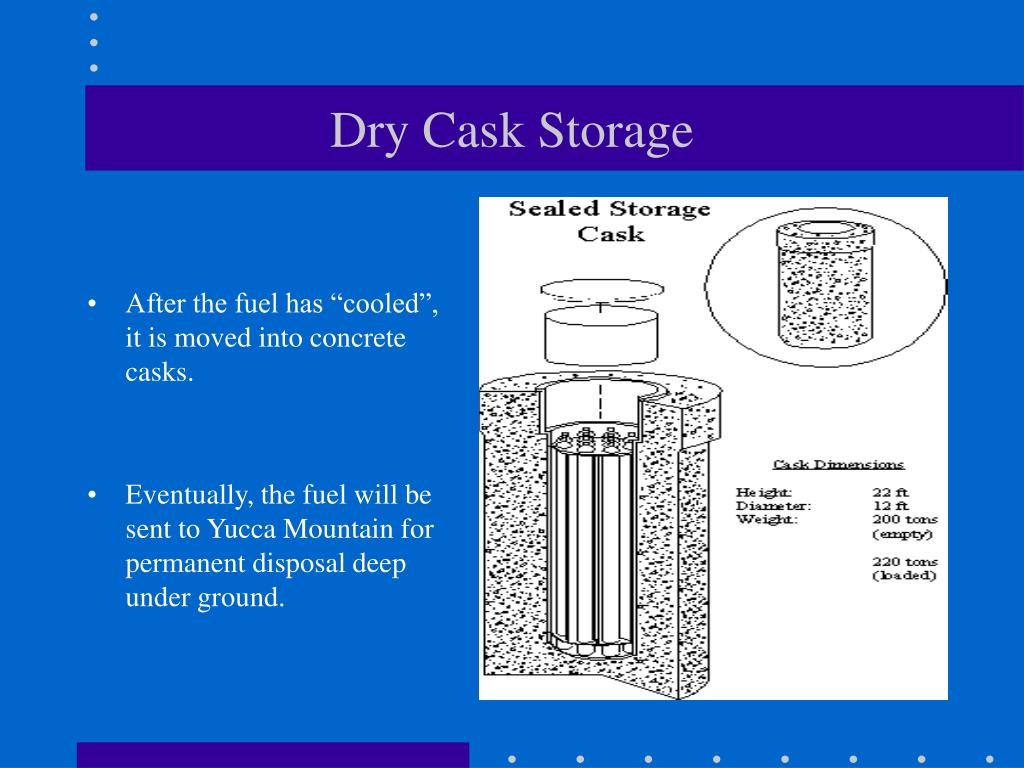

  8. Dry Cask Storage • After the fuel has “cooled”, it is moved into concrete casks. • Eventually, the fuel will be sent to Yucca Mountain for permanent disposal deep under ground.

  9. Transportation Safety • A 120-ton locomotive, speeding at 80 miles an hour, crashed broadside into a container on a flatbed. • The impact demolished the train, but hardly dented the container.

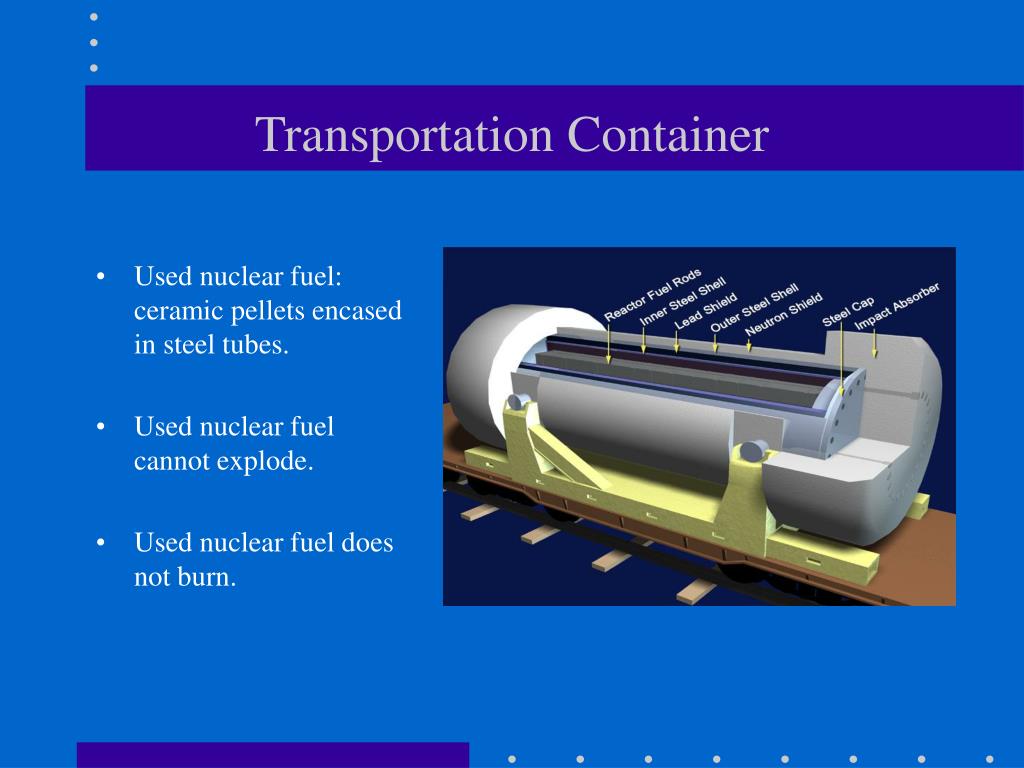

  10. Transportation Container • Used nuclear fuel: ceramic pellets encased in steel tubes. • Used nuclear fuel cannot explode. • Used nuclear fuel does not burn.

  11. Yucca Mountain • Volcanic eruptions created Yucca Mountain about 10 million years ago. • Over the ages, layers of volcanic ash compressed and consolidated into a hard rock called tuff. • There is very little rainfall, most of which quickly runs off the surface or evaporates. • The water table under Yucca Mountain is extremely deep.

  12. Permanent Disposal • Yucca Mountain is federally owned land that borders the Nevada Test Site. • More than 900 atomic weapon blasts have been conducted at the Nevada Test Site, mostly underground. • $2 billion dollars have been spent on scientific investigation of the geology and hydrology of the site. • Spent fuel will be stored 1000 feet below under ground, 800 feet above the water-table, protected by corrosion-resistant containers.
