Finding The Slope of a Line

Finding The Slope of a Line. Slopes are commonly associated with mountains. The slope we are studying is associated with the graph of a line. Definitions of Slope. The tilt or inclination of a line The ratio of vertical change to horizontal change. The change in y over the change in x.

evonne
Download Presentation

Finding The Slope of a Line

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Finding The Slope of a Line

  2. Slopes are commonly associated with mountains.

  3. The slope we are studying is associated with the graph of a line.

  4. Definitions of Slope • The tilt or inclination of a line • The ratio of vertical change to horizontal change. • The change in y over the change in x

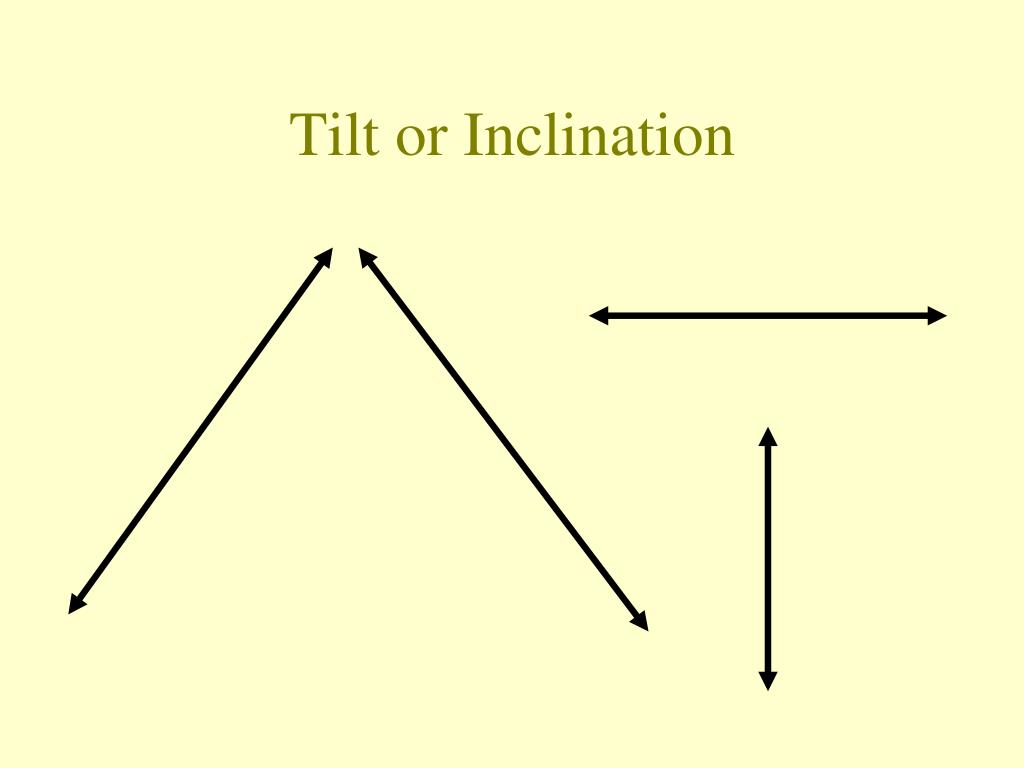

  5. Tilt or Inclination

  6. Vertical ChangeHorizontal Change This ratio is also known as… Rise Run

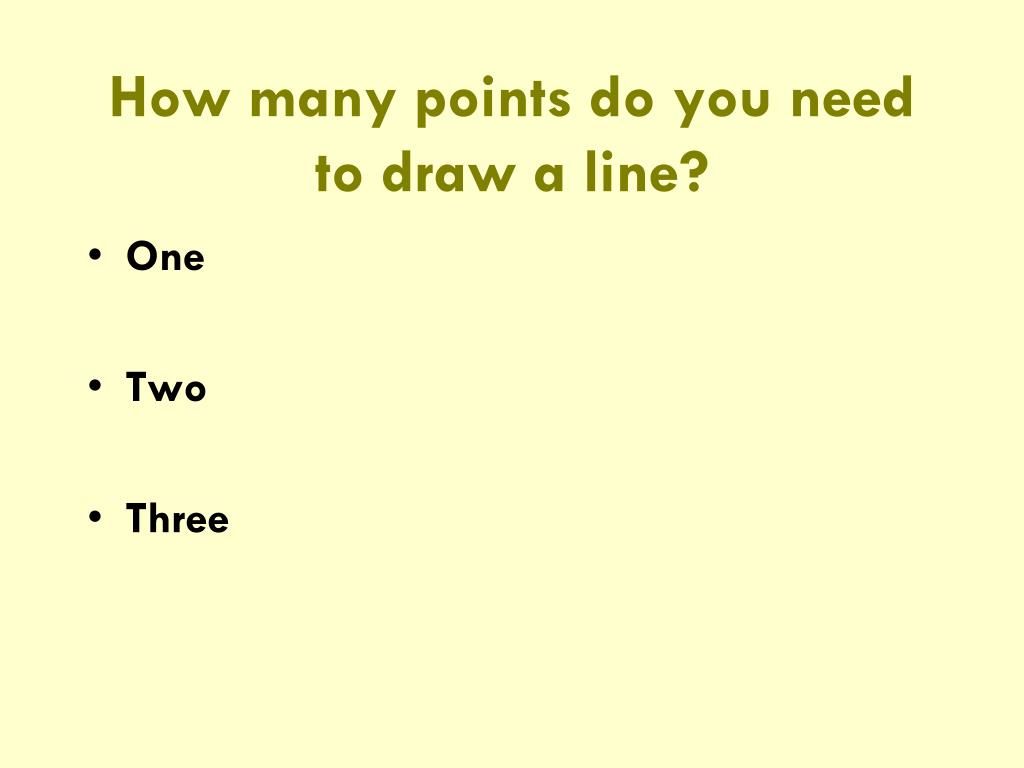

  7. How many points do you need to draw a line? • One • Two • Three

  8. Graph (3,2) and (-1,-1)

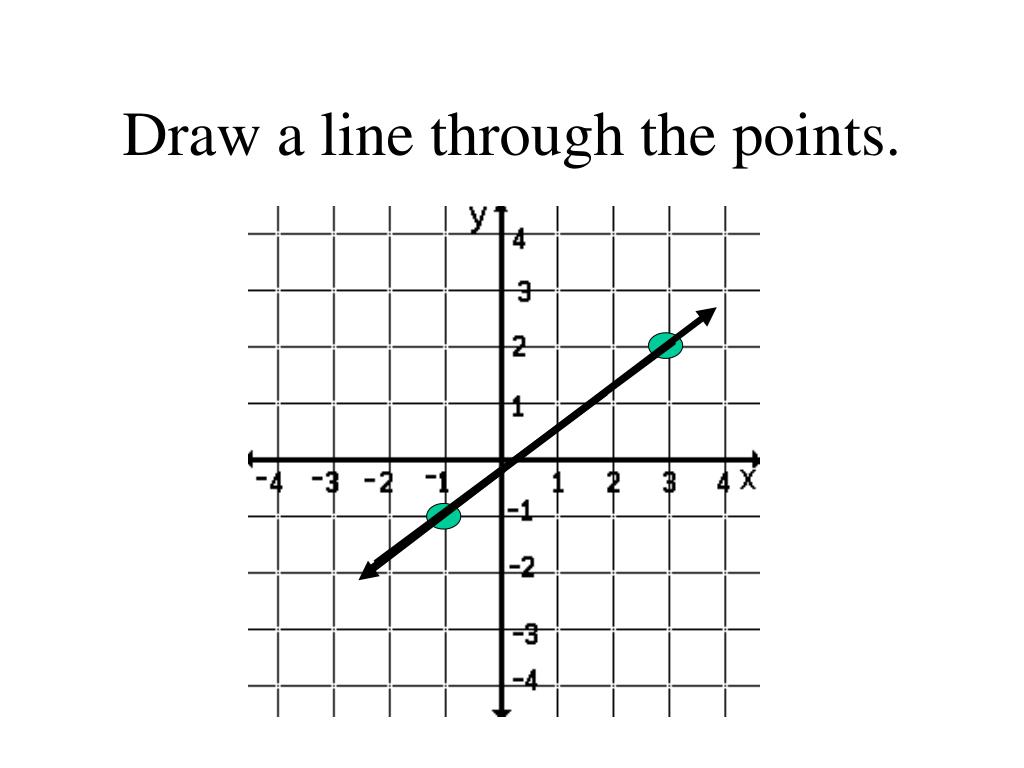

  9. Draw a line through the points.

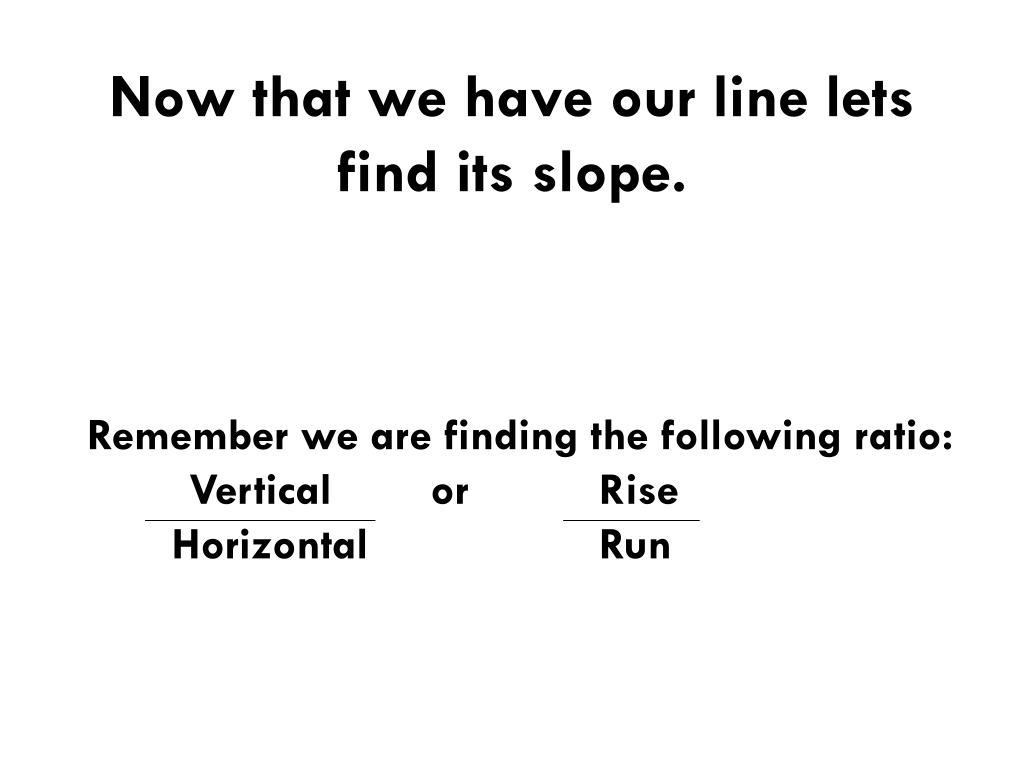

  10. Now that we have our line lets find its slope. Remember we are finding the following ratio: Vertical or Rise Horizontal Run

  11. Vertical Changeor the Rise 3

  12. Horizontal Changeor the Run 4 3

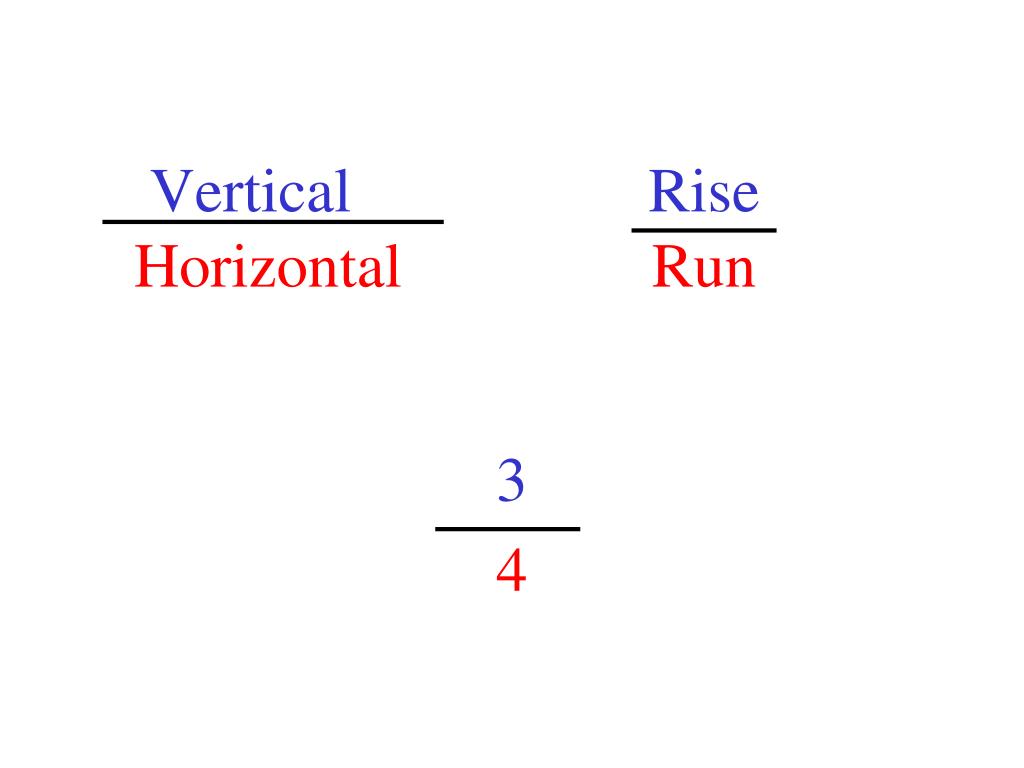

  13. Vertical RiseHorizontal Run 3 4

  14. Find the slope of the following line.

  15. The slope is… 1 2

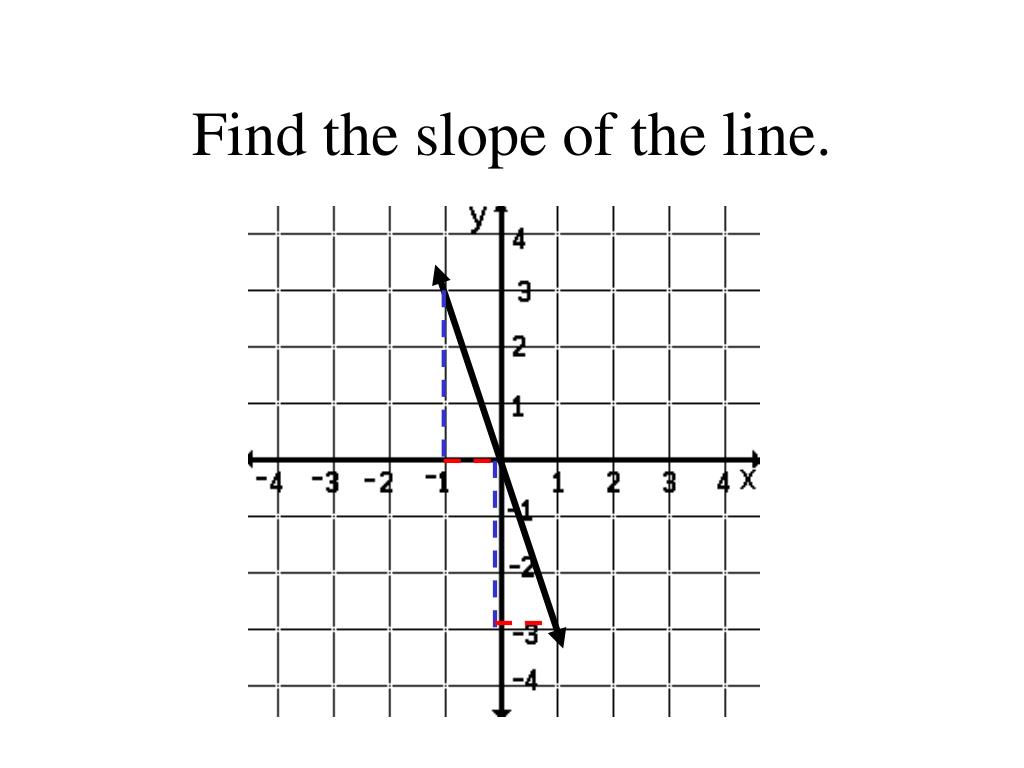

  16. Find the slope of the line.

  17. The slope is…. -3

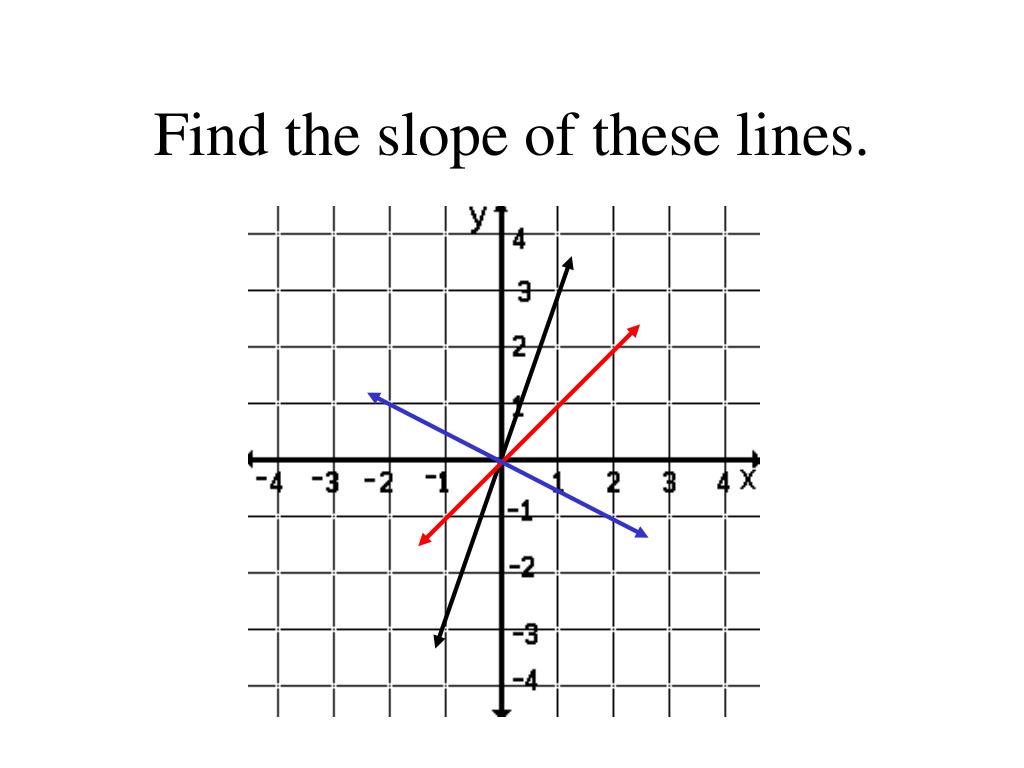

  18. Find the slope of these lines.

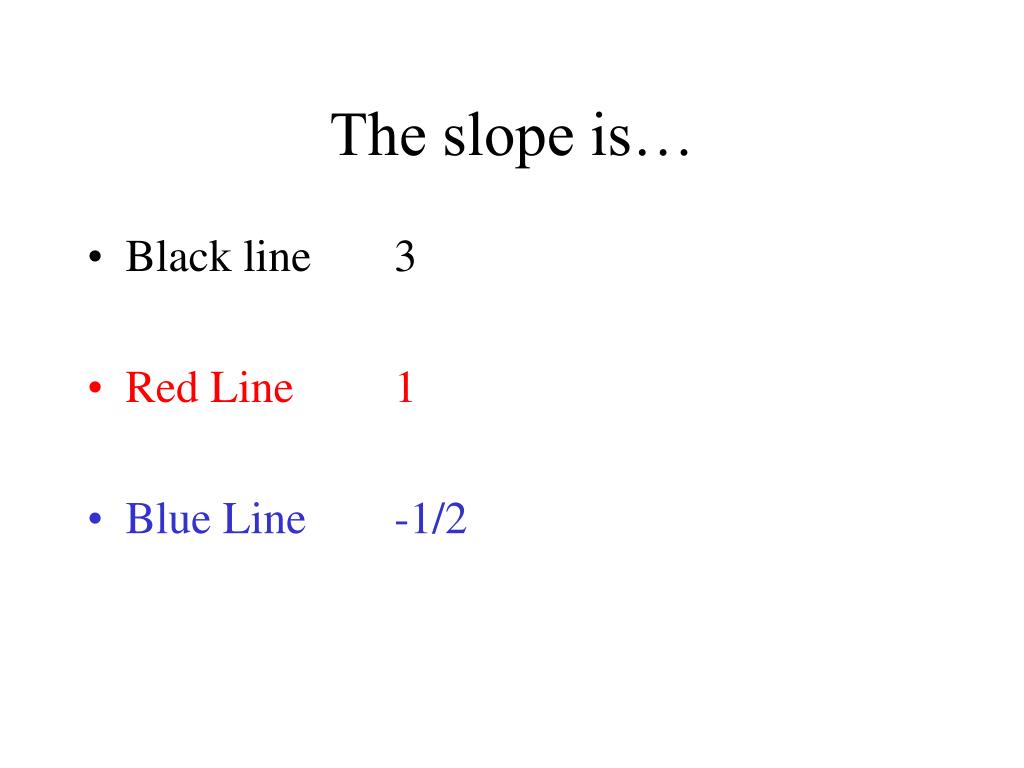

  19. The slope is… • Black line 3 • Red Line 1 • Blue Line -1/2

  20. Find the slope of these lines

  21. The slope is… • Orange line 0 • Green Line Undefined

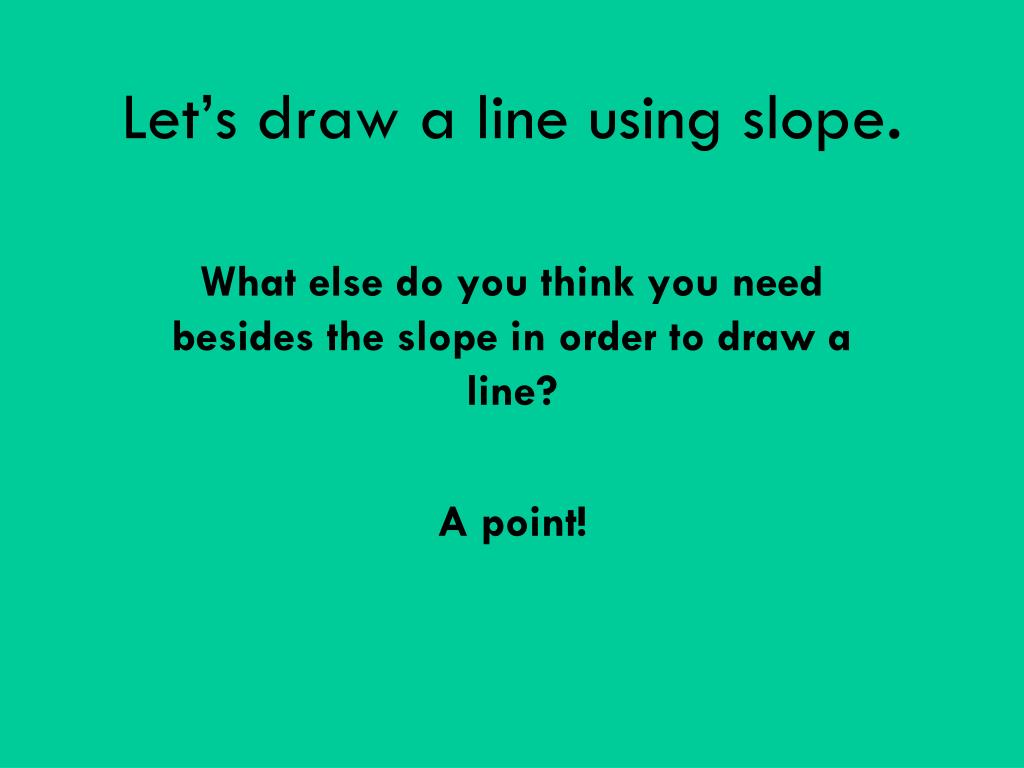

  22. Let’s draw a line using slope. What else do you think you need besides the slope in order to draw a line? A point!

  23. If you know the slope and one point on the line you can draw the line.Example: slope is 1/3 and the point (-2,-1)

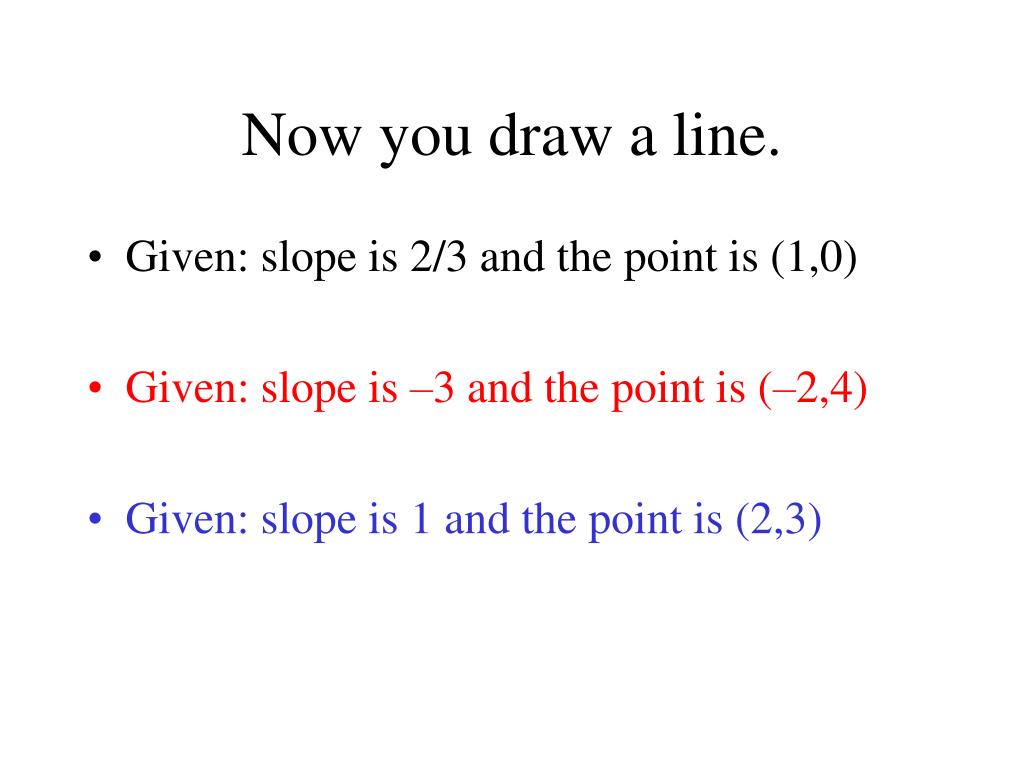

  24. Now you draw a line. • Given: slope is 2/3 and the point is (1,0) • Given: slope is –3 and the point is (–2,4) • Given: slope is 1 and the point is (2,3)

  25. The graphs are…
