EDA Software Engineering

Outline SE Methods Software Reuse Software Libraries Rapid Prototyping Tools Computer-Aided Programming Goal Understand SE ideas relevant to CAD Learn pointers to specific SE tools. EDA Software Engineering. Software Reuse Software Libraries Rapid Prototyping Tools

eytan
Download Presentation

EDA Software Engineering

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Outline SE Methods Software Reuse Software Libraries Rapid Prototyping Tools Computer-Aided Programming Goal Understand SE ideas relevant to CAD Learn pointers to specific SE tools EDA Software Engineering

  2. Software Reuse Software Libraries Rapid Prototyping Tools Computer-Aided Programming Software Engineering Methods

  3. The fastest way to code is don't • use existing software - programs, modules, classes, functions, data structures - "previous work" analogy • sources - friends, project, group, system, bboards, servers, vendors - pieces of source code, packages, libraries Bigger != better • software value is in functionality and performance • no one cares how many lines of code are in your software • 20,000 lines of code != PhD • software size is only useful as a complexity metric for planning Software Reuse

  4. Reduced implementation time • Hitachi "software factory" produces 1500 lines/person/month of debugged code • Only 500 lines/person/month are new. Rest is reused. • 20,000/1500 = 13 months to implement thesis software! - debugged too! Higher quality • can put more effort into a module that is reused many times • do it right once and it is right everywhere Easier maintenance • less to maintain • easier to understand Benefits of Software Reuse

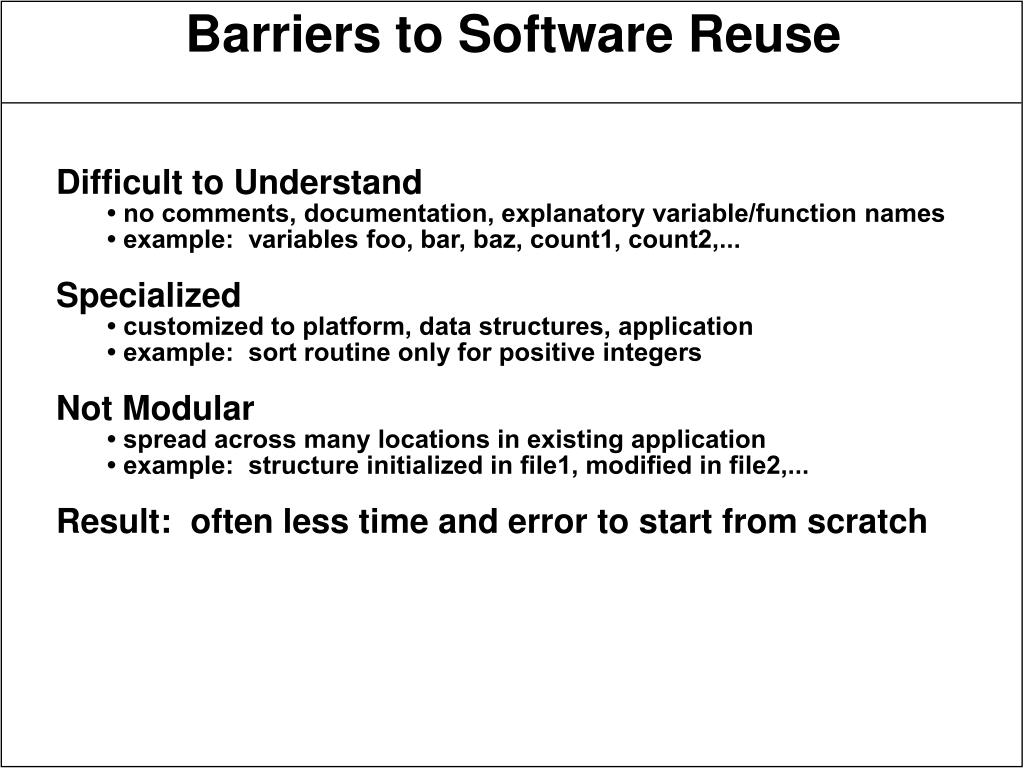

  5. Difficult to Understand • no comments, documentation, explanatory variable/function names • example: variables foo, bar, baz, count1, count2,... Specialized • customized to platform, data structures, application • example: sort routine only for positive integers Not Modular • spread across many locations in existing application • example: structure initialized in file1, modified in file2,... Result: often less time and error to start from scratch Barriers to Software Reuse

  6. Understandable • useful comments - not "cnt++; /* increment counter */" • complete man page - painful, but necessary • meaningful names - "rectangle", "IncCounter",... General • clean interface - streams, sequences, etc. • specialization via procedure argument, derived type, etc. • example: qsort uses procedure arg to compare two array elements Modular • use good practices - structured programming, information hiding, abstract types, object-oriented programming • everything in one bundle • example: include MakeRectangle, DeleteRectangle in module Writing Reusable Software

  7. Good fundamentals • algorithms • data structures • modularity Simple interface • character stream, list, array - example: stream interface of UNIX filters • functions with few arguments - example: functions to build up argument structure for operation Avoid premature efficiency • do not sacrifice generality for efficiency • identify and eliminate program bottlenecks later Cleanliness is Next to Godliness

  8. Example BeginPolygon(); MoveTo(0, 0); LineTo(1, 0); LineTo(1, 1); LineTo(0, 1); RectPoly = EndPolygon(); ... UnionPoly = Union(RectPoly, DiamondPoly); Books • Software Tools, Kernighan, Plauger • Writing Efficient Programs, Bentley Cleanliness

  9. Library == bundled abstract/abstract-like data types • implementation often unknown General • C library - system interface, misc. • C Programmer's Toolbox - allocation, lists, trees, hash tables in C • Code Farms, Inc. - collections, trees, lists, database,... in C, C++ • NIH - collections, numbers, dictionary, geometry, vectors,... in C++ • GNU - I/O, strings, numbers, RNG, collections, vectors,... in C++ Graphics • Motif • X library (Xlib) • X toolkit (Xt) • InterViews • Tk Software Libraries

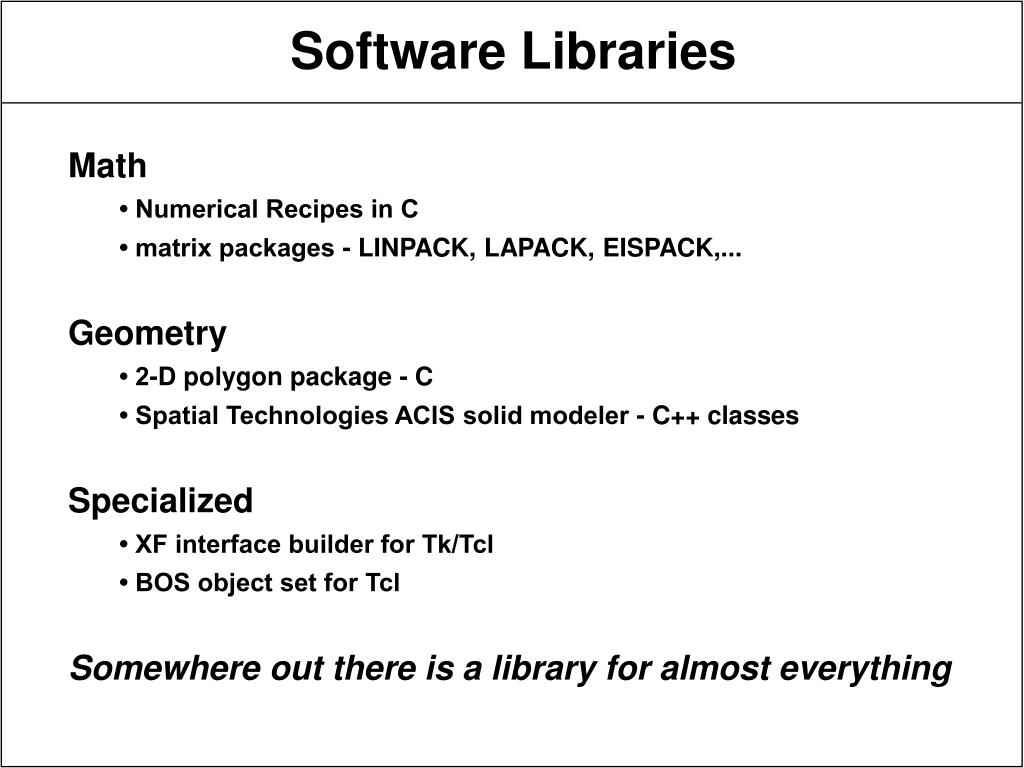

  10. Math • Numerical Recipes in C • matrix packages - LINPACK, LAPACK, EISPACK,... Geometry • 2-D polygon package - C • Spatial Technologies ACIS solid modeler - C++ classes Specialized • XF interface builder for Tk/Tcl • BOS object set for Tcl Somewhere out there is a library for almost everything Software Libraries

  11. Goals • rapid! - <10% of time to do traditional C/C++ implementation • functionality - implement functions to permit experimentation or use • okay performance - system only needs to be fast enough to try it out or be acceptable • easily modified - for iteration during experimentation, or for maintainability What is Rapid Prototyping? 1: Quick assembly of a partial or complete system for experimentation prior to full requirements, specification, and implementation. 2: Quick assembly of a tool or system for temporary or permanent use, using special-purpose languages and existing tools.

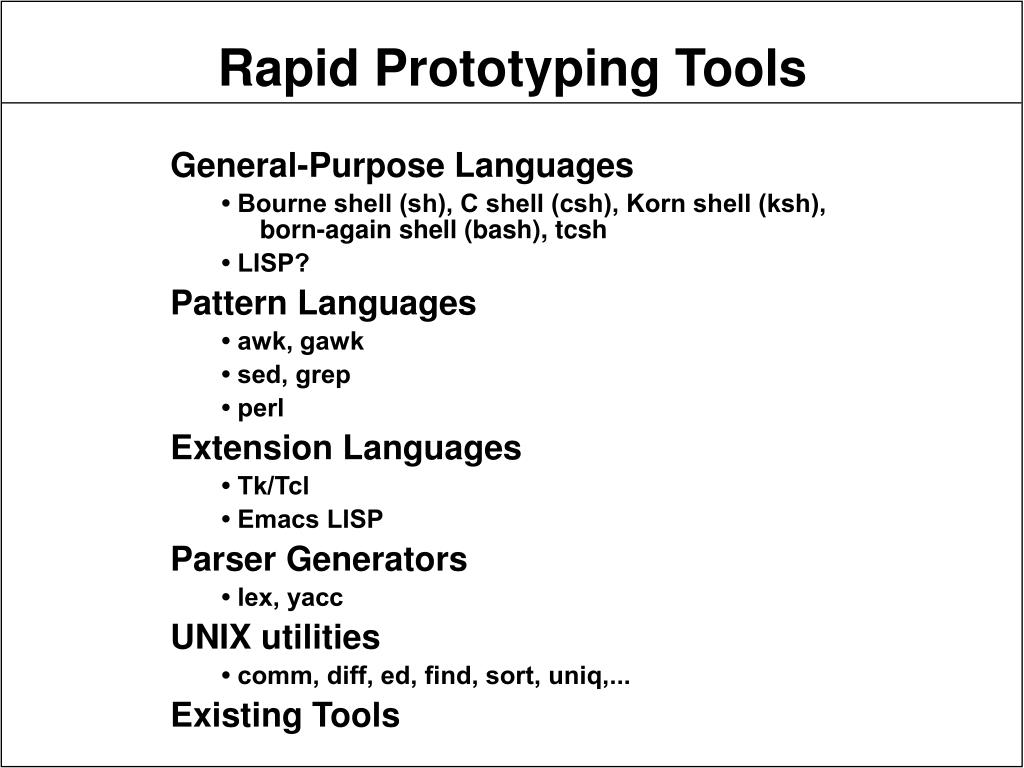

  12. General-Purpose Languages • Bourne shell (sh), C shell (csh), Korn shell (ksh), born-again shell (bash), tcsh • LISP? Pattern Languages • awk, gawk • sed, grep • perl Extension Languages • Tk/Tcl • Emacs LISP Parser Generators • lex, yacc UNIX utilities • comm, diff, ed, find, sort, uniq,... Existing Tools Rapid Prototyping Tools

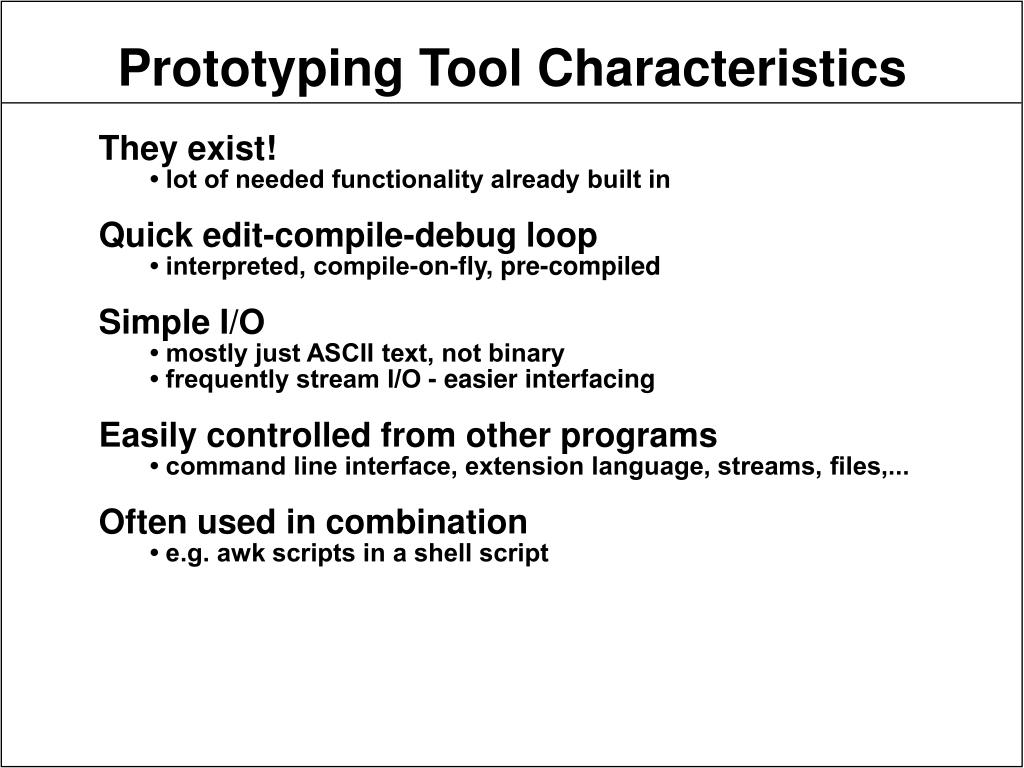

  13. They exist! • lot of needed functionality already built in Quick edit-compile-debug loop • interpreted, compile-on-fly, pre-compiled Simple I/O • mostly just ASCII text, not binary • frequently stream I/O - easier interfacing Easily controlled from other programs • command line interface, extension language, streams, files,... Often used in combination • e.g. awk scripts in a shell script Prototyping Tool Characteristics

  14. Command Interpreters • programming language access to UNIX commands • sh, csh are "standard" and portable • shell to use matter of personal taste Applications • need general control constructs • file testing, directory access • need functionality of many UNIX tools • "central control" of application Performance • UNIX commands normally dominates runtime Shell Languages

  15. Domain • scan text input, do computation, pass result to the output Key Ideas • regular expression matching • state machine transformations Performance • Stream/file I/O dominates application • CPU efficiency is less important Pattern Languages

  16. Language • set of <pattern, action> pairs • for each input line, execute actions of matching patterns • patterns are regular expressions, conditionals, etc. • actions are expressions, statements • gawk is extended version of awk Examples • {print $2} - print the second field of every line • length > 72 {i++} - count # lines >72 characters long END {print i} Applications • good for simple computations on input stream • e.g. take average of a column of numbers Awk

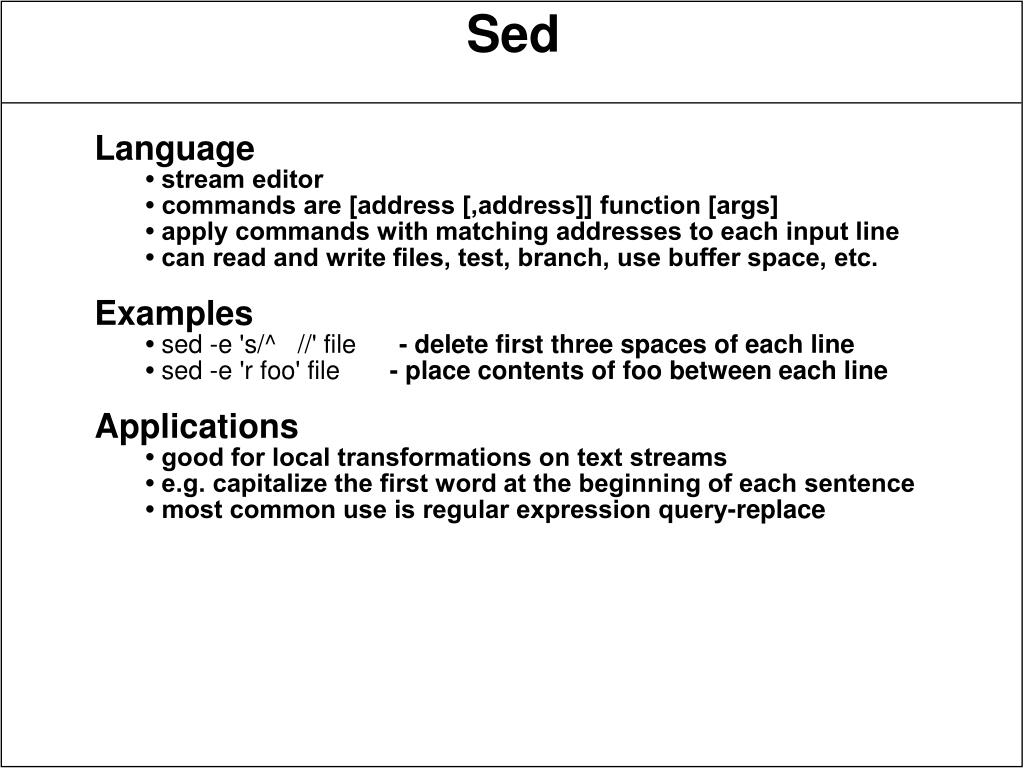

  17. Language • stream editor • commands are [address [,address]] function [args] • apply commands with matching addresses to each input line • can read and write files, test, branch, use buffer space, etc. Examples • sed -e 's/^ //' file - delete first three spaces of each line • sed -e 'r foo' file - place contents of foo between each line Applications • good for local transformations on text streams • e.g. capitalize the first word at the beginning of each sentence • most common use is regular expression query-replace Sed

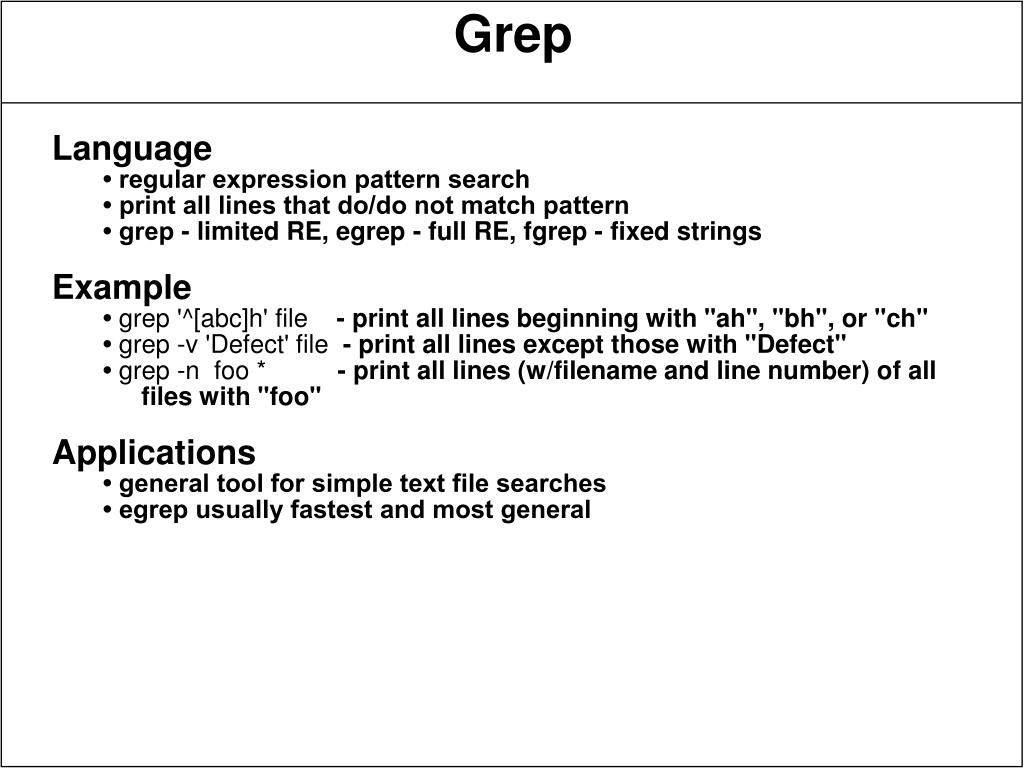

  18. Language • regular expression pattern search • print all lines that do/do not match pattern • grep - limited RE, egrep - full RE, fgrep - fixed strings Example • grep '^[abc]h' file - print all lines beginning with "ah", "bh", or "ch" • grep -v 'Defect' file - print all lines except those with "Defect" • grep -n foo * - print all lines (w/filename and line number) of all files with "foo" Applications • general tool for simple text file searches • egrep usually fastest and most general Grep

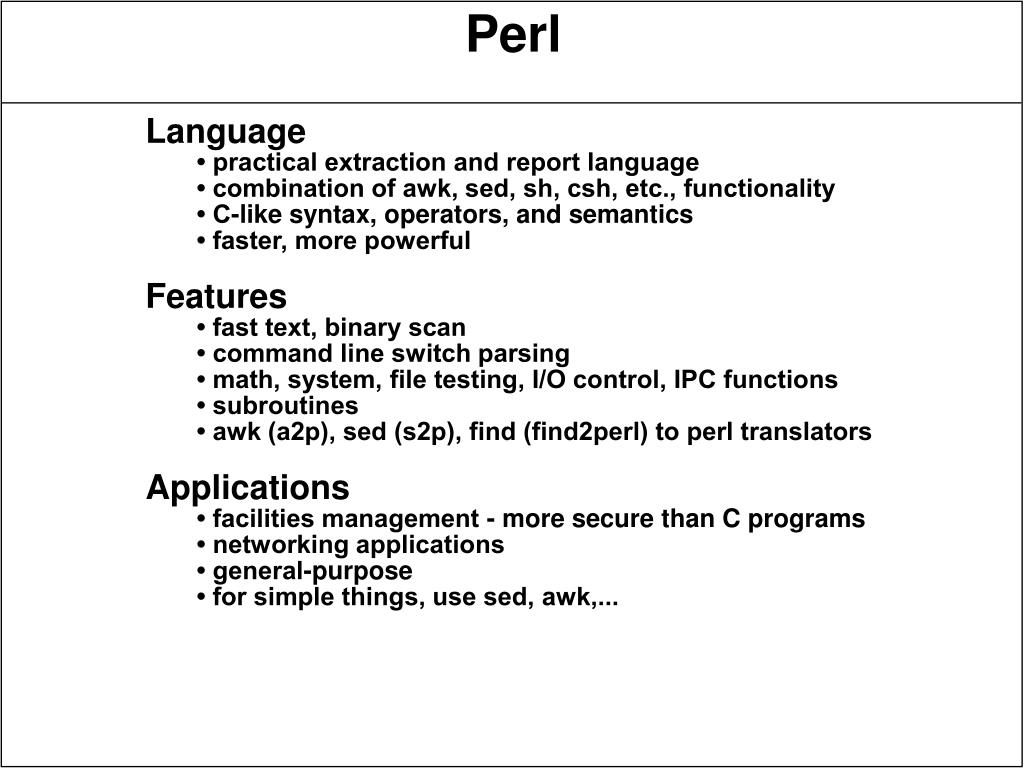

  19. Language • practical extraction and report language • combination of awk, sed, sh, csh, etc., functionality • C-like syntax, operators, and semantics • faster, more powerful Features • fast text, binary scan • command line switch parsing • math, system, file testing, I/O control, IPC functions • subroutines • awk (a2p), sed (s2p), find (find2perl) to perl translators Applications • facilities management - more secure than C programs • networking applications • general-purpose • for simple things, use sed, awk,... Perl

  20. Archie • program to access databases of useful stuff available on Internet C version • 7889 lines of C code and scripts • 1822 lines for VMS support • 230 lines for MS DOS support Perl version • 1146 lines of Perl code and scripts • runs on any platform supporting Perl The Perl version is more reliable and about as fast Perl Example

  21. Tcl • general-purpose • small and efficient • easily linked into applications Emacs LISP • write programs to process text • programs to interact with other processes - shell windows • "live inside Emacs" - mail, bboards, compiling • advantages: can watch things happen, record keystrokes, can run in batch, familiar • disadvantages: startup time (0.2s on DS5000/25), size (912K) Extension Languages

  22. Lex, Yacc (Flex, Bison) • generate lexical analyzer and parser with C callbacks Applications • parse interchange language of some complexity • e.g. CIF, Stream, MIF • very simple format, easier to use pattern or programming language • if speed not critical, use for final application Books • Principles of Compiler Design, Aho, Ullman, Seth (the "Dragon" book) • even though parsing concepts are complicated, learning and using is still faster than using C Parser Generators

  23. Think of them as special-purpose tools for program construction • use combination of not-quite-ideal tools rather than write new one Examples • How many unique words are in a word list? #!/bin/csh -f sort $1 | uniq | wc | awk '{print $1}' • Change files 'foo.dat' to 'foo.d' #!/bin/csh -f foreach i (`ls *.dat`) mv $i {$i:r}.d end UNIX Utilities

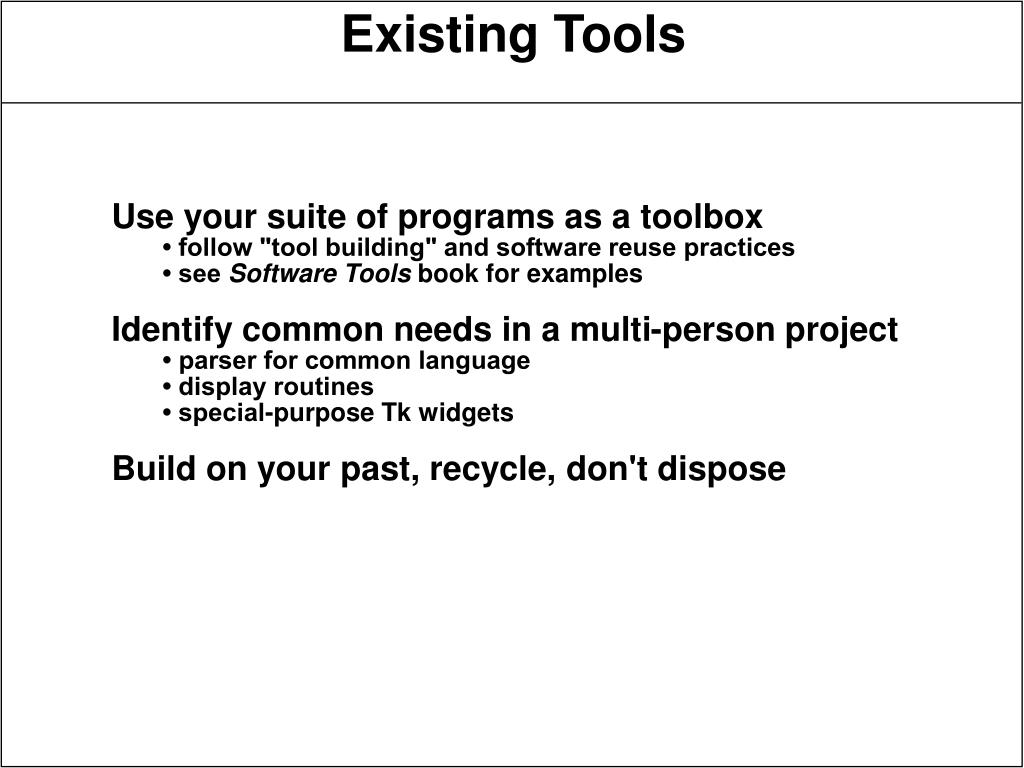

  24. Use your suite of programs as a toolbox • follow "tool building" and software reuse practices • see Software Tools book for examples Identify common needs in a multi-person project • parser for common language • display routines • special-purpose Tk widgets Build on your past, recycle, don't dispose Existing Tools

  25. When all else fails, you are forced to do some coding Computer aids for coding • improved blocking and tackling, i.e. basics • speed up edit-compile-debug loop • code management • code analysis Note: coding != programming • you already have algorithms, program structure Computer-Aided Programming

  26. Edit • make source code know to system • write with editor, copy, etc. Compile • transform source to runnable form • incorporate debugging instrumentation • not necessarily with compiler Debug • run code on test inputs • use instruments to isolate and identify errors in source Good programmers loop several times developing code by iterative refinement Edit-Compile-Debug Loop

  27. Program Build • keep track of what is necessary to build program • source modules • libraries • module dependencies • e.g. make Version Control • maintain multiple versions of code • diffs, patches to code • current and old versions • log files of changes • access control for multiple users • e.g. rcs, sccs Code Management

  28. Navigation • cross-reference - who calls who • class hierarchy Static Checking • portability rules - e.g. architecture/OS dependencies • code checking - syntax, semantics, style - e.g. lint Performance Analysis • post-processing of profiling information Code Analysis

  29. UNIX Tools • cc, make, dbx,... Emacs • LISP commands • interface to UNIX tools Commercial Products • Centerline ViewCenter • HP Softbench • Parc Place Systems ObjectWorks/C++ • Centerline CodeCenter and ObjectCenter • etc., etc. CA Programming Environments

  30. Compilers • cc, gcc - C compilers • CC, g++ - C++ compiler (currently a C translator) Source Debuggers • dbx, gdb - language independent Code Management • make - compilation control • ar, ranlib - archive and library generation • rcs, sccs - source code control • makedepend - X11 dependencies Code Analysis • lint - C source checker • cxref - C cross-reference • prof, gprof - run-time profiling UNIX Tools

  31. Link to UNIX tools • fork make • step through compile errors in source code • e.g. GNU Emacs Compile package Language Sensitive Editor • formatting - indentation, pretty-printing,... • syntax-directed editing - paren balancing, delete expression,... • e.g. C Mode in GNU Emacs Implemented with LISP extension language • user can customize behavior Emacs

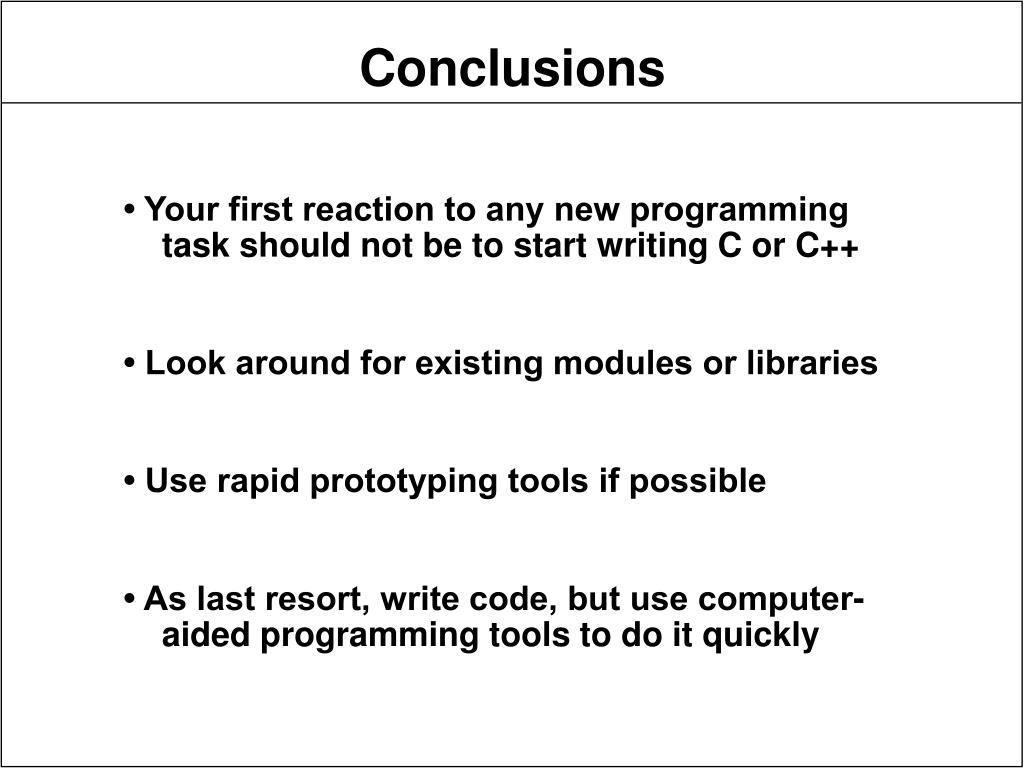

  32. • Your first reaction to any new programming task should not be to start writing C or C++ • Look around for existing modules or libraries • Use rapid prototyping tools if possible • As last resort, write code, but use computer-aided programming tools to do it quickly Conclusions
