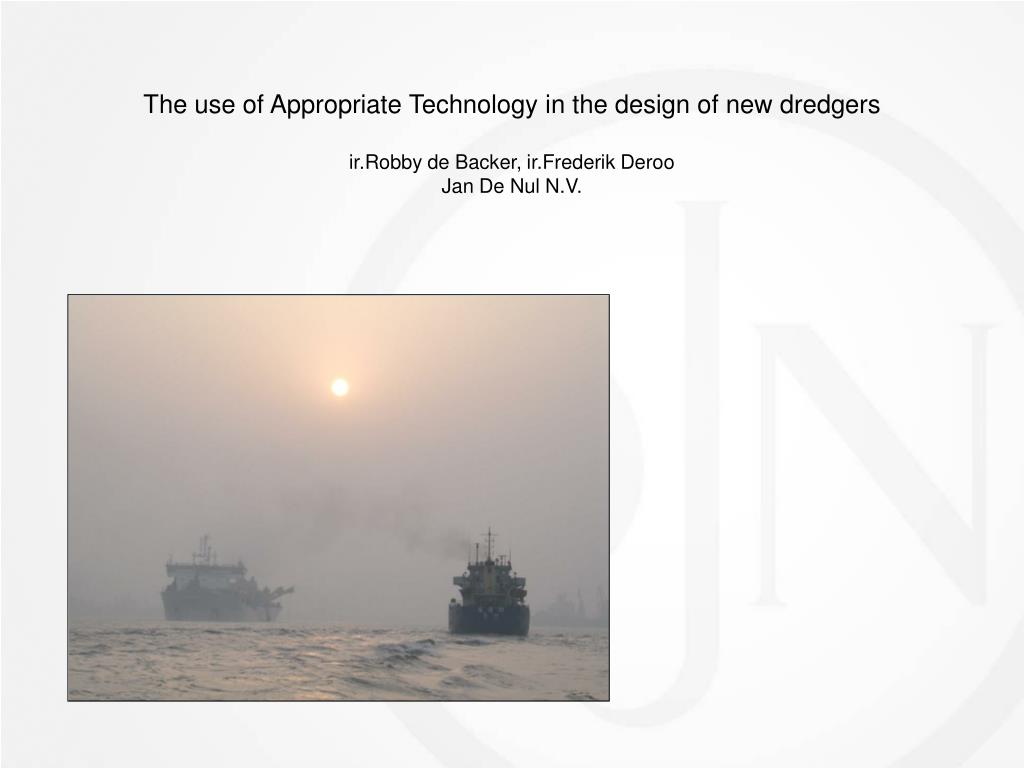

  1. The use of Appropriate Technology in the design of new dredgersir.Robby de Backer, ir.Frederik DerooJan De Nul N.V.

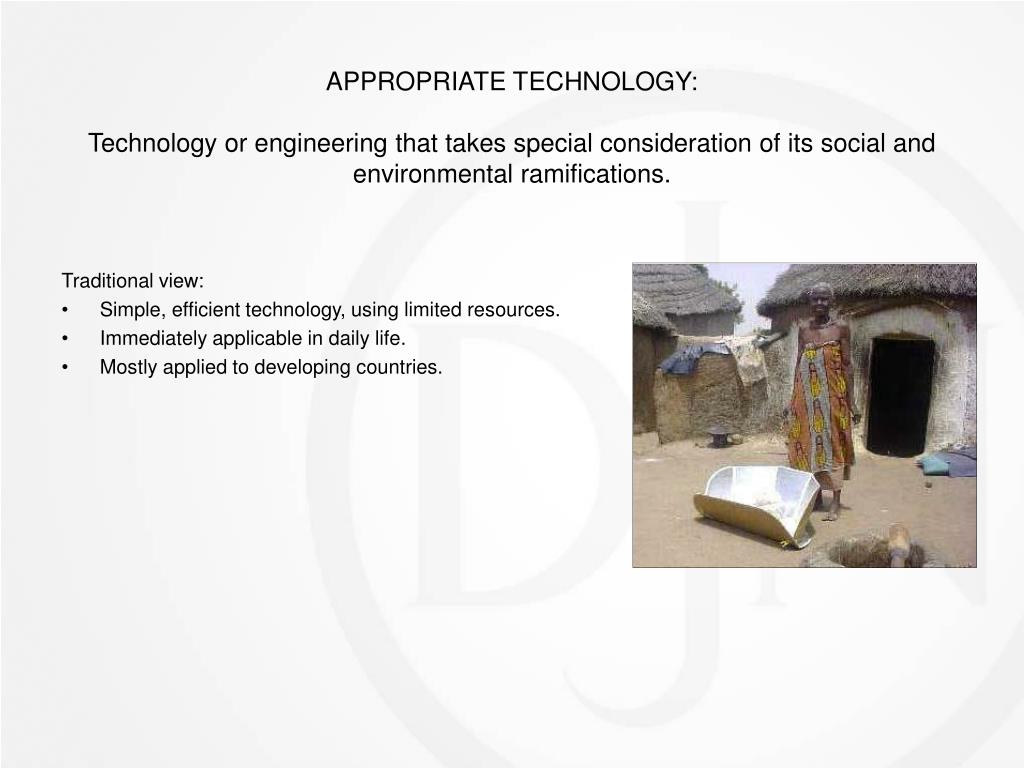

  2. APPROPRIATE TECHNOLOGY:Technology or engineering that takes special consideration of its social and environmental ramifications. Traditional view: • Simple, efficient technology, using limited resources. • Immediately applicable in daily life. • Mostly applied to developing countries.

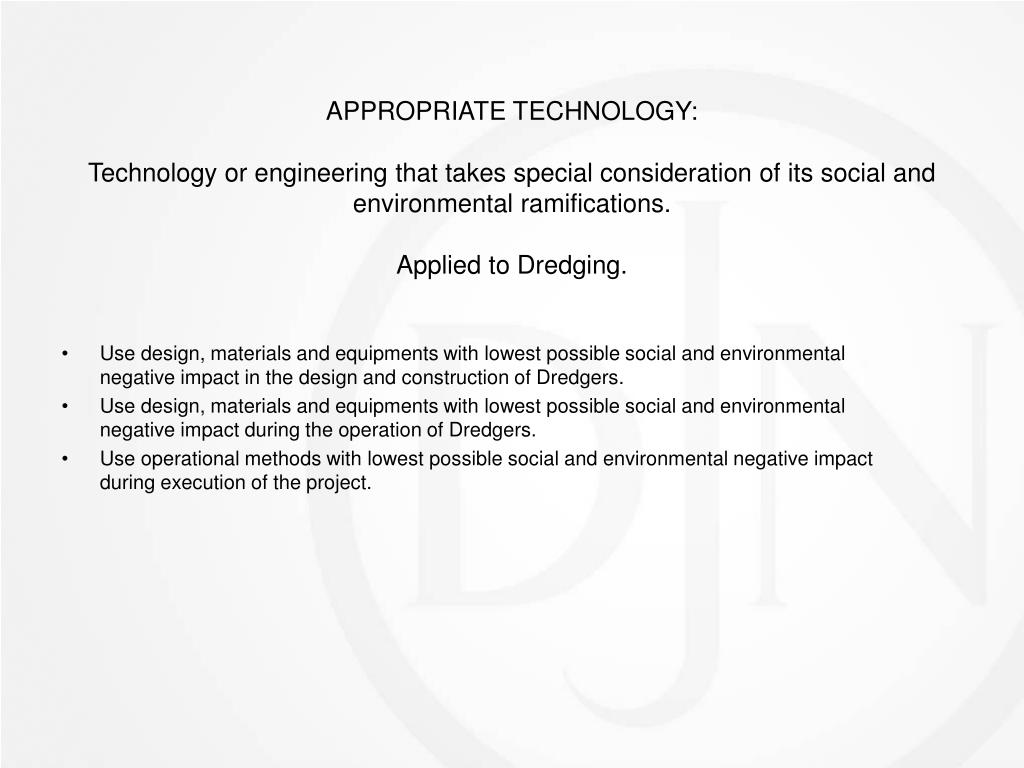

  3. APPROPRIATE TECHNOLOGY:Technology or engineering that takes special consideration of its social and environmental ramifications.Applied to Dredging. • Use design, materials and equipments with lowest possible social and environmental negative impact in the design and construction of Dredgers. • Use design, materials and equipments with lowest possible social and environmental negative impact during the operation of Dredgers. • Use operational methods with lowest possible social and environmental negative impact during execution of the project.

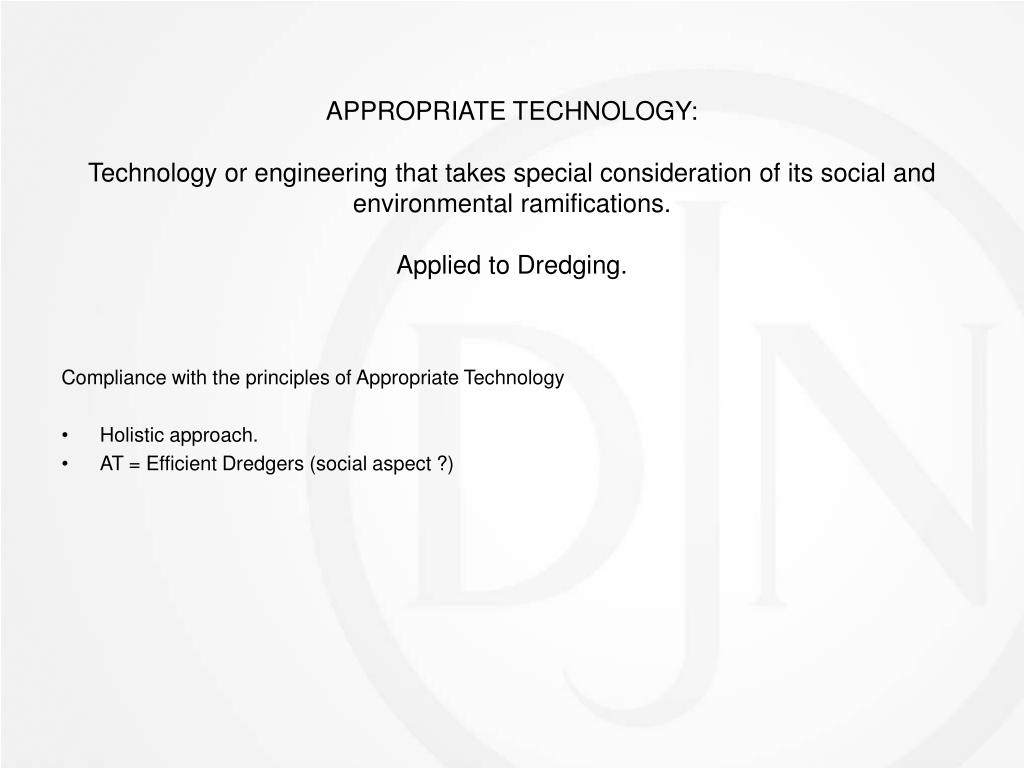

  4. APPROPRIATE TECHNOLOGY:Technology or engineering that takes special consideration of its social and environmental ramifications.Applied to Dredging. Compliance with the principles of Appropriate Technology • Holistic approach. • AT = Efficient Dredgers (social aspect ?)

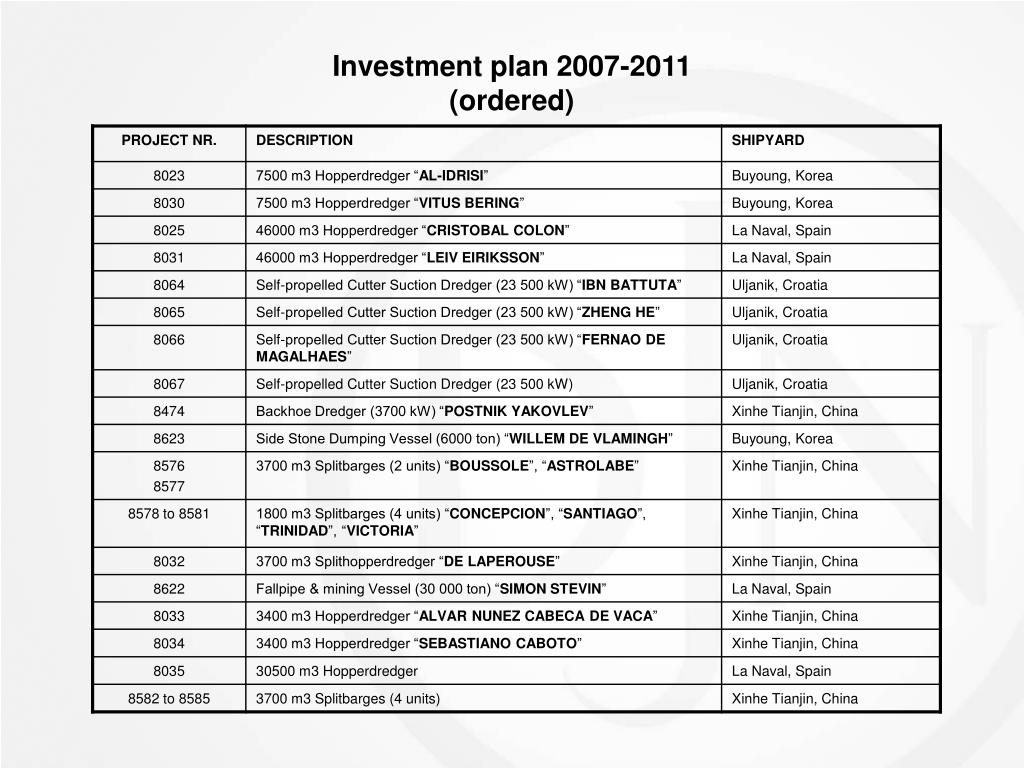

  5. Investment plan 2007-2011(ordered)

  6. APPROPRIATE TECHNOLOGY:Technology or engineering that takes special consideration of its social and environmental ramifications.Applied to Dredging. • Design and construction of a Dredger. • Conceptual design. • Material selection. • System design. • Energy & emissions. • Operational methods of a Dredger. • Optimal fleet management. • Rules & regulations. • Cost.

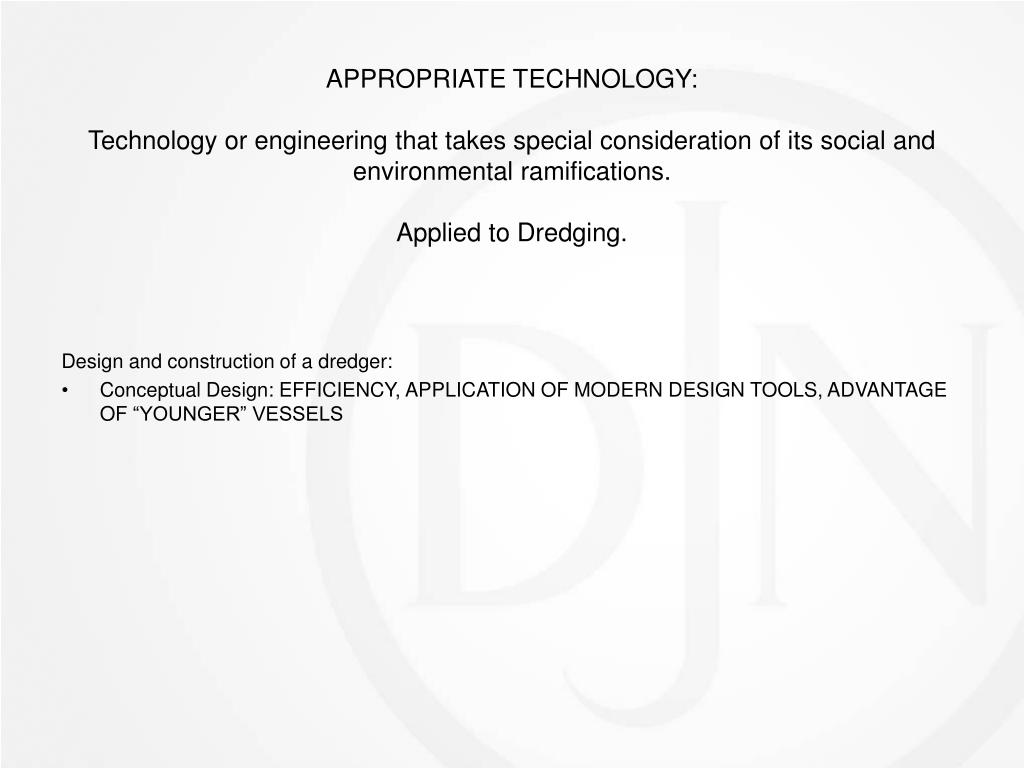

  7. APPROPRIATE TECHNOLOGY:Technology or engineering that takes special consideration of its social and environmental ramifications.Applied to Dredging. Design and construction of a dredger: • Conceptual Design: EFFICIENCY, APPLICATION OF MODERN DESIGN TOOLS, ADVANTAGE OF “YOUNGER” VESSELS

  8. Specific Power [kW/kn*ton] for hopperdredgers 2000 to 5000 m3

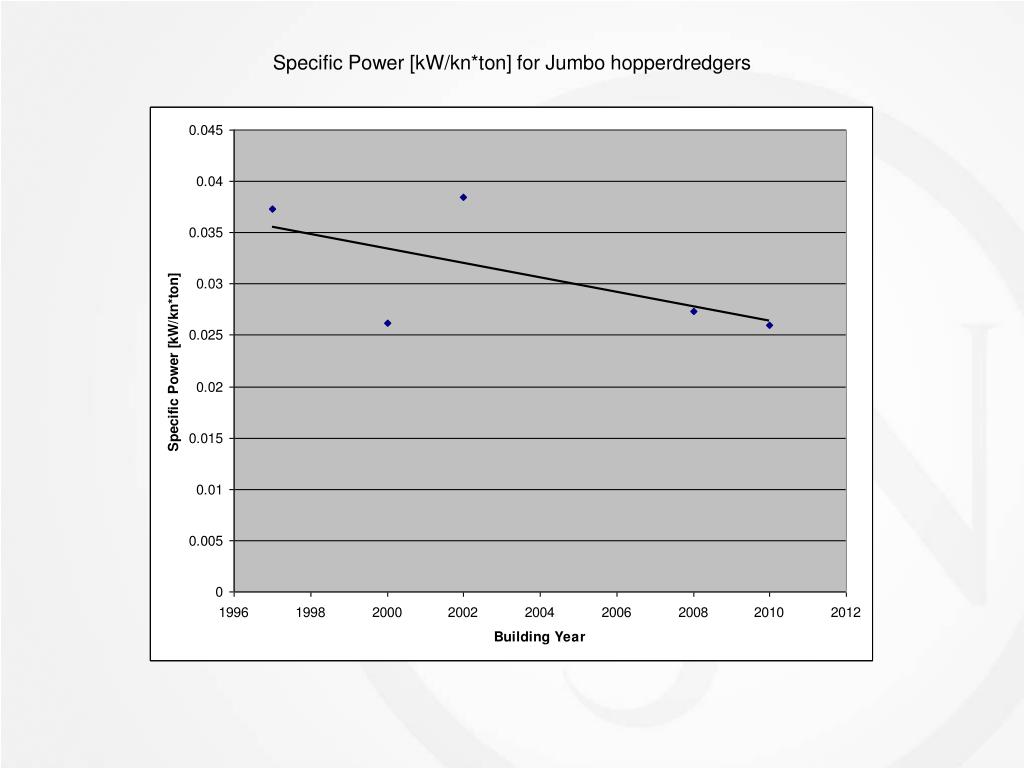

  9. Specific Power [kW/kn*ton] for Jumbo hopperdredgers

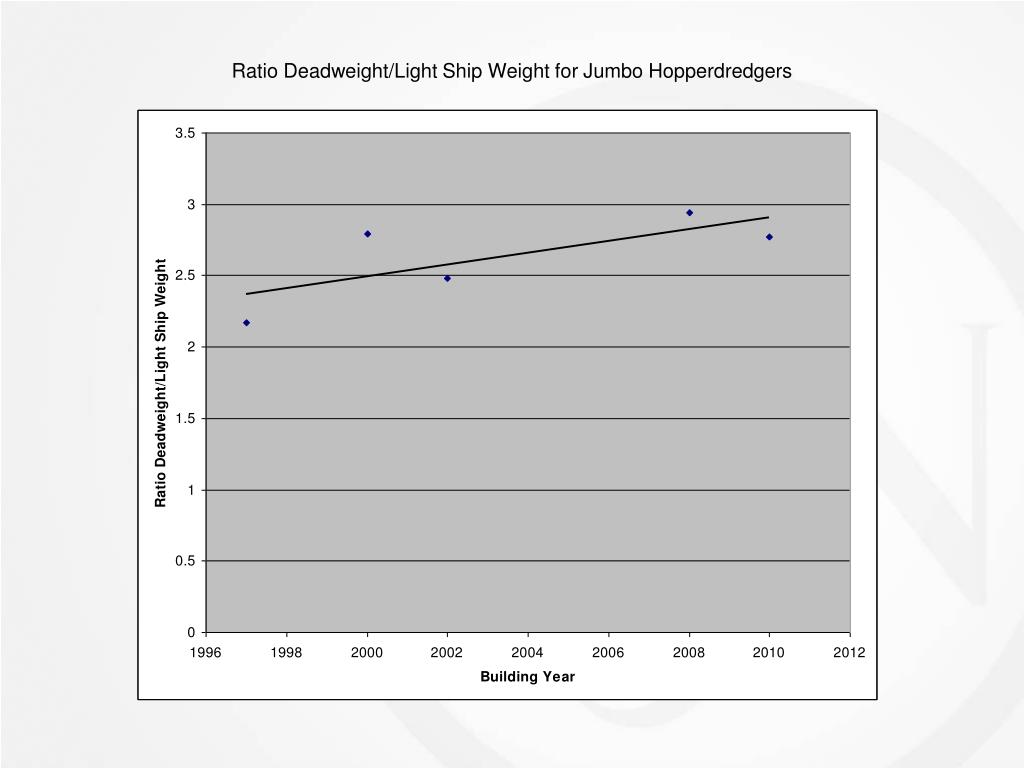

  10. Ratio Deadweight/Light Ship Weight for Jumbo Hopperdredgers

  11. Ratio Light Ship Weight/L*B*H for Jumbo Hopperdredgers

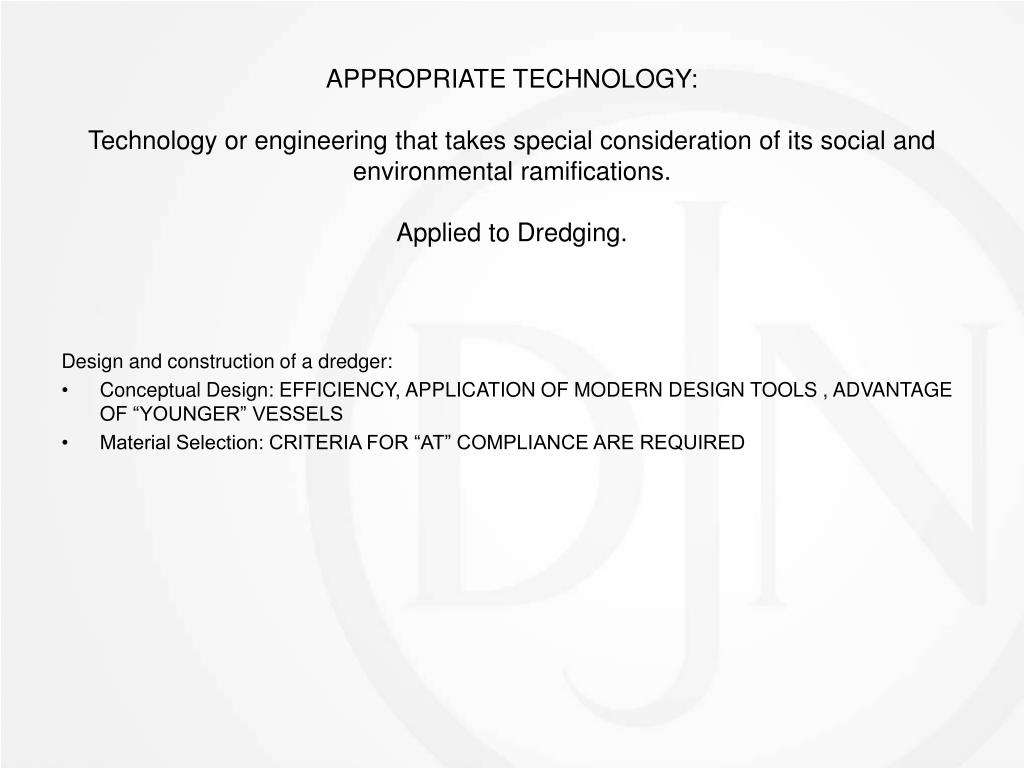

  12. APPROPRIATE TECHNOLOGY:Technology or engineering that takes special consideration of its social and environmental ramifications.Applied to Dredging. Design and construction of a dredger: • Conceptual Design: EFFICIENCY, APPLICATION OF MODERN DESIGN TOOLS , ADVANTAGE OF “YOUNGER” VESSELS • Material Selection: CRITERIA FOR “AT” COMPLIANCE ARE REQUIRED

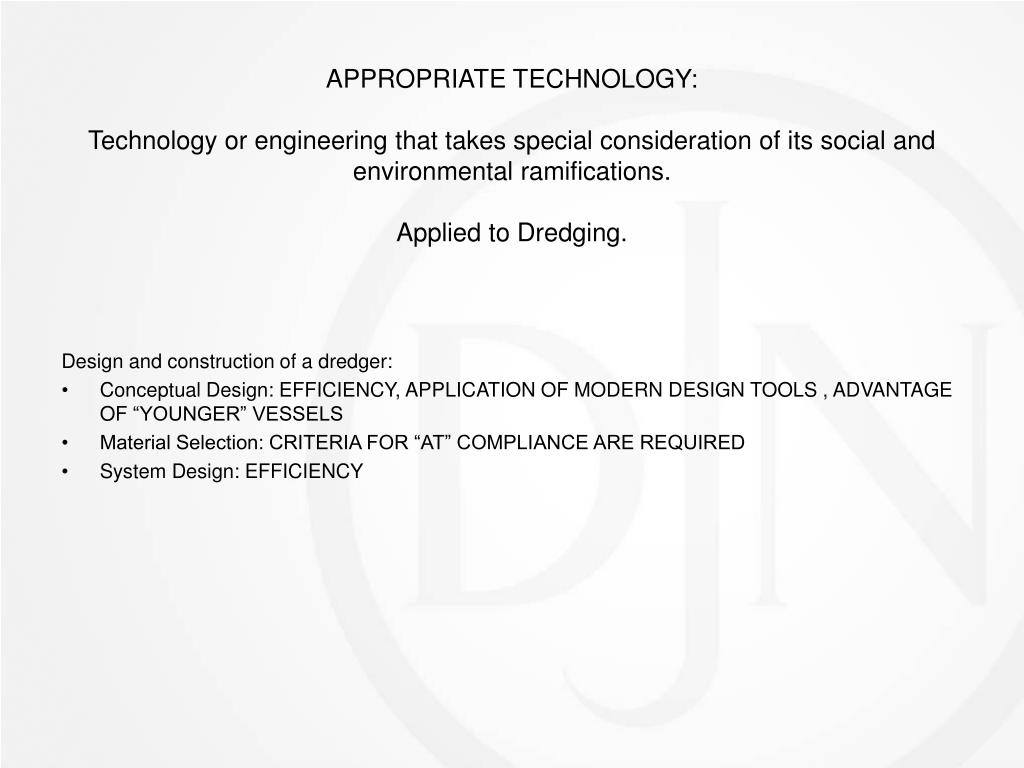

  13. APPROPRIATE TECHNOLOGY:Technology or engineering that takes special consideration of its social and environmental ramifications.Applied to Dredging. Design and construction of a dredger: • Conceptual Design: EFFICIENCY, APPLICATION OF MODERN DESIGN TOOLS , ADVANTAGE OF “YOUNGER” VESSELS • Material Selection: CRITERIA FOR “AT” COMPLIANCE ARE REQUIRED • System Design: EFFICIENCY

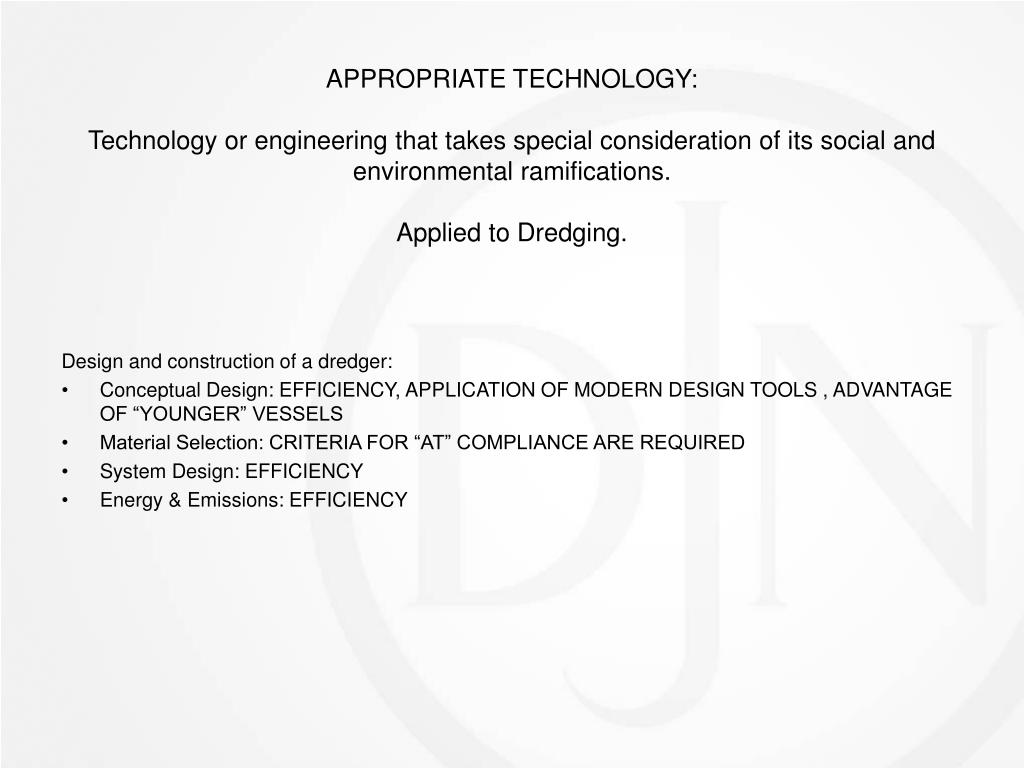

  14. APPROPRIATE TECHNOLOGY:Technology or engineering that takes special consideration of its social and environmental ramifications.Applied to Dredging. Design and construction of a dredger: • Conceptual Design: EFFICIENCY, APPLICATION OF MODERN DESIGN TOOLS , ADVANTAGE OF “YOUNGER” VESSELS • Material Selection: CRITERIA FOR “AT” COMPLIANCE ARE REQUIRED • System Design: EFFICIENCY • Energy & Emissions: EFFICIENCY

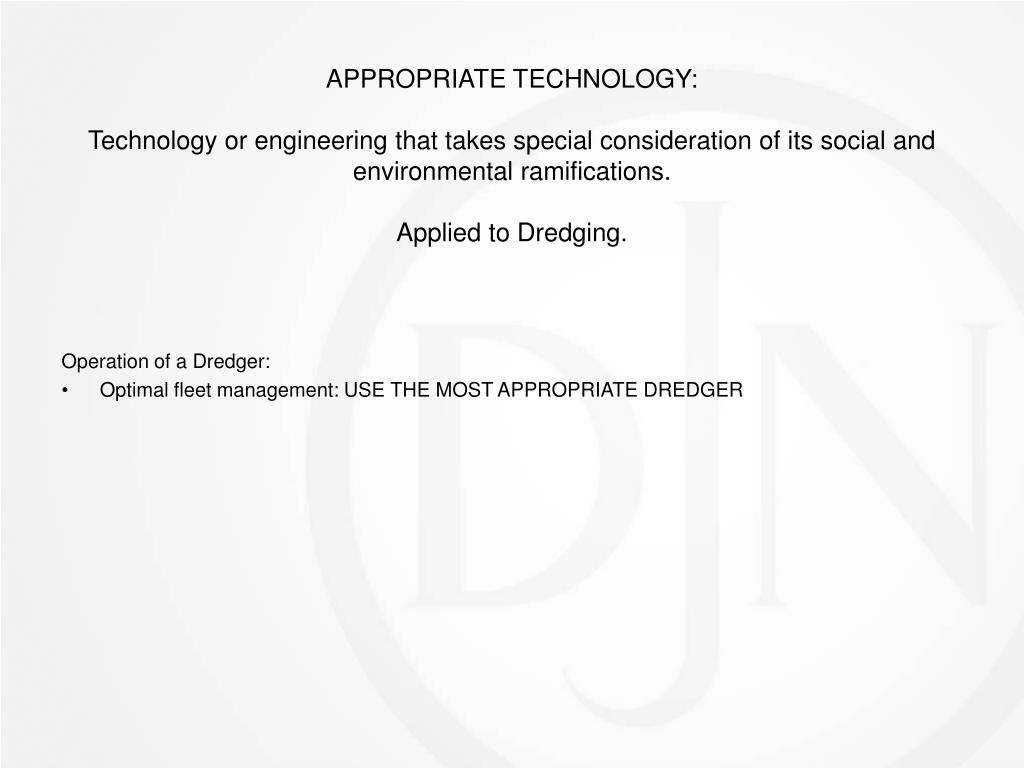

  15. APPROPRIATE TECHNOLOGY:Technology or engineering that takes special consideration of its social and environmental ramifications.Applied to Dredging. Operation of a Dredger: • Optimal fleet management: USE THE MOST APPROPRIATE DREDGER

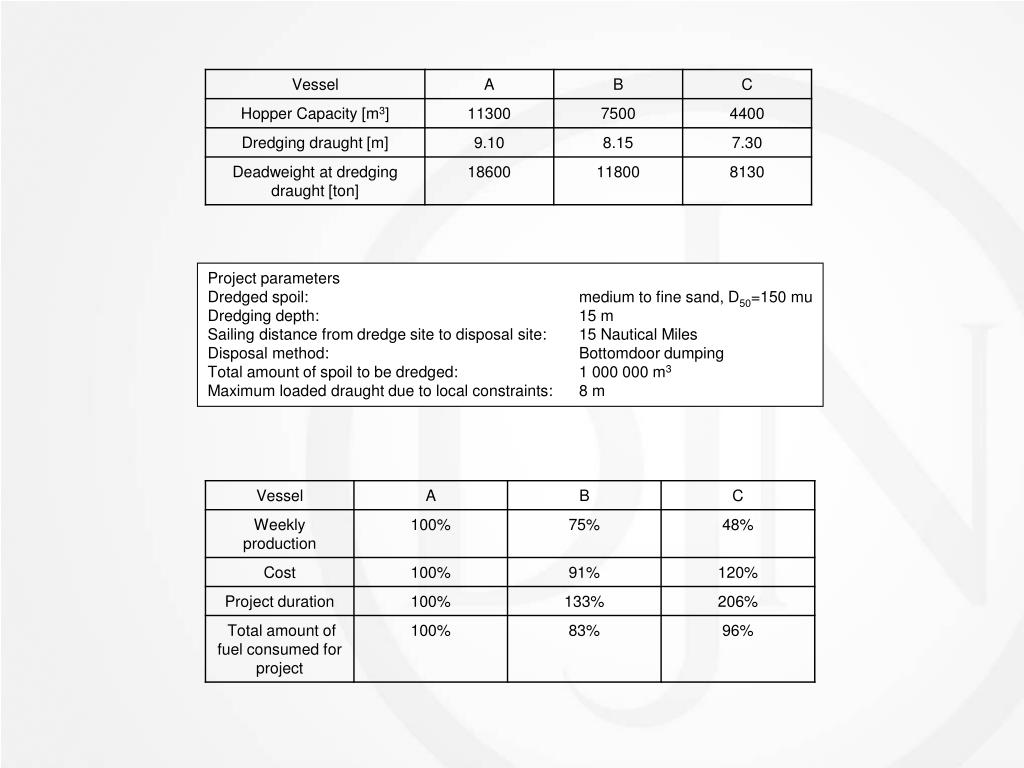

  16. Project parameters Dredged spoil: medium to fine sand, D50=150 mu Dredging depth: 15 m Sailing distance from dredge site to disposal site: 15 Nautical Miles Disposal method: Bottomdoor dumping Total amount of spoil to be dredged: 1 000 000 m3 Maximum loaded draught due to local constraints: 8 m

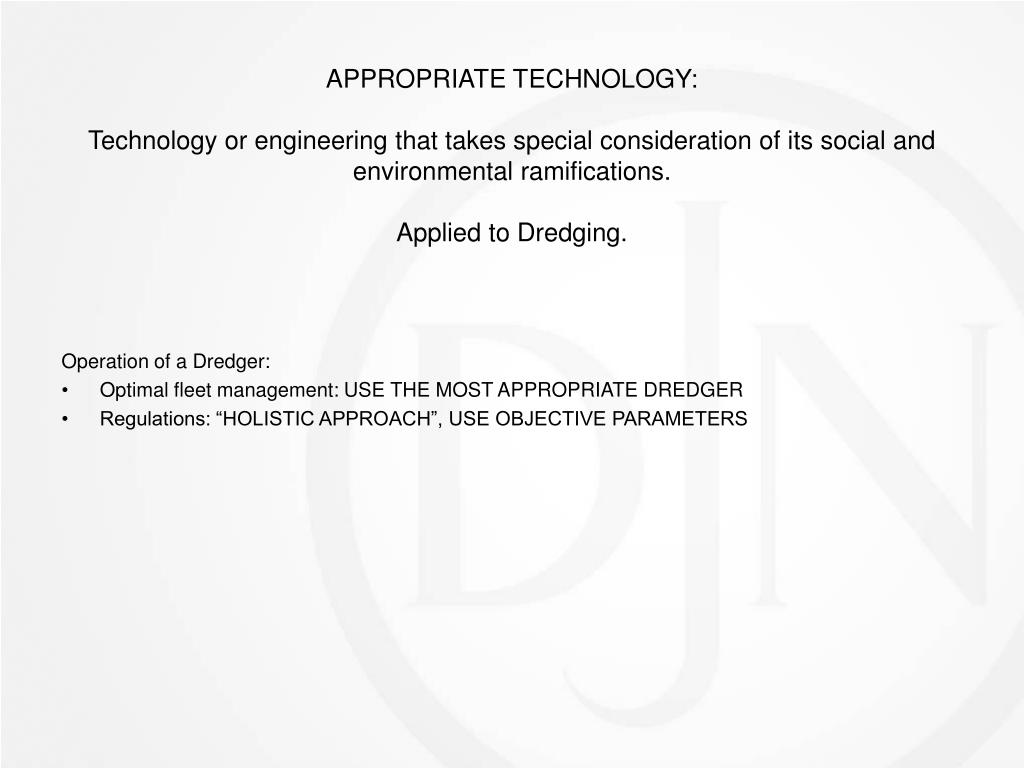

  17. APPROPRIATE TECHNOLOGY:Technology or engineering that takes special consideration of its social and environmental ramifications.Applied to Dredging. Operation of a Dredger: • Optimal fleet management: USE THE MOST APPROPRIATE DREDGER • Regulations: “HOLISTIC APPROACH”, USE OBJECTIVE PARAMETERS

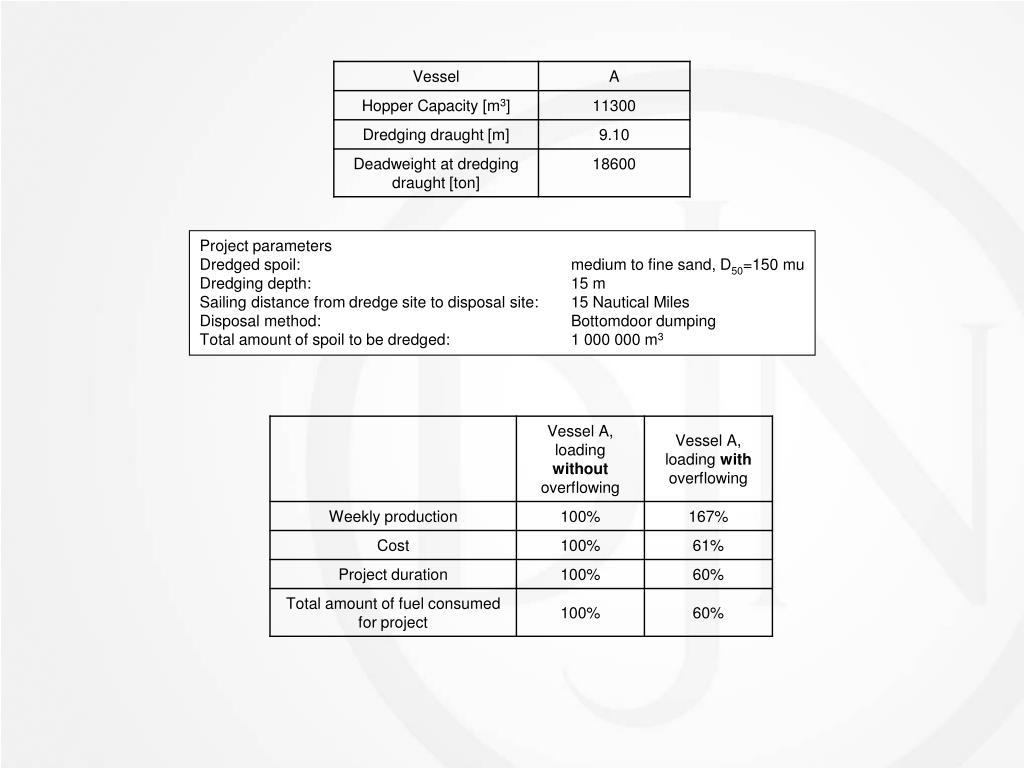

  18. Project parameters Dredged spoil: medium to fine sand, D50=150 mu Dredging depth: 15 m Sailing distance from dredge site to disposal site: 15 Nautical Miles Disposal method: Bottomdoor dumping Total amount of spoil to be dredged: 1 000 000 m3

  19. APPROPRIATE TECHNOLOGY:Technology or engineering that takes special consideration of its social and environmental ramifications.Applied to Dredging. Operation of a Dredger: • Optimal fleet management: USE THE MOST APPROPRIATE DREDGER • Regulations: “HOLISTIC APPROACH” • Cost: “COST” OF SIDE-EFFECTS TO BE TAKEN INTO ACCOUNT ?

  20. APPROPRIATE TECHNOLOGY:Technology or engineering that takes special consideration of its social and environmental ramifications.Applied to Dredging.CONCLUSIONS • New design tools needed. • Holistic principle. • Importance of a modern, versatile fleet.
