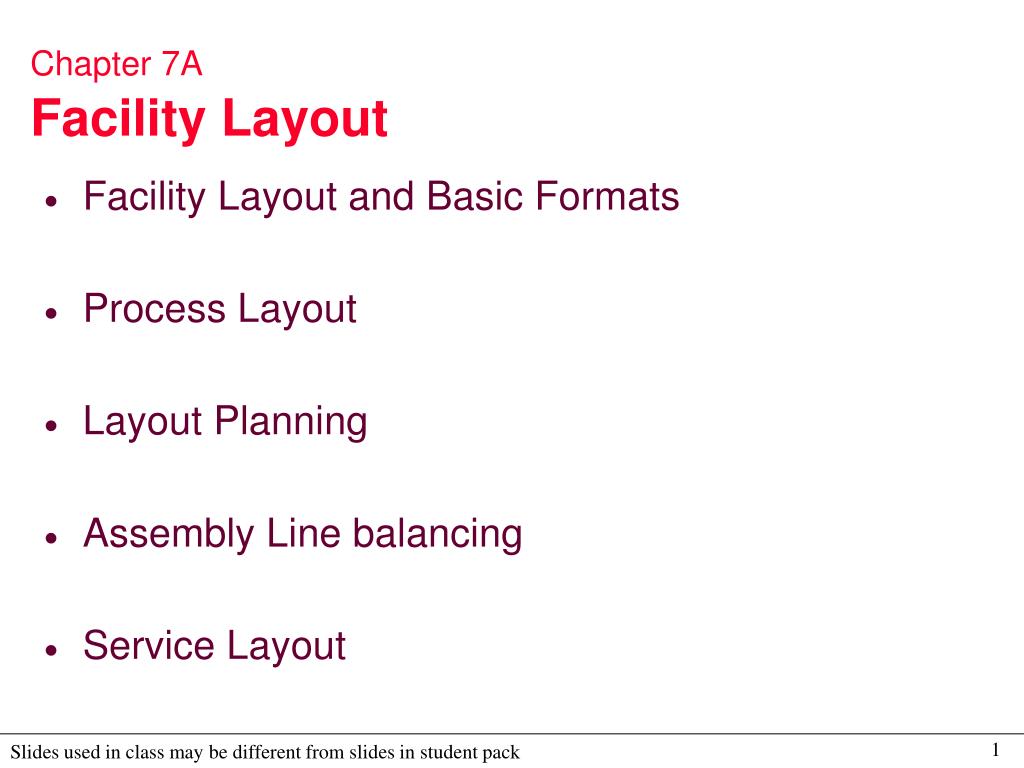

  1. Chapter 7AFacility Layout • Facility Layout and Basic Formats • Process Layout • Layout Planning • Assembly Line balancing • Service Layout

  2. Facility Layout Defined The process by which the placement of within a facility are determined

  3. Requirements for Facility Layout • Specification of objectives • Estimation • Processing requirements • Space requirements • Space availability

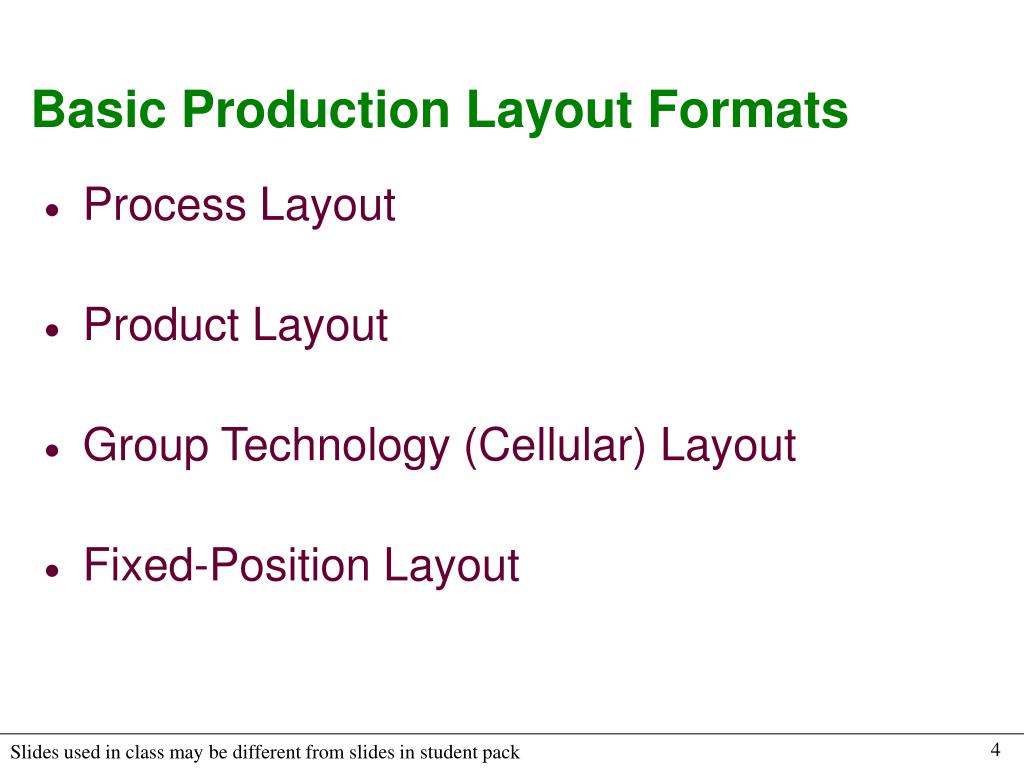

  4. Basic Production Layout Formats • Process Layout • Product Layout • Group Technology (Cellular) Layout • Fixed-Position Layout

  5. Process-Oriented Layout • Design places departments with large flows of material or people together • Dept. areas have similar processes • Used with process-focused processes • Examples © 1995 Corel Corp.

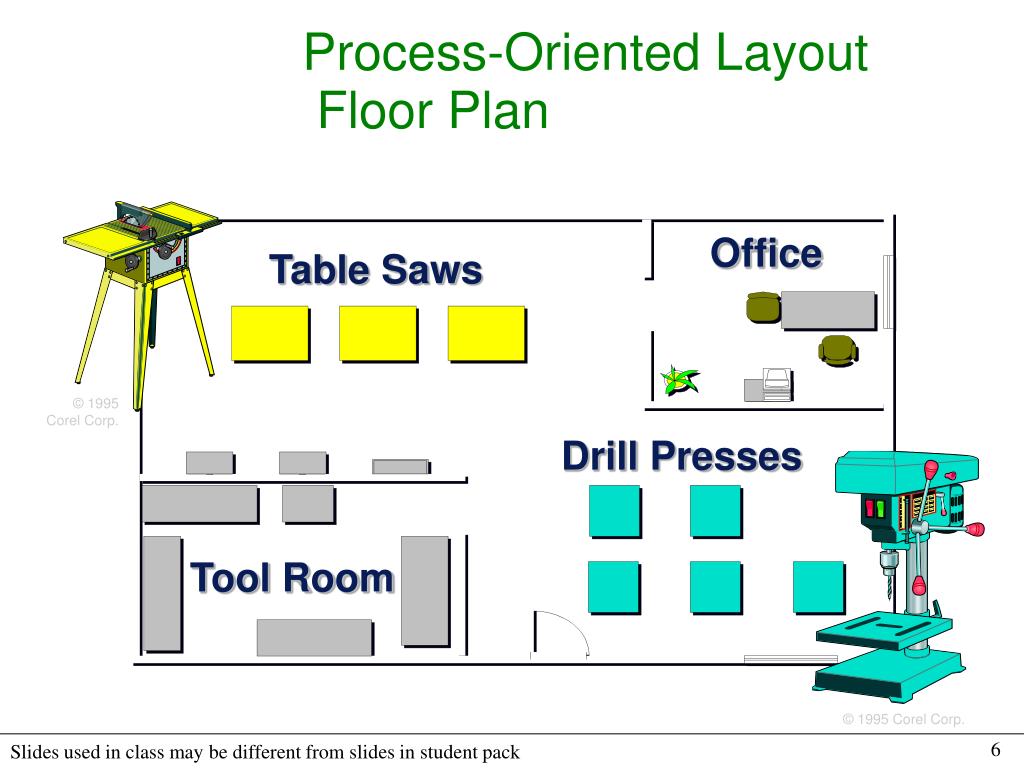

  6. Process-Oriented Layout Floor Plan Office Table Saws © 1995 Corel Corp. Drill Presses Tool Room © 1995 Corel Corp.

  7. Product-Oriented Layout • Facility organized around product • Design minimizes line imbalance • Types: Fabrication line; assembly line • Examples © 1984-1994 T/Maker Co.

  8. Product-Oriented Layout Floor Plan 1 3 Operations 4 5 2 Belt Conveyor Office

  9. Cellular Layout - Group Technology (Work Cells) • Special case of process-oriented layout • Consists of different machines brought together to make a product • Group Technology Benefits:

  10. Work Cell Floor Plan Saws Drills Office Work Cell Tool Room

  11. Fixed-Position Layout • Design is for stationary project • Workers & equipment come to site • Complicating factors • Limited space at site • Changing material needs • Examples • Ship building • Highway construction © 1995 Corel Corp. © 1995 Corel Corp. © 1995 Corel Corp.

  12. Fixed Position Layout Question: What are our primary considerations for a fixed position layout?

  13. Station 1 Station 2 Station 3 Minutes per Unit 6 7 3 Assembly Lines Balancing Concepts Question: Suppose you load work into the three work stations below such that each will take the corresponding number of minutes as shown. What is the cycle time of this line?

  14. Example of Line Balancing • You’ve just been assigned the job a setting up an electric fan assembly line with the following tasks: Task Time (Mins) Description Predecessors A 2 Assemble frame None B 2 Mount switch A C 3.25 Assemble motor housing None D 1.2 Mount motor housing in frame A, C E 0.5 Attach blade D F 1.1 Assemble and attach safety grill E G 1 Attach cord B H 1.4 Test F, G

  15. Example of Line Balancing:Step 1: Structuring the Precedence Diagram Task Predecessors Task Predecessors A None E D B A F E C None G B D A, C H F, G A B G H E C D F

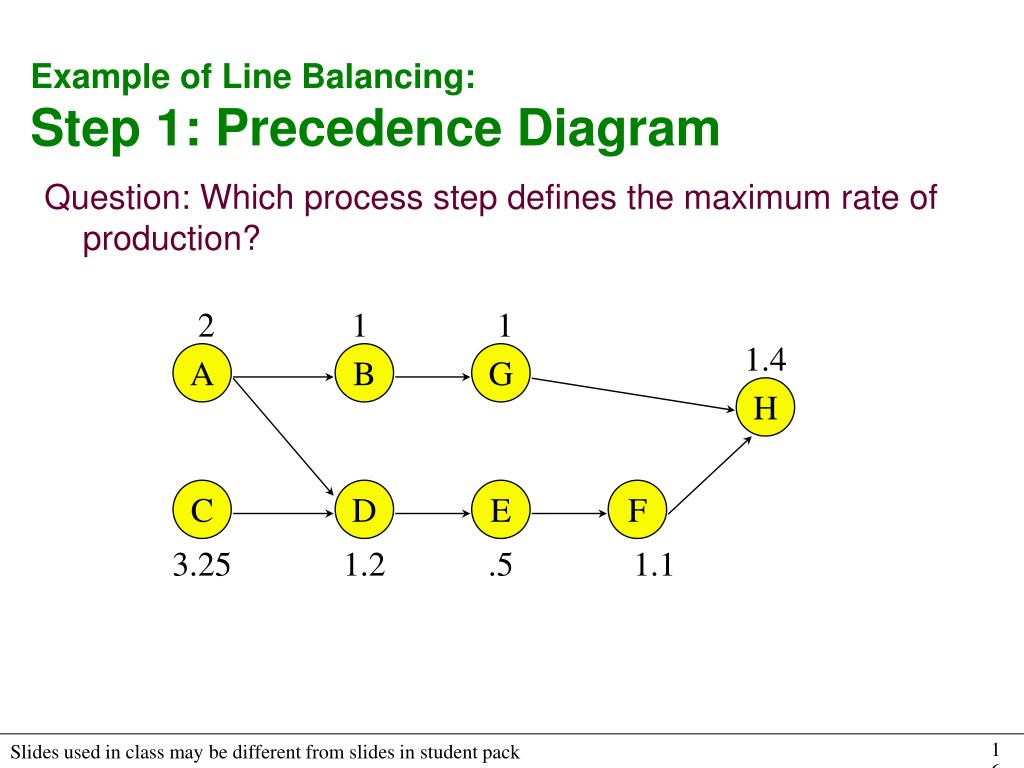

  16. 2 1 1 1.4 A B G H C D E F 3.25 1.2 .5 1.1 Example of Line Balancing: Step 1: Precedence Diagram Question: Which process step defines the maximum rate of production?

  17. Example of Line Balancing:The Bottleneck

  18. Example of Line Balancing:Step 2: Determine Cycle Time Question: Suppose we only have demand for 100 fans per day. What would our cycle time have to be? Answer:

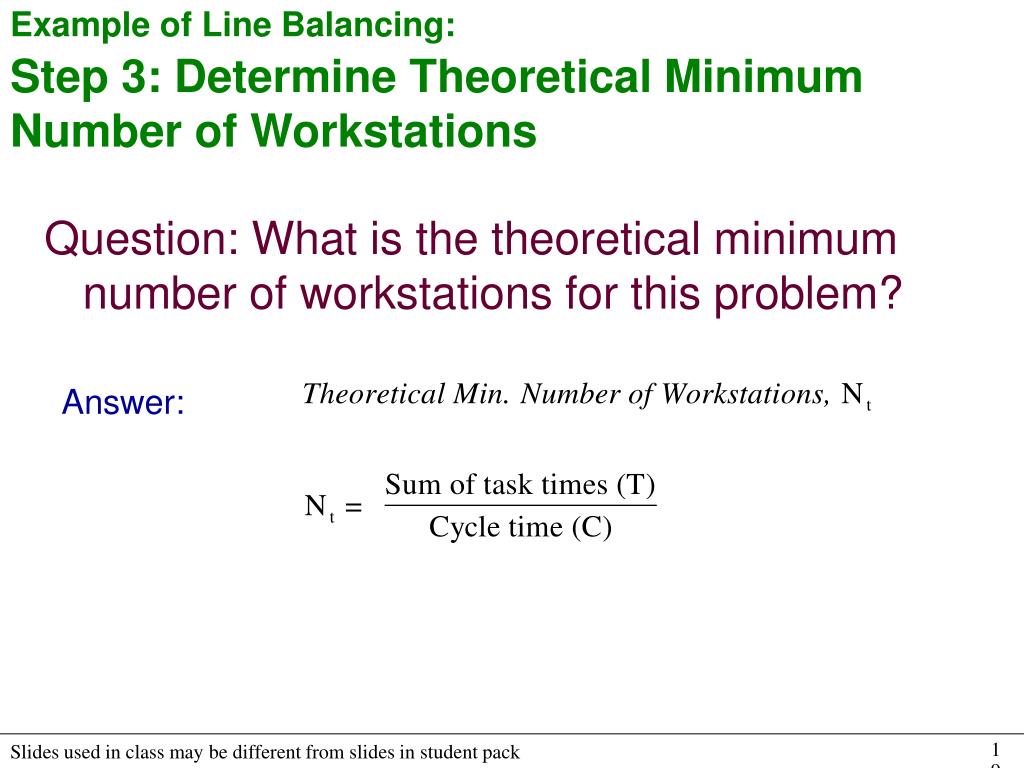

  19. Example of Line Balancing:Step 3: Determine Theoretical Minimum Number of Workstations Question: What is the theoretical minimum number of workstations for this problem? Answer:

  20. Example of Line Balancing:Step 4: Rules To Follow for Loading Workstations • A number of simple rules have been proposed for assigning tasks to work stations. • Assign Tasks With The Most Following Tasks First • Assign Tasks With the Longest Task Time First • For this example, we’ll use • Primary: Assign tasks in order of the largest number of following tasks. • Secondary (tie-breaking): Assign tasks in order of the longest operating time

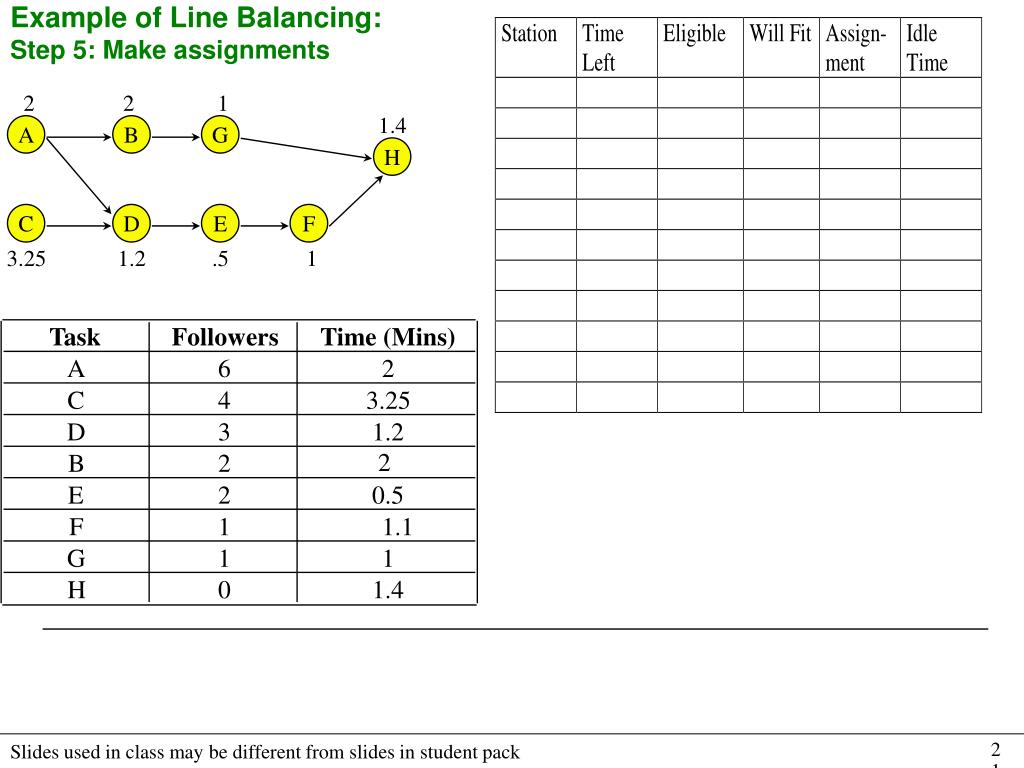

  21. Example of Line Balancing: Step 5: Makeassignments Task Followers Time (Mins) A 6 2 2 2 1 C 4 3.25 1.4 A B G D 3 1.2 H 2 B 2 E 2 0.5 C D E F F 1 1.1 3.25 1.2 .5 1 G 1 1 H 0 1.4

  22. Example of Line Balancing:Step 6: Determine the Efficiency of the Assembly Line Step 7: Evaluate the solution

  23. Capacity Considerations • Suppose we have an assembly line: • the task times are 45, 25, 18, 25, 20, 17, 20 seconds • the line runs for 7 hours per day • we have demand for 775 units per day Our required cycle time would be:

  24. Options for Increasing Capacity
