The Implementation of Machine Learning in the Game of Checkers

1. The Implementation of Machine Learning in the Game of Checkers Billy Melicher Computer Systems lab 08-09

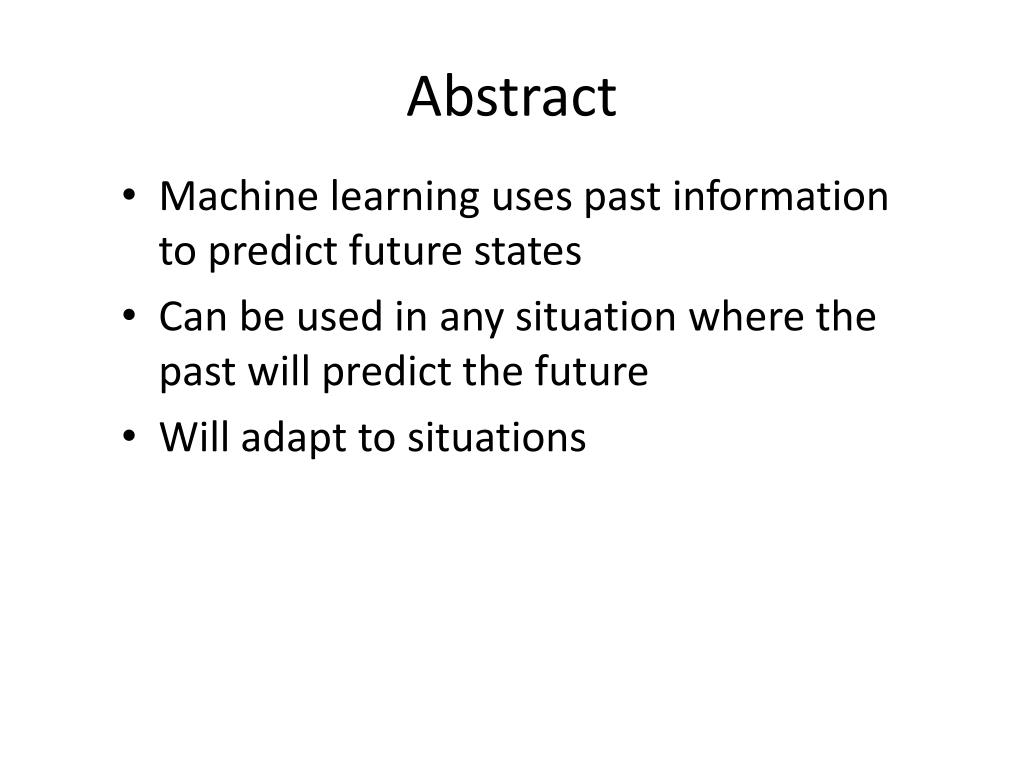

2. Abstract • Machine learning uses past information to predict future states • Can be used in any situation where the past will predict the future • Will adapt to situations

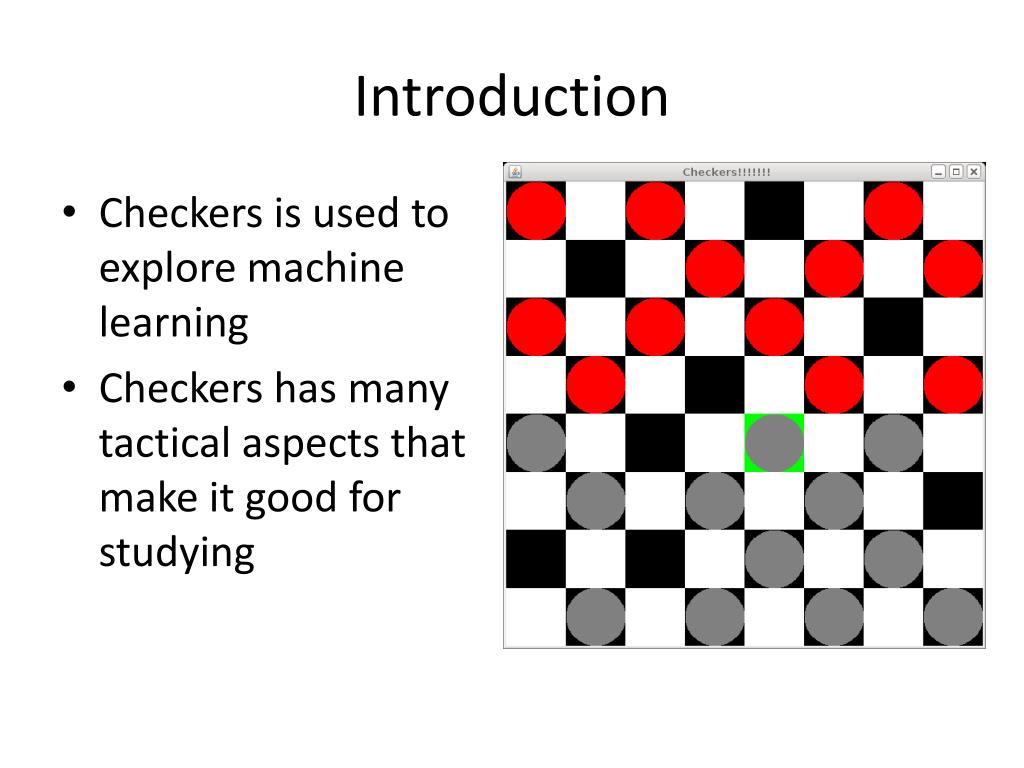

3. Introduction • Checkers is used to explore machine learning • Checkers has many tactical aspects that make it good for studying

4. Background • Minimax • Heuristics • Learning

5. Minimax • Method of adversarial search • Every pattern(board) can be given a fitness value(heuristic) • Each player chooses the outcome that is best for them from the choices they have

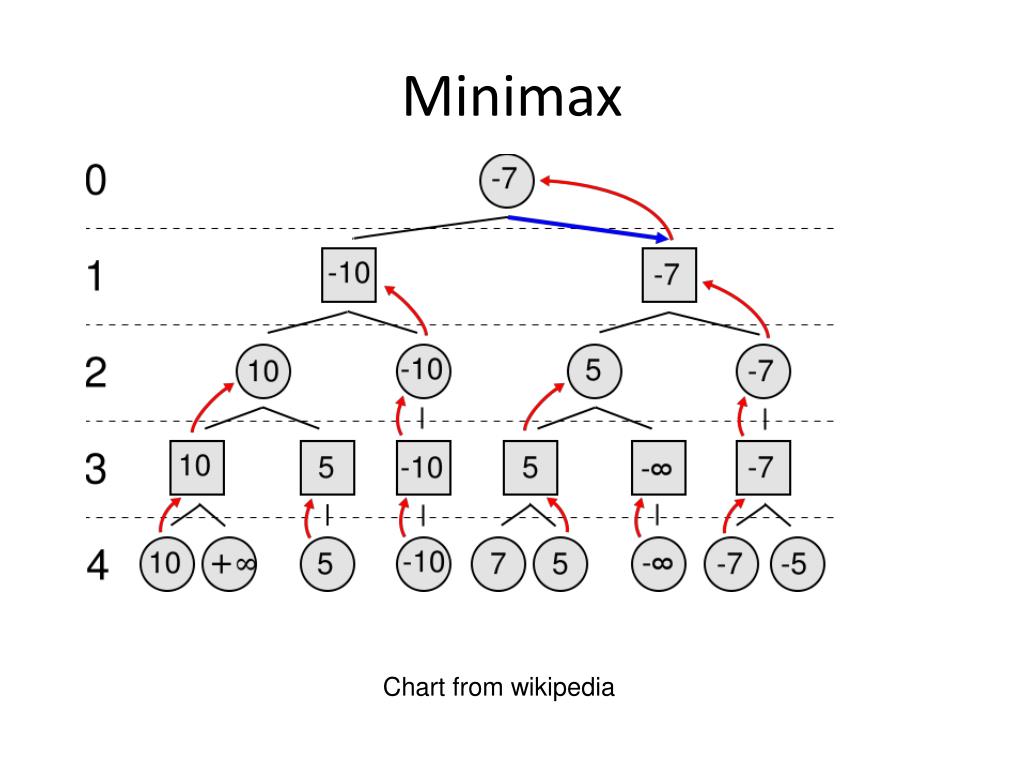

6. Minimax Chart from wikipedia

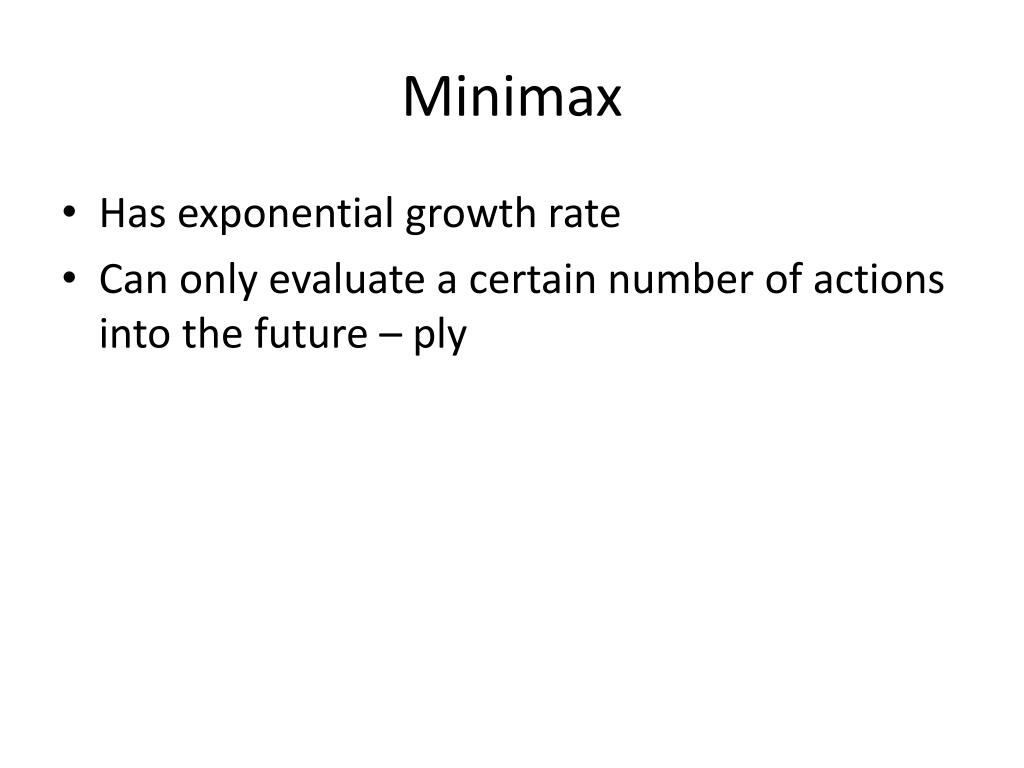

7. Minimax • Has exponential growth rate • Can only evaluate a certain number of actions into the future – ply

8. Heuristic • Heuristics predict out come of a board • Fitness value of board, higher value, better outcome • Not perfect • Requires expertise in the situation to create

9. Heuristics • H(s) = c0F0(s) + c1F1(s) + … + cnFn(s) • H(s) = heuristic • Has many different terms • In checkers terms could be: Number of checkers Number of kings Number of checkers on an edge How far checkers are on board

10. Learning by Rote • Stores every game played • Connects the moves made for each board • Relates the moves made from a particular board to the outcome of the board • More likely to make moves that result in a win, less likely to make moves resulting in a loss • Good in end game, not as good in mid game

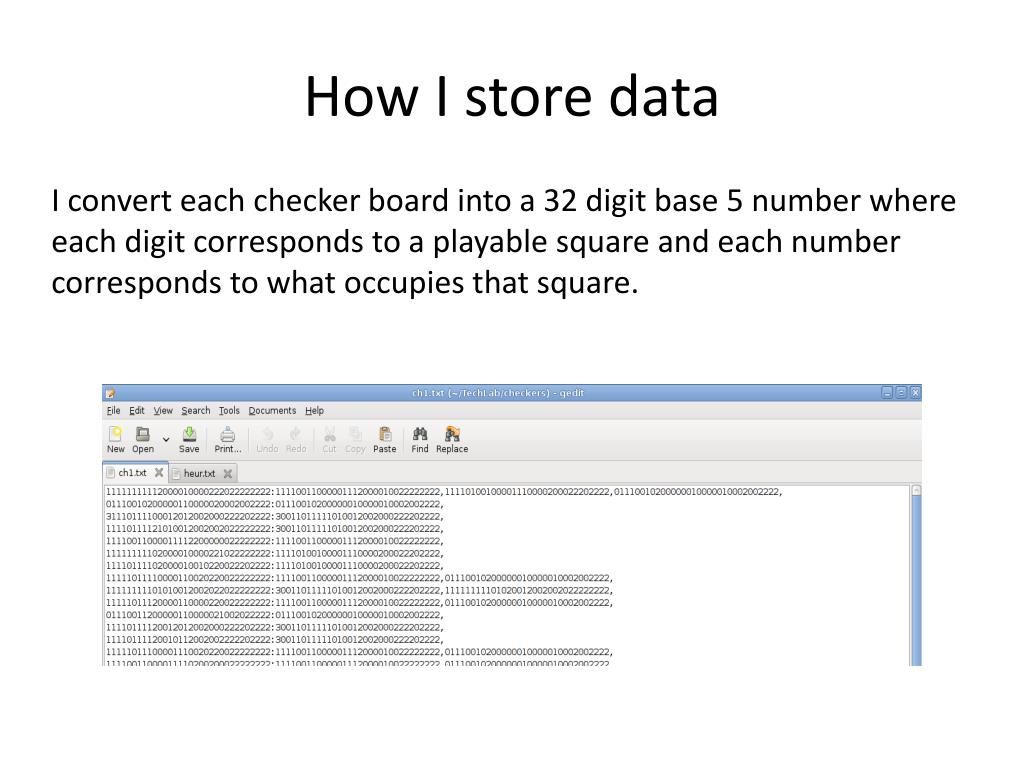

11. How I store data I convert each checker board into a 32 digit base 5 number where each digit corresponds to a playable square and each number corresponds to what occupies that square.

12. Learning by Generalization • Uses a heuristic function to guide moves • Changes the heuristic function after games based on the outcome • Good in mid game but not as good in early and end games • Requires identifying the features that affect game

13. Development • Use of minimax algorithm with alpha beta pruning • Use of both learning by Rote and Generalization • Temporal difference learning

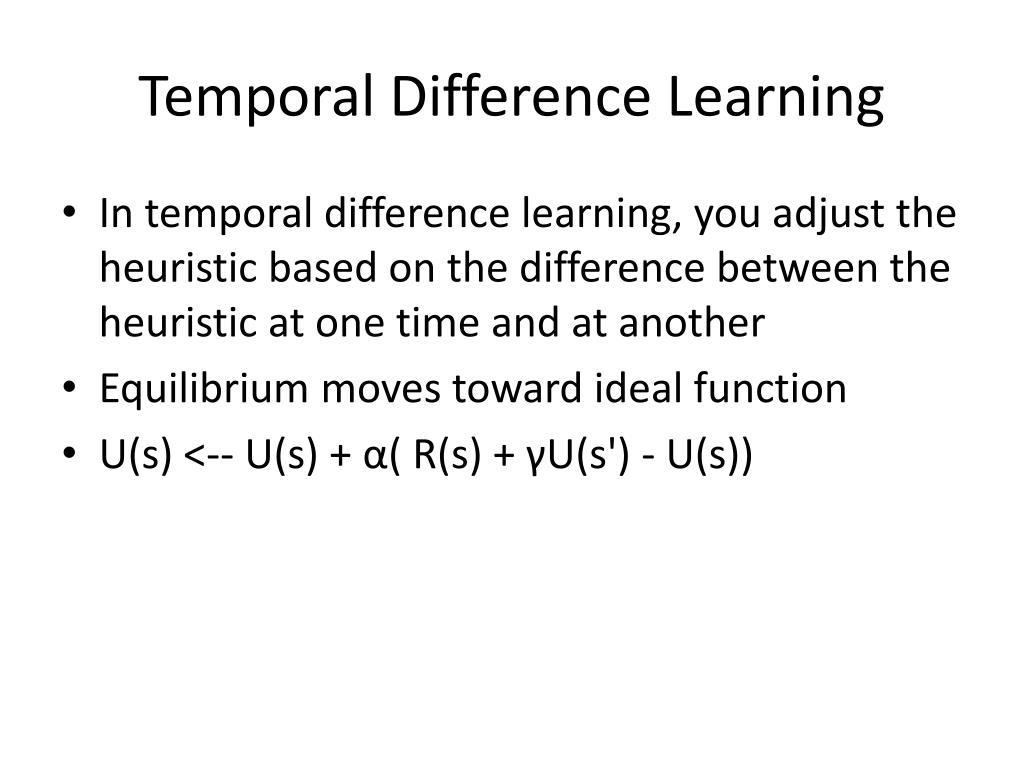

14. Temporal Difference Learning • In temporal difference learning, you adjust the heuristic based on the difference between the heuristic at one time and at another • Equilibrium moves toward ideal function • U(s) <-- U(s) + α( R(s) + γU(s') - U(s))

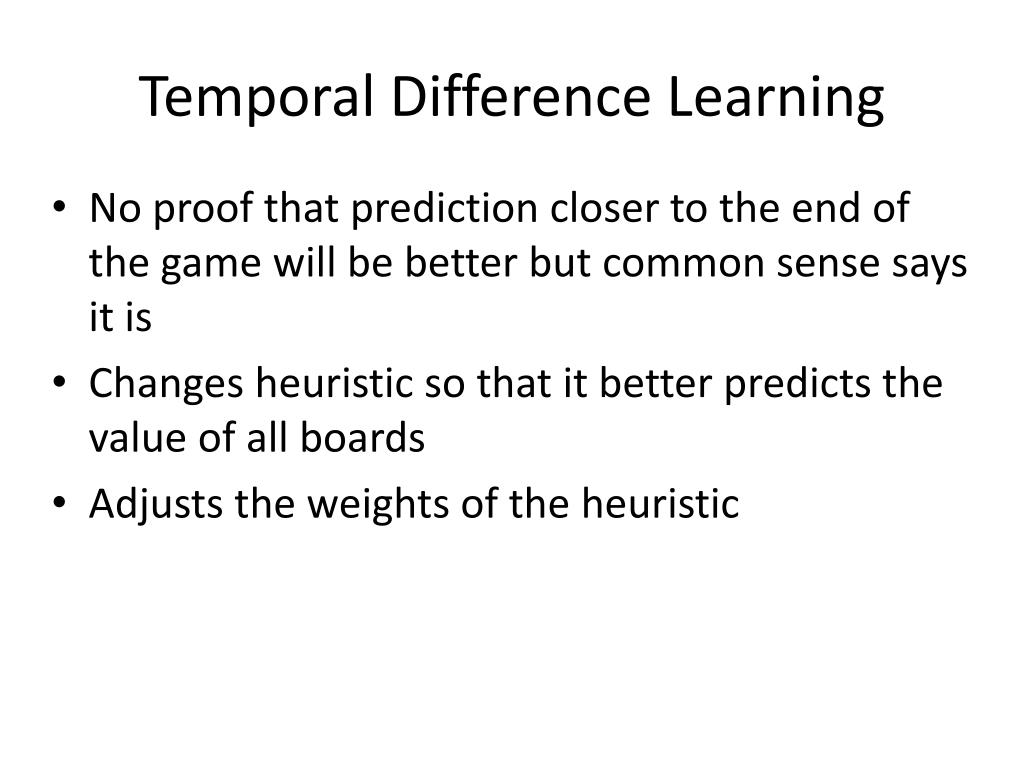

15. Temporal Difference Learning • No proof that prediction closer to the end of the game will be better but common sense says it is • Changes heuristic so that it better predicts the value of all boards • Adjusts the weights of the heuristic

16. Alpha Value • The alpha value decreases the change of the heuristic based on how much data you have • Decreasing returns • Necessary for ensuring rare occurrences do not change heuristic too much

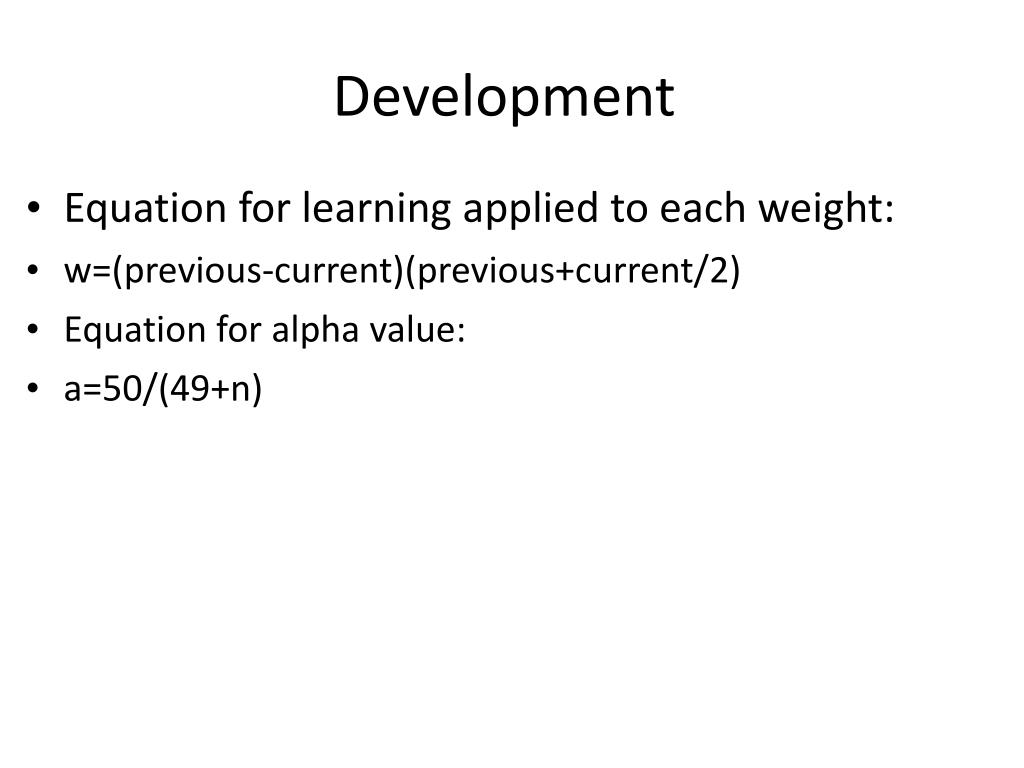

17. Development • Equation for learning applied to each weight: • w=(previous-current)(previous+current/2) • Equation for alpha value: • a=50/(49+n)

18. Results • Value of weight reaches equilibrium • Changes to reflect the learning of the program • Occasionally requires programmer intervention when it reaches a false equilibrium

19. Results

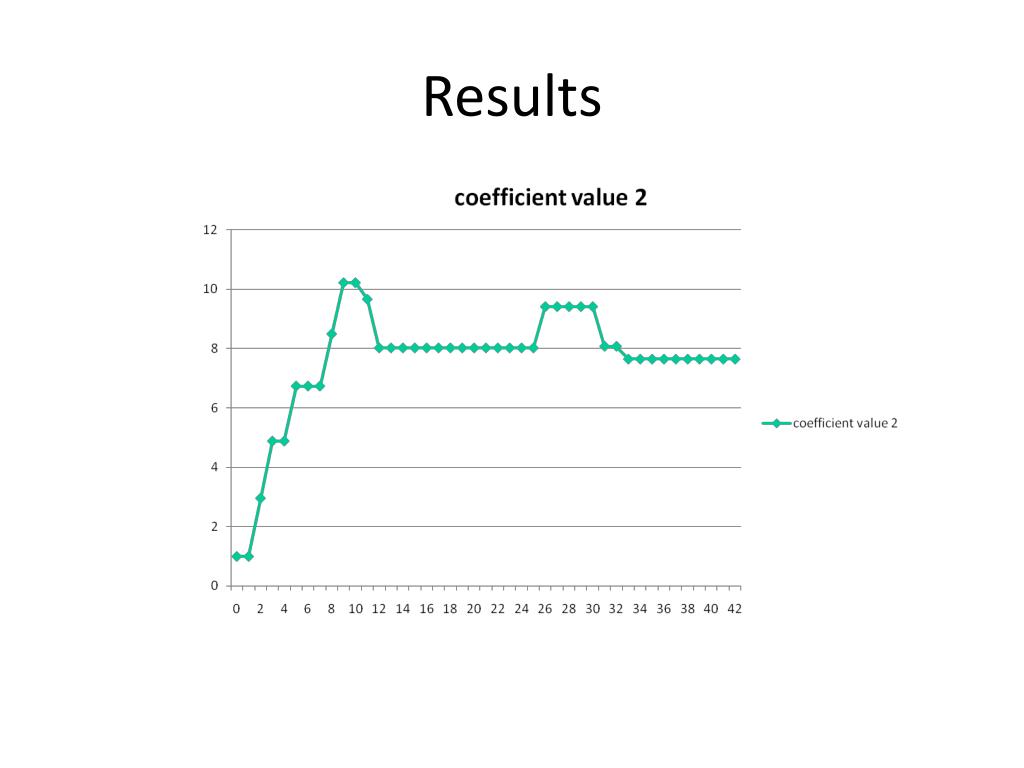

20. Results

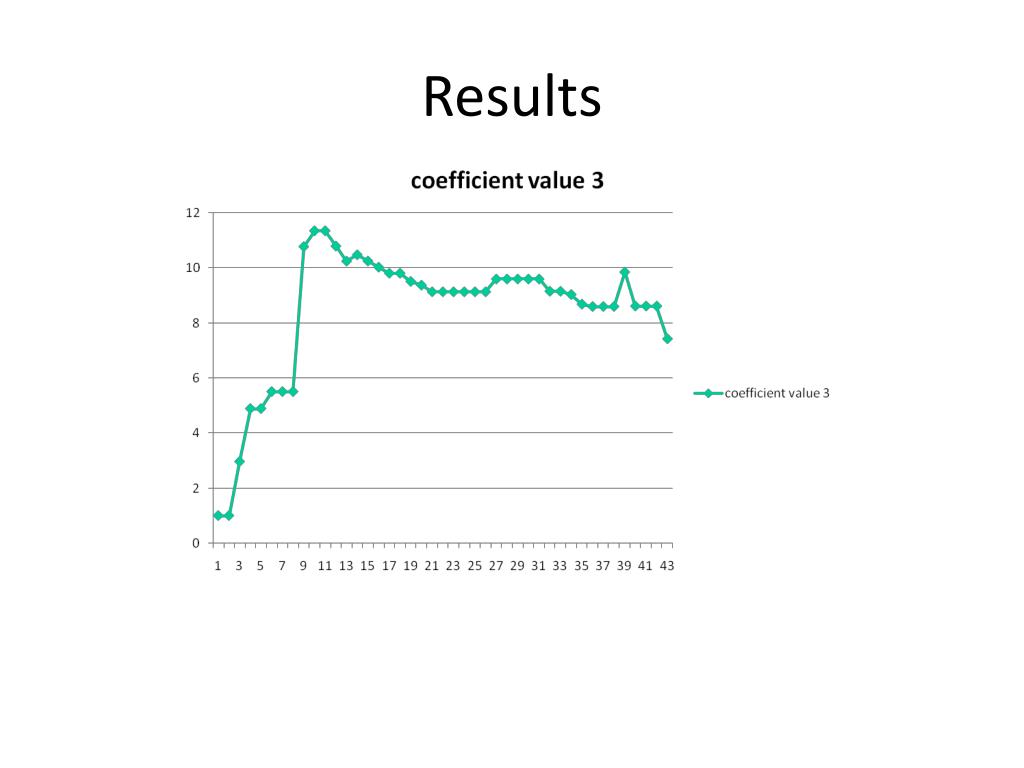

21. Results

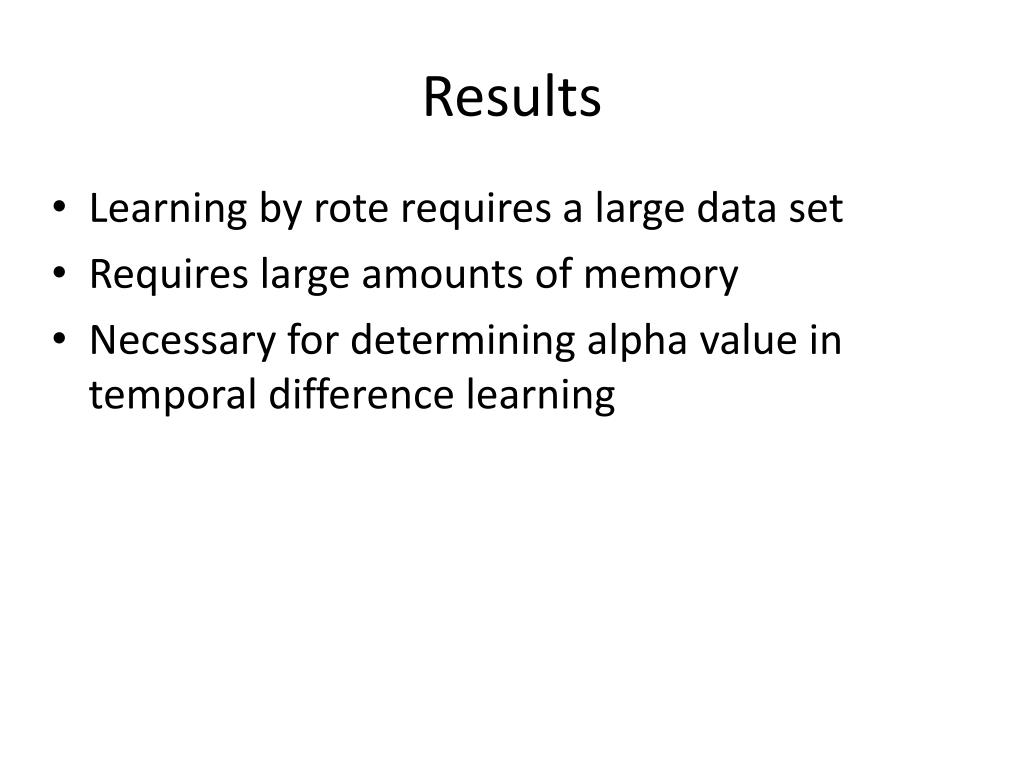

22. Results • Learning by rote requires a large data set • Requires large amounts of memory • Necessary for determining alpha value in temporal difference learning

23. Conclusions • Good way to find equilibrium weight • Sometimes requires intervention • Doesn't require much memory • Substantial learning could be achieved with relativelly few runs • Learning did not require the program to know strategies but does require it to play towards a win
