  1. Behavioral Modeling of Power Amplifier using DNN and RNN Zhang Chuan

  2. 1 2 3 DNN and RNN Modeling using new transistor Next Work Review Outline

  3. 1 Review Review

  4. Power amplifier

  5. Memory effect • Short-term memory effect • Long-term memory effect

  6. Neural Network Modeling Long-term memory effect Vout Vin Vin Vin_L Vout Vout_L

  7. Long-term memory effect example Neural Network Modeling Vin Vin_L Vout_L Vout

  8. Neural Network Modeling Short-term DNN structure

  9. Neural Network Modeling Long-term DNN structure

  10. Short-term RNN structure Vout(t-2τ) Vout(t-τ) Vin(t-τ) Vin(t-2τ)

  11. Long-term RNN structure Vout_L(t-Τ) Vout_L(t-Τ) Vout(t-τ) Vout_L(t) Vin_L(t) Vin(t-τ) Τ=nτ

  12. Short-term DNN vs RNN RNN delay unit: both 2 harmonics: 3 hidden neurons: 30 training data: Pin:0~24 dBm step:2dBm freq: 850~900 MHz step: 5MHz test data: Pin: 1~23 dBm step: 2dBm freq: 852.5~897.5 MHz step:5MHz training error: FFNN : 0.019% RNN : 0.1133% test error: FFNN : 0.0159% RNN : 0.125% DNN derivative unit: both 2 harmonics: 3 hidden neurons: 30 training data: Pin:0~24 dBm step:2dBm freq: 850~900 MHz step: 5MHz test data: Pin: 1~23 dBm step: 2dBm freq: 852.5~897.5 MHz step:5MHz training error: Time-domain : 0.0174% Freq-domain : 0.9246% test error: Time-domain : 0.018% Freq-domain : 1.1514%

  13. Short-term Result(DNN vs RNN)

  14. Long-term DNN vs RNN DNN derivative unit: Vin:2 Vin_L:2 Vout_L:2 Iin:1 Vout:2 harmonics: both 5 hidden neurons: 55 training data: Pin: 0~6 dBm step:2dBm fspacing: 5~50 MHz step: 5MHz test data: Pin: 1~5 dBm step: 2dBm freq: 7.5~47.5 MHz step:5MHz training error: Time-domain : 0.0449% Freq-domain : 1.7352% test error: Time-domain : 0.2653% Freq-domain : 2.1134% RNN delay unit: Vin:2 Vin_L:2 Vout_L:2 Iin:1 Vout:2 harmonics: both 5 hidden neurons: 55 training data: Pin: 0~6 dBm step:2dBm fspacing: 5~50 MHz step: 5MHz test data: Pin: 1~5 dBm step: 2dBm freq: 7.5~47.5 MHz step:5MHz training error: FFNN : 0.0363% RNN : 0.0627% test error: FFNN : 0.0418% RNN : 0.0782%

  15. Long-term Result(DNN vs RNN)

  16. 2 DNN and RNN Modeling using new transistor

  17. Whole PA circuit

  18. New PA example using freescale transistor

  19. New PA example using freescale transistor(in ADS)

  20. Short-term comparison (DNN vs RNN) RNN derivative unit: 3 3 2 harmonics: 5 hidden neurons: 30 training data: Pin:0~32 dBm step:2dBm freq: 2.6~2.65 GHz step: 10MHz test data: Pin: 1~31 dBm step: 2dBm freq: 2.605~2.645 MHz step:10MHz training error: FFNN : 0.0472% RNN : 0.0113% test error: FFNN : 0.0291% RNN : 0.0335% DNN derivative unit: 3 3 2 harmonics: 5 hidden neurons: 30 training data: Pin:0~32 dBm step:2dBm freq: 2.6~2.65 GHz step: 10MHz test data: Pin: 1~31 dBm step: 2dBm freq: 2.605~2.645 MHz step:10MHz training error: Time-domain : 0.0057% Freq-domain : 0.8436% test error: Time-domain : 0.0062% Freq-domain : 0.9514%

  21. Short-term memory result

  22. Long-term DNN vs RNN DNN derivative unit: Vin:2 Vin_L:2 Vout_L:2 Iin:1 Vout:2 harmonics: both 5 hidden neurons: 40 training data: Pin: 16~22 dBm step:2dBm fspacing: 150~370 MHz step: 20MHz test data: Pin: 17~21 dBm step: 2dBm fspacing: 160~360 MHz step:20MHz training error: Time-domain : 0.0337% Freq-domain : 1.3751% test error: Time-domain : 0.1253% Freq-domain : 2.6134% RNN derivative unit: Vin:2 Vin_L:2 Vout_L:2 Iin:1 Vout:2 harmonics: both 5 hidden neurons: 40 training data: Pin: 16~22 dBm step:2dBm fspacing: 150~370 MHz step: 20MHz test data: Pin: 17~21 dBm step: 2dBm fspacing: 160~360 MHz step:20MHz training error: FFNN : 0.0036% RNN : 0.0534% test error: FFNN : 0.0048% RNN : 0.0626%

  23. Long-term memory result(fine model)

  24. DNN two lines training result

  25. DNN two lines test result

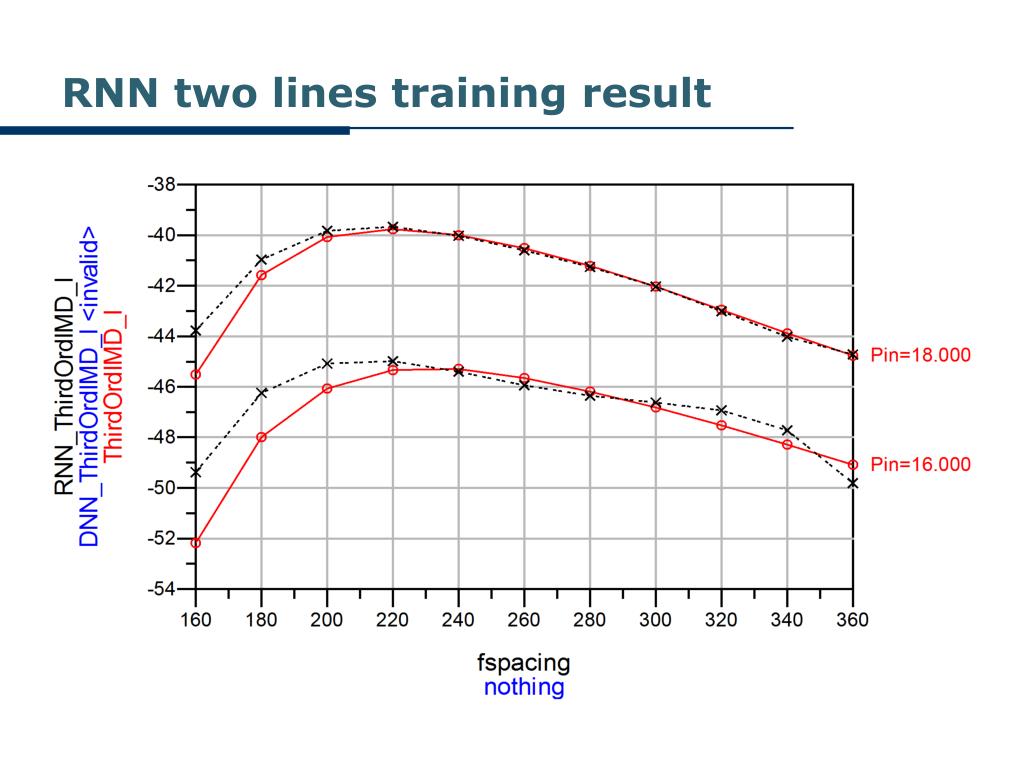

  26. RNN two lines training result

  27. RNN two lines test result

  28. Long-term DNN vs RNN DNN derivative unit: Vin:2 Vin_L:2 Vout_L:2 Iin:1 Vout:2 harmonics: both 5 hidden neurons: 25 training data: Pin: 16~18 dBm step:2dBm fspacing: 150~370 MHz step: 30MHz test data: Pin: 17 dBm fspacing: 160~340 MHz step:30MHz RNN derivative unit: Vin:2 Vin_L:2 Vout_L:2 Iin:1 Vout:2 harmonics: both 5 hidden neurons: 25 training data: Pin: 16~18 dBm step:2dBm fspacing: 150~370 MHz step: 30MHz test data: Pin: 17 dBm fspacing: 160~340 MHz step:30MHz

  29. L_7_2_td4

  30. Use less number of training data

  31. Test using more data

  32. 3 Next Work

  33. Next work I’ll figure out: Long-term memory effects modeling, choose a precise size of data and reduced DNN and RNN structure to get a good result.

  34. Thank You !
