  1. Database of navigation signs

  2. Aim: to administer navigation signs more economical Database of navigation signsContent Database of navigation signsContent Database of navigation signsContent • Short project history • User groups and benefit • Waterways and Shipping Offices and their inspectoral districts • Map production centers • The components of the navigation signs database • System overview • The catalogue management system • The navigation signs management system • The offline system with GPS connection Aim: to administer navigation signs more economical

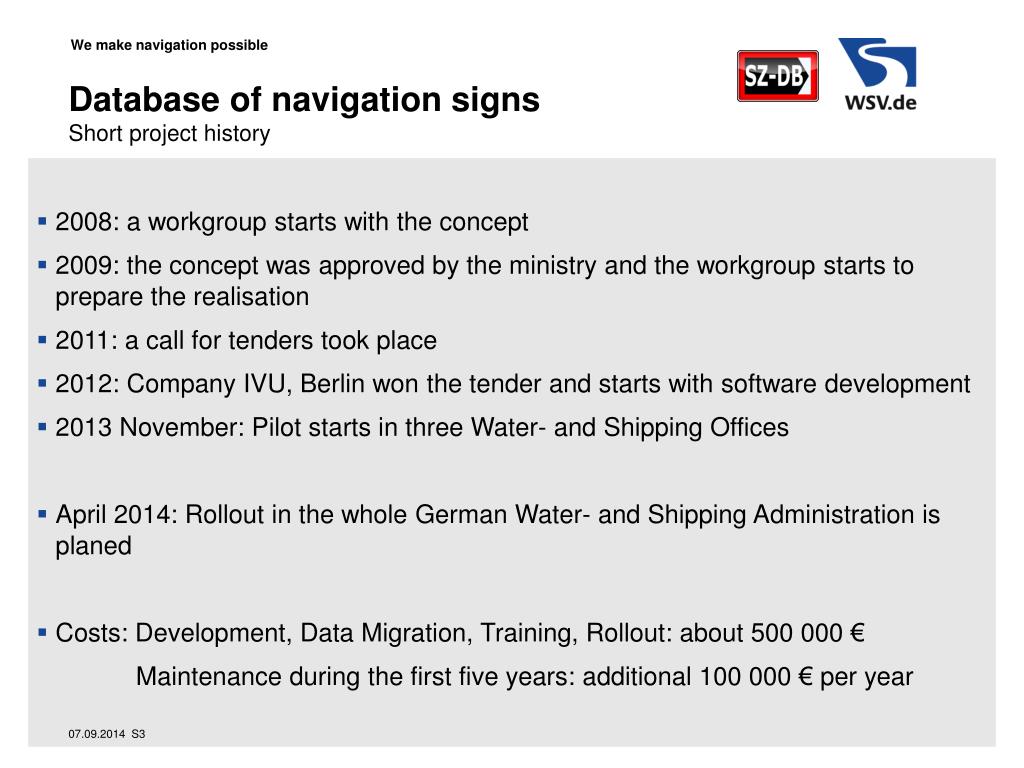

  3. Database of navigation signsShort project history • 2008: a workgroup starts with the concept • 2009: the concept was approved by the ministry and the workgroup starts to prepare the realisation • 2011: a call for tenders took place • 2012: Company IVU, Berlin won the tender and starts with software development • 2013 November: Pilot starts in three Water- and Shipping Offices • April 2014: Rollout in the whole German Water- and Shipping Administration is planed • Costs: Development, Data Migration, Training, Rollout: about 500 000 € Maintenance during the first five years: additional 100 000 € per year

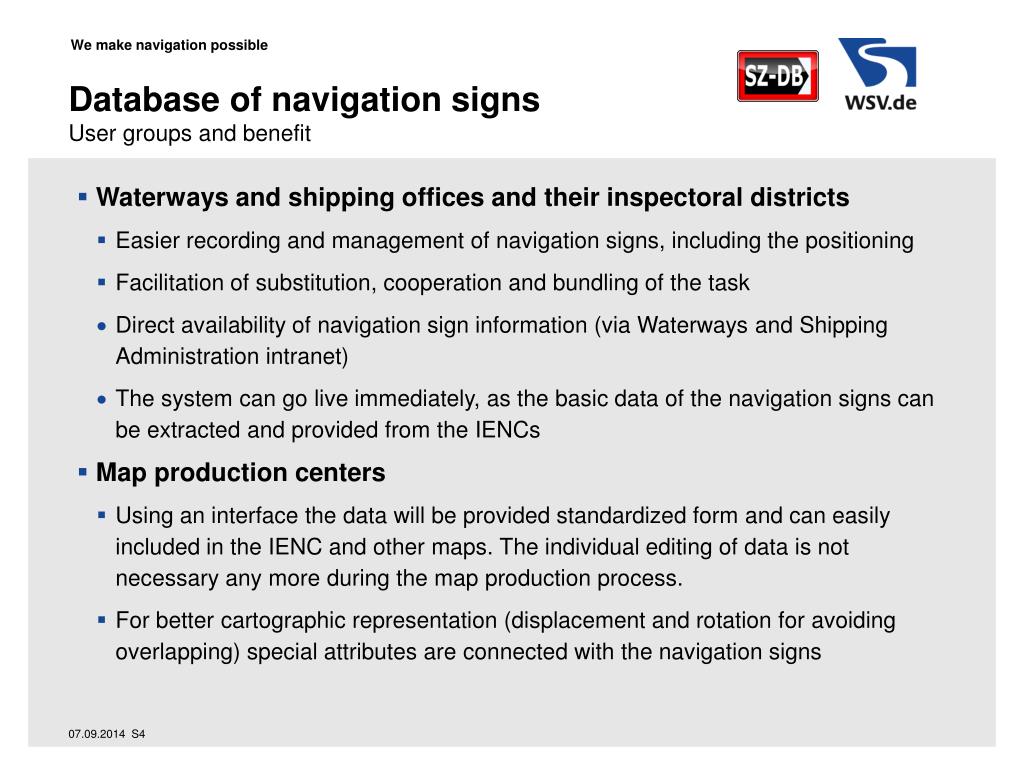

  4. Database of navigation signsUser groups and benefit • Waterways and shipping offices and their inspectoral districts • Easier recording and management of navigation signs, including the positioning • Facilitation of substitution, cooperation and bundling of the task • Direct availability of navigation sign information (via Waterways and Shipping Administration intranet) • The system can go live immediately, as the basic data of the navigation signs can be extracted and provided from the IENCs • Map production centers • Using an interface the data will be provided standardized form and can easily included in the IENC and other maps. The individual editing of data is not necessary any more during the map production process. • For better cartographic representation (displacement and rotation for avoiding overlapping) special attributes are connected with the navigation signs

  5. Database of navigation signsSystem overview (1) WSV intranet WEB server (Database) WEB client Role-dependent access and functionality Reports Work orders Material requisition Interfaces WADABA DBWK IENC Offline module

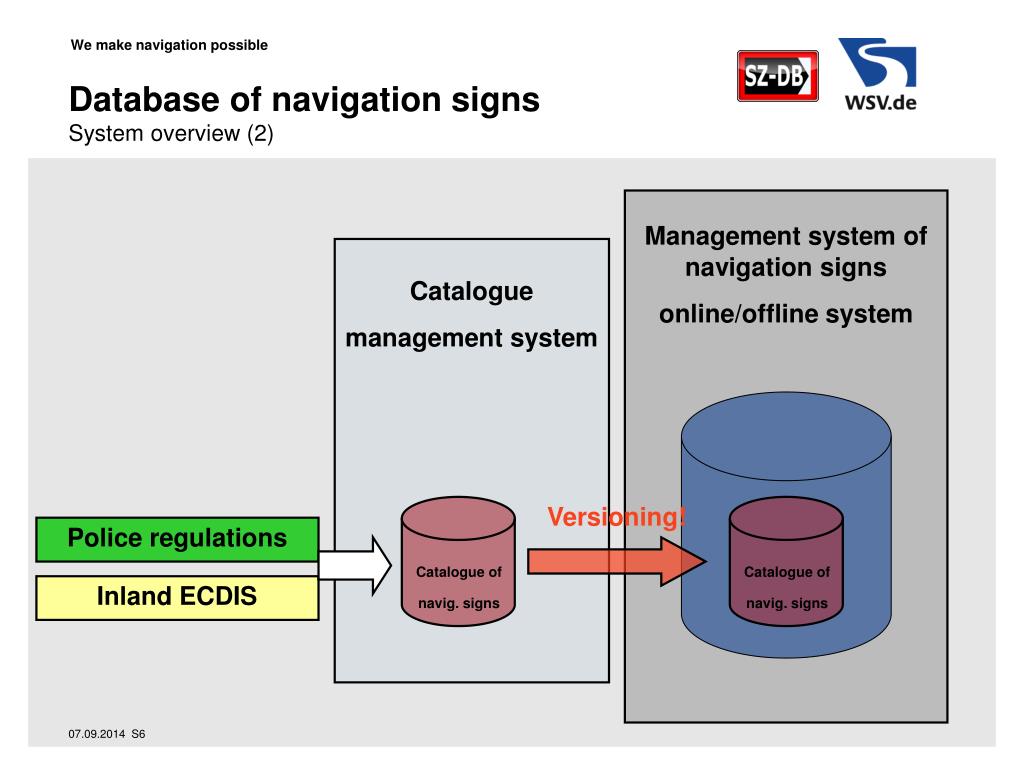

  6. Catalogue of navig. signs Catalogue of navig. signs Database of navigation signsSystem overview (2) Management system of navigation signs online/offline system Catalogue management system Versioning! Police regulations Inland ECDIS

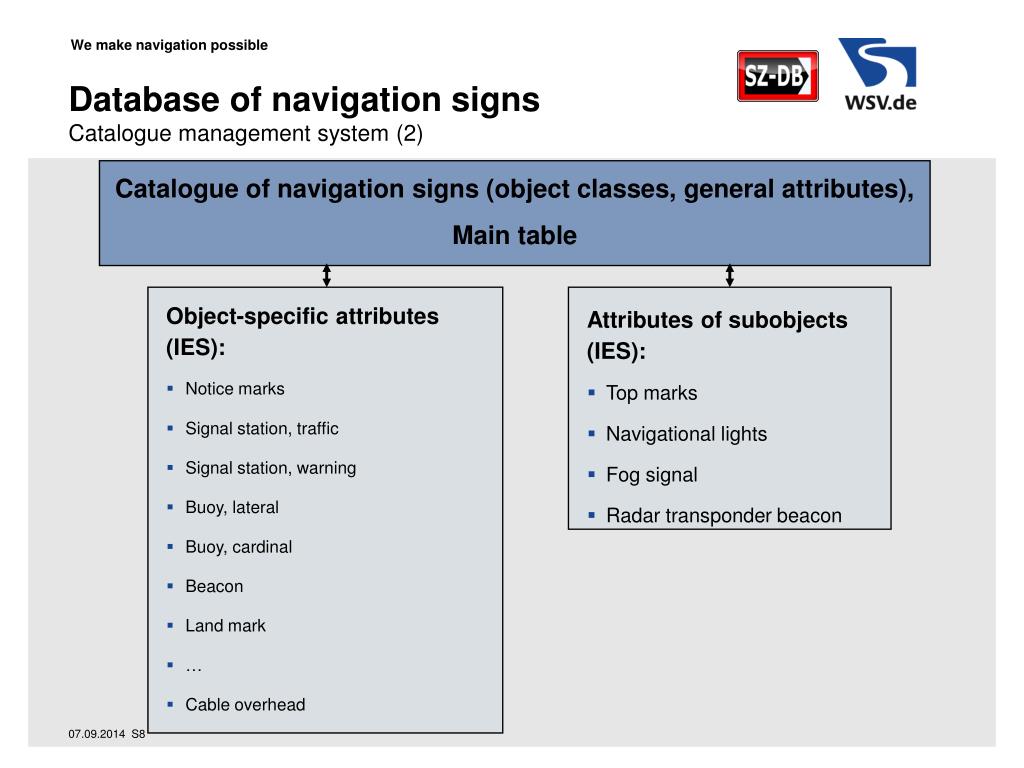

  7. Object-specific attributes (IES): • Notice marks • Signal station, traffic • Signal station, warning • Buoy, lateral • Buoy, cardinal • Beacon • Land mark • … • Cable overhead • Attributes of subobjects (IES): • Top marks • Navigational lights • Fog signal • Radar transponder beacon Database of navigation signsCataloguemanagement system (2) Catalogue of navigation signs (object classes, general attributes), Main table

  8. Database of navigation signsThe navigation signs management system, Problem: automatically visualizing Reality Vision
