  1. Oil Material Balance

  2. Outline: • Generation of Material balance equation. • Havlena and Odeh Method. • Reservoir Drive mechanism. • Solution Gas Drive. • Gas Cap Drive. • Water Drive. • Compaction Drive.

  3. Generation of Material Balance Equation

  4. Generation of Material Balance Equation

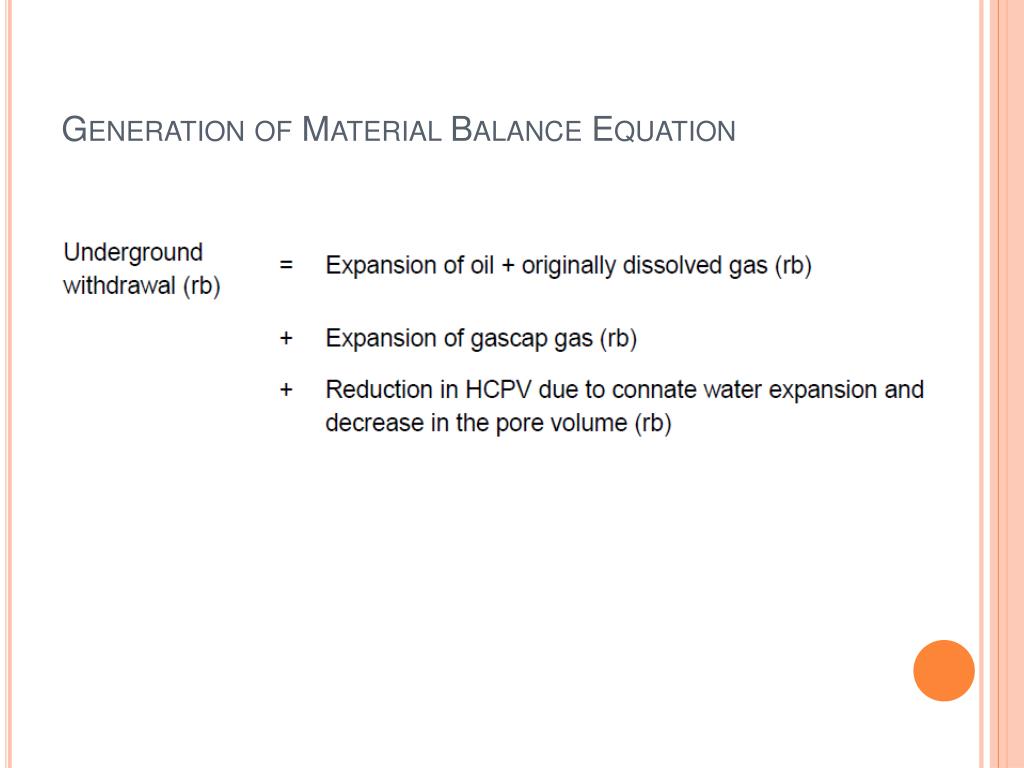

  5. Generation of Material Balance Equation • Expansion of oil plus originally dissolved gas. Liquid expansion: N(Bo-Boi) Liberated gas expansion: N(Rsi-Rs)Bg

  6. Generation of Material Balance Equation • Gas cap expansion:

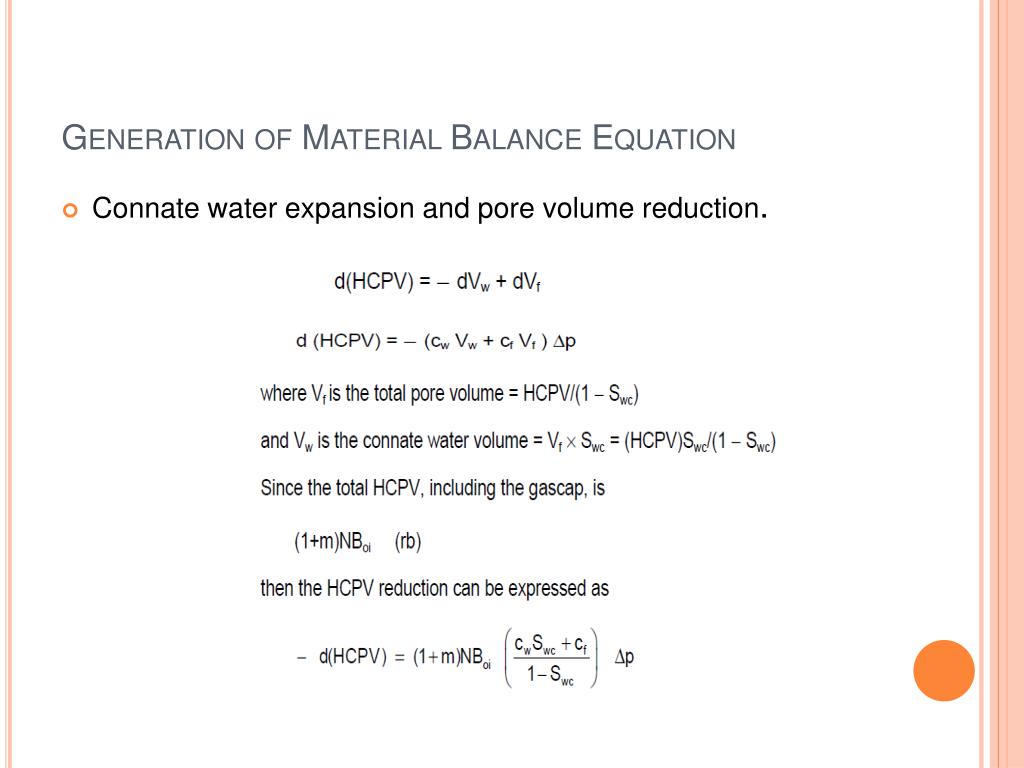

  7. Generation of Material Balance Equation • Connate water expansion and pore volume reduction.

  8. Generation of Material Balance Equation

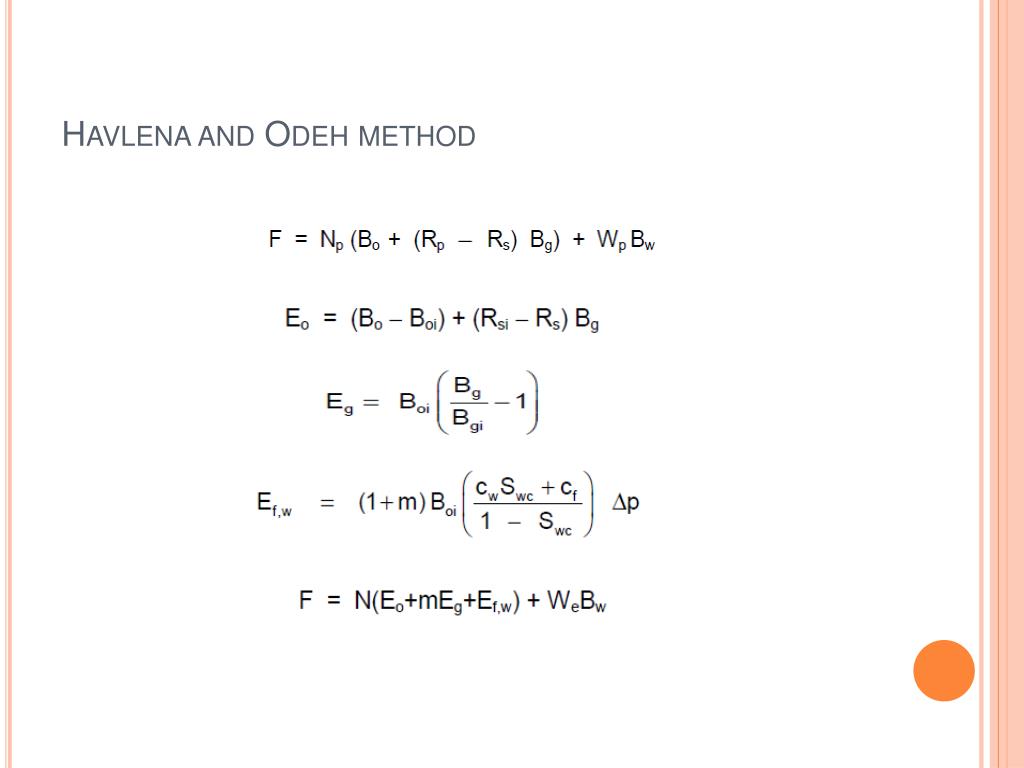

  9. Havlena and Odeh method

  10. Reservoir Drive Mechanisms • Solution gas drive • Gas cap drive • Water Drive • Compaction drive

  11. Solution gas Drive(above the bubble point)

  12. Exercise 1: • Determine the fractional oil recovery during depletion down to the bubble point for the following reservoir:

  13. Solution: • Average compressibility of the oil: • Fractional Recovery:

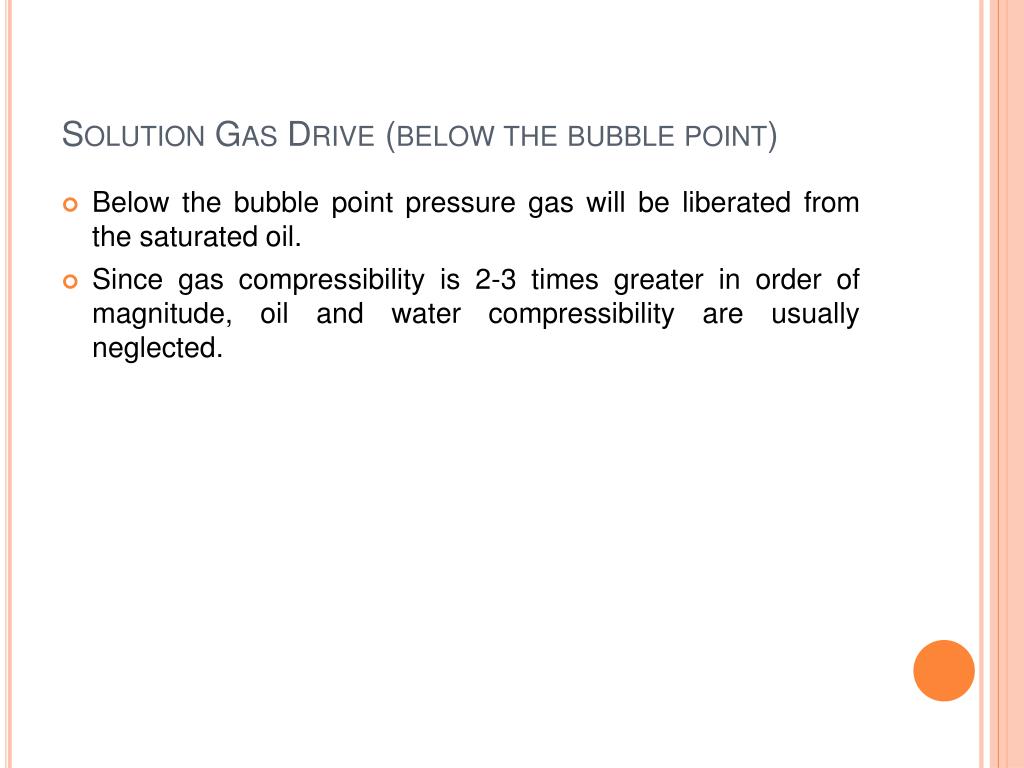

  14. Solution Gas Drive (below the bubble point) • Below the bubble point pressure gas will be liberated from the saturated oil. • Since gas compressibility is 2-3 times greater in order of magnitude, oil and water compressibility are usually neglected.

  15. Exercise 2: • The reservoir described in exercise 1 will be produced down to an abandonment pressure of 900 psi.

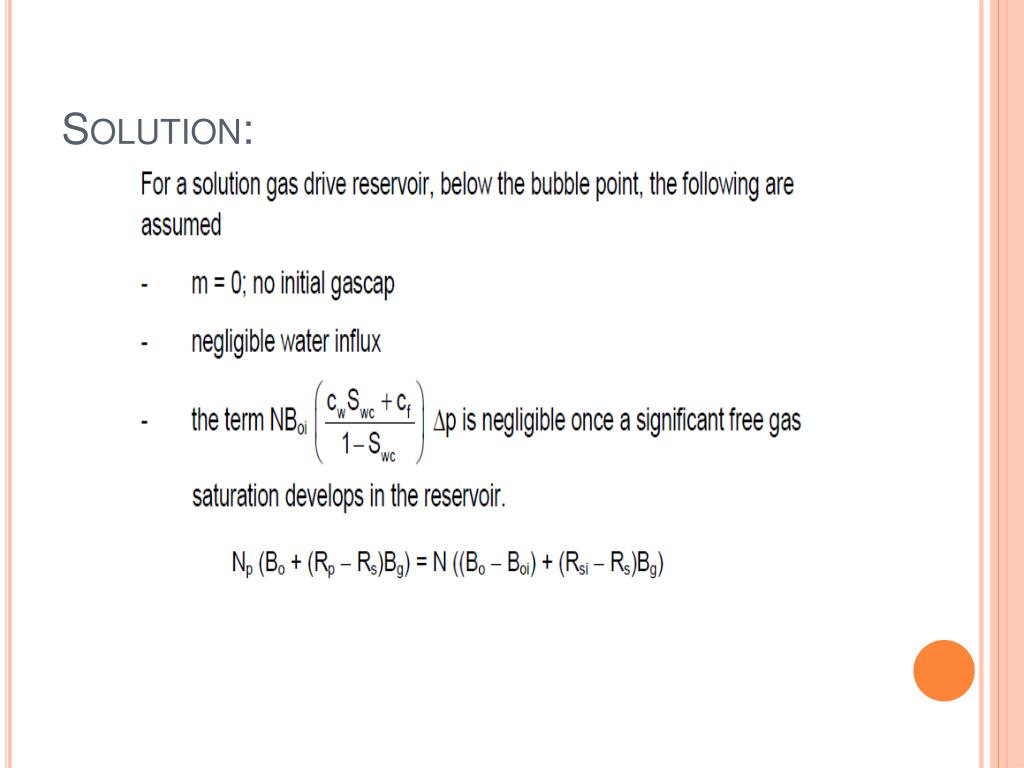

  16. Solution:

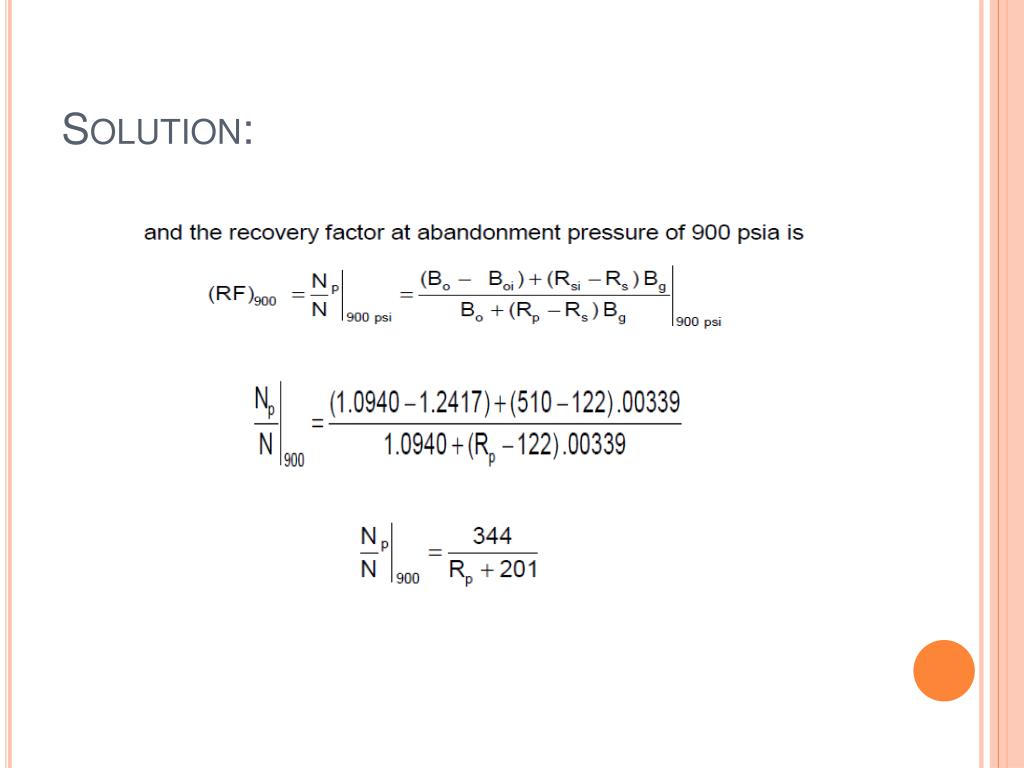

  17. Solution:

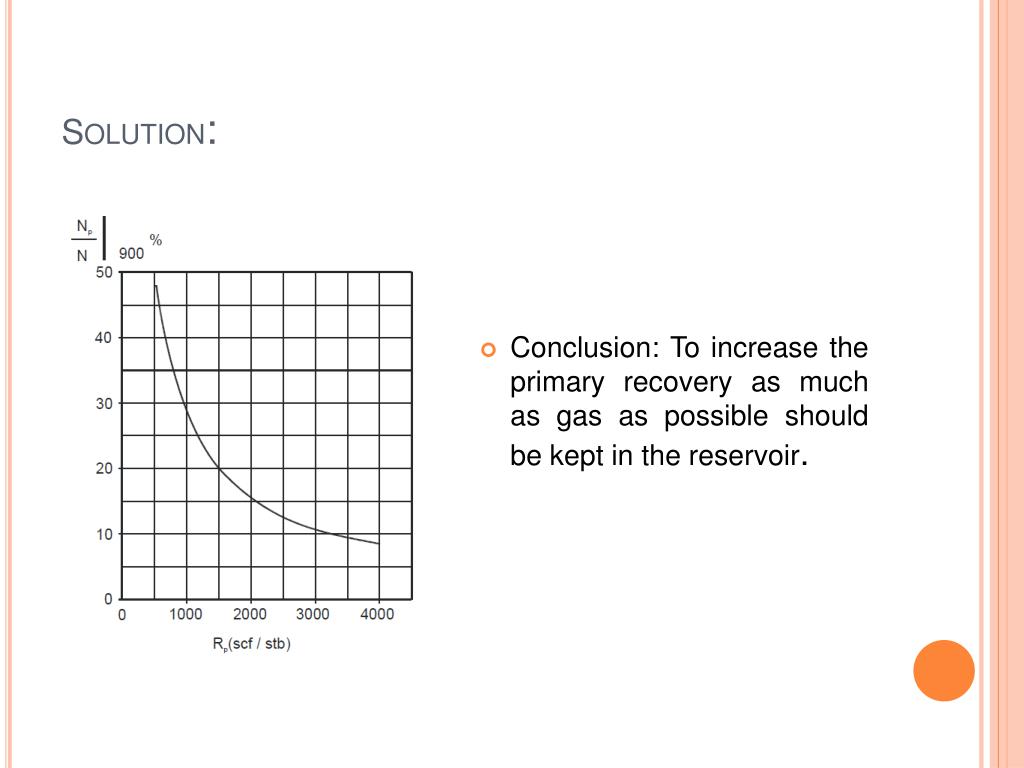

  18. Solution: • Conclusion: To increase the primary recovery as much as gas as possible should be kept in the reservoir.

  19. Gas Cap Drive • For a reservoir in which gas cap is the dominant drive mechanism and compaction and water influx are negligible material balance equation reduces to the following equation:

  20. Exercise 3: • The initial oil volume in a gas cap reservoir is estimated to be 115×10^6 stb. Np and cumulative gas oil ratio is provided in the following table. The size of the gas cap is uncertain and it is estimated to be m=0.4. Do you agree with this number?

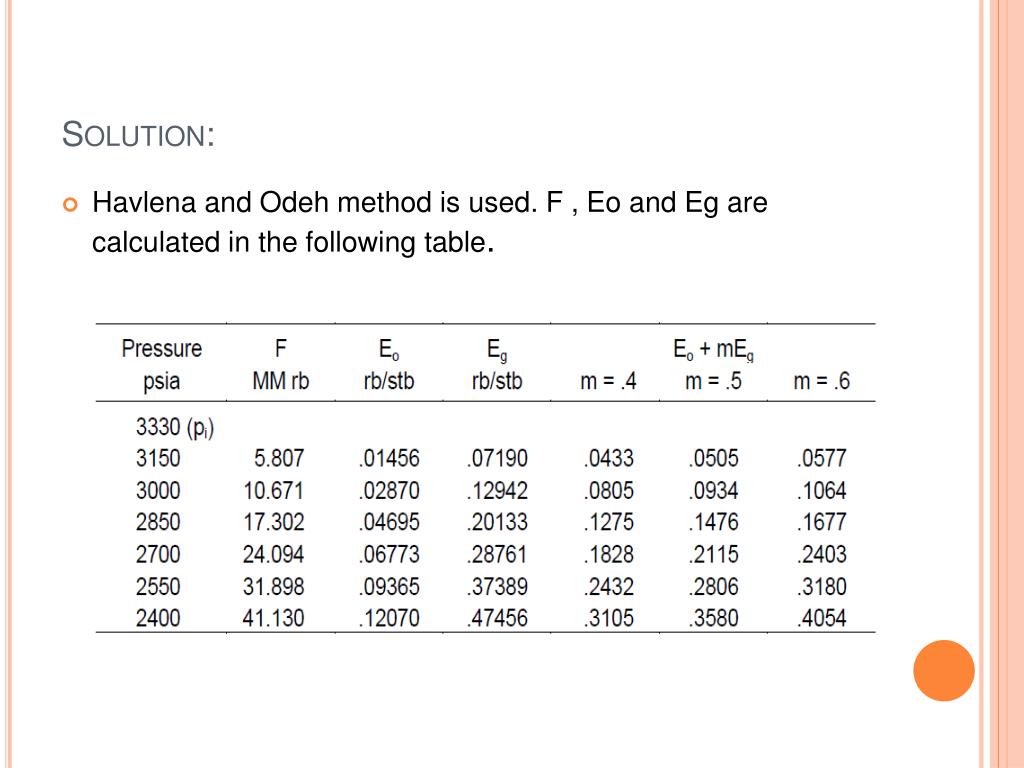

  21. Solution: • Havlena and Odeh method is used. F , Eo and Eg are calculated in the following table.

  22. Solution:

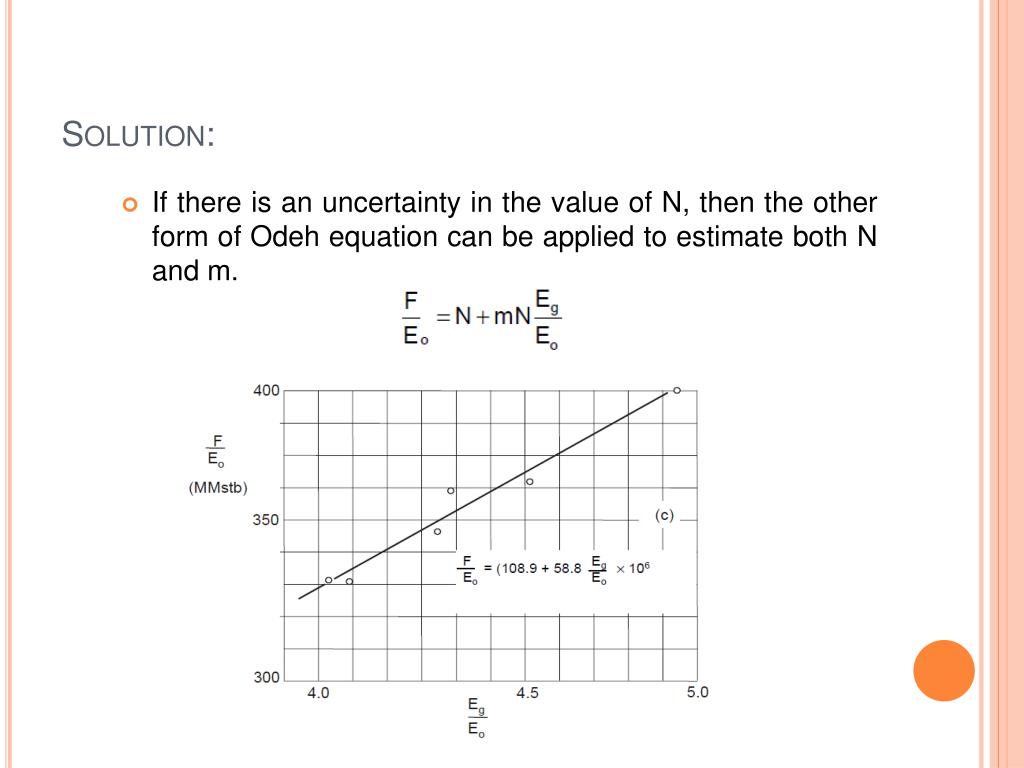

  23. Solution: • If there is an uncertainty in the value of N, then the other form of Odeh equation can be applied to estimate both N and m.

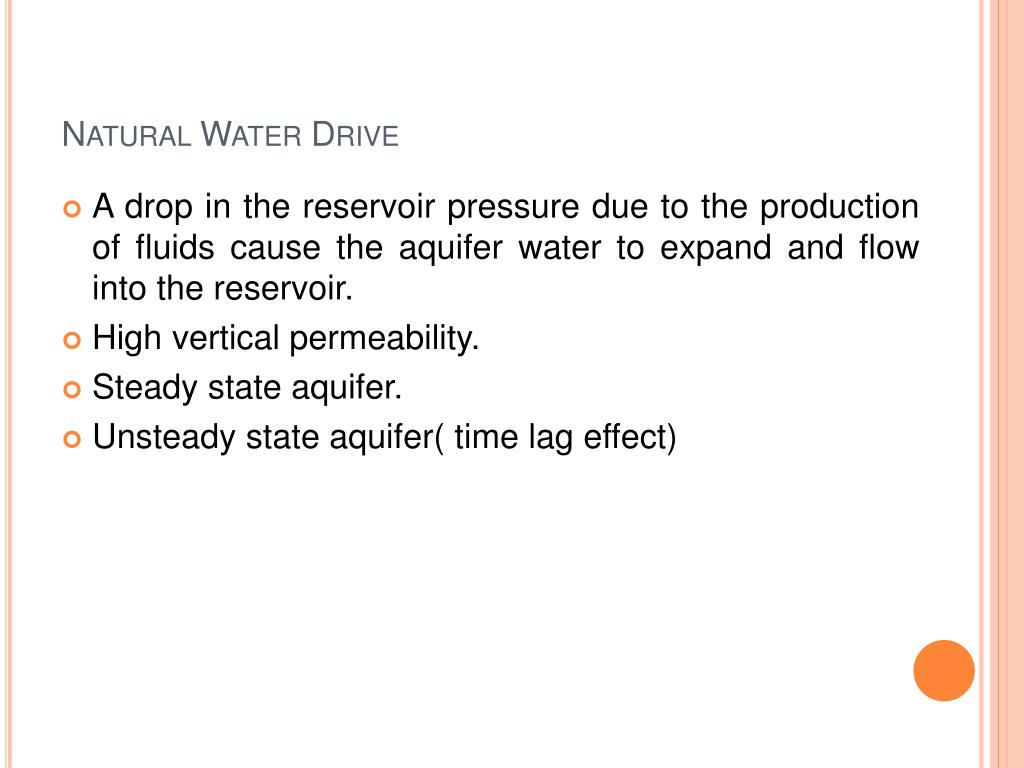

  24. Natural Water Drive • A drop in the reservoir pressure due to the production of fluids cause the aquifer water to expand and flow into the reservoir. • High vertical permeability. • Steady state aquifer. • Unsteady state aquifer( time lag effect)

  25. Natural Water Drive • If there is no initial gas cap in reservoir and compaction effect is ignored:

  26. Natural Water Drive

  27. Compaction Drive • Withdrawal of liquid or gas from a reservoir results in fluid pressure reduction and consequently increase the grain pressure. • Reservoir will compact under higher grain pressure.
