  1. 2N SIM Star Virtual SIM application

  2. System that enables communication between the GSM/3G module and the remote SIM card What is SIM Star?

  3. What is SIM Star? Before Now

  4. Key Benefits • Central management of SIM cards • Save of time and human sources • Dynamical and fixed assignment of SIM cards to gateways

  5. Selling arguments • Open of new markets • Easy management • Business growth

  6. Parts of SIM Star • SIM Star server • SIM box • SIM board • SIM client board • Virtual SIM GSM board

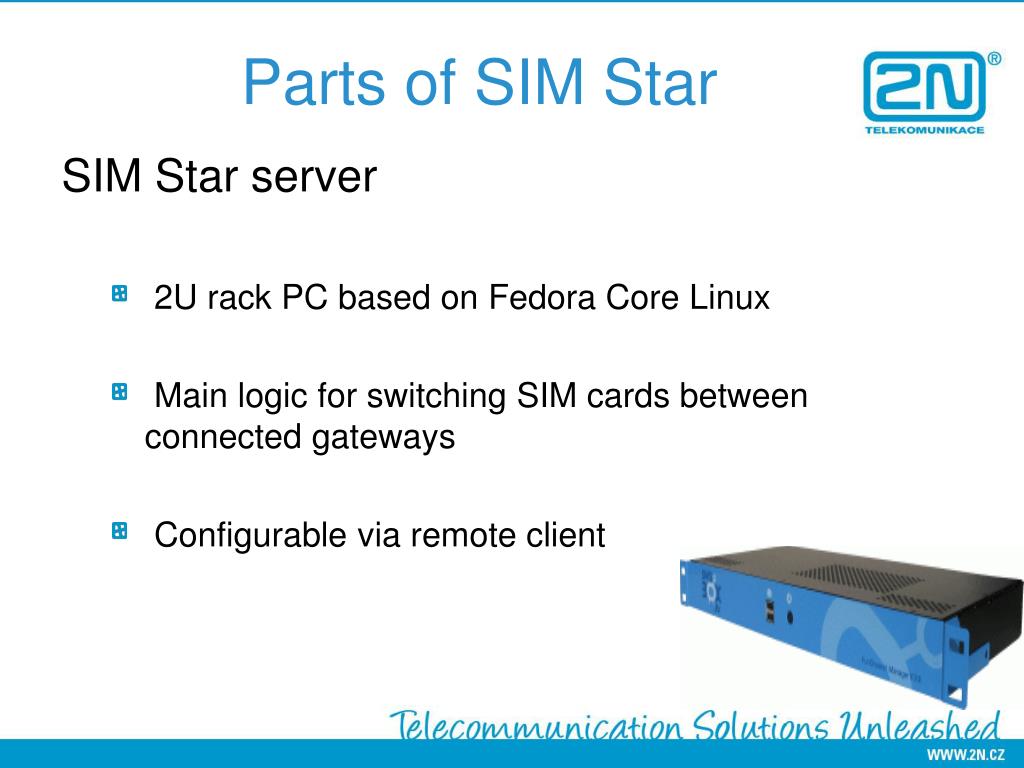

  7. Parts of SIM Star SIM Star server • 2U rack PC based on Fedora Core Linux • Main logic for switching SIM cards between connected gateways • Configurable via remote client

  8. Parts of SIM Star SIM board • Storage for 32 SIM cards • Must be placed in SIM box

  9. Parts of SIM Star SIM box • 3U rack chassis • Up to 18 Sim Boards • Communication with the rest of SIM Star via TCP/IP

  10. Parts of SIM Star SIM Client Board • New card for 2N StarGate / 2N BlueStar / 2N BlueTower • Communication with the rest of SIM Star via TCP/IP

  11. Parts of SIM Star Virtual SIM GSM board • New type of GSM board for 2N StarGate / 2N BlueStar / 2N BlueTower • Communication only with SIMClient via RS485 interface • Contains two SIM holders which serves as a backup

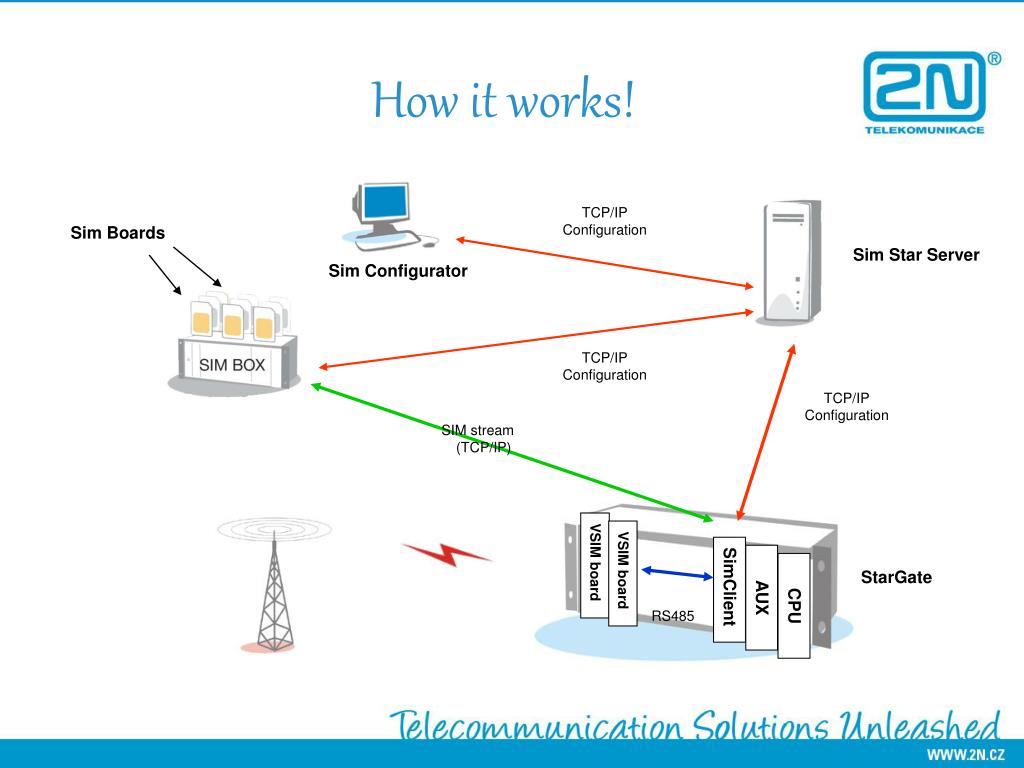

  12. How it works! TCP/IP Configuration Sim Boards SimStarServer SimConfigurator TCP/IP Configuration TCP/IP Configuration SIM stream (TCP/IP) VSIM board VSIM board StarGate SimClient AUX CPU RS485

  13. Features • Easily scalable • Up to 10.000 SIM cards • Easy to configure

  14. Future development • RCU functionality • Automatic credit recharging

  15. Thank you for your attentionFor more information contact us on: sales@2n.cz
