  1. gREEN KaravanGhar Low Carbon Footprint, Sustainable Architecture A Heritage Foundation Initiative for Guided Self-help

  2. Green KaravanGhar HERITAGE FOUNDATION Pakistan-based not-for-profit social & cultural entrepreneur organization established in 1980. Engaged in research, publication and conservation of Pakistan’s cultural heritage and linking livelihoods and humanitarian work with traditional methodologies. UN Recognition Award 2002 for promotion of culture and peace.

  3. Green KaravanGhar KARAVANPAKISTAN KaravanPakistan, earlier KaravanKarachi, formed in 2000 as community and youth outreach arm of Heritage Foundation, engaged in advocacy and heritage safeguarding through volunteer effort.

  4. Green KaravanGhar Project Area: Matta, Upper Swat And Marghazar, Lower Swat

  5. Green KaravanGhar PHILOSOPHICAL BASIS OF Green KaravanGhar (GKG) • Indigenous Solutions for Post-Disaster Communities for Low Cost Options • Use of Organic, Local Materials and Improved Vernacular Techniques for Low Carbon Footprint • Community Participation for Ownership/Pride • Involvement of GKG Volunteers/Universities/Colleges for Change in Mindset • Skill Training and Capacity Building of Local Workforce for Livelihood Opportunities • Model Based on Research & Experimentation – Journey to Green KaravanGhar

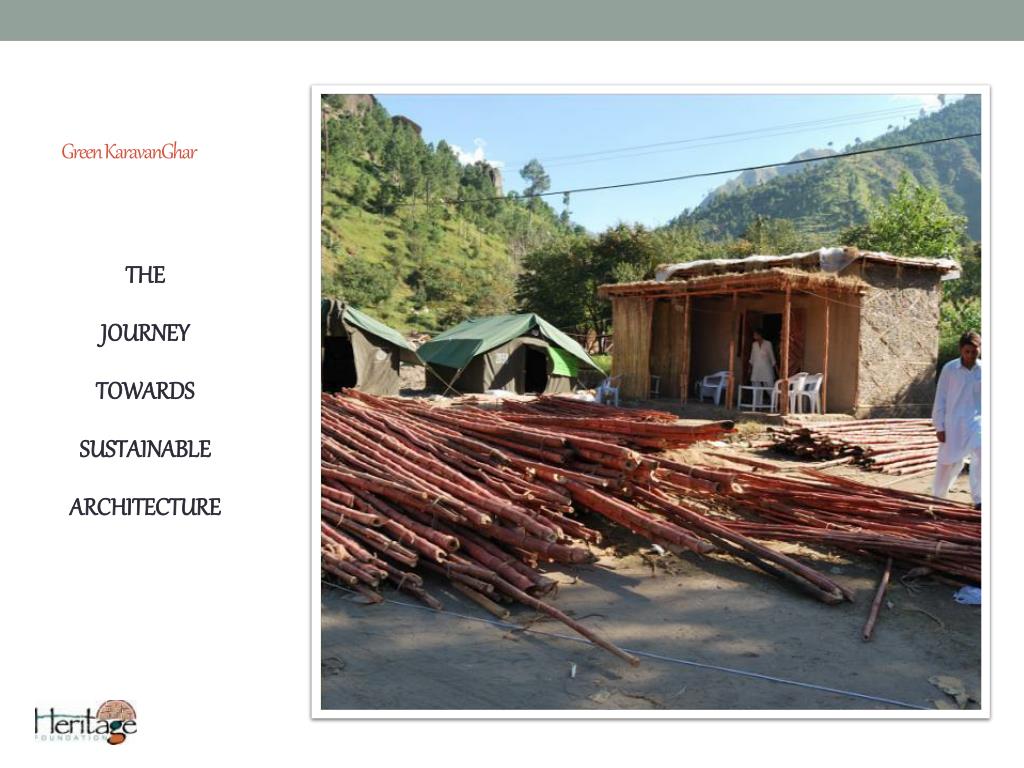

  6. Green KaravanGhar THE JOURNEY TOWARDS SUSTAINABLE ARCHITECTURE

  7. Green KaravanGhar OCTOBER, 2005: KaravanGhar Materials: Stone, wood, Lime mortar, G.I. Mesh and Galvanized Sheets for roof DECEMBER, 2005: Improved KaravanGhar Materials: Stone, Wood, Mud/Lime Plaster, Galvanized Sheets for roof

  8. Green KaravanGhar 2007: Bathrooms for Executive Tents Materials: Dhijji in Stone and Wood, Mud/Lime Plaster, Galvanized Sheets for roof 2007: Dhijji in Household Kitchens Materials: Dhijji in Stone and Wood , Mud/Lime Plaster, Galvanized Sheets for roof

  9. Green KaravanGhar Materials: Stone Masonry & Timber Bracing, Mud/Lime Plaster, Mud/Lime Roof on Timber Planks 2008: Laundry, Pantry and Store at HF Base Camp Materials: Dhijji in Timber and Stone Filling, Mud/Lime Plaster, Mud/Lime Roof on Timber Planks 2008: Research House at HF Base Camp

  10. Green KaravanGhar 2008: Household Washrooms, Kodar, Siran Valley Materials: Dhijji Walls, Mud/Lime Roofs on Timber Planks MAY 2009: Community Kitchens, Mardan IDP Camp Materials: Use of Bamboo Structure, Matting and Mud/Lime Plaster

  11. Green KaravanGhar November 2009: Winter House Materials: Bamboo Supports, Timber Plinth and Ring Beams, Timber Joists. Bamboo strips for Roof Planking with Mud/Lime Finish July 2010: Swat Women’s Centre Experimental Unit Materials: Entire Bamboo Structure and Mud/Lime Plaster on Stone Filling

  12. Green KaravanGhar August 2010: Green KaravanGhar Experimental Unit, HF Base Camp Materials: Entire Bamboo Structure, Stone Filling, Mud/Lime Roof Finish September, 2010: Green KaravanGharDemo Unit, Marghazar, Swat Materials: Bamboo, Stone and Mud/Lime Plaster

  13. Green KaravanGhar CONSTRUCTION METHODOLOGY Timeline

  14. Green KaravanGhar DETAILS Room Size: 18’x10’3” Veranda: 7’0” wide Wash: 3’6”x4’6” WC: 3’6”x4’6” Kitchen: 7’0”x4’6” Total Floor Area: 310 sft Plan Green KaravanGhar Option for Swat for Rapid Construction Built in Flexibility for Areas with Varying Material Availability Section

  15. Green KaravanGhar Leveling and excavation of site to be done by community after layout by skilled artisans team Foundation to be laid by community Under guidance by skilled artisans team

  16. Green KaravanGhar Stone Masonry in Foundation by skilled artisans team and community Erection of Bamboo Posts for Room and Veranda by skilled artisans team

  17. Green KaravanGhar Pre-fabrication of Bamboo Ring Beam and Joists provides training for Community Erection of bamboo beams and joists by skilled artisans team with community help

  18. Green KaravanGhar Bamboo roof planking by community Completion of Dhijji filling with stone pieces. Mud brick, burnt brick pieces, material from debris can also be used for filling

  19. Green KaravanGhar Roof with PVC sheets and lime/mud finish Final mud layer on walls and finished floor. Stone paving for washroom, W.C. and Kitchen

  20. Green KaravanGhar Demo Unit at Koray, Matta

  21. Green KaravanGhar COMMUNITY VISIT DEMO UNIT, KORAY
