  1. Formation et Analyse d’ImagesSession 8 Daniela Hall 14 November 2005

  2. Course Overview • Session 1 (19/09/05) • Overview • Human vision • Homogenous coordinates • Camera models • Session 2 (26/09/05) • Tensor notation • Image transformations • Homography computation • Session 3 (3/10/05) • Camera calibration • Reflection models • Color spaces • Session 4 (10/10/05) • Pixel based image analysis • 17/10/05 course is replaced by Modelisation surfacique

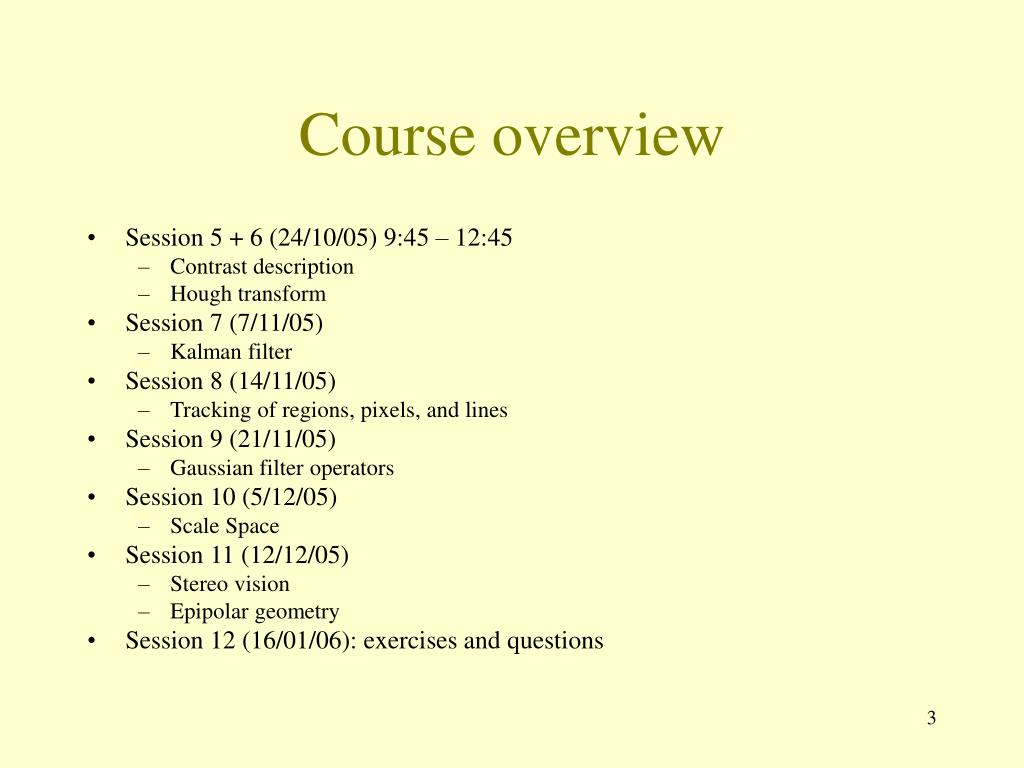

  3. Course overview • Session 5 + 6 (24/10/05) 9:45 – 12:45 • Contrast description • Hough transform • Session 7 (7/11/05) • Kalman filter • Session 8 (14/11/05) • Tracking of regions, pixels, and lines • Session 9 (21/11/05) • Gaussian filter operators • Session 10 (5/12/05) • Scale Space • Session 11 (12/12/05) • Stereo vision • Epipolar geometry • Session 12 (16/01/06): exercises and questions

  4. Session overview • Tracking of objects • Architecture of the robust tracker • Tracking using Kalman filter • Tracking using CONDENSATION

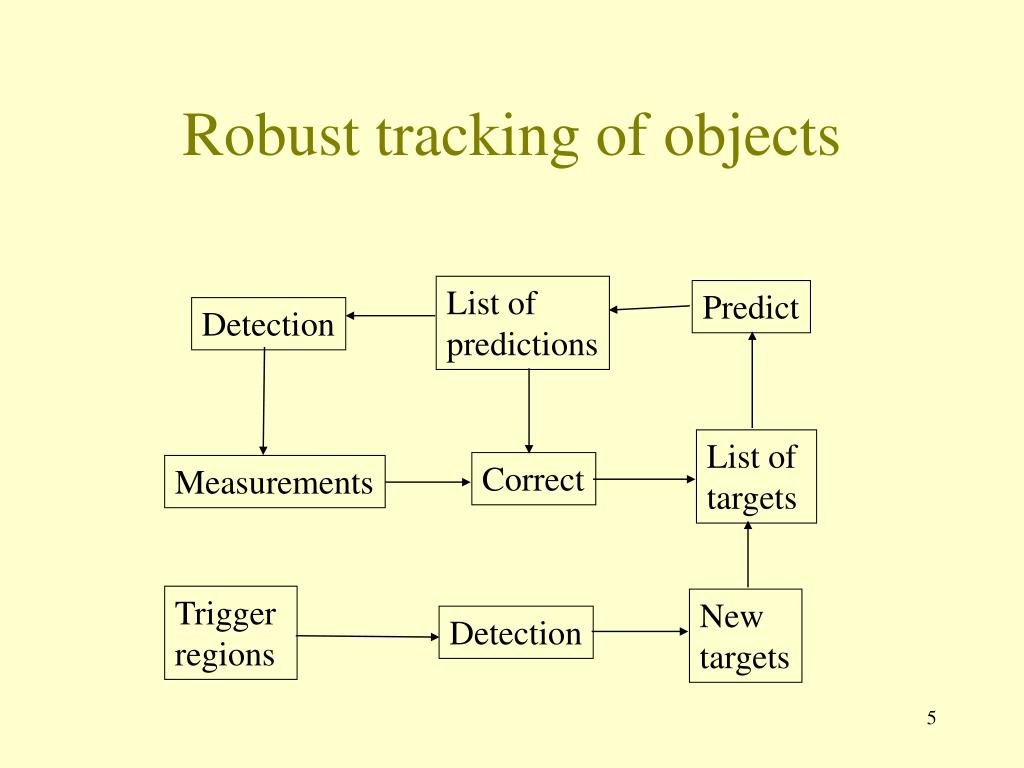

  5. Robust tracking of objects List of predictions Predict Detection List of targets Correct Measurements Trigger regions New targets Detection

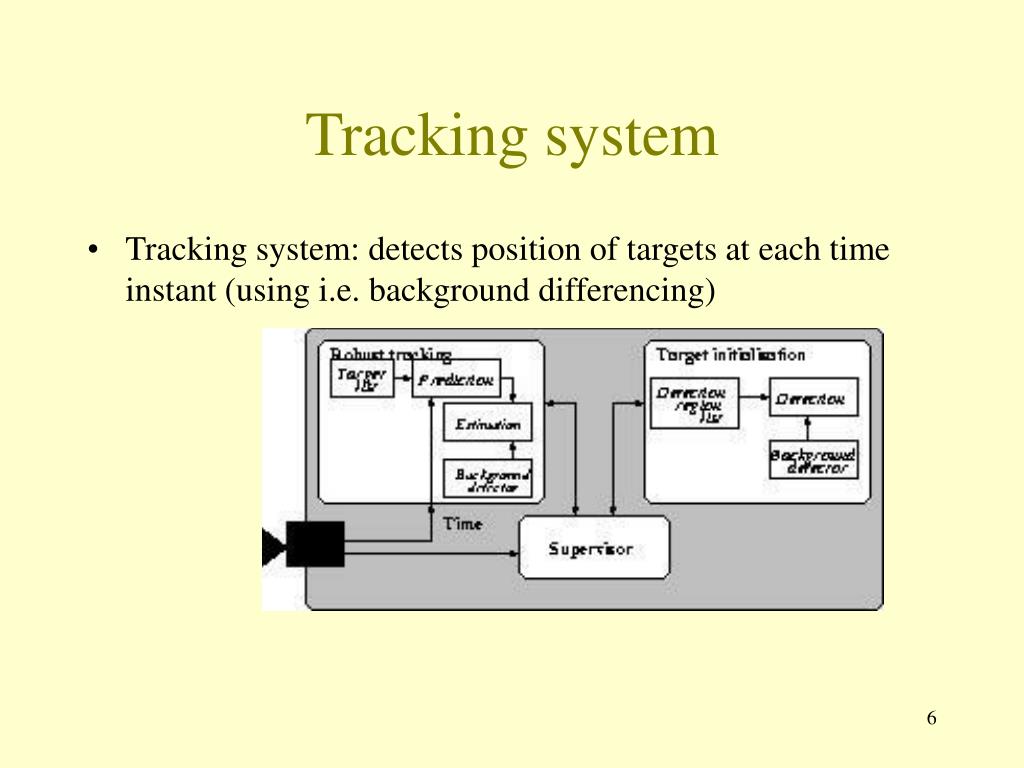

  6. Tracking system • Tracking system: detects position of targets at each time instant (using i.e. background differencing)

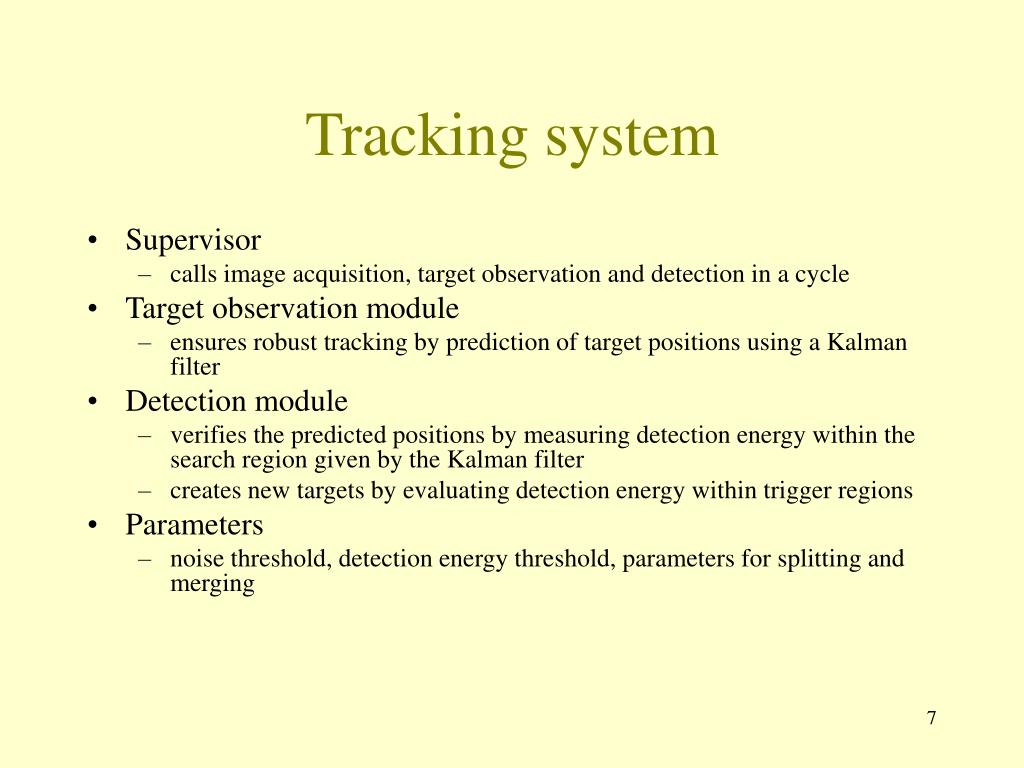

  7. Tracking system • Supervisor • calls image acquisition, target observation and detection in a cycle • Target observation module • ensures robust tracking by prediction of target positions using a Kalman filter • Detection module • verifies the predicted positions by measuring detection energy within the search region given by the Kalman filter • creates new targets by evaluating detection energy within trigger regions • Parameters • noise threshold, detection energy threshold, parameters for splitting and merging

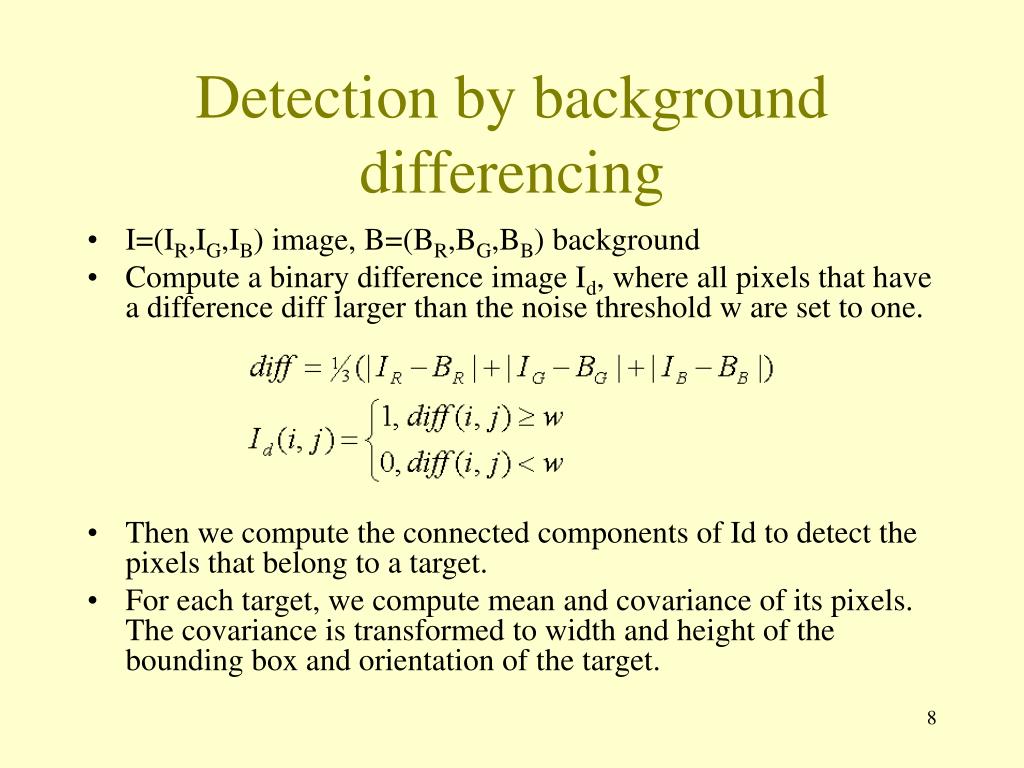

  8. Detection by background differencing • I=(IR,IG,IB) image, B=(BR,BG,BB) background • Compute a binary difference image Id, where all pixels that have a difference diff larger than the noise threshold w are set to one. • Then we compute the connected components of Id to detect the pixels that belong to a target. • For each target, we compute mean and covariance of its pixels. The covariance is transformed to width and height of the bounding box and orientation of the target.

  9. Real-time target detection • Computing connected components for an image is computationally expensive. • Idea: • Restrict search of targets to a small number of search regions. • These regions are: • Entry regions marked by the user • Search region obtained from the Kalman filter that predicts the next most likely position of a current target.

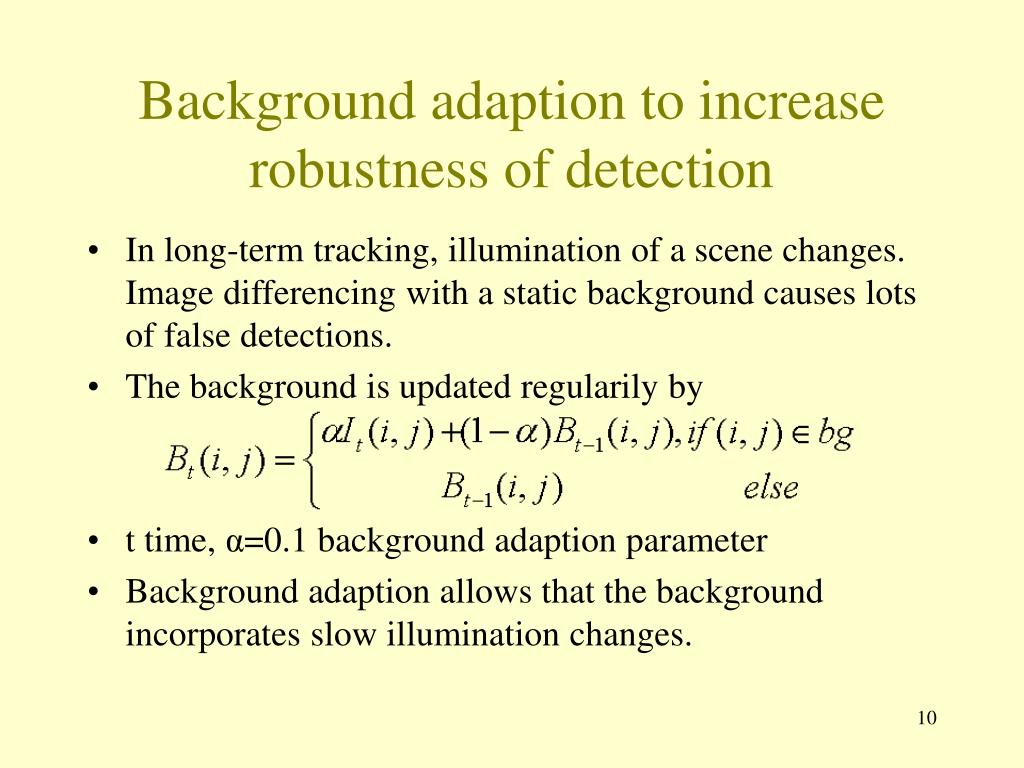

  10. Background adaption to increase robustness of detection • In long-term tracking, illumination of a scene changes. Image differencing with a static background causes lots of false detections. • The background is updated regularily by • t time, α=0.1 background adaption parameter • Background adaption allows that the background incorporates slow illumination changes.

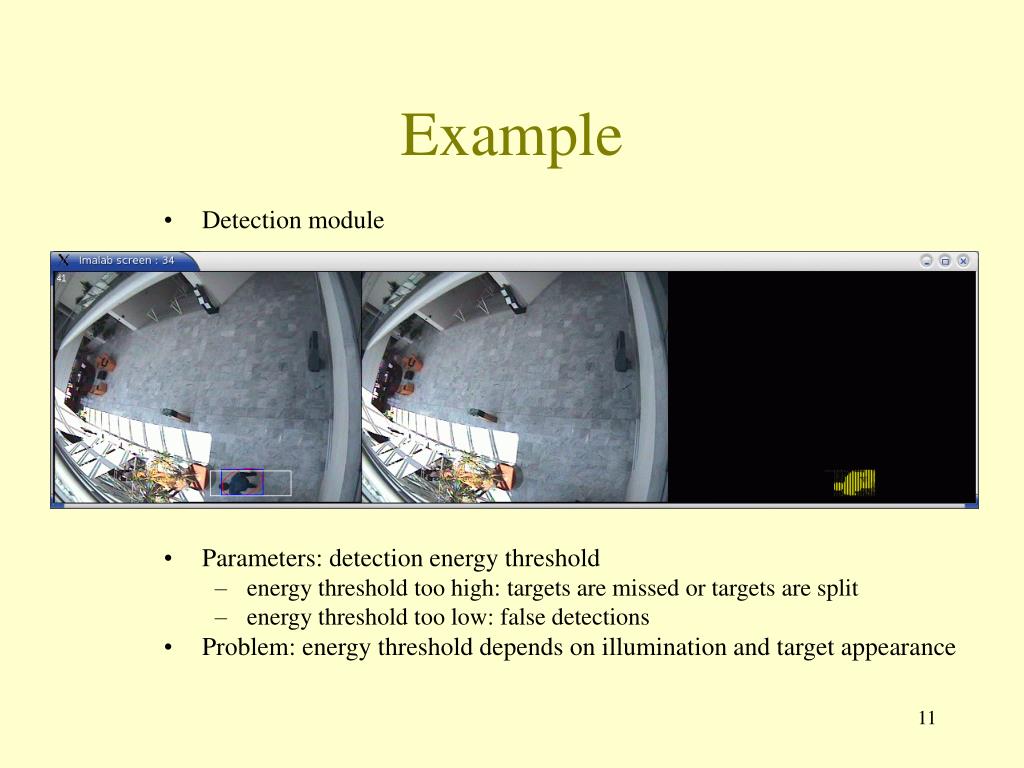

  11. Example • Detection module • Parameters: detection energy threshold • energy threshold too high: targets are missed or targets are split • energy threshold too low: false detections • Problem: energy threshold depends on illumination and target appearance

  12. Session overview • Tracking of objects • Architecture of the robust tracker • Tracking using Kalman filter • Tracking using CONDENSATION

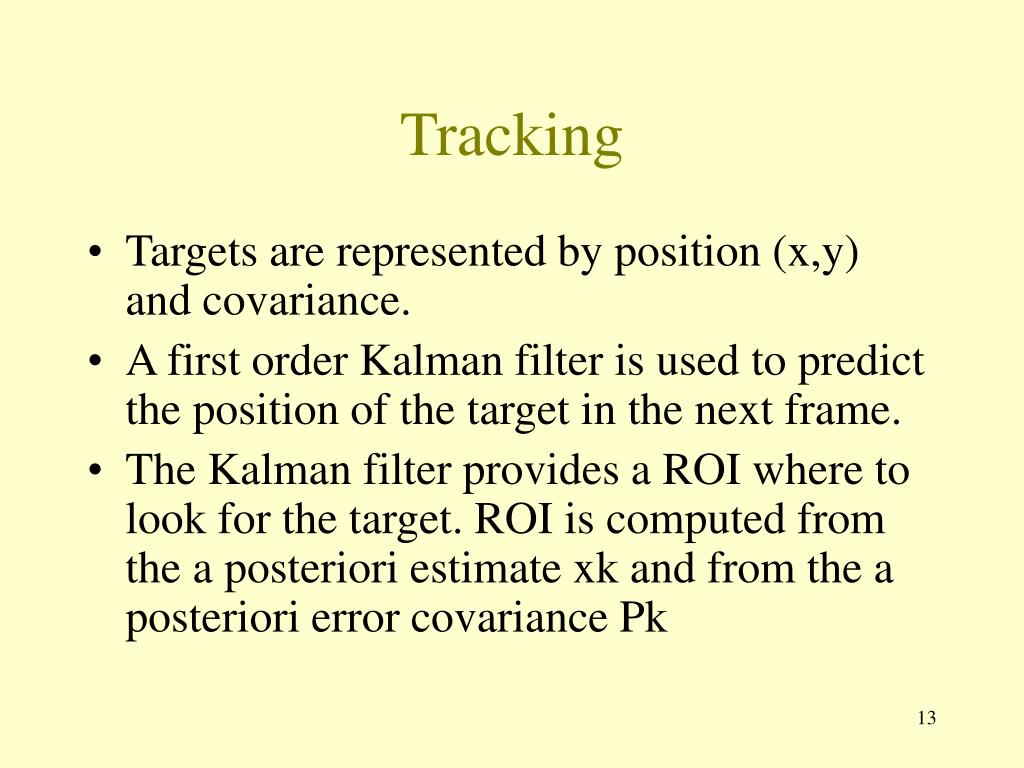

  13. Tracking • Targets are represented by position (x,y) and covariance. • A first order Kalman filter is used to predict the position of the target in the next frame. • The Kalman filter provides a ROI where to look for the target. ROI is computed from the a posteriori estimate xk and from the a posteriori error covariance Pk

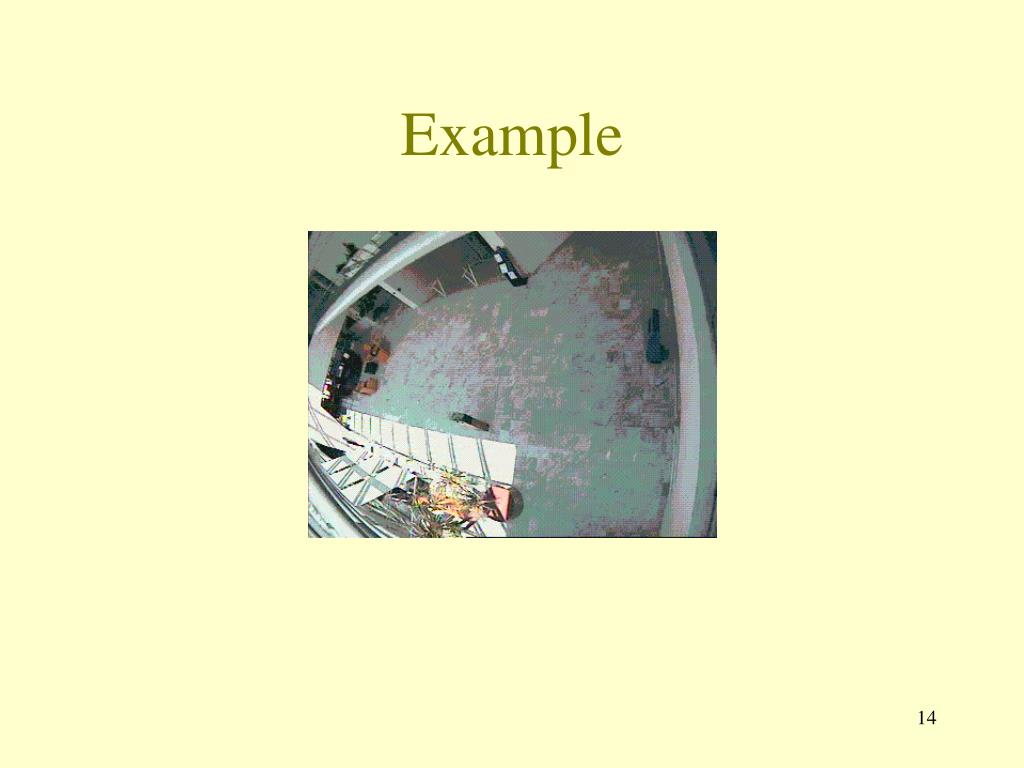

  14. Example

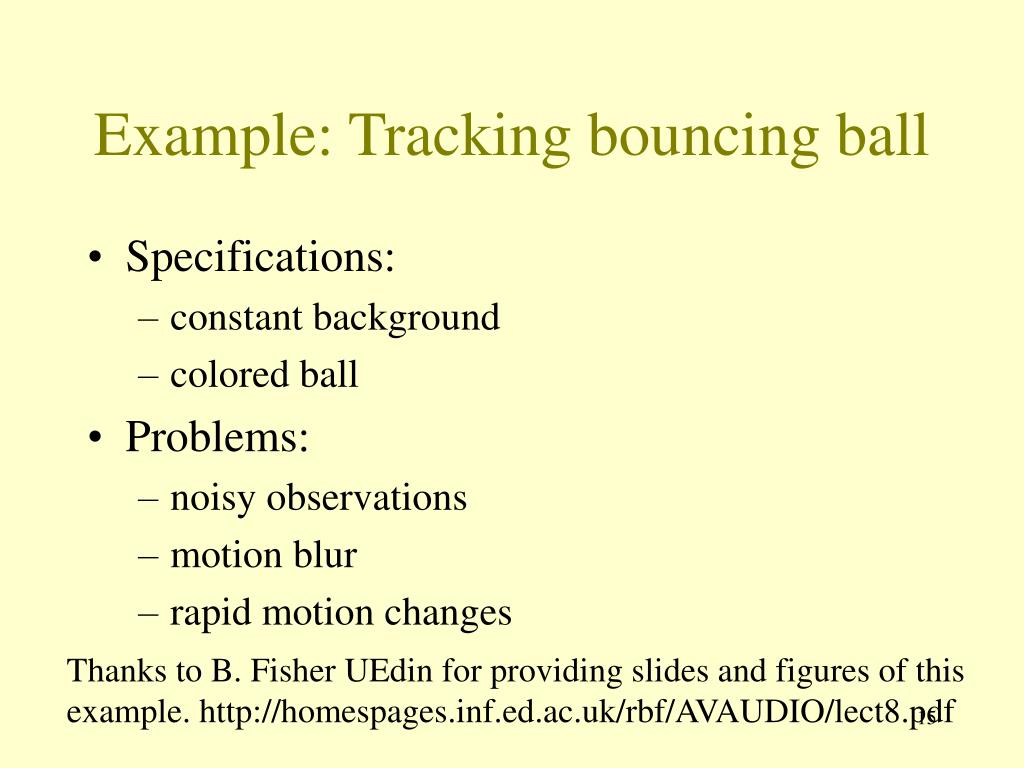

  15. Example: Tracking bouncing ball • Specifications: • constant background • colored ball • Problems: • noisy observations • motion blur • rapid motion changes Thanks to B. Fisher UEdin for providing slides and figures of this example. http://homespages.inf.ed.ac.uk/rbf/AVAUDIO/lect8.pdf

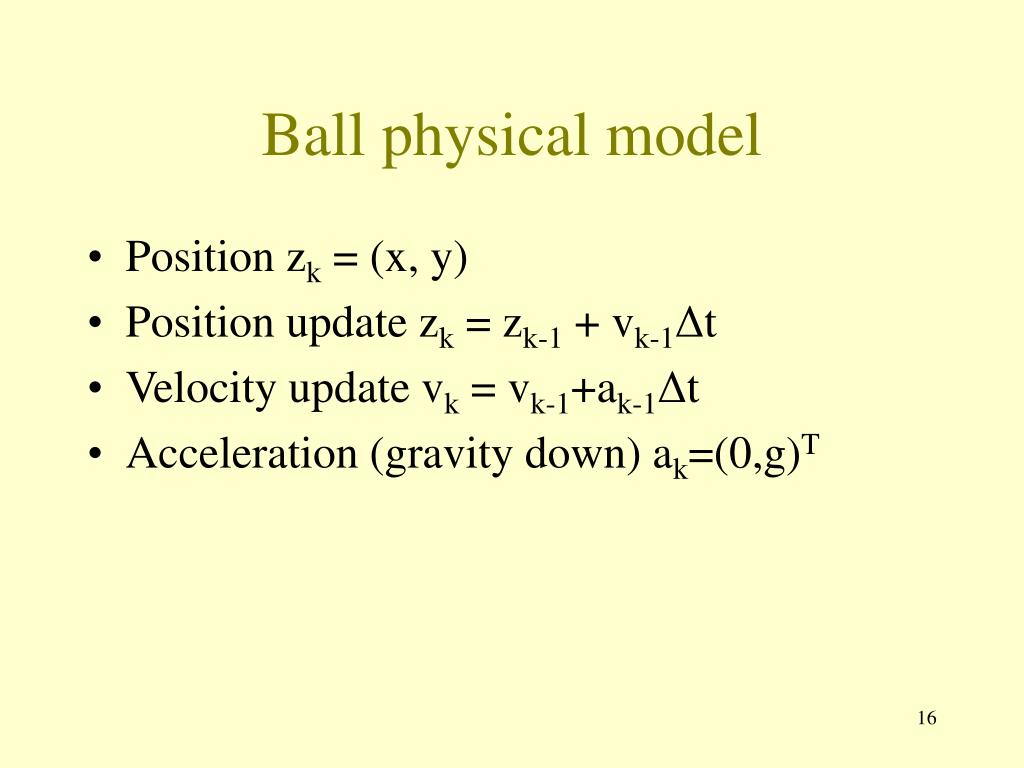

  16. Ball physical model • Position zk = (x, y) • Position update zk = zk-1 + vk-1Δt • Velocity update vk = vk-1+ak-1Δt • Acceleration (gravity down) ak=(0,g)T

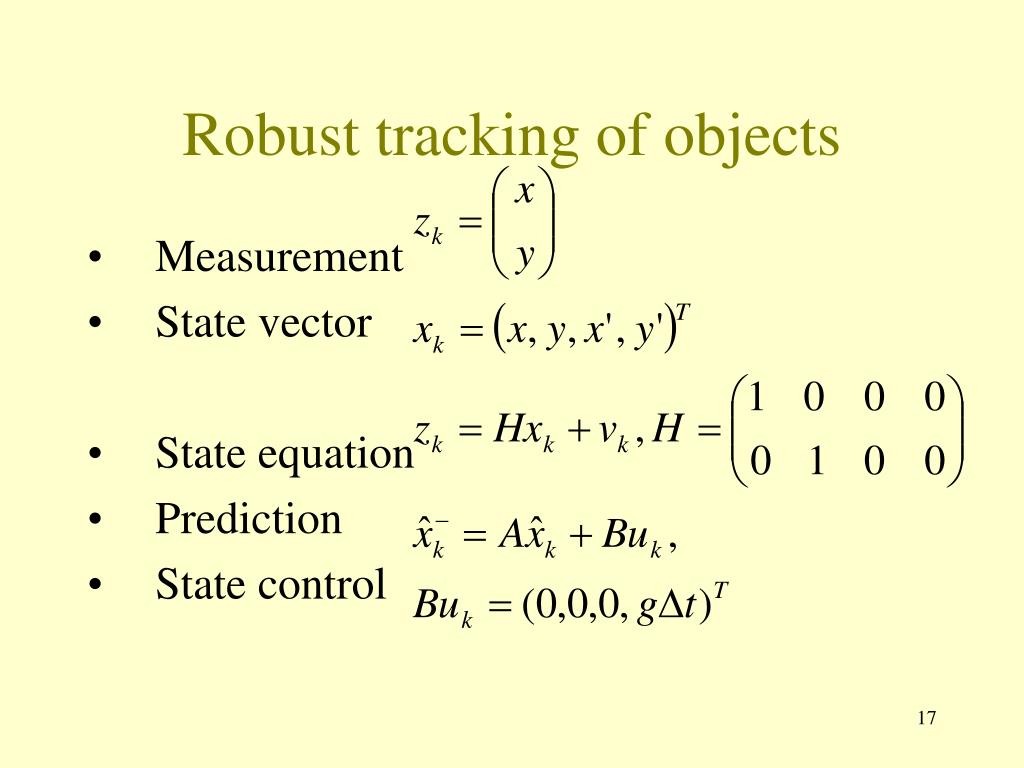

  17. Robust tracking of objects • Measurement • State vector • State equation • Prediction • State control

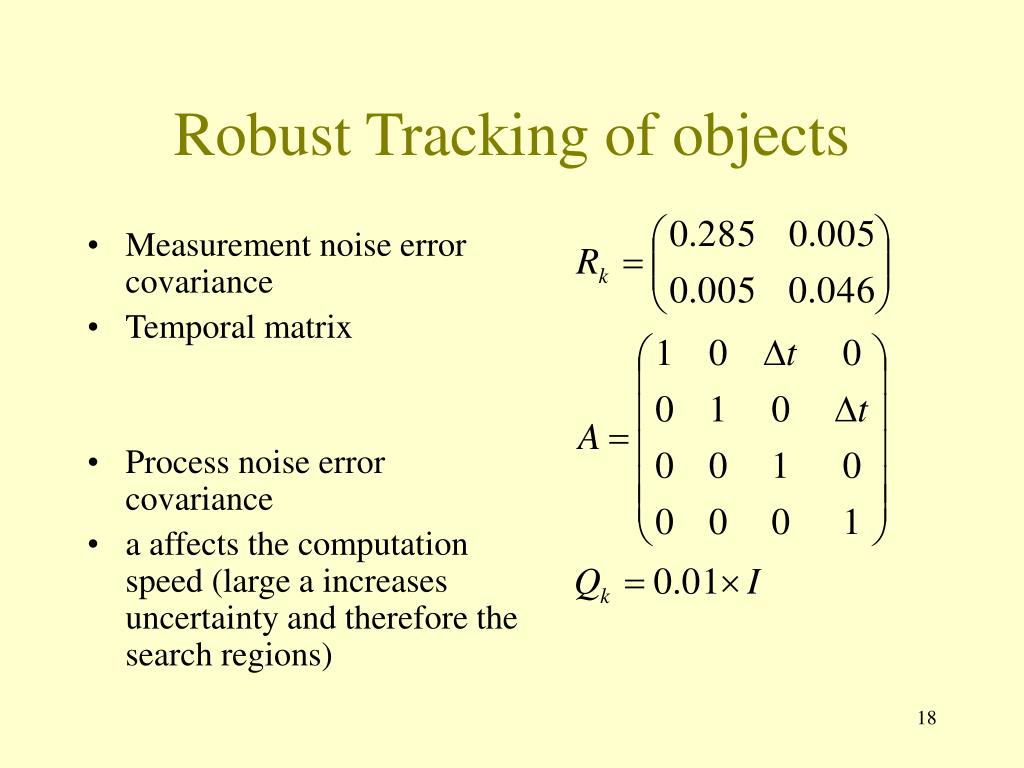

  18. Robust Tracking of objects • Measurement noise error covariance • Temporal matrix • Process noise error covariance • a affects the computation speed (large a increases uncertainty and therefore the search regions)

  19. Kalman filter successes

  20. Kalman filter failures

  21. Kalman filter analysis • smoothes noisy observations • dynamic model fails at bounce and stop • could estimate ball radius • could plot a boundary of 95% likelihood of ball position (the boundary would grow when the fit is bad).

  22. Session overview • Tracking of objects • Architecture of the robust tracker • Tracking using Kalman filter • Tracking using CONDENSATION

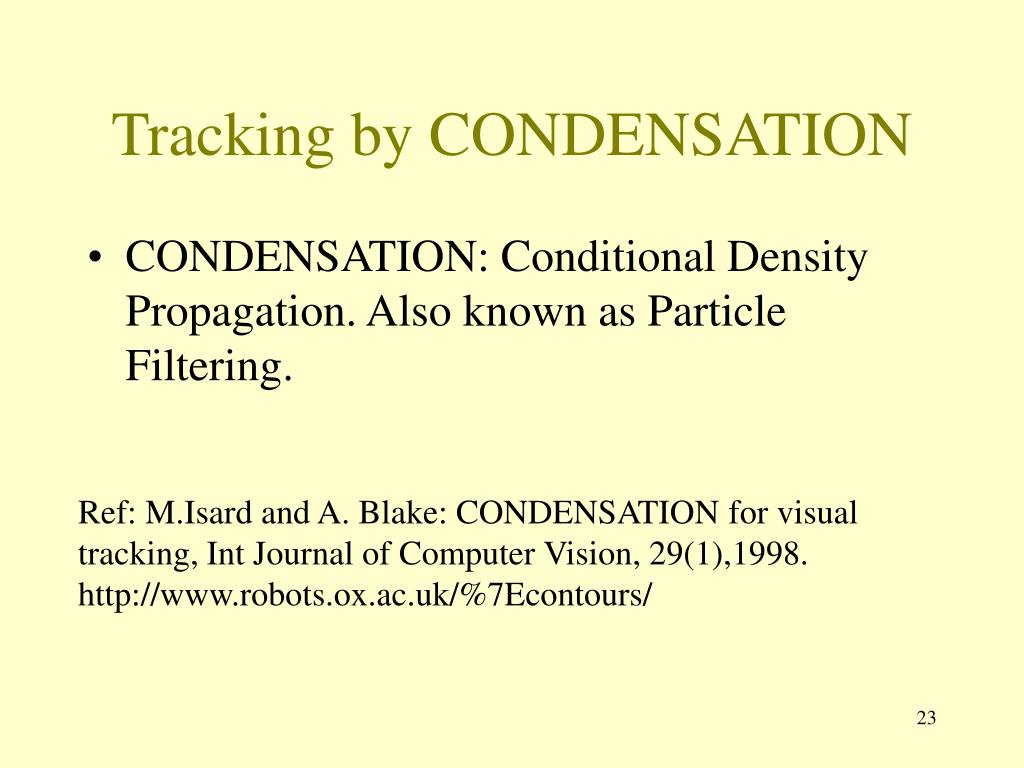

  23. Tracking by CONDENSATION • CONDENSATION: Conditional Density Propagation. Also known as Particle Filtering. Ref: M.Isard and A. Blake: CONDENSATION for visual tracking, Int Journal of Computer Vision, 29(1),1998. http://www.robots.ox.ac.uk/%7Econtours/

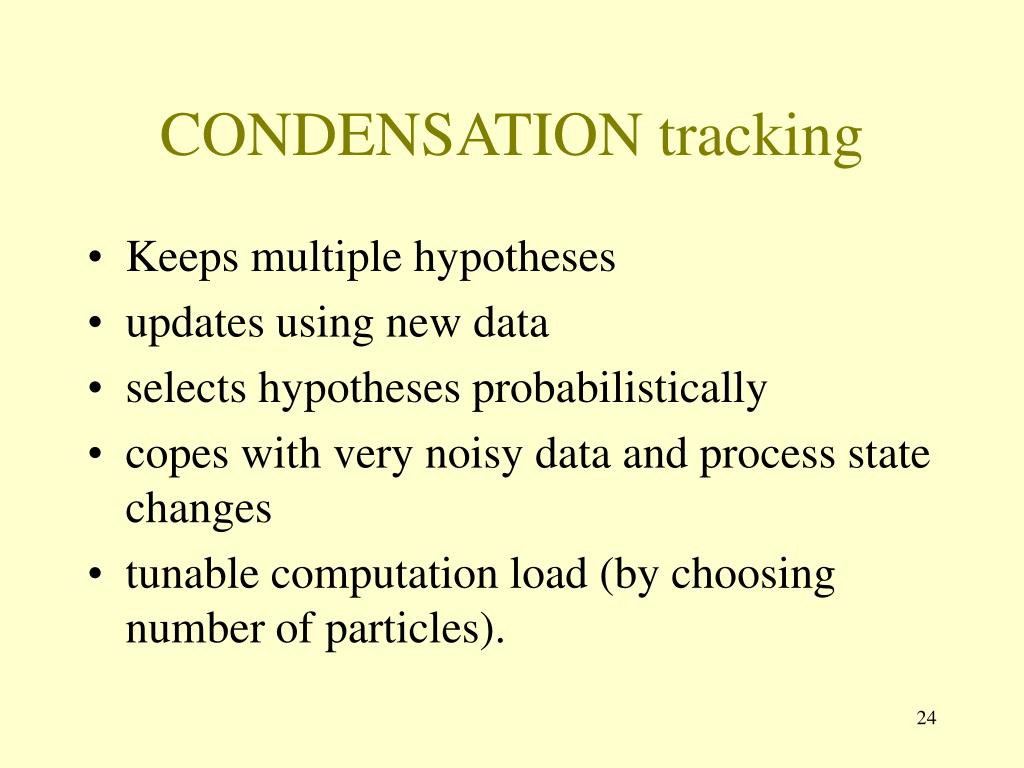

  24. CONDENSATION tracking • Keeps multiple hypotheses • updates using new data • selects hypotheses probabilistically • copes with very noisy data and process state changes • tunable computation load (by choosing number of particles).

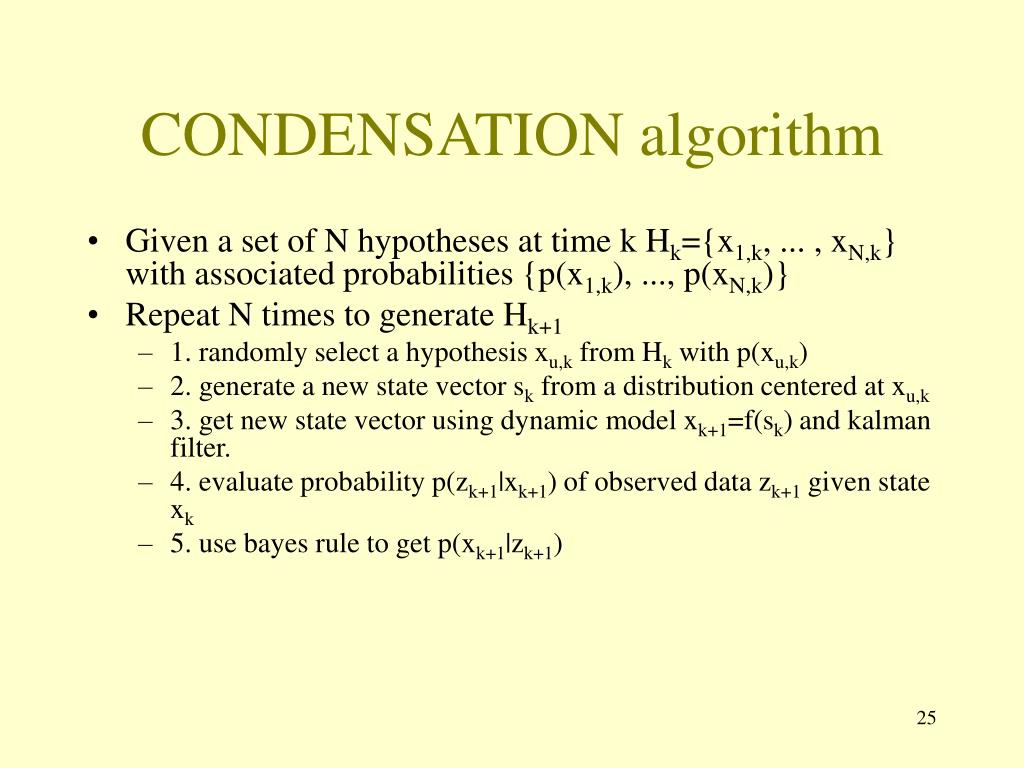

  25. CONDENSATION algorithm • Given a set of N hypotheses at time k Hk={x1,k, ... , xN,k} with associated probabilities {p(x1,k), ..., p(xN,k)} • Repeat N times to generate Hk+1 • 1. randomly select a hypothesis xu,k from Hk with p(xu,k) • 2. generate a new state vector sk from a distribution centered at xu,k • 3. get new state vector using dynamic model xk+1=f(sk) and kalman filter. • 4. evaluate probability p(zk+1|xk+1) of observed data zk+1 given state xk • 5. use bayes rule to get p(xk+1|zk+1)

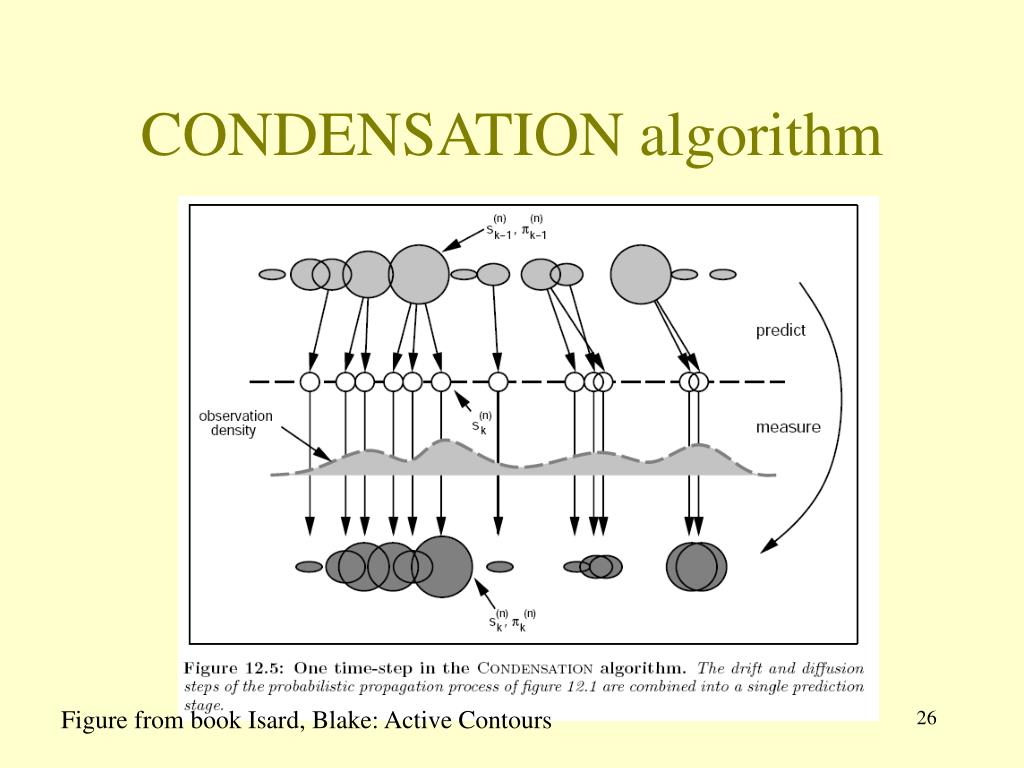

  26. CONDENSATION algorithm Figure from book Isard, Blake: Active Contours

  27. Why does condensation tracking work? • many slightly different hypotheses suggests that maybe we find one that fits better. • dynamic model allows to switch between different motion models • Motion models of bouncing ball: bounce, freefall, stop • sampling by probability weeds out bad hypotheses

  28. Tracking of bouncing ball • Select 100 hypotheses xk with probabilities p(xk) • use estimated covariance P() to create state samples sk • define a situation switching model

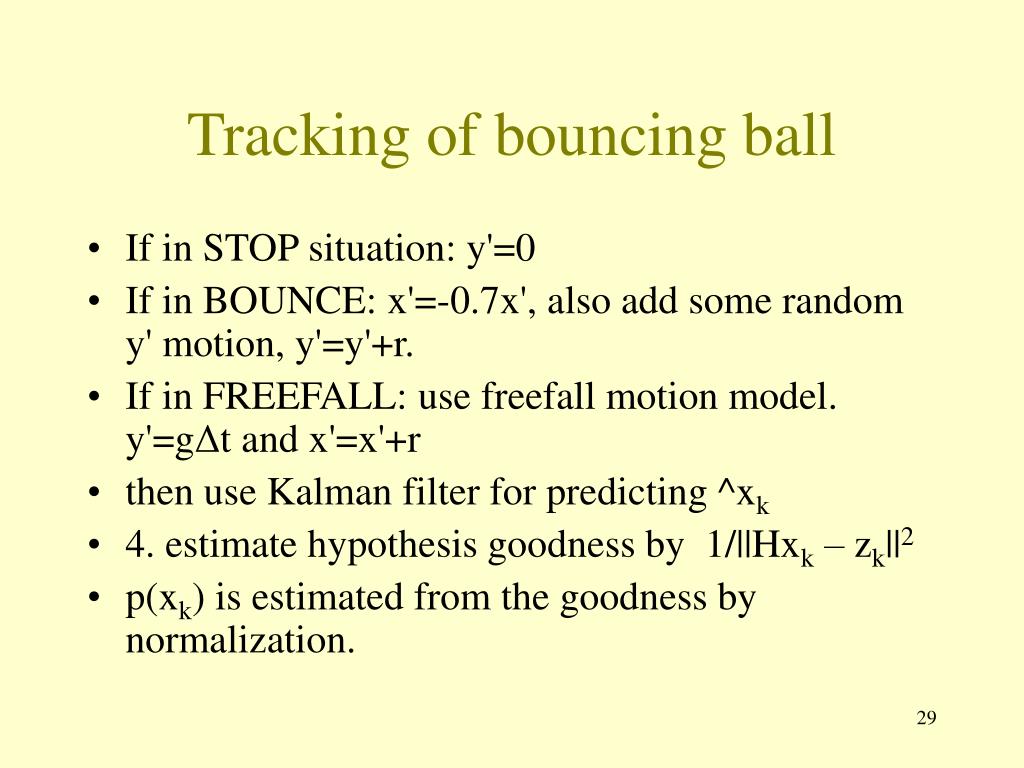

  29. Tracking of bouncing ball • If in STOP situation: y'=0 • If in BOUNCE: x'=-0.7x', also add some random y' motion, y'=y'+r. • If in FREEFALL: use freefall motion model. y'=gΔt and x'=x'+r • then use Kalman filter for predicting ^xk • 4. estimate hypothesis goodness by 1/||Hxk – zk||2 • p(xk) is estimated from the goodness by normalization.

  30. Example of sampling effects

  31. Kalman filter failures fixed

  32. Comparison Kalman vs condensation • Kalman: • assumes Gaussian motion model. • Easy to parametrize. • Fast. • Condensation: • can track objects with non-gaussian motion. • very good for multi-modal motion models • simple algorithm • reasonably fast
