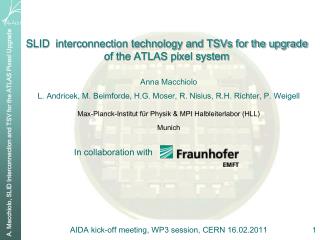

  1. SLID interconnection technology and TSVs for the upgrade of the ATLAS pixel system Anna Macchiolo L. Andricek, M. Beimforde, H.G. Moser, R. Nisius, R.H. Richter, P. Weigell Max-Planck-Institut für Physik & MPI Halbleiterlabor (HLL) Munich In collaboration with AIDA kick-off meeting, WP3 session, CERN 16.02.2011

  2. SLID interconnection and TSVs for a new module concept

  3. Thin planar pixel sensors

  4. Sensor thinning technology at MPP-HLL • For the n-in-p wafers the process completed up to step #4. The handle wafer will be used as a support also during the ASIC interconnection phase. • Production characteristics: • 8 n-in-p 6“ wafers. • Different active thicknesses: 75μm and 150μm. • Complete electrical characterization of pixel devices before and after irradiation – CCE on strips

  5. 150 mm Sensor thinning technology at MPP-HLL • For the n-in-p wafers the process completed up to step #4. The handle wafer will be used as a support also during the ASIC interconnection phase. CCE measurements after irradiations

  6. MPP 3D R&D Program: demonstrator module • Step I: • ASIC thinned to 200 µm • thin sensors / ASIC interconnection using SLID • No TSV, integrated fan-out on sensor for service connection • Step II: • TSV etched in the read-out chip on the front-side on every wire bonding pad to route signal and services to the ASIC backside • ASIC thinned to 50 µm • thin sensors /ASIC interconnection using SLID

  7. MPP 3D R&D Program: demonstrator module • Step I: • ASIC thinned to 200 µm • thin sensors / ASIC interconnection using SLID • No TSV, integrated fan-out on sensor for service connection • Step II: • TSV etched in the read-out chip on the front-side on every wire bonding pad to route signal and services to the ASIC backside • ASIC thinned to 50 µm • thin sensors /ASIC interconnection using SLID

  8. MPP 3D R&D Program: demonstrator module • Step I: • ASIC thinned to 200 µm • thin sensors / ASIC interconnection using SLID • No TSV, integrated fan-out on sensor for service connection • Step II: • TSV etched in the read-out chip on the front-side on every wire bonding pad to route signal and services to the ASIC backside • ASIC thinned to 50 µm • thin sensors /ASIC interconnection using SLID

  9. The SLID interconnection

  10. EMFT SLID Process • Alternative to bump bonding (less process steps “lower cost” (EMFT)). • Small pitch possible (~ 20 mm, depending on pick & place precision). • Stacking possible (next bonding process does not affect previous bond). • Wafer to wafer and chip to wafer possible. • However: no rework possible.

  11. Daisy chains: wafer-to-wafer SLID • SLID efficiencies measured with daisy chains structures (wafer to wafer connections): A. Macchiolo et al. “Application of a new interconnection technology for the ATLAS pixel upgrade at SLHC“ http://cdsweb.cern.ch/record/1234896/files/p216.pdf • “Chip to wafer” interconnection with the daisy chain structures resulted in a chip placement precision on the handle wafer not accurate enough (chips of different sizes, stemming from different wafers).

  12. SLID interconnection of FE-I3 pixels (I) FE-I3 chips after electroplating of the SLID pads Sensor-ASIC interconnection is achieved with a “chip to wafer” approach: • 4 n-in-p 6” SOI sensor wafers with pixels sensors FE-I3 compatible have been left undiced. • Electroplating to create the SLID pads has been performed at the wafer level both on sensors and chips SLIDpads in the FE-I3 chip over the original openings in the passivation layer SLIDpads in the chip balcony to increase the mechanical stability • SLID pads of 27x60 mm2: determination of optimal SLID pad placement and size based on results of daisy chain production.

  13. FE-I3 pixels SLID interconnection of FE-I3 pixels (II) SOI sensor wafer with the connected FE-I3 chips after release of the handle wafer • After electroplating, FE-I3 chips are singularized and reconfigured on a 6” handle wafer. This is removed after the interconnection to the sensor wafer. • First assembly, composed by FE-I3 chips interconnected with SLID to a 75 mm thick sensor wafer, has been finished last week. • Due to the misalignment (~20 mm) in the placement of a fraction of the chips on the handle wafer only 5-6 assemblies over the original 10, can be read-out . • The test of the FE-I3 modules will be carried out with the ATLAS USBpix read-out. SLID cross-section

  14. Pull test with FE-I3 chips interconnected with SLID • Pull test performed on modules assembled with bad FE-I3 chips and dummy sensors. • 0.5 – 0.8 g per single SLID connection needed to disconnect the FE-I3 chip Weight needed for the disconnection of a single FE-I3 module

  15. Through Silicon Vias

  16. handling substrate Trough Silicon Vias processing handling substrate CMOS bulk Etching (Bosch process) on FE-I3 8” wafers. 60 µm deep TSVs with lateral dimensions of 3 x 10 µm2 Back thinning to expose the TSV, backside isolation Insulation, filling with tungsten Electroplating, metallization on the ASIC back side • Face to face connection for our project (also die up connections are possible). • 2.5 Ohm/per via (including SLID). • No significant impact on chip performance (test performed on MOS transistors). Electroplating, metallization on the ASIC front side

  17. TSV in the FE-I3 chips • First etching trials • Performed in the un-thinned FE-I3 chips of one designated test-wafer • Etched to a depth of ~ 69 mm • Rough cut/break along the long direction of the test structure shows the structure of the vias and of the trench around them • Preparation of the hot FE-I3 wafer • Aluminum etching on the fan-out pads • Nitride etch • Local planarisation by depositing and etching of SACVD-Oxide • Next steps • Perform via etching and filling in the hot FE-I3 wafer • Connect the readout chip with SLID to the hot sensor wafers  measure the module with the USBPix system

  18. Summary and Outlook • MPP is developing a new pixel module with: • Thin planar pixel sensors (75 mm and 150 mm thick) on SOI wafers • 3D integration with SLID and ICV (Fraunhofer EMFT) • Wafer-to-wafer SLID: high interconnection efficiency • FE-I3 chips were connected to a SOI sensor wafers with SLID. Soon to be measured with the ATLAS USBPix system • TSVs etched on test FE-I3 wafer. First photolithographic steps on the hot FE-I3 wafer.
