  1. Automatic 3D Face RecognitionSystem Biometric Authentication 695410042 邱彥霖 491410044 龔士傑

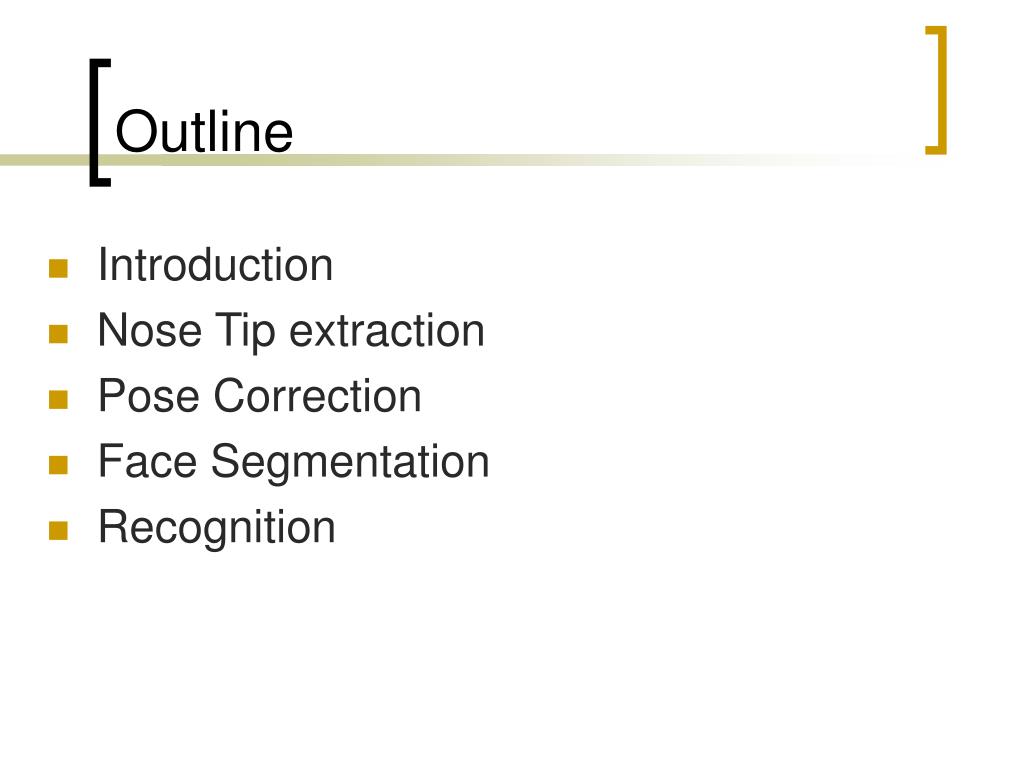

  2. Outline • Introduction • Nose Tip extraction • Pose Correction • Face Segmentation • Recognition

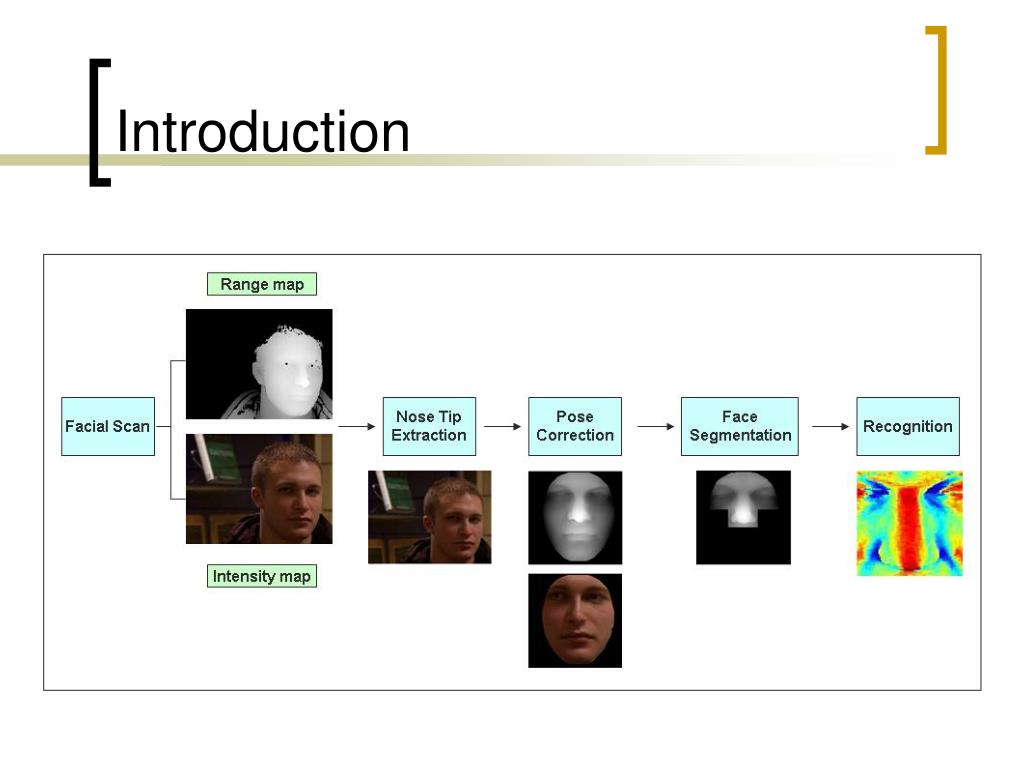

  3. Introduction

  4. Nose Tip extraction

  5. Reference [1] X. Lu and A. K. Jain. "Multimodal facial feature extraction for automatic 3D face recognition," Technical Report MSU-CSE-05-22, Department of Computer Science, Michigan State University, East Lansing, Michigan, August 2005. [2] X. Lu and Anil K. Jain, "Automatic Feature Extraction for Multiview 3D Face Recognition," Proc. 7th IEEE International Conference on Automatic Face and Gesture Recognition (FG2006), pp. 585-590, Southampton, UK, Apr. 2006. [3] M.L. Koudelka, M.W. Koch, T.D. Russ, A prescreener for 3D face recognition using radial symmetry and the Hausdorff fraction, in: IEEE Workshop on Face Recognition Grand Challenge Experiments, June 2005. [4] A. S. Mian, M. Bennamoun and R. A. Owens, “Automatic 3D Face Detection, Normalization and Recognition”, 3DPVT, 2006.

  6. Face Segmentation [1] X. Lu and A. K. Jain. "Multimodal facial feature extraction for automatic 3D face recognition.”

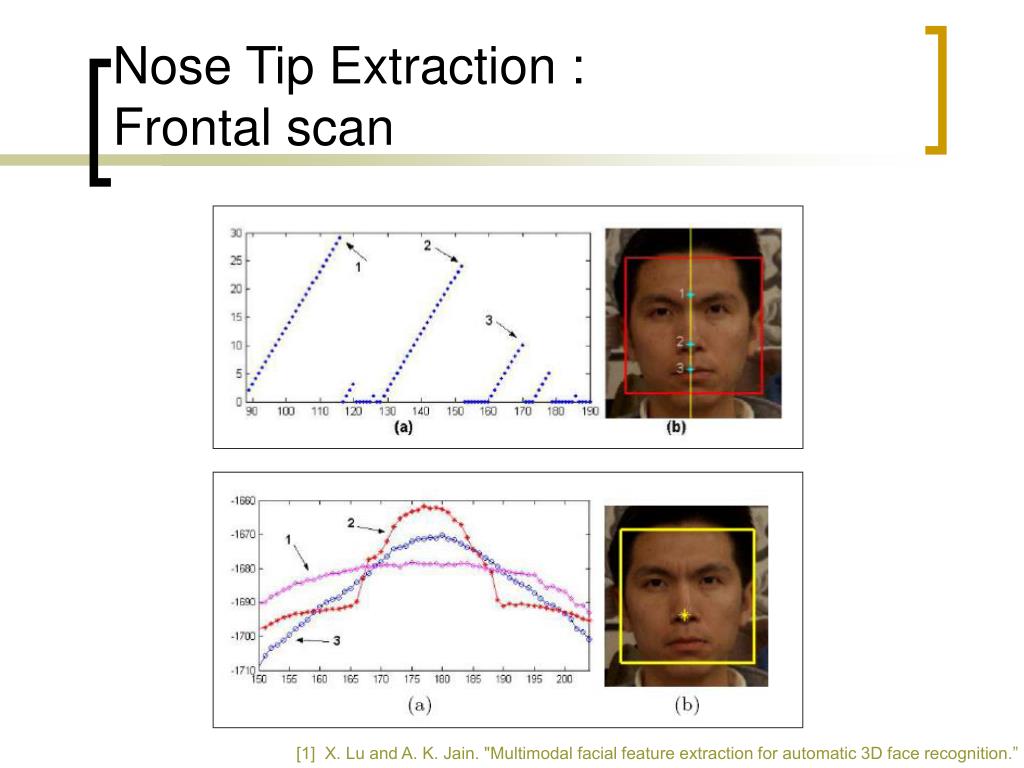

  7. Nose Tip Extraction : Frontal scan [1] X. Lu and A. K. Jain. "Multimodal facial feature extraction for automatic 3D face recognition.”

  8. Nose Tip Extraction : Frontal scan [1] X. Lu and A. K. Jain. "Multimodal facial feature extraction for automatic 3D face recognition.”

  9. Nose Tip Extraction : Pose change • For a frontal facial scan, nose tip usually has the largest z value. • But, in the presence of large pose changes, this heuristic does not hold. [2] X. Lu and Anil K. Jain, "Automatic Feature Extraction for Multiview 3D Face Recognition."

  10. Nose Tip and Pose Estimation Pose quantization • The yaw angle change ranges from -90 degrees (full right profile) to 90 degrees (full left profile) in the X-Z plane. [2] X. Lu and Anil K. Jain, "Automatic Feature Extraction for Multiview 3D Face Recognition."

  11. Nose Tip and Pose Estimation Directional maximum [2] X. Lu and Anil K. Jain, "Automatic Feature Extraction for Multiview 3D Face Recognition."

  12. Nose Tip and Pose Estimation Pose correction [2] X. Lu and Anil K. Jain, "Automatic Feature Extraction for Multiview 3D Face Recognition."

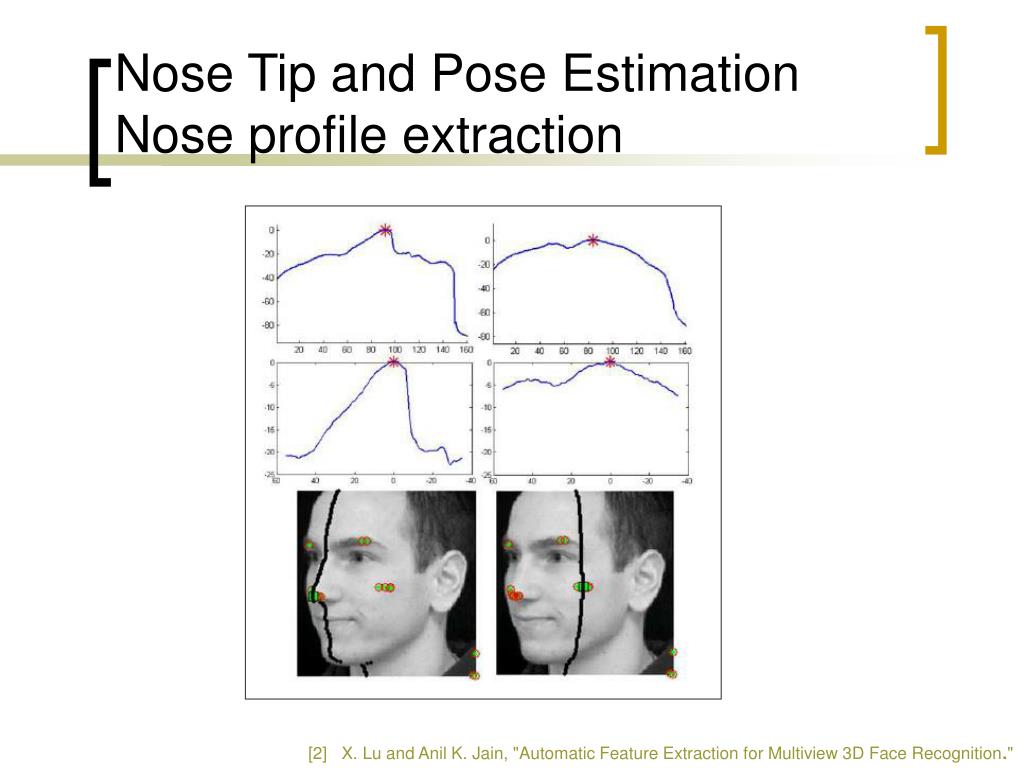

  13. Nose Tip and Pose Estimation Nose profile extraction [2] X. Lu and Anil K. Jain, "Automatic Feature Extraction for Multiview 3D Face Recognition."

  14. Nose Tip Extraction : Pose change • Nose Tip Extraction : • Radial Symmetry Map • Gradient and Zero-Crossing Map [3] M.L. Koudelka, M.W. Koch, T.D. Russ, A prescreener for 3D face recognition using radial symmetry and the Hausdorff fraction.

  15. Radial Symmetry Map • First, the gradient of the image, g is computed at each pixel p. [3] M.L. Koudelka, M.W. Koch, T.D. Russ, A prescreener for 3D face recognition using radial symmetry and the Hausdorff fraction.

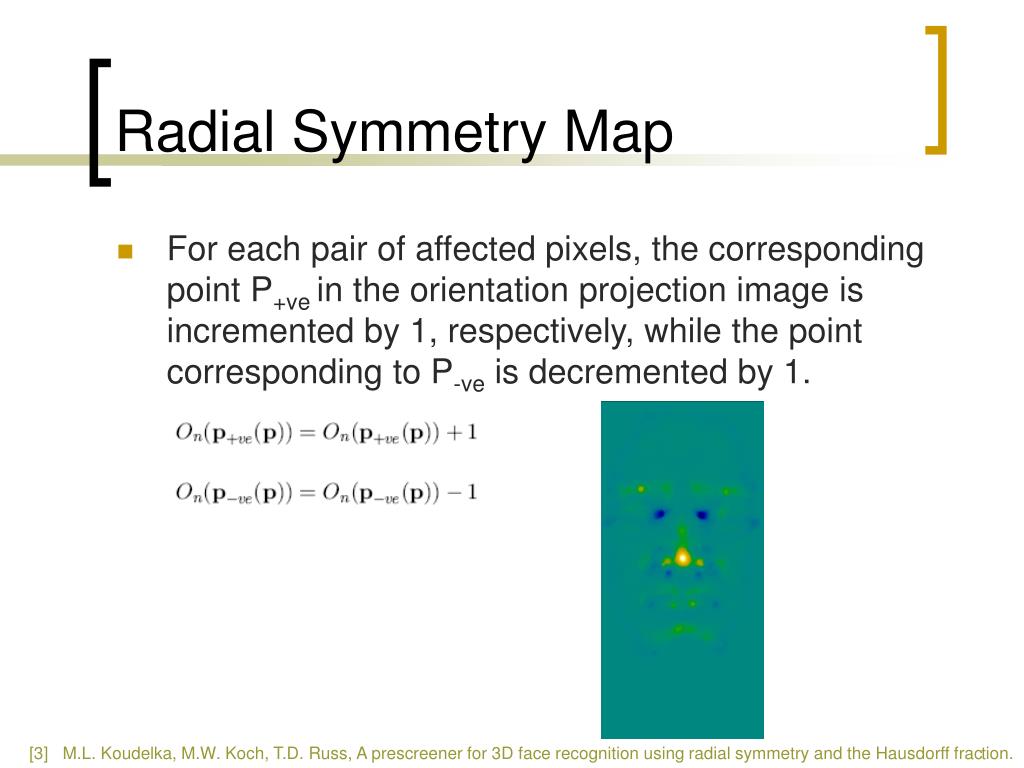

  16. Radial Symmetry Map • For each pair of affected pixels, the corresponding point P+ve in the orientation projection image is incremented by 1, respectively, while the point corresponding to P-ve isdecremented by 1. [3] M.L. Koudelka, M.W. Koch, T.D. Russ, A prescreener for 3D face recognition using radial symmetry and the Hausdorff fraction.

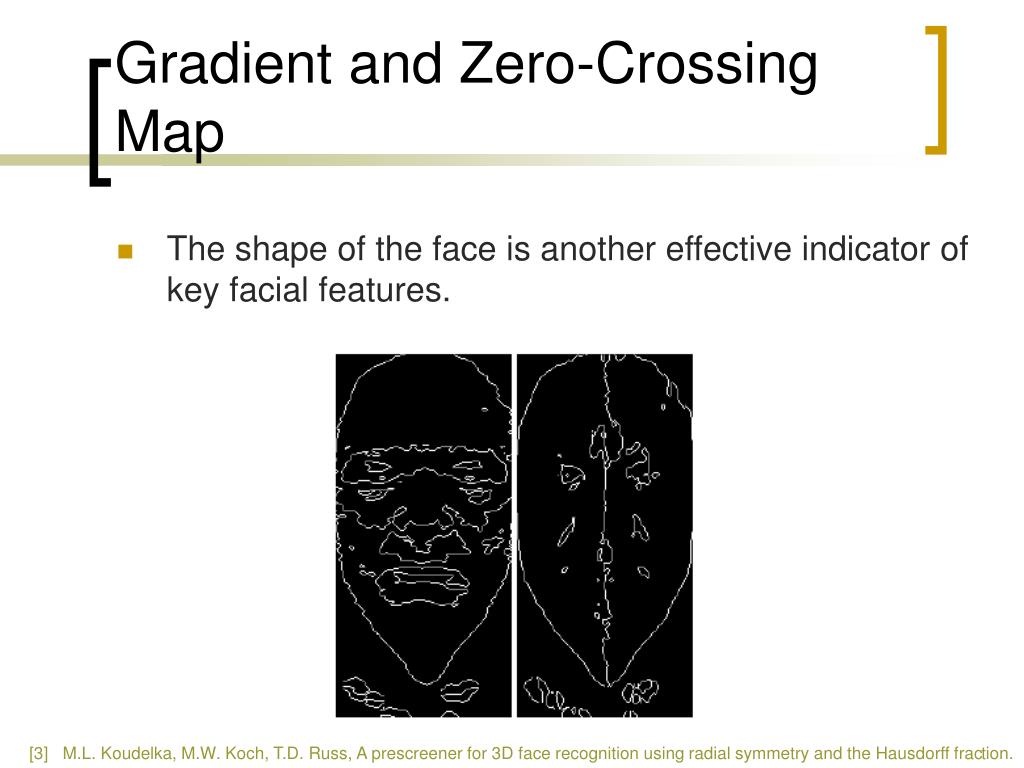

  17. Gradient and Zero-Crossing Map • The shape of the face is another effective indicator of key facial features. [3] M.L. Koudelka, M.W. Koch, T.D. Russ, A prescreener for 3D face recognition using radial symmetry and the Hausdorff fraction.

  18. Nose Tip Extraction • Each 3D face is horizontally sliced at multiple steps dv. • The nose tip is detected using a coarse to fine approach. • Circles centered at horizontal intervals dh on the slice. • The point which has the maximum altitude is considered to be a potential nose tip and assigned a confidence value equal to the altitude. [4] A. S. Mian, M. Bennamoun and R. A. Owens, “Automatic 3D Face Detection, Normalization and Recognition.”

  19. Face Detection • A sphere of radius r (80 mm) centered at the nose tip is then used to crop the 3D face and its corresponding registered 2D face. [4] A. S. Mian, M. Bennamoun and R. A. Owens, “Automatic 3D Face Detection, Normalization and Recognition.”

  20. Pose Correction

  21. Reference [1] A. S. Mian, M. Bennamoun and R. A. Owens, “Automatic 3D Face Detection, Normalization and Recognition”, 3DPVT, 2006.

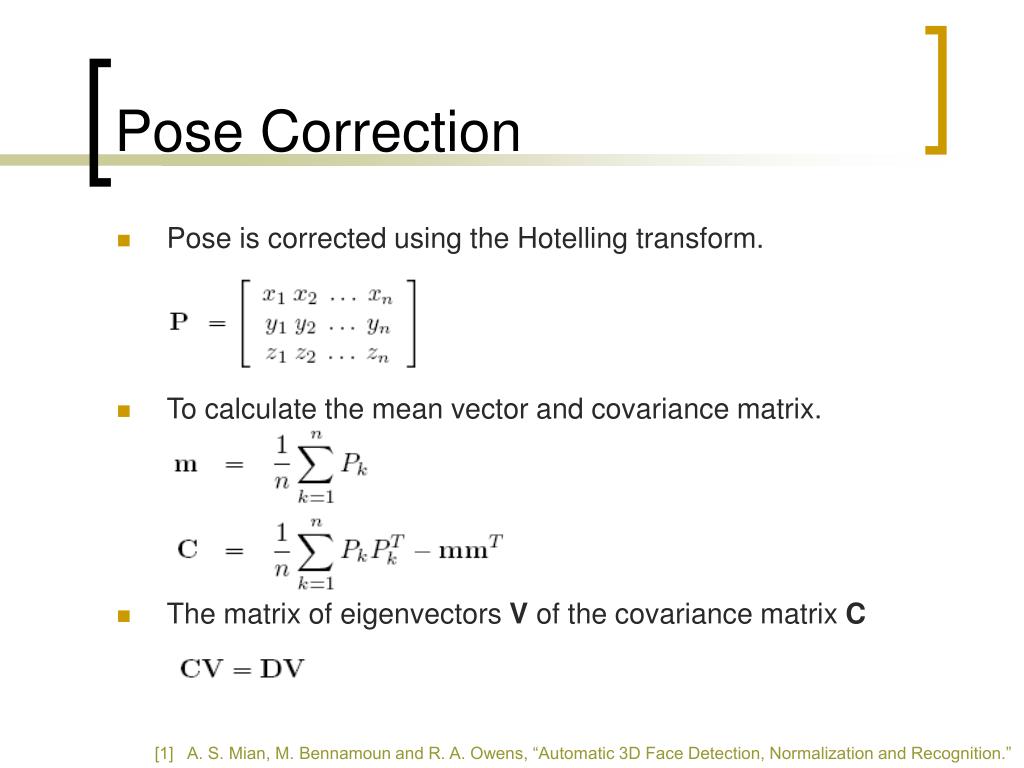

  22. Pose Correction • Pose is corrected using the Hotelling transform. • To calculate the mean vector and covariance matrix. • The matrix of eigenvectors V of the covariance matrix C [1] A. S. Mian, M. Bennamoun and R. A. Owens, “Automatic 3D Face Detection, Normalization and Recognition.”

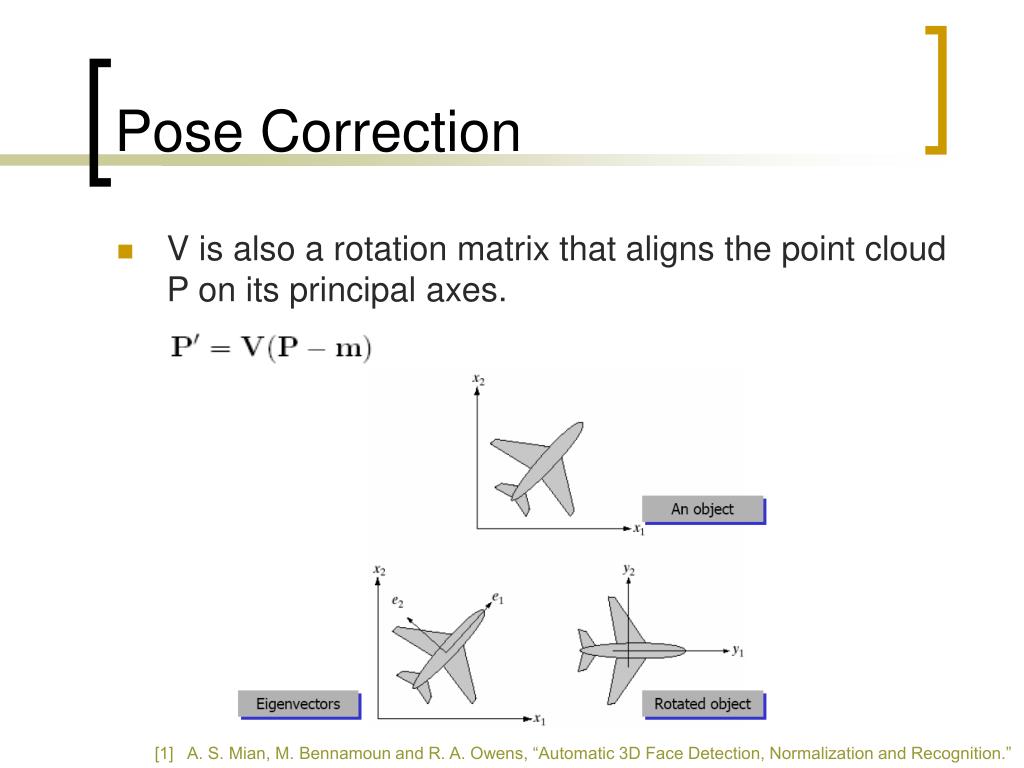

  23. Pose Correction • V is also a rotation matrix that aligns the point cloud P on its principal axes. [1] A. S. Mian, M. Bennamoun and R. A. Owens, “Automatic 3D Face Detection, Normalization and Recognition.”

  24. Face Normalization [1] A. S. Mian, M. Bennamoun and R. A. Owens, “Automatic 3D Face Detection, Normalization and Recognition.”

  25. Face Segmentation

  26. Reference [1] Ajmal S. Mian, M. Bennamoun and R. Owens, "An Efficient Multimodal 2D-3D Hybrid Approach to Automatic Face Recognition", to appear in IEEE Transactions in Pattern Analysis and Machine Intelligence (IEEE TPAMI), 2007. [2] K.-C. Wong, W.-Y. Lin, Y. H. Hu, N. Boston, and X. Zhang, "Optimal Linear Combination of Facial Regions for Improving Identification Performance", IEEE Trans. Systems, Man, and CyberneticsPart B: Cybernetics, Accepted, 2007.

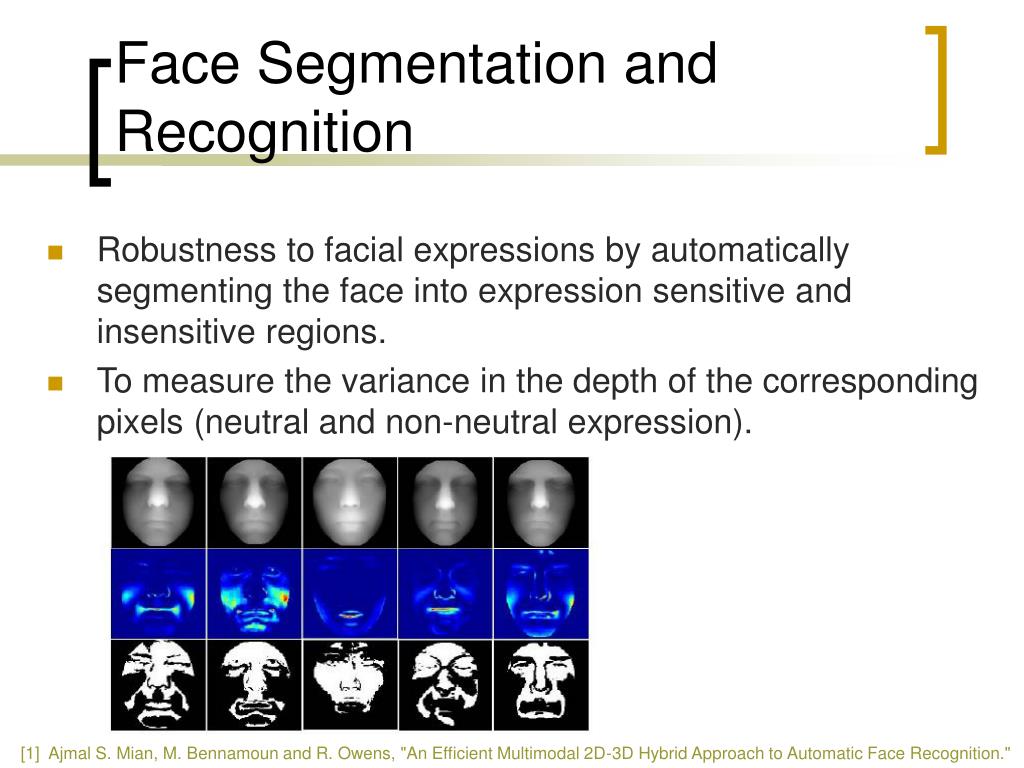

  27. Face Segmentation and Recognition • Robustness to facial expressions by automatically segmenting the face into expression sensitive and insensitive regions. • To measure the variance in the depth of the corresponding pixels (neutral and non-neutral expression). [1] Ajmal S. Mian, M. Bennamoun and R. Owens, "An Efficient Multimodal 2D-3D Hybrid Approach to Automatic Face Recognition."

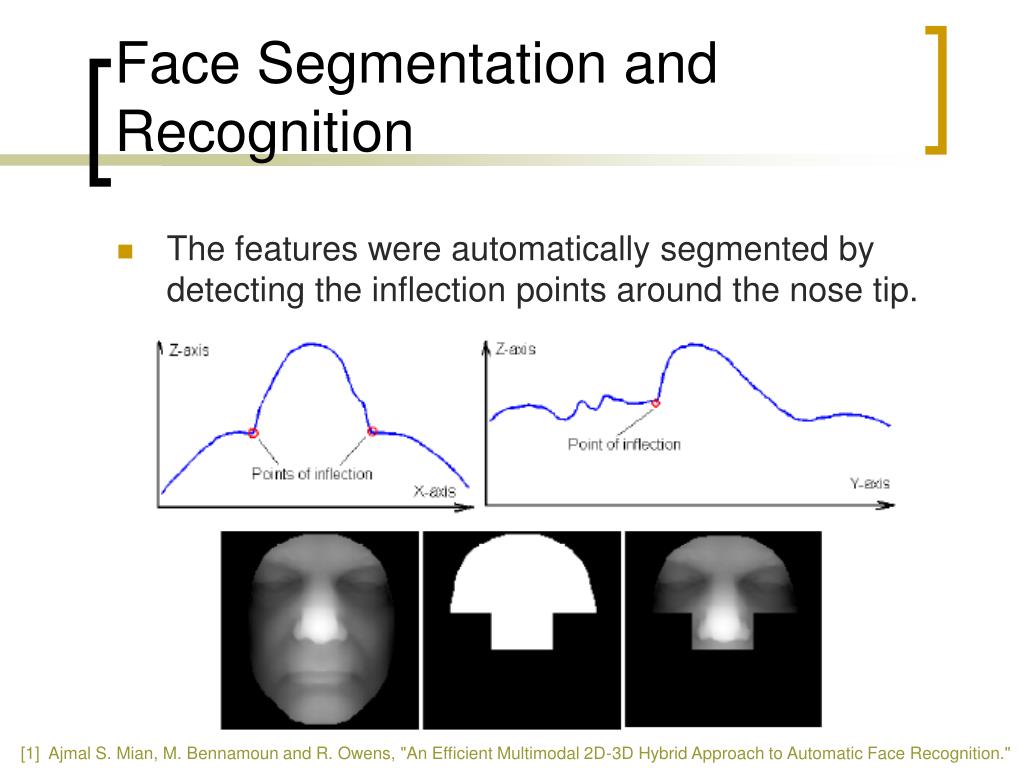

  28. Face Segmentation and Recognition • The features were automatically segmented by detecting the inflection points around the nose tip. [1] Ajmal S. Mian, M. Bennamoun and R. Owens, "An Efficient Multimodal 2D-3D Hybrid Approach to Automatic Face Recognition."

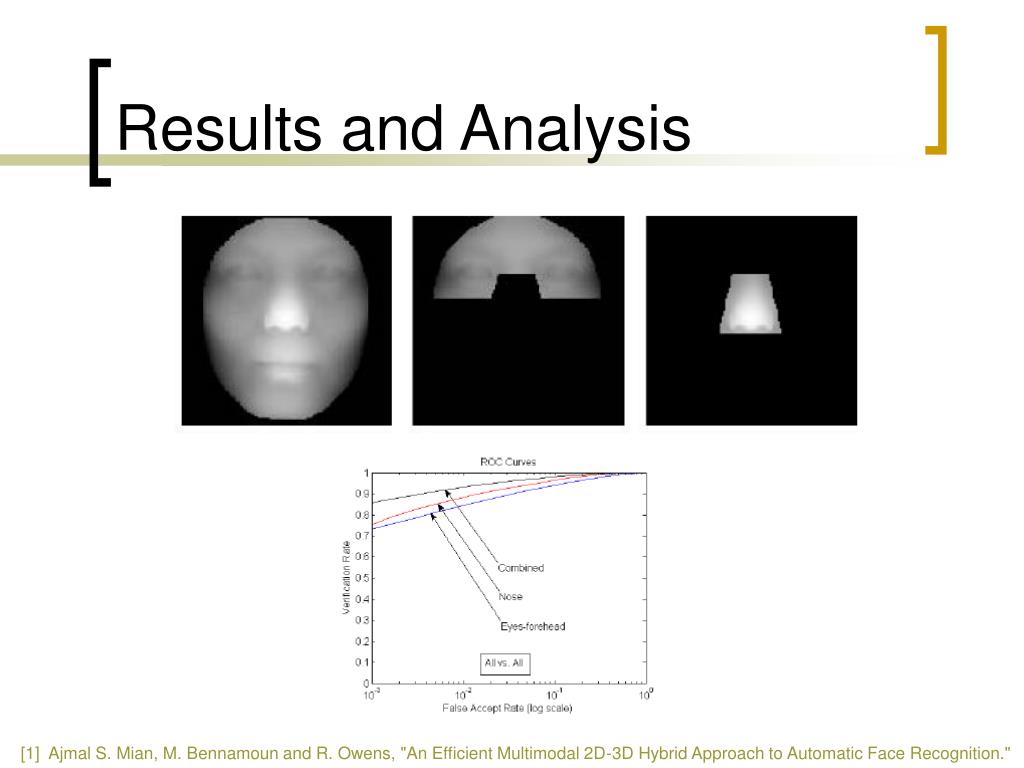

  29. Results and Analysis [1] Ajmal S. Mian, M. Bennamoun and R. Owens, "An Efficient Multimodal 2D-3D Hybrid Approach to Automatic Face Recognition."

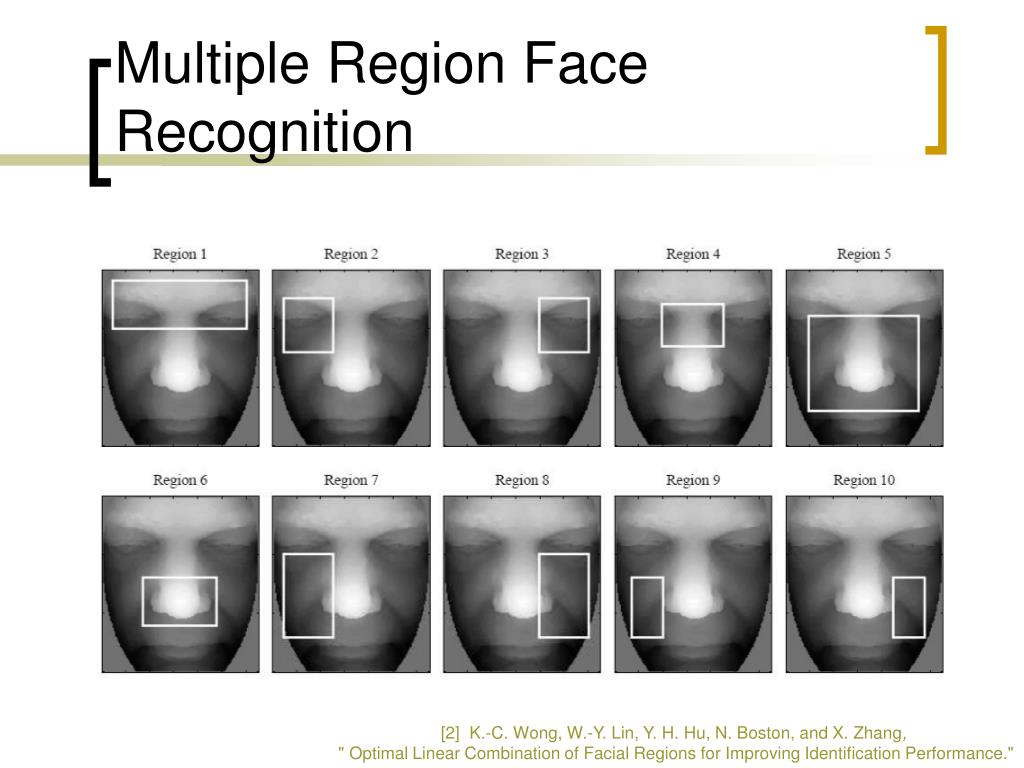

  30. Multiple Region Face Recognition [2] K.-C. Wong, W.-Y. Lin, Y. H. Hu, N. Boston, and X. Zhang, "Optimal Linear Combination of Facial Regions for Improving Identification Performance."

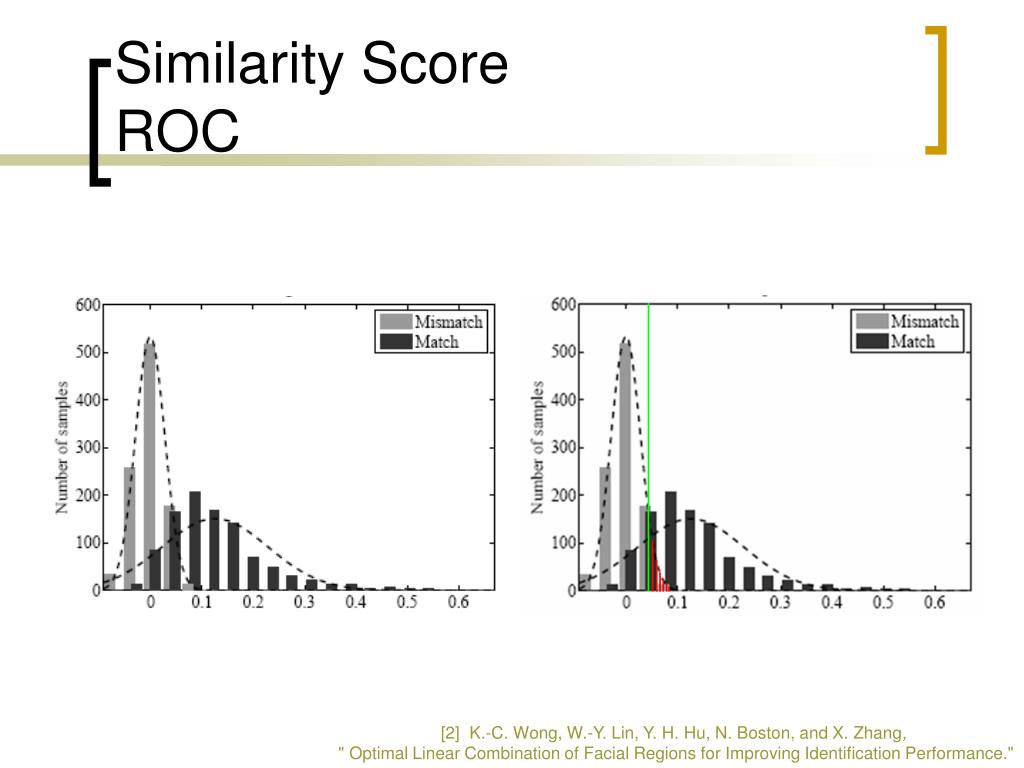

  31. Similarity ScoreROC [2] K.-C. Wong, W.-Y. Lin, Y. H. Hu, N. Boston, and X. Zhang, "Optimal Linear Combination of Facial Regions for Improving Identification Performance."

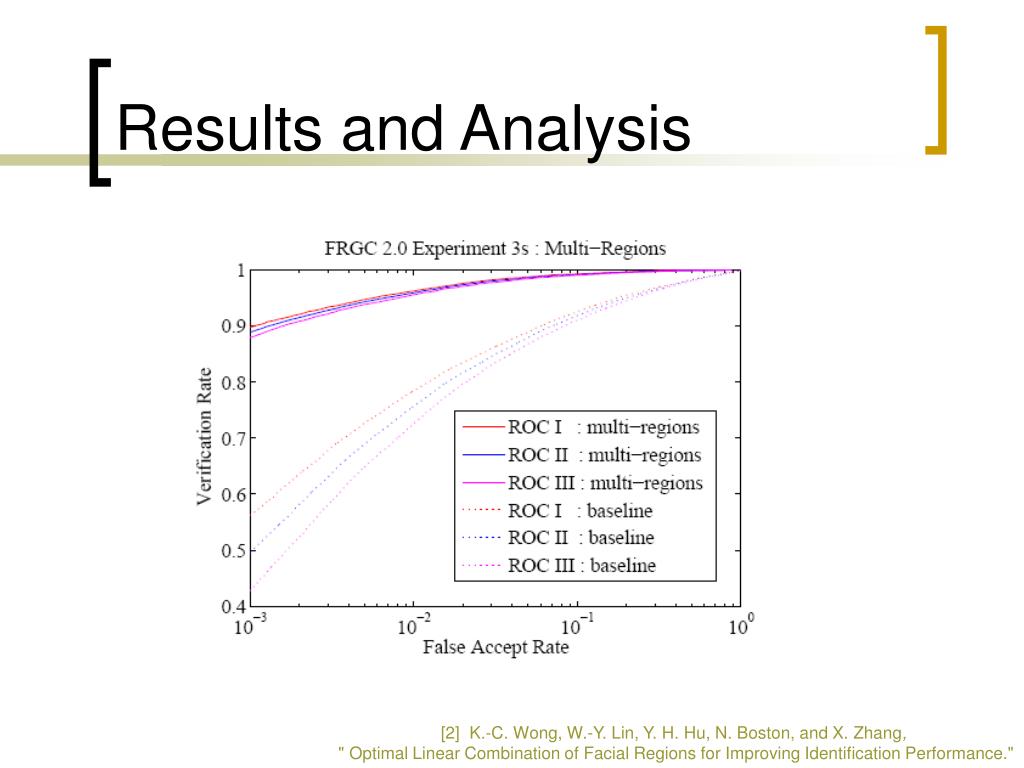

  32. Results and Analysis [2] K.-C. Wong, W.-Y. Lin, Y. H. Hu, N. Boston, and X. Zhang, "Optimal Linear Combination of Facial Regions for Improving Identification Performance."

  33. Recognition

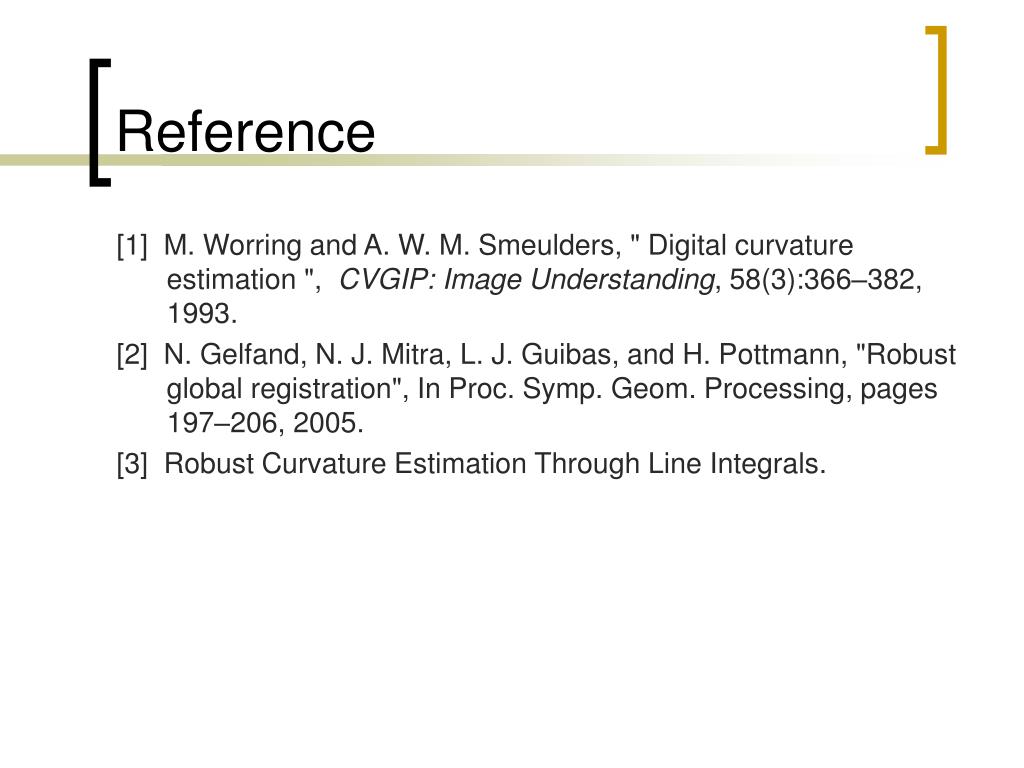

  34. Reference [1] M. Worring and A. W. M. Smeulders, " Digital curvature estimation ", CVGIP: Image Understanding, 58(3):366–382, 1993. [2] N. Gelfand, N. J. Mitra, L. J. Guibas, and H. Pottmann, "Robust global registration", In Proc. Symp. Geom. Processing, pages 197–206, 2005. [3] Robust Curvature Estimation Through Line Integrals.

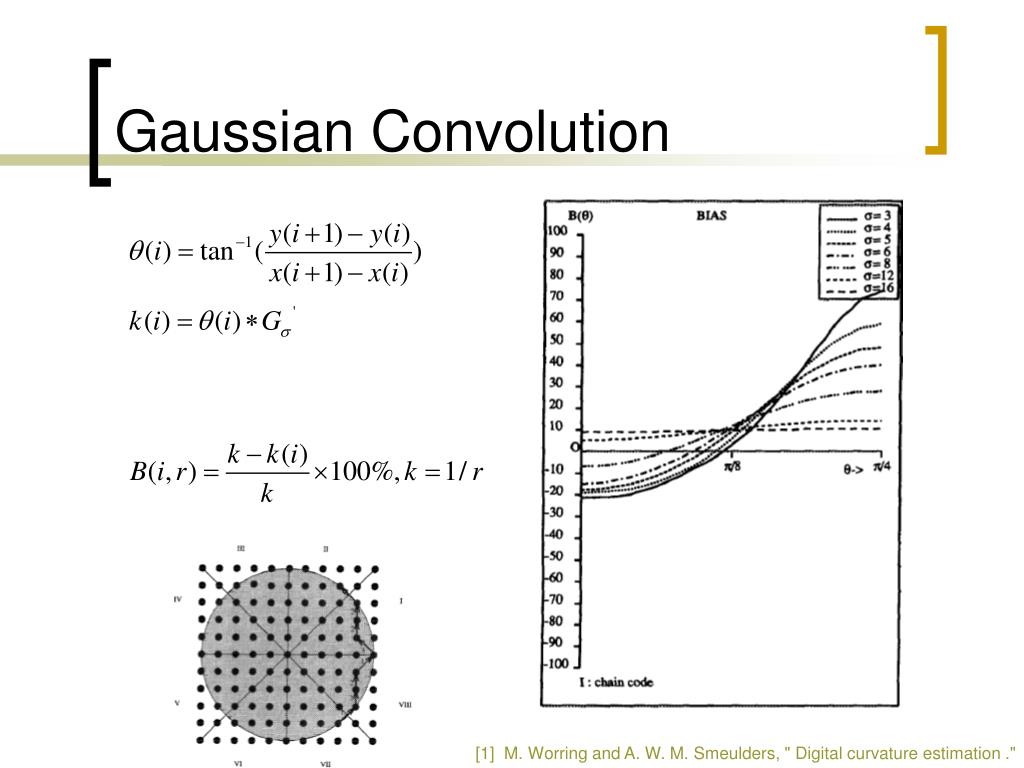

  35. Gaussian Convolution [1] M. Worring and A. W. M. Smeulders, " Digital curvature estimation ."

  36. Results and Analysis [1] M. Worring and A. W. M. Smeulders, " Digital curvature estimation ."

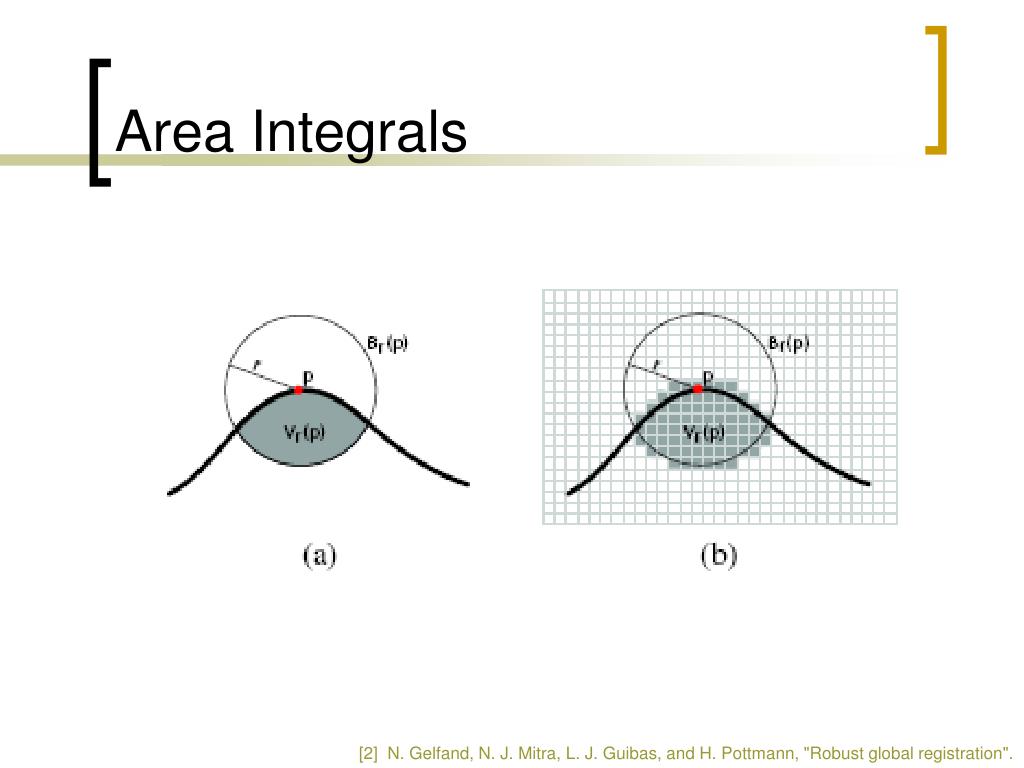

  37. Area Integrals [2] N. Gelfand, N. J. Mitra, L. J. Guibas, and H. Pottmann, "Robust global registration".

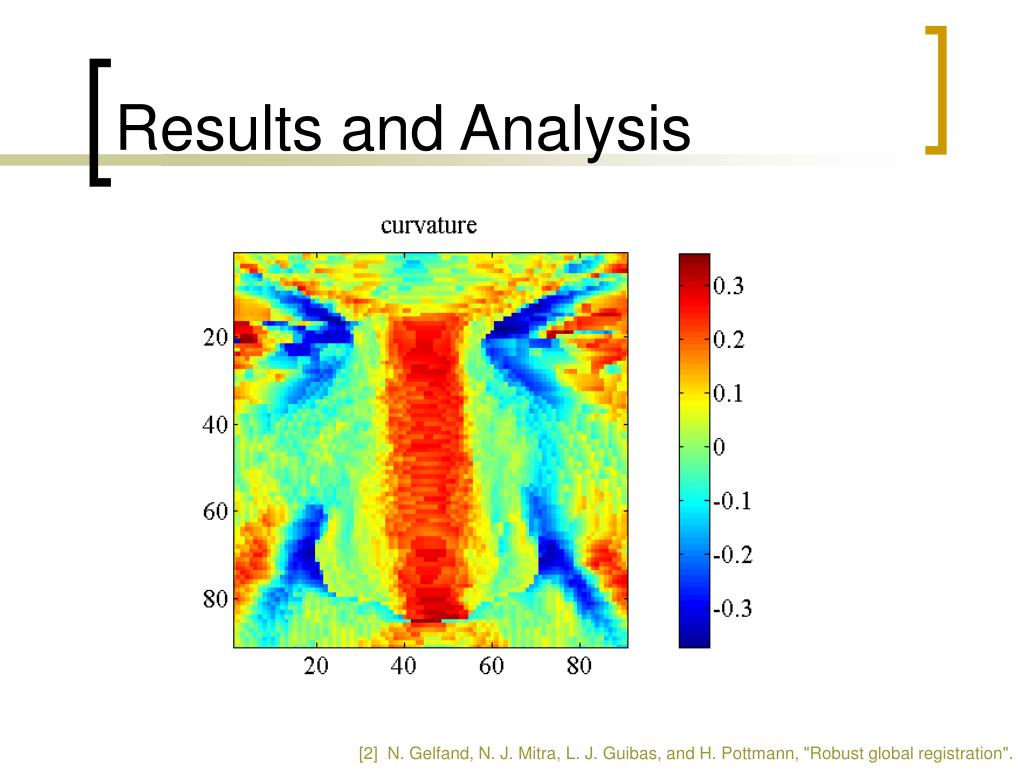

  38. Results and Analysis [2] N. Gelfand, N. J. Mitra, L. J. Guibas, and H. Pottmann, "Robust global registration".

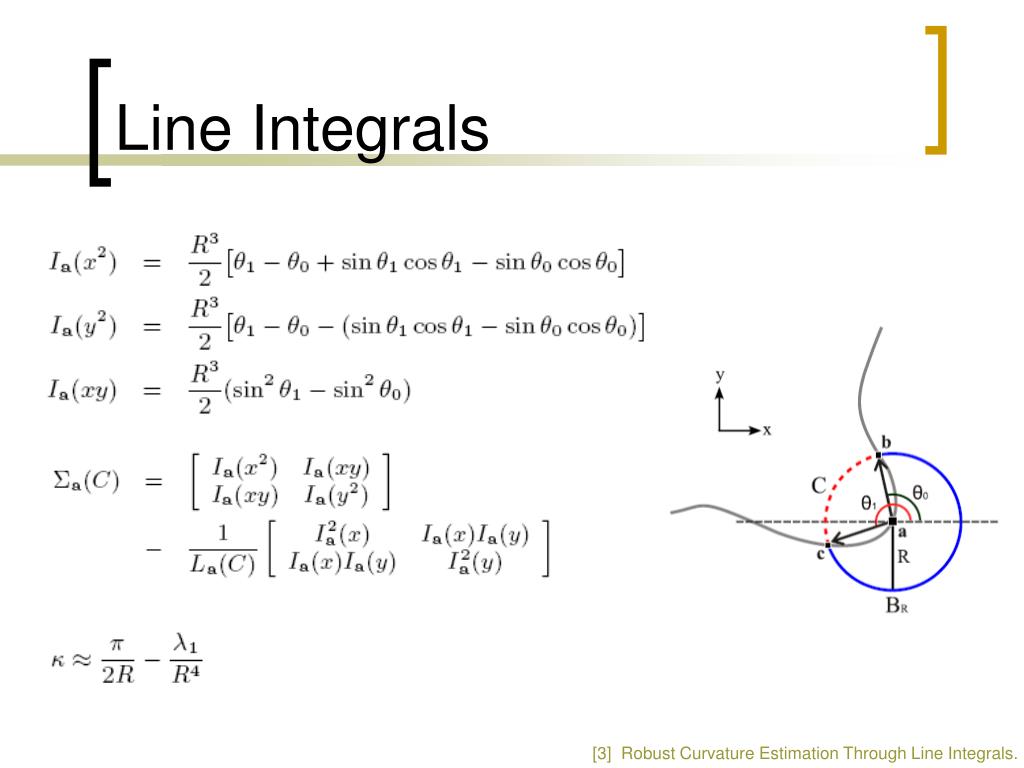

  39. Line Integrals [3] Robust Curvature Estimation Through Line Integrals.

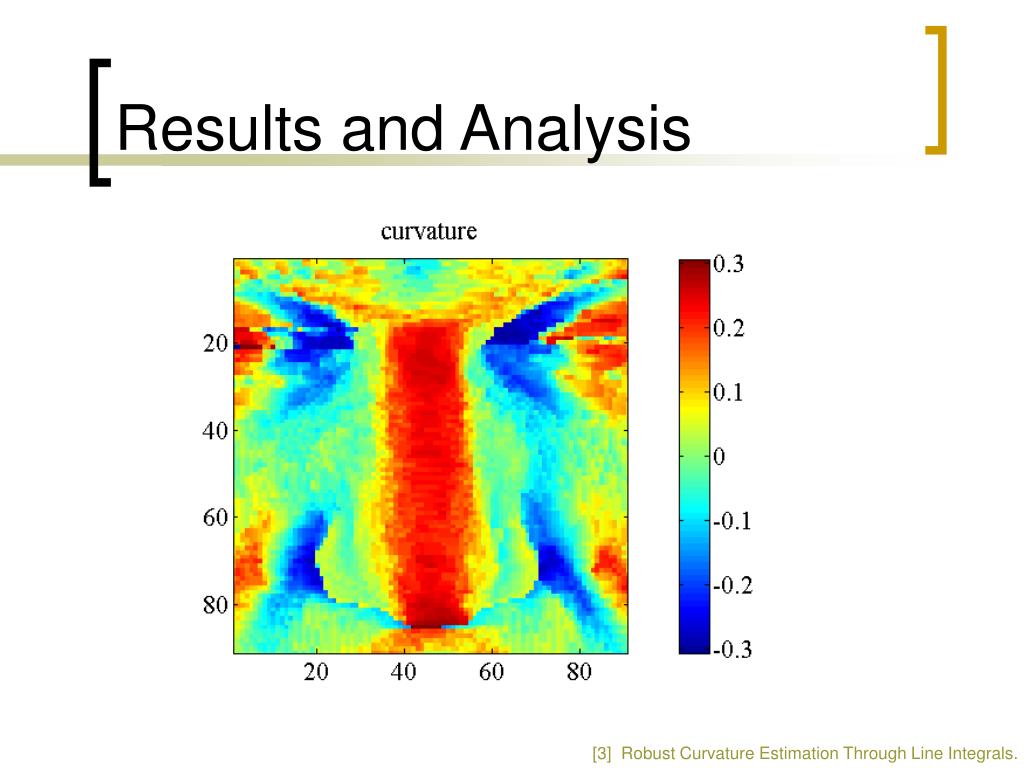

  40. Results and Analysis [3] Robust Curvature Estimation Through Line Integrals.
