  1. Group meeting report Turbulent skin-friction drag reduction on Superhydrophobic (SHPo) surfaces Hyungmin Park Advisor: Prof. CJ Kim 28th September, 2012

  2. Drag reduction flow tests • Finished analyzing all data • Working on journal manuscript – now at the last subsection of the discussion. • Presentation material (for Prof. John Kim) and Muchen’s NSF proposal

  3. DR vs GF ●, Present (50m-pitch, BDLY FLOW, Re~250) ■, Present (100m-pitch, BDLY FLOW, Re~250) ▲, Danielloet al. 2009 (60m-pitch, CH. FLOW (One SHPo wall), Re~180, PIV) △, Danielloet al. 2009 (60m-pitch, CH. FLOW (Two SHPo walls), Re~180, PD) ▽, Danielloet al. 2009 (120m-pitch, CH. FLOW (Two SHPo walls), Re~180, PD) ◆, Woolfordet al. 2009 (40m-pitch, CH. FLOW (One SHPo wall), Re~100, PIV) DR GF

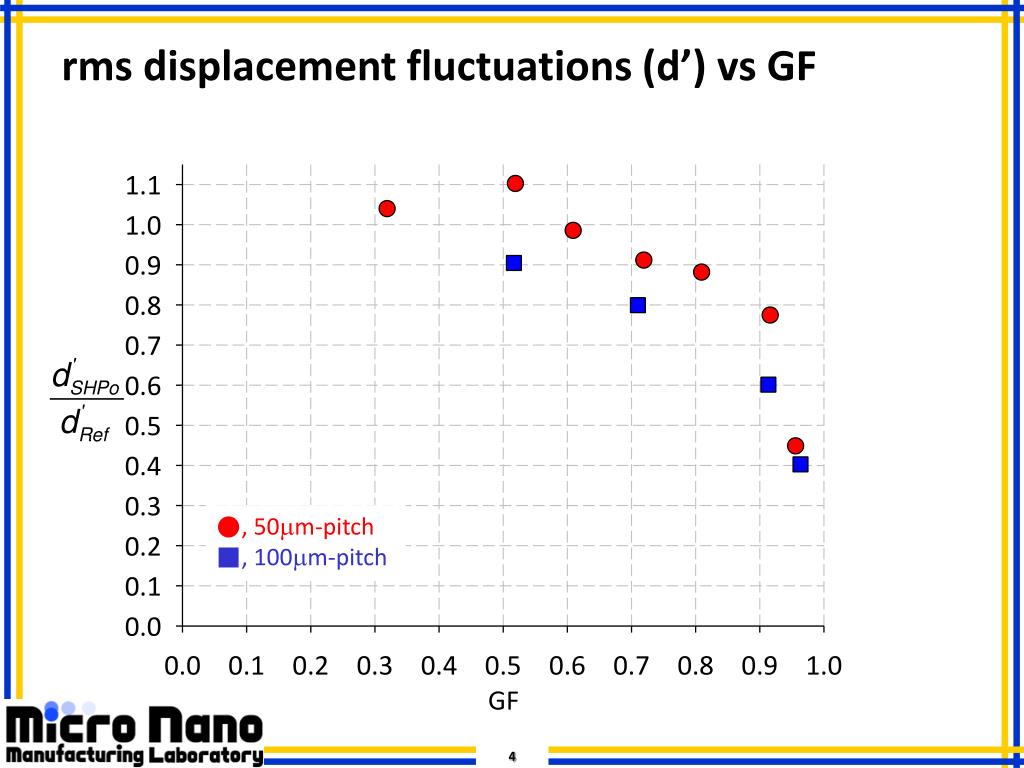

  4. rms displacement fluctuations (d’) vs GF ●, 50m-pitch ■, 100m-pitch GF

  5. Next • Finish the first round of manuscript draft. • Teach Muchen about DR project related stuff.
