REV NO. : 0. DATE : 2003.02.17. FOR MESSRS :. SPECIFICATION FOR REFERENCE. (FOR LCD 20.1” APPLICATION PURPOSE). TFT LCD BACKLIGHTING INVERTER. PART NO. :. FIF2064-31A. :. BUYER’S PART NO. CONTENTS. 1. Electrical Characteristics 2. Functional Pin Description

fontaine-callum
Download Presentation

SPECIFICATION FOR REFERENCE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. REV NO. : 0 DATE : 2003.02.17 FOR MESSRS : SPECIFICATION FOR REFERENCE (FOR LCD 20.1” APPLICATION PURPOSE) TFT LCD BACKLIGHTING INVERTER PART NO. : FIF2064-31A : BUYER’S PART NO. CONTENTS 1. Electrical Characteristics 2. Functional Pin Description 3. Mechanical Drawings FRONTEK CO., LTD 1/4

  2. P/N0.: FIF2064-31A REV NO. : 0 DATE : 2003.02.17 1. Electrical Characteristics PANEL : LPL 20.1” LM201U02(A3) Items (Unit) Max. Condition Sign. Min. Typ. No. Input Voltage (Vdc) 1 Vin 14 ~ 16 CTRL=0V 2.1 2.5 2.9 Input Current (A) Vin=15V Iin 2 CTRL=3.3V 1.2 1.6 2.0 6.5 7.5 9.0 CTRL=0V Output Current Each Lmap1,2,3 (mA) Iout 1,2,3 Vin=15V 3 CTRL=3.3V 3.0 4.0 5.0 6.5 7.5 9.0 Output Current Each Lmap4,5,6 (mA) CTRL=0V Iout 4,5,6 Vin=15V 4 CTRL=3.3V 3.0 4.0 5.0 Lamp Frequency (kHz) CTRL=0V 40 47 55 Vin=15V 5 f Normal Operation ON Vin=15V, ON/OFF=5V 6 ON/OFF Control Shunt-down (Lamp off) OFF Vin=15V, ON/OFF=0V CTRL=0V,Max Current Dim Adjust (Lamp Current Control) CTRL 0 ~ 5 Volt. 7 CTRL=3.3V,Min Current FRONTEK CO., LTD 2/4

  3. P/N0.: FIF2064-31A REV NO. : 0 DATE : 2003.02.17 2. Functional Pin Description 2.1. Input Connector CN1 : 12505WR-10A00(YEON-HO, JST, MOLEX) Pin No. Symbol Description Dim Adjust, Apply 0V ~3.3Vdc to Control Lamp Current 0V : 7.5mA, 3.3V : 4.0mA (Each Lamp) 1 CTRL 3,4,7,8 GND GND Power System Return ( 5V:ON, 0V:OFF ) ON / OFF 5 NC 2 No Connection Input Voltage : 15V Vin 6,9,10 2.2. Output Connector CN3,5 : SM04(9-E2)B-BHS-1-TB(JST) CN2,4 : SM02B-BHS-1-TB (JST,YEON-HO,MOLEX) CN3,5 Pin No. Symbol Description 1 Lamp H1 High Voltage Connection to high side of Lamp. 2 Lamp H1 High Voltage Connection to high side of Lamp. 3 Lamp L1 Low Voltage Connection to low side of Lamp. Lamp L2 Low Voltage Connection to low side of Lamp. 4 CN2,4 Pin No. Symbol Description 1 Lamp H1 High Voltage Connection to high side of Lamp. 2 Lamp L1 Low Voltage Connection to low side of Lamp. FRONTEK CO., LTD 3/4

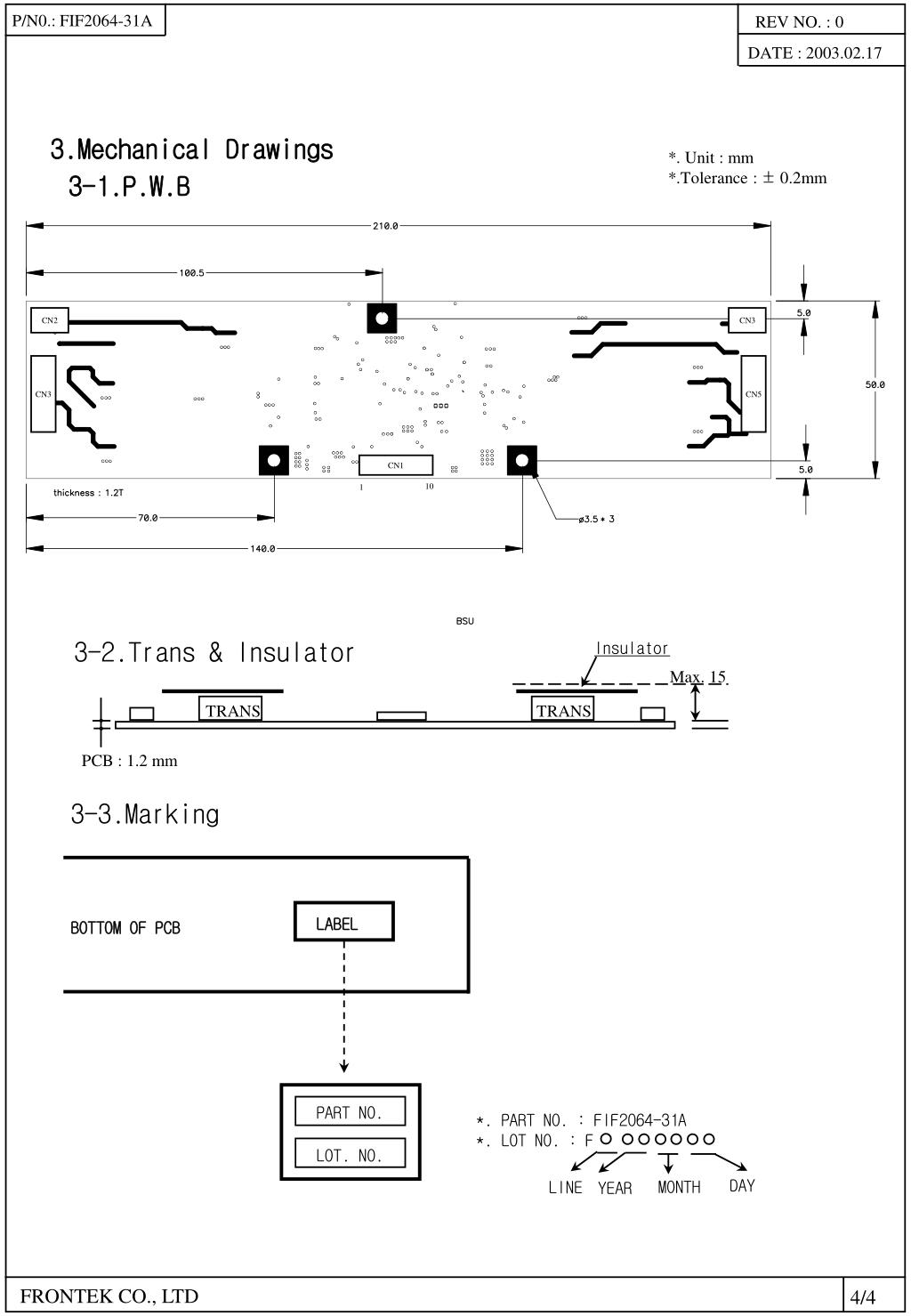

  4. P/N0.: FIF2064-31A REV NO. : 0 DATE : 2003.02.17 3.Mechanical Drawings *. Unit : mm *.Tolerance : ± 0.2mm 3-1.P.W.B CN2 CN3 CN3 CN5 CN1 10 1 3-2.Trans & Insulator Insulator Max. 15 TRANS TRANS PCB : 1.2 mm 3-3.Marking LABEL BOTTOM OF PCB PART NO. *. PART NO. : FIF2064-31A *. LOT NO. : F LOT. NO. DAY MONTH LINE YEAR FRONTEK CO., LTD 4/4
