  1. M. Srikanth, J. Varner, M. Bowden, D. Moldovan Language Computer Corporation www.languagecomputer.com Richardson, Texas Exploiting Ontologies for Automatic Image Annotation

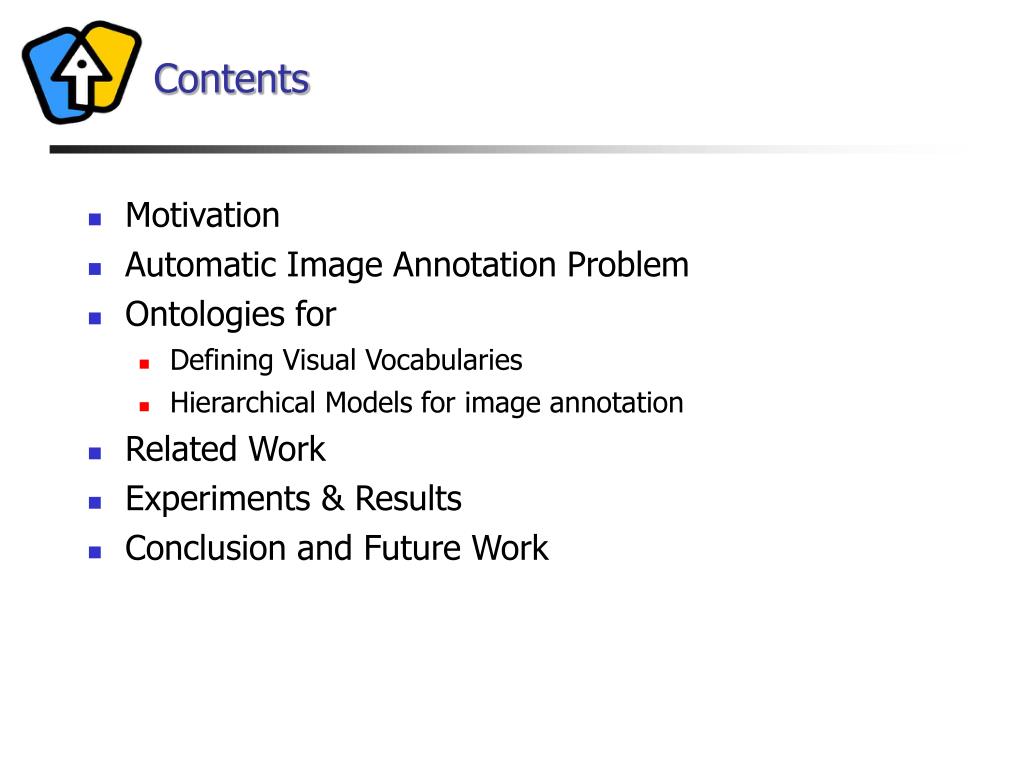

  2. Contents • Motivation • Automatic Image Annotation Problem • Ontologies for • Defining Visual Vocabularies • Hierarchical Models for image annotation • Related Work • Experiments & Results • Conclusion and Future Work

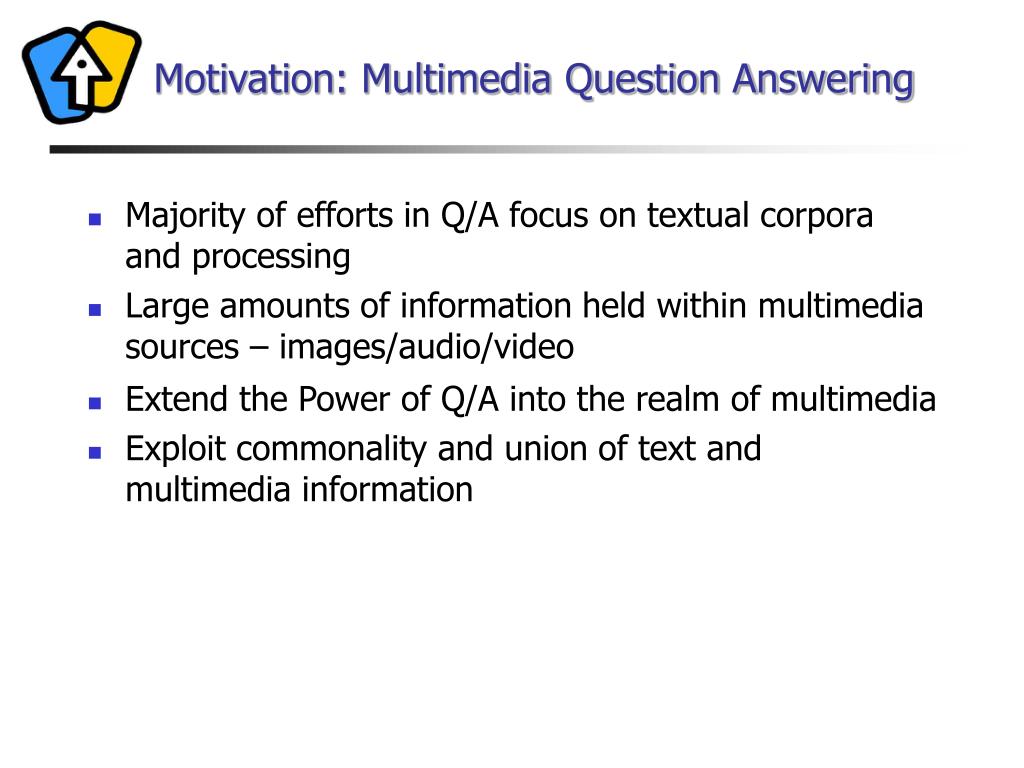

  3. Motivation: Multimedia Question Answering • Majority of efforts in Q/A focus on textual corpora and processing • Large amounts of information held within multimedia sources – images/audio/video • Extend the Power of Q/A into the realm of multimedia • Exploit commonality and union of text and multimedia information

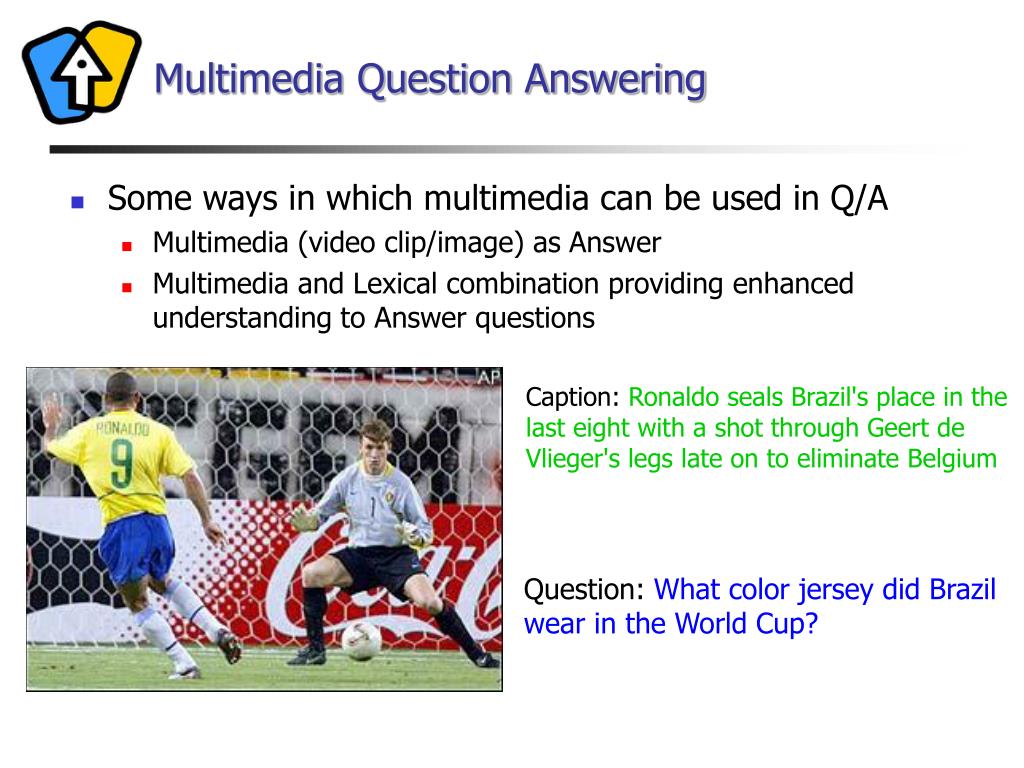

  4. Caption: Ronaldo seals Brazil's place in the last eight with a shot through Geert de Vlieger's legs late on to eliminate Belgium Question: What color jersey did Brazil wear in the World Cup? Multimedia Question Answering • Some ways in which multimedia can be used in Q/A • Multimedia (video clip/image) as Answer • Multimedia and Lexical combination providing enhanced understanding to Answer questions

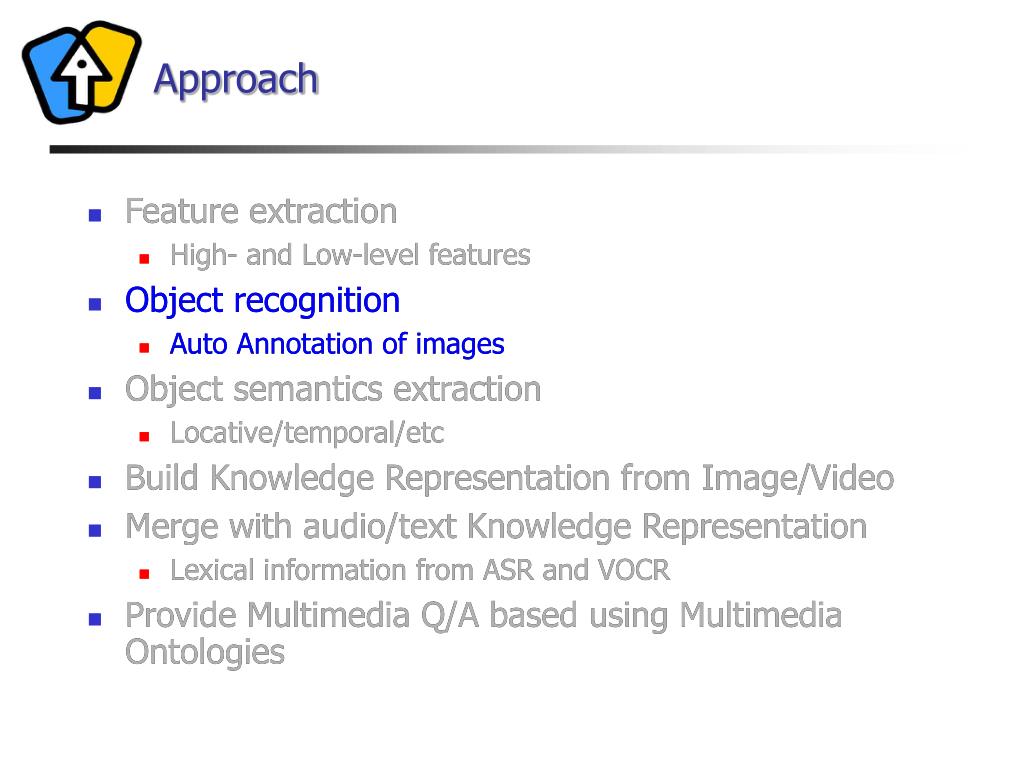

  5. Approach • Feature extraction • High- and Low-level features • Object recognition • Auto Annotation of images • Object semantics extraction • Locative/temporal/etc • Build Knowledge Representation from Image/Video • Merge with audio/text Knowledge Representation • Lexical information from ASR and VOCR • Provide Multimedia Q/A based using Multimedia Ontologies • Feature extraction • High- and Low-level features • Object recognition • Auto Annotation of images • Object semantics extraction • Locative/temporal/etc • Build Knowledge Representation from Image/Video • Merge with audio/text Knowledge Representation • Lexical information from ASR and VOCR • Provide Multimedia Q/A based using Multimedia Ontologies

  6. Automatic Image Annotation Task of automatically assigning words to an image that describe the contents of the image • Most models exploit the correlation between images and words • Exploit the correlation between the annotation words themselves to • Define visual vocabularies • Develop hierarchical models for automatic image annotation Use ontological information about annotation words to improve image annotation

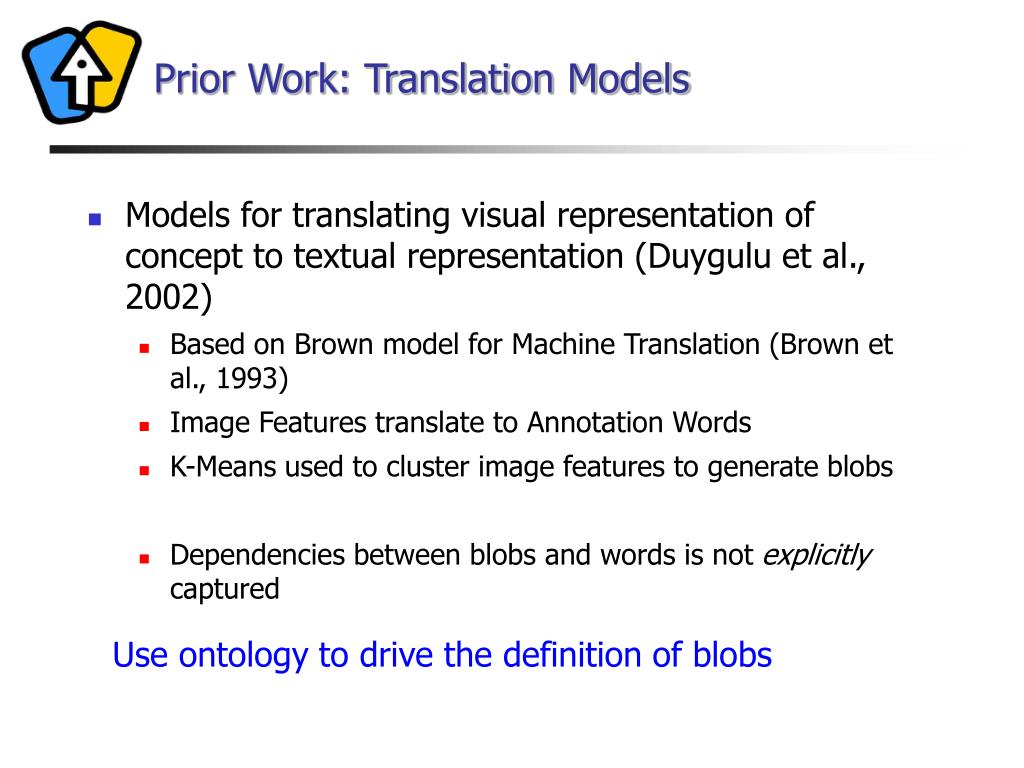

  7. Prior Work: Translation Models • Models for translating visual representation of concept to textual representation (Duygulu et al., 2002) • Based on Brown model for Machine Translation (Brown et al., 1993) • Image Features translate to Annotation Words • K-Means used to cluster image features to generate blobs • Dependencies between blobs and words is not explicitly captured Use ontology to drive the definition of blobs

  8. Prior Work: HACM Model • Hierarchical Aspect Cluster Model (T. Hofmann, 1998) • Induces an hierarchical structure from co-occurrence of image features • Topology is externally defined • Depth of the induced hierarchy is user selected • Levels define the generality of the concept expressed in regions and words The hierarchies defined in ontologies have well-defined semantics Image feature hierarchy induced from a text ontology

  9. Prior Work: Classification Approaches Estimate P(w|I) to classify an Image I (represented by image features) into one of the classes (annotation word w) • Generative Models • Flat classification: Learn one classifier per annotation word • SVM Classifier (Cusano et al., 2004) • Discriminative Models • Jeon and Manmatha (2004) showed improvements over translation using Maximum Entropy Models • Unigram (blob, word) and Bigram: (horizontal blob pairs, word) feature Explore hierarchical classification using ontology

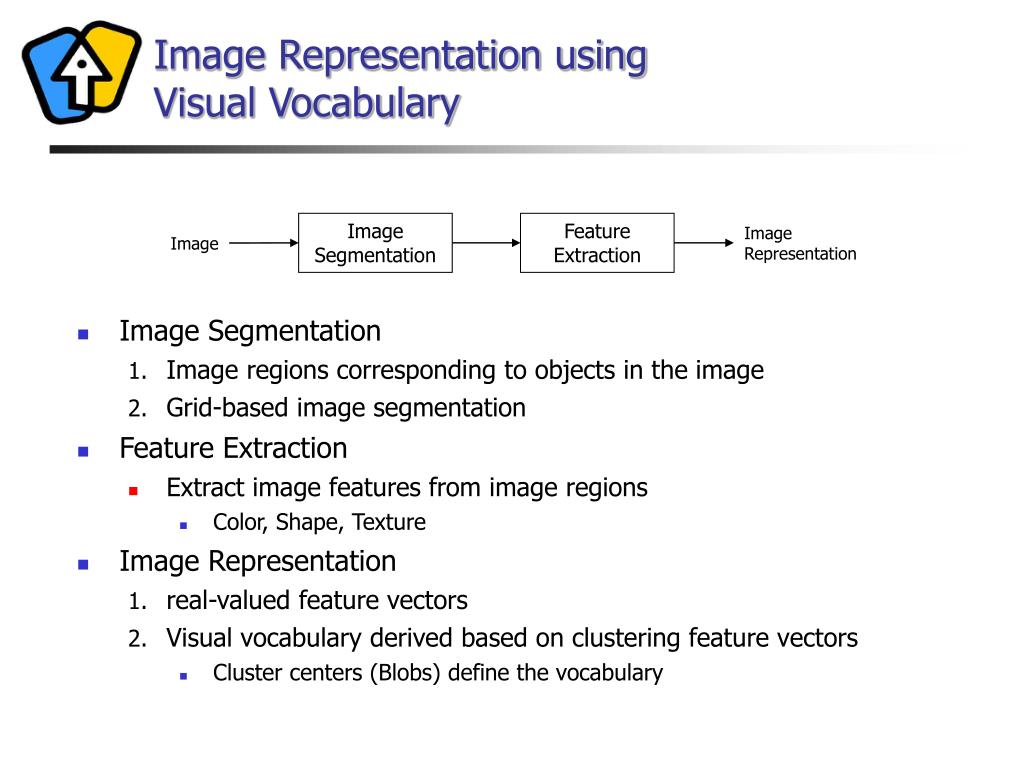

  10. Image Representation usingVisual Vocabulary • Image Segmentation • Image regions corresponding to objects in the image • Grid-based image segmentation • Feature Extraction • Extract image features from image regions • Color, Shape, Texture • Image Representation • real-valued feature vectors • Visual vocabulary derived based on clustering feature vectors • Cluster centers (Blobs) define the vocabulary Image Segmentation Feature Extraction Image Representation Image

  11. Visual vocabulary from Ontologies • Image regions from images are organized in the hierarchy based on the image annotation • Image attributes of children nodes are related parent node’s image attributes

  12. Using Ontologies in Translation Models for Automatic Image Annotation • Ontology-induced visual vocabulary • Annotation word hierarchy used in selecting the initial set of blobs for K-means clustering • Ontology-weighed K-means clustering • Weight the cluster membership of image regions in the estimation of cluster centers (blobs) n(w,c) – number of image regions in cluster c associated with word w n(c) – number of image regions in cluster c f(r) – feature vector for region r

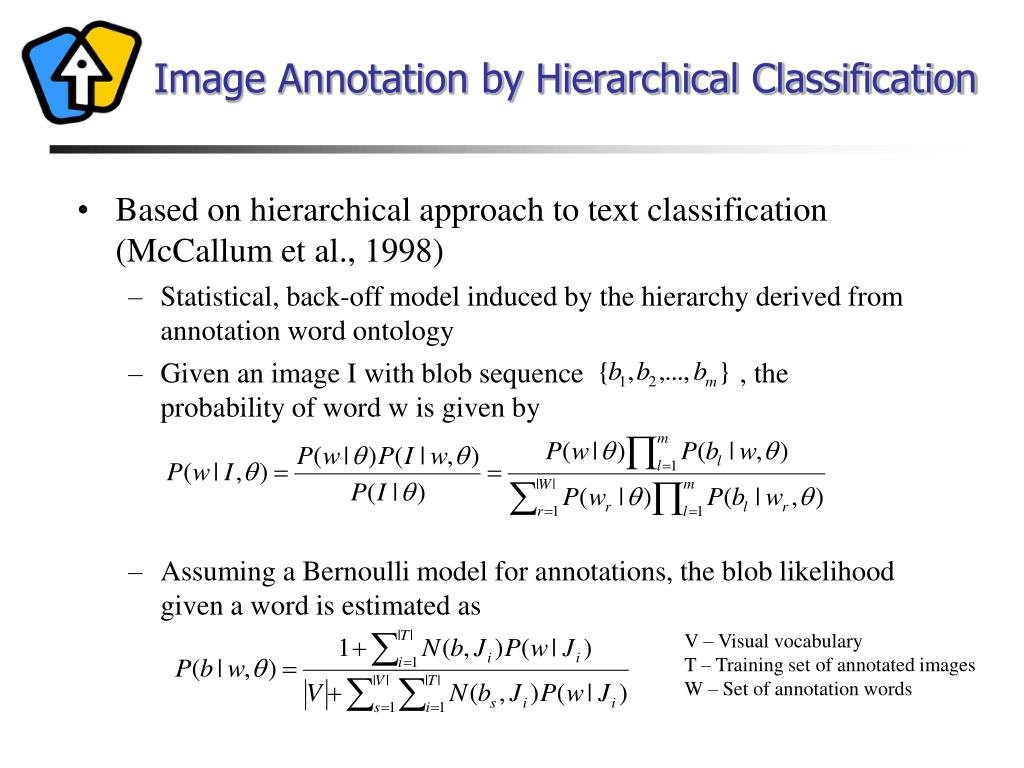

  13. Image Annotation by Hierarchical Classification • Based on hierarchical approach to text classification (McCallum et al., 1998) • Statistical, back-off model induced by the hierarchy derived from annotation word ontology • Given an image I with blob sequence , the probability of word w is given by • Assuming a Bernoulli model for annotations, the blob likelihood given a word is estimated as V – Visual vocabulary T – Training set of annotated images W – Set of annotation words

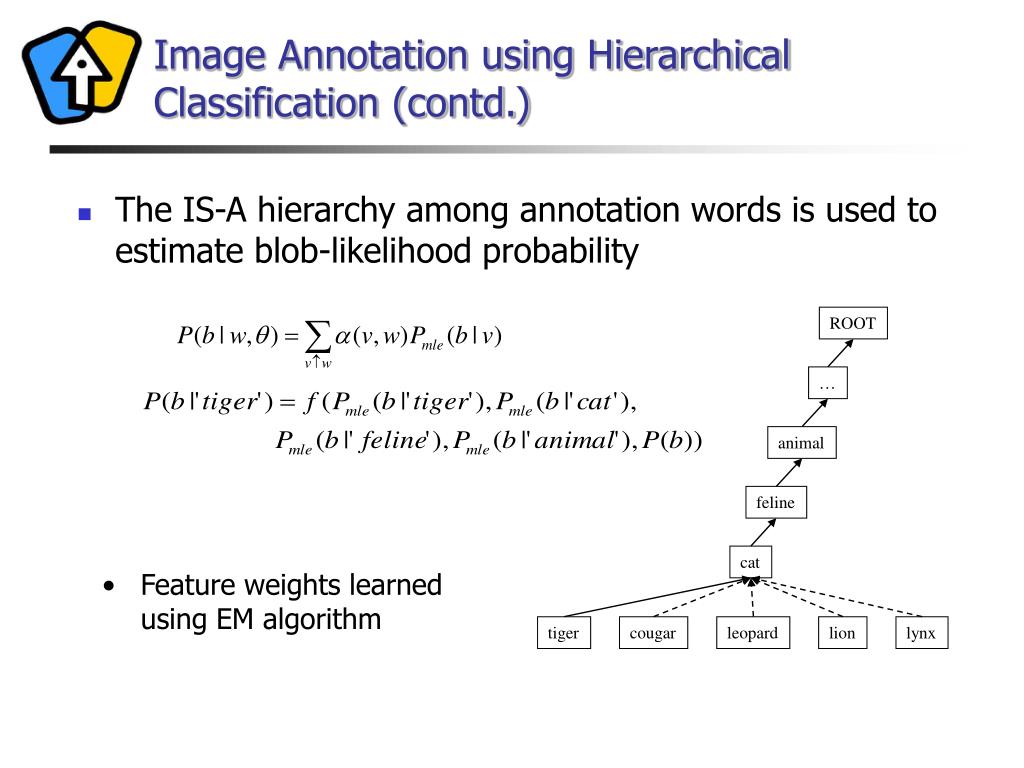

  14. Image Annotation using Hierarchical Classification (contd.) • The IS-A hierarchy among annotation words is used to estimate blob-likelihood probability ROOT … animal feline cat • Feature weights learned using EM algorithm tiger cougar leopard lion lynx

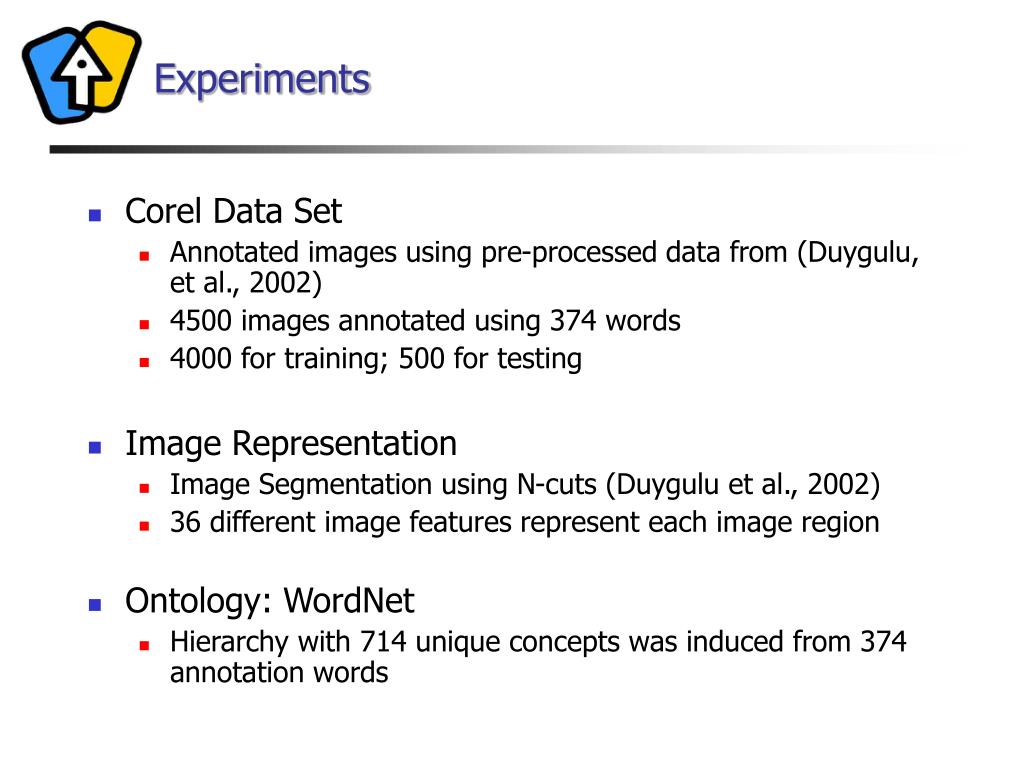

  15. Experiments • Corel Data Set • Annotated images using pre-processed data from (Duygulu, et al., 2002) • 4500 images annotated using 374 words • 4000 for training; 500 for testing • Image Representation • Image Segmentation using N-cuts (Duygulu et al., 2002) • 36 different image features represent each image region • Ontology: WordNet • Hierarchy with 714 unique concepts was induced from 374 annotation words

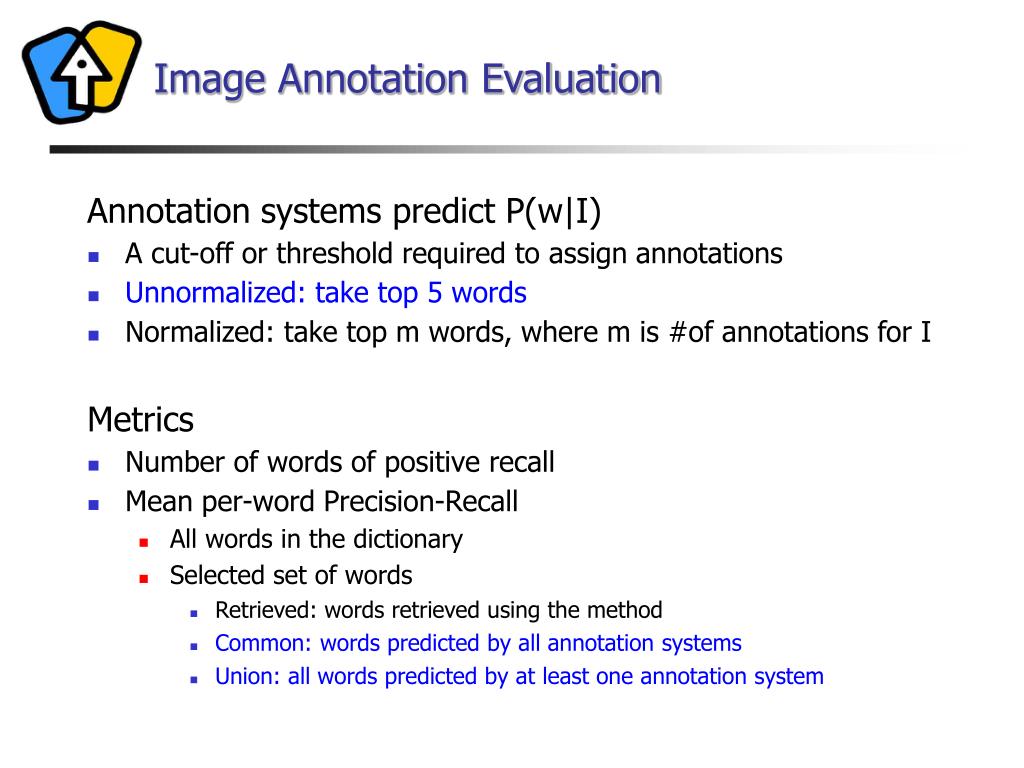

  16. Image Annotation Evaluation Annotation systems predict P(w|I) • A cut-off or threshold required to assign annotations • Unnormalized: take top 5 words • Normalized: take top m words, where m is #of annotations for I Metrics • Number of words of positive recall • Mean per-word Precision-Recall • All words in the dictionary • Selected set of words • Retrieved: words retrieved using the method • Common: words predicted by all annotation systems • Union: all words predicted by at least one annotation system

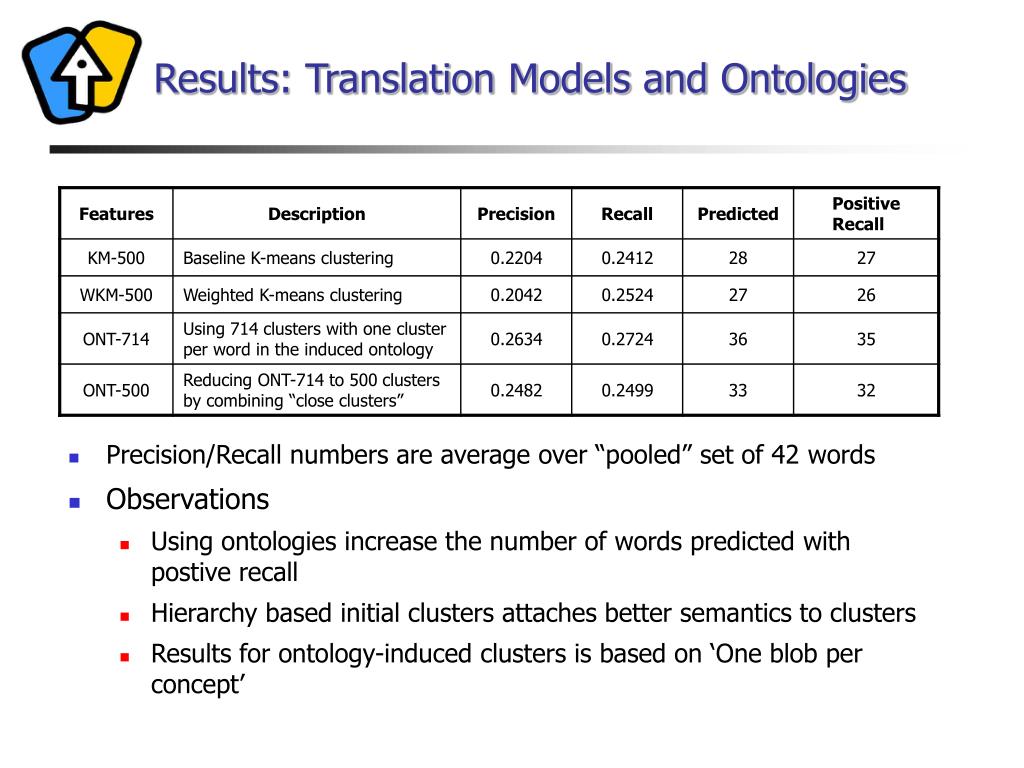

  17. Results: Translation Models and Ontologies • Precision/Recall numbers are average over “pooled” set of 42 words • Observations • Using ontologies increase the number of words predicted with postive recall • Hierarchy based initial clusters attaches better semantics to clusters • Results for ontology-induced clusters is based on ‘One blob per concept’

  18. Results: Classification Approaches and Ontologies Comparing Flat classification versus Hierarchical classification for image annotations • Precision/Recall numbers correspond to using the KM-500 visual vocabulary • Observations • Improved Precision (10%) and Recall (14%) values • Increase in number of annotations with positive recall • Hierarchy derived from annotation ontology results in improved performance

  19. Results: Hierarchical Classification with Ontology-induced Visual Vocabularies • Hierarchical approach improves precision/recall values on different visual vocabularies • ONT-714 has improved positive recall numbers • Ontologies defined on text annotations provide a good framework for developing hierarchical models for image features

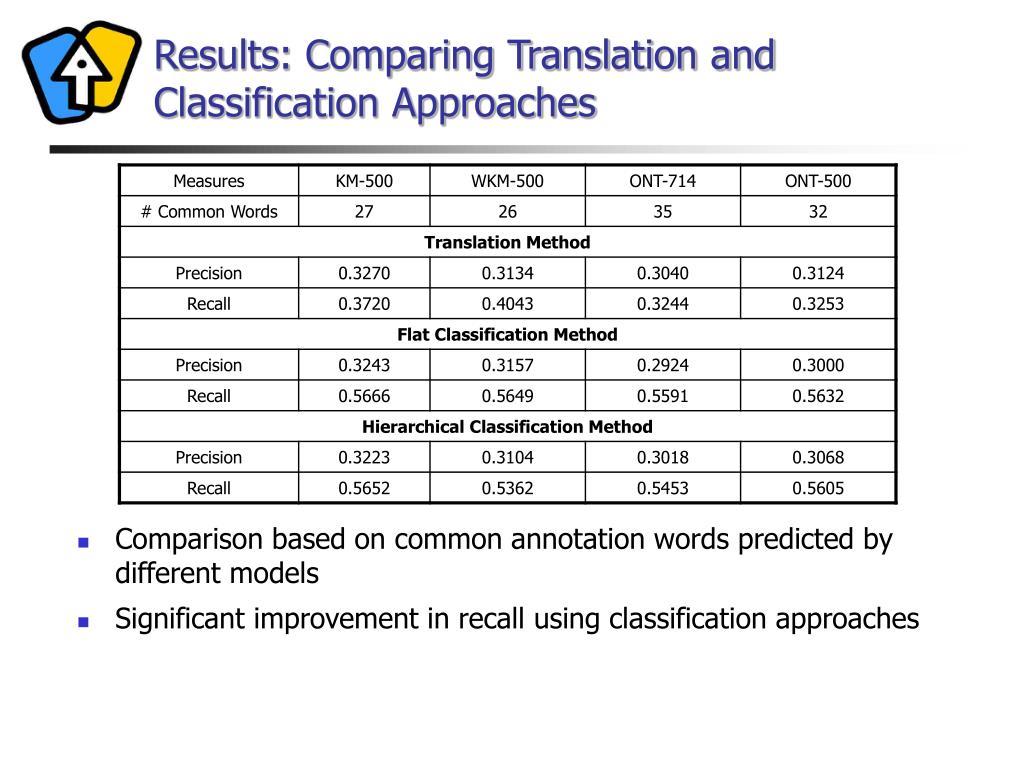

  20. Results: Comparing Translation and Classification Approaches • Comparison based on common annotation words predicted by different models • Significant improvement in recall using classification approaches

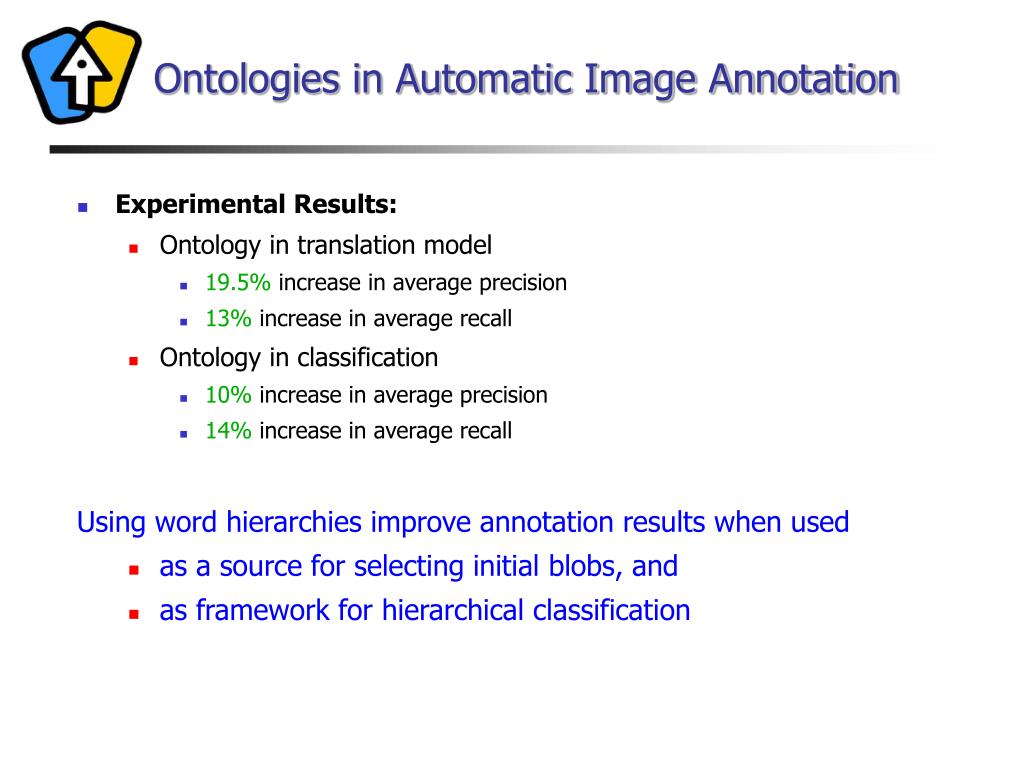

  21. Ontologies in Automatic Image Annotation • Experimental Results: • Ontology in translation model • 19.5% increase in average precision • 13% increase in average recall • Ontology in classification • 10% increase in average precision • 14% increase in average recall Using word hierarchies improve annotation results when used • as a source for selecting initial blobs, and • as framework for hierarchical classification

  22. Summary and Future Work • Proposed methods for using ontologies in automatic image annotation • Translation Models: Defining Visual vocabulary • Hierarchical Classification Models: Provide the hierarchy for models defined image features • Explore the use of ontologies in other approaches to automatic image annotation • Discriminative models • Exploit the dependence between annotation words in automatic image annotation • Correlation between annotation words of an image can be exploited

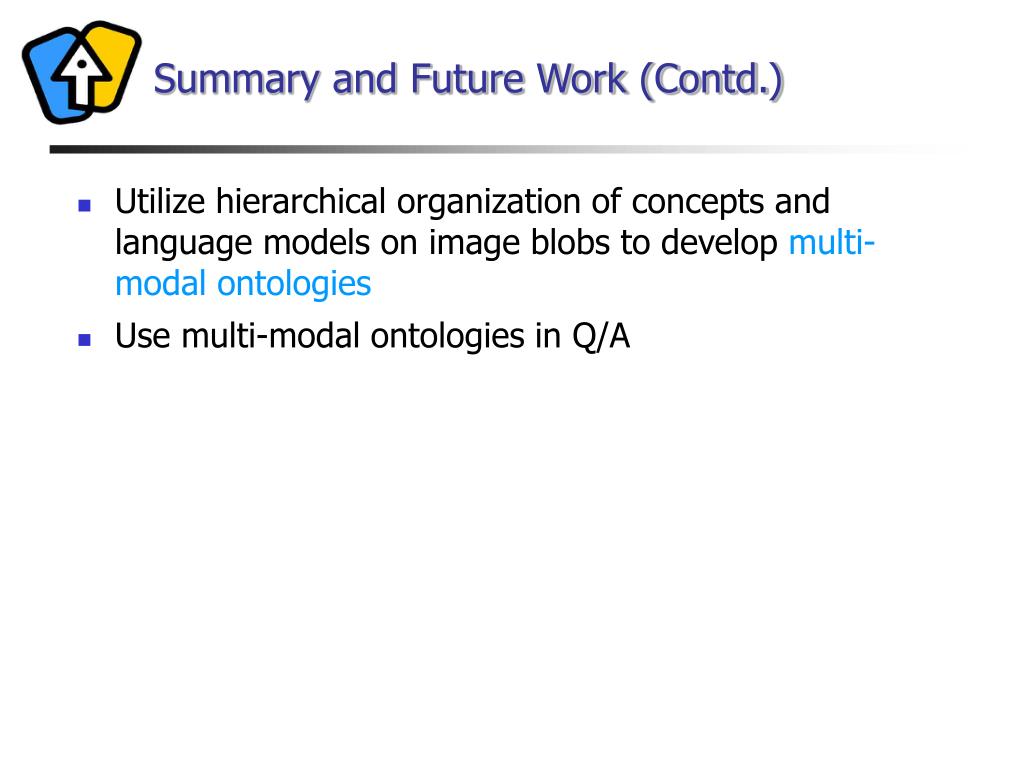

  23. Summary and Future Work (Contd.) • Utilize hierarchical organization of concepts and language models on image blobs to develop multi-modal ontologies • Use multi-modal ontologies in Q/A

  24. Multimedia Ontology: Example Node • Transportation WordNet hierarchy with Multimedia data

  25. Thank You.
