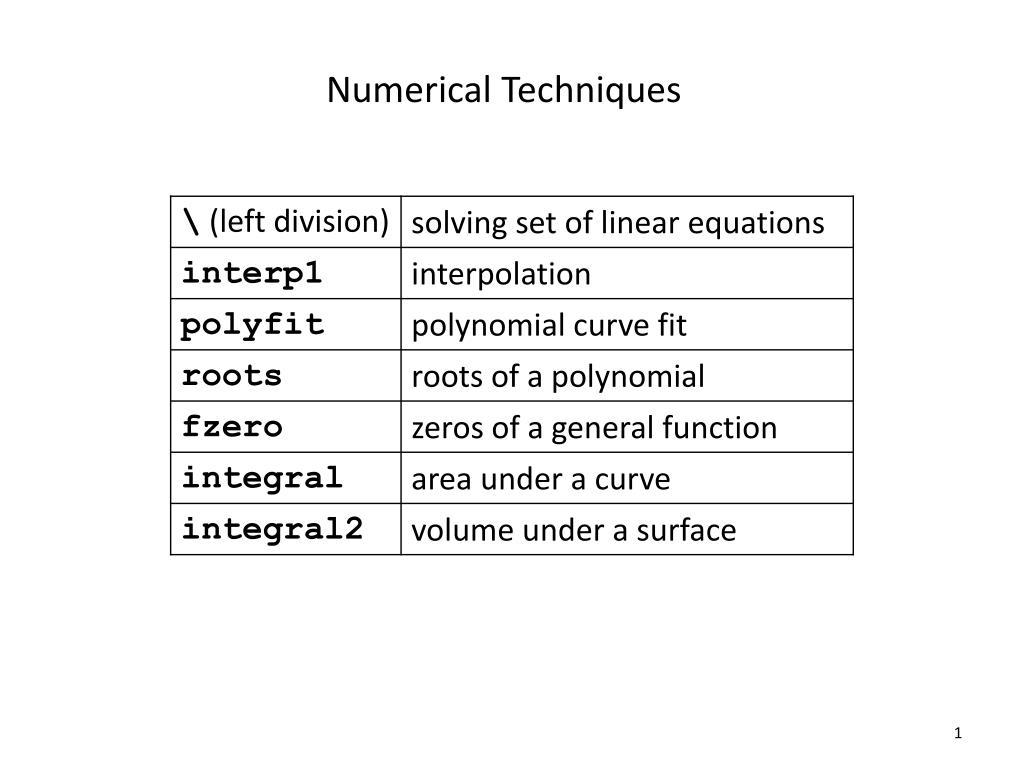

  1. Numerical Techniques

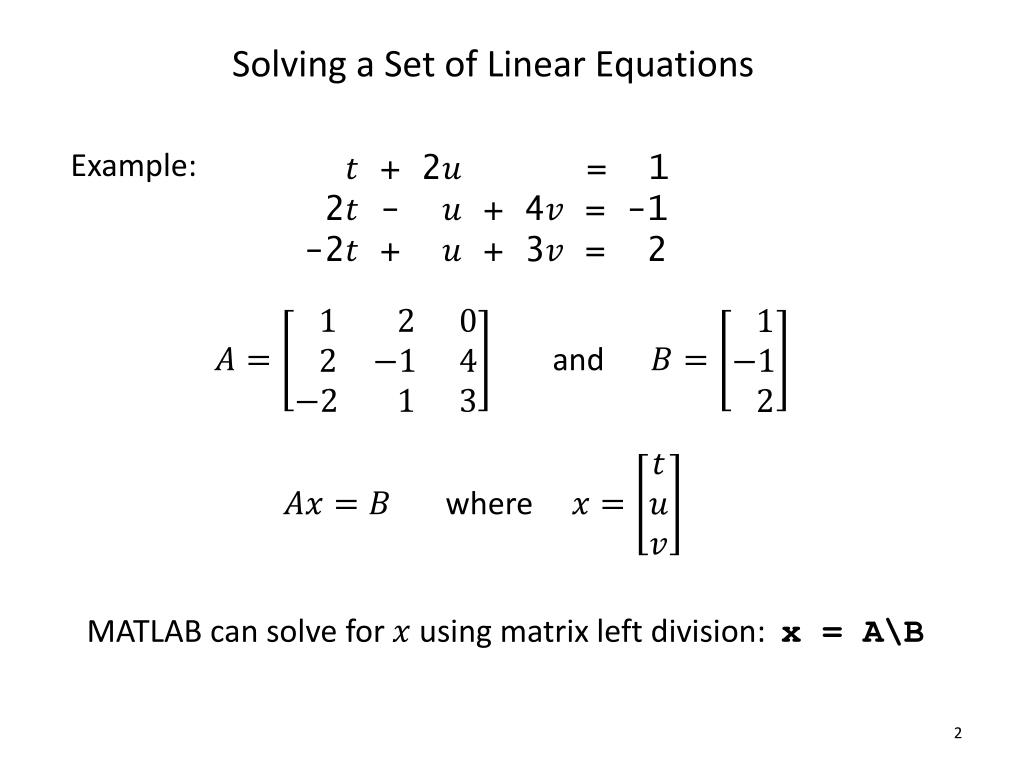

  2. Solving a Set of Linear Equations Example: + 2 = 1 2 - + 4 = -1 -2 + + 3 = 2 and where MATLAB can solve for using matrix left division: x = A\B

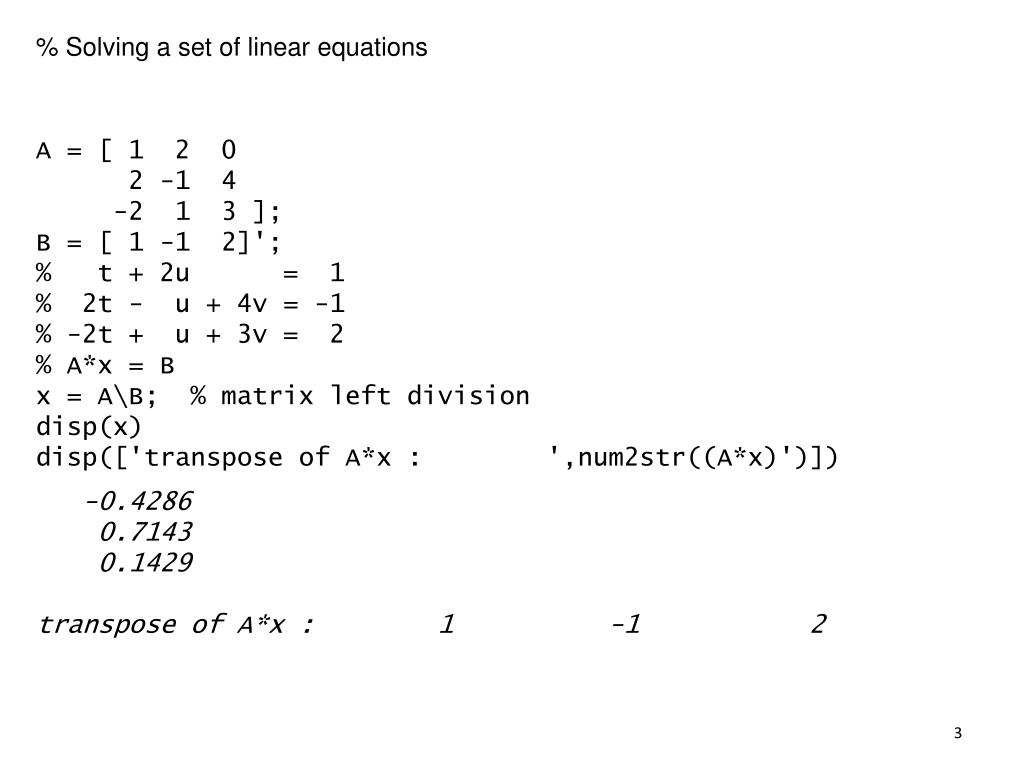

  3. % Solving a set of linear equations A = [ 1 2 0 2 -1 4 -2 1 3 ]; B = [ 1 -1 2]'; % t + 2u = 1 % 2t - u + 4v = -1 % -2t + u + 3v = 2 % A*x = B x = A\B; % matrix left division disp(x) disp(['transpose of A*x : ',num2str((A*x)')]) -0.4286 0.7143 0.1429 transpose of A*x : 1 -1 2

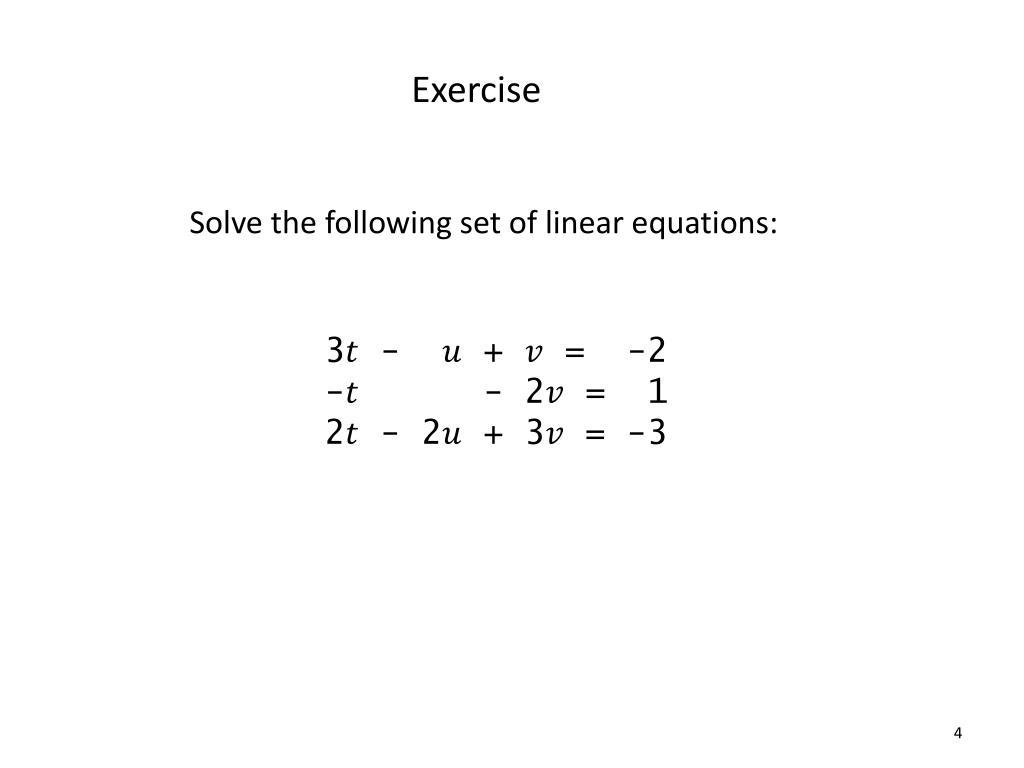

  4. Exercise Solve the following set of linear equations: 3- + = -2 - - 2 = 1 2- 2 + 3 = -3

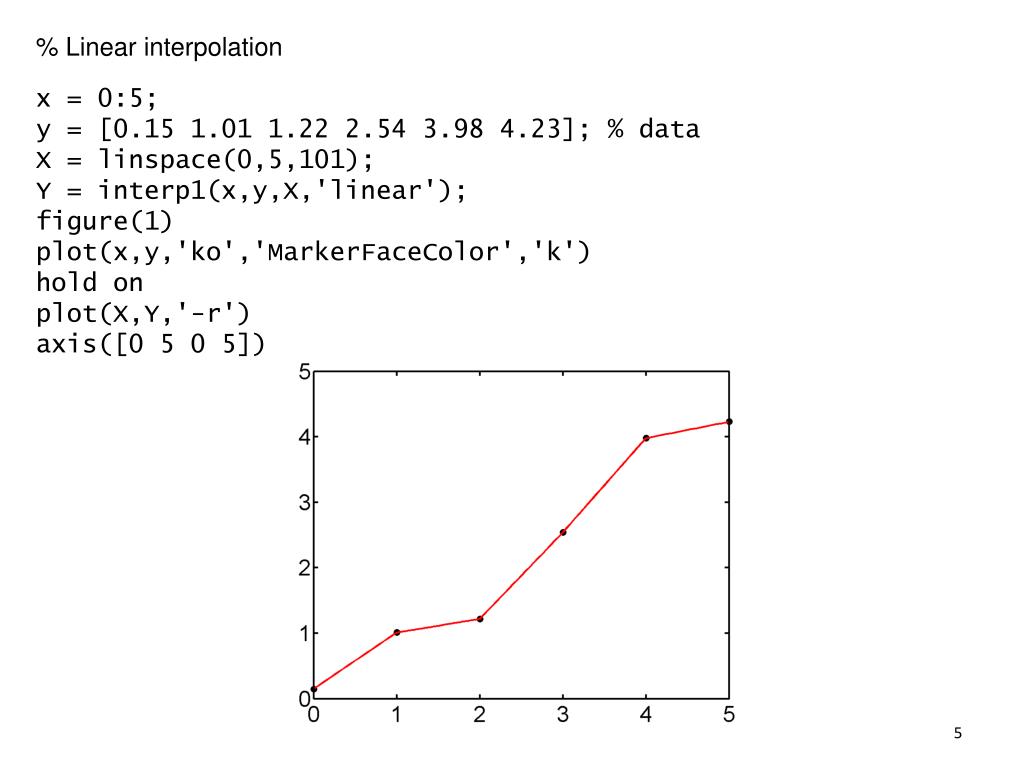

  5. % Linear interpolation x = 0:5; y = [0.15 1.01 1.22 2.54 3.98 4.23]; % data X = linspace(0,5,101); Y = interp1(x,y,X,'linear'); figure(1) plot(x,y,'ko','MarkerFaceColor','k') hold on plot(X,Y,'-r') axis([0 5 0 5])

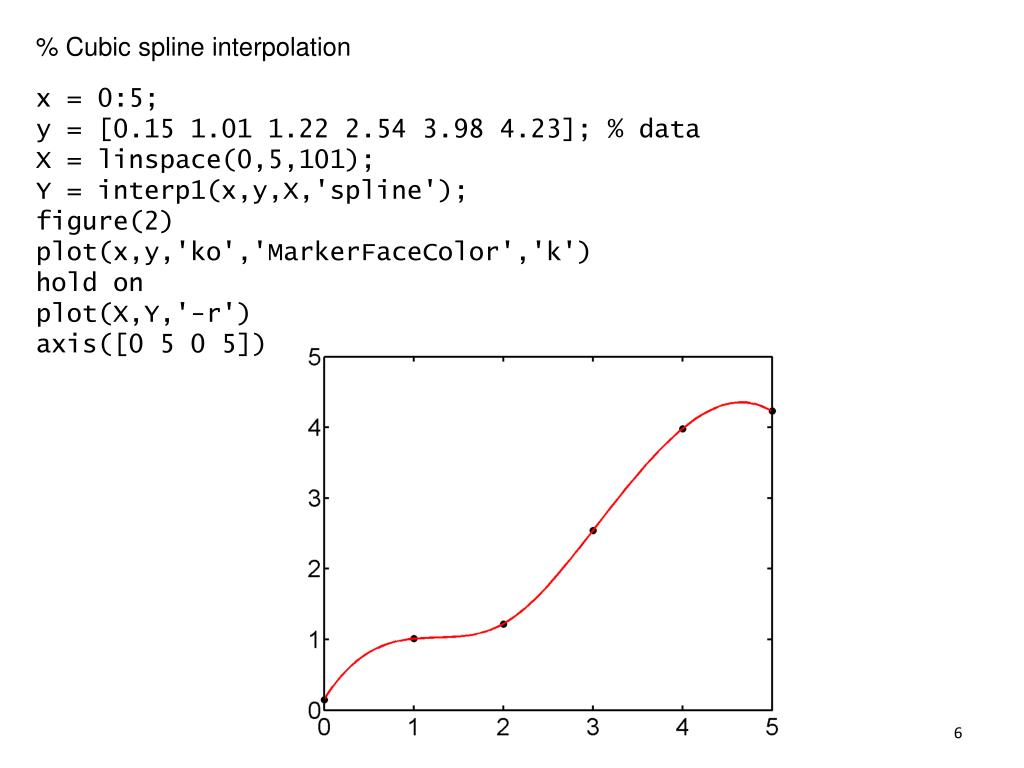

  6. % Cubic spline interpolation x = 0:5; y = [0.15 1.01 1.22 2.54 3.98 4.23]; % data X = linspace(0,5,101); Y = interp1(x,y,X,'spline'); figure(2) plot(x,y,'ko','MarkerFaceColor','k') hold on plot(X,Y,'-r') axis([0 5 0 5])

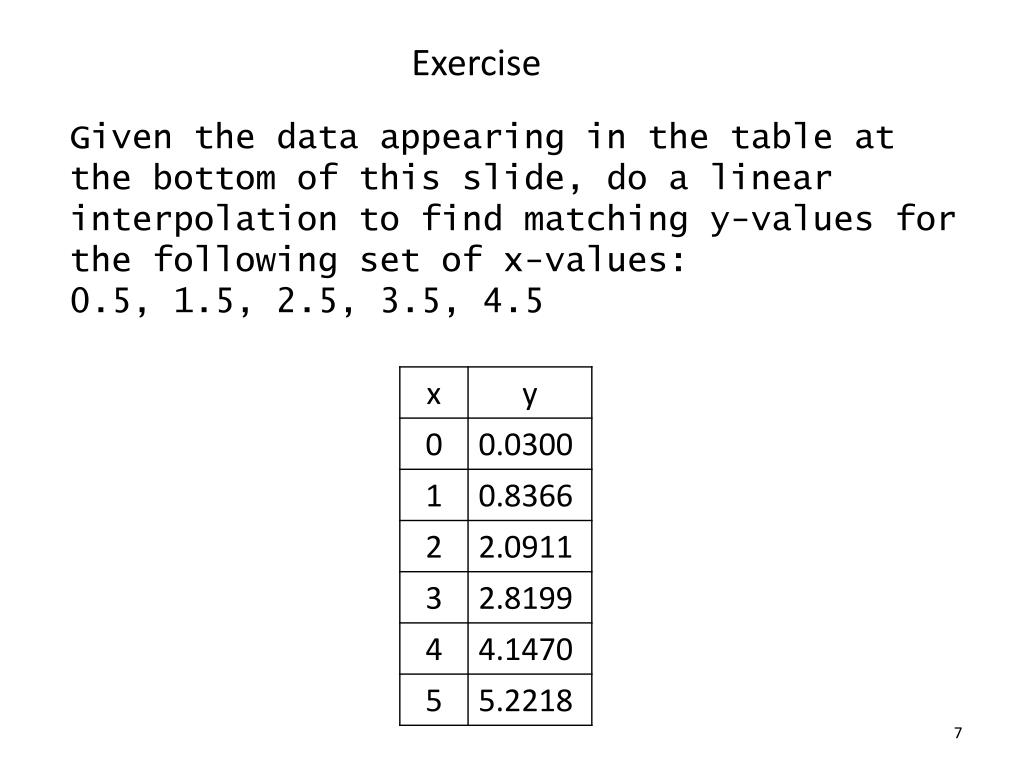

  7. Exercise Given the data appearing in the table at the bottom of this slide, do a linear interpolation to find matching y-values for the following set of x-values: 0.5, 1.5, 2.5, 3.5, 4.5

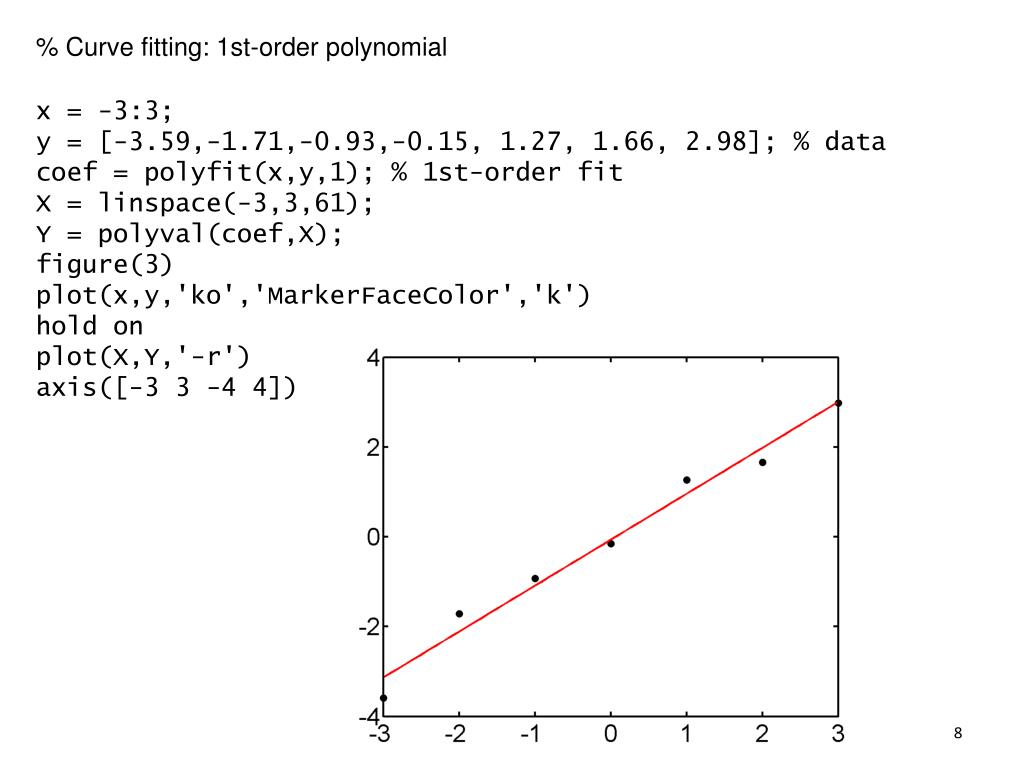

  8. % Curve fitting: 1st-order polynomial x = -3:3; y = [-3.59,-1.71,-0.93,-0.15, 1.27, 1.66, 2.98]; % data coef = polyfit(x,y,1); % 1st-order fit X = linspace(-3,3,61); Y = polyval(coef,X); figure(3) plot(x,y,'ko','MarkerFaceColor','k') hold on plot(X,Y,'-r') axis([-3 3 -4 4])

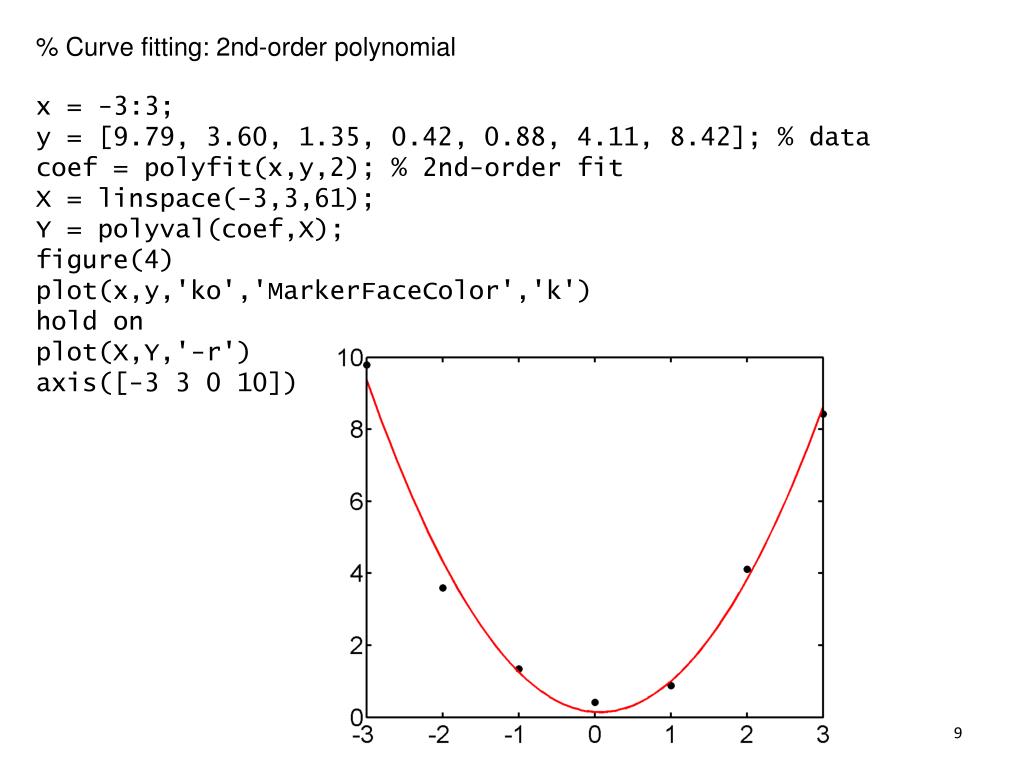

  9. % Curve fitting: 2nd-order polynomial x = -3:3; y = [9.79, 3.60, 1.35, 0.42, 0.88, 4.11, 8.42]; % data coef = polyfit(x,y,2); % 2nd-order fit X = linspace(-3,3,61); Y = polyval(coef,X); figure(4) plot(x,y,'ko','MarkerFaceColor','k') hold on plot(X,Y,'-r') axis([-3 3 0 10])

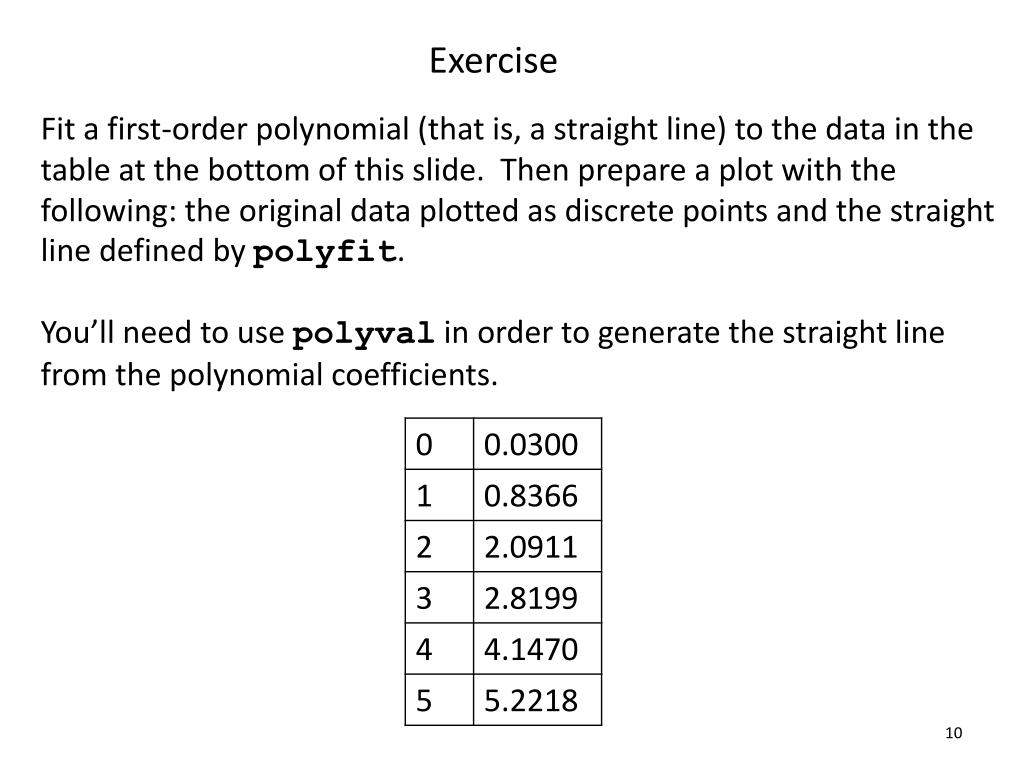

  10. Exercise Fit a first-order polynomial (that is, a straight line) to the data in the table at the bottom of this slide. Then prepare a plot with the following: the original data plotted as discrete points and the straight line defined by polyfit. You’ll need to use polyval in order to generate the straight line from the polynomial coefficients.

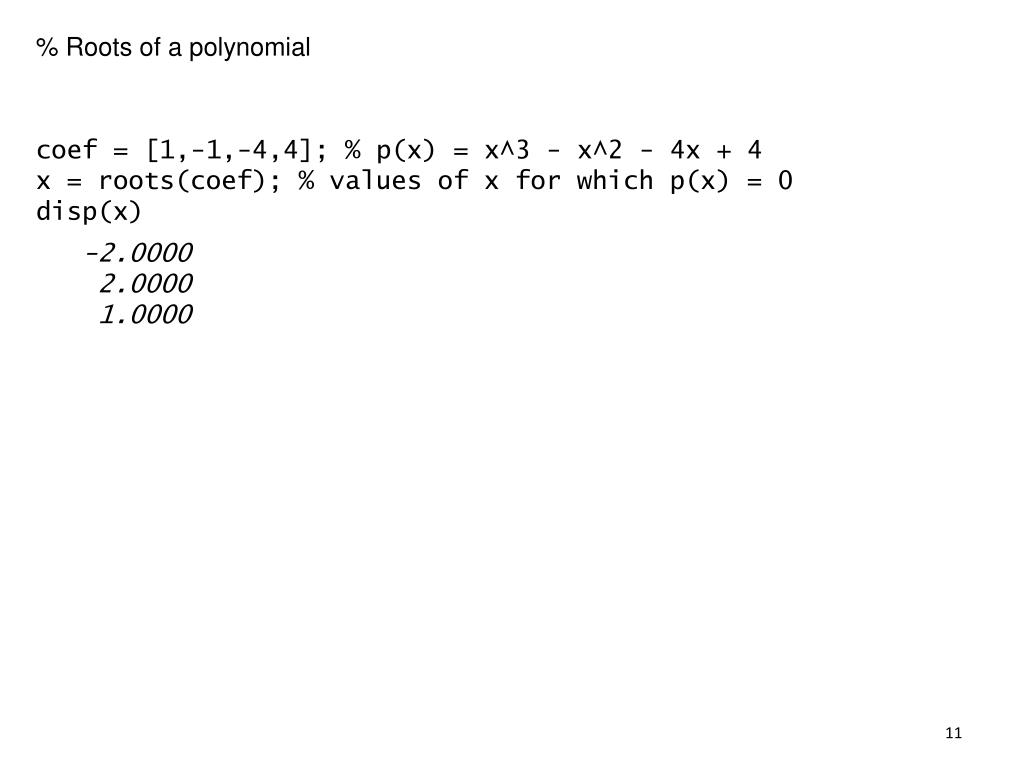

  11. % Roots of a polynomial coef = [1,-1,-4,4]; % p(x) = x^3 - x^2 - 4x + 4 x = roots(coef); % values of x for which p(x) = 0 disp(x) -2.0000 2.0000 1.0000

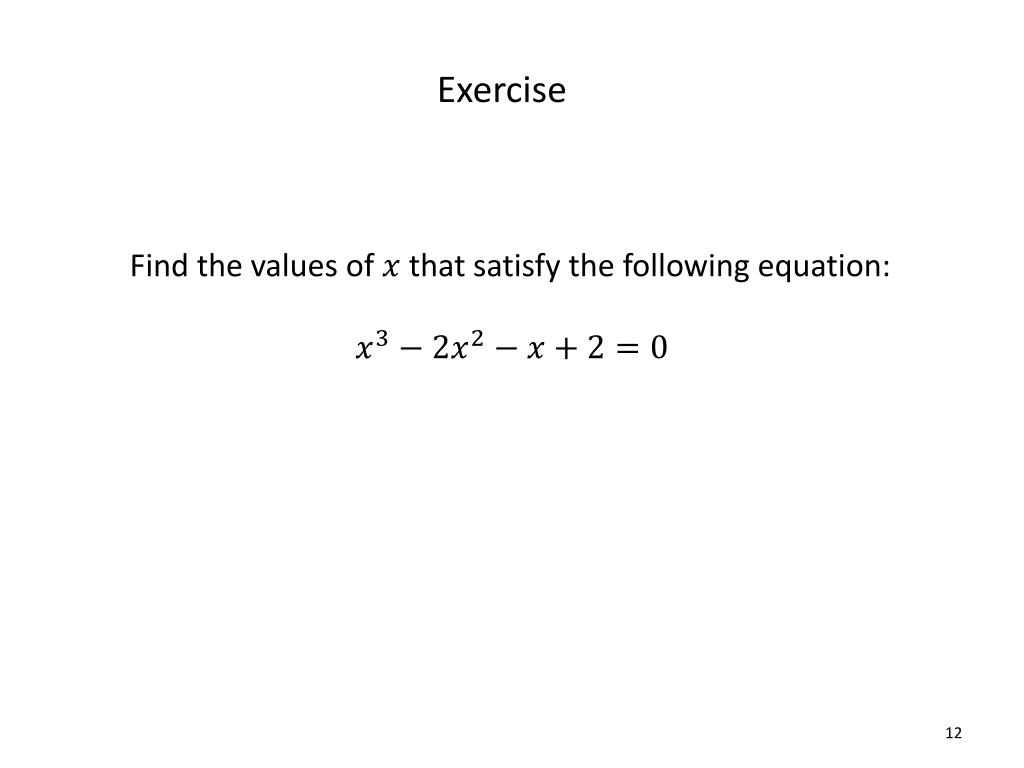

  12. Exercise Find the values of that satisfy the following equation:

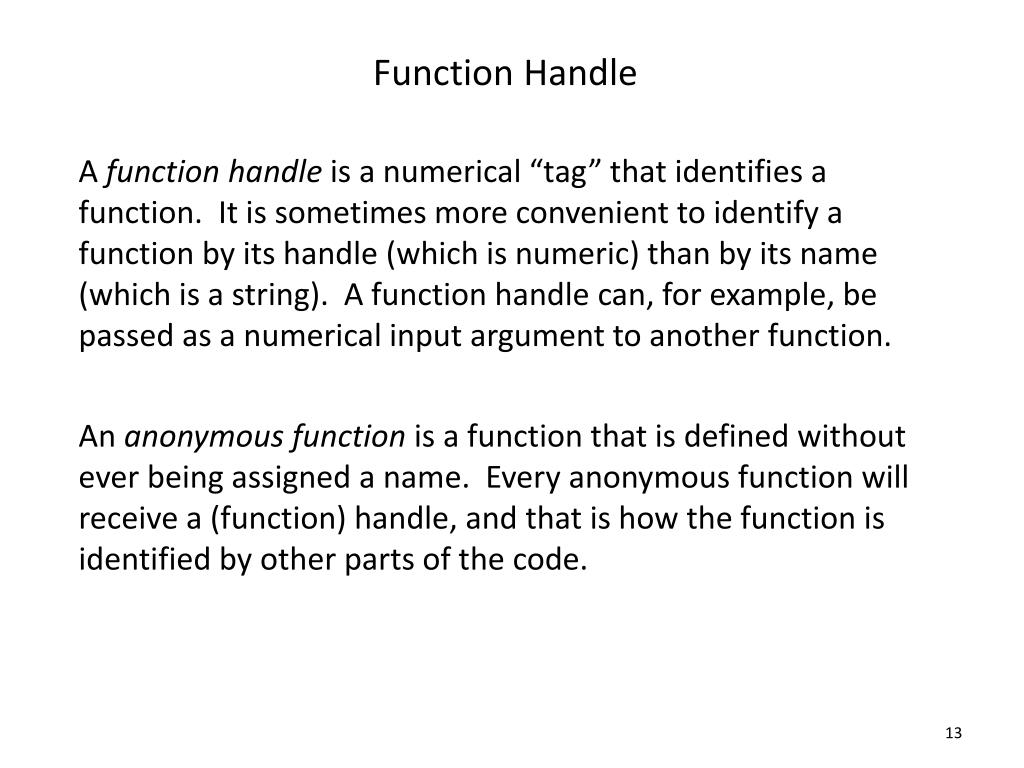

  13. Function Handle A function handle is a numerical “tag” that identifies a function. It is sometimes more convenient to identify a function by its handle (which is numeric) than by its name (which is a string). A function handle can, for example, be passed as a numerical input argument to another function. An anonymous function is a function that is defined without ever being assigned a name. Every anonymous function will receive a (function) handle, and that is how the function is identified by other parts of the code.

  14. function A = areaCircle(r) • % areaCircle calculates the area of a circle. • % input: r = radius • % output: A = area • A = pi*(r.^2); • end % areaCircle

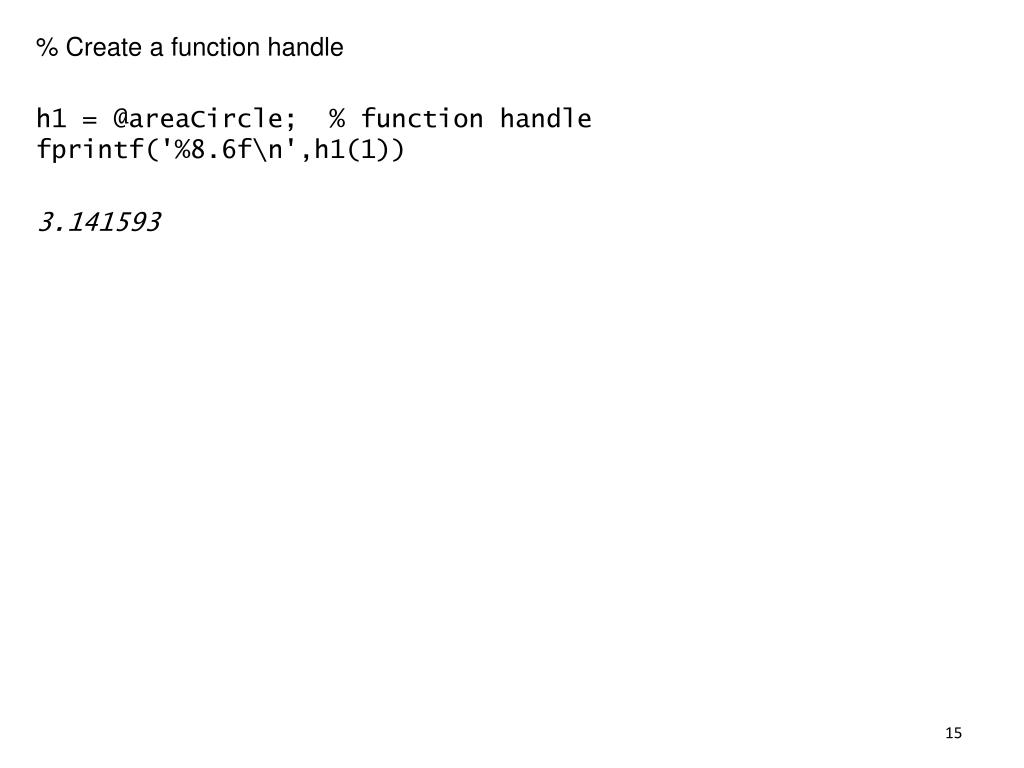

  15. % Create a function handle • h1 = @areaCircle; % function handle • fprintf('%8.6f\n',h1(1)) • 3.141593

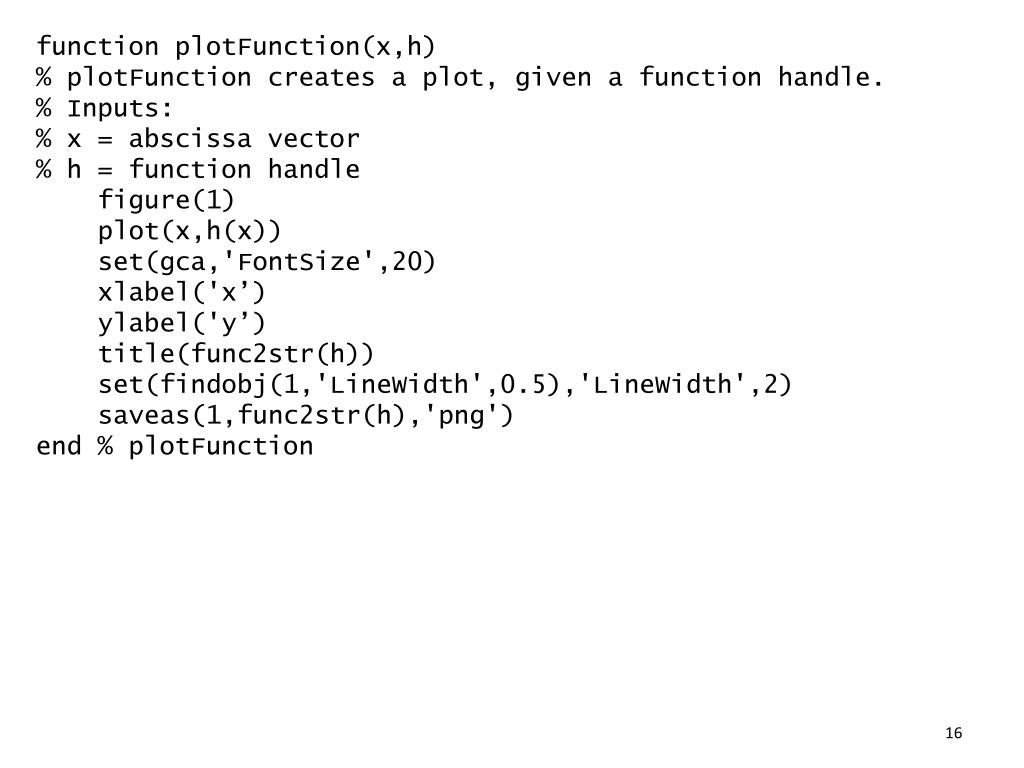

  16. function plotFunction(x,h) • % plotFunction creates a plot, given a function handle. • % Inputs: • % x = abscissa vector • % h = function handle • figure(1) • plot(x,h(x)) • set(gca,'FontSize',20) • xlabel('x’) • ylabel('y’) • title(func2str(h)) • set(findobj(1,'LineWidth',0.5),'LineWidth',2) • saveas(1,func2str(h),'png') • end % plotFunction

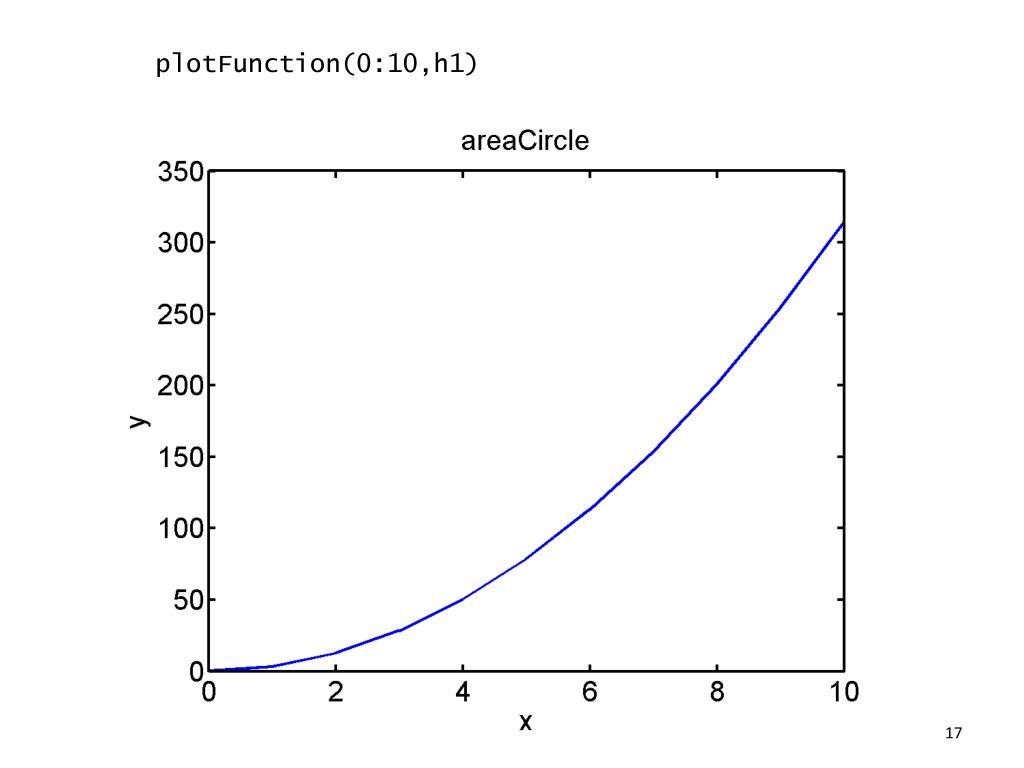

  17. plotFunction(0:10,h1)

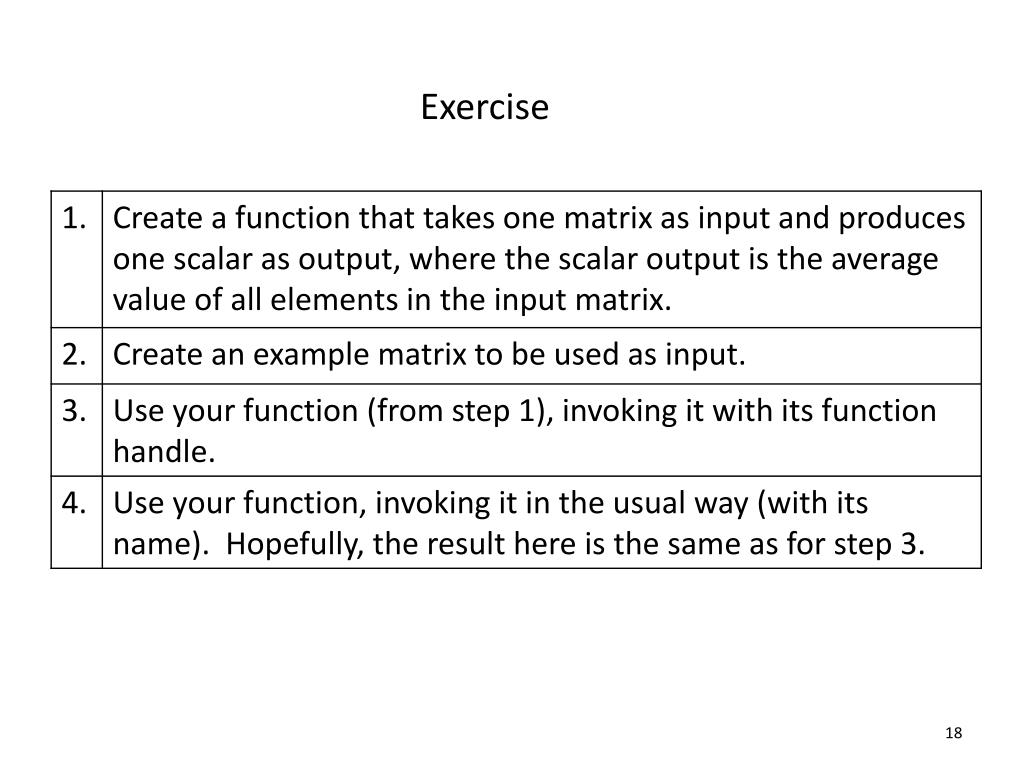

  18. Exercise

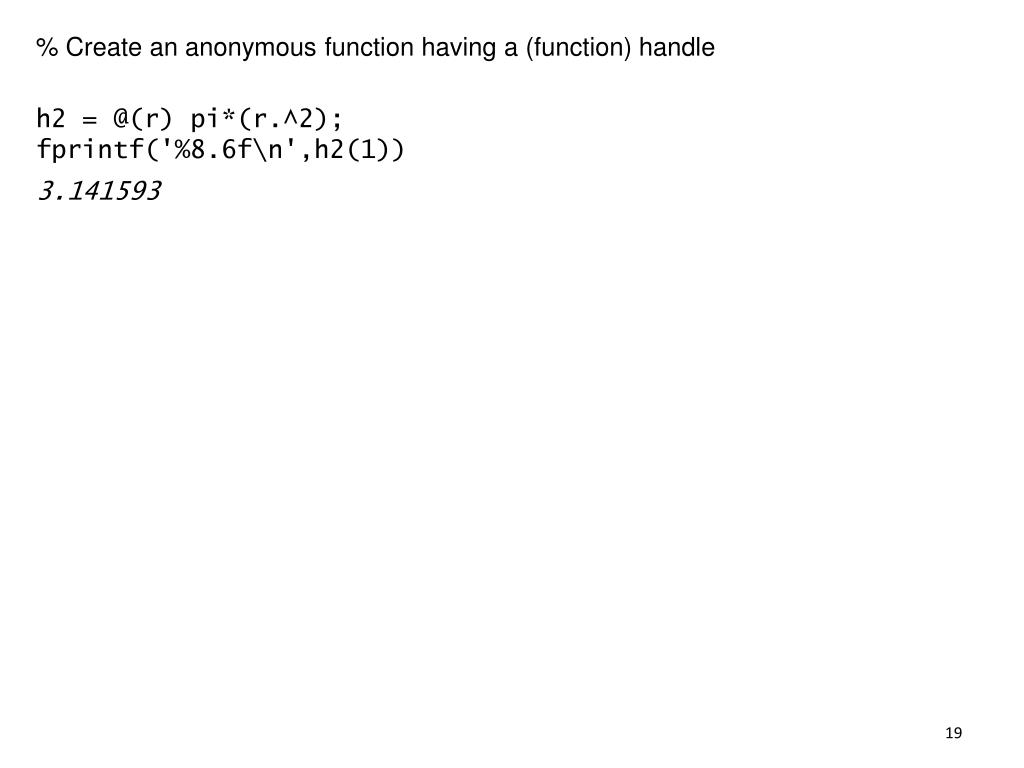

  19. % Create an anonymous function having a (function) handle • h2 = @(r) pi*(r.^2); • fprintf('%8.6f\n',h2(1)) • 3.141593

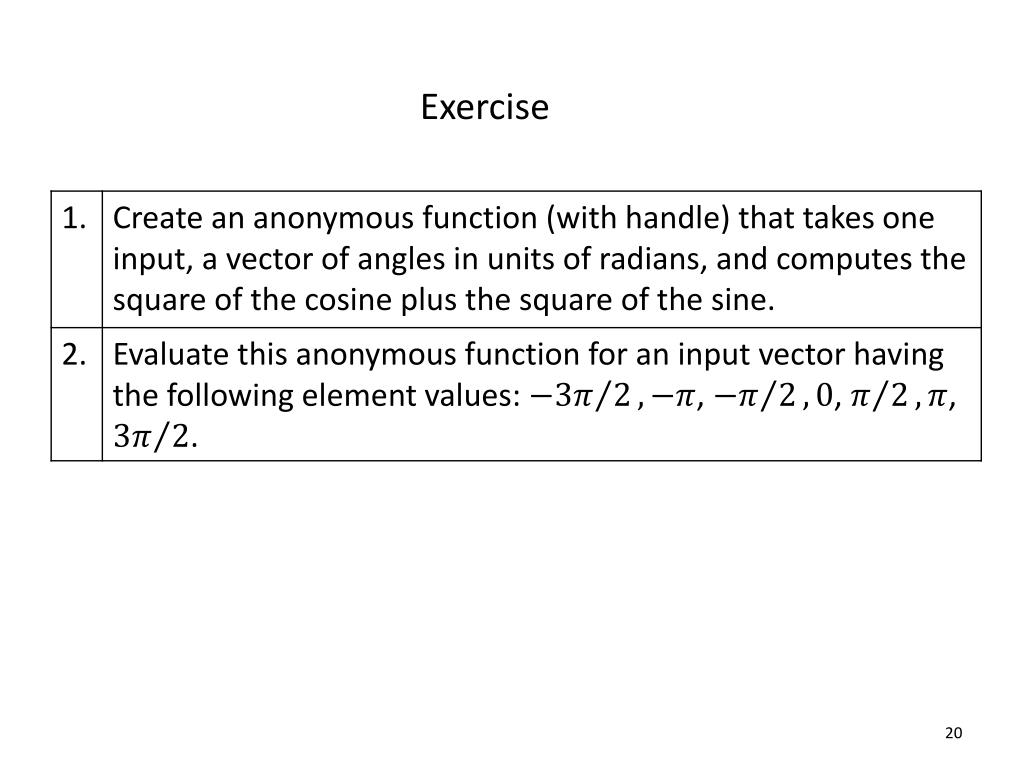

  20. Exercise

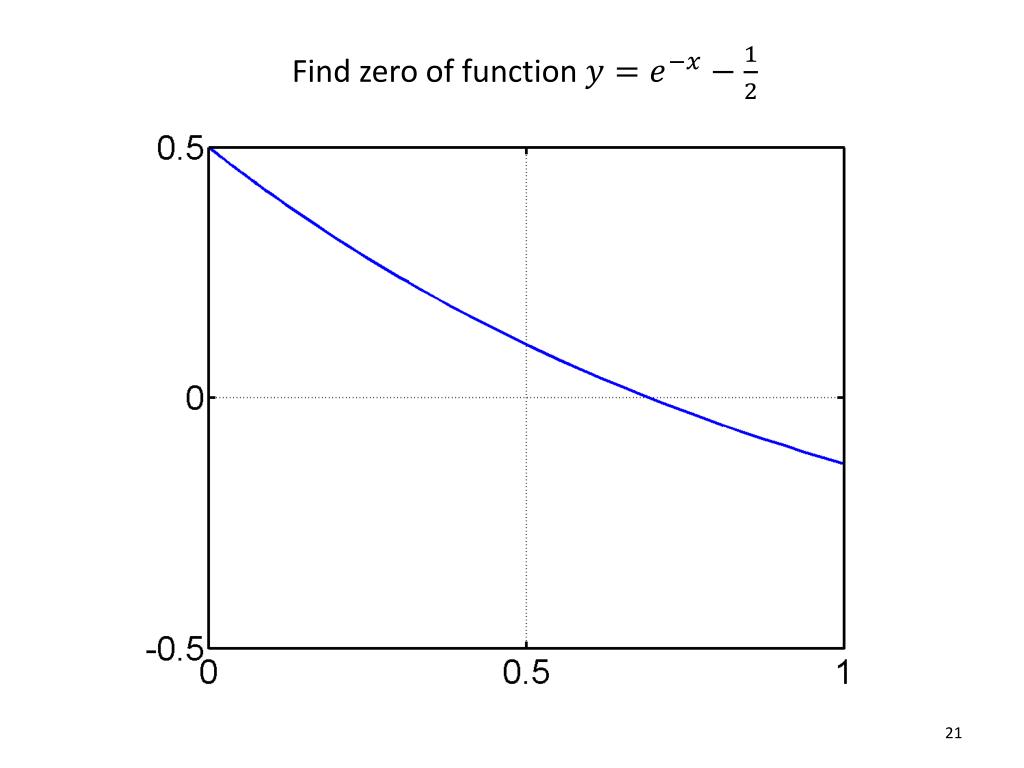

  21. Find zero of function

  22. % Find zeros with function fzero NonlinearFunction = @(x) exp(-x) - 0.5; x0 = fzero(NonlinearFunction,[0,1]); fprintf('zero of NonlinearFunction: %6.4f\n',x0) zero of NonlinearFunction: 0.6931

  23. Exercise Find the zero of the function for

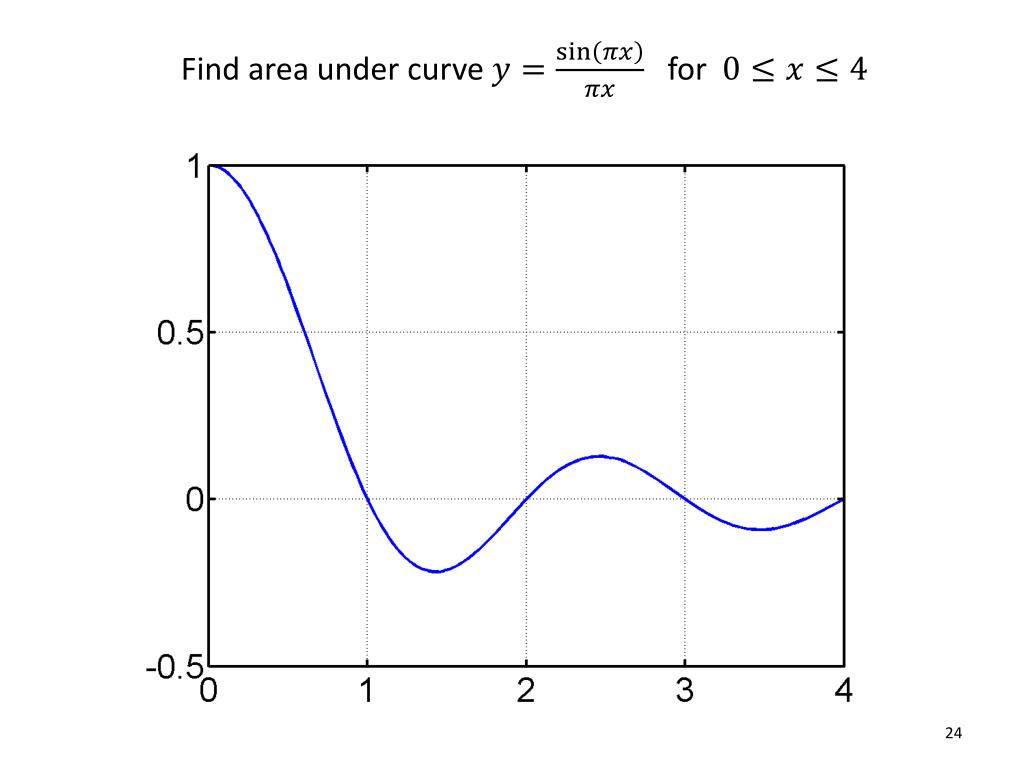

  24. Find area under curve for

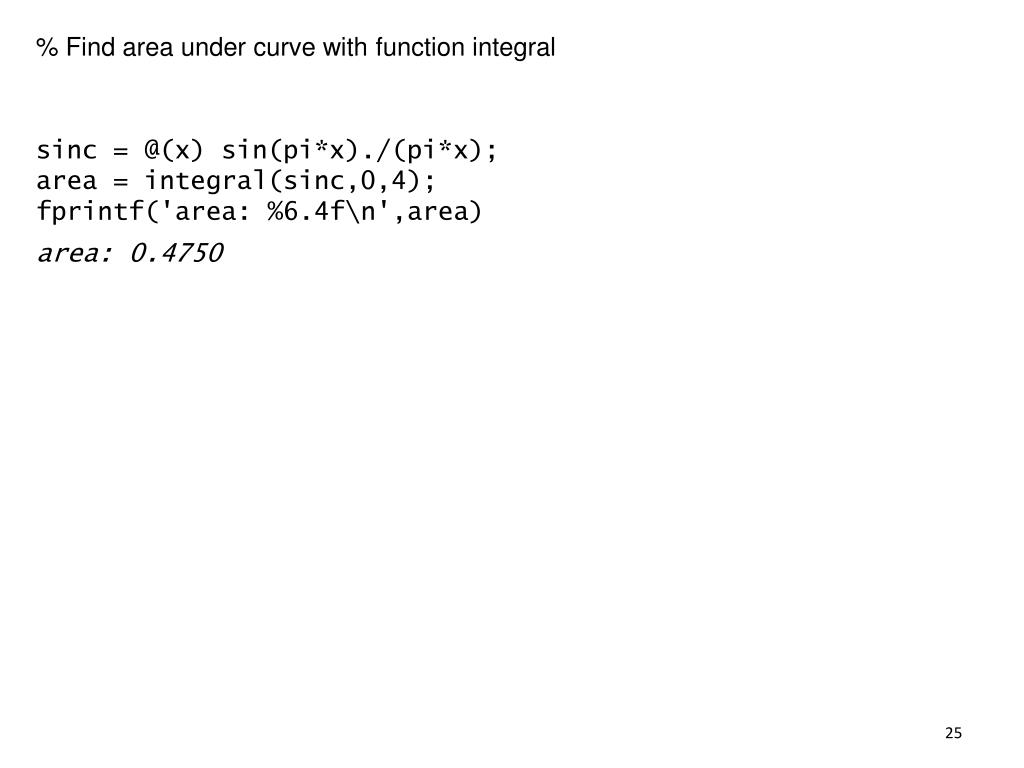

  25. % Find area under curve with function integral sinc = @(x) sin(pi*x)./(pi*x); area = integral(sinc,0,4); fprintf('area: %6.4f\n',area) area: 0.4750

  26. Exercise Find the area under the curve for

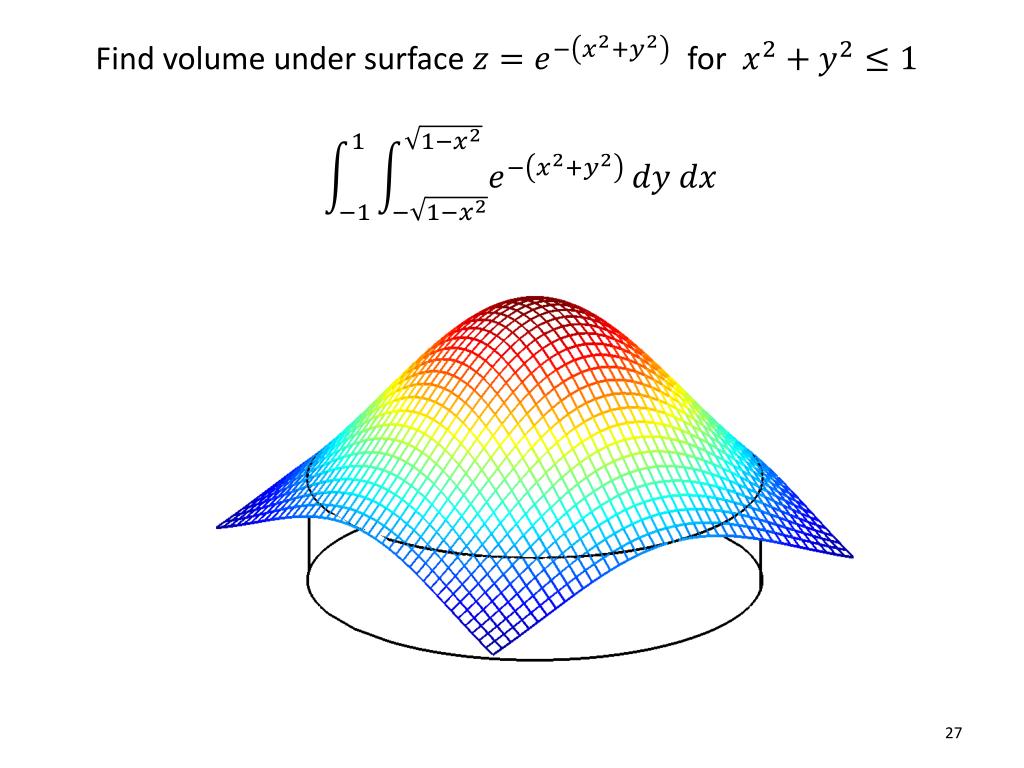

  27. Find volume under surface for

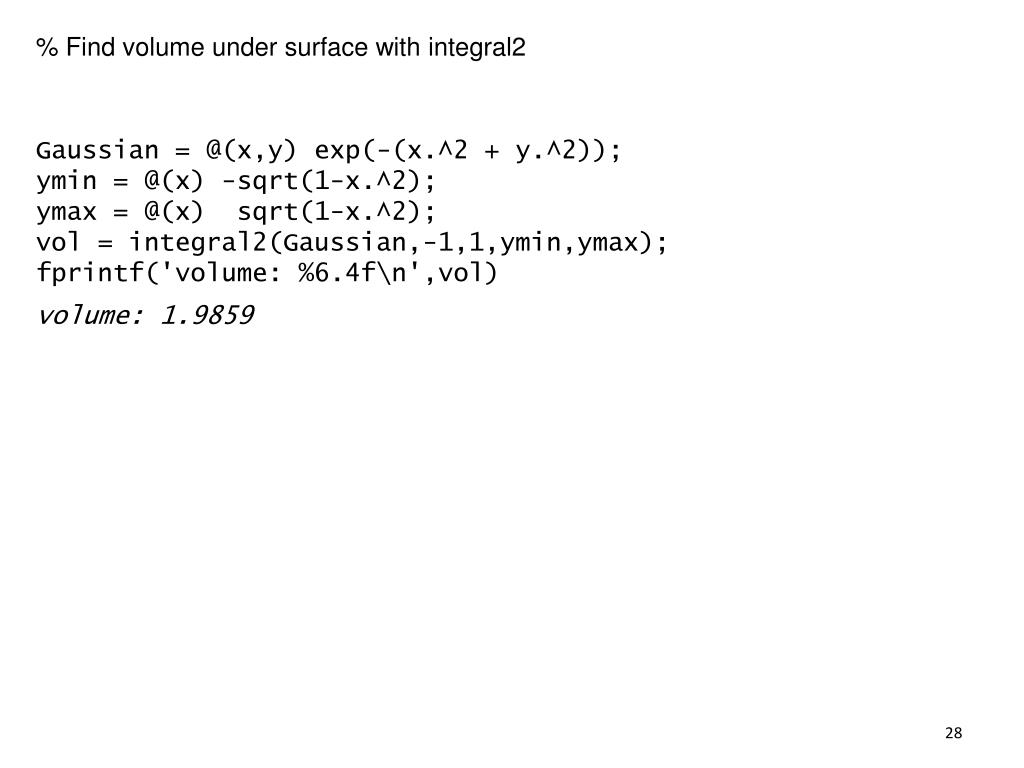

  28. % Find volume under surface with integral2 Gaussian = @(x,y) exp(-(x.^2 + y.^2)); ymin = @(x) -sqrt(1-x.^2); ymax = @(x) sqrt(1-x.^2); vol = integral2(Gaussian,-1,1,ymin,ymax); fprintf('volume: %6.4f\n',vol) volume: 1.9859

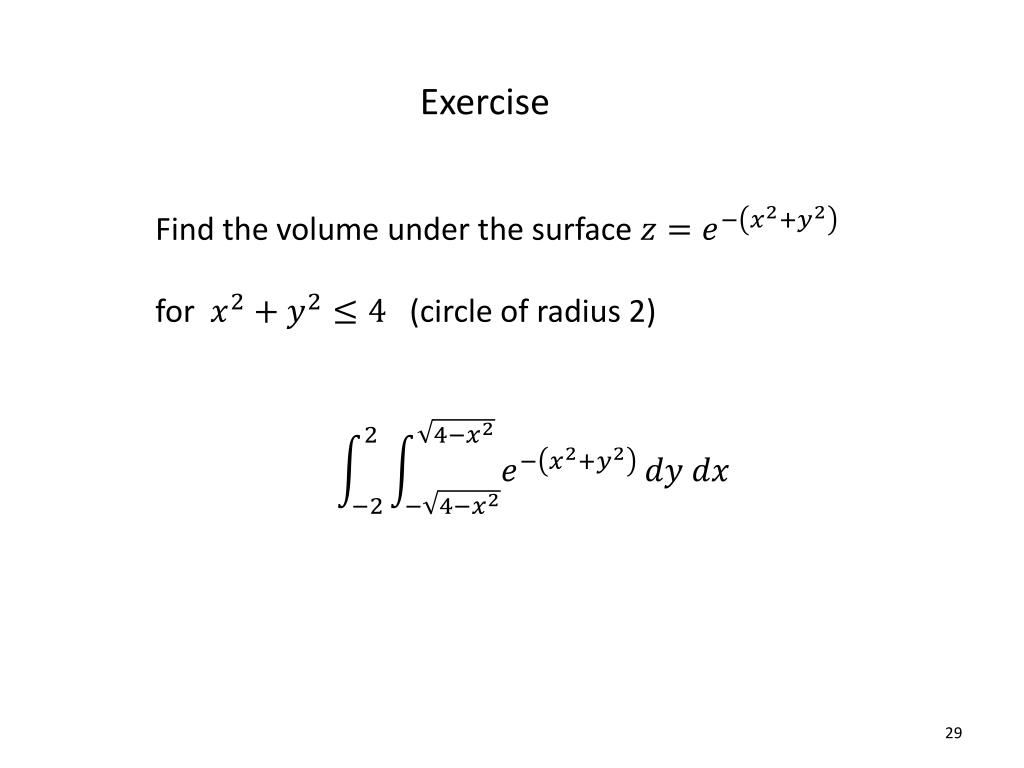

  29. Exercise Find the volume under the surface for (circle of radius 2)
