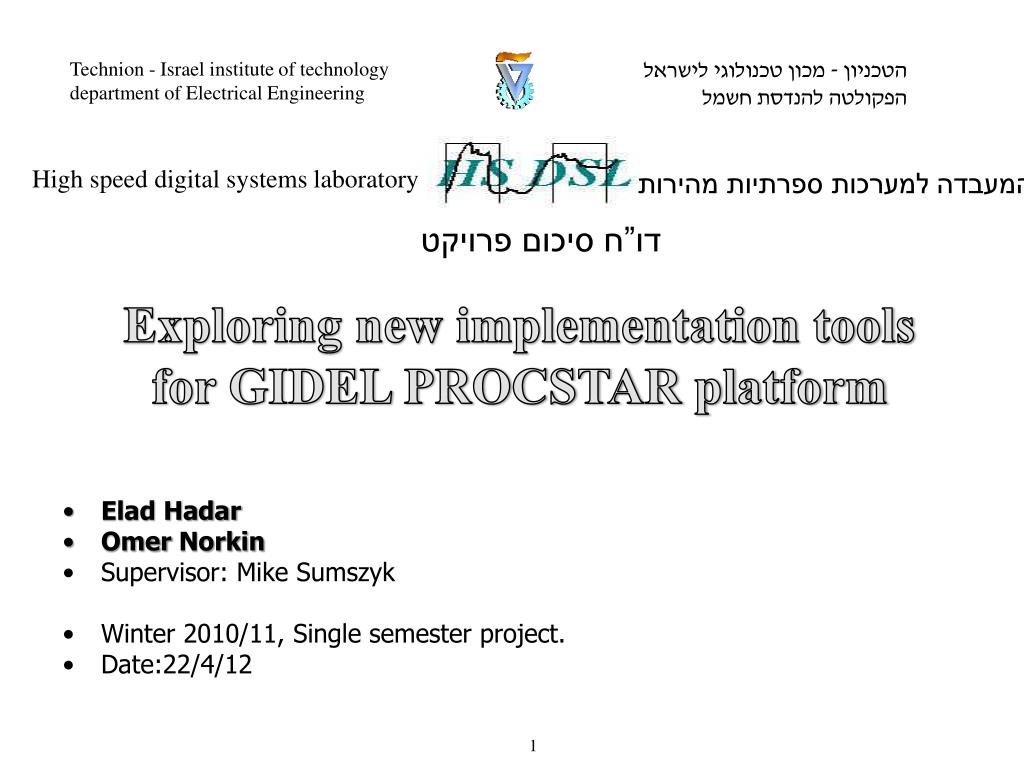

  1. Technion - Israel institute of technology department of Electrical Engineering הטכניון - מכון טכנולוגי לישראלהפקולטה להנדסת חשמל High speed digital systems laboratory המעבדה למערכות ספרתיות מהירות דו”ח סיכום פרויקט Exploring new implementation tools for GIDEL PROCSTAR platform • Elad Hadar • Omer Norkin • Supervisor: Mike Sumszyk • Winter 2010/11, Single semester project. • Date:22/4/12 1

  2. High speed digital systems laboratory המעבדה למערכות ספרתיות מהירות Abstract • Implementing a video analysis designs on GIDEL PROCSTAR III platform that will enable usage and exploration of a new development platform (PART I – PROCHILs, PART II – PROCWIZARD, PROCAPI, PROCMegaFIFO ). • Proper usage of development tools throughout all stages of implementation from algorithm to hardware. • Preparing a clear user-guide that will enable a fast and simple ramp-up of the tools and the appropriate flow. 2

  3. High speed digital systems laboratory המעבדה למערכות ספרתיות מהירות System description 3

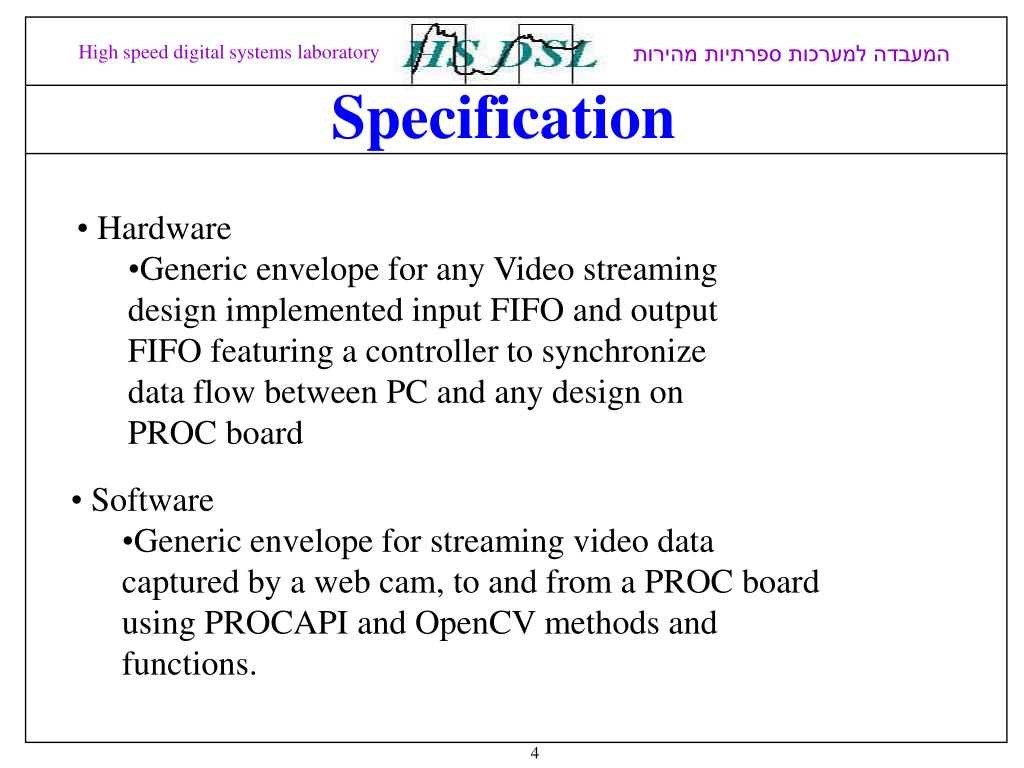

  4. High speed digital systems laboratory המעבדה למערכות ספרתיות מהירות Specification • Hardware • Generic envelope for any Video streaming design implemented input FIFO and output FIFO featuring a controller to synchronize data flow between PC and any design on PROC board • Software • Generic envelope for streaming video data captured by a web cam, to and from a PROC board using PROCAPI and OpenCV methods and functions. 4

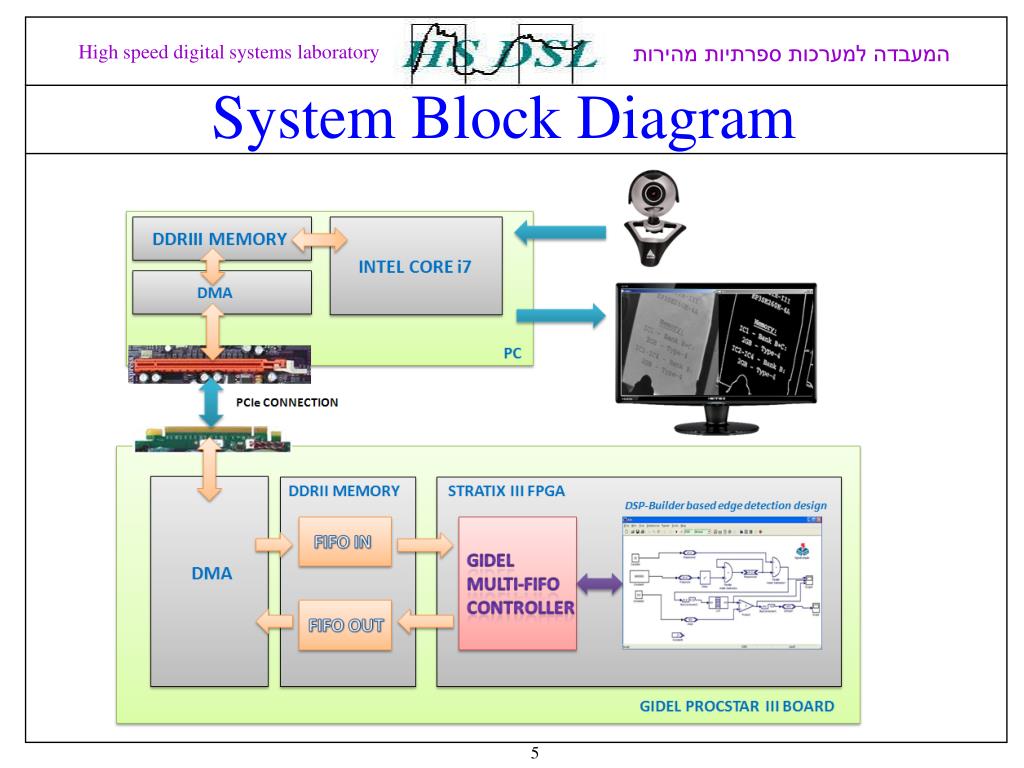

  5. High speed digital systems laboratory המעבדה למערכות ספרתיות מהירות System Block Diagram 5

  6. High speed digital systems laboratory המעבדה למערכות ספרתיות מהירות FPGA Block Diagram 6
