Tracy Zhang 03/06/09 Adiabatic Theorem and Quantum Hall Effect

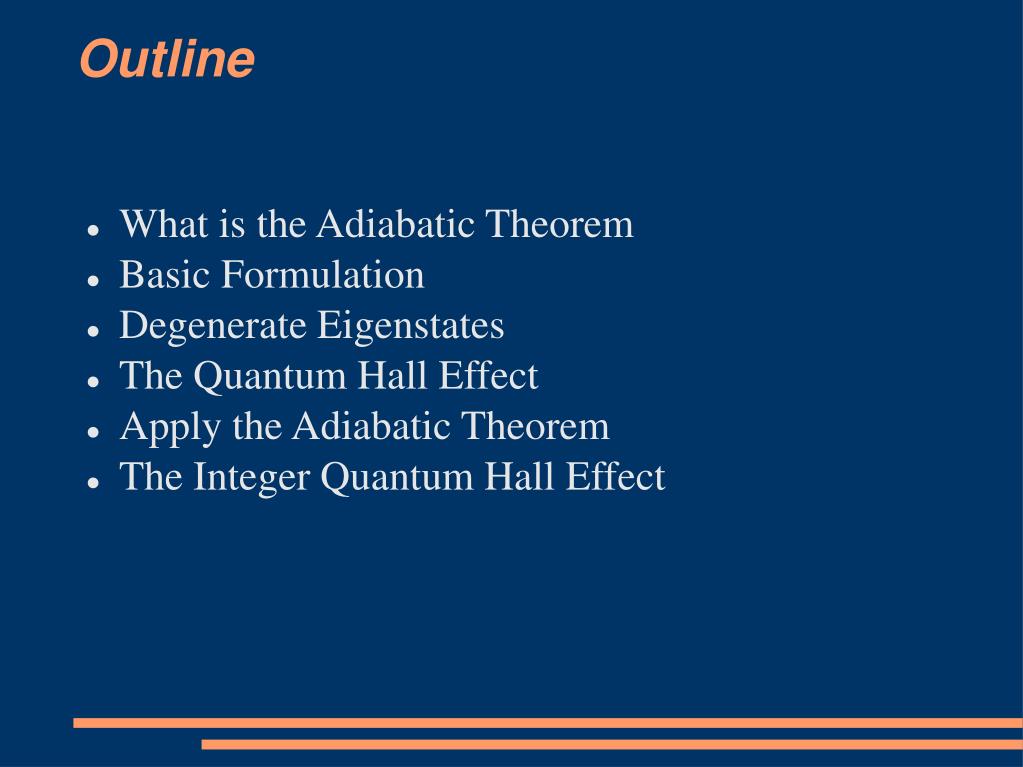

Outline • What is the Adiabatic Theorem • Basic Formulation • Degenerate Eigenstates • The Quantum Hall Effect • Apply the Adiabatic Theorem • The Integer Quantum Hall Effect
Adiabatic Theorem • concerns time-dependent Hamiltonian • where dH/dt is small • typical conditions: H is bounded; eigenvalues are discreet • general idea: a system which starts in the nth eigenstate remains in the nth eigenstate

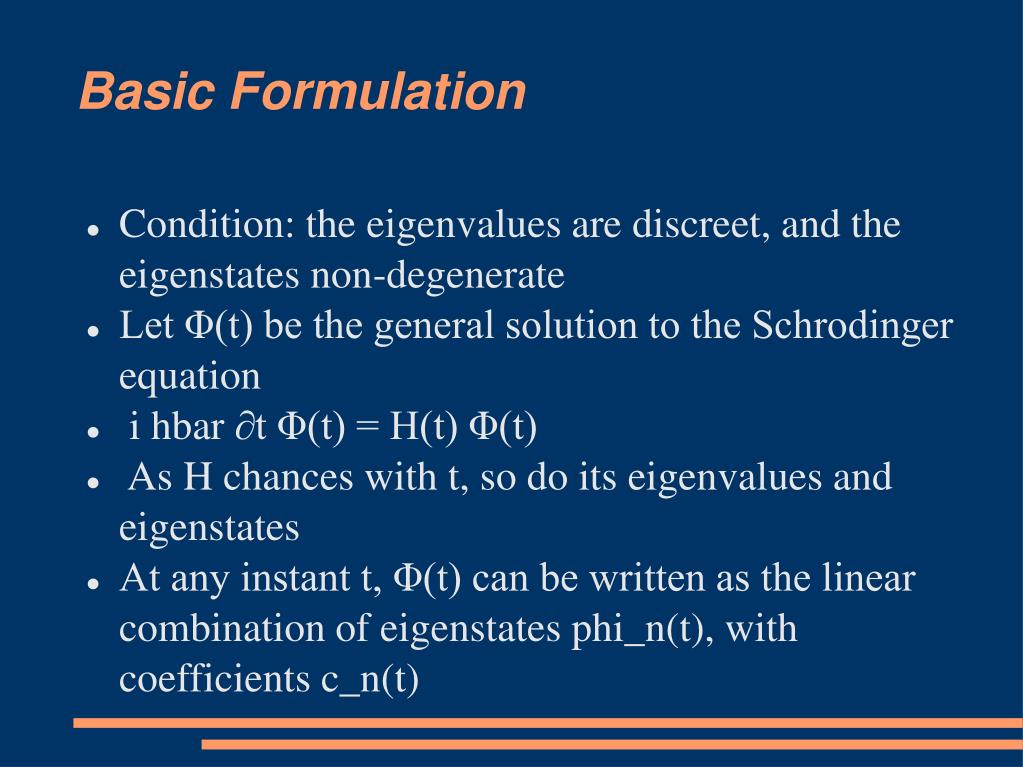

Basic Formulation • Condition: the eigenvalues are discreet, and the eigenstates non-degenerate • Let Φ(t) be the general solution to the Schrodinger equation • i hbar ∂t Φ(t) = H(t) Φ(t) • As H chances with t, so do its eigenvalues and eigenstates • At any instant t, Φ(t) can be written as the linear combination of eigenstates phi_n(t), with coefficients c_n(t)
Statement • If dH/dt is small, then C_n(t) = C_n(0) *e^(i\gamma) • If Φ(t) starts out as the mth eigenstate, then C_n(0) = delta_nm, hence C_n(t)=0 unless n=m • Φ(t) remains the nth eigenstate • e^(i\gamma) called the geometri phase, related to parallel transport in the parameter space of the Hamiltonian • Berry's phase
Degenerate Eigenstates • For each eigenvalue, associate eigenspace of dimension=multiplicity • Define projection operator P_n onto nth eigenspace • Φ(t)=sum_n {P_n(t) Φ(t)} • P^2=1 • change variable t -> s, s=t / tau • adiabatic condition tau -> infinity
Physical Revolution • operator U(s), • Φ(0) -> U(s)Φ(0) = Φ(t) • U(s) satisfies i hbar ∂s U(s) = tau H(s) U(s) U(0) =1
Adiabatic Revolution • operators H_A(s, P), U_A(s, P), • U_A(s, P) acts on the eigenspace associated with P • satisfy i hbar ∂s U_A = tau H_A U_A U_A(0,P)=1 • decoupling requirement: U_A(s, P)P(0)=P(s)U_A(s,P) U_A(s, P)Q(0)=P(s)U_A(s,P)

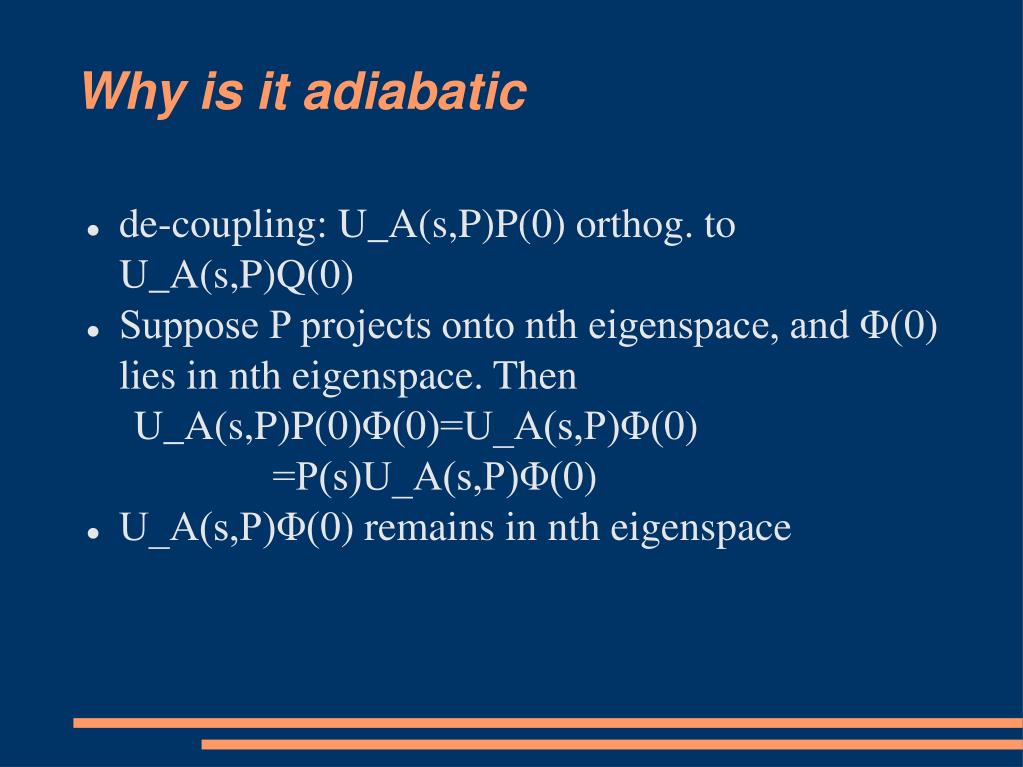

Why is it adiabatic • de-coupling: U_A(s,P)P(0) orthog. to U_A(s,P)Q(0) • Suppose P projects onto nth eigenspace, and Φ(0) lies in nth eigenspace. Then U_A(s,P)P(0)Φ(0)=U_A(s,P)Φ(0) =P(s)U_A(s,P)Φ(0) • U_A(s,P)Φ(0) remains in nth eigenspace
Statement • H_A(s,P)=-1/tau [∂s U_A(s,P) U*_A(s,P)] • U_tau (s) = U_A(s,P) + O(1/ tau) • If H is bounded, whose domain is time-indenpendent, is continuously differentiable, and has gaps in the spectrum, then H_A and U_A can always be found to approximate physical evolution • Gap condition can be removed

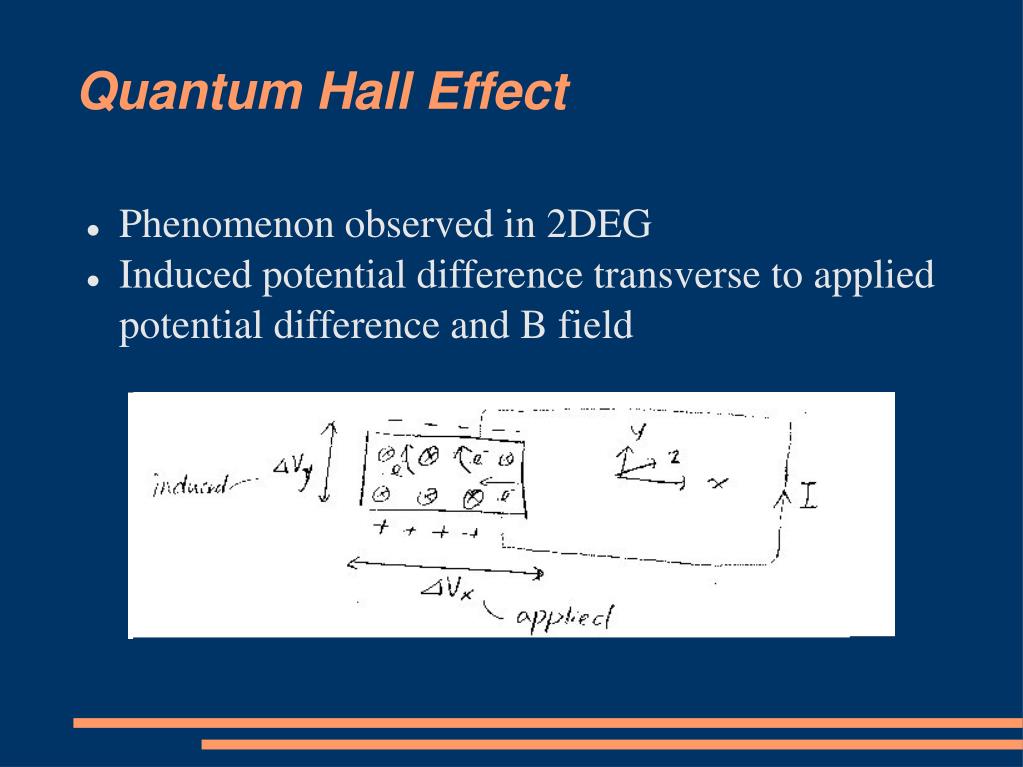

Quantum Hall Effect • Phenomenon observed in 2DEG • Induced potential difference transverse to applied potential difference and B field
Hall Conductance • sigma = I/V_x • If electron electron interraction is weak, sigma equals integer multiples of 1/2Pi (in units e=1, hbar=1) • called Integer Quantum Hall Effect • Arises from quantization of cyclotron orbits in the 2DEG
Landau Levels • Hamiltonian of the electron has the form of 1D harmonic oscillator • En =hbar w_c (½ +n) , called Landau levels • Highly degenerate, degeneracy proportional to B • Strong B field -> fewer levels occupied
Apply the Adiabatic Theorem • a different picture

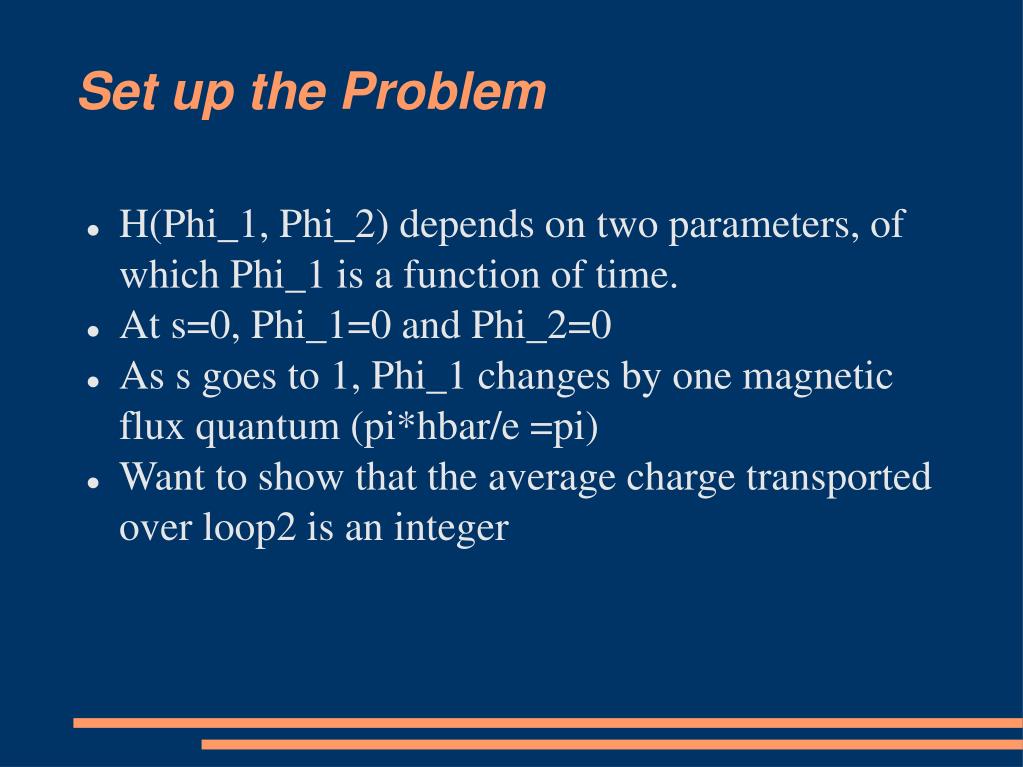

Set up the Problem • H(Phi_1, Phi_2) depends on two parameters, of which Phi_1 is a function of time. • At s=0, Phi_1=0 and Phi_2=0 • As s goes to 1, Phi_1 changes by one magnetic flux quantum (pi*hbar/e =pi) • Want to show that the average charge transported over loop2 is an integer
Time Evolution in Two Stages • Initial state f0 • Step one: Restrict the Hamiltonian to Phi_2 axis, define parallel transport U(phi) along the axis. U(phi)f0 takes system to the state where Phi_2 =phi • Step two: Fix phi, define the adiabatic evolution operators H_A(s), U_A(s). U_A(s,P)U(phi)f0 = f(s=0, Phi_2=phi)
Result • Average charge transport (averaged over phi) <Q>=1/2Pi int_0^2Pi { i<f(1,phi), ∂phi f(1,phi)>} • By geometric formulation of the problem, this is the First Chern Character associated with the vector bundle of groundstates, hence an integer.
References • Griffths. Introduction to Quantum Mechanics. • Kato. On the Adiabatic Theorem of Quantum Mechnics. 1950. • Avron et al. Adiabatic Theorems and Applications to the Quantum Hall Effect, 1987.
