  1. Robot Battles: Insect Edition May 24, 2012 Herrick Chang

  2. Birth of Robot Battle Federation • In 2050, boxing and mixed-martial arts were outlawed.

  3. RBF: Insect Edition

  4. Mechanic Training:Motors • Remember our Coil Motor • Electromagnet • Pager Motor = same. • Changing Polarity changes direction of spin.

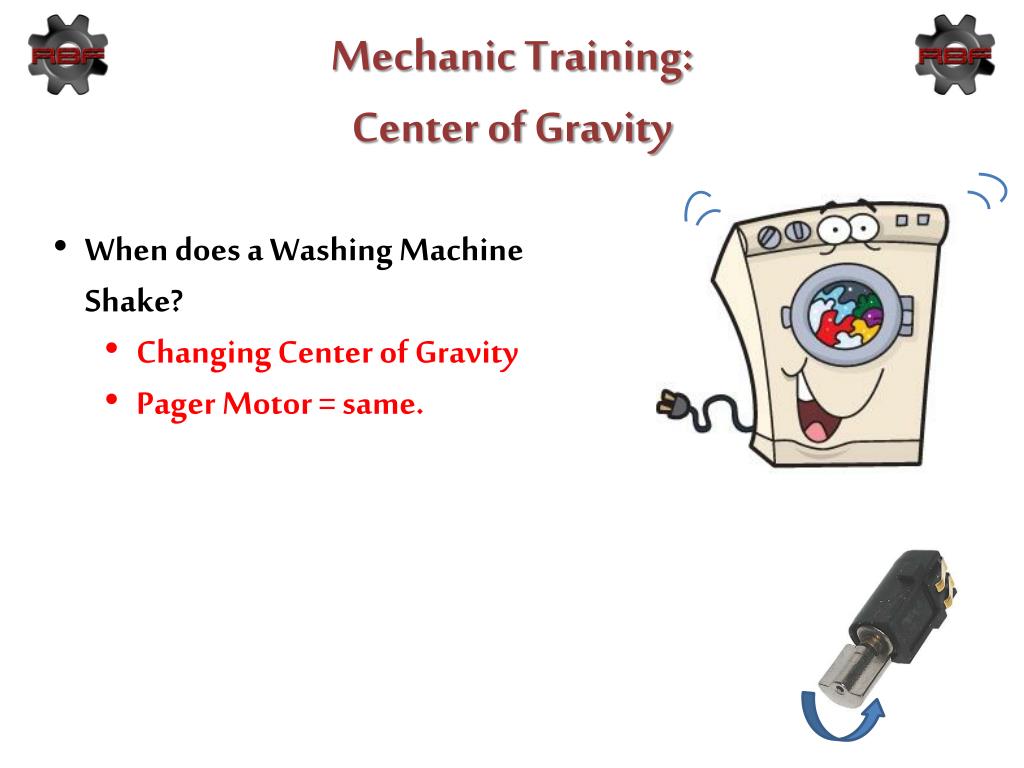

  5. Mechanic Training:Center of Gravity • When does a Washing Machine Shake? • Changing Center of Gravity • Pager Motor = same.

  6. Mechanic Training Supplies • Pager Motor • Wire • Toothbrush • Masking Tape • Paper Clips • Pipe Cleaner

  7. Battling Rules • Mechanics must be CERTIFIED • Robots must be ON • Robots must MOVE. • Robots that fall over - LOSS • Bristle touching ring edge – LOSS

  8. Trainee Battle Event Mechanic Certification Exam Build Robot Mini-Battle (small groups) Battle – Finals Paint/Decorate

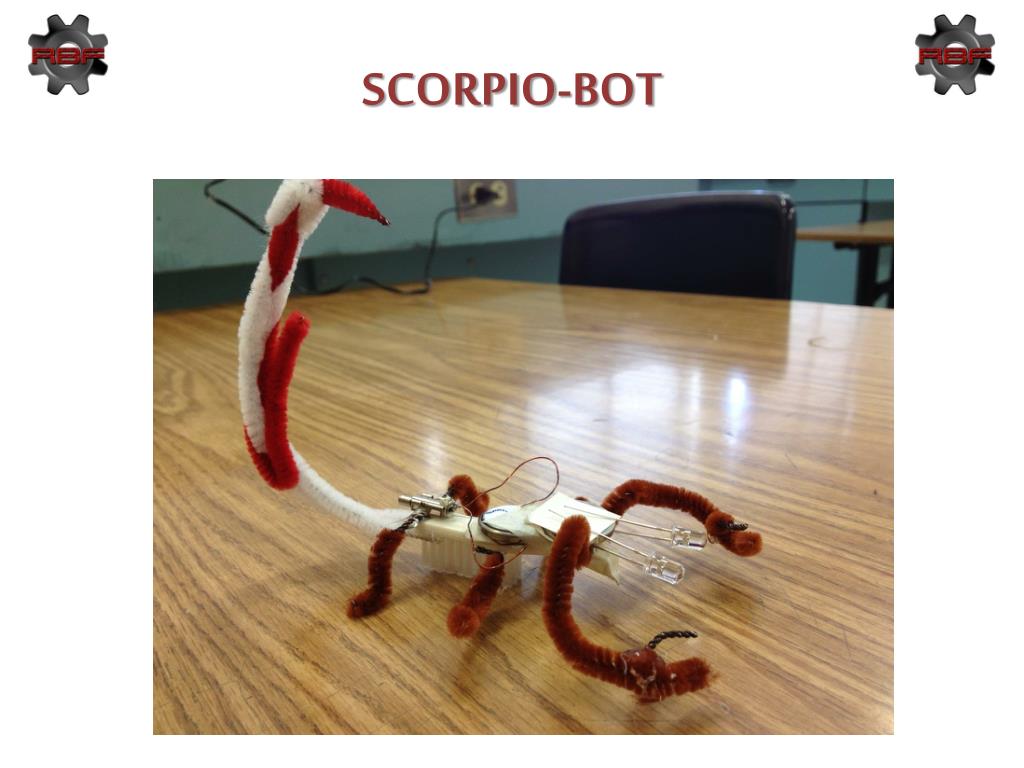

  9. SCORPIO-BOT

  10. PAINT OF SHAME
