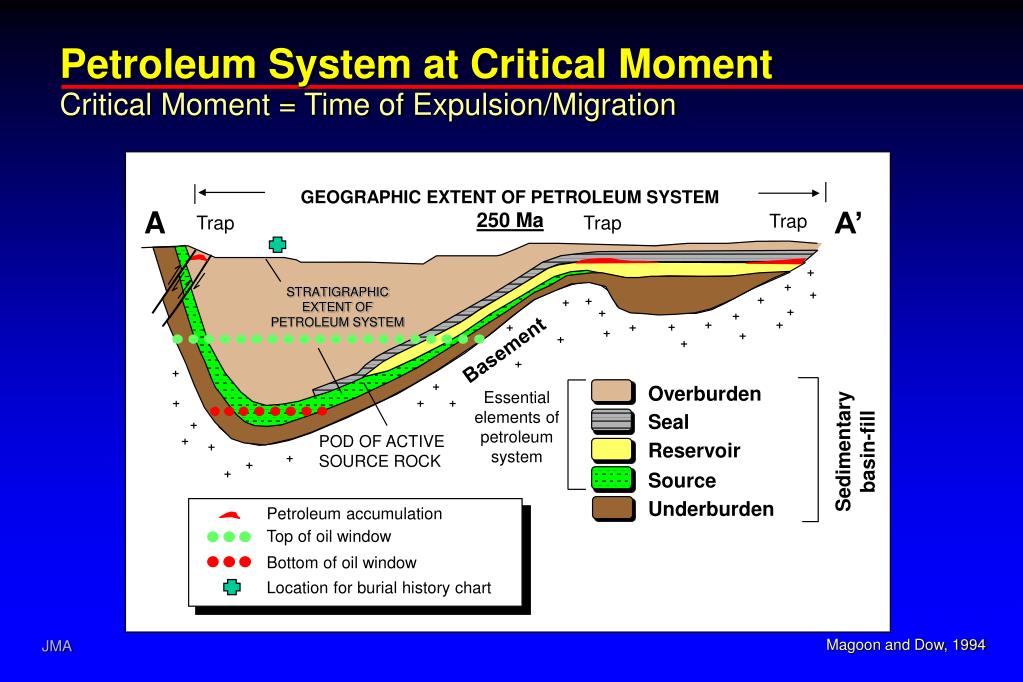

Petroleum System at Critical Moment Critical Moment = Time of Expulsion/Migration. GEOGRAPHIC EXTENT OF PETROLEUM SYSTEM 250 Ma. A. A’. Trap. Trap. Trap. STRATIGRAPHIC EXTENT OF PETROLEUM SYSTEM. Basement. Essential elements of petroleum system. Overburden. Seal.
