  1. Adder Discussion D6.2 Example 17

  2. Full Adder (Appendix I) si = ci ^ (ai ^ bi) ci+1 = ai * bi + ci * (ai ^ bi)

  3. -- Example 17a: 4-bit adder library IEEE; use IEEE.STD_LOGIC_1164.all; use IEEE.STD_LOGIC_unsigned.all; entity adder4a is port( a : in STD_LOGIC_VECTOR(3 downto 0); b : in STD_LOGIC_VECTOR(3 downto 0); cf : out STD_LOGIC; ovf : out STD_LOGIC; s : out STD_LOGIC_VECTOR(3 downto 0) ); end adder4a;

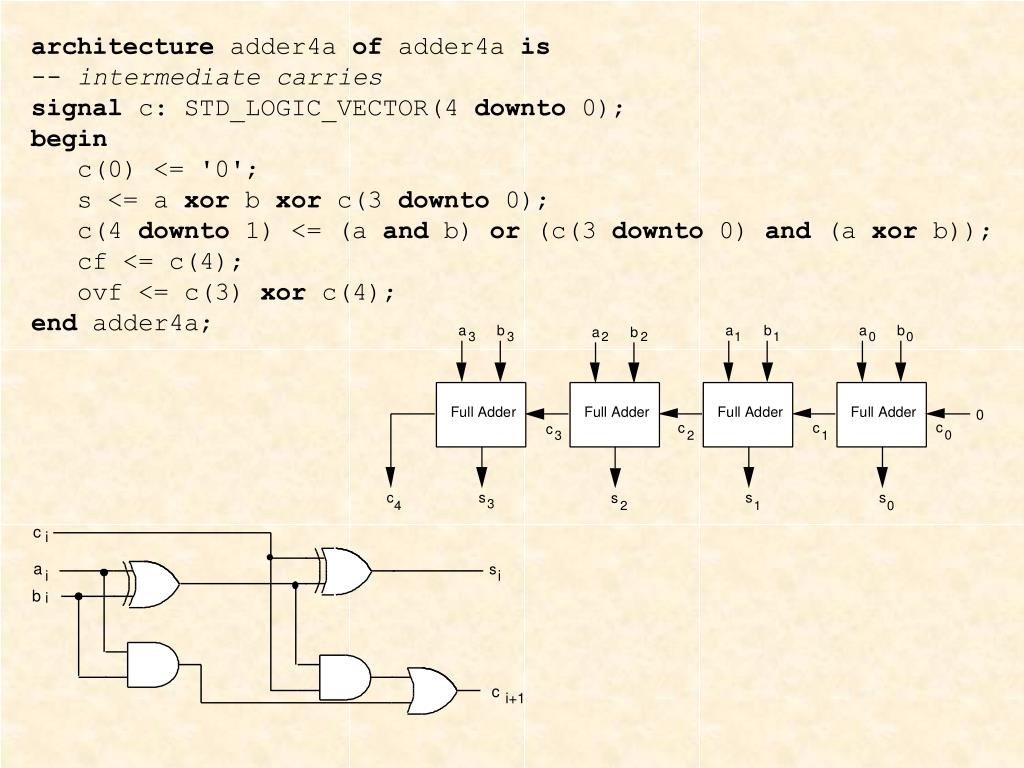

  4. architecture adder4a of adder4a is -- intermediate carries signal c: STD_LOGIC_VECTOR(4 downto 0); begin c(0) <= '0'; s <= a xor b xor c(3 downto 0); c(4 downto 1) <= (a and b) or (c(3 downto 0) and (a xor b)); cf <= c(4); ovf <= c(3) xor c(4); end adder4a;

  5. Aldec Active-HDL Simulation

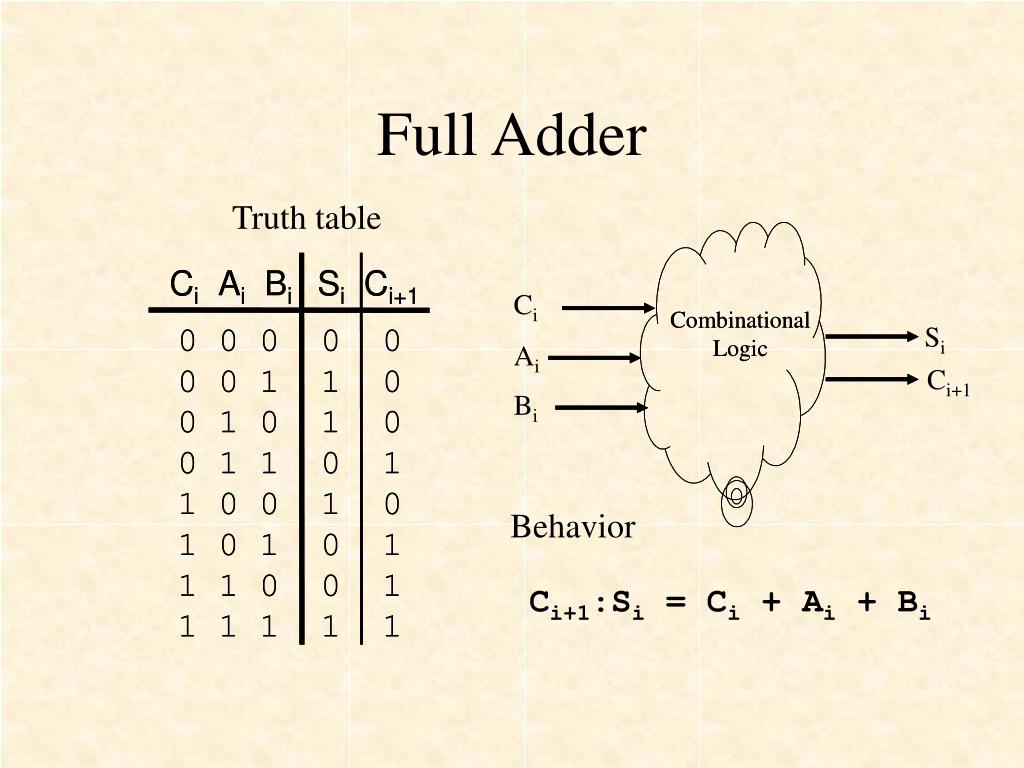

  6. Full Adder Truth table Ci Si Ai Ci+1 Bi Behavior Ci+1:Si = Ci + Ai + Bi

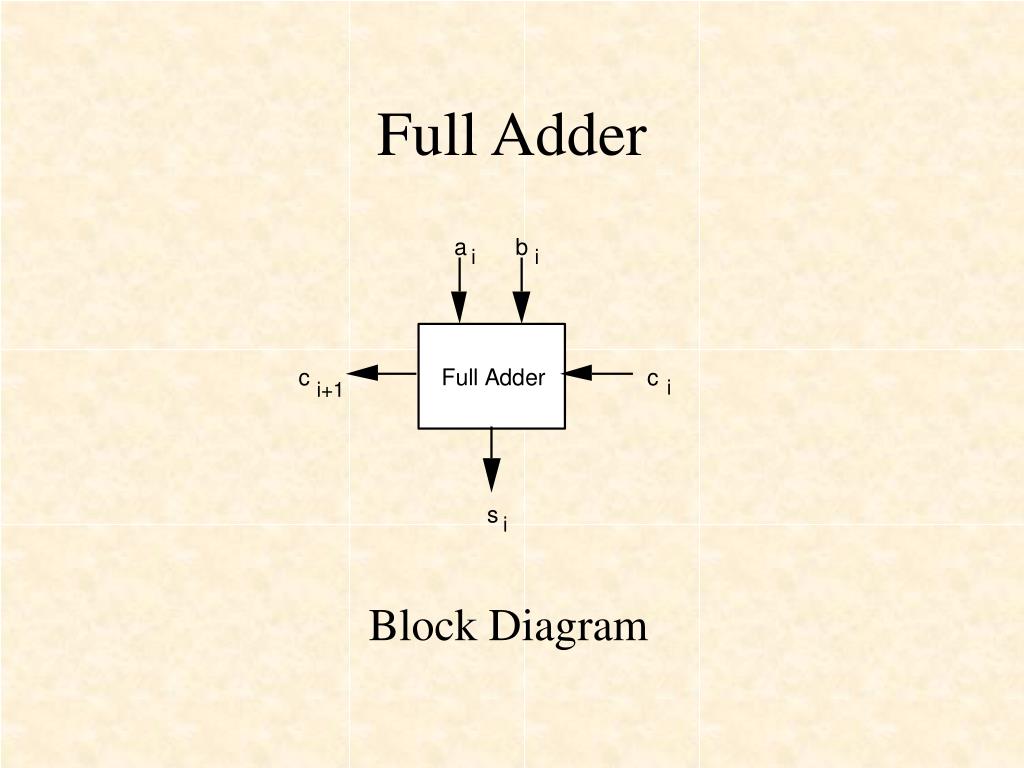

  7. Full Adder Block Diagram

  8. 4-Bit Adder c 1 1 1 0 0:a 0 1 1 0 1 0:b 0 0 1 1 1 c4:s 1 0 1 0 0

  9. -- Example 17a: 4-bit adder library IEEE; use IEEE.STD_LOGIC_1164.all; use IEEE.STD_LOGIC_unsigned.all; entity adder4b is port( a : in STD_LOGIC_VECTOR(3 downto 0); b : in STD_LOGIC_VECTOR(3 downto 0); cf : out STD_LOGIC; ovf : out STD_LOGIC; s : out STD_LOGIC_VECTOR(3 downto 0) ); end adder4b;

  10. architecture adder4b of adder4b is begin process(a,b) variable temp: STD_LOGIC_VECTOR(4 downto 0); variable sv: STD_LOGIC_VECTOR(3 downto 0); variable cfv: STD_LOGIC; begin temp := ('0' & a) + ('0' & b); sv := temp(3 downto 0); cfv := temp(4); ovf <= sv(3) xor a(3) xor b(3) xor cfv; cf <= cfv; s <= sv; end process; end adder4b; c 1 1 1 0 0:a 0 1 1 0 1 0:b 0 0 1 1 1 c4:s 1 0 1 0 0

  11. Aldec Active-HDL Simulation

  12. N-Bit Adder -- Example 17c: 4-bit adder library IEEE; use IEEE.STD_LOGIC_1164.all; use IEEE.STD_LOGIC_unsigned.all; entity adder is generic(N:positive := 8); port( a : in STD_LOGIC_VECTOR(N-1 downto 0); b : in STD_LOGIC_VECTOR(N-1 downto 0); s : out STD_LOGIC_VECTOR(N-1 downto 0) ); end adder; architecture adder of adder is begin process(a,b) begin s <= a + b; end process; end adder;

  13. Aldec Active-HDL Simulation
