  1. Modeling Condition And Performance Of Mining EquipmentTad S. Golosinski and Hui Hu Mining Engineering University of Missouri-Rolla

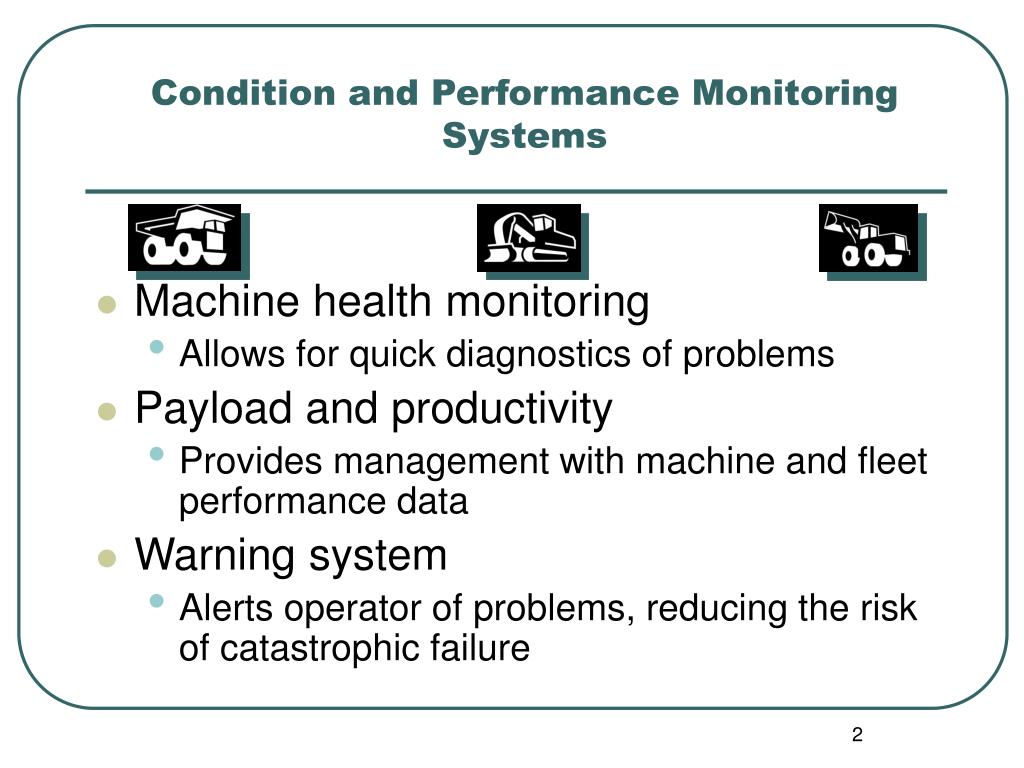

  2. Condition and Performance MonitoringSystems • Machine health monitoring • Allows for quick diagnostics of problems • Payload and productivity • Provides management with machine and fleet performance data • Warning system • Alerts operator of problems, reducing the risk of catastrophic failure

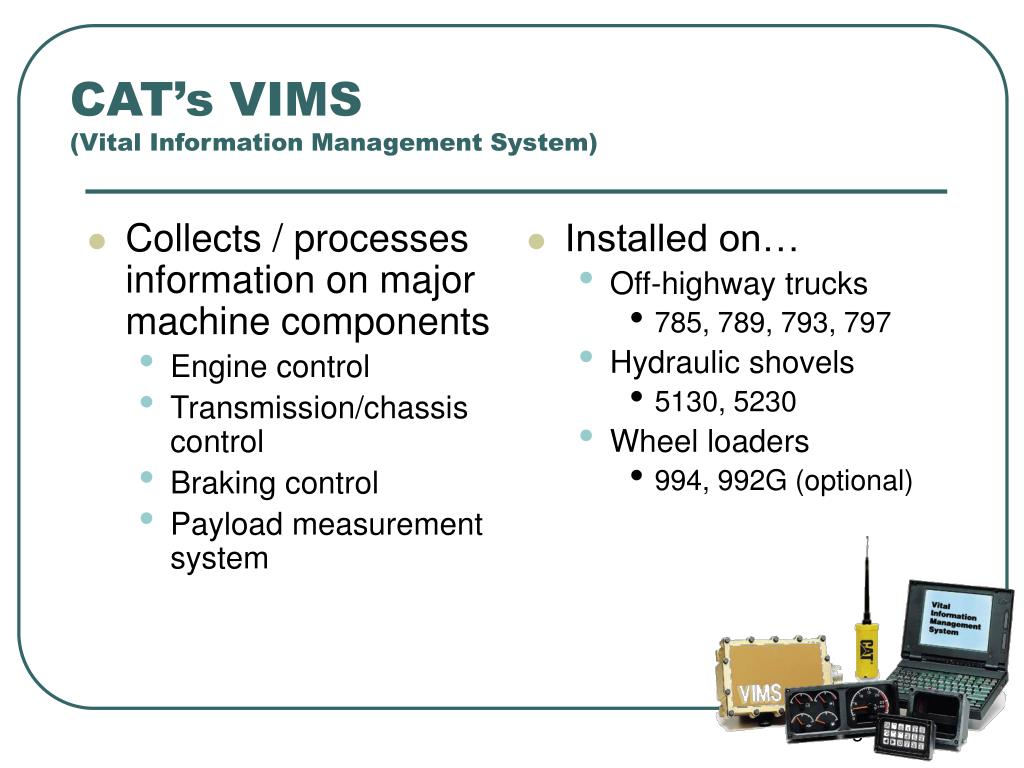

  3. Collects / processes information on major machine components Engine control Transmission/chassis control Braking control Payload measurement system Installed on… Off-highway trucks 785, 789, 793, 797 Hydraulic shovels 5130, 5230 Wheel loaders 994, 992G (optional) CAT’s VIMS (Vital Information Management System)

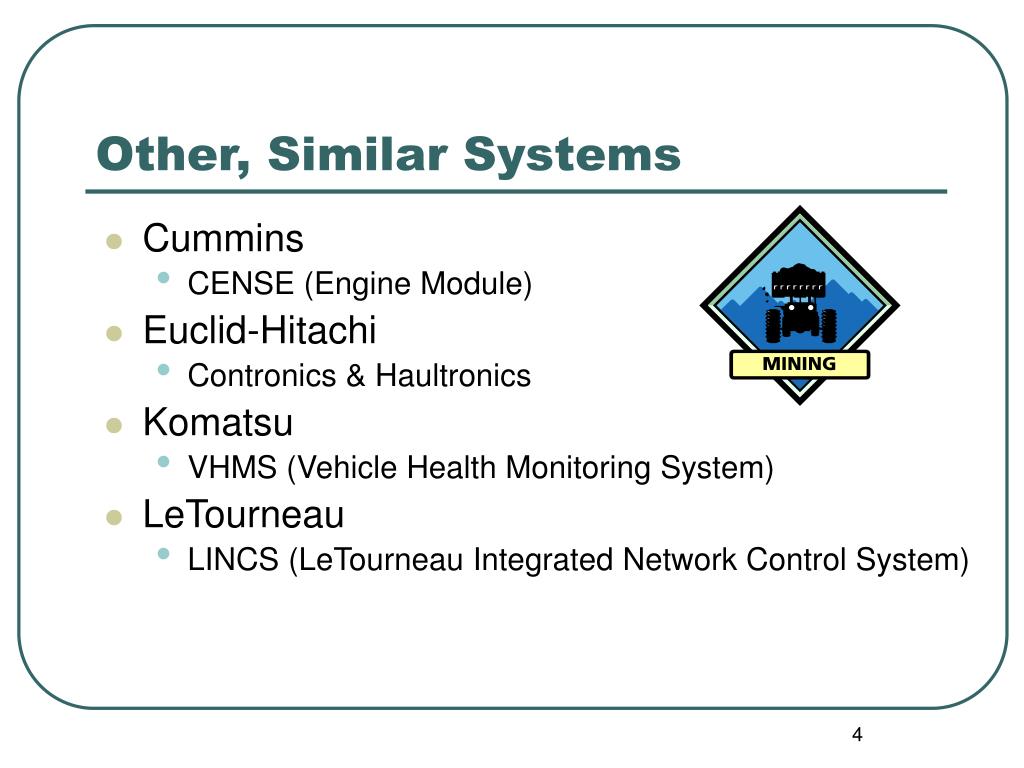

  4. Other, Similar Systems • Cummins • CENSE (Engine Module) • Euclid-Hitachi • Contronics & Haultronics • Komatsu • VHMS (Vehicle Health Monitoring System) • LeTourneau • LINCS (LeTourneau Integrated Network Control System)

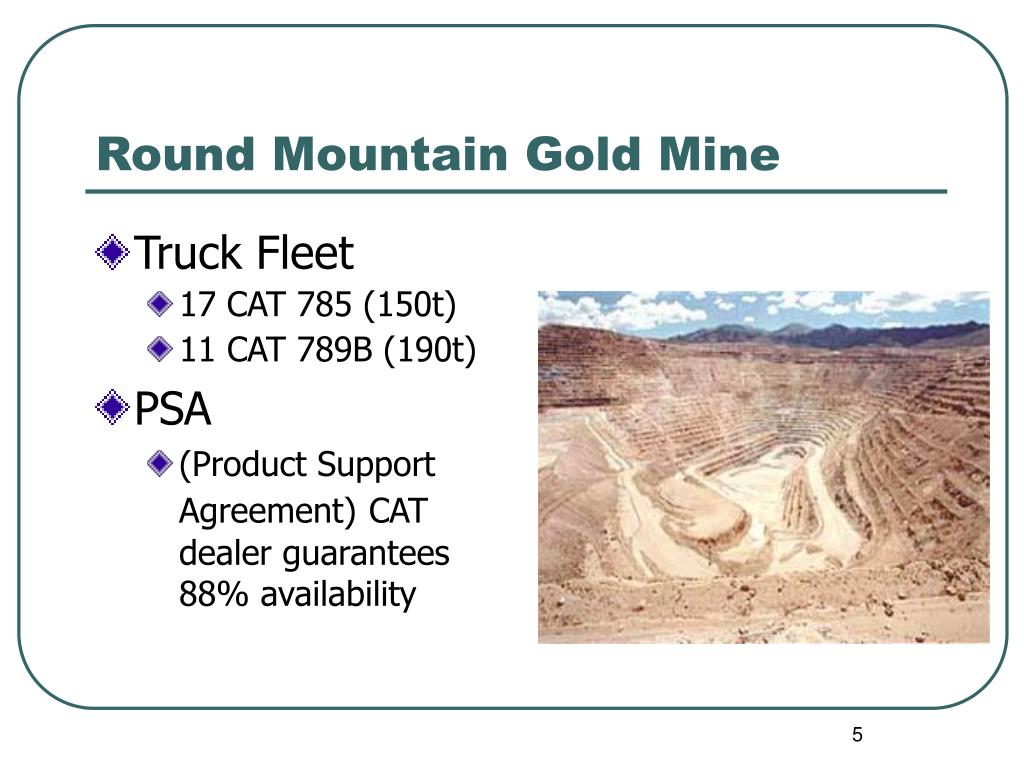

  5. Round Mountain Gold Mine • Truck Fleet • 17 CAT 785 (150t) • 11 CAT 789B (190t) • PSA • (Product Support Agreement)CAT dealer guarantees 88% availability

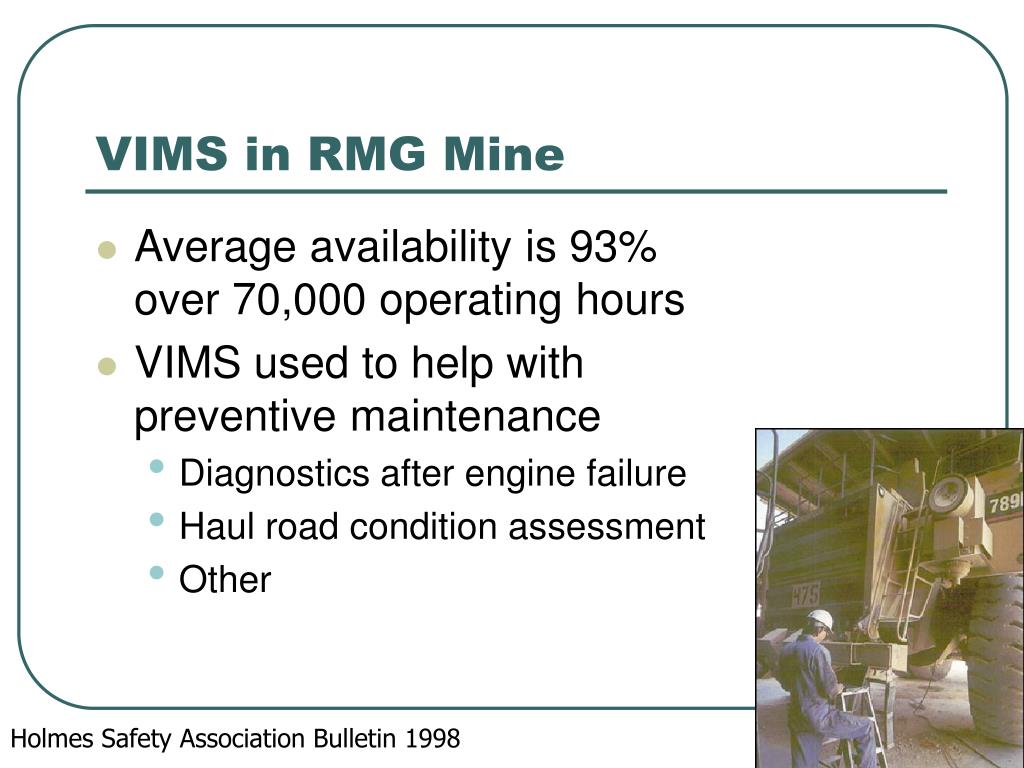

  6. VIMS in RMG Mine • Average availability is 93% over 70,000 operating hours • VIMS used to help with preventive maintenance • Diagnostics after engine failure • Haul road condition assessment • Other Holmes Safety Association Bulletin 1998

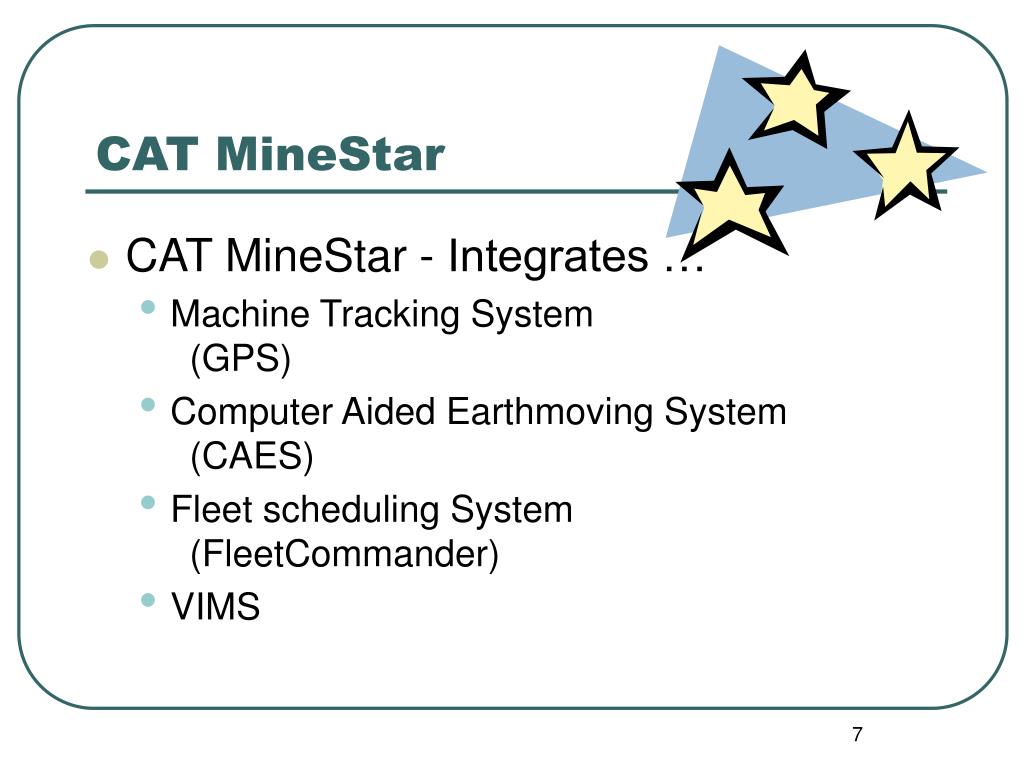

  7. CAT MineStar • CAT MineStar - Integrates … • Machine Tracking System (GPS) • Computer Aided Earthmoving System (CAES) • Fleet scheduling System (FleetCommander) • VIMS

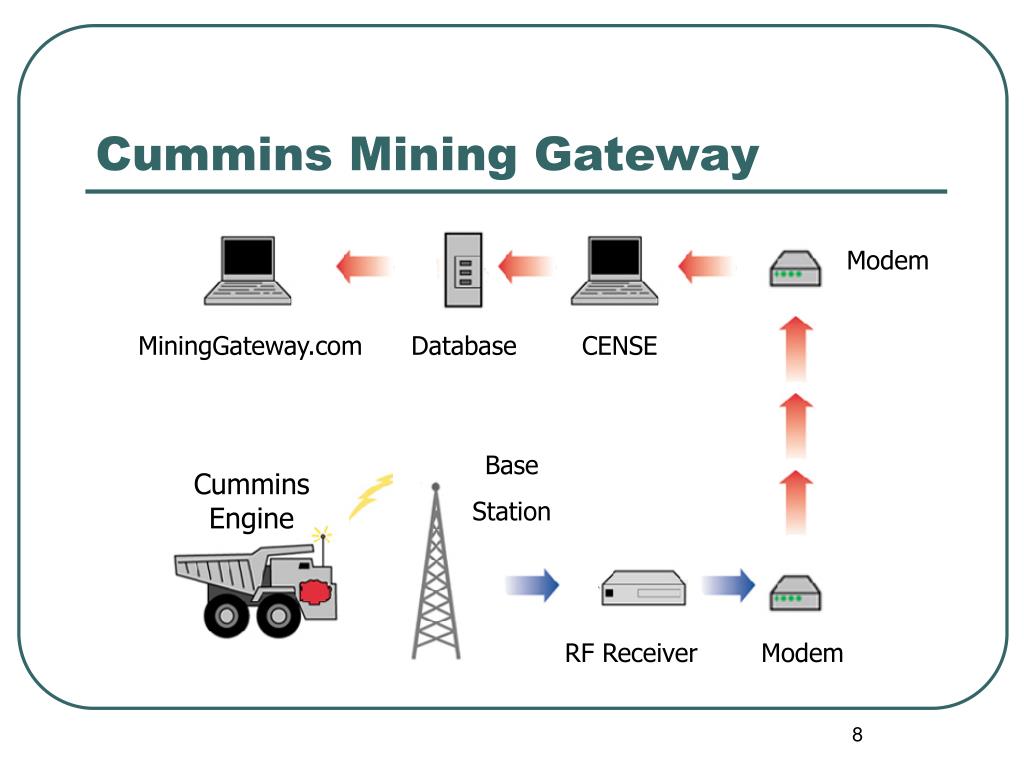

  8. Cummins Mining Gateway Modem MiningGateway.com Database CENSE Base Station Cummins Engine RF Receiver Modem

  9. VIMS Data & Information Flow VIMS Legacy Database Mine Site 1 VIMS Data Warehouse DataExtract DataCleanup DataLoad Mine Site 2 Mine Site 3 Information Extraction Information Apply Data Mining Tools

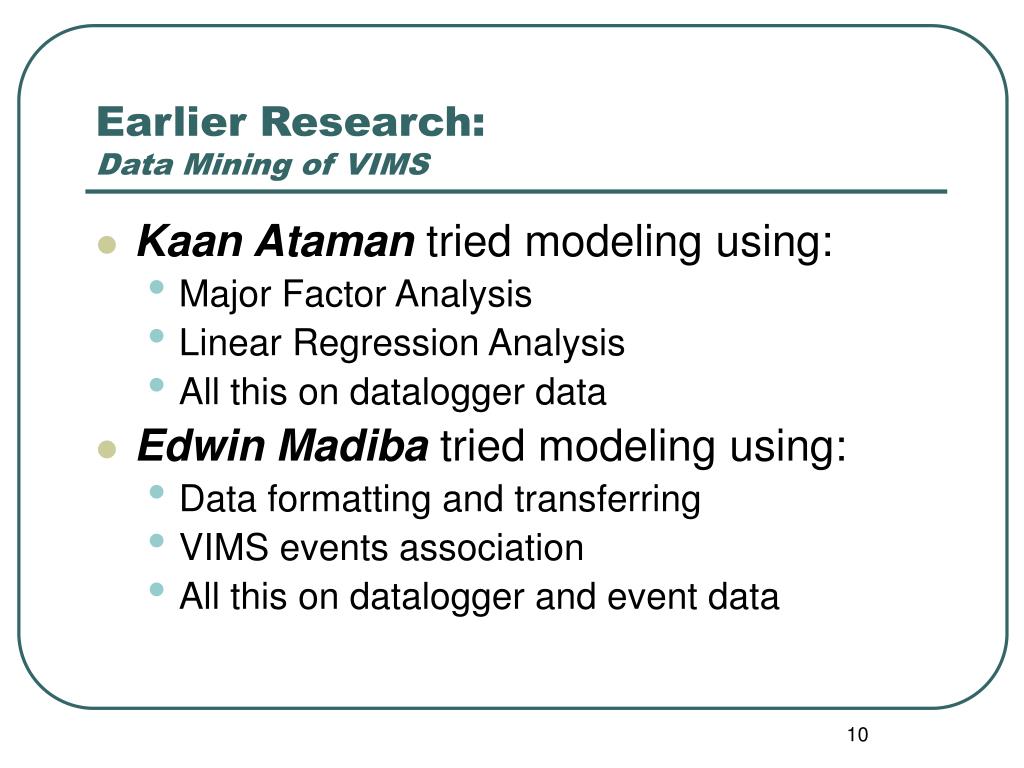

  10. Earlier Research: Data Mining of VIMS • Kaan Ataman tried modeling using: • Major Factor Analysis • Linear Regression Analysis • All this on datalogger data • Edwin Madiba tried modeling using: • Data formatting and transferring • VIMS events association • All this on datalogger and event data

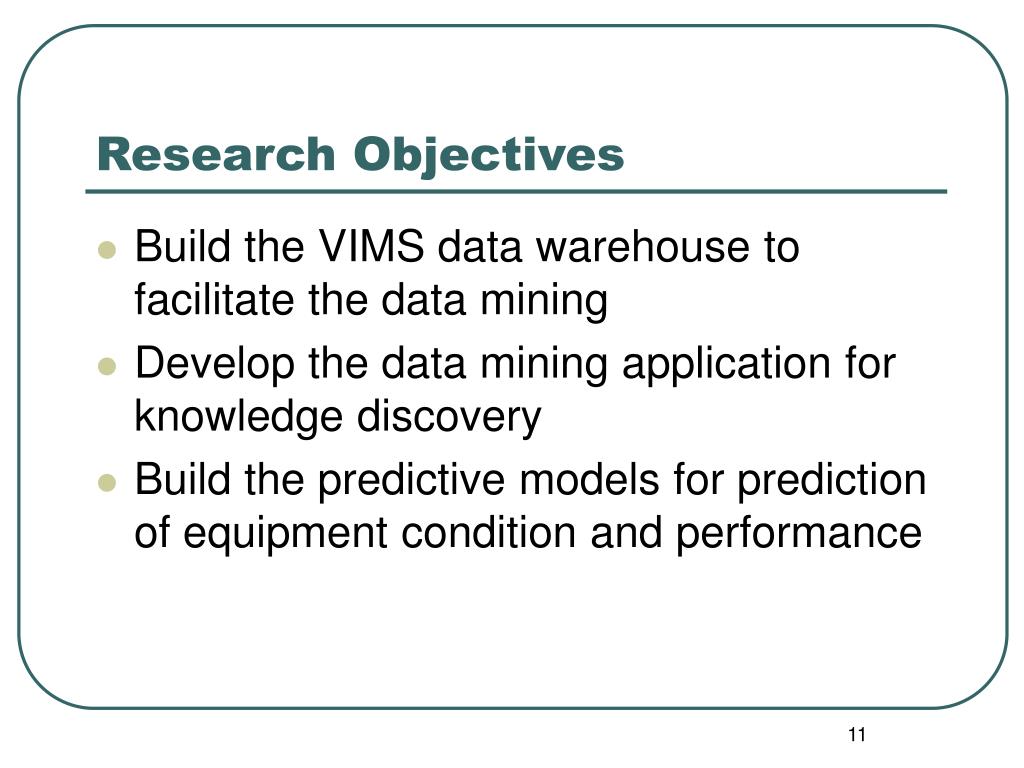

  11. Research Objectives • Build the VIMS data warehouse to facilitate the data mining • Develop the data mining application for knowledge discovery • Build the predictive models for prediction of equipment condition and performance

  12. Interactions Data Acquisition Data Preparation Result Interpretation Data Mining

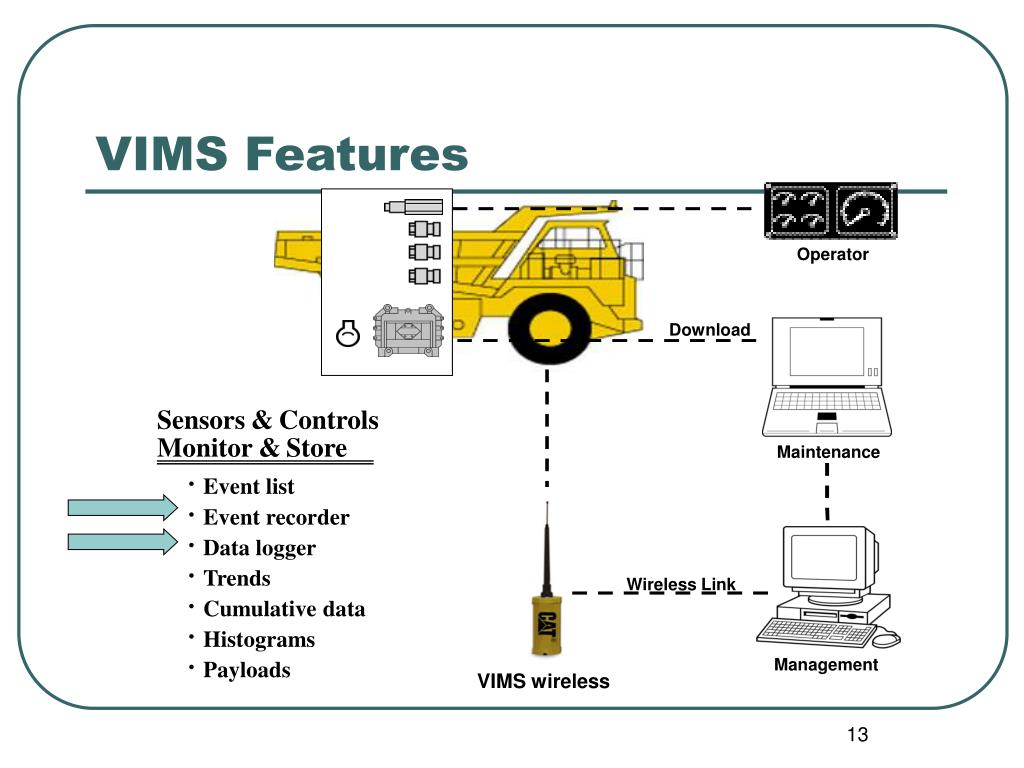

  13. Operator Download Sensors&Controls Monitor&Store Maintenance Event list • Event recorder • Data logger • Trends • Wireless Link Cumulative data • Histograms • Management Payloads • VIMS wireless VIMS Features

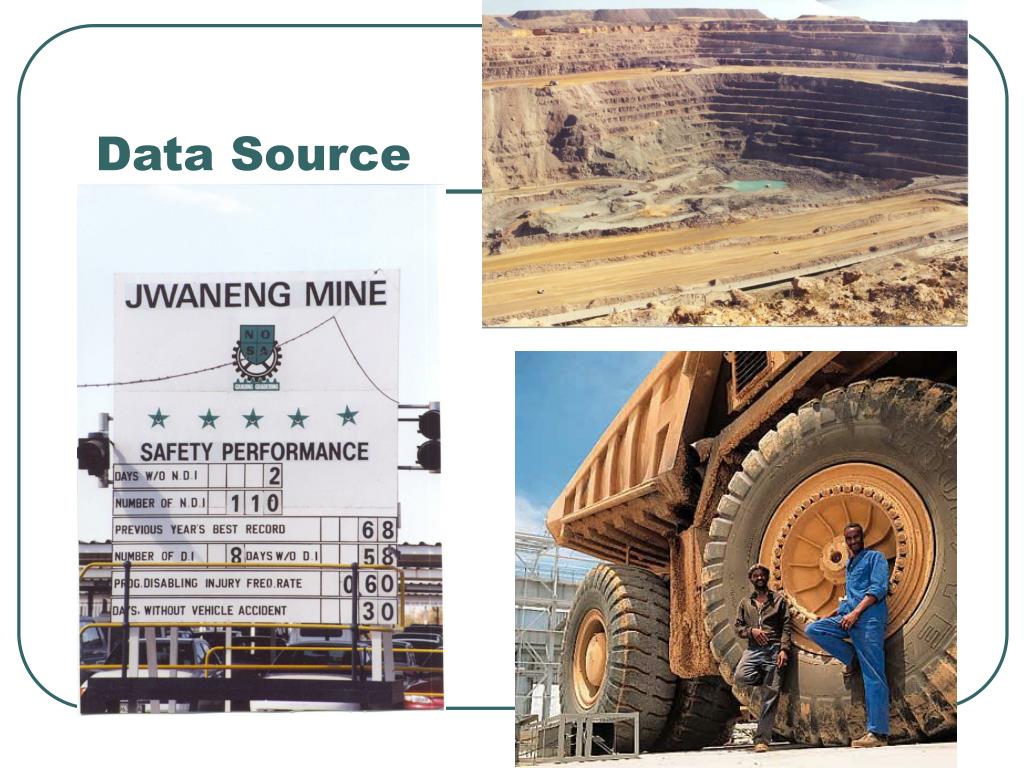

  14. Data Source

  15. Minimum Maximum Average Data Range Variance Regression Intercept Regression Slope Regression SYY Standard Deviation VIMS Statistical Data Warehouse 1-3 minute interval statistical data

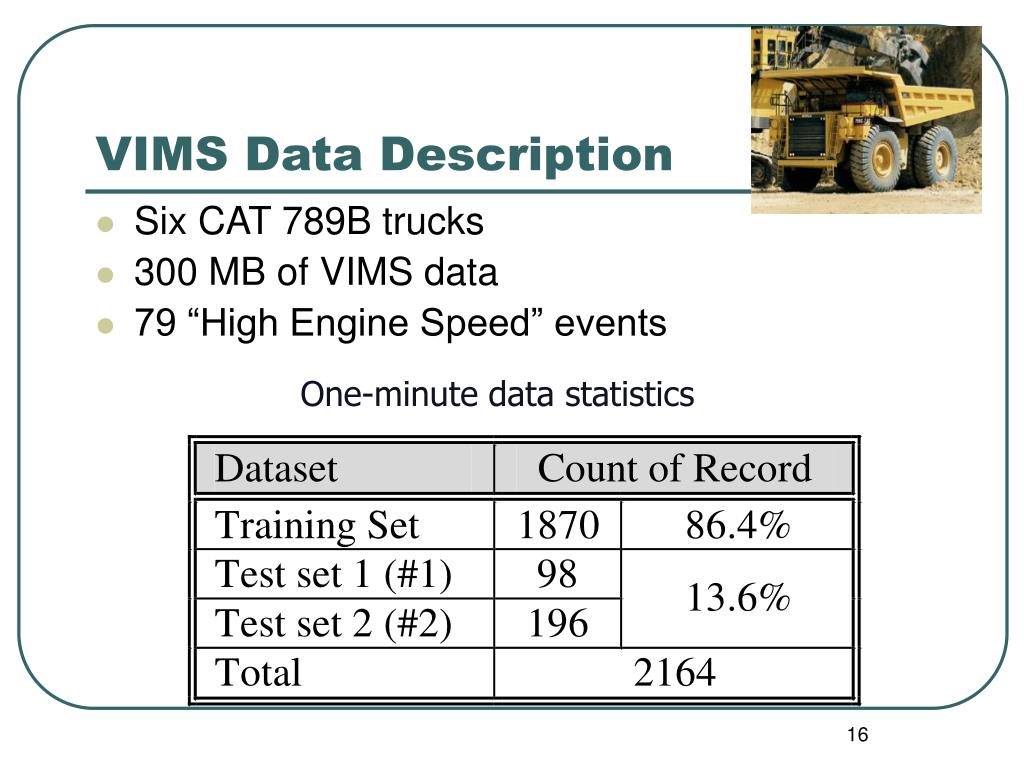

  16. VIMS Data Description • Six CAT 789B trucks • 300 MB of VIMS data • 79 “High Engine Speed” events One-minute data statistics

  17. SPRINT -A Decision Tree AlgorithmIBM Almaden Research Center • GINI index for the split point • Strictly binary tree • Built-in v-fold cross validation

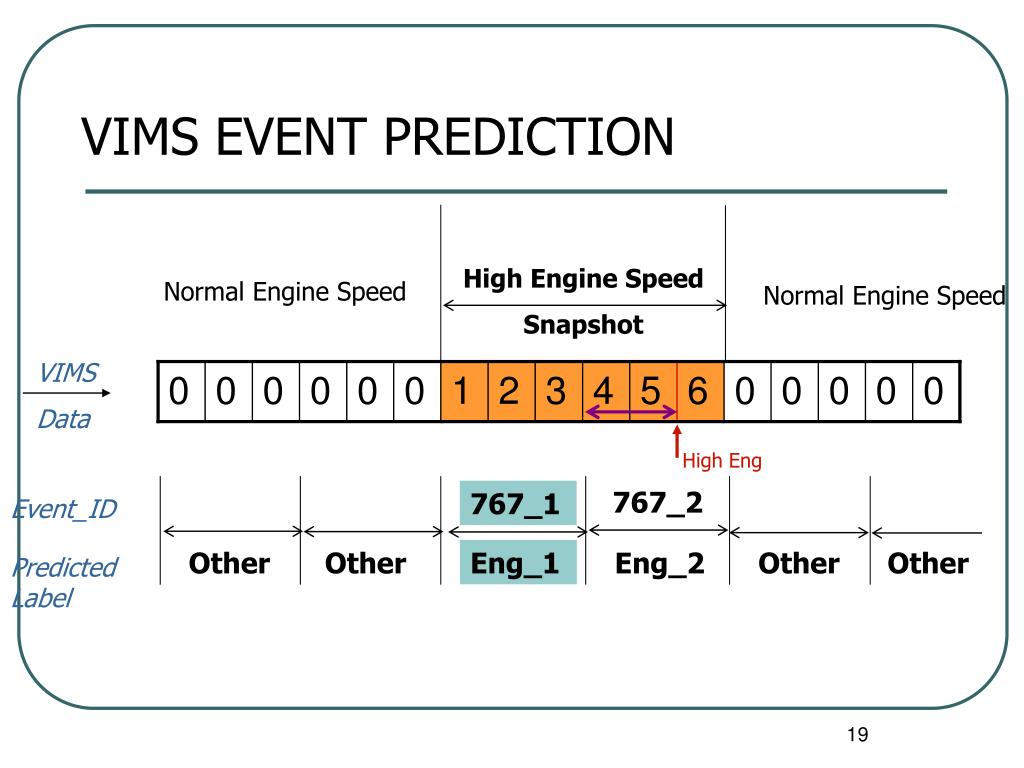

  18. High Engine Speed Snapshot Normal Engine Speed Normal Engine Speed VIMS Data 0 0 0 0 0 0 1 2 3 4 5 6 0 0 0 0 0 High Eng 767_2 767_1 Event_ID Other Other Eng_1 Eng_2 Other Other Predicted Label VIMS EVENT PREDICTION

  19. “One-Minute” decision tree

  20. Decision Tree: Training on One-Minute Data Total Errors = 120 (6.734%) Predicted Class --> | Other | Eng1 | Eng3 | Eng2 | Eng4 | Eng6 | Eng5 | ---------------------------------------------------------------------------------------------------------------- Other | 1331 | 18 | 9 | 5 | 16 | 6 | 1 | total = 1386 Eng1 | 0 | 62 | 1 | 3 | 0 | 0 | 0 | total = 66 Eng3 | 0 | 11 | 51 | 2 | 2 | 1 | 0 | total = 67 Eng2 | 0 | 12 | 8 | 38 | 7 | 0 | 0 | total = 65 Eng4 | 0 | 3 | 7 | 2 | 55 | 0 | 1 | total = 68 Eng6 | 0 | 0 | 0 | 1 | 0 | 61 | 4 | total = 66 Eng5 | 0 | 0 | 0 | 0 | 0 | 0 | 64 | total = 64 -------------------------------------------------------------------------------------------------------------- 1331 | 106 | 76 | 51 | 80 | 68 | 70 | total = 1782

  21. Decision Tree: Test#1 on One-Minute Data Total Errors = 24 (24%) Predicted Class --> | Other | Eng1 | Eng3 | Eng2 | Eng4 | Eng6 | Eng5 | ----------------------------------------------------------------------------------------------------------- Other | 59 | 3 | 0 | 2 | 3 | 0 | 1 | total = 68 Eng1 | 4 | 1 | 0 | 1 | 0 | 0 | 0 | total = 6 Eng3 | 0 | 3 | 1 | 0 | 1 | 0 | 0 | total = 5 Eng2 | 1 | 1 | 1 | 1 | 0 | 0 | 0 | total = 4 Eng4 | 1 | 1 | 0 | 1 | 1 | 0 | 0 | total = 4 Eng6 | 0 | 0 | 0 | 0 | 0 | 7 | 0 | total = 7 Eng5 | 0 | 0 | 0 | 0 | 0 | 0 | 6 | total = 6 ----------------------------------------------------------------------------------------------------------- 65 | 9 | 2 | 5 | 5 | 7 | 7 | total = 100

  22. Decision Tree: Test#2 on One-Minute Data TotalErrors = 35 (17.86%) Predicted Class --> | Other | Eng1 | Eng3 | Eng2 | Eng4 | Eng6 | Eng5 | -------------------------------------------------------------------------------------------------------- Other | 141 | 9 | 2 | 4 | 4 | 0 | 0 | total = 160 Eng1 | 2 | 2 | 1 | 1 | 0 | 0 | 0 | total = 6 Eng3 | 2 | 1 | 2 | 0 | 1 | 0 | 0 | total = 6 Eng2 | 2 | 1 | 2 | 1 | 0 | 0 | 0 | total = 6 Eng4 | 1 | 0 | 1 | 1 | 3 | 0 | 0 | total = 6 Eng6 | 0 | 0 | 0 | 0 | 0 | 6 | 0 | total = 6 Eng5 | 0 | 0 | 0 | 0 | 0 | 0 | 6 | total = 6 --------------------------------------------------------------------------------------------------------- 148 | 13 | 8 | 7 | 8 | 6 | 6 | total = 196

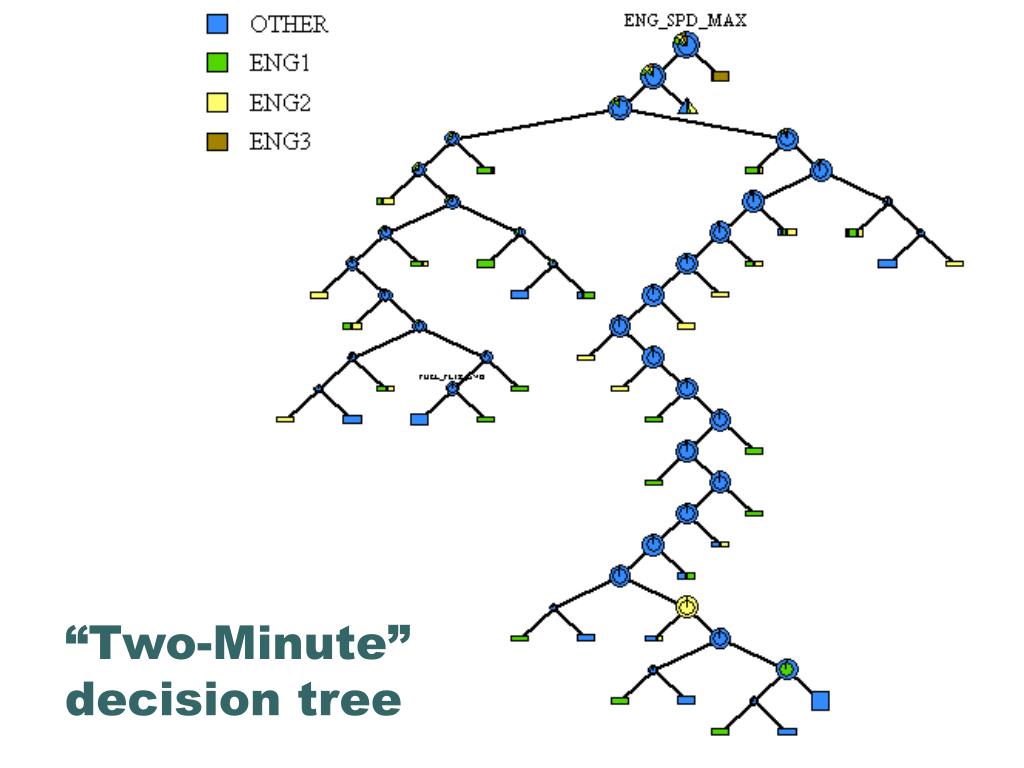

  23. “Two-Minute” decision tree

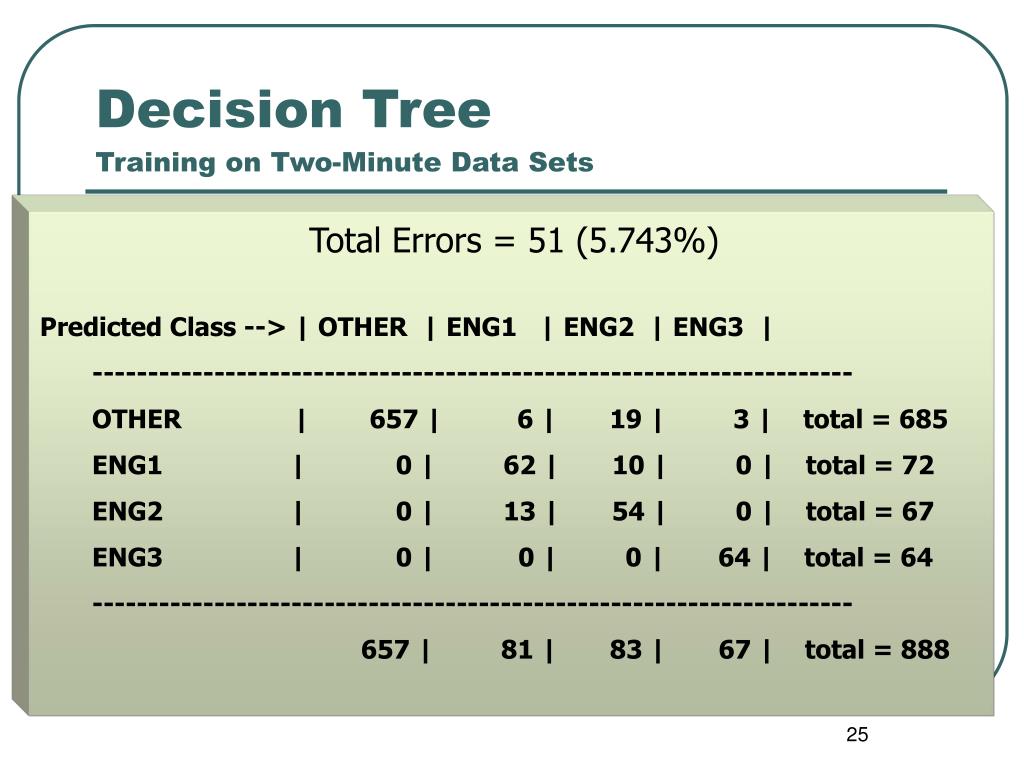

  24. Decision TreeTraining on Two-Minute Data Sets Total Errors = 51 (5.743%) Predicted Class --> | OTHER | ENG1 | ENG2 | ENG3 | --------------------------------------------------------------------- OTHER | 657 | 6 | 19 | 3 | total = 685 ENG1 | 0 | 62 | 10 | 0 | total = 72 ENG2 | 0 | 13 | 54 | 0 | total = 67 ENG3 | 0 | 0 | 0 | 64 | total = 64 --------------------------------------------------------------------- 657 | 81 | 83 | 67 | total = 888

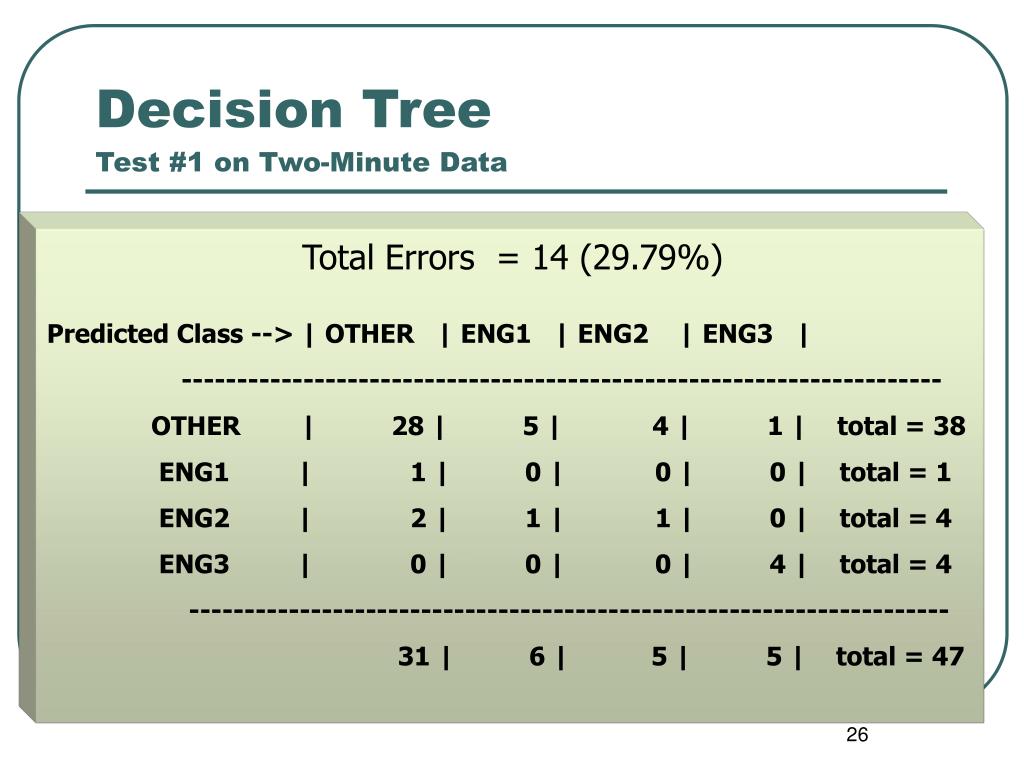

  25. Decision TreeTest #1 on Two-Minute Data Total Errors = 14 (29.79%) Predicted Class --> | OTHER | ENG1 | ENG2 | ENG3 | --------------------------------------------------------------------- OTHER | 28 | 5 | 4 | 1 | total = 38 ENG1 | 1 | 0 | 0 | 0 | total = 1 ENG2 | 2 | 1 | 1 | 0 | total = 4 ENG3 | 0 | 0 | 0 | 4 | total = 4 --------------------------------------------------------------------- 31 | 6 | 5 | 5 | total = 47

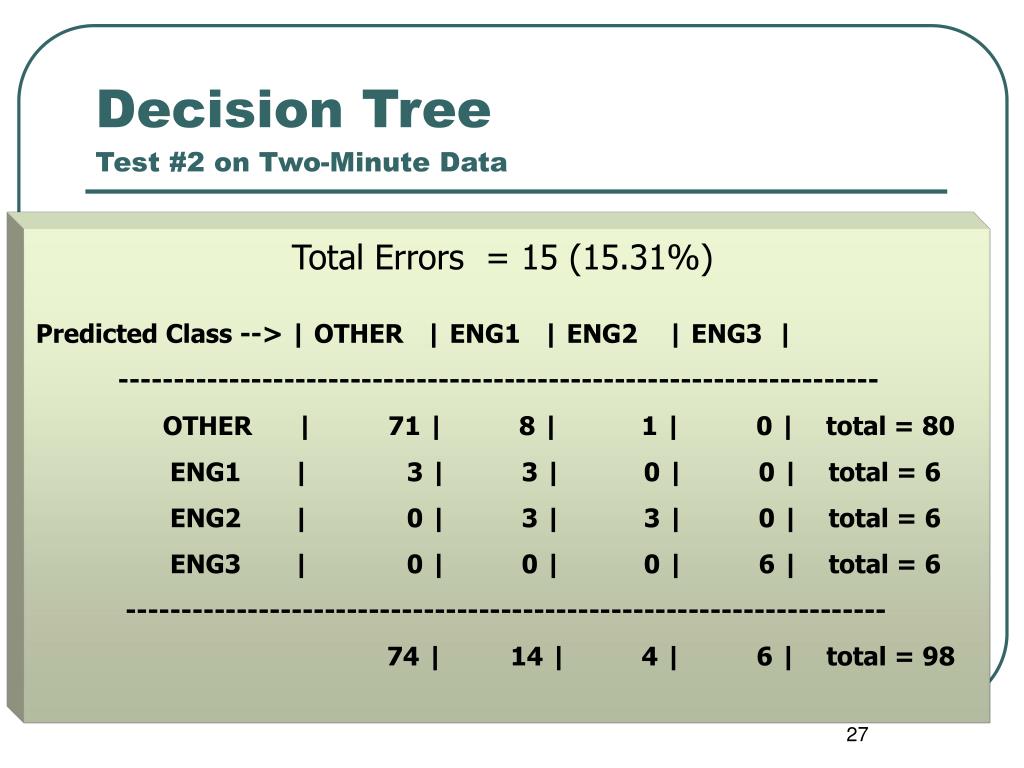

  26. Decision TreeTest #2 on Two-Minute Data Total Errors = 15 (15.31%) Predicted Class --> | OTHER | ENG1 | ENG2 | ENG3 | --------------------------------------------------------------------- OTHER | 71 | 8 | 1 | 0 | total = 80 ENG1 | 3 | 3 | 0 | 0 | total = 6 ENG2 | 0 | 3 | 3 | 0 | total = 6 ENG3 | 0 | 0 | 0 | 6 | total = 6 --------------------------------------------------------------------- 74 | 14 | 4 | 6 | total = 98

  27. “Three-Minute” decision tree

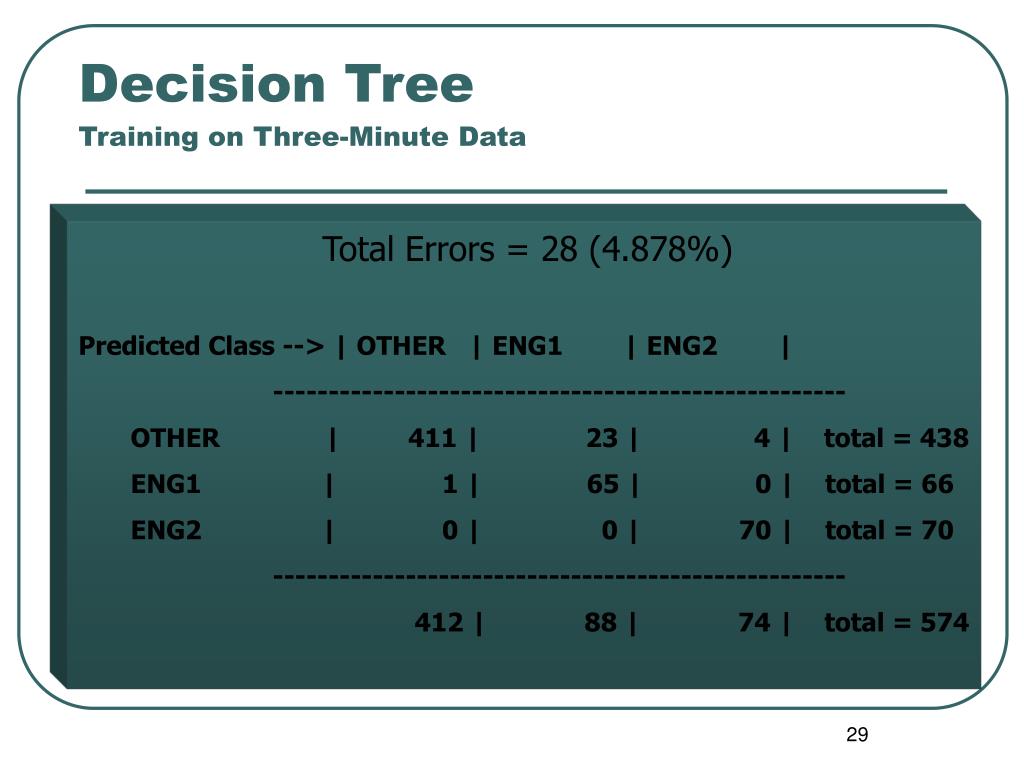

  28. Decision TreeTraining on Three-Minute Data Total Errors = 28 (4.878%) Predicted Class --> | OTHER | ENG1 | ENG2 | ---------------------------------------------------- OTHER | 411 | 23 | 4 | total = 438 ENG1 | 1 | 65 | 0 | total = 66 ENG2 | 0 | 0 | 70 | total = 70 ---------------------------------------------------- 412 | 88 | 74 | total = 574

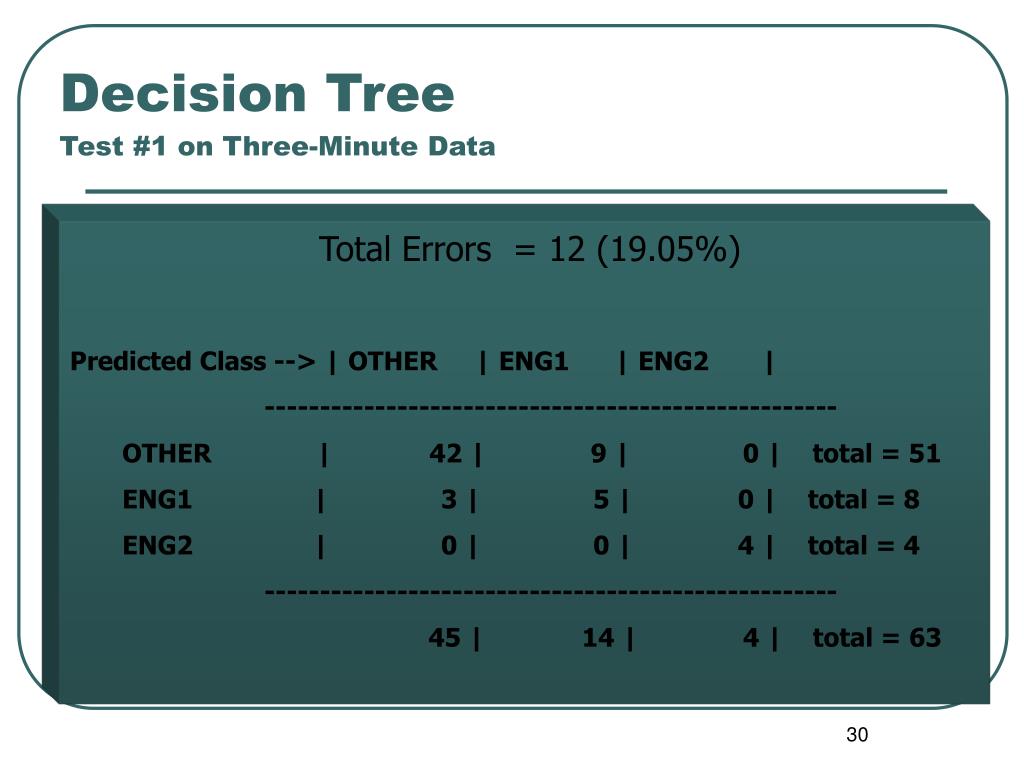

  29. Decision Tree Test #1 on Three-Minute Data Total Errors = 12 (19.05%) Predicted Class --> | OTHER | ENG1 | ENG2 | ---------------------------------------------------- OTHER | 42 | 9 | 0 | total = 51 ENG1 | 3 | 5 | 0 | total = 8 ENG2 | 0 | 0 | 4 | total = 4 ---------------------------------------------------- 45 | 14 | 4 | total = 63

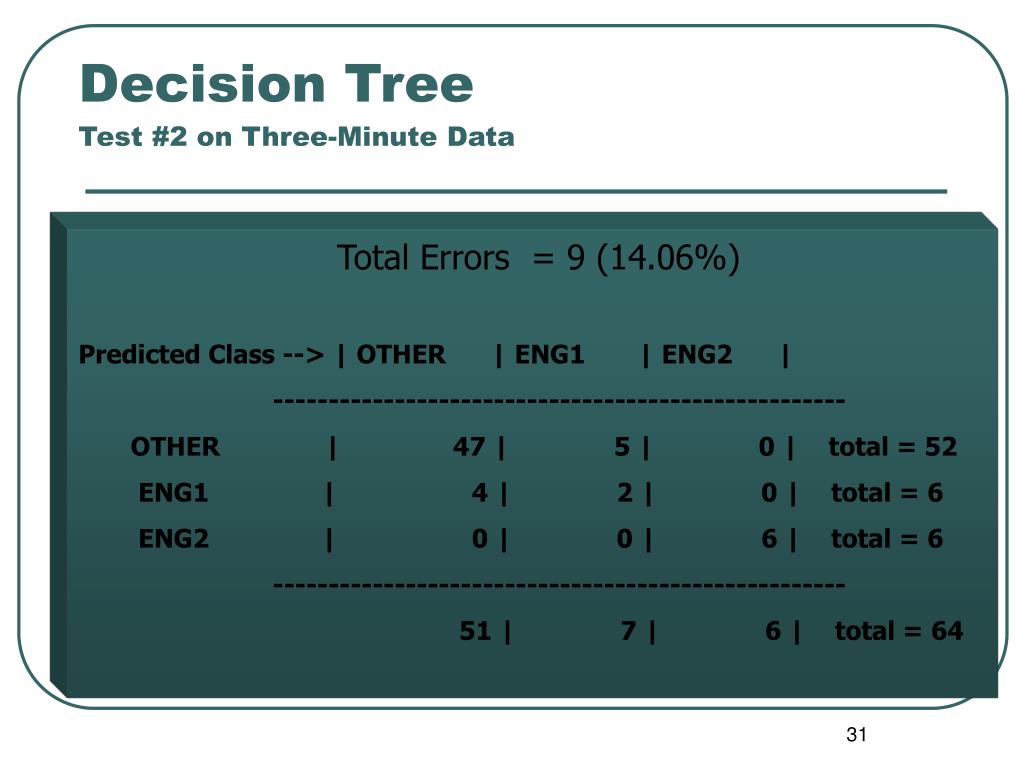

  30. Decision TreeTest #2 on Three-Minute Data Total Errors = 9 (14.06%) Predicted Class --> | OTHER | ENG1 | ENG2 | ---------------------------------------------------- OTHER | 47 | 5 | 0 | total = 52 ENG1 | 4 | 2 | 0 | total = 6 ENG2 | 0 | 0 | 6 | total = 6 ---------------------------------------------------- 51 | 7 | 6 | total = 64

  31. Decision Tree Summary • “One-Minute model” needs more complex tree structure • “One-Minute model” gives low accuracy of predictions • “Three-Minute” decision tree model gives reasonable accuracy of predictions • Based on test #1 &#2 • Other - 13% error rate • Eng1 - 50% error rate • Eng2 – 0 error rate • Other approach?

  32. Node Detail x1 Node w1 w2 x2 f(z) w3 x3 z = Siwixi Backpropagation A Neural Network Classification Algorithm Input Hidden Layer Out Some choices for F(z): f(z) = 1 / [1+e-z] (sigmoid) f(z) = (1-e-2z) / (1+e-2z) (tanh) Characteristic: Each output corresponds to a possible classification.

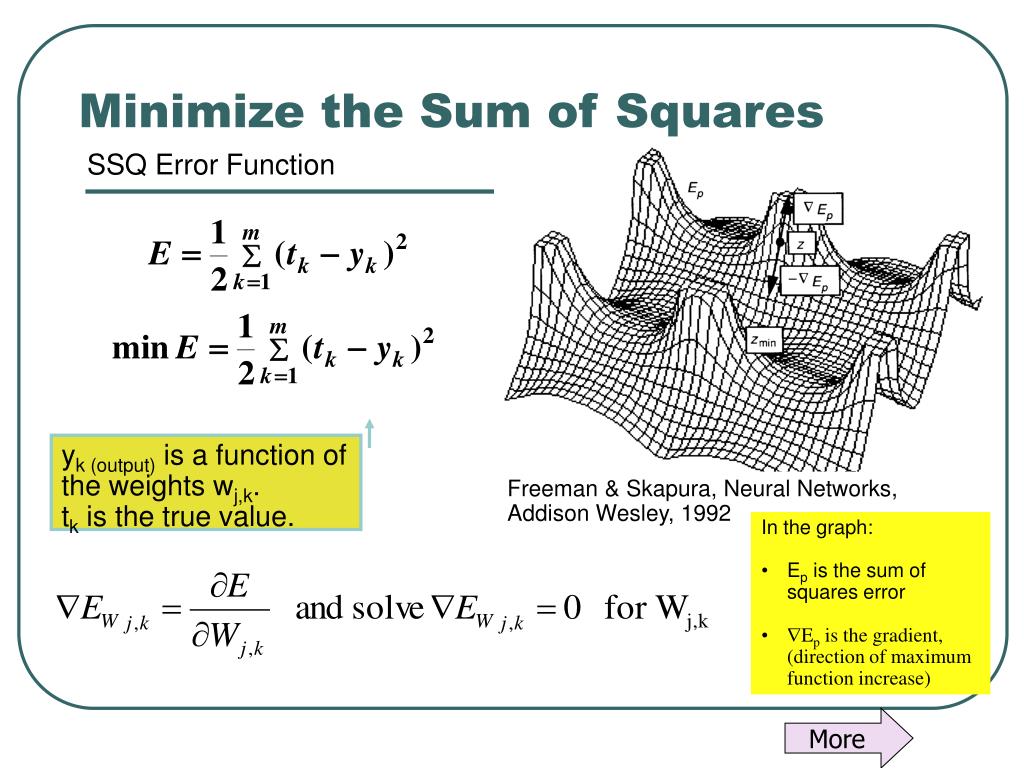

  33. Freeman & Skapura, Neural Networks, Addison Wesley, 1992 Minimize the Sum of Squares SSQ Error Function yk (output) is a function of the weights wj,k. tk is the true value. • In the graph: • Ep is the sum of squares error • Ep is the gradient, (direction of maximum function increase) More

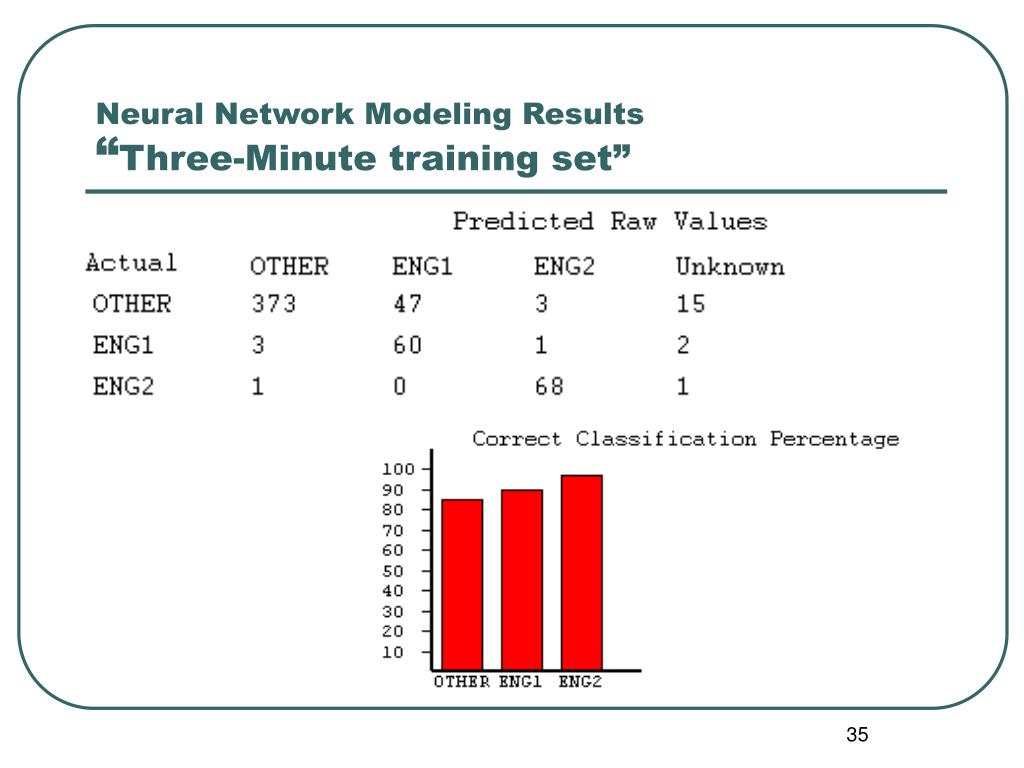

  34. Neural Network Modeling Results“Three-Minute training set”

  35. Neural Network Modeling Result“Three-Minute set”: test #1 and #2 Test #1 Test #2

  36. NN Summary • Insufficient data for one-minute and two-minute prediction models • Three-minute network shows better performance than the decision tree model: • Other - 17% error rate • Eng1 - 28% error rate • Eng2 - 20% error rate

  37. Conclusions • Predictive model can be built • Neural Network model is more accurate than the Decision Tree one • Based on all data • Overall accuracy is not sufficient for practical applications • More data is needed to train and test the models

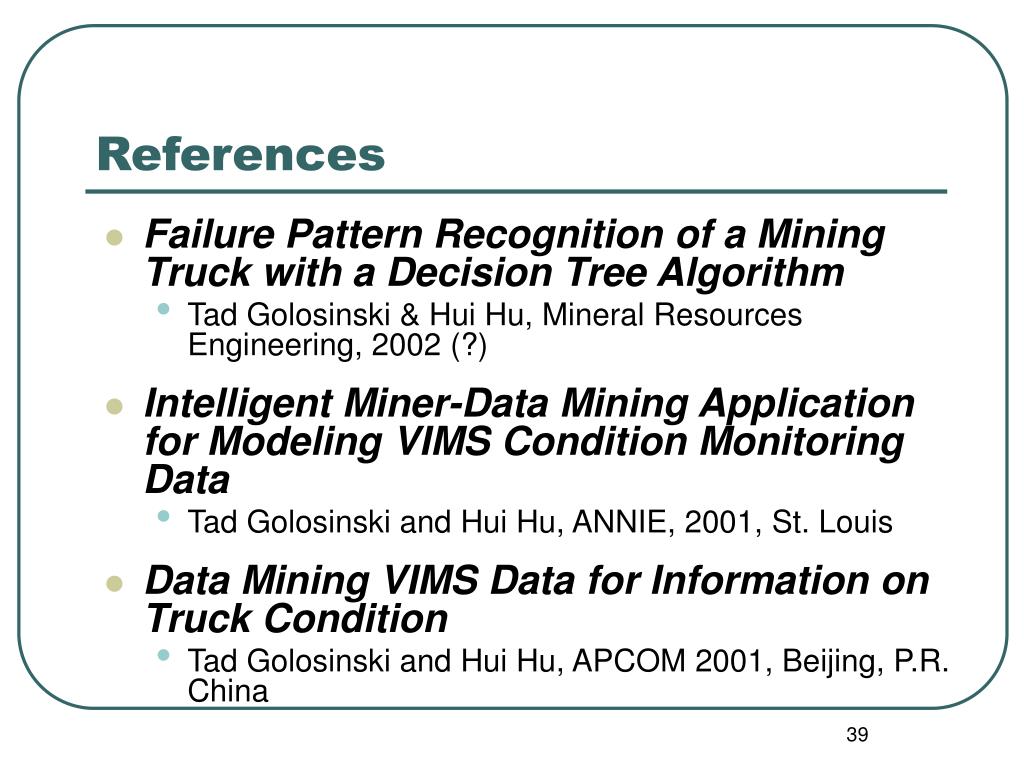

  38. References • Failure Pattern Recognition of a Mining Truck with a Decision Tree Algorithm • Tad Golosinski & Hui Hu, Mineral Resources Engineering, 2002 (?) • Intelligent Miner-Data Mining Application for Modeling VIMS Condition Monitoring Data • Tad Golosinski and Hui Hu, ANNIE, 2001, St. Louis • Data Mining VIMS Data for Information on Truck Condition • Tad Golosinski and Hui Hu, APCOM 2001, Beijing, P.R. China
