  1. Drawing with Precision Lesson 2

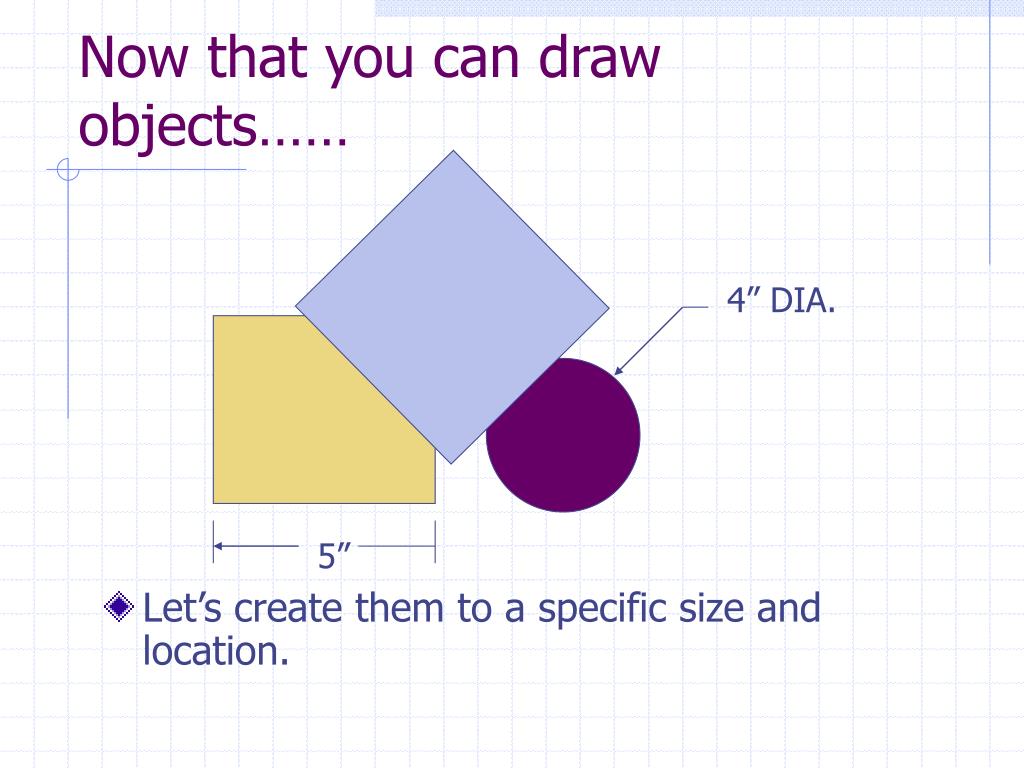

  2. Now that you can draw objects…… • Let’s create them to a specific size and location. 4” DIA. 5”

  3. The UCS icon • User Coordinate System • x,y,z

  4. How objects are graphed. Y (-,+) (+,+) (-2,3) (4,1) X 0,0 (-,-) (+,-)

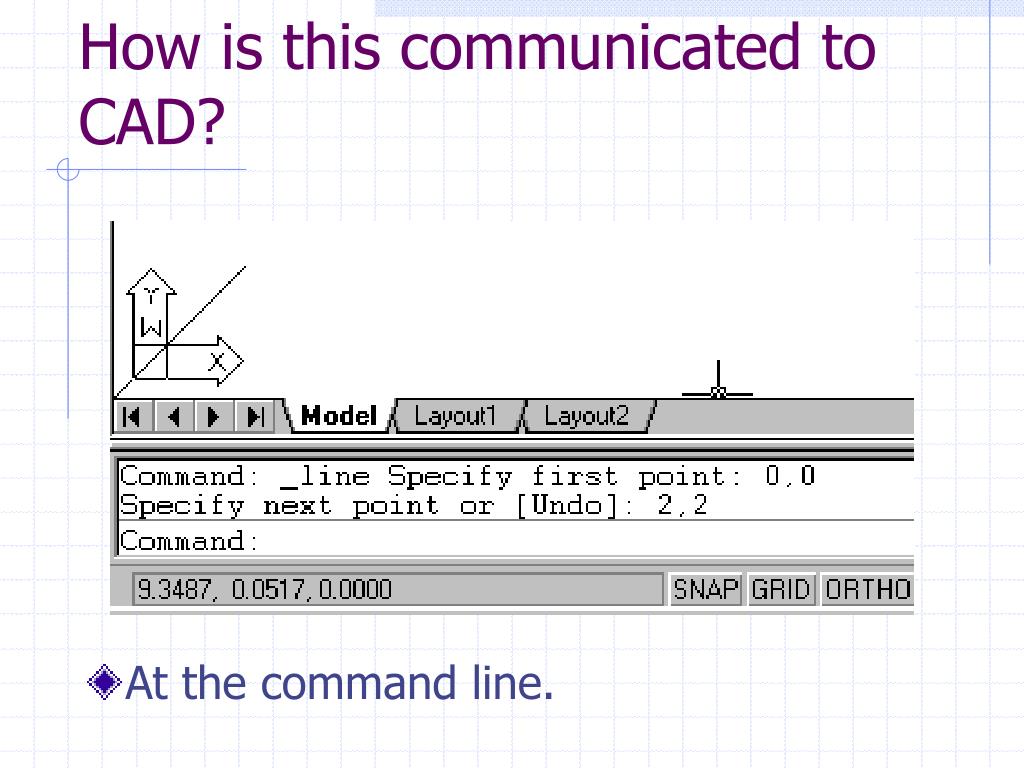

  5. How is this communicated to CAD? • At the command line.

  6. Variety is good! • Absolute Cartesian= x,y • Relative Cartesian = @x,y • Relative Polar = @x<degrees

  7. Three methods, one result. 9” line Absolute Cartesian Relative Cartesian Relative Polar Start point=2,2 End point=11,2 Start point=2,2 End point=@9,0 Start point=2,2 End point=@9<0

  8. Absolute Cartesian 1) 3,3 2) 11,3 3) 11,9 4) 3,9 1) 3,3 3 4 1 2 0,0

  9. Relative Cartesian (@) 1) 3,3 2) @8,0 3) @0,6 4) @-8,0 1) @0,-6 3 4 1 2 0,0

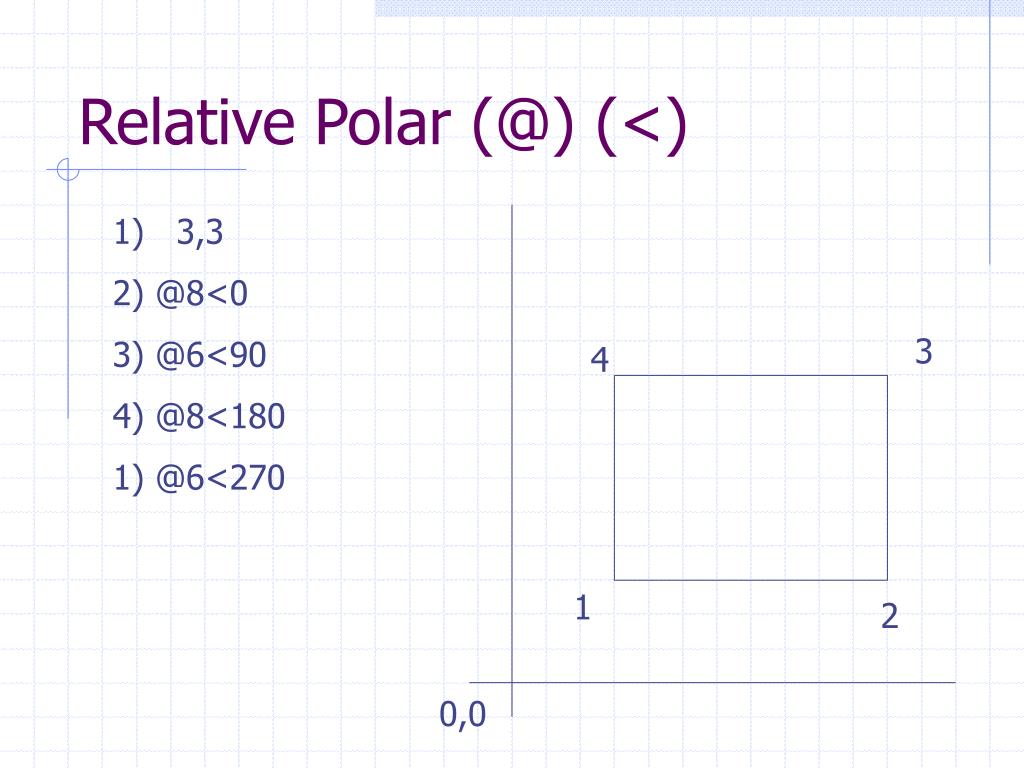

  10. Relative Polar (@) (<) 1) 3,3 2) @8<0 3) @6<90 4) @8<180 1) @6<270 3 4 1 2 0,0

  11. Aim and Fire! • Direct Entry Method. So why learn the other methods?

  12. Apply what you learned.
